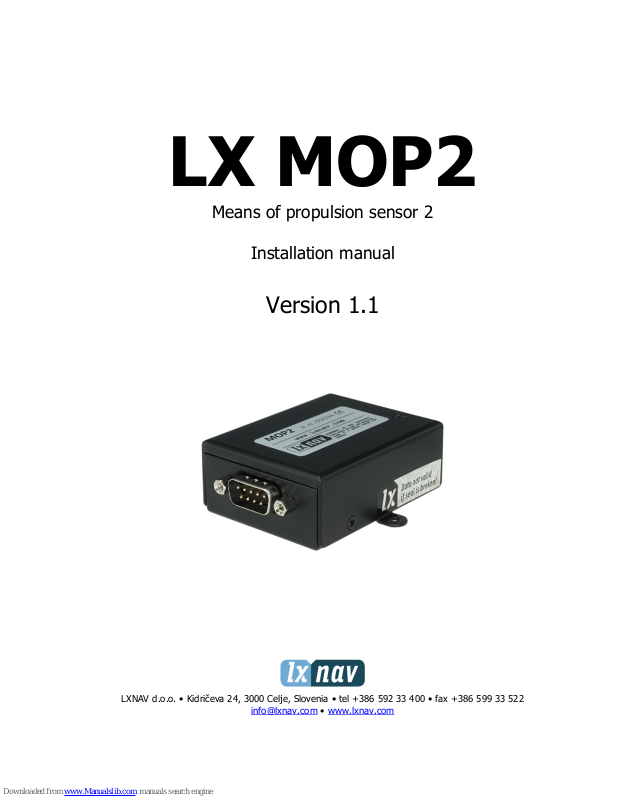

Page 1
LX MOP2
Means of propulsion sensor 2
Installation manual
Version 1.1
LXNAV d.o.o. • Kidričeva 24, 3000 Celje, Slovenia • tel +386 592 33 400 • fax +386 599 33 522
info@lxnav.com • www.lxnav.com
Page 2
LX MOP2 March 2018
Page 2 of 10
1 Important Notices 3
1.1 Limited Warranty 3
2 Packing list 4
3 Fitting MOP2 5
4 Functional test 7
5 Analysing MOP2 record 8
6 Technical 9
7 Revision history 10
1
Page 3
LX MOP2 March 2018
Page 3 of 10
1 Important Notices
Information in this document is subject to change without notice. LXNAV reserves the right
to change or improve their products and to make changes in the content of this material
without obligation to notify any person or organisation of such changes or improvements
1.1 Limited Warranty
This LX MOP2 product is warranted to be free from defects in materials or workmanship for
two years from the date of purchase. Within this period, LXNAV will, at its sole option, repair
or replace any components that fail in normal use. Such repairs or replacement will be made
at no charge to the customer for parts and labour, provided that the customer shall be
responsible for any transportation cost. This warranty does not cover failures due to abuse,
misuse, accident, or unauthorised alterations or repairs.
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES EXPRESSED OR IMPLIED OR STATUTORY, INCLUDING ANY
LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE.
IN NO EVENT SHALL LXNAV BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR
INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Some states do
not allow the exclusion of incidental or consequential damages, so the above limitations may
not apply to you. LXNAV retains the exclusive right to repair or replace the unit or software,
or to offer a full refund of the purchase price, at its sole discretion. SUCH REMEDY SHALL
BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
To obtain warranty service, contact your local LXNAV dealer or contact LXNAV directly.
March, 2018 © 2018 LXNAV. All rights reserved.
Page 4
LX MOP2 March 2018
Page 4 of 10
2 Packing list
• MOP2 BOX with attached Hall current sensor
• 3.5m RS485 extension cable (Male/Female)
• Installation manual
Page 5
LX MOP2 March 2018
Page 5 of 10
3 Fitting MOP2
Figure 1: MOP2 dimensions
Figure 2: Hall current sensor dimensions
• Install MOP2 and Hall current sensor close to the positive lead of battery of the E-motor (refer
to Figure 1 and Figure 2 for detailed dimensions)
• Unscrew the screw holding the hall current sensor frame closed and then open it
• Place the positive lead cable from the battery through the open hall current sensor (refer to
Figure 3 for positive current flow), close the frame and screw it back
• If the cable going through the sensor is not fixed entirely (too small diameter) we recommend
padding the section of the cable that goes through the sensor before final fixing. If the cable
is not fixed, there will be errors in measurements!
Page 6
LX MOP2 March 2018
Page 6 of 10
Figure 3: Hall sensor - positive current flow direction
Page 7
LX MOP2 March 2018
Page 7 of 10
4 Functional test
Functional test can be performed on the LXxxxx system by 2 procedures.
MOP2 Setup - option:
1. Switch on LXxxxx device and a FCU unit
2. On the LXxxxx device, go to Setup->Password menu
3. Insert password 09978
4. Add power on FES
5. Check Current on LX9000 and FCU unit (it should be equal).
ENGINE NOISE LEVEL option:
On the LXxxxx go to SETUP->HARDWARE->ENGINE.
1. Add power on FES
2. Check MOP level percentage bar (it should be equal to FCU unit; 100% = 100 Amp
current).
Page 8
LX MOP2 March 2018
Page 8 of 10
5 Analysing MOP2 record
Mop record is stored in IGC file as additional column, called MOP. Mop values are normally
moving between 0 and 999.
Page 9
LX MOP2 March 2018
Page 9 of 10
6 Technical
Property
Value
Note
MOP2 Current consumption
70Ma
At 12V
MOP2 Input voltage range
9-18V
Hall current range
+/- 300A
Page 10
LX MOP2 March 2018
Page 10 of 10
7 Revision history
March 2018
Complete revision of this manual
