LX90xx
GPS-Navigation System with variometer
(Including LX9000 and LX9070)
Version 4.0
LXNAV d.o.o. • Kidričeva 24a, 3000 Celje, Slovenia • tel +386 592 33 400 fax +386 599 33 522
info@lxnav.com
•
www.lxnav.com
LX90xx system Version 4.0 February 2014
Page 3 of 151
1 Important Notices 8
1.1 Limited Warranty 8
2 Basics 9
2.1 The LX9xx series at a glance 9
2.1.1 LX9000 Display Unit Features 9
2.1.2 LX9070 Display Unit Features 10
2.1.3 V9 Vario Unit Features 11
2.1.4 V80 Vario Unit Features 11
2.1.5 Interfaces 12
2.1.6 Internal Options 12
2.1.7 External Options 13
2.1.8 Simulator 14
2.1.9 Technical Data 14
2.1.9.1 LX9000 System 14
2.1.9.2 LX9070 System 14
2.1.10 Weight 14
3 Packing Lists 15
3.1 LX9000 (LX9070) with Flarm Option 15
3.2 LX9000 (LX9070) 15
3.3 LX9000D (LX9070D) 15
4 Installation 16
4.1 Installing the main display unit 16
4.2 Panel cut-out for V9/V5 vario unit 17
4.3 Panel cut-out for V80 vario unit 17

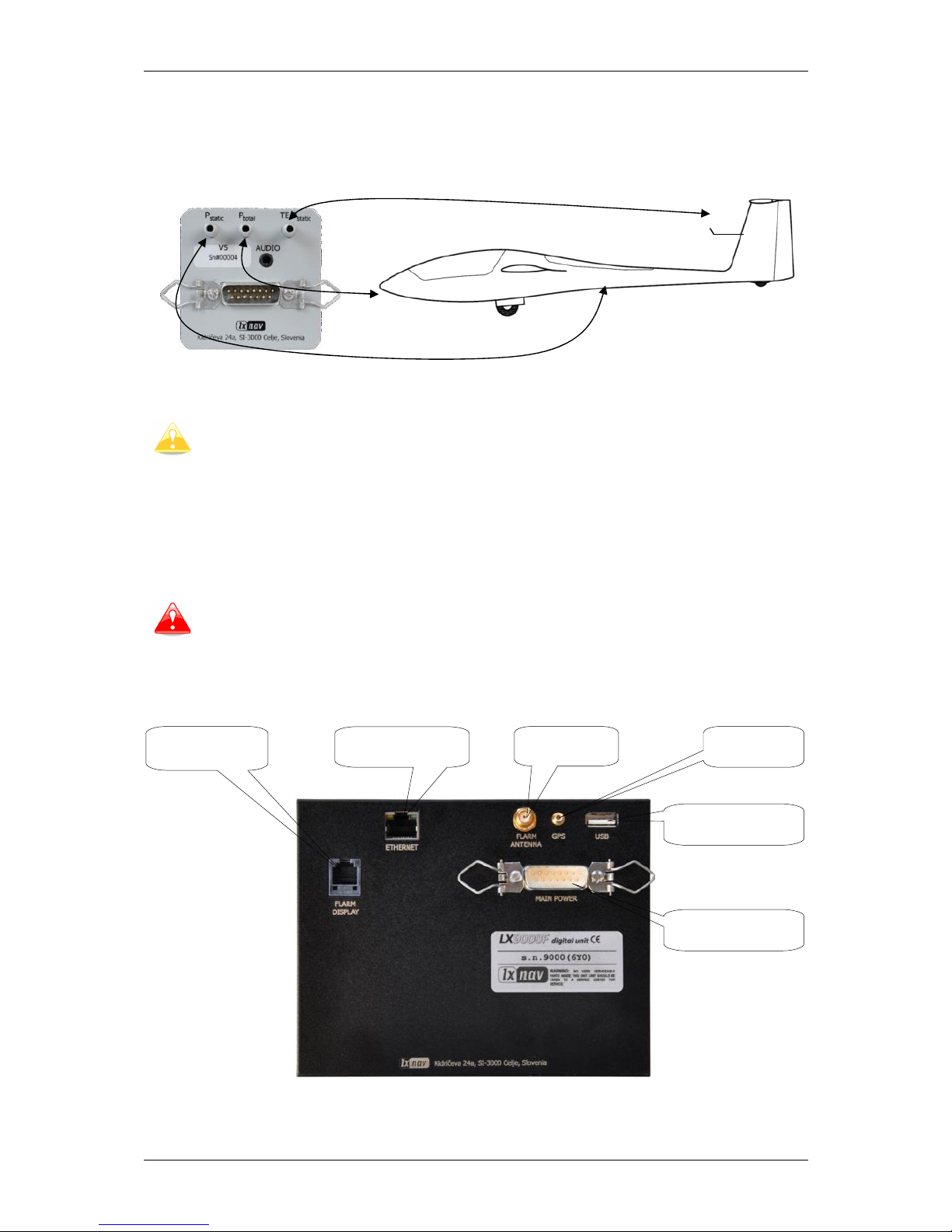

4.4 Pneumatic connection 17
4.5 Ports and Wiring 18
4.5.1 Flarm port 19
4.5.2 Main unit wiring 19
4.5.3 V5/V9/V80 vario unit wiring 20
4.5.4 USB-D or Analog unit wiring 20
4.5.5 Connecting vario unit 20
4.6 Installation of Options 20
5 System Description 22
5.1 Rotary Switches and Buttons 22
5.1.1 Landscape orientation 22
5.1.2 Portrait orientation 23
5.1.3 Buttons 23
5.1.3.1 Power Button 23
5.1.4 Rotary Switches (Knobs) 23
5.2 Switching on the Unit 24
5.3 User Input 24
5.3.1 Text Edit Control 25
5.3.2 Masked Text Edit Control 25
5.3.3 Spin Control 26
5.3.4 Selection Control 26
5.3.5 Checkbox and Checkbox List 26
5.3.6 Colour Selector 26
5.3.7 Font Selector 27
5.3.8 Line pattern Selector 27
5.4 Switching off 28
6 Operating Modes 30
6.1 Setup Mode 32
LX90xx system Version 4.0 February 2014
Page 4 of 151
6.1.1 QNH and RES 32
6.1.1.1 QNH* 32
6.1.1.2 Safety Altitude 33
6.1.1.3 Altitude source 33
6.1.1.4 Magnetic Variation 33
6.1.1.5 ETA/ETE Calculation 33
6.1.1.6 Soaring Start* 33
6.1.2 Flight Recorder 34
6.1.3 Vario Parameters* 35
6.1.4 Display 36
6.1.5 Files and Transfers 37
6.1.5.1 Uploading User Airspace and Waypoints 37
6.1.5.2 Uploading Airspace and Airports Database 38
6.1.5.3 Managing Airspace 38
6.1.5.4 Managing Waypoints 40
6.1.5.5 Managing Airports 41
6.1.5.6 Managing Airports Using the LX Asapt editor 42
6.1.5.7 Managing Maps 43
6.1.5.8 Managing Flights 44
6.1.5.9 Flight Declaration 44
6.1.5.10 Formatting a SD Card 45
6.1.5.11 Managing PDF documents 45
6.1.6 Graphics 47
6.1.6.1 Terrain and Map 47
6.1.6.2 Airspace 48
6.1.6.3 Waypoints and Airports 49
6.1.6.4 Glider and Track 50
6.1.6.5 Optimization 51
6.1.6.6 Task 52
6.1.6.7 Flarm 52
6.1.7 Sounds* 54
6.1.7.1 Audio Settings* 54
6.1.7.2 Voice* 55
6.1.7.3 Alarms* 55
6.1.8 Observation Zones 57
6.1.9 Optimization 59
6.1.10 Warnings 59
6.1.10.1 Airspace Warnings 60
6.1.10.2 Altitude Warning 61

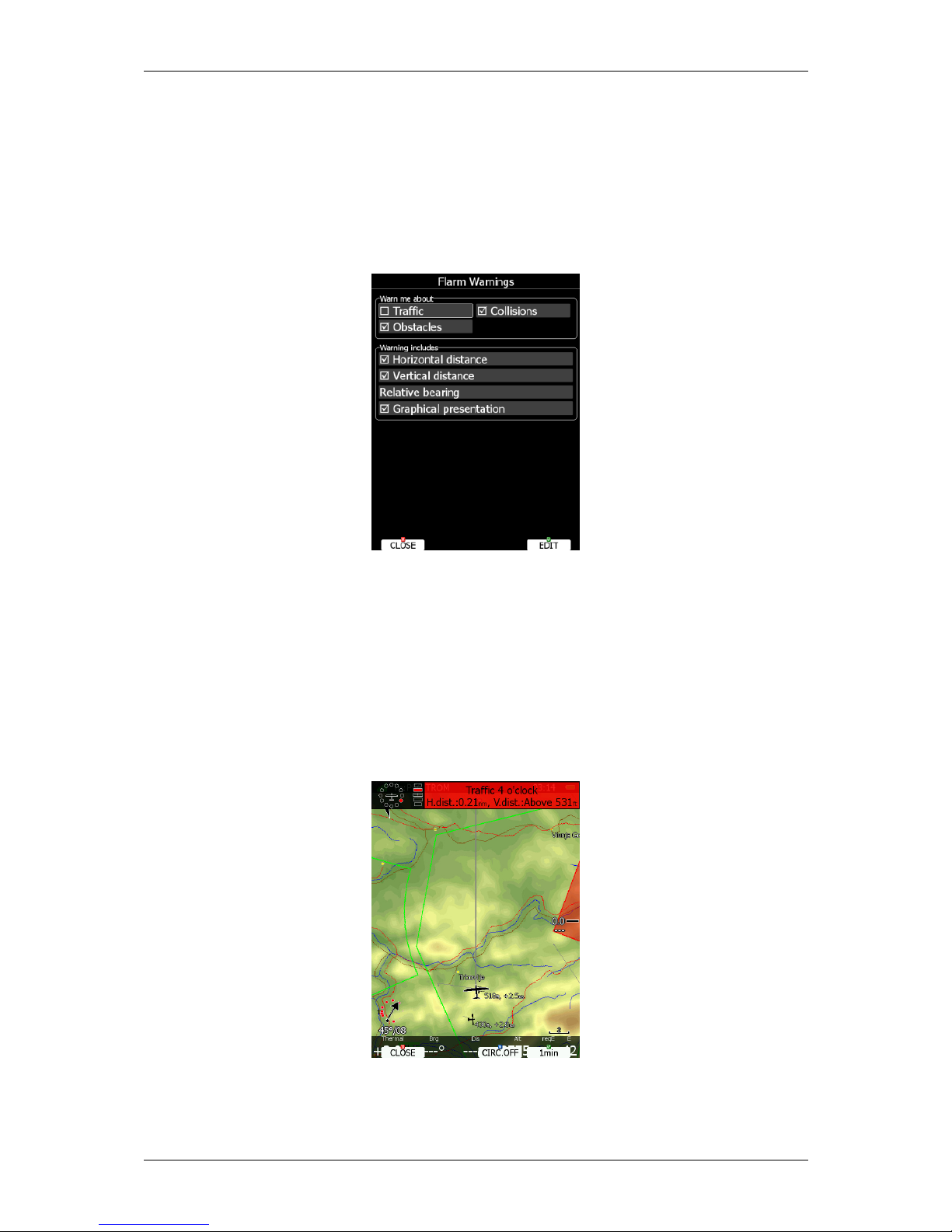

6.1.10.3 Flarm Warnings 62
6.1.10.4 Time Alarm 63
6.1.11 Units 63
6.1.12 Hardware* 64
6.1.12.1 Vario unit settings – TE compensation* 64
6.1.12.2 Vario Indicator Setup* 66
6.1.12.3 Vario indicator V5* 67
6.1.12.4 Vario indicator V80mm 68
6.1.12.5 LCD and USB-D Vario indicator 69
6.1.12.6 Flarm* 70
6.1.12.7 Compass* 71
6.1.12.8 Rear Seat or Front Seat 71
6.1.12.9 Remote stick 72
LX90xx system Version 4.0 February 2014
Page 5 of 151
6.1.12.10 AHRS 73
6.1.12.11 NMEA Output 73
6.1.12.12 Engine * 74
6.1.12.13 Flaps* 74
6.1.13 Polar and Glider* 75

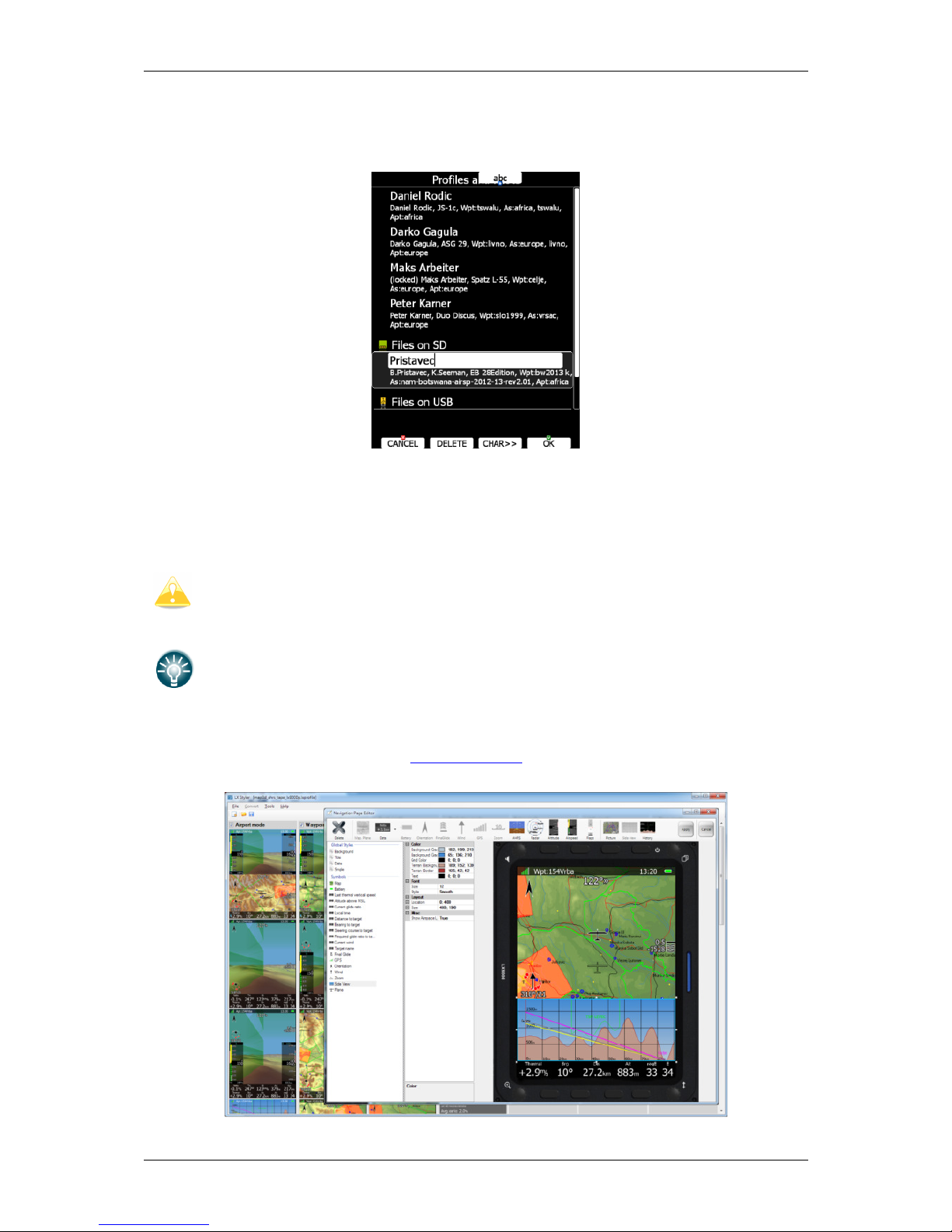

6.1.14 Profiles and Pilots 76
6.1.15 Language 78
6.1.16 Passwords 79

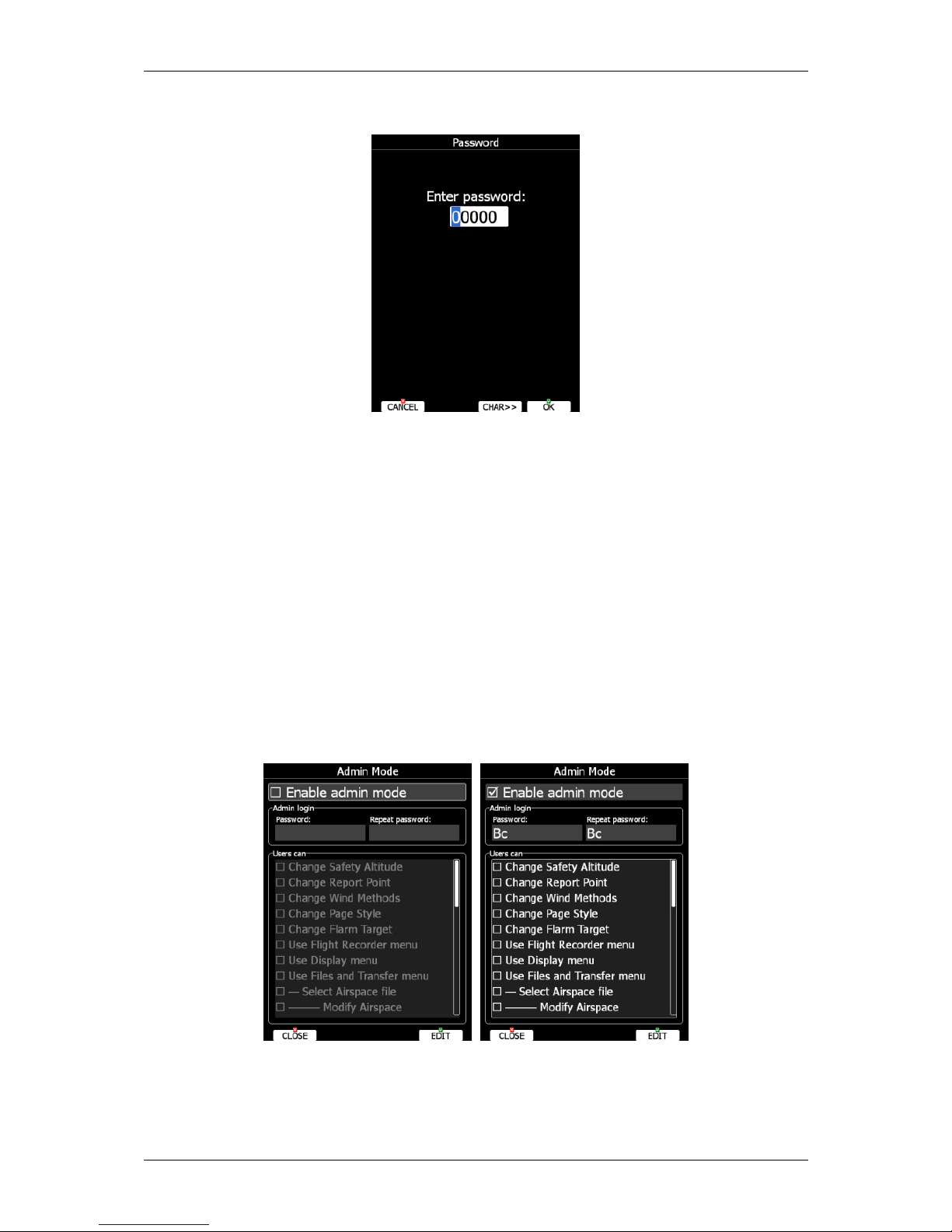

6.1.17 Admin mode 79
6.1.18 About 81
6.2 Information Mode 81
6.2.1 GPS Status Page 81
6.2.2 Position Report 82
6.2.3 Satellite Sky View 83
6.3 Near Mode 83
6.4 Statistics Mode 84
6.4.1 Logbook 84
6.4.2 Statistics during flight 85
6.4.2.1 General statistics 86
6.4.2.2 Detailed task statistics 86
6.4.2.3 OLC statistics 87
6.5 Airport Mode 88
6.5.1 Initial Navigation Page 88
6.5.1.1 Final Glide Symbol 89
6.5.1.2 Thermal Assistant 89
6.5.2 Second Navigation Page 90
6.5.3 Third Navigation Page 90
6.5.4 Fourth Navigation Page 91
6.5.5 Fifth Navigation Page 91
6.5.6 Button Actions 92
6.5.6.1 Select an Airport 94
6.5.6.2 MacCready, Ballast and Bugs Settings 97
6.5.6.3 Map Settings 97
6.5.6.4 Wind 99
6.5.6.5 Airspace 100
6.5.6.6 Mark 100
6.5.6.7 Team 101
6.5.6.8 Flarm 101
6.5.6.9 Pan 102
6.5.6.10 Rotate FAI Area 103
6.5.6.11 Style 104
6.6 Waypoint Mode 105
6.6.1 Editing Waypoints 106
6.6.2 New Waypoint 107
6.7 Task Mode 108
6.7.1 Task Edit 110
6.7.2 Task Creation 111
6.7.2.1 Map mode 113
6.7.3 Multiple start points 114
6.7.4 Modifying Zones 114
6.7.5 Task Options 115
6.7.5.1 Gate Time 116
LX90xx system Version 4.0 February 2014
Page 6 of 151
6.7.5.2 Below Altitude Start Procedure 116
6.7.5.3 Maximum Start Speed and/or Maximum Start Altitude 116
6.7.6 Saving a Task 117
6.7.7 Loading a Task 118
6.7.8 Moving a Task Point 118
7 Navigational page layout 120
7.1 Global styles for navigational page 121
7.2 Creating new symbol 121
7.2.1 Navboxes 122
7.2.2 Final glide symbol 123
7.2.3 Artificial Horizon 124
7.2.4 Altitude Tape 124
7.2.5 Airspeed Tape 124
7.2.6 Flap tape® 125
8 Flying with the System 126
8.1 On the Ground 126
8.1.1 Power on Procedure 126
8.1.2 Profile Selection 126
8.1.3 Set Elevation and QNH 127
8.1.4 Preflight Check 127
8.1.5 Preparing a Task 128
8.1.5.1 Assigned Area Tasks (AAT) 128
8.2 Flying a Task 130
8.2.1 Starting a Task 130
8.2.2 Restarting Task 131
8.2.3 Over Turn Point 132
8.2.4 Entering Assigned Area 132
8.2.5 Moving Point Inside Assigned Area 133
8.2.6 Task Finish 134
8.3 Procedure after Landing 134
9 Firmware Update 136
9.1 Updating main display firmware 136
9.2 Updating vario unit or Vario indicator 137
10 IGC Barograph Recalibration Procedure 138
11 Options 139
11.1 Flarm 139
11.1.1 Installation 139
11.1.2 Flarm Update Procedure 140
11.1.3 Uploading Obstacles 140
11.1.4 Uploading FlarmNet Files 141
11.2 Rear Seat Device 142
11.2.1 Data Exchange 142
11.2.2 Cable Wiring 143
11.3 ADSB-Receiver (TRX-1090) 144
11.3.1 Installation 144
11.3.1.1 TRX tool 144
11.3.1.2 Connecting TRX-1090 to the system 146
11.4 External Flarm or Power Flarm 147
11.4.1 Installation 147
11.5 Remote Control 147
11.5.1 Functions 148
11.6 Installation 149
LX90xx system Version 4.0 February 2014
Page 7 of 151
11.7 Flap sensor® 150
11.8 Secondary Vario Indicators 150
12 Revision History 151
LX90xx system Version 4.0 February 2014
Page 8 of 151
1 Important Notices
The LX90xx system is designed for VFR use only as an aid to prudent navigation. All
information is presented for reference only. Terrain, airports and airspace data are provided
only as an aid to situation awareness.
Information in this document is subject to change without notice. LXNAV reserves the right
to change or improve their products and to make changes in the content of this material
without obligation to notify any person or organisation of such changes or improvements.
A Yellow triangle is shown for parts of the manual which should be read very
carefully and are important for operating the system.
Notes with a red triangle describe procedures which are critical and may result in
loss of data or any other critical situation.
A bulb icon is shown when a useful hint is provided to the reader.
1.1 Limited Warranty
This LX90xx product is warranted to be free from defects in materials or workmanship for
two years from the date of purchase. Within this period, LXNAV will, at its sole option,
repair or replace any components that fail in normal use. Such repairs or replacement will
be made at no charge to the customer for parts and labour, provided that the customer shall
be responsible for any transportation cost. This warranty does not cover failures due to
abuse, misuse, accident, or unauthorised alterations or repairs.
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES EXPRESSED OR IMPLIED OR STATUTORY, INCLUDING ANY
LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE.
IN NO EVENT SHALL LXNAV BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR
INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Some states do
not allow the exclusion of incidental or consequential damages, so the above limitations may
not apply to you. LXNAV retains the exclusive right to repair or replace the unit or software,
or to offer a full refund of the purchase price, at its sole discretion. SUCH REMEDY SHALL
BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
To obtain warranty service, contact your local LXNAV dealer or contact LXNAV directly.
February 2014 © 2014 LXNAV. All rights reserved.
LX90xx system Version 4.0 February 2014
Page 9 of 151
2 Basics
2.1 The LX9xx series at a glance
LX9xx series of instrument consists of two units; the main display unit and the vario unit.
Within the main display unit an integral 50-channel GPS receiver and a high brightness
colour display are fitted. An integrated SD card or USB interface is used for user friendly
data exchange. The main display unit is equipped with a built-in flight recorder according to
the most recent IGC specification for all flights. Optionally the FLARM collision avoidance
system can be integrated into the main display unit.
Main display unit came in two different forms:
LX9000 model with 5.6” screen and 640x480 pixels resolution,
And
LX9070 model with 7.0” screen and 800x480 pixels resolution.
The V9 vario unit is a most modern variometer running on very powerful processor with
inertial platform using 3 axis accelerometer, 4 gyroscopes (for inertial vario, AHRS and wind
calculation), smooth audio output with audio equalizer and integrated synthesized speech
output. The unit communicates with the main display unit over the RS485 system bus.
Standard version of V9 variometer features 57 mm diameter (2¼") indicator with

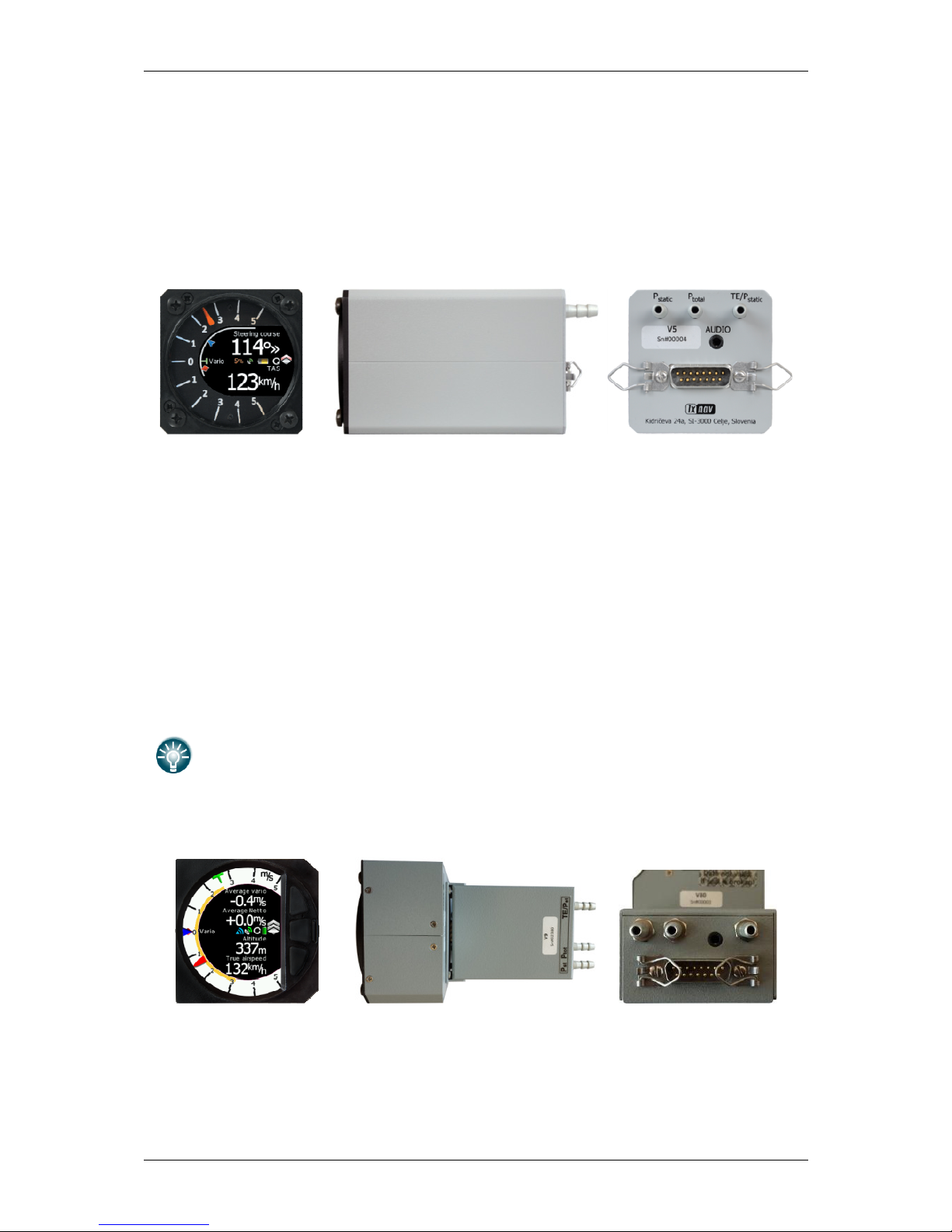

mechanical needle and colour display for additional data. Optional variometer consists of
80 mm diameter (3”) indicator called V80 which has colour screen only with three additional
buttons. Optionally additional vario indicators and a wide range of interface devices can be
daisy-chained using the RS485 bus.
2.1.1 LX9000 Display Unit Features
• Extremely bright 5.6" (14.3 cm) colour display readable in all sunlight conditions with
backlight automatically adapted using an ambient light sensor (ALS).
• Using Linux operating system (not CE Windows) ensures fast and stable operation of the
firmware.
• 8 push buttons and 4 rotary switches (knobs) are used for input, which comprise the
well-known LX user interface. Optionally a remote stick is available for more comfort.
LX90xx system Version 4.0 February 2014
Page 10 of 151
• Portrait or landscape orientation.
• Pre-loaded with worldwide terrain maps, airspace and airport databases.
• Unlimited number of waypoints.
• Unlimited number of tasks (with assigned area support).
• Comprehensive flight and task statistics.
• Display of nearest airports and out-landing fields.
• Unlimited number of pilots/profiles.
• Integrated flight recorder according to high-level IGC specification.
• Real-time flight optimisation according to FAI and OLC rules.
• Flights stored in IGC format are downloadable using the integrated SD Card.
• Flight recorder functions include an integral pressure transducer based on 1013 mbar
level for altitude recording, engine noise level sensor, memory to store more than 1000
hours of flights and digital and mechanically security devices to ensure high level of
security.
• Integrated FLARM collision avoidance system with graphic, sound and voice (optional)
presentation.
2.1.2 LX9070 Display Unit Features
• Extremely bright 7.0" (17.8 cm) colour display readable in all sunlight conditions with
backlight automatically adapted using an ambient light sensor (ALS).
• Using Linux operating system (not CE Windows) ensures fast and stable operation of the
firmware.
• 8 push buttons and 4 rotary switches (knobs) are used for input, which comprise the
well-known LX user interface. Optionally a remote stick is available for more comfort.
• Portrait or landscape orientation.
• Pre-loaded with worldwide terrain maps, airspace and airport databases.
• Unlimited number of waypoints.
• Unlimited number of tasks (with assigned area support).
• Comprehensive flight and task statistics.
• Display of nearest airports and out-landing fields.
• Unlimited number of pilots/profiles.
• Integrated flight recorder according to high-level IGC specification.
• Real-time flight optimisation according to FAI and OLC rules.
• Flights stored in IGC format are downloadable using the integrated SD Card.
LX90xx system Version 4.0 February 2014
Page 11 of 151
• Flight recorder functions include an integral pressure transducer based on 1013 mbar
level for altitude recording, engine noise level sensor, memory to store more than 1000
hours of flights and digital and mechanically security devices to ensure high level of
security.
• Integrated FLARM collision avoidance system with graphic, sound and voice (optional)
presentation.
•
2.1.3 V9 Vario Unit Features
• ARM Cortex-M4 processor
• Mechanical needle driven by stepper motor indicating various data such as netto vertical
speed, relative (super netto) and vertical speed.
• 320x240 pixels sunlight readable colour screen for additional information such as
average, thermal vario, time, speed etc…
• digital temperature compensated pressure sensors for altitude and airspeed
• inertial platform 3 axis digital +-6g accelerometer, 4 gyroscopes
• Smooth audio output with audio equalizer and many custom audio settings
• Integrated voice module
• 100Hz sampling rate for very fast response.
• Speed to fly indication.
• TE compensation can be selected to be either pneumatic TE probe or digital
compensation.
•
V5 vario has same functionality than V9, the only difference is, that V9 has built in
inertial platform (AHRS)-
2.1.4 V80 Vario Unit Features
• Dual ARM Cortex-M4 processor
• Extremely bright 3.5" (8.8 cm) colour display with 320x240 pixels is used to display
vario needle and additional information such as average, thermal vario, time, speed
etc…
• No mechanical parts and fast refresh rate allows extremely fast response time of needle.
LX90xx system Version 4.0 February 2014
Page 12 of 151
• Additional Flarm radar screen and artificial horizon.
• Three buttons for toggling between screen and target selection
• digital temperature compensated pressure sensors for altitude and airspeed
• inertial platform 3 axis digital +-6g accelerometer, 4 gyroscopes
• Smooth audio output with audio equalizer and many custom audio settings
• Integrated voice module
• 100Hz sampling rate for very fast response.
• Speed to fly indication.
• TE compensation can be selected to be either pneumatic TE probe or digital
compensation.
2.1.5 Interfaces
• The RS232 interface has NMEA output for external devices.
• An SD Card interface.
• A USB slot for data transfer using USB memory stick.
2.1.6 Internal Options
Flarm module can be built into the main display unit. All necessary connectors are
available on the rear side of the unit (Flarm external indicator, Flarm antenna), which
guaranties the same comfort as with the original Flarm devices. It is very important to point
out that the whole system uses only one GPS receiver and therefore offers a low power
solution.
Artificial horizon can be enabled on main display unit. V9 variometer is constantly using
data from inertial platform in order to make vario signal smoother, however if pilot would
like to see artificial horizon and software option to do so must be purchased.
LX90xx system Version 4.0 February 2014
Page 13 of 151
2.1.7 External Options
By using a RS485 bus system a wide range of optional interfaces can be easily connected to
the basic configuration with minimal installation work. The LXNAV bus system can be
extended easily by use of RS485 splitting units, which allow plug and play connection of
optional devices. The following units can be connected to the main system:
• Second Seat Device (LX9000D, LX9070D LX8000D or LX8080D): The unit
installed in the rear seat of the glider is powered and receives all necessary data from
the main unit. The communication between both units is exclusively via the RS485 bus
system.
• Remote Control: An extremely ergonomic leather-coated handle which includes 8
push buttons to operate the main display unit and also two additional buttons with open
wires. These two buttons can be used for instance as PTT for radio and SC/Vario
changeover command. A second remote control can be installed to control second seat
device or for side by side operation.
• Electrical Compass Device
• Secondary Vario Indicators (V5 indicator or V80 indicator)
• Flap sensor
• MOP box for jet engines
LX90xx system Version 4.0 February 2014
Page 14 of 151
2.1.8 Simulator
There are two options to stay in condition and familiar with your LX90xx system. LXSim is
free of charge program, which you can download from www.lxnav.com or data from the
Condor PC flight simulator (www.condorsoaring.com) can be received via the RS232 port
after entering suitable passwords (see Chapter 6.1.15).
These features are extremely useful for pilots who want to learn about the system and also
wish to refresh their knowledge after a winter break. Please note that altitude data will be
sent from the simulator which means that real final glide training will be possible.
2.1.9 Technical Data
2.1.9.1 LX9000 System
• Power input 10-24 V DC
• Consumption at 12 V:
o 250 mA - minimum brightness without audio and options.
o 260 mA - minimum brightness without audio and with Flarm.
o 470 mA - maximum brightness without audio and options.
o 480 mA - maximum brightness without audio and with Flarm.
o 160 mA – additional for V9 vario unit
• Cut-out dimensions of the LX9000 display unit are 109 x 143 mm; outline dimensions:
113 x 145 x 38 mm exclusive connector.
• 57 mm (2¼") standard aircraft cut-out for the V9 vario unit; length 92 mm (exclusive
connector).
• 80 mm (3") standard aircraft cut-out for the V80 vario unit; length 130 mm (exclusive
connector).
2.1.9.2 LX9070 System
• Power input 10-24 V DC
• Consumption at 12 V:
o 250 mA - minimum brightness without audio and options.
o 260 mA - minimum brightness without audio and with Flarm.
o 470 mA - maximum brightness without audio and options.
o 480 mA - maximum brightness without audio and with Flarm.
o 160 mA – additional for V9 vario unit
• Cut-out dimensions of the LX9070 display unit are 109 x 179 mm; outline dimensions:
113 x 181 x 38 mm exclusive connector.
• 57 mm (2¼") standard aircraft cut-out for the V9 vario unit; length 92 mm (exclusive
connector).
• 80 mm (3") standard aircraft cut-out for the V80 vario unit; length 130 mm (exclusive
connector).
2.1.10 Weight
• LX9000 display unit: 650 g
• LX9070 display unit: 650 g
• V9 vario unit: 300 g
• V80 vario unit: 400 g
LX90xx system Version 4.0 February 2014
Page 15 of 151
3 Packing Lists
3.1 LX9000 (LX9070) with Flarm Option
• LX9000 (LX9070) main display unit
• V9 vario unit with V5 indicator or with V80 indicator
• Main power cable for main display unit
• Cable for vario unit
• SD card
• Barogram calibration chart
• GPS antenna
• Flarm Antenna
• Hex key “Inbus”
3.2 LX9000 (LX9070)
• LX9000 (LX9070) main display unit
• V9 vario unit with V5 indicator or with V80 indicator
• Main power cable for main display unit
• Cable for vario unit
• SD card
• Barograph calibration chart
• GPS antenna
• Hex key “Inbus”
3.3 LX9000D (LX9070D)
• LX9000D (LX9070D)
• Main power cable
• RS485 cable – 4 meter
• RS485 splitting unit
• Vario indicator V5 or V80 with cable
• SD card
• Hex key “Inbus”
LX90xx system Version 4.0 February 2014
Page 16 of 151
4 Installation
The main display unit is installed in an aperture 93.5 mm wide and 81.5 mm high. The vario
unit and any additional vario indicators each require a standard 57 mm cut-out or standard
80 mm cut out.
4.1 Installing the main display unit
Prepare the cut-out in the instrument panel according to the drilling template. Position the
Main display unit in the cut-out in the instrument panel. Tighten the main display unit with
attached 2.5 mm screws.
When installing the main display unit it is not necessary to remove the rotary
knobs.
The mounting template for LX9000 main display unit is shown in the picture below (not to
scale!):
The mounting template for LX9070 main display unit is shown in the picture below (not to
scale!):
LX90xx system Version 4.0 February 2014
Page 17 of 151
4.2 Panel cut-out for V9/V5 vario unit
4.3 Panel cut-out for V80 vario unit
Length of screw is limited to max 6mm!
4.4 Pneumatic connection
Three pressure connectors are fitted to the back of the vario unit. A label shows their
functions.
• P
static
means static pressure connector.
• P
total
means pitot or total pressure connector.
• TE means total energy TE connector.
If the unit is to be configured for digital TE compensation the connections are as follows:
• P
static
Static
• P
total
Pitot or Total pressure
• TE/P
static
Static
If the unit is to be configured for pneumatic TE compensation using a TE tube, then the
connections are:
LX90xx system Version 4.0 February 2014
Page 18 of 151
• TE/P
static
TE tube
• P
static
Static
• P
total
Pitot or Total pressure
If the P
total
and Static are connected the wrong way around there will be no
integrator reading (average climb) during the flight.
The main display unit is connected to 12 Volt power via the 15-pin SUB-D connector. The
main display unit, vario unit and other vario indicators are connected via the RS485 bus and
the connectors are labelled with “RS485” at each end.
Please ensure that both units are connected correctly before the first power on. The power
wires (red and blue) should be connected to the main display unit.
Even though there is an automatic fuse in the instrument it is VERY IMPORTANT
to use an external fuse (max. 3A). Power supply cables should use a minimum of
0.5 mm² wires.
4.5 Ports and Wiring
GPS antenna
Network connector
DO NOT USE IT!
Flarm HF
antenna
Flarm external
indicators, splitters
USB memory stick
Main power supply
(LX9000DU wiring)
LX90xx system Version 4.0 February 2014
Page 19 of 151
4.5.1 Flarm port
1 2 3 4 5 6
Pin numbers
Pin number Description
1 (output) 12V DC, to supply GPS
2 (output) 3.3V DC (max 100mA)
3 GND
4 Flarm Data Out
5 Flarm Data In
6 Ground
4.5.2 Main unit wiring
1
6
2
7
3
8
4
9
5
SUBD15 Connector / female
LX9000 DIGITAL UNIT
+12V DC OUT
white
red
shield
black
yellow
GND
+12V
B
A
RS485 - OUT
SUBD9 / female
GND
LABEL: +12V DC IN
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
Data Out
Data In
B
A
1
2
3
4
5
BINDER 5Pin Male
PC-RS232C
09 0097 00 05
White - Data In
Black - Data Out
Shield GND
1
3
5
30 cm
50cm
Red +12V 2
GND
GND
GND
shield
shield
LABEL:RS232
LABEL:RS485
LX90xx system Version 4.0 February 2014
Page 20 of 151
4.5.3 V5/V9/V80 vario unit wiring
1
6
7
4
9
5
SUBD15 Connector / female
V5
white
red
shield
black
yellow
GND
+12V
B
A
GND SHIELD
SC
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
B
A
SC switch
30 cm
50 cm
VP switch
VP
50 cm
(green)
(Brown)
OAT
1.5m
OAT
LABEL:OAT
LABEL: VARIO PRIORITY
LABEL:SC
LABEL:RS485
(pusti olupljen pospajkan kabel)
shield
CANH
CANL
INPUT2 - AIRBRAKES
INPUT1 - GEAR
INPUT3 - WATER BALLAST - VALVE
INPUT4 - FREE
12V IN
IN1
IN3
IN2
IN0
LABEL:IN-1
LABEL:IN-2
LABEL:IN-3
LABEL:IN-4
Free
Closed, when valve is closed
Closed, when Airbrakes are closed
Closed, when gear is down
50 cm
50 cm
50 cm
50 cm
1 2 3
GND
LM335Z
GND SHIELD
GND SHIELD
GND SHIELD
GND SHIELD
GND SHIELD
GND SHIELD
RS485 - IN
SUBD9 / male
4.5.4 USB-D or Analog unit wiring
1
6
7
4
9
5
SUBD15 Connector / female
LX9000 VARIO UNIT
white
red
shield
black
yellow
GND
+12V
B
A
RS485 - IN
SPEAKER
SUBD9 / male
GND
+12V DC IN
SC
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
Data Out
Data In
B
A
RCA Jack Receptacle (CHINCH/Female)
SC switch
Speaker
30 cm
30 cm
50 cm
LABEL:AUDIO OUT
LX 9000 VARIO UNIT Wiring
VP switch
VP
50 cm
(green)
(Brown)
DS1820 OAT
1.5m
OAT
LABEL:OAT
LABEL: VARIO PRIORITY
LABEL:SC
LABEL:RS485
shield
shield
4.5.5 Connecting vario unit
Vario unit is connected to main unit through RS485 bus. SC cable is used for external switch,
for switching between climb and cruise mode. In case that SC is connected to flaps switch,
VP (vario priority) is connected to switch on stick. Inputs IN1..4 are used to connect to gear
switch, airbrakes, etc...
4.6 Installation of Options
All options (Rear Seat Device, Remote Control, Compass Module & secondary vario
indicators) are prepared to be connected to the RS485 system bus by use of RS485 splitting
units. Installation of any option is plug-and-play and therefore requires only mechanical
LX90xx system Version 4.0 February 2014
Page 21 of 151
installation work. The main display unit also powers all devices connected to the bus. An
automatic fuse built into the main display unit prevents damage to the digital unit should a
short circuit in the wiring or in some attached device occurs.
LX90xx system Version 4.0 February 2014
Page 22 of 151
5 System Description
The main display unit can be mounted at portrait or landscape orientation. After installing
the main display unit, the orientation must be defined via the Display menu (see
Chapter 6.1.4).
In this manual all screenshots are given for portrait orientation of the LX9000
system. However all functionality is the same in landscape orientation and on
LX9070 system.
5.1 Rotary Switches and Buttons
The following controls are mounted on the front face of the main display unit:
• Four rotary selector knobs
• Eight push-buttons
• SD card reader
5.1.1 Landscape orientation
VOLUME selector
MODE selector
SD Card reader
ZOOM selector
PAGE selector
POWER button
Ambient light
sensor
LX90xx system Version 4.0 February 2014
Page 23 of 151
5.1.2 Portrait orientation
The V9 vario unit is an indicator only and has no controls. Information displayed
is controlled by the main display unit.
The V80 vario unit is having three buttons to toggle between screens. More
information is given in chapter 6.1.12.4
5.1.3 Buttons
All buttons have a dynamic function; the first time one presses each button, it displays its
function without executing any action. Not all buttons have a function on every page. In
some cases buttons have a long press function.
5.1.3.1 Power Button
The power button is marked with the ON/OFF symbol. It has multiple functions. Primarily it
is used to switch the system on and off.
5.1.4 Rotary Switches (Knobs)
The main display unit has four rotary knobs. Each has a single function with the exception
of the zoom knob which has, in some cases, a function other than zoom. With the upperleft rotary knob the volume can be adjusted. The upper-right rotary switch is the mode
selector (it changes the mode of the operation). At the lower-right is the up/down knob
which is used for selecting sub-pages, sub-menus and editing menus. At the lower-left is
the zoom knob which is multifunctional. While its main function is to change the zoom level
within graphic mode, it can also be used if an error is made during editing; it is possible to
move the cursor back by rotating this knob. However this can only be done if 'editing' is
active which is shown by the cursor blinking.
VOLUME selector
MODE selector
SD Card reader
ZOOM selector
PAGE selector
POWER button
Ambient light
sensor
LX90xx system Version 4.0 February 2014
Page 24 of 151
5.2 Switching on the Unit
After a short press of the power-on button the main display unit and vario unit will turn on
and a welcome screen will appear. The first screen shows the boot loader screen followed
by the Linux kernel screen and then the file system screen.
The boot procedure normally takes up to 20 seconds but in the case of a firmware update or
system check it can take more time. The final boot screen displays information about the
LX90xx system firmware and the IGC serial number. When the boot procedure is completed
the profile selection dialogue is shown. Please refer to Chapter 8.1 for more details about
starting up the system.
5.3 User Input
The main display unit user interface consists of many dialogues which have different input
controls. They are designed to make input of names, parameters, etc., as easy as possible.
Input controls can be summarised as:
• Text editor
• Masked text editor
• Spin controls
• Selection control
• Checkboxes
• Colour selector
• Line width selector
To move the function from one control to another, rotate the PAGE selector knob (page
selector) as follows:
• Clockwise rotation will select the next control.
• Counter clockwise rotation will select the previous control. Press the SELECT button
(usually lower-right) to enter control input.
LX90xx system Version 4.0 February 2014
Page 25 of 151
5.3.1 Text Edit Control
The Text Editor is used to input an alphanumeric string of arbitrary length; the picture below
shows typical options when editing text. Use the bottom-right knob to change the value at
the current cursor position.
Press the CHAR>> button to advance the cursor to the next position. The cursor can also
be moved to next position using the bottom-left knob. Rotate it clockwise to move forward.
The Abc button is a toggle button and will change the letter case. Press it to toggle modes.
• Abc mode will start every new word with a capital letter; subsequent letters will be
lower case.
• ABC mode will enter only upper case letters.
• abc mode will enter only lower case letters.
Pressing the DELETE button will delete the character at current cursor position. Continually
press the DELETE button to delete all characters after the current cursor position.
Press OK to confirm changes and leave control. Press CANCEL to abandon changes and
revert back to the values before entering this screen.
5.3.2 Masked Text Edit Control
The masked editor is a similar control to the text editor but only limited characters can be
entered at any particular position. It is designed to enter latitude, longitude and passwords.
LX90xx system Version 4.0 February 2014
Page 26 of 151
5.3.3 Spin Control
Spin controls are designed for numeric parameters. Rotate the bottom-right knob (page
selector) to increase/decrease the selected value. The bottom-left (zoom) knob will
increase/decrease the value with a different step compared to the page selector.
5.3.4 Selection Control
Selection boxes, also known as combo boxes on Windows operating system, are used to
select a value from list of predefined values. Use the page selector to scroll through the list.
5.3.5 Checkbox and Checkbox List
A checkbox enables or disables a particular parameter. Press SELECT to toggle the value.
If an option is enabled a check mark will be shown, otherwise an empty rectangle will be
displayed.
Use page selector to scroll through the checkbox list. Press the ALL to enable all options.
5.3.6 Colour Selector
Colours and fills are set via the colour selector control. Rotate the page selector to change a
colour.
LX90xx system Version 4.0 February 2014
Page 27 of 151
Rotating the zoom selector changes colour transparency. Transparency is very important for
fill colours which are used for airspace zones, observation zones and FAI area. If a fill
colour is not transparent (0%), all other map items will not be seen through it. If a fill
colour is 100% only the solid border will be drawn.
Press PICK button to define colour more precisely. A colour dialog will open, where you can
select colour from HSV circle or enter values for red, green and blue colour.
5.3.7 Font Selector
Using the font selector it is possible to define a font colour and style for a selected item.
Turn the PAGE selector knob (page-selector) to change the font style. Text is also rendered
in the selected font style. Turn the ZOOM selector knob (zoom-selector) to change the font
colour.
Press PICK button to define colour more precisely. A colour dialog will open, where you can
select colour from HSV circle or enter values for red, green and blue colour.
5.3.8 Line pattern Selector
Using line pattern selector it is possible to define width and pattern of line. Turn the PAGE
selector knob (page-selector) to change the width of line. Turn the ZOOM selector knob
(zoom-selector) to change the line pattern. Results are immediately visible on selected
item.
LX90xx system Version 4.0 February 2014
Page 28 of 151
5.4 Switching off
Please use one of the following recommended methods for shutting down the LX90xx
system:
Method 1
Press the button with the OFF label which is displayed in navigational modes. See Chapter
6.5 for more details. A message to confirm shutdown will be shown.
Method 2
Press the button with the OFF symbol for approximately 4 seconds. The OFF message will
be displayed and the instrument will shut down. When the message appears you must
release the power button.
Method 3
When the button with the OFF symbol is pressed for more than 8 seconds the system will
perform an unconditional shutdown. This method is recommended only in case that the
program hangs and it is not possible to shutdown with methods 1 or 2.
If you are using method 2 to switch off the system it is necessary to release the
button when you see the shutting down message. If you continue to press the off
button the main display unit may shut down by method 3.
LX90xx system Version 4.0 February 2014
Page 29 of 151
If the request for OFF is made during flight the instrument will ask for confirmation so that
the system cannot be switched off by mistake.
It is important that the main display unit is switched off via software. Never
power down the system using the main power switch. The main display unit is
running the Linux operating system and sudden power loss may corrupt the file
system.
If main power is lost for a few seconds during flight the flight recorder will not
produce two flights. The most important flight parameter (altitude) will remain
which means that the final glide
calculations are not affected
.
LX90xx system Version 4.0 February 2014
Page 30 of 151
6 Operating Modes
The main display unit has seven modes or main menus. All of them are selectable by
rotating the upper-right knob which is also called MODE selector. The diagram below
shows the mode structure of the LX9000 running in portrait screen.
• Airport Mode, navigation and selection airports.
• Waypoint Mode, navigation, selection and editing waypoints.
• Task Mode, Navigation, selection and editing task.
• Statistics Mode shows statistical data for flight in progress or logbook.
• Setup mode is used to configure the whole system.
• Information Mode displays GPS status, altitude, flight level and height, sunrise and
sunset or position report to selectable point or satellite sky view.
• Near Mode displays a list of all landable waypoints and airports.
The Navigation modes and statistics mode have additional pages which are accessible by
rotating the bottom-right knob also called the PAGE selector.
LX90xx system Version 4.0 February 2014
Page 31 of 151
Three main navigational modes airport, waypoint and task mode are selected by
rotating the upper-right knob. All three options are similar and have similar basic navigation
data screens accessed by rotating the bottom-right knob.
It is possible to fully customise all three main navigational pages using the
program LXStyler. This program can be downloaded from our webpage
www.lxnav.com. Refer to Chapter 6.1.14 for more details.
It is also possible to customise selected navigational pages using STYLE menu
option. Refer to Chapter 7 for more details.
In airport navigation mode the user can navigate only to airports stored in LXNAV's Airports
database. This database cannot be edited on device itself and is available at no charge on
our web pages. See Chapter 6.1.5.2 for more details how to obtain the latest databases.
Database can be modified using program LXAsapt editor. This program can be
downloaded from our webpage www.lxnav.com
In waypoint navigation mode the user is navigating to waypoints that were previously
loaded and selected in the Files and Transfer menu (see Chapter 6.1.5.4).
Task navigation mode is used for task creation and manipulation. Navigation in this page is
exclusively to task points.
LX90xx system Version 4.0 February 2014
Page 32 of 151
6.1 Setup Mode
In the setup menu users can configure the main display unit and connected devices. Turn
the bottom-right knob - PAGE selector - or press the UP/DOWN arrow on the remote stick to
select the appropriate setup item. Turn the bottom-left knob - ZOOM selector - or press the
LEFT/RIGHT arrow on the remote stick to move faster over menu. Press the SELECT
button or push middle multi-directional button on the remote stick to enter a menu. A
dialogue or sub-menu will open.
The setup menu is slightly different on the rear seat device as not all options are applicable.
Items which are marked with an asterisk (*) are available only in the front seat setup menu.
6.1.1 QNH and RES
Turn the bottom-right knob to select the required entry field. Press the EDIT button and
start editing the value.
6.1.1.1 QNH*
Using this feature it is possible to offset the altitude datum which could have changed due
to pressure changes during the flight. Since changing the QNH influences the indicated
altitude, care should be taken when changing the value as an incorrect setting can upset the
final glide calculation.
LX90xx system Version 4.0 February 2014
Page 33 of 151
6.1.1.2 Safety Altitude
This setting is the altitude reserve or safety altitude and is the height that the instrument
adds to the final glide altitude required so that the glider arrives over the final glide
destination at the selected safety altitude. Once the safety altitude has been specified, the
pilot has to keep the final glide indicator on 0 to arrive at the safety altitude.
6.1.1.3 Altitude source
The system has two pressure altitude sensors. One is built into the main display unit and is
used for the IGC recorder and the second one is built into the vario unit and is connected to
the glider pitot-static system. Changing the altitude source defines which sensor is used for
pressure altitude used in program.
6.1.1.4 Magnetic Variation
The main display unit has a built-in Earth magnetic field model. If Auto variation is checked
the magnetic variation is derived from this model, otherwise the user can enter a custom
value.
6.1.1.5 ETA/ETE Calculation
In changing this value you may choose from four different methods to calculate the
estimated time of arrival to the navigational point. Calculation is always divided into straight
flight and climb time calculations.
• MacCready uses the Polar data and MacCready setting to calculate speed to fly and
climb rate.
• Vario uses the last four thermals average to compute climb rate and uses this value to
calculate speed to fly.
• Avg.Speed & Vario uses the average ground speed over the last 5 minutes for
distance and Vario statistics for climb rate.
• Avg.Speed & MC uses the average ground speed over the last 5 minutes for distance
and MacCready.
All four methods of calculating ETA and ETE (Estimate Time of Arrival & Estimate Time
Elapsed) take into account glider altitude, wind and safety (arrival) altitude thus ensuring
that the calculation made is the best possible.
Suggested methods for competition pilots are Avg.Speed & Vario or
Avg.Speed & Mc.
6.1.1.6 Soaring Start*
Soaring start is the time when the glider starts soaring (released from tow, engine switched
off). A soaring start time is needed to start the flight optimization.
LX90xx system Version 4.0 February 2014
Page 34 of 151
6.1.2 Flight Recorder
The main display unit has a built-in flight recorder fully approved by the IGC (a subcommittee of the FAI) and will produce secure flight records that are acceptable for all FAI
requirements including world records.
Select the recording interval and enter the pilot name. Pilot weight is important if ballast is
specified in kilograms of water (see Chapter 6.1.11). If the system is used in two-seat
aircraft the name of the co-pilot may also be entered.
There is no setup for glider type. Glider type is defined in the Polar and Glider
setup (see Chapter 6.1.13).
There are very few settings for the flight recorder compared to other instruments.
This is because main display unit will record all additional data such as wind,
speed and vertical speed by default.
If a new pilot is entered, upon exiting the dialogue the message
“Do you want to create new
profile with this pilot?”
will be asked. Answer YES if you want to quickly add a new profile.
For more information about profiles see Chapter 6.1.12.
LX90xx system Version 4.0 February 2014
Page 35 of 151
6.1.3 Vario Parameters*
This option is used to set the following parameters:
On this page the following parameters are set:
Vario needle filter sets a time constant of the vario needle. The value can be adjusted
between 0.1 and 5 s with step 1.0 s or 0.1 s. Default value is 1.5 s.
Vario sound filter sets a time constant of vario sound. The value can be adjusted
between 0.1 and 5 s with step 1.0 s or 0.1 s. Default value is 1.5 s.
Vario range sets full scale range of the vario (2.5 m/s, 5 m/s or 10 m/s). Default value is
5 m/s (10 kts).
SC tab defines the width of the audio dead band in speed to fly mode. Default value is
±1 m/s.
Integrator time defines the integration period for the average vario in seconds. The
default is 20 seconds.
Auto SC defines the conditions when the instrument is switched automatically between
vario and speed command.
• OFF: Switching is exclusively by an external switch connected to the vario unit.
• GPS: When the GPS detects that the glider is circling an automatic change over to vario
will happen after approximately 10 seconds. Detection of straight flight will cause a
changeover to speed command.
• G-load: When accelerometer detects increased g-load, because of circling, variometer
will change from cruise to climb mode.
• IAS: When the IAS exceeds a pre-set value. The IAS at which switching occurs can be
selected in 5 km/h steps from 100 up to 160 km/h (or the equivalent in knots or mph).
Using Smart vario filter, vertical speed can be further filtered. Smart vario filter defines
maximum speed of vario needle. Higher the value is, slower will be the needle.
Beep at max will enable a short beep few seconds before a maximum in thermal is
reached.
Beep before max defines how many seconds before a maximum in thermal a short beep
will be heard.
Auto reset integrator resets the integrator to zero when the vario unit switches from
cruise to climb mode. If this item is not checked the integrator will not be reset to zero.
Netto filter sets a time constant of the netto vertical speed filter. The value can be up to
20 times bigger than vario needle filter. Default value is same as vario needle filter.
SC filter sets a time constant of the speed to fly (SC) filter. The value can be up to 20
times bigger than vario needle filter. Default value is same as vario needle filter.
LX90xx system Version 4.0 February 2014
Page 36 of 151
Relative filter sets a time constant of relative vertical speed filter (also known as supper
netto vertical speed). The value can be up to 20 times bigger than vario needle filter.
Default value is same as vario needle filter.
Netto time defines the integration period for the average netto vertical speed in seconds.
The default is 20 seconds.
The external switch wired to the vario unit has absolute priority and will override
all other switching methods.
6.1.4 Display
The display menu controls screen brightness. The main display unit has an ambient light
sensor which detects ambient light and automatically increases or reduces the brightness of
the screen.
If the Automatic brightness checkbox is selected, the instrument will automatically adjust
brightness according to current light conditions. Minimum and Maximum brightness
items control value limits. Use time values to setup how fast adaptation to brighter
conditions or darker conditions will occur. Default values are tuned to human eyes and do
not require change.
Night mode brightness defines maximum brightness when instrument is operating in
night mode. In night mode, brightness is reduced to very low value to reduce difference
between ambient light and device backlit.
If you want to set the brightness manually uncheck the Automatic brightness control and
set the brightness manually.
Change Display orientation if you would like to change the display unit screen orientation.
The main display unit will restart and start with new screen orientation.
Checking Auto brightness on vario while enable automatic regulation of brightness on
vario unit, if available. It this option is uncheck, vario unit will always run at full backlight.
It is recommended that the automatic brightness control is always enabled.
Reducing brightness will also reduce power consumption. See technical data for
more details (Chapter 2.1.9).
LX90xx system Version 4.0 February 2014
Page 37 of 151
6.1.5 Files and Transfers
The Files and transfer menu is used to manage the waypoint, airspace and airport
databases, recorded flights, flight declaration and PDF documents.
Within a profile user can selected different airport databases, airspace and waypoint files.
Selected files can be stored inside main display unit or on inserted SD card or USB stick.
It is also possible to upload files from SD card or USB stick to main display unit.
6.1.5.1 Uploading User Airspace and Waypoints
Databases can be loaded from a SD card or USB stick. Select the type of database you wish
to upload and press the LOAD button.
In next step the data source must be selected. Unavailable data source are going to be
greyed out. A dialogue with a list of all available files will be opened. Press the COPY
button to copy the selected file to the main display unit. The main display unit will accept
the following file formats:
• Waypoints file: SeeYou CUP files, CUPX files, which may include also images and
Cambridge/Winpilot DAT files. When selecting DAT files, waypoints will be converted to
CUP format which is the format used for internal storage of points. There is no
limitation for the number of waypoints in a file and/or name length.
• Airspace file: All types of CUB files are accepted.
LX90xx system Version 4.0 February 2014
Page 38 of 151
6.1.5.2 Uploading Airspace and Airports Database
LXNAV distributes free of charge airport and airspace database for the whole world. The
airport and airspace database is regularly maintained by LXNAV. The latest version of the
database can be found on our webpage www.lxnav.com.
The database is distributed as single file with .asapt extension. Copy this file to a SD Card
or USB stick. Plug the SD card or USB stick into the main display unit and select the
Update database menu item. If multiple ASAPT files are found on a SD card a dialogue to
select the appropriate one will be shown.
Databases are updated automatically and progress of the update will be shown on the
screen.
6.1.5.3 Managing Airspace
Select the Airspace menu item and press the SELECT button. A list of all available
airspace databases/files will be shown on screen. The distributed airspace databases are
shown first followed by user airspace files, followed by airspace file on SD card and at the
end are shown airspace files on USB stick.
Select the required airspace and press SELECT. If a check mark is shown in front of an
airspace item, this airspace file will be shown in the graphics and used for proximity
calculation, when enabled.
Button labels vary depend on airspace location. For distributed airspace, only buttons
SELECT and EDIT are available. For user airspace files stored on main display unit, button
DELETE, TO USB and TO SD are added.
LX90xx system Version 4.0 February 2014
Page 39 of 151
To delete airspace file select the airspace item and press the DELETE button. Delete action
must be confirmed. Only user airspace files can be removed.
Press TO USB button to copy selected airspace to USB stick. Press TO SD button to copy
selected airspace to SD card.
When airspace file from SD or USB is highlighted LOAD button is displayed. Press LOAD
button to upload selected airspace to main display unit.
When an airspace file from USB or SD card is selected, it will be available only, if
SD card or USB stick is inserted in main display unit.
Selecting airspaces on SD card or USB allows you to create portable profiles,
which can be transferred from one device to another device.
It is also possible to edit an airspace file. Select an airspace item and press the EDIT
button. A list of all airspace zones in this database/file will be shown. Use the page selector
to scroll through the items one by one or the zoom selector to move up or down for a whole
page. At the bottom of page, a map with selected airspace zone is drawn.
Pressing the VIEW button will toggle different views of the zone list.
Using the STATUS button the selected zone can be disabled for proximity warnings.
Repeated presses will toggle the following options:
• OFF always: proximity warning is switched off for all the time.
• OFF today: proximity warning is switched off for today only.
• OFF hh:mm: proximity warning is switched off for 10 minutes.
• If no label is shown airspace is enabled for proximity warnings.
LX90xx system Version 4.0 February 2014
Page 40 of 151
Press EDIT to edit data for the selected zone. Airspace type, class and altitude borders can
be modified in this dialogue.
6.1.5.4 Managing Waypoints
Select the Waypoints and Tasks menu item and press the SELECT button. A list of all
available waypoint files will be shown on the screen.
Multiple files can be selected. All checked files will be shown on the graphics page and used
in the near mode calculation, if the waypoint is of the proper type (airport or outlanding
place). However, only one file can be the active file. The active file is primary used for task
creation.
When a waypoint file from USB or SD card is selected, it will be available only, if
SD card or USB stick is inserted in main display unit.
Selecting waypoint files on SD card or USB allows you to create portable profiles,
which can be transferred from one device to another device.
Press the ACTIVE button to mark the selected file as active.
Press the DELETE button to remove the selected file from the internal storage of main
display unit.
LX90xx system Version 4.0 February 2014
Page 41 of 151
If waypoints file from SD or USB are selected button LOAD is visible. Press the LOAD button
to upload selected waypoint file to internal storage.
If waypoints file from internal storage is selected button SAVE is visible. Press the SAVE
button to save waypoints to the SD Card or USB stick. The save dialogue will be opened.
Change the filename if required. Press TO USB for saving to the USB stick or press TO SD
for saving to the SD card.
CUP and CUPX files also stores tasks. Tasks will also be uploaded to the main
display unit. This feature is very useful, if you wish to prepare tasks on a
computer using SeeYou or a similar program. You can subsequently easily select
a task via the Task->Edit->Load option. See Chapter 6.7.7 for more details.
Some of CUPX waypoint files with images are password protected and a valid
password must be obtained before using such a file. Please contact vendor to
obtain password for your display unit.
6.1.5.5 Managing Airports
Select the Airports menu item and press the SELECT button. A list of all available airport
databases will be shown. Only distributed airport databases are shown in this menu; the
user cannot modify contents of a database within the main display unit. If an error is
suspected in our database please notify us.
If you wish to add additional airports to the system an ordinary waypoint file should be
created and uploaded as a waypoint file or use the LXAsapt editor program to modify the
airport database.
LX90xx system Version 4.0 February 2014
Page 42 of 151
6.1.5.6 Managing Airports Using the LX Asapt editor
LX Asapt Editor allows you to edit any LXNAV airport database distributed as asapt files. You
can quickly filter the regions and find the airports you're interested in. View and edit all
details of the airports, add charts, photos (from files or clipboard) and any other information
you would like associated with them. You can also delete the regions you're not interested in
and add any new or missing airports anywhere in the world (for supported regions). The
application also monitors every change you make to the database, so you can simply apply
changes to a new database when it is released by LXNAV.
Modified airport data can readily be exported to the system as a (asapt) file and imported to
the main display unit using the standard procedure for database updates (see Chapter
6.1.5.2).
The original database can be restored only via the update database procedure using the
original database file. All databases are published on www.lxnav.com .
LX90xx system Version 4.0 February 2014
Page 43 of 151
6.1.5.7 Managing Maps
Main display unit is preloaded with terrain and vector map data for complete Earth. However
it is also possible to use scanned (rasterized) maps as background of navigational screen.
Next two images are showing example of scanned ICAO map and satellite imagery.
The system is supporting two file formats: CMR file format provided by SeeYou software
from Naviter. There are available free of charge sectional maps of USA
(www.soaringdata.info) and QMP file format provided by Ifos. Please contact Ifos
(www.ifos.de) or (www.strepla.de) to purchase scanned maps.
Select the Maps menu item and press the SELECT button. A list of all available map files
will be shown on the screen.
Multiple files can be selected. All checked files will be shown on navigational page depend
on raster map setting (See chapter 6.1.6.1 and 6.5.6.3).
Press DELETE button to remove selected map. Press LOAD button to upload selected map
to internal memory.
LX90xx system Version 4.0 February 2014
Page 44 of 151
When a map file from USB or SD card is selected, it will be available only, if SD
card or USB stick is inserted in main display unit.
Map files can be very big in size and can occupy a lot of space of internal storage
of main display unit. Selecting maps directly from SD card or USB allows you to
save space at no performance cost and create portable profiles, which can be
transferred from one device to another device.
6.1.5.8 Managing Flights
Select the Flights menu item and press the SELECT button. A list of all stored flights will
be shown. The main display unit is capable of storing more than 1000 hours of flight logs.
If a SD card or USB stick is inserted into the main display unit, flights can be copied to it
when the corresponded button is pressed. Flights can be removed from the main display
unit using the DELETE button.
6.1.5.9 Flight Declaration
The Flight Declaration is composed from pilot data and declared task. Use this option if you
wish to load or save a flight declaration from a file. The flight declaration is saved into
binary HDR file.
LX90xx system Version 4.0 February 2014
Page 45 of 151
On the screen pilot, glider and task information are shown. Press the SAVE button to save
the declaration onto a SD card or USB stick. Press the LOAD button for loading.
If Nano flight recorder is connected to USB port, TO NANO button will appear. Press it to
transfer declaration to Nano flight recorder.
Please note that not all data from the HDR file will be loaded. Glider type and
class must be changed via the Polar and Glider menu (Chapter 6.1.13) as also
final glide calculations are linked to this setting.
HDR files do not include information about observation zone and turn point
elevation. Observation zones will be set to default values (Chapter 6.1.8) and the
elevation will be defined by the digital elevation model built into the instrument.
6.1.5.10 Formatting a SD Card
Use this option if the main display unit cannot read SD card. The system uses the same
card format as used by the MS-Windows operating system (FAT). However sometimes
Windows does not format the SD card properly or a new card may not be formatted
properly. It is recommended to format new SD cards before using them.
Formatting a SD Card will erase the entire contents of the SD card.
6.1.5.11 Managing PDF documents
Main display unit can store almost unlimited number of PDF documents. User can store here
flight manual, maintenance manual, scans of all gliding documents and also checklists.
Select the PDF READER menu item and press the SELECT button. A list of all available
PDF documents will be shown on the screen. Select desired document using PAGE selector.
Press DELETE button to delete selected document. Press LOAD button to upload selected
document to internal memory.
Documents can be very big in size and can occupy a lot of space of internal
storage of main display unit. There it not necessary to copy documents to internal
memory. Documents can be selected directly from SD card or USB at no
performance cost.
LX90xx system Version 4.0 February 2014
Page 46 of 151
Press SELECT button again to open selected document.
A document will load within few seconds. Use PAGE selector or NEXT and PREVIOUS
button to move up/down through document. Use ZOOM selector to zoom current page. Use
MODE selector to move left/right on the selected page. Press GOTO button to navigate to
specific page. A goto dialog will be open. Use PAGE or ZOOM selector to select desired page
It is also possible to set four independ bookmarks. Press BMARK1 to open bookmark drop
down menu. Press BMARK1 button once more to set a bookmark. A message will confirm
that bookmark has been saved.
LX90xx system Version 4.0 February 2014
Page 47 of 151
6.1.6 Graphics
This dialogue allows the user to define the appearance of the map in navigational mode.
Select the Graphics menu item and press the SELECT button. A submenu will open.
6.1.6.1 Terrain and Map
The main display unit is pre-loaded with terrain and vector maps for the Earth. The
database includes: elevation contour lines, water bodies, roads, highways, railways, big
cities and a digital elevation model. The database is derived from the OSM free database.
The database cannot be modified by the user.
Check the Show map item to enable map displays in the navigational pages. If this item is
unchecked no map will be displayed. Check Shadows, if you terrain to be shaded. The
Label zoom value defines up to which scale of zoom city names are visible. 100km means
the whole width of the screen represents 100 km. The user can also modify size, font style
and colour via the Font style and colour item. Use the ZOOM selector knob to modify the
colour and the PAGE selector knob to modify the style. Press PICK button to define colour
more precisely.
Terrain can be rendered in three different levels. A higher level means more details. The
main display unit is optimised to work with high terrain quality. If the value off is selected
no terrain will be shown; only water bodies, roads, railways and cities.
The background colour is defined by the Background item. The default background is
black.
LX90xx system Version 4.0 February 2014
Page 48 of 151
Colours of terrain can be changed using different terrain colour schemes. The following
colour schemes are available:
• Mountain is default setting with colours from green to white at 2000 m.
• Flatland is setting where colours are changing up to 1000 m.
• Low contrast: same as Mountain but colours are not so intensive.
• High contrast: same as Mountain but colours are more intensive and from 0-100 m,
white colour is used.
• Zebra alternating colours are used.
• Zebra 2, less intensive alternating colours are used.
• ICAO colouring is similar to ICAO maps.
• Cliffs colours emphasis slopes and is similar to Google maps display
• Atlas colour scheme is approximation of Imhof colouring widely used in map books.
• Grayscale.
In the Elements group land features are setup separately. Zoom defines up to which
zoom level a selected land feature is visible. Also line width and colour can be setup.
Press the DEFAULT button to reset these settings back to default.
If you have checked shadows and you are flying on flat areas with elevation close
to MSL or below, on terrain will be displayed black spots. Black spots will
disappear, if you uncheck shadows.
Check Show raster maps, if you would like to see also scanned maps (See also
chapter 6.1.5.7).
6.1.6.2 Airspace
In this dialogue you can define the airspace map presentation. Check the Show airspace
item to enable airspace displays in navigational pages. If this item is unchecked no airspace
will be displayed.
If the Show inactive zones option is checked then airspace zones with proximity warning
switched off will be shown. Use Show only airspace below to eliminate airspace which is
going to be too high for the day. For example, if the forecasted cloud base is to be 1500 m,
set this value to 1600 m and your screen will be much more readable. In the Type panel
you can specify how each airspace type is displayed. You should define each type of
airspace zone separately. First choose an airspace type from the list. Zoom value defines
to which zoom level this type is going to be visible. The Colour and Width items specify
how selected airspace zone will be drawn. You can also modify transparency of the selected
type. Turn the ZOOM selector knob to change the transparency value. 100% means
LX90xx system Version 4.0 February 2014
Page 49 of 151
completely transparent and only the airspace zone outline will be shown. 0% means
completely solid (not recommended). Image below shows example of combinations of Width
and Colour property and rendering of airspace zone.
Press the DEFAULT button to reset these settings back to default.
6.1.6.3 Waypoints and Airports
The waypoint and airport look and feel is defined in this dialogue. Check the show
waypoints item to enable waypoints and airports display in navigational pages. If this item
is unchecked no waypoints will be displayed.
The Max.visible item defines how long waypoint labels and detailed symbols are shown. If
the maximum number of waypoints on the current screen is more than the defined value
only small blue dots will be shown for waypoints and no labels will be drawn.
Font style, colour and size can be defined using the Font style and colour item and the
Font size item. When editing style, turning the ZOOM selector knob will change the font
colour.
Waypoint labels can be setup to give even more detail. Label details can be defined for
each individual waypoint type.
A label consists of two selectable values: upper label and lower label. If you prefer to have
labels in single line, the single label checkbox should be checked. A label can also be
coloured. Check the Colorize label item. Coloured labels are drawn with a green
background when the waypoint is within range with the current MacCready settings and
with a yellow background when waypoint is within reach with MacCready setting zero. No
background is shown if the waypoint is not reachable.
The label is selected from following options:
• Name: waypoint name is shown. The name length item controls how the name is
displayed.
LX90xx system Version 4.0 February 2014
Page 50 of 151
• Code: will display the ICAO code or short name.
• Elevation: shows waypoint elevation.
• Arrival altitude shows arrival altitude taking into account current MacCready setting,
safety altitude and current wind. Due to complexity of the calculation it will not take the
wind profile into account.
• Required altitude shows how much height is needed to reach the point. Required
altitude takes into account current MacCready setting, safety altitude and current wind.
Due to complexity of the calculation it will not take the wind profile into account.
• Required Mc gives an estimate of the maximum MacCready value which we can use to
reach the point.
• Required L/D shows the required glide ratio to the point taking into account the safety
altitude.
• Frequency will display the point frequency, if available.
Press the DEFAULT button to reset these settings back to default.
6.1.6.4 Glider and Track
Navigational screen can show the coloured path flown, current track vector and target
vector with terrain collision warning.
Check the Show path item if you want to see the flown path. Path length defines how
much of the flown path will be shown. The path can be coloured using:
• Vario path style, where red colour indicates positive vertical speed and blue colour
negative vario values.
• Mc path style, which is based on current MacCready settings. Red colour indicates
segments of the flight where we have vertical speed higher than the current MacCready
setting. Orange colour shows vertical movements similar to the current MacCready
setting and blue for vario values below the MacCready setting. Grey depicts sink areas.
• Fixed path style. Path colour is fixed and defined by path colour item.
• Altitude path style, where red colour means low altitude and blue means high altitude.
• Ground speed path style, where red colour means slow speed and blue colour means
fast speed.
Check the Show current track item if you would like to see your current ground track
vector. Track colour and width defines the colour and width of the current track vector.
Selected target and current position are connected with a magenta line. Check Show
target if you would like to see this line. In the target colour and target width you can
select the Colour and Width of this line. You can also choose to show or hide the terrain
collision point and the target line itself. The terrain collision marker is a red square which is
only displayed when there is terrain between the navigational point and the current position
LX90xx system Version 4.0 February 2014
Page 51 of 151
and therefore not enough altitude to reach the target with the current glider settings. Font
Style, Colour and Size define what font for terrain collision altitude and range circles.
Enable Show range circles to plot range circles around aircraft symbol. Having range
circles on navigational screen, it is much easier to guess distance to nearest point of
interest.
Range colour and range width define the way circles are rendered.
A built in engine noise level sensor detects, if engine is running or not. Use Engine colour
and width properties to visualize part of path, where engine was running.
Press the DEFAULT button to reset these settings back to default.
6.1.6.5 Optimization
The main display unit calculates the optimised flown distance according to OLC or FAI rules
in real-time during flight (see Chapter 6.1.9). It calculates the available FAI triangle area,
which is also called the FAI triangle assistant. If you enter this area and return to the start
point your flight forms a triangle according to FAI rules. The Optimisation dialogue is used
to define the look and feel.
Check the Show optimization item to enable display of the optimised track.
Optimization colour and width defines the colour and width for these lines.
If Show optimized triangle is checked also lines for the largest optimised triangle are
shown. Please note this might not be a triangle according to FAI rules.
The FAI Area group defines how the FAI area is drawn. Select the Colour item to change
the colour of the FAI area. Use the ZOOM selector knob to change transparency of the
area. 100% means completely transparent and only the outline will be drawn. 0% means
completely solid (not recommended).
Check the Show km lines item to see lines which indicate what will be the size of the
completed triangle.
These lines will always be plotted in kilometres scale regardless of the Units value.
LX90xx system Version 4.0 February 2014
Page 52 of 151
6.1.6.6 Task
Use this dialogue to define how a task is drawn in task mode.
Task colour defines the colour of task lines. Obs.zone colour defines colours for
observation zones. Use the ZOOM selector knob to change transparency of area. 100%
means completely transparent and only the outline will be drawn. 0% means completely
solid (not recommended). When Show flown task is checked also the flown task will be
drawn. This might be useful when flying assigned area tasks.
The Show selected zone only item controls whether all task observation zones are to be
displayed or, if there is only one, then that alone will be shown.
6.1.6.7 Flarm
The system can be equipped with the internal or external FLARM module. If your device is
equipped with FLARM this menu will let you to modify presentation of the Flarm radar
display.
Flarm radar is not available if competition or privacy modes are active. Refer to
Chapter 6.1.12.6.
Checking Show Flarm object will enable display of aircraft detected by FLARM.
Colours are designed to present three values. The colour for aircraft more than 100 meters
above your current altitude is defined by the Above Colour item. The colour for aircraft
more than 100 meters below your current altitude is defined by the Below Colour item.
LX90xx system Version 4.0 February 2014
Page 53 of 151
The colour for aircraft that are less than 100 meters below or above your current altitude is
defined by the Near Colour item.
When a signal from a particular aircraft is lost the aircraft remains blinking on the screen for
the duration defined in the Lost device after item (default 120 seconds). After that time
the aircraft symbol will not be displayed.
Show labels combo box defines for which Flarm objects altitude and vertical speed are
displayed next to the aircraft symbol. The user can modify size, font style and colour.
Select the Font style and colour item. Use the ZOOM selector knob to modify colour and
the PAGE selector knob to modify style.
It is possible to display the flown path of tracked aircraft. Path colour and Path width
define width and colour of paths. Show paths combo box defines for which Flarm object
paths are going to be visible.
Symbol size defines size of symbol of Flarm object.
Check Show PCAS to see non-directional traffic on navigational screen. Non-directional
traffic will be draw with dotted circle at received distance from aircraft position.
LX90xx system Version 4.0 February 2014
Page 54 of 151
6.1.7 Sounds*
In the Sounds setup page audio settings, voice settings and alarms settings for the vario
unit can be modified.
6.1.7.1 Audio Settings*
Basically here we can set up two types of audio; audio sound for climb mode and another
for cruise mode (SC).
Vario audio mode has the following options:
• Linear positive: sound is interrupted with silence every few milliseconds when the
needle is positive; on negative side sound is linear (not interrupted).
• Linear negative: inverse function to Linear positive.
• Linear: sound is linear and non-interrupted in full scale range.
• Digital positive: similar to Linear positive, except frequency is not changing linearly
but with larger steps.
• Digital negative: inverse function to Digital positive.
• Linear positive only: sound is present only at positive values, for negative values
there is silence.
• Digital positive only: similar function to Linear positive only, except the sound is
similar to the digital tone.
Press the DEMO button to hear the selected option.
LX90xx system Version 4.0 February 2014
Page 55 of 151
SC audio mode has four modes:
• SC positive: sound is interrupted with silence every few milliseconds when the needle
is positive; on negative side sound is linear (not interrupted).
• SC negative: inverse function to SC positive.
• SC: sound is linear and non-interrupted in full scale range.
• SC Mixed: for positive relative values the sound represents relative; for negative
relative values the sound represents SC (for that setting it is recommended to set SC
needle to relative).
• Netto speed: variometer will produce exactly the same sound as defined in Vario
audio, except it will follow netto vertical speed.
Freq at 0% defines the tone frequency at 0 m/s.
Freq at +100% defines the tone frequency at full + deflection.
Freq at -100% defines the tone frequency at full – deflection.
6.1.7.2 Voice*
Voice module is integrated part of V5, V9 or V80 variometer. The voice module is 100%
controlled through the main display unit via the settings described in this menu.
In the Voice menu volume level (loudness) of the voice module can be adjusted. In the
Messages window each item can be set separately. Only checked items will be played by
the voice module.
Volume level (loudness) can be also set with volume rotary knob, when messages
are being played
6.1.7.3 Alarms*
The vario unit produces an audio alarm on reaching certain confirmation points. This screen
allows the parameters of the audio to be configured. If a particular message item is
checked the main display unit will generate an alarm at the time of event.
LX90xx system Version 4.0 February 2014
Page 56 of 151
Frequency and Periods define the length and pitch of alarm. Press DEMO button to play
alarm sound. Change volume to define loudness of alarm.
Volume level (loudness) can be also set with volume rotary knob, when alarm is
being played
LX90xx system Version 4.0 February 2014
Page 57 of 151
6.1.8 Observation Zones
This menu defines the default observation zone geometry. The following items can be
chosen: start zone, turn point zone, finish zone and templates.
Each type of observation zone is defined with two angles, two radii and mean bearing
(Angle12). These parameters enable the creation of any known zone geometry separately
for start, turn point and finish.
All stored tasks will match this “global” setting except those where the zone was modified in
the task edit menu (see Chapter 6.7.1).
Using parameters in the zone dialogue it is possible to describe all types of observation
zones. Angle12 defines the orientation of the observation zone. Available values for
Direction are:
• Symmetric: This is the most common selection for turn point.
• Fixed: This is mostly used for assigned areas.
• Next: will orient the observation zone in direction of the outgoing leg. This is usually
used for start.
• Prev: will orient the zone in direction of the incoming leg and is usually used for the
finish.
• Start: orientates the sector always towards the start.
If the Line checkbox is checked the sector will become a line type of observation zone. The
Radius 1 parameter describes half of width of line length. Use the PAGE selector knob to
LX90xx system Version 4.0 February 2014
Page 58 of 151
increase the radius by 0.1 of the selected distance units and the ZOOM selector knob to
increase the radius by 5.
If Line is not checked the Angle1 parameter will define the basic shape of the observation
zone. A value of 180° means that the zone is a cylinder and 45° is the classical FAI sector.
Rotate the PAGE selector knob to increase the angle by 0.5° or use the ZOOM selector knob
to choose values 22.5°, 45°, 90° or 180°.
Angle2 and Radius2 are used for more complex observation zone setups.
When changing observation zone parameters the screen is automatically updated to display
the new zone.
Check the AAT checkbox, if you want to make the selected zone an assigned area. The
AAT checkbox will be automatically checked when Radius1 is greater than 10 km.
By default navigation to task points will be automatically advanced; uncheck Auto next if
you do not want to change over to next point when reaching selected point. This option will
be automatically unchecked when Radius1 is greater than 10 km.
Use Template if you wish to modify start, point and finish zones at same time.
Available templates are:
• 500 m cylinders are used for start, points and finish.
• FAI sectors, 90° and 3 km long sector is use in start, turn point and finish.
• 500m and start line. The 500 m cylinder is used for turn points. A 1 km long line is
used for start and finish.
• FAI and start line. 90° and 3 km long sector is used for turn points. A 1 km long line is
used for start and finish.
LX90xx system Version 4.0 February 2014
Page 59 of 151
6.1.9 Optimization
During flight the system optimises the flown path according to OLC or FAI rules. Use this
dialogue to change the way instrument performs this optimisation.
Number of points defines the type of optimisation. Use five for OLC optimisation. Use the
value three for FAI free flight optimisation.
Optimisation will not take into account the 10 km distance between turn points
which is required by FAI rules.
The FAI triangle group defines the rules for FAI triangles and these rules can bend a little if
you do not want to fly marginal triangles.
Check Reset optimization on engine run to reset optimization counter each time engine
is started.
6.1.10 Warnings
There are four types of warnings available. Airspace warnings are shown when approaching
a particular airspace zone. Altitude warnings are shown when approaching to a defined
altitude, Flarm warnings are triggered when conflicting traffic is in the vicinity and Time
Alarms are raised at defined time interval to remind pilot to do specific task.
Use this dialogue to setup the behaviour of warnings.
LX90xx system Version 4.0 February 2014
Page 60 of 151
6.1.10.1 Airspace Warnings
Airspace warnings are the most complex ones. An airspace warning is activated by two
triggers; First warning (orange) will be given when a projected position of flight for period,
which is defined in the Time item, is computed to cross an airspace zone.
Second warning (red) will be raised when a projected position of flight is computed to cross
airspace zone and the glider is already in the buffer zone in the vertical or horizontal
directions. Buffer zones are defined in the Horz.buffer and Vert.buffer items. Default
values are 1 km for horizontal buffer and 100 m for vertical buffer.
The first warning (orange) will also be given when you enter an airspace zone buffer but the
projected flight is computed to cross it.
An Airspace warning will be raised in all modes and dialogues. A warning for an alarmed
zone can be dismissed for a whole day, some minutes or just quit. Quit means that the
message will disappear. Use Dismiss for spin to define dismiss time in minutes. This time
will be shown in the lower-middle button after which the warning will be raised again.
However an alarmed zone will still be filled with transparent red colour and outlined with a
thick line and also the distance to the nearest point of the airspace zone will be shown.
To prevent dismissing by mistake check the Confirm dismiss checkbox and you will be
always prompted to confirm dismiss for a particular airspace zone.
The RESET button will reset the status for all airspace zones.
LX90xx system Version 4.0 February 2014
Page 61 of 151
6.1.10.2 Altitude Warning
Altitude warnings will be enabled if Show warning is checked. Altitude is given in MSL.
Projection is calculated based on the 20 second average vertical speed and time which is
defined in the Time item.
If the projected altitude is greater than the set altitude, an altitude warning will be raised.
Altitude warnings will be raised in all modes and dialogues just as for airspace warnings.
Altitude warnings can be dismissed for 1 minute, 5 minutes or disabled.
LX90xx system Version 4.0 February 2014
Page 62 of 151
6.1.10.3 Flarm Warnings
Flarm warnings will be raised only when system is receiving FLARM data from internal or
external FLARM module. Using this dialogue the user can define which warnings will be
shown and how they are going to be shown. There are three types of warnings:
• Traffic warnings will be raised once a new aircraft is detected by FLARM.
• Collisions will be shown every time a collision risk with an aircraft occurred.
• Obstacles warnings will be displayed when a collision with a ground obstacle is
predicted.
If the voice option is installed it is also possible to hear the horizontal and vertical situation
to the current object. Uncheck appropriate items if you want to disable this part of the
message. You can also define the way direction to the Flarm object will be presented.
There are three options:
• Relative bearing: In this option direction will be given relative to the glider’s nose
direction (e.g.
Traffic 3’ o clock
, which means traffic, is on your right side).
• True bearing: Direction is give with absolute direction (e.g.
Traffic from 330°
)
• Relative/True bearing is a combination of both methods. Relative bearings will be
given when flying straight and true bearings will be given when thermaling.
• Graphical presentation. When this item is check, also a graphical presentation of
FLARM will be shown, when Flarm warning is displayed.
Picture above shows typical Flarm warning with graphical presentation and relative bearing
of object. Press CLOSE to dismiss warning, CIRC.OFF to dismiss for time of circling and 1min
to dismiss all Flarm warnings for one minute.
LX90xx system Version 4.0 February 2014
Page 63 of 151
6.1.10.4 Time Alarm
Use this dialogue to define three independent time alarms that will be triggered at specified
periods.
6.1.11 Units
Use this dialogue to specify units, UTC time offset and type of ballast input.
The lower-middle button will toggle all units between imperial and metric units.
Glider ballast can be entered as:
• overload factor, which is defined as:
weightgliderREFERENCE
ballastWaterweightPilotweightgliderEmpty
overload
..
....
+
+
=
• Load, which is entered in kg/m2 or lb/ft2.
• Weight of water ballast. If this option is used the weights of the glider and pilot
must be entered. Refer to Chapters 6.1.13 and 6.1.2 for more details of how to enter
glider and pilot weights.
LX90xx system Version 4.0 February 2014
Page 64 of 151
6.1.12 Hardware*
Use this menu to define hardware properties such as total energy compensation, vario
indicators layout, compass calibration, FLARM module settings, AHRS settings, NMEA output
and data which will be exchanged between the rear and front display units. Some items
may be greyed out when the selected option is not available.
6.1.12.1 Vario unit settings – TE compensation*
All settings in this menu are related to the glider.
6.1.12.1.1 TE compensation - Digital Total Energy Compensation
There are two ways by which the vertical speed can be corrected for total energy:
• digital TE compensation based on speed changes with time
• Pneumatic compensation with a total energy probe.
TE (Pst)
Vario unit
Digital TE compenstaion
Compensation with TEprobe
LX90xx system Version 4.0 February 2014
Page 65 of 151
If the digital TE option has been used TE compensation should be set to 100%.
It is important to note that the method of TE compensation is set up when the
instrument is installed by virtue of the pneumatic connections made to the TE and
static ports. Changing the compensation type in the setup screen below WILL
NOT change the method of compensation - the pneumatic plumbing has to be
changed first.
If the TE tube has been connected TE compensation should be set to 0%. The
quality of the TE compensation depends entirely on the location, size and
dimension of the TE tube. The installation must be leak-proof.
The digital TE compensation can be fine-tuned during flight using the following procedure.
It is essential that this is only done in smooth air; it is not possible to tune the TE accurately
in turbulent air.
Set TE compensation to 100%. Accelerate up to approximately 160 km/h (75 kts) and keep
the speed stable for a few seconds. Gently reduce the speed to 80 km/h (45 kts). Observe
the vario indicator during the manoeuvre. At 160 km/h the vario will indicate about –2 m/s
(-4 kts). During the speed reduction the vario should move towards zero and should never
exceed zero (slightly positive indications are acceptable). If the vario shows a climb the
compensation is too low; increase the TE%; and vice versa. Try another “zoom” to assess
the change and make further adjustments if necessary.
Digital TE compensation is only effective when the Pitot tube and static sources are colocated and the pneumatic lines to the instrument are approximately the same length. The
best sensor to use is the combined Pitot/static Prandtl tube. If problems are experienced
with the digital TE compensation the most likely cause is the glider's static source. The
static source can be checked by plumbing the pneumatic tubes for digital TE compensation
and then setting the TE: to 0%. In still air accelerate to approximately 160 km/h and slowly
reduce the speed. Observe the vario indicator. If the static source is good the vario should
immediately start to move to show a climb. If the needle firstly shows increased sink and
then moves to a climb, the static source of the glider is unsuitable and there is no way to
provide successful digital TE compensation. The use of a dedicated and accurate finmounted Pitot/static source such as a Prandtl tube might help.
6.1.12.1.2 SC Switch
The vario unit has an input for an external speed command switch which is wired to the
vario unit cable set. Using the external switch it is possible to switch between SC and Vario
manually. Setting the SC switch to ON means that closing the switch will cause the
instrument to enter SC mode and setting SC switch to OFF means that closing the switch
will select Vario mode. There is a third option by setting SC switch to TASTER and
connecting a push button to the input; each key press will toggle between SC and Vario
(mandatory setting for LX Remote).
6.1.12.1.3 Temperature Offset
The system is supplied with an external outside air temperature (OAT) sensor. With the
offset setting it will correct static errors of temperature measurement.
There is another input called VARIO PRIORITY. When this input is activated by
grounding the appropriate wire the unit will change over to Vario immediately.
LX90xx system Version 4.0 February 2014
Page 66 of 151
This input wire i
s set open (not grounded) as a factory default on delivery.
6.1.12.1.4 Airspeed Offset
Some gliders are having quite big difference between calibrated airspeed and indicated
because of imperfect static ports (e.g.: Cirrus Standard). As airspeed effects wind
calculation. It is possible to define an airspeed offset to improve wind calculation.
Vario indicator will ignore this setting and shows not corrected airspeed.
6.1.12.1.5 Digital inputs
V9 or V5 variometers are having four programmable digital inputs. They are labelled with
IN1, IN2, IN3 and IN4 on V5/V9 cable-set. See chapter 4.5.3 for more details on vario unit
wiring diagram. In current version digital input can represent the state of following actions:
• Gear down and lock
• Airbrakes open
• Water ballast open
Digital input shall be wired via switch to ground and it shall open or close, when selected
action is performed. A green light will light.
If necessary, check Invert check box, to reverse the operation of digital input.
Once digital inputs are connected the system will warn pilot, if airbrakes are open on takeoff and when gear is not locked prior to landing.
6.1.12.2 Vario Indicator Setup*
The vario indicator is always part of the vario unit. However an unlimited number of
secondary vario indicators can be connected to the system using the RS485 system bus.
There are three different types of vario indicators; V5 vario indicator, which is standard
part of V5/V9 variometer, V80 vario indicator and old LCD or USB-D vario indicator.
LCD vario indicator and USB-D type of indicator are setup through menu LCD Indicator,
whereas others, more modern vario indicators, are having its own menu item identified with
serial number.
LXNAV is highly recommending upgrading old LCD or USB-D type of vario unit to
latest technology vario unit. Please contact local dealer or LXNAV for more
details.
LX90xx system Version 4.0 February 2014
Page 67 of 151
6.1.12.3 Vario indicator V5*
V5 Vario indicator is having mechanical needle and colour screen with 320x240 pixels
resolution on which user selectable data are displayed.
Each V5 vario indicator is identified by a serial number, which is also displayed on hardware
menu. Therefore literally unlimited number of vario indicators can be connected to RS485
bus and each of them can be setup separately.
Description of vario indicator is shown on next picture.
Mechanical needle displays vario, netto, relative or speed to fly value. It can be setup
separately for climb mode or cruising mode. Printed scale can be chosen in range from -5 to
5 or from -10 to 10. Within software range can be set to 2.5, 5, 10m/s or 5, 10, 20kts or
500, 1000, 2000fpm.
Upper number and Lower number can be configured as average vario, time, flight time,
task remaining time, netto value, outside temperature, thermal average, indicated airspeed,
true airspeed, current altitude, distance to goal, arrival altitude, Last 60 minutes speed,
altitude in feet, flight levels, voltage or average netto. It can be setup separately for climb
mode or cruising mode.
Speed to fly bar symbol is indicating which speed you have to fly according to current
MacCready setting, sink rate and speed. One arrow means 10units of speed faster or slower.
Up red arrows mean fly slower and down blue arrows mean fly faster.
Red diamond symbol can show average vertical speed or current g-load.
Blue arrow symbol shows current MacCready value.
Mechanical needle
Average
Thermal average
GPS status
Range
Upper number
Climb/cruise symbol
Battery
Needle type
MacCready symbol
Speed to fly symbol
Lower number
LX90xx system Version 4.0 February 2014
Page 68 of 151
Green T symbol represents last thermal average value.
White bar displays arc between minimum and maximum vertical speed value in last 20
seconds in white colour or minimum and maximum g-load in red colour, depending on
settings.
Press RESET-G button to reset g-meter.
Most innovative feature of V5 vario system is an upgrade. Firmware for vario unit
can be easily upgraded by customer with SD card. See Chapter 9 for more
details.
6.1.12.4 Vario indicator V80mm
V80 Vario indicator is without mechanical needle. It features 3.5” colour screen with
320x240 pixels resolution on which user selectable data are displayed and needle is drawn.
Each V80 vario indicator is identified by a serial number, which is also displayed on
hardware menu. Therefore literally unlimited number of vario indicators can be connected
to RS485 bus and each of them can be setup separately.
V80 vario indicator basic screen is split into two parts, white ring with needle and vario
scale. Additionally to needle, blue MacCready triangle, green thermal average T and red
diamond for 20 seconds average are shown. In the middle four user-customizable numbers
are show. When middle button on V80 indicator is pushed display will toggle between
numeric display, Flarm radar display and artificial horizon screen.
LX90xx system Version 4.0 February 2014
Page 69 of 151
Press middle button for long time to enter setup menu. In setup menu it is possible to setup
graphic interface for Flarm radar screen and numeric values. Numeric screen can also be
setup on main display unit.
6.1.12.5 LCD and USB-D Vario indicator
This is type of the older vario indicator. An LCD vario indicator or USB-D vario indicator
consists of:
• Needle
• Two numerical displays (upper and lower).
• Labels and indicators.
These following functions can be set (see next picture):
• Needle: vario needle (Vario, SC, Netto or Relative).
• SC Ring: Displays speed command at all times.
• Upper Numeric Display: Integrator, time, flight time, task remaining time. Upper line;
the parameter displayed can be configured in both Vario and SC modes.
• Vario Mode Indicator: Shows current flight mode (vario or speed command).
• Lower Numeric Display: Altitude (NN altitude), Distance (distance to the navigation
point), Glide diff. (final glide altitude difference), Speed (TAS), Leg speed (speed on
leg), QNH (ft) (NN altitude in ft), Flight levels. Lower line; the parameter displayed can
be configured in both Vario and SC modes.
The labels will automatically be displayed depending on the current function. The BAT
warning will be displayed when the supply voltage is below 11 volts.
LX90xx system Version 4.0 February 2014
Page 70 of 151
6.1.12.6 Flarm*
On the Flarm setup page, information about built in or external Flarm are visible.
Information like serial number, selected frequency, firmware version and database versions
are shown.
EXTERNAL FLARM
If Flarm module is built in user can select operation mode. There are three different
operational modes available:
• Power OFF - Flarm unit is switched off.
• Power ON - Flarm unit is switched on.
• Privacy ON - Flarm unit works in stealth mode. Other Flarm units will not receive
altitude and vario information concerning your glider. For collision warnings this mode
has no influence.
If there is no Flarm module built into the main display unit, then instead of operation mode
combo box, baud rate selection will be displayed
Freq shows selected frequency depending on the continent, where system is located.
Port defines serial interface through which Flarm data are being received. Use Ext. (PC)
port when you want to receive externally connected Flarm on PC port. See chapter XXXX
Device ID shows the Flarm unique ID, which is transmitted to other FLARMs.
Competition mode is intended only for competitions. If this mode is enabled the pilot will
not be able to see any Flarm data on the navigational screens. The competition mode
status is recorded in the IGC file and can be checked during scoring.
If you are flying in a competition it is sufficient to turn on Competition mode.
However if you do not want other aircraft to see you, you should switch mode to
Privacy ON.
Reduce warnings will significantly reduce Flarm warnings. Use this option if you are flying
in gaggles or areas with high density of other aircraft.
We recommend you sign in at FLARMNET.org. This is free of charge. Registering
with FLARMNET allows others to see you not only with Device ID but also with
your contest number and name. Refer to Chapter 6.5.6.8.
Send declaration check box is available only when external Flarm is connected. Check this
option, if you want that task declaration is automatically transferred to Flarm.
LX90xx system Version 4.0 February 2014
Page 71 of 151
6.1.12.7 Compass*
When a compass is connected to the system calibration is crucial for correct operation.
Refer to compass manual for more info about installation and its calibration.
6.1.12.8 Rear Seat or Front Seat
In a two-seat configuration with the rear seat device it is possible to transfer selected data
between the front and rear seat device. Use this menu to define which data will be
automatically received from the other device.
Data are divided into two groups; flight parameters and navigational data. If a specific
value is checked this value will be automatically received from the other device.
Check MacCready, Ballast or Bugs to receive current MacCready value, current ballast
setting or bugs from other device.
If the Waypoint checkbox is checked a new waypoint target will be automatically assigned
when the user changes the waypoint target on other device. The message
“Waypoint target
received”
will be displayed on the screen and you will be navigating to the same waypoint as
other device. Please note that it is not necessary to have this waypoint in your databases as
the complete waypoint information is transferred.
If the Waypoint checkbox is not checked it is still possible to send a target to the other
device using the SEND action in waypoint mode.
The same applies to the Airport checkbox. The message
“Airport target received”
is
displayed.
If the Task checkbox is checked the task will be synchronised with the other device.
LX90xx system Version 4.0 February 2014
Page 72 of 151
When flying an assigned area task it is worth not having the task checkbox
checked. This will allow one pilot to play with “what if” scenarios. Once a proper
direction is found you can send the task to the other device using the SEND
action in task mode.
6.1.12.9 Remote stick
When a remote stick is connected to the system, it is possible to define type of remote stick
via this menu. In case LXNAV remote stick with six buttons is connected, user can specify
functionality of function button. There are several options available for function button:
• Toggle vario range will toggle between vario range 2.5m/s, 5m/s or 10m/s.
• Toggle map settings will toggle between two stored map settings.
• SELECT will call airport select menu or waypoint select menu or task edit depending
on current navigational page.
• MC/BAL will open MacCready and ballast dialog.
• MAP will open map properties dialog.
• WIND will open wind selection dialog.
• AIRSPACE will open airspace zones dialog.
• MARK will create a waypoint or marker at current position.
• FLARM will display a list with all Flarm objects in vicinity.
• PAN will set navigational screen into pan mode.
• EVENT will mark an event into recorded IGC file
• ROT.FAI will rotate FAI triangle area, if shown on navigational screen.
• TEAM opens dialog to enter team partner code.
Check Use stick for front seat if there are two remote sticks installed and system without
rear seat device (e.g. Pipistrel Taurus)
LX90xx system Version 4.0 February 2014
Page 73 of 151
6.1.12.10 AHRS
When AHRS device is connected to the system or AHRS option on V9 is enabled, this menu
is used to calibrate AHRS for installation error.
Place you glider in levelled position and press LEVEL button. You can also modify pitch
offset, if you rotate PAGE selector knob. More detailed can be pitch set using pitch offset
spin control.
Mode defines modes of operation of AHRS. AHRS can be switched to Contest Mode, where
AHRS will be disabled for period of competition.
6.1.12.11 NMEA Output
The main display unit is capable of transmitting position data sentences in NMEA format for
use by other devices.
Port defines on which serial interface data will be transmitted. Baud rate defines
transmission speed. Data is divided into three groups:
• GPS data will output all GPS-related data such as time, longitude and altitude.
• LXNAV data will output all variometer-related data such as vario, MacCready and
ballast.
• Flarm data will output all Flarm-related data.
LX90xx system Version 4.0 February 2014
Page 74 of 151
NMEA data is available also on Flarm display port on main display unit and rear
display unit at 19200bps. However only Flarm data and GPS data.
6.1.12.12 Engine *
Use this menu, when the system is installed into glider with engine. The current engine
noise level is shown as a progress bar. If external MOP sensor is installed also MOP level
will be shown.
Set Threshold to define when engine is running. By default threshold is set to 100%, which
means no engine run will be detected. Lower this value to approximately 80% to detect
engine running. Engine total time will be accumulated and displayed in total time box. If
necessary, total time can be adjusted, to match current engine total time.
6.1.12.13 Flaps*
When flap sensor is installed, use this menu to set flaps position. Use page selector to select
desired flap position. Press SET button to set position. Continue with procedure for all flap
positions.
When all flap positions are set, a green dot will be displayed with current flap position.
If flap labels are not set yet, press EDIT button to name flap label. Flap labels must me
entered with increasing speed range. It is recommended that flaps labels are set together
with speed range in Polar and Glider setup. See Chapter 6.1.13 for more details.
LX90xx system Version 4.0 February 2014
Page 75 of 151
6.1.13 Polar and Glider*
Use this dialogue to enter glider polar and other properties of glider. As default polar a
standard class glider is selected.
Polars for most modern gliders are already prepared. Press the LIST button and a dialogue
with a list of all available gliders will be shown.
Select the required glider using the PAGE selector knob and press the SELECT button. All
glider data will be copied from the chosen polar. You may quickly check the best glider ratio
and minimum sink rate to see if the polar data matches the glider performance. You can
modify the polar by changing coefficients a, b and c. A polar is defined as a quadratic
equation with the parameters a, b, and c. Use the LX-Polar program to calculate coefficients
a, b and c for a given glider’s polar. The program requires at least three sink points entered
at selected speeds (e.g.: 100 km/h, 130 km/h, and 150 km/h). The program will calculate
the values of a, b and c, which should be noted and entered into the system.
You can download program free of charge from www.lxnav.com
Stall speed is used to generate stall warnings which are available only with the LX Voice
module.
Weights must be entered if user enters ballast in kilograms. There are three weights to
enter. Ref.weight corresponds to the Ref.load value and represents the value at which
the polar was measured or recalculated. Reference weight or reference wing load value will
be automatically recalculated based on Wing area property. Max.weight is the maximum
take-off weight allowed for a glider. It is not used in the calculation; it is just a reminder to
LX90xx system Version 4.0 February 2014
Page 76 of 151
the pilot of the maximum take-off weight. Empty weight is weight of the glider without
pilot and ballast. The overload factor is calculated as:
weightgliderREFERENCE
ballastWaterweightPilotweightgliderEmpty
overload
..
....
+
+
=
Pilot weight is set in the Flight recorder menu (see Chapter 6.1.2).
For aircraft with flap, it is also recommended to enter flap position labels and speed range
for corresponded flap position. Speed range shall be given for reference wing load or
reference weight.
Once speed range is entered, the system will be able to display requested flap position
based on current wing loading and g-factor.
6.1.14 Profiles and Pilots
All settings and navigational page layouts are stored in a profile. Profiles can be used in
different ways:
• For club operation or multiple pilots sharing the same glider. Each pilot can have his
personal profile.
• When the user is flying a glider which can have a different wing spans. In this situation
the pilot has two profiles, one for each configuration.
• When a pilot is flying in several different locations. A separate profile for each location
can be created (examples: France, Spain, Namibia, WGC2014).
Profile consists of two parts:
• Navigational page layout defines which navboxes and symbols are visible on
navigational page. It defines colour of navboxes, font sizes and colours, how many
navigational pages are visible and which modes are enabled. Navigation page layout
can be setup with LX Styler or on device itself (See chapter 7).
• Device settings includes glider polar, selected databases, selected airspace and
waypoints file, map colours, vario indicator settings and flight computer properties.
Device settings can be modified on device itself through setup menu (See
chapter 6.1) or with LX Styler.
An active profile is selected when the system is powered on (see Chapter 8.1.2).
Use this dialogue to add a new profile, delete a profile, load/save a profile, copy device
settings, change name for an existing profile and to activate a profile. The active profile is
the profile which is currently being used. Select a profile using PAGE selector knob. Press
TO USB or TO SD for the profile will be stored to a USB stick or SD card. A profile is stored
LX90xx system Version 4.0 February 2014
Page 77 of 151
to a file with the .lxprofile extension. Press the LOAD button to load a profile from a SD
card or USB stick. A profile will be copied to the main display internal storage. Press the
EDIT button to edit the profile name.
A profile can also be locked. This option is very useful for club operation where one does
not want a global club profile to be changed. When a profile is locked all settings will be
read-only. Press LOCK button to lock/unlock profile. When a profile is locked am message
(locked) will be written below the profile name. Press ACTIVE to make selected profile as
active one.
When a profile file from USB or SD card is selected, it will be available only, if SD
card or USB stick is inserted in main display unit.
Selecting profiles on SD card or USB allows you to create portable profiles, which
can be transferred from one device to another device.
A profile file can be opened and manipulated with the LXStyler program. LXStyler is a
special program designed to customise layout navigational pages. It can be downloaded
free of charge from our web pages www.lxnav.com. For more information about LXStyler
please refer to the LXStyler manual.
LX90xx system Version 4.0 February 2014
Page 78 of 151
If new profile is created with LX Styler, it will have default device settings. However, it is
possible to copy device settings from profile to another profile. Select newly created profile
as active profile. Select profile from which you would like to copy settings to active profile.
Press COPY button. A confirmation dialog will open.
It is also possible to export profile including all the airspace files and waypoint files. Use
EXPORT and IMPORT button to export/import profile with airspace and waypoint data.
6.1.15 Language
The system can run in different languages.
Select the desired language. The main display unit will reload and restart in the new
language. If your language is not listed and you feel able to become a translator for the
system please do not hesitate to contact us.
LX90xx system Version 4.0 February 2014
Page 79 of 151
6.1.16 Passwords
There are several passwords which run specific procedures as listed below:
• 00111 displays information about the system and its sensors.
• 01043 will perform “Auto zero” and set indicated speed to zero.
• 30000 browses through installed files (use with caution).
• 41000 first or forced update of Flarm.
• 42000 update of Flarm through PC port (default).
• 44441 shows debug information.
• 55556 will enable Condor simulator input via the PC port.
• 89891 is used to initiate the firmware update procedure.
• 99999 will erase all flights stored on the main display unit.
6.1.17 Admin mode
Admin mode is very powerful tool to disable particular functionality of the system for normal
users. It is designed for club usage, where one person is taking care of all instruments.
To enable Administration mode, check Enable admin mode check box. Next step is to
enter and re-enter administration password. Once password is entered it si possible to
define, which actions normal user can do.
There are several actions, which can be disabled for normal user:
• Change Safety Altitude, user will not be able to set saftey altitude.
• Change Report Point, user will not be able to set report point, if is is already set.
LX90xx system Version 4.0 February 2014
Page 80 of 151
• Change Wind Methods, user will not be able to change methods for wind
calculation.
• Change Page Style, it is not possible to change page layout
• Change Flarm Target, user can not change flarm targets names and other data for
it.
• Use Flight Recorder menu, user can not modify flight recorder properties.
• Use Display menu, user can not modify display properties.
• Use Files and Transfer menu, it is not possbile to use files and transfer menu
completely.
• Select Airspace file, user can not select and modify airspaces at all.
• Modify Airspace, user can select different airspace file, but he can not edit or
delete it.
• Select Airport file, user can not select and modify airports.
• Select Waypoints file, user can not select and modify waypoints files.
• Modify Waypoints, user can select, but can not delete waypoints file.
• Select Raster maps, user can not select and modify scanned maps.
• Modify Raster maps, user can select, but not modify scanned maps.
• Format SD Card, user can not format SD card.
• Update Databases, user can not update databses.
• Modify PDFs, user can not delete stored PDF documents.
• Delete Flight, user can not delete stored flight.
• Use Graphics menu, can not use this menu.
• Use Sounds menu, can not use this menu.
• Use Observation Zones menu, can not use this menu.
• Use Optimization menu, can not use this menu.
• Use Warnings menu, can not use this menu.
• Use Units menu, can not use this menu.
• Use Hardware menu, can not use this menu completely.
• Use rear/front seat menu, user can not use this menu.
• Use NMEA output menu, user can not use this menu.
• Use Polar menu, user can not modify any glider parameters
• Use Profiles menu, user can not modify Profiles at all. He can change profile only
by restarting the device.
• Modify Profiles, user can not delete, edit or lock profile.
• Use Language menu, user can not use this menu.
• Use Passwords menu, user can not use this menu.
Once actions are selected and admin mode is closed, user will un-selected items grayout.
LX90xx system Version 4.0 February 2014
Page 81 of 151
6.1.18 About
About dialogs shown current serial number end version info od the main display unit. Use
this menu, whenever you are experienced a problem with the system. If SD card is inserted
into the main display unit, button TO SD will be shown. Press TO SD and a report will be
saved to SD card. A report will have a name »debug_20140216_14_21_28.reprot«. Please
email this report to us for further help.
6.2 Information Mode
Information mode consists of three pages; GPS status page, position report page and
satellite sky view page. Use the PAGE selector knob or the up/down arrow to toggle pages.
6.2.1 GPS Status Page
GPS status, altitude, flight level and height are shown on this page. Sunrise and sunset are
calculated for the current position. In the upper-right corner the current FLARM status is
shown. TX means FLARM is transmitting data to others and the number indicates how
many other FLARM devices are within range.
If you press the MARK button a new waypoint will be created with the current latitude,
longitude and elevation based on the terrain database. The waypoint name is generated
from the current date and time separated by the minus character and preceded by an
underscore.
LX90xx system Version 4.0 February 2014
Page 82 of 151
Waypoint data can be modified. Refer to Chapter 6.6.1 for more details. Press the OK
button to save a marked waypoint or press CANCEL to exit without saving. Press GOTO
button to navigate immediately to selected point.
6.2.2 Position Report
This page shows your position report relative to an arbitrary selectable point. Use this page
when you are talking to ATC.
Press the REPORT button to select a report point. Radials will always be magnetic and
distance will always be in nautical miles. If you press the MARK button a new waypoint will
be created.
LX90xx system Version 4.0 February 2014
Page 83 of 151
6.2.3 Satellite Sky View
Information about tracked satellites is given on this page. If no satellite information is
available a message
“No satellite info”
is displayed.
Green satellites are satellites currently being used for position determination. Three
concentric circles represent satellite elevation (0, 30, 60 degrees above horizon). If a
satellite is in the centre of the circles it is directly overhead.
When you are experiencing bad satellite reception, check this page. If the satellites are
always red in a particular place, you should consider moving the GPS antenna to another
position. If you press the MARK button a new waypoint will be created.
6.3 Near Mode
A list of all landable waypoints and airports is shown in this mode. The default sorting order
of the items is by arrival altitude. Press the SORT button to toggle the sort method. The
selected sort method is indicated by the grey background in the header.
Press VIEW button to change how much details are visible for selected item. Select the
preferred landable place via the PAGE selector knob and press the GOTO button. It will
automatically change to airport mode and navigation will commence to selected point.
Duplicates are automatically removed. If a target with nearly the same latitude and
longitude is found within both the distributed airports database and user waypoint file then
only the target from the user waypoint file will be displayed.
LX90xx system Version 4.0 February 2014
Page 84 of 151
Small rectangle in bottom right corner of point icons indicates that selected point
is having images.
6.4 Statistics Mode
The Statistics mode operates in two different ways. During flight statistical data for the
current flight is shown whilst on the ground the logbook for all stored flights is displayed.
6.4.1 Logbook
If a SD card or USB stick is inserted into the main display unit the user can copy a selected
flight to it. Select the desired flight using the PAGE selector knob and then press the
appropriate button.
A flight is automatically copied to the SD card and/or USB stick if it has been
inserted into the main display unit when the message
“Calculating security”
is
displayed. This message appears when landing conditions are met.
You can also delete a flight using the Files and Transfer menu (see Chapter 6.1.5.7).
Press VIEW button to reply the flight. When VIEW button is pressed flight viewer will open.
LX90xx system Version 4.0 February 2014
Page 85 of 151
A map with flown path is shown and barogram. Use ZOOM selector knob to zoom in or zoom
out flight. Use PAGE selector knob to move through flight.
6.4.2 Statistics during flight
Main statistics page is split into two parts. In top part, last four thermals are shown.
Thermal average is shown below each thermal column. Thermals are coloured based on
MacCready value. Red colour means that thermal average was 0.5 m/s or more above
current MacCready setting. Blue colour means that thermal average was 0.5 m/s or less
below current MacCready setting. Orange colour is for matching thermal average.
On the left side altitude scale is drawn. On right side average of last four thermals is printed.
Shape of thermal column corresponds to strength of thermal at particular altitude.
Press THERMALS button to disable or enable thermals view.
In bottom part selected statistics is shown. There are three different pages of statistics
available:
• General statistics, which is divided further into flight statistics, task statistics and
last 60 minutes statistics.
• Detailed task statistics displays detailed statistics for each task let.
• OLC statistic shows statistics for optimized part of the flight according to the rules
defined in Optimization menu.
Use PAGE>> button to toggle between different pages.
LX90xx system Version 4.0 February 2014
Page 86 of 151
6.4.2.1 General statistics
Using the PAGE selector knob the user can change the statistics subpage.
There are three subpages available:
• Flight statistics displays data for whole flight. Dis.flown is the optimised distance.
XC speed is average speed corrected for altitude difference. Average vario is used in
this calculation.
• Task statistics displays data for the started task. Distance flown is the distance that
has already been flown on the task.
• The last 60 minutes statistics displays data for the last 60 minutes of flight. If the
task was started then Dis.flown is the distance flown on the task for the last hour
otherwise it is the optimised distance. If the task distance is used a remark (On Task) is
displayed in the header.
6.4.2.2 Detailed task statistics
Using the PAGE selector knob the user can select different task points. Press VIEW button
to show more details for selected leg.
LX90xx system Version 4.0 February 2014
Page 87 of 151
6.4.2.3 OLC statistics
Using the PAGE selector knob the user can select different optimized points. Press VIEW
button to show more details for selected optimized leg.
LX90xx system Version 4.0 February 2014
Page 88 of 151
6.5 Airport Mode
Using the PAGE selector knob you can scroll through the pages. There are several
navigational pages available.
Navigational pages can be customised using LXStyler. The description below
applies to the default navigational pages.
6.5.1 Initial Navigation Page
In the top row the GPS status is shown. Green colour represents GPS 3D, yellow colour
means GPS 2D and red colour is GPS bad. The number of coloured bars indicates the
number of visible satellites. Each bar represents two satellites.
Local time shows the local time. You can set a different time zone in the Units dialogue
(see Chapter 6.1.11).
The battery symbol indicates status of the battery. When the battery is very low the symbol
will turn red and also the Low battery warning will be displayed.
North direction is pointing to true north. This is important if map orientation is not north up
at the top.
The airplane symbol in the middle of the screen is showing current position. The grey line
indicates our current ground track and the magenta line is connecting the airplane position
with selected goal. When we are below the glide-path to current goal a green and a yellow
GPS status
Mode and
target name
Local time
Battery
status
Relative
bearing
Final glide
symbol with
arrival
altitude and
MacCready
North
direction
Wind and
Thermal
assistant
Zoom scale
LX90xx system Version 4.0 February 2014
Page 89 of 151
rectangle will be displayed on the magenta line. The green rectangle represents the
position from where you will achieve the final glide with current altitude and current
MacCready setting. The yellow rectangle represents the position from where you will
achieve the final glide with current altitude and MacCready zero.
The relative bearing (near the top) gives advice on which direction and how much to turn in
order to fly towards the selected target. In the above example we should turn right 21°.
In the lower left corner of screen a wind symbol is displayed. The arrow indicates the
wind direction relative to the map orientation. Wind direction and wind speed are
numerically presented below the arrow.
Zoom scale is displayed in bottom right corner of screen. A distance of drawn zoom symbol
is plotted above the scale. If there is a letter “a” written next to distance scale, it means,
scale of map will automatically adapt to goal.
In the bottom row several items are displayed. Thermal shows the last thermal average,
Brg is the bearing to the selected target, Dis is the distance to the target and Alt is the
current MSL altitude.
The last two numbers (reqE and E) show the required glide ratio to the target. In the
above example the required glide ratio is infinitive and current glide ratio is also infinitive.
The current glide ratio is calculated over the last two minutes of flight.
6.5.1.1 Final Glide Symbol
The final glide symbol is a complex symbol. The bottom number (-682 in the above
example) shows your predicted arrival altitude. Negative numbers indicate that you are
below the glide path and positive numbers indicates you are above the glide path. In the
above example the glider is below the glide path. Chevrons show the position relative to the
required glide path in percent. One arrow means 5% above or below final glide. In the
example more than 25% below glide path is shown.
The middle number is the current MacCready setting. In task mode it is prefixed with the
letter T, A, B, G, S or AG. See chapter 8.2.1 for detailed explanation of this mode.
Sometimes there will be another number above MacCready which is used for arrival over
terrain. If we are on final glide to a selected target but between it and the current position
there is a terrain, which cannot be crossed without more height, then this number will give
you an estimate, how much you have to climb, to pass over the terrain. A red rectangle will
also be shown on the magenta line indicating the point of potential collision.
6.5.1.2 Thermal Assistant
During thermaling the wind symbol will also shows the thermal assistant. The thermal
assistant continuously analyses the thermal whilst circling. The sizes of the dots indicate the
strength of the thermal. Big dots mean stronger lift at that point. On the left or right side
of the circle a small airplane symbol is shown. This airplane indicates your position. A black
dot indicates the thermal maximum. The pilot should extend the circle when the black dot is
about 60° away from glider. This value varies and depends on turn rate of the glider and
type of thermal. All other dots are coloured based on the MacCready setting. Red colour
means values above MacCready, blue values below MacCready and yellow dots represents
lift about the same strength as the MacCready setting.
This colour scheme gives us hints about a thermal at glance. If most of dots are red we
should consider increasing the MacCready value; if most of dots are blue we should consider
decreasing the MacCready setting.
LX90xx system Version 4.0 February 2014
Page 90 of 151
6.5.2 Second Navigation Page
The second page is similar to the first page with additional data shown in the bottom line.
The additional items are the current net vertical speed, current track, ground speed, height
above ground and optimised distance.
6.5.3 Third Navigation Page
The third page is a combination of first navigational page and side view.
Side view is showing lateral view from glider towards selected goal. Terrain below glider is
displayed including glider projected track based on glide ratio in grey colour. Yellow and
magenta lines are showing requested glide ratio to goal based on zero MacCready setting
and current MacCready setting.
LX90xx system Version 4.0 February 2014
Page 91 of 151
6.5.4 Fourth Navigation Page
The fourth navigational page is combination of FLARM radar screen and some additional
altitude data.
The internal pressure sensor altitude is shown as AltIGC. AltInv shows the altitude in
opposite units to those defined in the Units setup. OAT is the outside temperature,
Pot.Temp is the potential temperature and Battery displays the current voltage
The estimated time of arrival and estimated time established are displayed at the bottom
part of page.
6.5.5 Fifth Navigation Page
On this page images of seleced airport are shown, if available.
Also information for the selected airport is shown at the bottom part. This information
includes airport frequency, runway info and description. The estimated time of arrival,
estimated time established and sunrise/sunset times for the selected target are displayed in
last row.
LX90xx system Version 4.0 February 2014
Page 92 of 151
6.5.6 Button Actions
When any of the eight buttons are pressed, the functions for the buttons are shown. If a
selected button is pressed once more the selected action will take place.
Press the MORE>> button to see more options. If the remote stick is available the
behaviour is slightly different. When the check button is pressed on the remote stick a
menu will appear instead of the button functions.
By using the UP/DOWN key the pilot may select between options.
Button functions or the remote menu will disappear automatically after 10 seconds
if no further action is taken.
In airport mode the following selections are available:
• Select option is used to select an airport as the new navigational target.
• Mc/Bal will set MacCready, ballast and bugs (see Chapter 6.5.6.2 for more details).
• Map item is used to quickly modify map parameters.
• Wind will open a dialogue where wind changes with altitude are shown, wind can be
set and methods for wind calculation are shown.
• Airspace shows a list of airspace zones in the vicinity of the current position.
• Mark is used to mark the current position and create a waypoint.
• Team will open dialogue, where pilot can enter team code of his partner. Team code is
compatible with SeeYou Mobile application.
LX90xx system Version 4.0 February 2014
Page 93 of 151
• Flarm will display a list with all visible Flarm objects. You can select one and use it for
navigational purposes.
• Pan will change main display unit into panning mode. In this mode user can move over
map in all directions.
• Rot.FAI will rotate the FAI area if it is enabled. This option is not shown if it is not
enabled.
• Event is used to log an event. The recording rate will be increased to 1 second for one
minute. A message
“Event marked”
will be displayed on the screen.
• Send is available only when we have a two-seat configuration with a rear-seat device.
Press this button to send the current navigational point to the rear seat device. This
action will force a change of navigational target for the selected navigation mode on the
rear seat device.
• Layout will run page layout editor. In layout editor, it is possible to modify layout of
current navigational page.
• Night will reduce backlight to level acceptable for flying in very dark conditions.
• Off will switch off the instrument. The message “
Device is shutting down. Please wait.
“will be displayed.
The main display unit can also be powered off by pressing the upper-left button
until the message “switching off” appears.
LX90xx system Version 4.0 February 2014
Page 94 of 151
6.5.6.1 Select an Airport
There are four different methods of selecting an airport. They are called filter mode, list
mode, map mode and history mode. You can toggle between these four modes by
pressing the METHOD button several times.
Filter mode
Selecting an airport in filter mode is straightforward. Enter the first letter of the airport
name using the PAGE selector knob. The helper will show the first airport matching this
letter and the next few airports will be displayed in lower part of screen.
Press the CHAR>> button and cursor will move to the second letter. Use the PAGE
selector knob to select the second letter. If you wish to return to the first letter turn the
ZOOM selector knob counter-clockwise.
You will note that part of the airport name is written in a darker colour. Once it becomes
white it means this is the only selection. Pressing GOTO will navigate directly to it. If there
are more than one airports starting with the filtered letters and you press the GOTO button
the cursor will jump to the beginning of the airport name. The PAGE selector knob will
select among the airports. Press GOTO once more and you will navigate to it.
If you do not know the exact name of an airport just select the first letter and
press the GOTO button. Now scroll to the desired airport using the PAGE
selector knob. Press the GOTO button once more and you will navigate to the
selected airport.
LX90xx system Version 4.0 February 2014
Page 95 of 151
By default the main display unit will search airports through all countries. It is possible to
create a search only from selected countries. Press the COUNTRY button and a dialogue
with a list of all available countries will be shown.
Select the desired countries and press CLOSE.
List mode
In list mode airports are listed as in near mode.
Press the VIEW button to change details of selected airport. Press the SORT button to
change the sort order of the airports. Select an airport using the PAGE selector knob. Press
GOTO and you will navigate to it.
LX90xx system Version 4.0 February 2014
Page 96 of 151
Map mode
In map mode, airports are selected directly on the map. Rotate PAGE selector knob to
select an airport.
Details of selected airport will be drawn next to it. In upper-left corner of screen current sort
method is shown. There are two possibilities, distance sort or bearing sort. Press SORT
button to change it.
History mode
History mode shows all previously selected airports and additional two points: take-off
location and soaring begin location (not shown on picture below).
Use PAGE selector knob to select desired airport. Press GOTO to start navigation to it.
LX90xx system Version 4.0 February 2014
Page 97 of 151
6.5.6.2 MacCready, Ballast and Bugs Settings
These are probably the settings pilots use most often during flight. Press the MC/BAL
button. The dialogue for MacCready, ballast and bugs will appear.
Use the PAGE selector knob to modify the MacCready setting. In the middle button there is
a suggestion for the MacCready setting which is based on the last four thermals.
Additionally to the selected MacCready value an overload factor is also shown together with
the calculated glide ratio with corresponding speed.
You will notice that the MacCready value displayed on the final glide symbol is
coloured yellow or red. The coloured value indicates that your MacCready value
is too low corresponding to the current wind and selected target. Increase the
MacCready value.
Pressing the CLOSE button will close the dialogue and return to the navigation page.
Changes will be saved. The dialogue will automatically be closed after 10 seconds if no
action is taken.
Pressing the BAL button will toggle the menu from MacCready setting to Ballast setting.
Ballast is entered in values which are defined in the Units menu (see Chapter 6.1.11). You
can set the load for an empty glider by pressing the Empty button.
Pressing the BUGS button will toggle the menu again from Ballast setting to Bugs setting.
A bug setting is used to set polar degradation due to a dirty wing. The input is in
percentage degradation of glide ratio (5% means glide ratio degradation is 5%). Pressing
CLEAN will set bugs instantly to zero. MC will return to the MacCready screen.
6.5.6.3 Map Settings
Map can be quickly configured using this dialogue. Select map orientation in the orientation
setup.
A map can have north, east, west or south orientation. These orientations are fixed and
are not changed with glider position. Additionally to this orientation there are several more
which will rotate the map as the glider position changes:
• Track up will always have the glider ground track in the up direction.
• Heading up will always have glider heading in the up direction. If the compass module
is available the heading will be taken from the compass otherwise the heading is
calculated from the wind and the ground speed vectors.
• Goal up will have target point in upper part of screen.
• Trk/north up is a combination of Track up and north up orientation. During circling
orientation will be north up otherwise Track up.
LX90xx system Version 4.0 February 2014
Page 98 of 151
• Hdg/north up is a combination of heading up and north up orientation. During
circling orientation will be north up otherwise Heading up.
If Zoom to target is checked the zoom will be automatically adjusted so that the target
point is always visible. Maximum zoom is 200 km and minimum zoom is 1 km. The check
boxes will turn on or off the following items:
• Map – complete map is turned on/off.
• Terrain – only terrain is turned on/off.
• Raster – scanned maps is turned on/off
• Airspace – toggle airspace display on/off.
• Wpts – waypoints drawing is turned on/off.
• Flarm – Flarm radar display is turned on/off.
• Path – flown path is switched on/off.
• Cur.trk – current track vector.
• Opt.dis. – optimised distance.
• Opt.tri. – optimised triangle.
• FAI area – FAI triangle assistant is turned on/off.
A Flarm object may also be hidden because competition mode is on or privacy
mode is on. Please check these settings, if FLARM objects are not visible, even if
the item is checked.
It is possible to store map settings for future use. There are two memory locations MEM 1
and MEM 2 for two different memory settings.
LX90xx system Version 4.0 February 2014
Page 99 of 151
Press button MEM 1 for a long time. A message
“Options stored to memory (1)”
will be
displayed and the settings are stored. Change the settings a little bit. Press button MEM 2
for long time. A message
“Options stored to memory (2)”
will be displayed and the settings
are stored to memory location 2. Now short pressing of MEM 1 will invoke the saved
settings from memory 1.
6.5.6.4 Wind
The main display unit constantly calculates winds using four different methods. Speed
difference method is used during circling and is taking into account ground speed
difference in a single circle. Position drift is calculating wind based on position drift during
circling. A minimum of three circles must be completed to obtain the first wind
measurements. The third method is combination, which takes into account also airspeed
received from the vario unit.
If the compass module is available wind is also estimated using the wind triangle.
Calculated wind is stored in layers. Layer height is 300 m or 1000 ft and cannot be modified
by the user.
The wind profile is shown on the left side of the dialogue. Yellow coloured altitude indicates
our current MSL altitude. Using the ZOOM selector knob you can scroll up and down
through the wind layers.
Use the EDIT button to manually enter wind data. If a new wind direction is entered all
wind directions in range from start altitude to end altitude will be modified. The same
procedure is used for wind speed.
LX90xx system Version 4.0 February 2014
Page 100 of 151
The user can also disable or enable a particular wind method. It is recommended to have
all methods enabled.
Once the wind is modified to suit your needs press the OK button to accept the wind values.
The dialogue will exit automatically.
If the CANCEL button is pressed the wind dialogue will be closed without applying the
changed values.
6.5.6.5 Airspace
The Airspace dialogue shows a list of airspace zones in the vicinity of your position. Vertical
and horizontal distances are calculated to all airspace zones in the list.
The VIEW button toggles the list views. When the STATUS button is pressed the status of
the selected airspace zone will toggle between OFF always, OFF today, OFF hh:mm and
enabled.
If the EDIT button is pressed a new dialogue will open where you can modify properties for
the selected zone. Refer to Chapter 6.1.5.3 for more details.
When a zone is alarmed the distance will be coloured orange.
6.5.6.6 Mark
If you press the MARK button a new waypoint will be created with the current latitude and
longitude and elevation based on the terrain database. The waypoint name is generated
from the current date and time separated by the minus character and preceded by an
underscore.
Loading...
