LXNAV LX90, LX80 User Manual

Download

LX90xx and

LX80xx

GPS-Navigation System with variometer

Version 5.00

LXNAV d.o.o. • Kidričeva 24a, 3000 Celje, Slovenia • tel +386 592 33 400 fax +386 599 33 522

info@lxnav.com • www.lxnav.com

LX90xx/LX80xx Version 5.0 June 2015

Page 3 of 166

1 Important Notices 8

1.1 Limited Warranty 8

2 Basics 9

2.1 The LX9xx/LX80xx series at a glance 9

2.1.1 Display Unit Features 9

2.1.2 V9 Vario Unit Features 10

2.1.3 V8 Vario Unit Features 11

2.1.4 V80 Vario Unit Features 11

2.1.5 Interfaces 12

2.1.6 Internal Options 12

2.1.7 External Options 12

2.1.8 Simulator 13

2.1.9 Technical Data 14

2.1.9.1 LX9000 System 14

2.1.9.2 LX9050 System 14

2.1.9.3 LX9070 System 14

2.1.9.4 LX8000 14

2.1.9.5 LX8080 15

2.1.10 Weight 15

3 Packing Lists 16

3.1 LX90xx with Flarm Option 16

3.2 LX90xx 16

3.3 LX90xxD 16

3.4 LX80xx with Flarm Option 16

3.5 LX80xx 16

3.6 LX80xxD 17

4 System Description 18

4.1 Rotary Switches and Buttons 18

4.1.1 Landscape orientation 18

4.1.2 Portrait orientation 20

4.1.3 Buttons 20

4.1.3.1 Power Button 20

4.1.4 Rotary Switches (Knobs) 20

4.2 Switching on the Unit 21

4.3 User Input 21

4.3.1 Text Edit Control 22

4.3.2 Masked Text Edit Control 22

4.3.3 Spin Control 23

4.3.4 Selection Control 23

4.3.5 Checkbox and Checkbox List 23

4.3.6 Colour Selector 23

4.3.7 Font Selector 24

4.3.8 Line pattern Selector 24

4.3.9 Pull down menu 25

4.4 Switching off 25

5 Operating Modes 27

5.1 Setup Mode 29

5.1.1 QNH and RES 29

5.1.1.1 QNH* 29

5.1.1.2 Safety Altitude 30

5.1.1.3 Altitude source 30

5.1.1.4 Magnetic Variation 30

LX90xx/LX80xx Version 5.0 June 2015

Page 4 of 166

5.1.1.5 ETA/ETE Calculation 30

5.1.1.6 Soaring Start* 30

5.1.2 Flight Recorder 31

5.1.3 Vario Parameters* 32

5.1.4 Display 33

5.1.5 Files and Transfers 34

5.1.5.1 Uploading User Airspace and Waypoints 34

5.1.5.2 Uploading Airspace and Airports Database 35

5.1.5.3 Managing Airspace 35

5.1.5.4 Managing Waypoints 37

5.1.5.5 Managing Airports 38

5.1.5.6 Managing Airports Using the LX Asapt editor 39

5.1.5.7 Managing Maps 40

5.1.5.8 Managing Flights 41

5.1.5.9 Flight Declaration 41

5.1.5.10 Formatting a SD Card 42

5.1.5.11 Managing PDF documents 42

5.1.6 Graphics 44

5.1.6.1 Terrain and Map 45

5.1.6.2 Airspace 46

5.1.6.3 Waypoints and Airports 47

5.1.6.4 Glider and Track 48

5.1.6.5 Thermal mode 50

5.1.6.6 Optimization 50

5.1.6.7 Task 51

5.1.6.8 Flarm 52

5.1.6.9 Statistics 53

5.1.7 Sounds* 54

5.1.7.1 Audio Settings* 55

5.1.7.2 Voice* 56

5.1.7.3 Alarms* 56

5.1.8 Observation Zones 58

5.1.9 Optimization 60

5.1.10 Warnings 60

5.1.10.1 Airspace Warnings 61

5.1.10.2 Altitude Warning 62

5.1.10.3 Flarm Warnings 63

5.1.10.4 Time Alarm 64

5.1.11 Units 65

5.1.12 Hardware* 66

5.1.12.1 Vario unit settings – TE compensation* 66

5.1.12.2 Vario Indicator Setup* 69

5.1.12.3 Indicator I9* 69

5.1.12.4 Indicator I8/I80* 70

5.1.12.5 LCD and USB-D Vario indicator* 72

5.1.12.6 Bridge 232* 72

5.1.12.7 Flarm* 73

5.1.12.8 Compass* 74

5.1.12.9 Rear Seat or Front Seat 76

5.1.12.10 Remote stick* 77

5.1.12.11 AHRS* 78

5.1.12.12 NMEA Output 78

LX90xx/LX80xx Version 5.0 June 2015

Page 5 of 166

5.1.12.13 Engine * 79

5.1.12.14 Network* 79

5.1.12.15 Flaps* 81

5.1.12.16 Battery Types* 81

5.1.13 Polar and Glider* 82

5.1.14 Profiles and Pilots 83

5.1.15 Language 86

5.1.16 Passwords 86

5.1.17 Admin mode 87

5.1.18 About 88

5.2 Information Mode 89

5.2.1 GPS Status Page 89

5.2.2 Position Report 90

5.2.3 Satellite Sky View 90

5.2.4 Network status 91

5.3 Near Mode 91

5.4 Statistics Mode 92

5.4.1 Logbook 93

5.4.2 Statistics during flight 94

5.4.2.1 General statistics 94

5.4.2.2 Detailed task statistics 95

5.4.2.3 OLC statistics 95

5.5 Airport Mode 96

5.5.1 Initial Navigation Page 96

5.5.1.1 Final Glide Symbol 97

5.5.1.2 Thermal Assistant 97

5.5.2 Second Navigation Page 98

5.5.3 Third Navigation Page 98

5.5.4 Fourth Navigation Page 99

5.5.5 Fifth Navigation Page 99

5.5.6 Button Actions 100

5.5.6.1 Select an Airport 102

5.5.6.2 MacCready, Ballast and Bugs Settings 105

5.5.6.3 Map Settings 105

5.5.6.4 Wind 107

5.5.6.5 Airspace 108

5.5.6.6 Mark 108

5.5.6.7 Xpdr 109

5.5.6.8 Radio 110

5.5.6.9 Team 110

5.5.6.10 Flarm 111

5.5.6.11 Pan 112

5.5.6.12 Rotate FAI Area 113

5.5.6.13 Layout 113

5.6 Waypoint Mode 114

5.6.1 Editing Waypoints 115

5.6.2 New Waypoint 116

5.7 Task Mode 117

5.7.1 Task Edit 119

5.7.2 Task Creation 120

5.7.2.1 Map mode 122

5.7.3 Multiple start points 123

LX90xx/LX80xx Version 5.0 June 2015

Page 6 of 166

5.7.4 Modifying Zones 123

5.7.5 Task Options 124

5.7.5.1 Gate Time 125

5.7.5.2 Below Altitude Start Procedure 125

5.7.5.3 Maximum Start Speed and/or Maximum Start Altitude 126

5.7.6 Saving a Task 127

5.7.7 Loading a Task 127

5.7.8 Moving a Task Point 128

6 Navigational page layout 129

6.1 Edit page layout 129

6.2 Creating new symbol 130

6.2.1 Navboxes 131

6.2.2 Aircraft symbol 133

6.2.3 Final glide symbol 133

6.2.4 Zoom 133

6.2.5 Wind Arrow 133

6.2.6 Artificial Horizon 134

6.2.7 Altitude Tape 134

6.2.8 Airspeed Tape 134

6.2.9 Flap tape® 135

6.2.10 Flarm radar 135

6.2.11 Side view 135

6.2.12 History 136

6.2.13 GPS indicator 136

6.2.14 Battery indicator 136

6.2.15 Wi-Fi indicator 136

6.2.16 Magnetic roses 136

6.2.17 Vario Indicator 136

6.2.18 G-meter 137

6.2.19 Wind profile 137

6.3 Navigational page settings 137

7 Thermal mode 139 8 Flying with the System 140

8.1 On the Ground 140

8.1.1 Power on Procedure 140

8.1.2 Profile Selection 140

8.1.3 Set Elevation and QNH 141

8.1.4 Preflight Check 141

8.1.5 Preparing a Task 142

8.1.5.1 Assigned Area Tasks (AAT) 142

8.2 Flying a Task 144

8.2.1 Starting a Task 144

8.2.2 Restarting Task 146

8.2.3 Over Turn Point 146

8.2.4 Entering Assigned Area 147

8.2.5 Moving Point Inside Assigned Area 147

8.2.6 Task Finish 148

8.3 Procedure after Landing 149

9 Firmware Update 150

9.1 Updating main display firmware 150

9.2 Updating vario unit or Vario indicator 151

10 IGC Barograph Recalibration Procedure 152

LX90xx/LX80xx Version 5.0 June 2015

Page 7 of 166

11 Options 153

11.1 Flarm 153

11.1.1 Installation 153

11.1.2 Flarm Update Procedure 154

11.1.3 Uploading Obstacles 154

11.1.4 Flarm update procedure with FLARMtool from PC 155

11.1.5 Uploading obstacles with FlarmTool from PC 156

11.1.6 Uploading FlarmNet Files 157

11.2 External Flarm or Power Flarm 157

11.2.1 Installation 158

11.3 Rear Seat Device 158

11.3.1 Data Exchange 158

11.4 Remote Control 160

11.4.1 Functions 161

11.4.2 Installation 161

11.5 Compass 162

11.6 Flap sensor® 163

11.7 Secondary Vario Indicators 163

12 Revision History 164

LX90xx/LX80xx Version 5.0 June 2015

Page 8 of 166

1 Important Notices

The system is designed for VFR use only as an aid to prudent navigation. All information is presented for reference only. Terrain, airports and airspace data are provided only as an aid to situation awareness.

Information in this document is subject to change without notice. LXNAV reserves the right to change or improve their products and to make changes in the content of this material without obligation to notify any person or organisation of such changes or improvements.

A Yellow triangle is shown for parts of the manual which should be read very carefully and are important for operating the system.

Notes with a red triangle describe procedures which are critical and may result in loss of data or any other critical situation.

A bulb icon is shown when a useful hint is provided to the reader.

1.1 Limited Warranty

This product is warranted to be free from defects in materials or workmanship for two years from the date of purchase. Within this period, LXNAV will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour, provided that the customer shall be responsible for any transportation cost. This warranty does not cover failures due to abuse, misuse, accident, or unauthorised alterations or repairs.

THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE.

IN NO EVENT SHALL LXNAV BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Some states do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. LXNAV retains the exclusive right to repair or replace the unit or software, or to offer a full refund of the purchase price, at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.

To obtain warranty service, contact your local LXNAV dealer or contact LXNAV directly.

LX90xx/LX80xx Version 5.0 June 2015

Page 9 of 166

2 Basics

2.1 The LX9xx/LX80xx series at a glance

The system consists of two units; the main display unit and the vario unit. Within the main display unit an integral 50-channel GPS receiver and a high brightness colour display are fitted. An integrated SD card or USB interface is used for user friendly data exchange. Some of the models are featuring also PDA port for easy connection on external PDA device. The main display unit is equipped with a built-in flight recorder according to the most recent IGC specification for all flights. Optionally the FLARM collision avoidance system can be integrated into the main display unit. Main display unit came in different forms:

LX8080 model with 2.8” screen and 320x240 pixels resolution, LX8000 model with 3.5” screen and 320x240 pixels resolution, LX9050 model with 5.0” screen and 800x480 pixels resolution, LX9000 model with 5.6” screen and 640x480 pixels resolution

and LX9070 model with 7.0” screen and 800x480 pixels resolution.

Standard part of system is also the V9 vario unit. It is a most modern variometer running on very powerful processor with inertial platform using 3 axis accelerometer, 4 gyroscopes (for inertial vario, AHRS and wind calculation), smooth audio output with audio equalizer and integrated synthesized speech output. The unit communicates with the main display unit over the RS485 system bus. V9 vario features 57 mm diameter (2¼") indicator with mechanical needle and colour display for additional data. Optional vario units are available: V80 vario features 80 mm diameter (3”) colour screen and three additional buttons or V8 vario with 57 mm diameter (3”) colour screen and three additional buttons. Sensors in both options are same as in V9 variometer. Optionally additional vario indicators and a wide range of interface devices can be daisychained using the RS485 bus.

2.1.1 Display Unit Features

Extremely bright colour display readable in all sunlight conditions with backlight automatically adapted using an ambient light sensor (ALS).  Using Linux operating system (not CE Windows) ensures fast and stable operation of the

firmware.

LX90xx/LX80xx Version 5.0 June 2015

Page 10 of 166

 6 or 8 push buttons and 4 rotary switches (knobs) are used for input, which comprise

the well-known LX user interface. Optionally a remote stick is available for more comfort.

 Portrait or landscape orientation. (Portrait orientation is not available on LX80xx models)  Pre-loaded with worldwide terrain maps, airspace and airport databases.  Unlimited number of waypoints.  Unlimited number of tasks (with assigned area support).  Comprehensive flight and task statistics.  Display of nearest airports and out-landing fields.  Unlimited number of pilots/profiles.  Integrated flight recorder according to high-level IGC specification.  Real-time flight optimisation according to FAI and OLC rules.  Flights stored in IGC format are downloadable using the integrated SD Card.  Flight recorder functions include an integral pressure transducer based on 1013 mbar

level for altitude recording, engine noise level sensor, memory to store more than 1000 hours of flights and digital and mechanically security devices to ensure high level of security.

 Integrated FLARM collision avoidance system with graphic, sound and voice (optional)

presentation.

2.1.2 V9 Vario Unit Features

 ARM Cortex-M4 processor running on 160MHz  Mechanical needle driven by stepper motor  QVGA (320*240pixels) sunlight readable display  Digital temperature compensated pressure sensors for altitude and airspeed  inertial platform 3 axis digital +-6g accelerometer, 3 axis gyroscopes (for inertial

vario, AHRS and wind calculation)

 Smooth audio output  Audio equalizer  integrated synthesized speech output  audible thermal assistant  6 digital inputs - SC, VP + 4 custom defined  Multilanguage user interface

LX90xx/LX80xx Version 5.0 June 2015

Page 11 of 166

2.1.3 V8 Vario Unit Features

 ARM Cortex-M4 processor running on 160MHz  2.5'' QVGA sunlight readable screen with 1200nits  QVGA (320*240pixels) sunlight readable display  Digital temperature compensated pressure sensors for altitude and airspeed  inertial platform 3 axis digital +-6g accelerometer, 4 gyroscopes (for inertial vario,

AHRS and wind calculation)

 Smooth audio output  Audio equalizer  integrated synthesized speech output  audible thermal assistant  External SD card for configuration, FlarmNet and firmware update  push buttons for setting adjustments  ALS (ambient light sensor)

2.1.4 V80 Vario Unit Features

 Dual ARM Cortex-M4 processor  Extremely bright 3.5" (8.8 cm) colour display with 320x240 pixels is used to display

vario needle and additional information such as average, thermal vario, time, speed etc…

 No mechanical parts and fast refresh rate allows extremely fast response time of needle.  Additional Flarm radar screen and artificial horizon.  Three buttons for toggling between screen and target selection  digital temperature compensated pressure sensors for altitude and airspeed  inertial platform 3 axis digital +-6g accelerometer, 4 gyroscopes  Smooth audio output with audio equalizer and many custom audio settings  Integrated voice module  100Hz sampling rate for very fast response.  Speed to fly indication.

LX90xx/LX80xx Version 5.0 June 2015

Page 12 of 166

 TE compensation can be selected to be either pneumatic TE probe or digital

compensation.

2.1.5 Interfaces

 The RS232 interface has NMEA output for external devices.  An SD Card interface.  A USB slot for data transfer using USB memory stick.

2.1.6 Internal Options

Flarm module can be built into the main display unit. All necessary connectors are

available on the rear side of the unit (Flarm external indicator, Flarm antenna), which guaranties the same comfort as with the original Flarm devices. It is very important to point out that the whole system uses only one GPS receiver and therefore offers a low power solution. Artificial horizon can be enabled on main display unit. Vario sensor box is constantly using data from inertial platform in order to make vario signal smoother, however if pilot would like to see artificial horizon and software option to do so must be purchased.

2.1.7 External Options

By using a RS485 bus system a wide range of optional interfaces can be easily connected to the basic configuration with minimal installation work. The LXNAV bus system can be extended easily by use of RS485 splitting units, which allow plug and play connection of optional devices. The following units can be connected to the main system:

 Second Seat Device (LX9000D, LX9050D LX9070D LX8000D or LX8080D):

The unit installed in the rear seat of the glider is powered and receives all necessary

LX90xx/LX80xx Version 5.0 June 2015

Page 13 of 166

data from the main unit. The communication between both units is exclusively via the RS485 bus system.

 Remote Control: An extremely ergonomic leather-coated handle which includes 8

push buttons to operate the main display unit and also two additional buttons with open wires. These two buttons can be used for instance as PTT for radio and SC/Vario changeover command. A second remote control can be installed to control second seat device or for side by side operation.

 Electrical Compass Device  Secondary Vario Indicators (I8,I9 or I80 indicator)  Flap sensor  MOP box for jet engines

2.1.8 Simulator

There are two options to stay in condition and familiar with your system. LXSim is free of charge program, which you can download from www.lxnav.com or data from the Condor PC flight simulator (www.condorsoaring.com) can be received via the RS232 port after entering suitable passwords (see Chapter 5.1.15). These features are extremely useful for pilots who want to learn about the system and also wish to refresh their knowledge after a winter break. Please note that altitude data will be sent from the simulator which means that real final glide training will be possible.

LX90xx/LX80xx Version 5.0 June 2015

Page 14 of 166

2.1.9 Technical Data

2.1.9.1 LX9000 System

 Power input 10-16 V DC  Consumption at 12 V:

o 250 mA - minimum brightness without audio and options. o 260 mA - minimum brightness without audio and with Flarm. o 470 mA - maximum brightness without audio and options. o 480 mA - maximum brightness without audio and with Flarm. o 160 mA – additional for V9 vario unit

 Cut-out dimensions of the LX9000 display unit are 109 x 143 mm; outline dimensions:

113 x 145 x 38 mm exclusive connector.

 57 mm (2¼") standard aircraft cut-out for the V9 vario unit; length 92 mm (exclusive

connector).

 80 mm (3") standard aircraft cut-out for the V80 vario unit; length 130 mm (exclusive

connector).

2.1.9.2 LX9050 System

 Power input 10-16 V DC  Consumption at 12 V:

 Cut-out dimensions of the LX9050 display unit are 134 x 79 mm; outline dimensions:

136 x 83 x 61 mm exclusive connector.

 57 mm (2¼") standard aircraft cut-out for the V9 vario unit; length 92 mm (exclusive

connector).

 80 mm (3") standard aircraft cut-out for the V80 vario unit; length 130 mm (exclusive

connector).



2.1.9.3 LX9070 System

 Power input 10-16 V DC  Consumption at 12 V:

 Cut-out dimensions of the LX9070 display unit are 109 x 179 mm; outline dimensions:

113 x 181 x 38 mm exclusive connector.

 57 mm (2¼") standard aircraft cut-out for the V9 vario unit; length 92 mm (exclusive

connector).

 80 mm (3") standard aircraft cut-out for the V80 vario unit; length 130 mm (exclusive

connector).

2.1.9.4 LX8000

 Power input 10-16 V DC  Consumption at 12 V:

LX90xx/LX80xx Version 5.0 June 2015

Page 15 of 166

o 290 mA - minimum brightness without audio and options. o 300 mA - minimum brightness without audio and with Flarm. o 380 mA - maximum brightness without audio and options. o 390 mA - maximum brightness without audio and with Flarm. o 160 mA – additional for V9 vario unit

 Cut-out dimensions of the LX8000 digital unit are 93.5 x 81.5 mm; outline dimensions:

98 x 88 x 115 mm exclusive connector.

 57 mm (2¼") standard aircraft cut-out for the V9 vario unit; length 92 mm (exclusive

connector).

 80 mm (3") standard aircraft cut-out for the V80 vario unit; length 130 mm (exclusive

connector).

2.1.9.5 LX8080

 Power input 10-16 V DC  Consumption at 12 V:

o 160mA at 50% LCD brightness (600nits still readable under sunlight) o 260mA with integrated Flarm at 100% LCD brightness (1200nits) o 160 mA – additional for V9 vario unit

 Cut-out dimension of the LX8080 digital unit is 80 mm (3") standard aircraft cut-out;

outline dimensions are 81mm x 81mm x 65mm exclusive connector.

 57 mm (2¼") standard aircraft cut-out for the V9 vario unit; length 92 mm (exclusive

connector).

 80 mm (3") standard aircraft cut-out for the V80 vario unit; length 130 mm (exclusive

connector).

2.1.10 Weight

 LX9000 display unit: 650 g  LX9050 display unit: 515 g  LX9070 display unit: 650 g  LX8000 digital unit: 580 g  LX8080 digital unit: 400 g  V9 vario unit: 300 g

LX90xx/LX80xx Version 5.0 June 2015

Page 16 of 166

3 Packing Lists

3.1 LX90xx with Flarm Option

 LX9000, LX9050 or LX9070 main display unit  V9 vario unit (optional V80 or V8)  Main power cable for main display unit  Cable for vario unit  SD card  Barogram calibration chart  GPS antenna  Flarm Antenna  Hex key “Inbus”

3.2 LX90xx

 LX9000, LX9050 or LX9070 main display unit  V9 vario unit (optional V80 or V8)  Main power cable for main display unit  Cable for vario unit  SD card  Barograph calibration chart  GPS antenna  Hex key “Inbus”

3.3 LX90xxD

 LX9000D or LX9050 or LX9070D  Main power cable  RS485 cable – 4 meter  RS485 splitting unit  Vario indicator I9 (Optional I80 or I8)  SD card  Hex key “Inbus”

3.4 LX80xx with Flarm Option

 LX8000 or LX8080 main display unit  V9 vario unit (optional V80 or V8)  Main power cable for main display unit  Cable for vario unit  SD card  Barogram calibration chart  GPS antenna  Flarm Antenna  Hex key “Inbus”

3.5 LX80xx

 LX8000 or LX9080 main display unit

LX90xx/LX80xx Version 5.0 June 2015

Page 17 of 166

 V9 vario unit (optional V80 or V8)  Main power cable for main display unit  Cable for vario unit  SD card  Barograph calibration chart  GPS antenna  Hex key “Inbus”

3.6 LX80xxD

 LX8000D or LX8080  Main power cable  RS485 cable – 4 meter  RS485 splitting unit  Vario indicator I9 (Optional I80 or I8)  SD card  Hex key “Inbus”

LX90xx/LX80xx Version 5.0 June 2015

Page 18 of 166

4 System Description

The main display unit of LX90xx series can be mounted at portrait or landscape orientation. Only After installing the main display unit, the orientation must be defined via the Display menu (see Chapter 5.1.4). The main display unit of LX80xx series can be mounted only in landscape mode.

In this manual all screenshots are given for portrait orientation of the LX9000 system, which is most commonly used. However all functionality is the same in any other configuration of system. Small differences are going to be marked further in manual.

4.1 Rotary Switches and Buttons

The following controls are mounted on the front face of the main display unit:

 Four rotary selector knobs  Eight (lx90xx) or six (lx80xx) push-buttons  SD card reader

4.1.1 Landscape orientation

VOLUME selector

MODE selector

SD Card reader

ZOOM selector

PAGE selector

POWER button

Ambient light sensor

LX90xx/LX80xx Version 5.0 June 2015

Page 19 of 166

VOLUME selector

MODE selector

POWER button

ZOOM selector

PAGE selector

SD Card reader

Ambient light sensor

VOLUME selector

MODE selector

POWER button

ZOOM selector

PAGE selector

SD Card reader

Ambient light sensor

LX90xx/LX80xx Version 5.0 June 2015

Page 20 of 166

4.1.2 Portrait orientation

The V9 vario unit is an indicator only and has no controls. Information displayed is controlled by the main display unit.

The V80 vario unit is having three buttons to toggle between screens. More information is given in chapter 5.1.12.4.

4.1.3 Buttons

All buttons have a dynamic function; the first time one presses each button, it displays its function without executing any action. Not all buttons have a function on every page. In some cases buttons have a long press function.

4.1.3.1 Power Button

The power button is marked with the ON/OFF symbol. It has multiple functions. Primarily it is used to switch the system on and off.

4.1.4 Rotary Switches (Knobs)

The main display unit has four rotary knobs. Each has a single function with the exception of the zoom knob which has, in some cases, a function other than zoom. With the upperleft rotary knob the volume can be adjusted. The upper-right rotary switch is the mode selector (it changes the mode of the operation). At the lower-right is the up/down knob which is used for selecting sub-pages, sub-menus and editing menus. At the lower-left is the zoom knob which is multifunctional. While its main function is to change the zoom level within graphic mode, it can also be used if an error is made during editing; it is possible to move the cursor back by rotating this knob. However this can only be done if 'editing' is active which is shown by the cursor blinking.

VOLUME selector

MODE selector

SD Card reader

ZOOM selector

PAGE selector

POWER button

Ambient light sensor

LX90xx/LX80xx Version 5.0 June 2015

Page 21 of 166

4.2 Switching on the Unit

After a short press of the power-on button the main display unit and vario unit will turn on and a welcome screen will appear. The first screen shows the boot loader screen followed by the Linux kernel screen and then the file system screen.

The boot procedure normally takes up to 20 seconds but in the case of a firmware update or system check it can take more time. The final boot screen displays information about the LX90xx system firmware and the IGC serial number. When the boot procedure is completed the profile selection dialogue is shown. Please refer to Chapter 8.1 for more details about starting up the system.

4.3 User Input

The main display unit user interface consists of many dialogues which have different input controls. They are designed to make input of names, parameters, etc., as easy as possible. Input controls can be summarised as:

 Text editor  Masked text editor  Spin controls  Selection control  Checkboxes  Colour selector  Line width selector

To move the function from one control to another, rotate the PAGE selector knob (page selector) as follows:

 Clockwise rotation will select the next control.  Counter clockwise rotation will select the previous control. Press the SELECT button

(usually lower-right) to enter control input.

LX90xx/LX80xx Version 5.0 June 2015

Page 22 of 166

4.3.1 Text Edit Control

The Text Editor is used to input an alphanumeric string of arbitrary length; the picture below shows typical options when editing text. Use the bottom-right knob to change the value at the current cursor position.

Press the CHAR>> button to advance the cursor to the next position. The cursor can also be moved to next position using the bottom-left knob. Rotate it clockwise to move forward. The Abc button is a toggle button and will change the letter case. Press it to toggle modes.  Abc mode will start every new word with a capital letter; subsequent letters will be

lower case.

 ABC mode will enter only upper case letters.  abc mode will enter only lower case letters.

Pressing the DELETE button will delete the character at current cursor position. Continually press the DELETE button to delete all characters after the current cursor position. Press OK to confirm changes and leave control. Press CANCEL to abandon changes and revert back to the values before entering this screen.

4.3.2 Masked Text Edit Control

The masked editor is a similar control to the text editor but only limited characters can be entered at any particular position. It is designed to enter latitude, longitude and passwords.

LX90xx/LX80xx Version 5.0 June 2015

Page 23 of 166

4.3.3 Spin Control

Spin controls are designed for numeric parameters. Rotate the bottom-right knob (page selector) to increase/decrease the selected value. The bottom-left (zoom) knob will increase/decrease the value with a different step compared to the page selector.

4.3.4 Selection Control

Selection boxes, also known as combo boxes on Windows operating system, are used to select a value from list of predefined values. Use the page selector to scroll through the list.

4.3.5 Checkbox and Checkbox List

A checkbox enables or disables a particular parameter. Press SELECT to toggle the value. If an option is enabled a check mark will be shown, otherwise an empty rectangle will be displayed.

Use page selector to scroll through the checkbox list. Press the ALL to enable all options.

4.3.6 Colour Selector

Colours and fills are set via the colour selector control. Rotate the page selector to change a colour.

LX90xx/LX80xx Version 5.0 June 2015

Page 24 of 166

Rotating the zoom selector changes colour transparency. Transparency is very important for fill colours which are used for airspace zones, observation zones and FAI area. If a fill colour is not transparent (0%), all other map items will not be seen through it. If a fill colour is 100% only the solid border will be drawn. Press PICK button to define colour more precisely. A colour dialog will open, where you can select colour from HSV circle or enter values for red, green and blue colour.

4.3.7 Font Selector

Using the font selector it is possible to define a font colour and style for a selected item.

Turn the PAGE selector knob (page-selector) to change the font style. Text is also rendered in the selected font style. Turn the ZOOM selector knob (zoom-selector) to change the font colour. Press PICK button to define colour more precisely. A colour dialog will open, where you can select colour from HSV circle or enter values for red, green and blue colour.

4.3.8 Line pattern Selector

Using line pattern selector it is possible to define width and pattern of line. Turn the PAGE selector knob (page-selector) to change the width of line. Turn the ZOOM selector knob (zoom-selector) to change the line pattern. Results are immediately visible on selected item.

LX90xx/LX80xx Version 5.0 June 2015

Page 25 of 166

4.3.9 Pull down menu

Pull down menu is used to select one of the options. Press button several times to select appropriate item of turn PAGE selector knob. Pull down menu will automatically close after few seconds.

4.4 Switching off

Please use one of the following recommended methods for shutting down the LX90xx system:

Method 1

Press the button with the OFF label which is displayed in navigational modes. See Chapter

5.5 for more details. A message to confirm shutdown will be shown.

Method 2

Press the button with the OFF symbol for approximately 4 seconds. The OFF message will be displayed and the instrument will shut down. When the message appears you must release the power button.

LX90xx/LX80xx Version 5.0 June 2015

Page 26 of 166

Method 3

When the button with the OFF symbol is pressed for more than 8 seconds the system will perform an unconditional shutdown. This method is recommended only in case that the program hangs and it is not possible to shutdown with methods 1 or 2.

If you are using method 2 to switch off the system it is necessary to release the button when you see the shutting down message. If you continue to press the off button the main display unit may shut down by method 3.

If the request for OFF is made during flight the instrument will ask for confirmation so that the system cannot be switched off by mistake.

It is important that the main display unit is switched off via software. Never power down the system using the main power switch. The main display unit is running the Linux operating system and sudden power loss may corrupt the file system.

If main power is lost for a few seconds during flight the flight recorder will not produce two flights. The most important flight parameter (altitude) will remain which means that the final glide calculations are not affected.

LX90xx/LX80xx Version 5.0 June 2015

Page 27 of 166

5 Operating Modes

The main display unit has seven modes or main menus. All of them are selectable by rotating the upper-right knob which is also called MODE selector. The diagram below shows the mode structure of the LX9000 running in portrait screen.

 Airport Mode, navigation and selection airports.  Waypoint Mode, navigation, selection and editing waypoints.  Task Mode, Navigation, selection and editing task.  Statistics Mode shows statistical data for flight in progress or logbook.  Setup mode is used to configure the whole system.  Information Mode displays GPS status, altitude, flight level and height, sunrise and

sunset or position report to selectable point or satellite sky view.

 Near Mode displays a list of all landable waypoints and airports.

The Navigation modes and statistics mode have additional pages which are accessible by rotating the bottom-right knob also called the PAGE selector.

LX90xx/LX80xx Version 5.0 June 2015

Page 28 of 166

Three main navigational modes airport, waypoint and task mode are selected by rotating the upper-right knob. All three options are similar and have similar basic navigation data screens accessed by rotating the bottom-right knob.

It is possible to fully customise all three main navigational pages using the program LXStyler. This program can be downloaded from our webpage

www.lxnav.com. Refer to Chapter 5.1.14 for more details.

It is also possible to customise selected navigational pages using STYLE menu option. Refer to Chapter 6 for more details.

In airport navigation mode the user can navigate only to airports stored in LXNAV's Airports database. This database cannot be edited on device itself and is available at no charge on our web pages. See Chapter 5.1.5.2 for more details how to obtain the latest databases.

Database can be modified using program LXAsapt editor. This program can be downloaded from our webpage www.lxnav.com

In waypoint navigation mode the user is navigating to waypoints that were previously loaded and selected in the Files and Transfer menu (see Chapter 5.1.5.4). Task navigation mode is used for task creation and manipulation. Navigation in this page is exclusively to task points.

LX90xx/LX80xx Version 5.0 June 2015

Page 29 of 166

5.1 Setup Mode

In the setup menu users can configure the main display unit and connected devices. Turn the bottom-right knob - PAGE selector - or press the UP/DOWN arrow on the remote stick to select the appropriate setup item. Turn the bottom-left knob - ZOOM selector - or press the LEFT/RIGHT arrow on the remote stick to move faster over menu. Press the SELECT button or push middle multi-directional button on the remote stick to enter a menu. A dialogue or sub-menu will open.

The setup menu is slightly different on the rear seat device as not all options are applicable. Items which are marked with an asterisk (*) are available only in the front seat setup menu.

5.1.1 QNH and RES

Turn the bottom-right knob to select the required entry field. Press the EDIT button and start editing the value.

5.1.1.1 QNH*

Using this feature it is possible to offset the altitude datum which could have changed due to pressure changes during the flight. Since changing the QNH influences the indicated altitude, care should be taken when changing the value as an incorrect setting can upset the final glide calculation.

LX90xx/LX80xx Version 5.0 June 2015

Page 30 of 166

5.1.1.2 Safety Altitude

This setting is the altitude reserve or safety altitude and is the height that the instrument adds to the final glide altitude required so that the glider arrives over the final glide destination at the selected safety altitude. Once the safety altitude has been specified, the pilot has to keep the final glide indicator on 0 to arrive at the safety altitude.

5.1.1.3 Altitude source

The system has two pressure altitude sensors. One is built into the main display unit and is used for the IGC recorder and the second one is built into the vario unit and is connected to the glider pitot-static system. Changing the altitude source defines which sensor is used for pressure altitude used in program.

5.1.1.4 Magnetic Variation

The main display unit has a built-in Earth magnetic field model. If Auto variation is checked the magnetic variation is derived from this model, otherwise the user can enter a custom value.

5.1.1.5 ETA/ETE Calculation

In changing this value you may choose from four different methods to calculate the estimated time of arrival to the navigational point. Calculation is always divided into straight flight and climb time calculations.  MacCready uses the Polar data and MacCready setting to calculate speed to fly and

climb rate.

 Vario uses the last four thermals average to compute climb rate and uses this value to

calculate speed to fly.

 Avg.Speed & Vario uses the average ground speed over the last 5 minutes for

distance and Vario statistics for climb rate.

 Avg.Speed & MC uses the average ground speed over the last 5 minutes for distance

and MacCready. All four methods of calculating ETA and ETE (Estimate Time of Arrival & Estimate Time Elapsed) take into account glider altitude, wind and safety (arrival) altitude thus ensuring that the calculation made is the best possible.

Suggested methods for competition pilots are Avg.Speed & Vario or

Avg.Speed & Mc.

5.1.1.6 Soaring Start*

Soaring start is the time when the glider starts soaring (released from tow, engine switched off). A soaring start time is needed to start the flight optimization.

LX90xx/LX80xx Version 5.0 June 2015

Page 31 of 166

5.1.2 Flight Recorder

The main display unit has a built-in flight recorder fully approved by the IGC (a subcommittee of the FAI) and will produce secure flight records that are acceptable for all FAI requirements including world records.

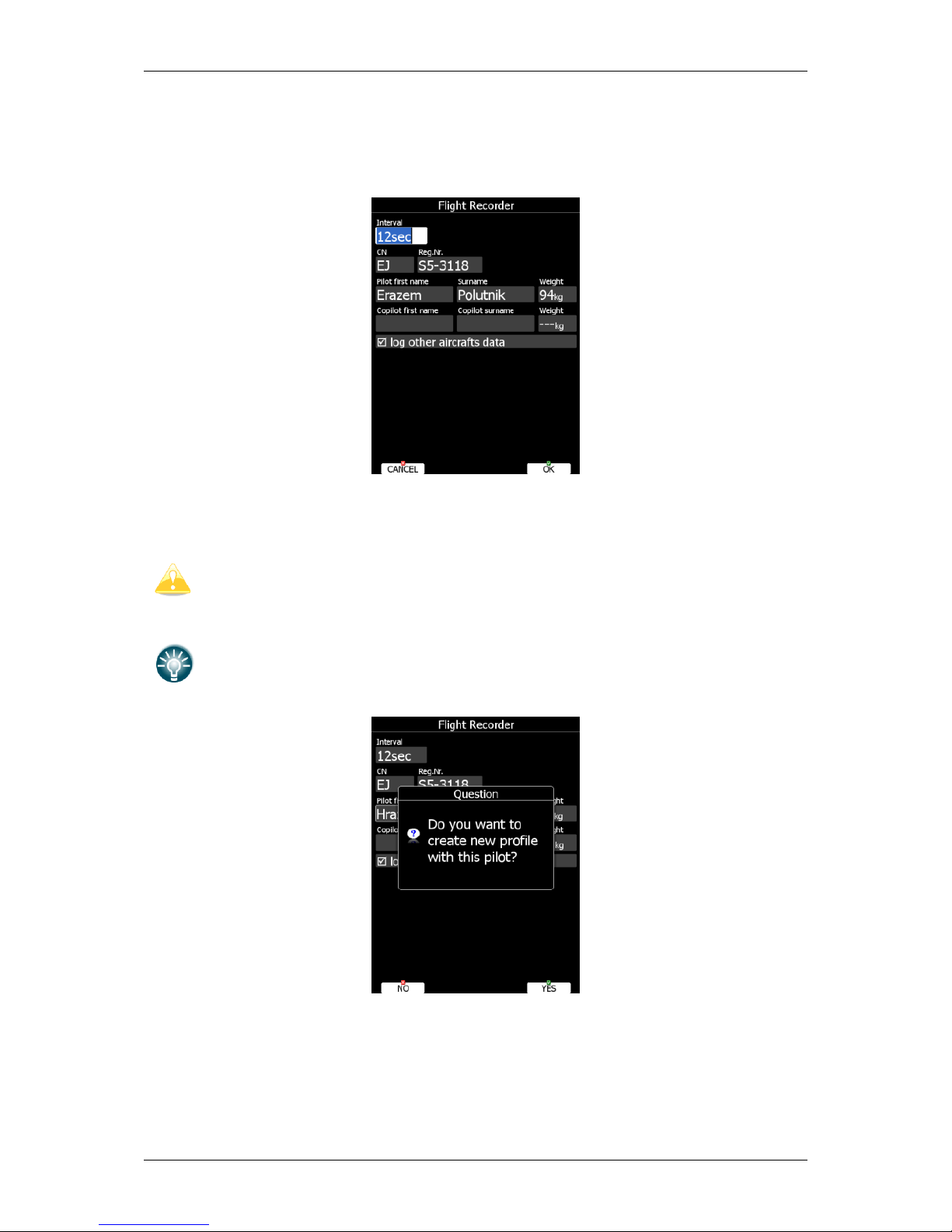

Select the recording interval and enter the pilot name. Pilot weight is important if ballast is specified in kilograms of water (see Chapter 5.1.11). If the system is used in two-seat aircraft the name of the co-pilot may also be entered.

There is no setup for glider type. Glider type is defined in the Polar and Glider setup (see Chapter 5.1.13).

There are very few settings for the flight recorder compared to other instruments. This is because main display unit will record all additional data such as wind, speed and vertical speed by default.

If a new pilot is entered, upon exiting the dialogue the message

“Do you want to create new

profile with this pilot?”

will be asked. Answer YES if you want to quickly add a new profile.

For more information about profiles see Chapter 5.1.12.

LX90xx/LX80xx Version 5.0 June 2015

Page 32 of 166

5.1.3 Vario Parameters*

This option is used to set the following parameters:

On this page the following parameters are set: Vario needle filter sets a time constant of the vario needle. The value can be adjusted between 0.1 and 5 s with step 1.0 s or 0.1 s. Default value is 1.5 s. Vario sound filter sets a time constant of vario sound. The value can be adjusted between 0.1 and 5 s with step 1.0 s or 0.1 s. Default value is 1.5 s. Vario range sets full scale range of the vario (2.5 m/s, 5 m/s or 10 m/s). Default value is 5 m/s (10 kts). SC tab defines the width of the audio dead band in speed to fly mode. Default value is ±1 m/s. Integrator time defines the integration period for the average vario in seconds. The default is 20 seconds. Auto SC defines the conditions when the instrument is switched automatically between vario and speed command.

 OFF: Switching is exclusively by an external switch connected to the vario unit.  GPS: When the GPS detects that the glider is circling an automatic change over to vario

will happen after approximately 10 seconds. Detection of straight flight will cause a

changeover to speed command.  G-load: When accelerometer detects increased g-load, because of circling, variometer

will change from cruise to climb mode.  IAS: When the IAS exceeds a pre-set value. The IAS at which switching occurs can be

selected in 5 km/h steps from 100 up to 160 km/h (or the equivalent in knots or mph). Using Smart vario filter, vertical speed can be further filtered. Smart vario filter defines maximum speed of vario needle. Higher the value is, slower will be the needle. Beep at max will enable a short beep few seconds before a maximum in thermal is reached. Beep before max defines how many seconds before a maximum in thermal a short beep will be heard. Auto reset integrator resets the integrator to zero when the vario unit switches from cruise to climb mode. If this item is not checked the integrator will not be reset to zero. Netto filter sets a time constant of the netto vertical speed filter. The value can be up to 20 times bigger than vario needle filter. Default value is same as vario needle filter. SC filter sets a time constant of the speed to fly (SC) filter. The value can be up to 20 times bigger than vario needle filter. Default value is same as vario needle filter.

LX90xx/LX80xx Version 5.0 June 2015

Page 33 of 166

Relative filter sets a time constant of relative vertical speed filter (also known as supper netto vertical speed). The value can be up to 20 times bigger than vario needle filter. Default value is same as vario needle filter. Netto time defines the integration period for the average netto vertical speed in seconds. The default is 20 seconds.

The external switch wired to the vario unit has absolute priority and will override all other switching methods.

5.1.4 Display

The display menu controls screen brightness. The main display unit has an ambient light sensor which detects ambient light and automatically increases or reduces the brightness of the screen.

If the Automatic brightness checkbox is selected, the instrument will automatically adjust brightness according to current light conditions. Minimum and Maximum brightness items control value limits. Use time values to setup how fast adaptation to brighter conditions or darker conditions will occur. Default values are tuned to human eyes and do not require change. Night mode brightness defines maximum brightness when instrument is operating in night mode. In night mode, brightness is reduced to very low value to reduce difference between ambient light and device backlit. If you want to set the brightness manually uncheck the Automatic brightness control and set the brightness manually. Change Display orientation if you would like to change the display unit screen orientation. The main display unit will restart and start with new screen orientation. Checking Auto brightness on vario while enable automatic regulation of brightness on vario unit, if available. It this option is uncheck, vario unit will always run at full backlight.

It is recommended that the automatic brightness control is always enabled. Reducing brightness will also reduce power consumption. See technical data for more details (Chapter 2.1.9).

LX90xx/LX80xx Version 5.0 June 2015

Page 34 of 166

5.1.5 Files and Transfers

The Files and transfer menu is used to manage the waypoint, airspace and airport databases, recorded flights, flight declaration and PDF documents.

Within a profile user can selected different airport databases, airspace and waypoint files. Selected files can be stored inside main display unit or on inserted SD card or USB stick. It is also possible to upload files from SD card or USB stick to main display unit.

5.1.5.1 Uploading User Airspace and Waypoints

Databases can be loaded from a SD card or USB stick. Select the type of database you wish to upload and press the LOAD button.

In next step the data source must be selected. Unavailable data source are going to be greyed out. A dialogue with a list of all available files will be opened. Press the COPY button to copy the selected file to the main display unit. The main display unit will accept the following file formats:  Waypoints file: SeeYou CUP files, CUPX files, which may include also images and

Cambridge/Winpilot DAT files. When selecting DAT files, waypoints will be converted to

CUP format which is the format used for internal storage of points. There is no

limitation for the number of waypoints in a file and/or name length.  Airspace file: All types of CUB files are accepted.

LX90xx/LX80xx Version 5.0 June 2015

Page 35 of 166

5.1.5.2 Uploading Airspace and Airports Database

LXNAV distributes free of charge airport and airspace database for the whole world. The airport and airspace database is regularly maintained by LXNAV. The latest version of the database can be found on our webpage www.lxnav.com. The database is distributed as single file with .asapt extension. Copy this file to a SD Card or USB stick. Plug the SD card or USB stick into the main display unit and select the Update database menu item. If multiple ASAPT files are found on a SD card a dialogue to select the appropriate one will be shown.

Databases are updated automatically and progress of the update will be shown on the screen.

5.1.5.3 Managing Airspace

Select the Airspace menu item and press the SELECT button. A list of all available airspace databases/files will be shown on screen. The distributed airspace databases are shown first followed by user airspace files, followed by airspace file on SD card and at the end are shown airspace files on USB stick.

Select the required airspace and press SELECT. If a check mark is shown in front of an airspace item, this airspace file will be shown in the graphics and used for proximity calculation, when enabled. Button labels vary depend on airspace location. For distributed airspace, only buttons SELECT and EDIT are available. For user airspace files stored on main display unit, button DELETE, TO USB and TO SD are added.

LX90xx/LX80xx Version 5.0 June 2015

Page 36 of 166

To delete airspace file select the airspace item and press the DELETE button. Delete action must be confirmed. Only user airspace files can be removed. Press TO USB button to copy selected airspace to USB stick. Press TO SD button to copy selected airspace to SD card. When airspace file from SD or USB is highlighted LOAD button is displayed. Press LOAD button to upload selected airspace to main display unit.

When an airspace file from USB or SD card is selected, it will be available only, if SD card or USB stick is inserted in main display unit.

Selecting airspaces on SD card or USB allows you to create portable profiles, which can be transferred from one device to another device.

It is also possible to edit an airspace file. Select an airspace item and press the EDIT button. A list of all airspace zones in this database/file will be shown. Use the page selector to scroll through the items one by one or the zoom selector to move up or down for a whole page. At the bottom of page, a map with selected airspace zone is drawn.

Pressing the VIEW button will toggle different views of the zone list. Using the STATUS button the selected zone can be disabled for proximity warnings. Repeated presses will toggle the following options:

 OFF always: proximity warning is switched off for all the time.  OFF today: proximity warning is switched off for today only.  OFF hh:mm: proximity warning is switched off for 10 minutes.  If no label is shown airspace is enabled for proximity warnings.

LX90xx/LX80xx Version 5.0 June 2015

Page 37 of 166

Press EDIT to edit data for the selected zone. Airspace type, class and altitude borders can be modified in this dialogue.

5.1.5.4 Managing Waypoints

Select the Waypoints and Tasks menu item and press the SELECT button. A list of all available waypoint files will be shown on the screen.

Multiple files can be selected. All checked files will be shown on the graphics page and used in the near mode calculation, if the waypoint is of the proper type (airport or outlanding place). However, only one file can be the active file. The active file is primary used for task creation.

When a waypoint file from USB or SD card is selected, it will be available only, if SD card or USB stick is inserted in main display unit.

Selecting waypoint files on SD card or USB allows you to create portable profiles, which can be transferred from one device to another device.

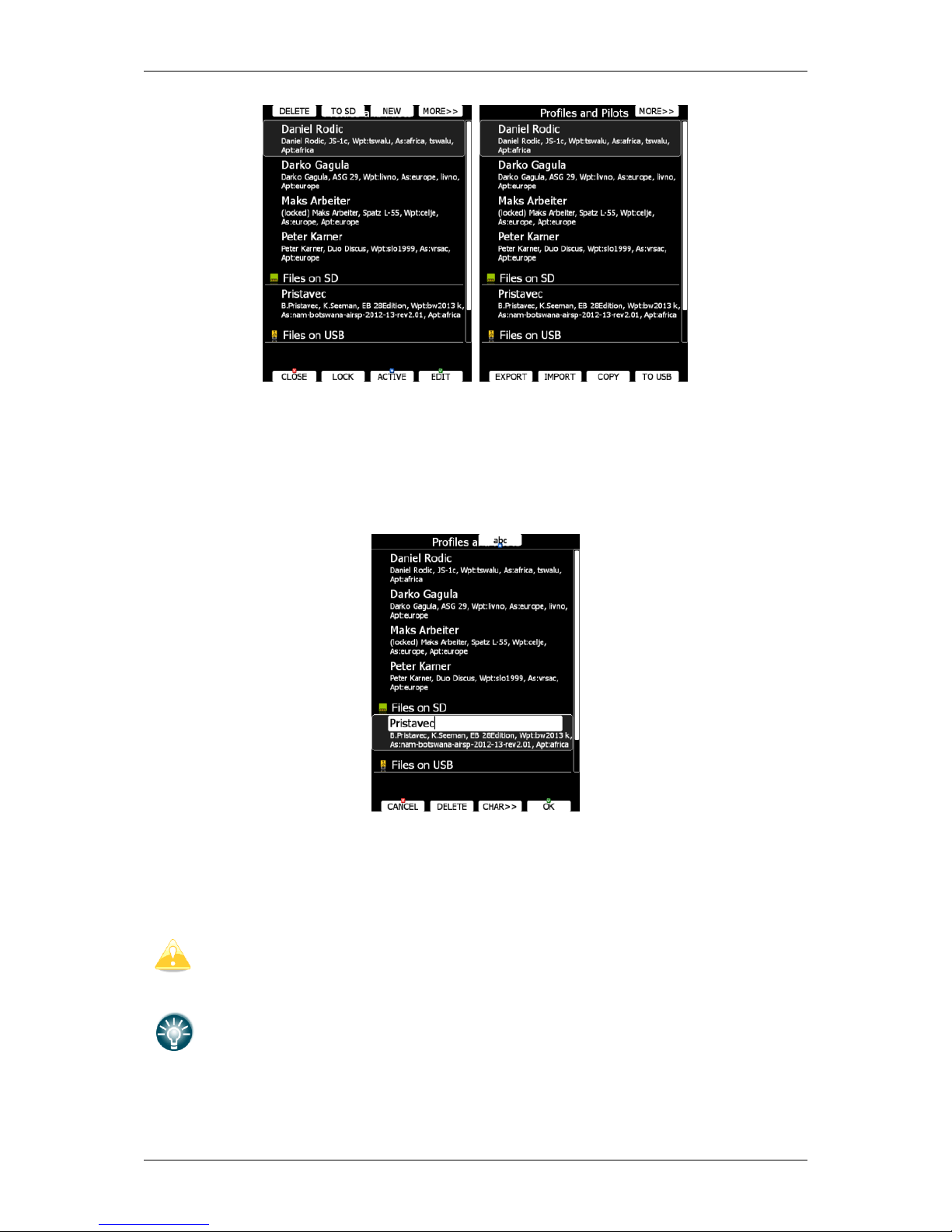

Press the ACTIVE button to mark the selected file as active. Press the DELETE button to remove the selected file from the internal storage of main display unit.

LX90xx/LX80xx Version 5.0 June 2015

Page 38 of 166

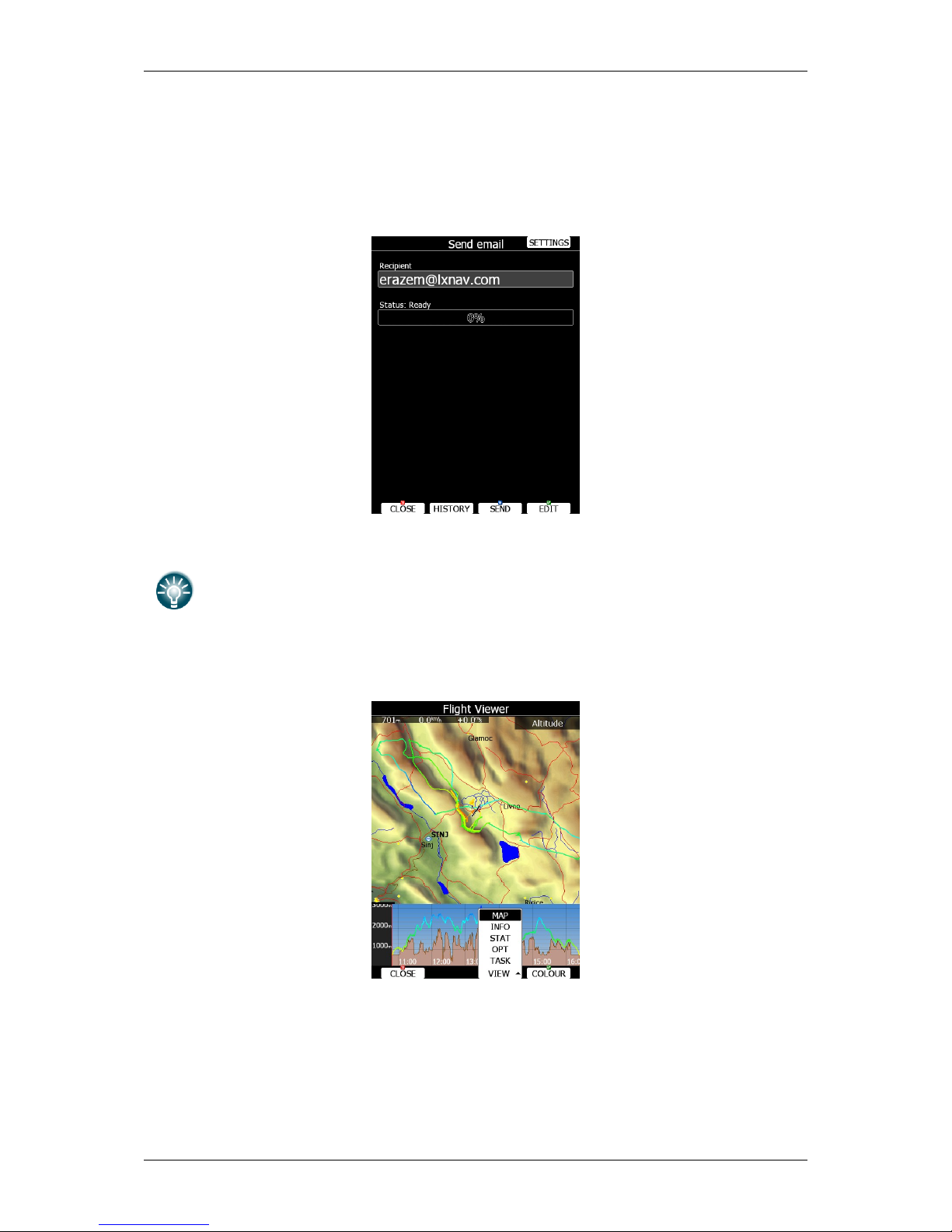

If WiFi option is presented, button TO MAIL will be visible. Press this button to sent selected file to email. If waypoints file from SD or USB are selected button LOAD is visible. Press the LOAD button to upload selected waypoint file to internal storage. If waypoints file from internal storage is selected button SAVE is visible. Press the SAVE button to save waypoints to the SD Card or USB stick. The save dialogue will be opened.

Change the filename if required. Press TO USB for saving to the USB stick or press TO SD for saving to the SD card.

CUP and CUPX files also stores tasks. Tasks will also be uploaded to the main display unit. This feature is very useful, if you wish to prepare tasks on a computer using SeeYou or a similar program. You can subsequently easily select a task via the Task->Edit->Load option. See Chapter 5.7.7 for more details.

Some of CUPX waypoint files with images are password protected and a valid password must be obtained before using such a file. Please contact vendor to obtain password for your display unit.

5.1.5.5 Managing Airports

Select the Airports menu item and press the SELECT button. A list of all available airport databases will be shown. Only distributed airport databases are shown in this menu; the user cannot modify contents of a database within the main display unit. If an error is suspected in our database please notify us via email info@lxnav.com. If you wish to add additional airports to the system an ordinary waypoint file should be created and uploaded as a waypoint file or use the LXAsapt editor program to modify the airport database.

LX90xx/LX80xx Version 5.0 June 2015

Page 39 of 166

5.1.5.6 Managing Airports Using the LX Asapt editor

LX Asapt Editor allows you to edit any LXNAV airport database distributed as asapt files. You can quickly filter the regions and find the airports you're interested in. View and edit all details of the airports, add charts, photos (from files or clipboard) and any other information you would like associated with them. You can also delete the regions you're not interested in and add any new or missing airports anywhere in the world (for supported regions). The application also monitors every change you make to the database, so you can simply apply changes to a new database when it is released by LXNAV. Modified airport data can readily be exported to the system as a (asapt) file and imported to the main display unit using the standard procedure for database updates (see Chapter

5.1.5.2). The original database can be restored only via the update database procedure using the original database file. All databases are published on www.lxnav.com .

LX90xx/LX80xx Version 5.0 June 2015

Page 40 of 166

5.1.5.7 Managing Maps

Main display unit is preloaded with terrain and vector map data for complete Earth. However it is also possible to use scanned (rasterized) maps as background of navigational screen. Next two images are showing example of scanned ICAO map and satellite imagery.

The system is supporting two file formats: CMR file format provided by SeeYou software from Naviter. There are available free of charge sectional maps of USA (www.soaringdata.info) and QMP file format provided by Ifos. Please contact Ifos (www.ifos.de) or (www.strepla.de) to purchase scanned maps.

Select the Maps menu item and press the SELECT button. A list of all available map files will be shown on the screen. Multiple files can be selected. All checked files will be shown on navigational page depend on raster map setting (See chapter 5.1.6.1 and 5.5.6.3). Press DELETE button to remove selected map. Press LOAD button to upload selected map to internal memory.

LX90xx/LX80xx Version 5.0 June 2015

Page 41 of 166

When a map file from USB or SD card is selected, it will be available only, if SD card or USB stick is inserted in main display unit.

QMP maps are generated by IFOS and will work only on system with serial number is same as registered serial number on QMP map. If serial number will not comply, the map can not be displayed.

Map files can be very big in size and can occupy a lot of space of internal storage of main display unit. Selecting maps directly from SD card or USB allows you to save space at no performance cost and create portable profiles, which can be transferred from one device to another device.

5.1.5.8 Managing Flights

Select the Flights menu item and press the SELECT button. A list of all stored flights will be shown. The main display unit is capable of storing more than 1000 hours of flight logs.

If a SD card or USB stick is inserted into the main display unit, flights can be copied to it when the corresponded button is pressed. Flights can be removed from the main display unit using the DELETE button. Press TO MAIL button to send selected flight to email address.

5.1.5.9 Flight Declaration

The Flight Declaration is composed from pilot data and declared task. Use this option if you wish to load or save a flight declaration from a file. The flight declaration is saved into binary HDR file.

LX90xx/LX80xx Version 5.0 June 2015

Page 42 of 166

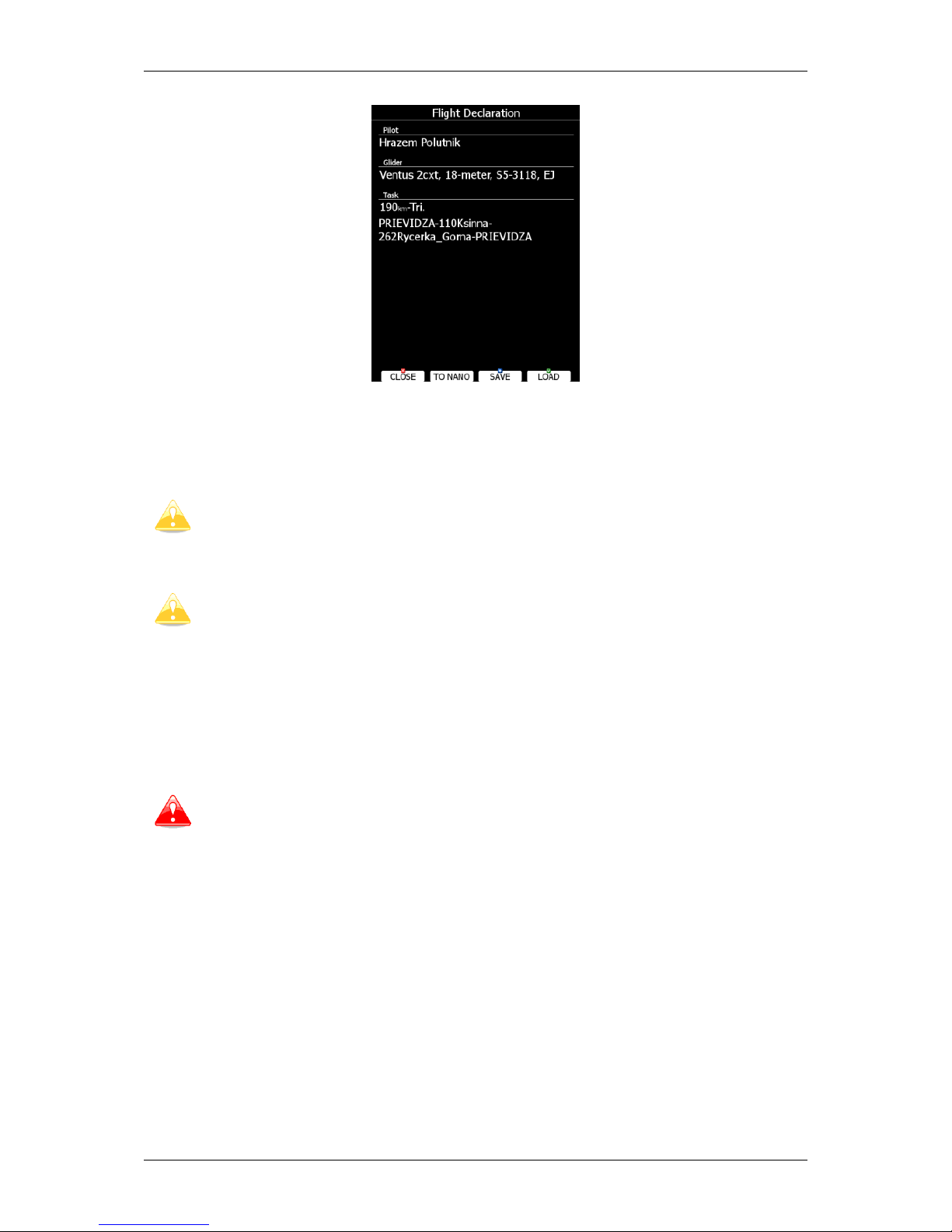

On the screen pilot, glider and task information are shown. Press the SAVE button to save the declaration onto a SD card or USB stick. Press the LOAD button for loading. If Nano flight recorder is connected to USB port, TO NANO button will appear. Press it to transfer declaration to Nano flight recorder.

Please note that not all data from the HDR file will be loaded. Glider type and class must be changed via the Polar and Glider menu (Chapter 5.1.13) as also final glide calculations are linked to this setting.

HDR files do not include information about observation zone and turn point elevation. Observation zones will be set to default values (Chapter 5.1.8) and the elevation will be defined by the digital elevation model built into the instrument.

5.1.5.10 Formatting a SD Card

Use this option if the main display unit cannot read SD card. The system uses the same card format as used by the MS-Windows operating system (FAT). However sometimes Windows does not format the SD card properly or a new card may not be formatted properly. It is recommended to format new SD cards before using them.

Formatting a SD Card will erase the entire contents of the SD card.

5.1.5.11 Managing PDF documents

Main display unit can store almost unlimited number of PDF documents. User can store here flight manual, maintenance manual, scans of all gliding documents and also checklists.

LX90xx/LX80xx Version 5.0 June 2015

Page 43 of 166

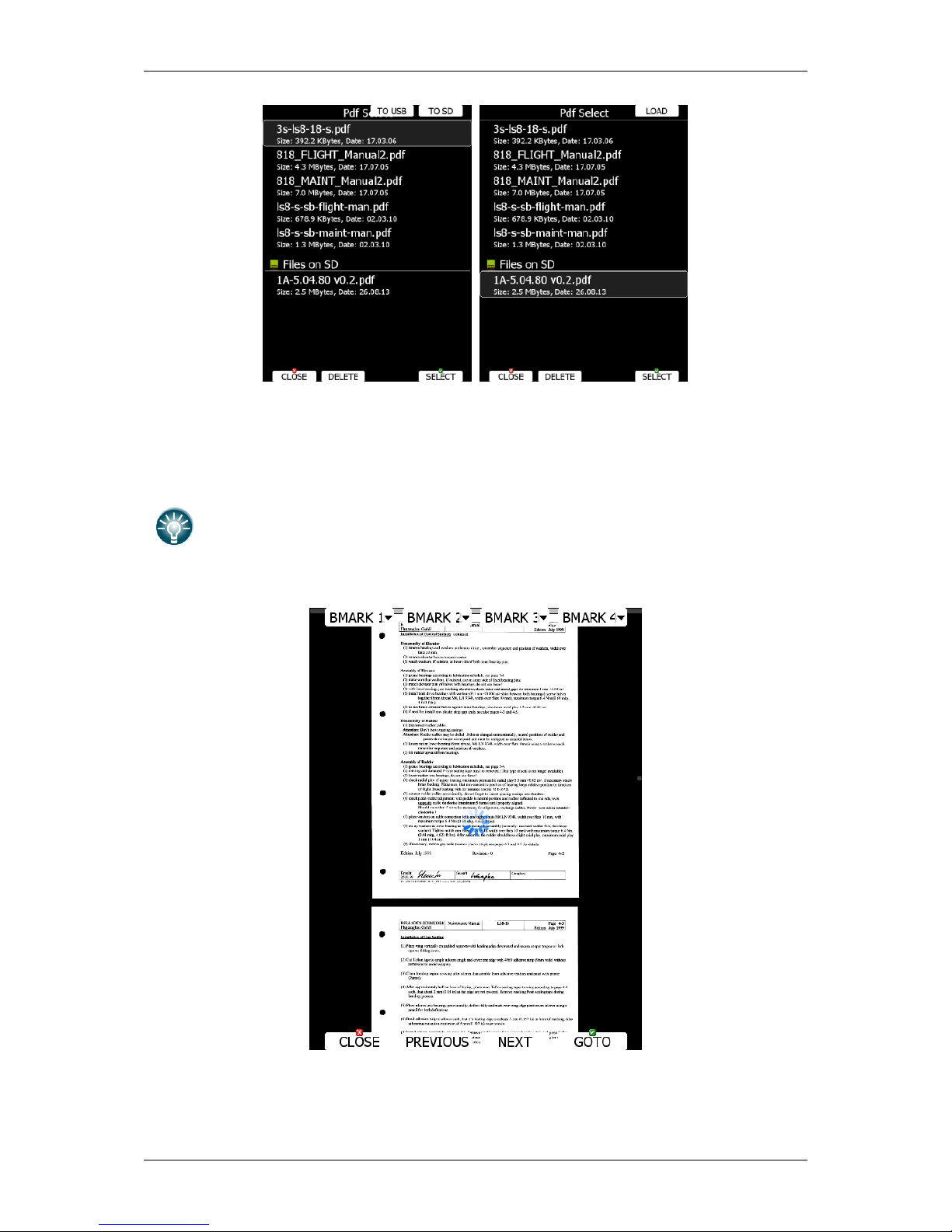

Select the PDF READER menu item and press the SELECT button. A list of all available PDF documents will be shown on the screen. Select desired document using PAGE selector. Press DELETE button to delete selected document. Press LOAD button to upload selected document to internal memory.

Documents can be very big in size and can occupy a lot of space of internal storage of main display unit. There it not necessary to copy documents to internal memory. Documents can be selected directly from SD card or USB at no performance cost.

Press SELECT button again to open selected document.

A document will load within few seconds. Use PAGE selector or NEXT and PREVIOUS button to move up/down through document. Use ZOOM selector to zoom current page. Use

LX90xx/LX80xx Version 5.0 June 2015

Page 44 of 166

MODE selector to move left/right on the selected page. Press GOTO button to navigate to specific page. A goto dialog will be open. Use PAGE or ZOOM selector to select desired page

It is also possible to set four independ bookmarks. Press BMARK1 to open bookmark drop down menu. Press BMARK1 button once more to set a bookmark. A message will confirm that bookmark has been saved.

5.1.6 Graphics

This dialogue allows the user to define the appearance of the map in navigational mode. Select the Graphics menu item and press the SELECT button. A submenu will open.

LX90xx/LX80xx Version 5.0 June 2015

Page 45 of 166

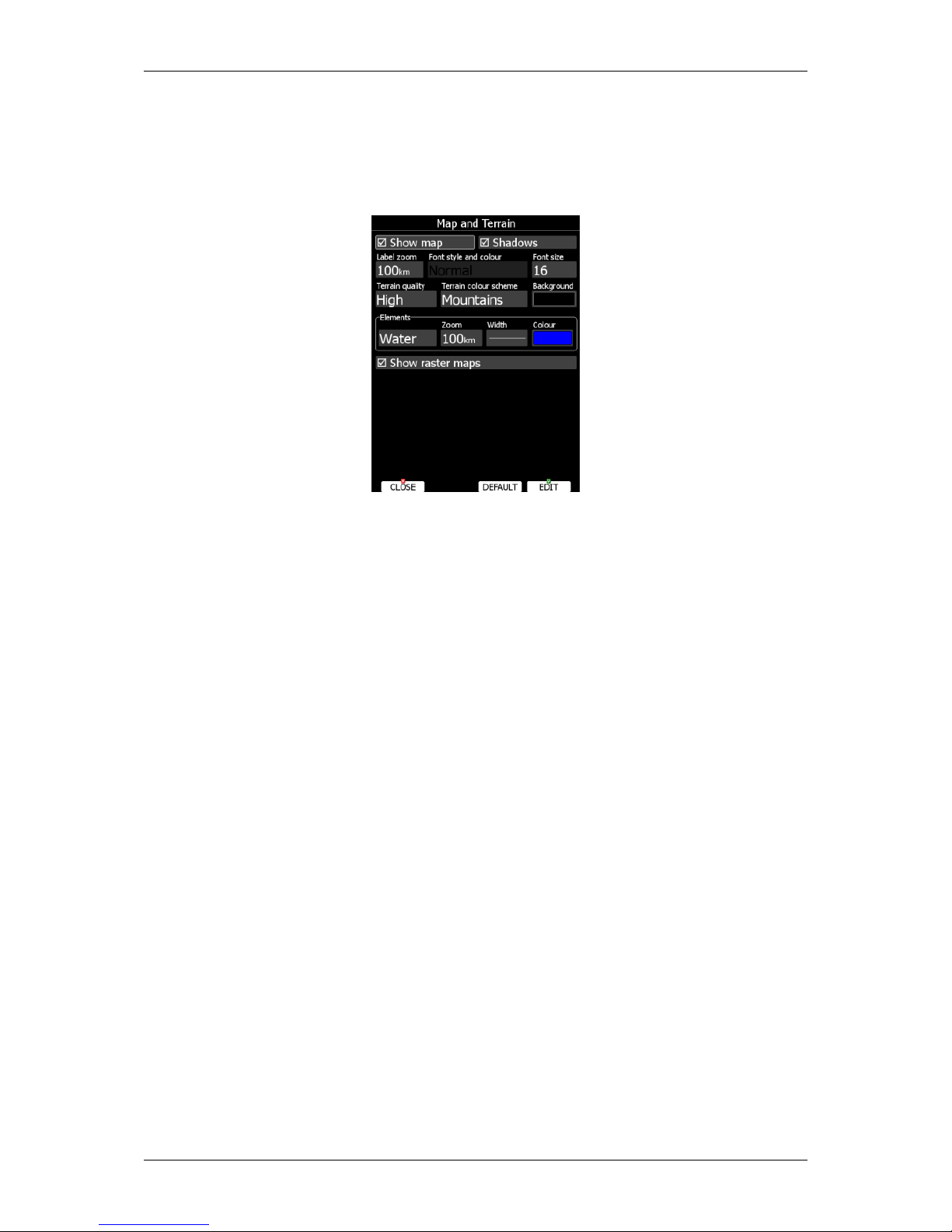

5.1.6.1 Terrain and Map

The main display unit is pre-loaded with terrain and vector maps for the Earth. The database includes: elevation contour lines, water bodies, roads, highways, railways, big cities and a digital elevation model. The database is derived from the OSM free database. The database cannot be modified by the user.

Check the Show map item to enable map displays in the navigational pages. If this item is unchecked no map will be displayed. Check Shadows, if you terrain to be shaded. The Label zoom value defines up to which scale of zoom city names are visible. 100km means the whole width of the screen represents 100 km. The user can also modify size, font style and colour via the Font style and colour item. Use the ZOOM selector knob to modify the colour and the PAGE selector knob to modify the style. Press PICK button to define colour more precisely. Terrain can be rendered in three different levels. A higher level means more details. The main display unit is optimised to work with high terrain quality. If the value off is selected no terrain will be shown; only water bodies, roads, railways and cities. The background colour is defined by the Background item. The default background is black. Colours of terrain can be changed using different terrain colour schemes. The following colour schemes are available:

 Mountain is default setting with colours from green to white at 2000 m.  Flatland is setting where colours are changing up to 1000 m.  Flatland2 is setting where in low terrain is white, otherwise normal colours are used.  Low contrast: same as Mountain but colours are not so intensive.  High contrast: same as Mountain but colours are more intensive and from 0-100 m,

white colour is used.

 Zebra alternating colours are used.  Zebra 2, less intensive alternating colours are used.  ICAO colouring is similar to ICAO maps.  Cliffs colours emphasis slopes and is similar to Google maps display  Atlas colour scheme is approximation of Imhof colouring widely used in map books.  Grayscale  OSM  Himalaya  Relative

In the Elements group land features are setup separately. Zoom defines up to which zoom level a selected land feature is visible. Also line width and colour can be setup. Press the DEFAULT button to reset these settings back to default.

LX90xx/LX80xx Version 5.0 June 2015

Page 46 of 166

If you have checked shadows and you are flying on flat areas with elevation close to MSL or below, on terrain will be displayed black spots. Black spots will disappear, if you uncheck shadows.

Check Show raster maps, if you would like to see also scanned maps (See also chapter 5.1.5.7).

5.1.6.2 Airspace

In this dialogue you can define the airspace map presentation. Check the Show airspace item to enable airspace displays in navigational pages. If this item is unchecked no airspace will be displayed.

If the Show inactive zones option is checked then airspace zones with proximity warning switched off will be shown. Use Show only airspace below to eliminate airspace which is going to be too high for the day. For example, if the forecasted cloud base is to be 1500 m, set this value to 1600 m and your screen will be much more readable. In the Type panel you can specify how each airspace type is displayed. You should define each type of airspace zone separately. First choose an airspace type from the list. Zoom value defines to which zoom level this type is going to be visible. The Colour and Width items specify how selected airspace zone will be drawn. You can also modify transparency of the selected type. Turn the ZOOM selector knob to change the transparency value. 100% means completely transparent and only the airspace zone outline will be shown. 0% means completely solid (not recommended). Image below shows example of combinations of Width and Colour property and rendering of airspace zone.

You can set separately airspace colour and border for side view and map view, if option Copy styles to side view is not checked. Press the DEFAULT button to reset these settings back to default.

LX90xx/LX80xx Version 5.0 June 2015

Page 47 of 166

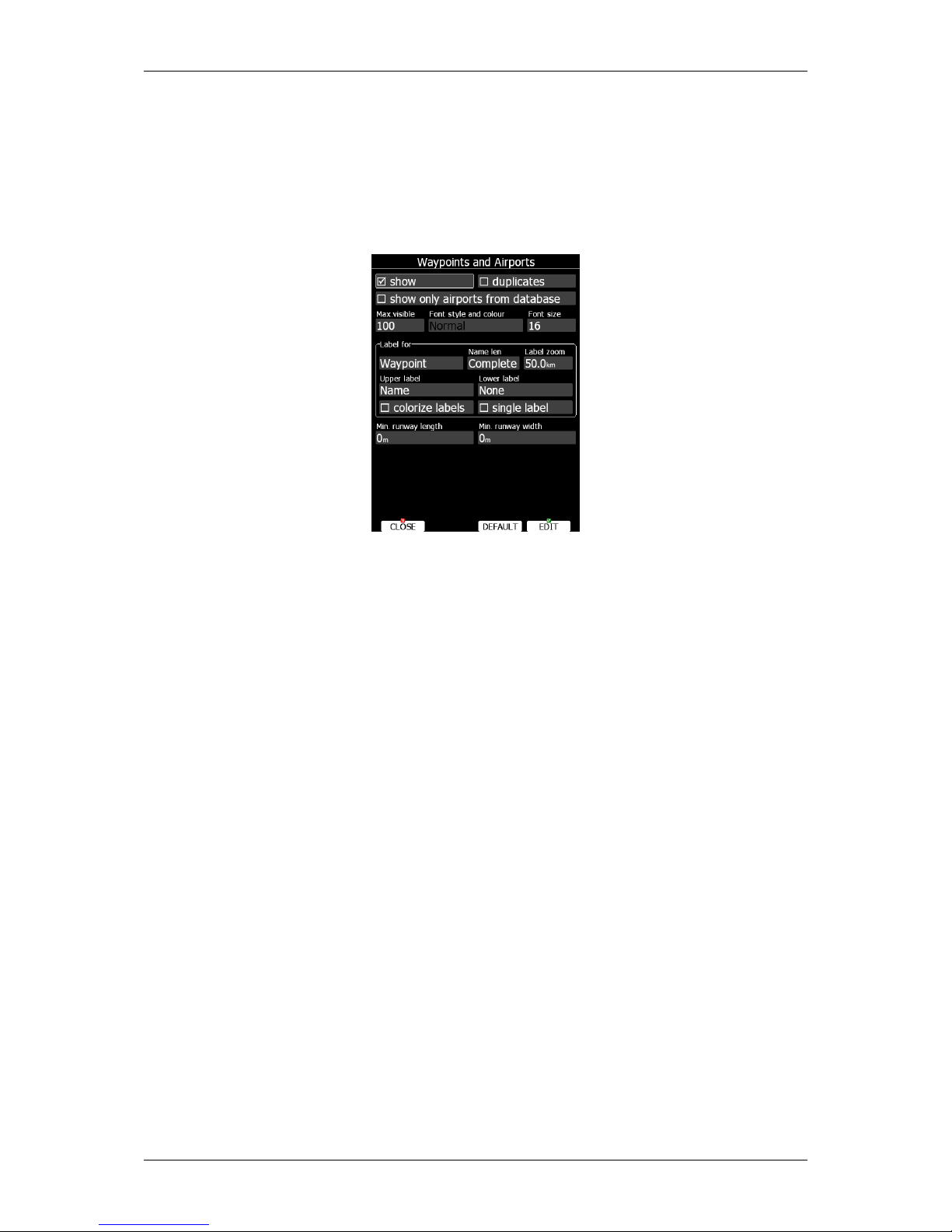

5.1.6.3 Waypoints and Airports The waypoint and airport look and feel is defined in this dialogue. Check the show

waypoints item to enable waypoints and airports display in navigational pages. If this item

is unchecked no waypoints will be displayed. If duplicates is checked, duplicated points might be shown on map, when same waypoint(airfield) is defined in user file as in airport database. Use show only airports from database to display only airports from database on airport mode.

The Max.visible item defines how long waypoint labels and detailed symbols are shown. If the maximum number of waypoints on the current screen is more than the defined value only small blue dots will be shown for waypoints and no labels will be drawn. Font style, colour and size can be defined using the Font style and colour item and the Font size item. When editing style, turning the ZOOM selector knob will change the font colour. Waypoint labels can be setup to give even more detail. Label details can be defined for each individual waypoint type. A label consists of two selectable values: upper label and lower label. If you prefer to have labels in single line, the single label checkbox should be checked. A label can also be coloured. Check the Colorize label item. Coloured labels are drawn with a green background when the waypoint is within range with the current MacCready settings and with a yellow background when waypoint is within reach with MacCready setting zero. No background is shown if the waypoint is not reachable. The label is selected from following options:  Name: waypoint name is shown. The name length item controls how the name is

displayed.

 Code: will display the ICAO code or short name.  Elevation: shows waypoint elevation.  Arrival altitude shows arrival altitude taking into account current MacCready setting,

safety altitude and current wind. Due to complexity of the calculation it will not take the

wind profile into account.  Required altitude shows how much height is needed to reach the point. Required

altitude takes into account current MacCready setting, safety altitude and current wind.

Due to complexity of the calculation it will not take the wind profile into account.  Required Mc gives an estimate of the maximum MacCready value which we can use to

reach the point.  Required L/D shows the required glide ratio to the point taking into account the safety

altitude.  Frequency will display the point frequency, if available.

LX90xx/LX80xx Version 5.0 June 2015

Page 48 of 166

Define minimum runway length and minimum runway width to filter our too short and too narrow runways. Such landing places will be shown in nearest list anyway, but they will be marked with red cross to indicate, they are not usable.

Press the DEFAULT button to reset these settings back to default.

5.1.6.4 Glider and Track

Navigational screen can show the coloured path flown, current track vector and target vector with terrain collision warning.

Check the Show path item if you want to see the flown path. Path length defines how much of the flown path will be shown. The path can be coloured using:

 Fixed path style. Path colour is fixed and defined by path colour item.  Mc path style, which is based on current MacCready settings. Red colour indicates

segments of the flight where we have vertical speed higher than the current MacCready

setting. Orange colour shows vertical movements similar to the current MacCready

setting and blue for vario values below the MacCready setting. Grey depicts sink areas.  Vario path style, where red colour indicates positive vertical speed and blue colour

negative vario values.

 Altitude path style, where red colour means low altitude and blue means high altitude.  Ground speed path style, where red colour means slow speed and blue colour means

fast speed.  Netto path style, where red colour indicates positive netto vertical speed and blue

colour negative netto values.

LX90xx/LX80xx Version 5.0 June 2015

Page 49 of 166

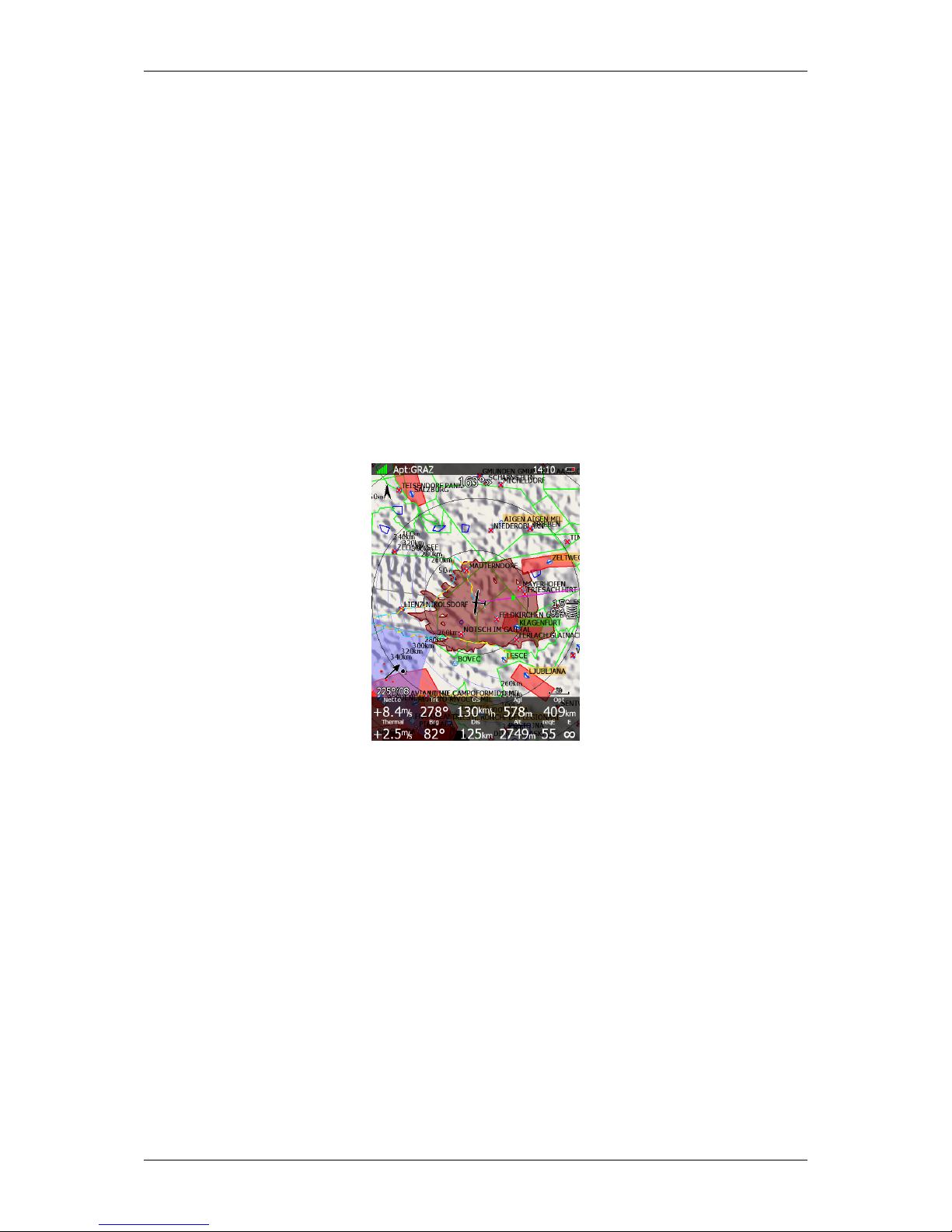

Check the Show current track item if you would like to see your current ground track vector. Track colour and width defines the colour and width of the current track vector. Selected target and current position are connected with a magenta line.

Check Show target if you would like to see this line. In the target colour and target width you can select the Colour and Width of this line. You can also choose to show or hide the terrain collision point and the target line itself. The terrain collision marker is a red square which is only displayed when there is terrain between the navigational point and the current position and therefore not enough altitude to reach the target with the current glider settings. Font Style, Colour and Size define what font for terrain collision altitude and range circles.

Enable Show range circles to plot range circles around aircraft symbol. Having range circles on navigational screen, it is much easier to guess distance to nearest point of interest. Range colour and range width define the way circles are rendered. A built in engine noise level sensor detects, if engine is running or not. Use Engine colour and width properties to visualize part of path, where engine was running.

Use Show glider range area to display reachable area from current altitude with current wind and MacCready settings. Use area colour and area border to define its properties. Press the DEFAULT button to reset these settings back to default.

LX90xx/LX80xx Version 5.0 June 2015

Page 50 of 166

5.1.6.5 Thermal mode

When entering thermal, display unit can enter special page, which is called thermal page. See chapter 6 or LX Styler manual how to define thermal page.

Check Enabled to enable thermal page option. Displayed path on thermal page can be different from the one defined in Glider and track dialog. Use length, line and colouring properties to define path display. Also page zoom is different and set to fixed value defined with Page zoom property

5.1.6.6 Optimization

The main display unit calculates the optimised flown distance according to OLC or FAI rules in real-time during flight (see Chapter 5.1.9). It calculates the available FAI triangle area, which is also called the FAI triangle assistant. If you enter this area and return to the start point your flight forms a triangle according to FAI rules. The Optimisation dialogue is used to define the look and feel.

Check the Show optimization item to enable display of the optimised track. Optimization colour and width defines the colour and width for these lines. If Show optimized triangle is checked also lines for the largest optimised triangle are shown. Please note this might not be a triangle according to FAI rules. The FAI Area group defines how the FAI area is drawn. Select the Colour item to change the colour of the FAI area. Use the ZOOM selector knob to change transparency of the

LX90xx/LX80xx Version 5.0 June 2015

Page 51 of 166

area. 100% means completely transparent and only the outline will be drawn. 0% means completely solid (not recommended). Check the Show km lines item to see lines which indicate what will be the size of the completed triangle.

These lines will always be plotted in kilometres scale regardless of the Units value.

5.1.6.7 Task

Use this dialogue to define how a task is drawn in task mode.

Task colour defines the colour of task lines. Obs.zone colour defines colours for observation zones. Use the ZOOM selector knob to change transparency of area. 100% means completely transparent and only the outline will be drawn. 0% means completely solid (not recommended). When Show flown task is checked also the flown task will be drawn. This might be useful when flying assigned area tasks. The Show selected zone only item controls whether all task observation zones are to be displayed or, if there is only one, then that alone will be shown.

Check Show AAT optimization to enable display of AAT optimization. Optimization is only shown for currently selected assigned area. When Show optimal track is enabled, small blue arrow is drawn next to aircraft. This arrow indicates most optimal direction to fly.

LX90xx/LX80xx Version 5.0 June 2015

Page 52 of 166

5.1.6.8 Flarm

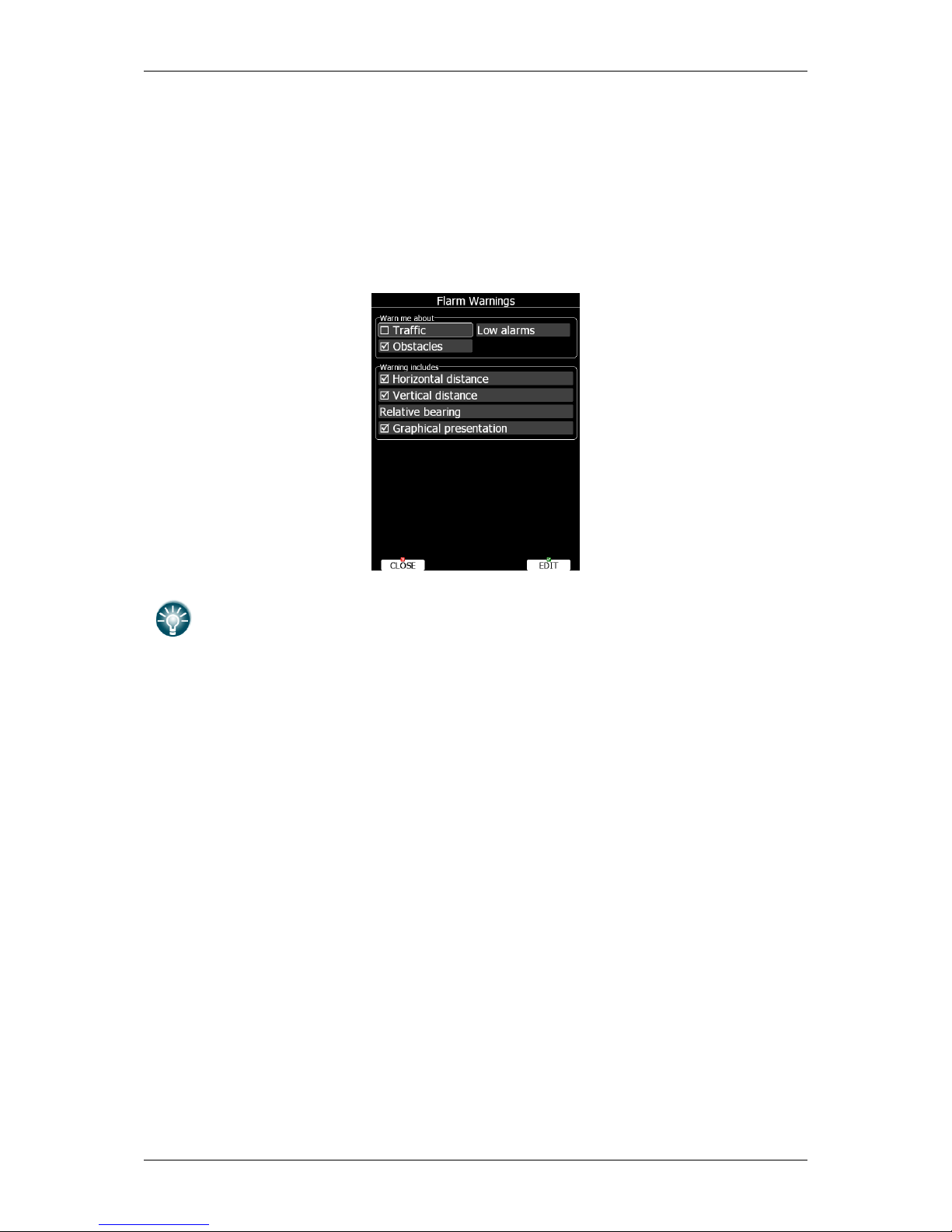

The system can be equipped with the internal or external FLARM module. If your device is equipped with FLARM this menu will let you to modify presentation of the Flarm radar display.

Flarm radar is not available if competition or privacy modes are active. Refer to Chapter 5.1.12.6.

Checking Show Flarm object will enable display of aircraft detected by FLARM. Colours are designed to present three values. The colour for aircraft more than 100 meters above your current altitude is defined by the Above Colour item. The colour for aircraft more than 100 meters below your current altitude is defined by the Below Colour item. The colour for aircraft that are less than 100 meters below or above your current altitude is defined by the Near Colour item. When a signal from a particular aircraft is lost the aircraft remains blinking on the screen for the duration defined in the Lost device after item (default 120 seconds). After that time the aircraft symbol will not be displayed. Show labels combo box defines for which Flarm objects altitude and vertical speed are displayed next to the aircraft symbol. The user can modify size, font style and colour. Select the Font style and colour item. Use the ZOOM selector knob to modify colour and the PAGE selector knob to modify style. It is possible to display the flown path of tracked aircraft. Path colour and Path width define width and colour of paths. Show paths combo box defines for which Flarm object paths are going to be visible. Symbol size defines size of symbol of Flarm object. Check Show PCAS to see non-directional traffic on navigational screen. Non-directional traffic will be draw with dotted circle at received distance from aircraft position. PCAS timeout is setup separately in next time spin control.

LX90xx/LX80xx Version 5.0 June 2015

Page 53 of 166

5.1.6.9 Statistics

In this menu you can define how many thermals are visible in statistics mode.

LX90xx/LX80xx Version 5.0 June 2015

Page 54 of 166

5.1.7 Sounds*

In the Sounds setup page audio settings, voice settings and alarms settings for the vario unit can be modified.

Volume can be also controlled using upper left rotary knob. Rotating it will directly change volume for sounds, which is currently being played. For example, if voice message is being played, voice message volume will be set. If alarm is beeping, alarm volume will be set. In speed to fly mode, speed to fly volume is set and in climb mode, vario volume is set.

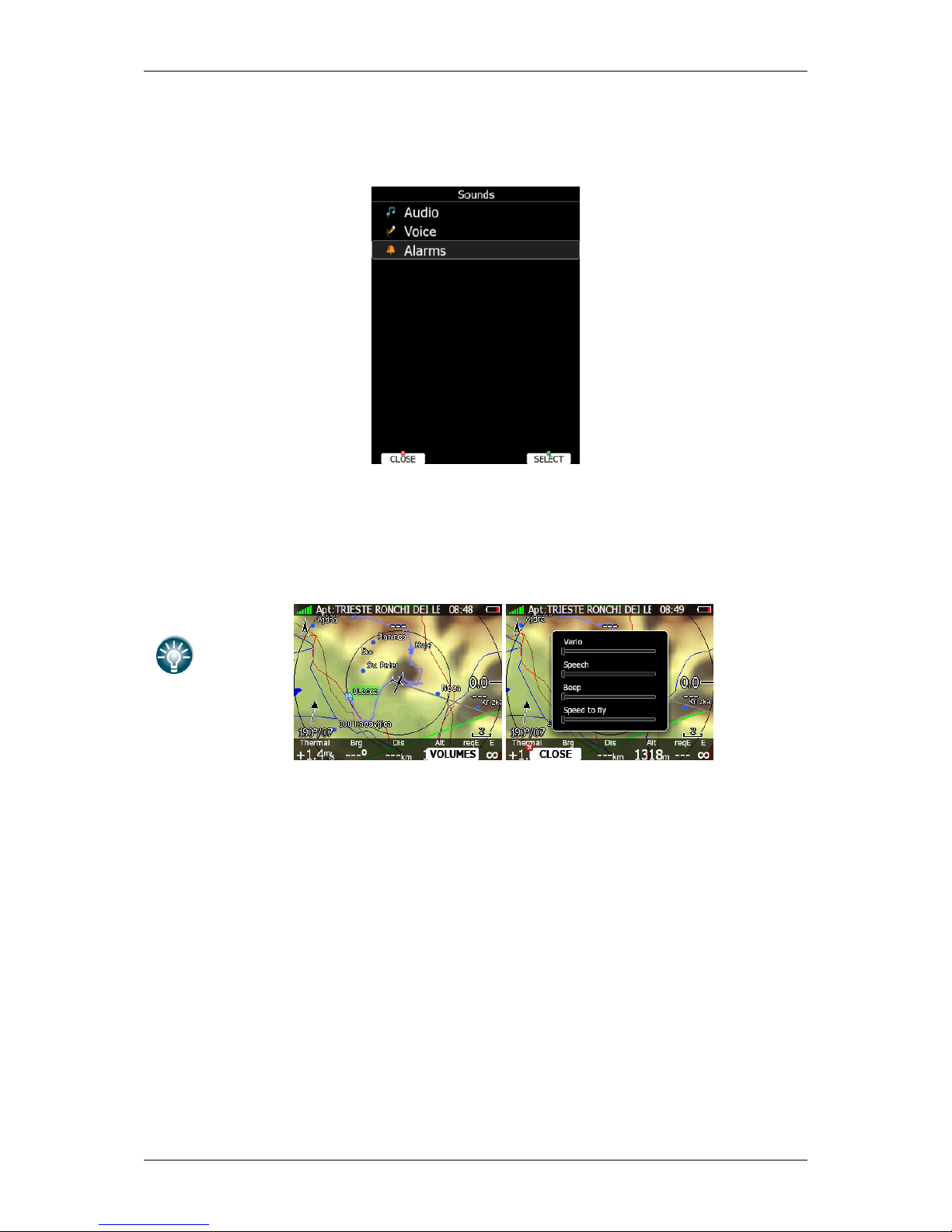

When button VOLUMES is pressed a menu will appear, where it is possible to set up all volumes at same time.

LX90xx/LX80xx Version 5.0 June 2015

Page 55 of 166

5.1.7.1 Audio Settings*

Basically here we can set up two types of audio; audio sound for climb mode and another for cruise mode (SC).

Vario audio mode has the following options:  Linear positive: sound is interrupted with silence every few milliseconds when the

needle is positive; on negative side sound is linear (not interrupted).

 Linear negative: inverse function to Linear positive.  Linear: sound is linear and non-interrupted in full scale range.  Digital positive: similar to Linear positive, except frequency is not changing linearly

but with larger steps.

 Digital negative: inverse function to Digital positive.  Linear positive only: sound is present only at positive values, for negative values

there is silence.  Digital positive only: similar function to Linear positive only, except the sound is

similar to the digital tone.

Press the DEMO button to hear the selected option.

SC audio mode has four modes:  SC positive: sound is interrupted with silence every few milliseconds when the needle

is positive; on negative side sound is linear (not interrupted).

 SC negative: inverse function to SC positive.  SC: sound is linear and non-interrupted in full scale range.  SC Mixed: for positive relative values the sound represents relative; for negative

relative values the sound represents SC (for that setting it is recommended to set SC

needle to relative).  Netto speed: variometer will produce exactly the same sound as defined in Vario

audio, except it will follow netto vertical speed.

Freq at 0% defines the tone frequency at 0 m/s. Freq at +100% defines the tone frequency at full + deflection. Freq at -100% defines the tone frequency at full – deflection.

SC volume item is visible only for variometer before V5 variometer, where it was not possible to separately set volume for speed to fly mode and for climb mode. It is highly recommended to upgrade variometer to newer one. Please contact

info@lxnav.com for more details.

LX90xx/LX80xx Version 5.0 June 2015

Page 56 of 166

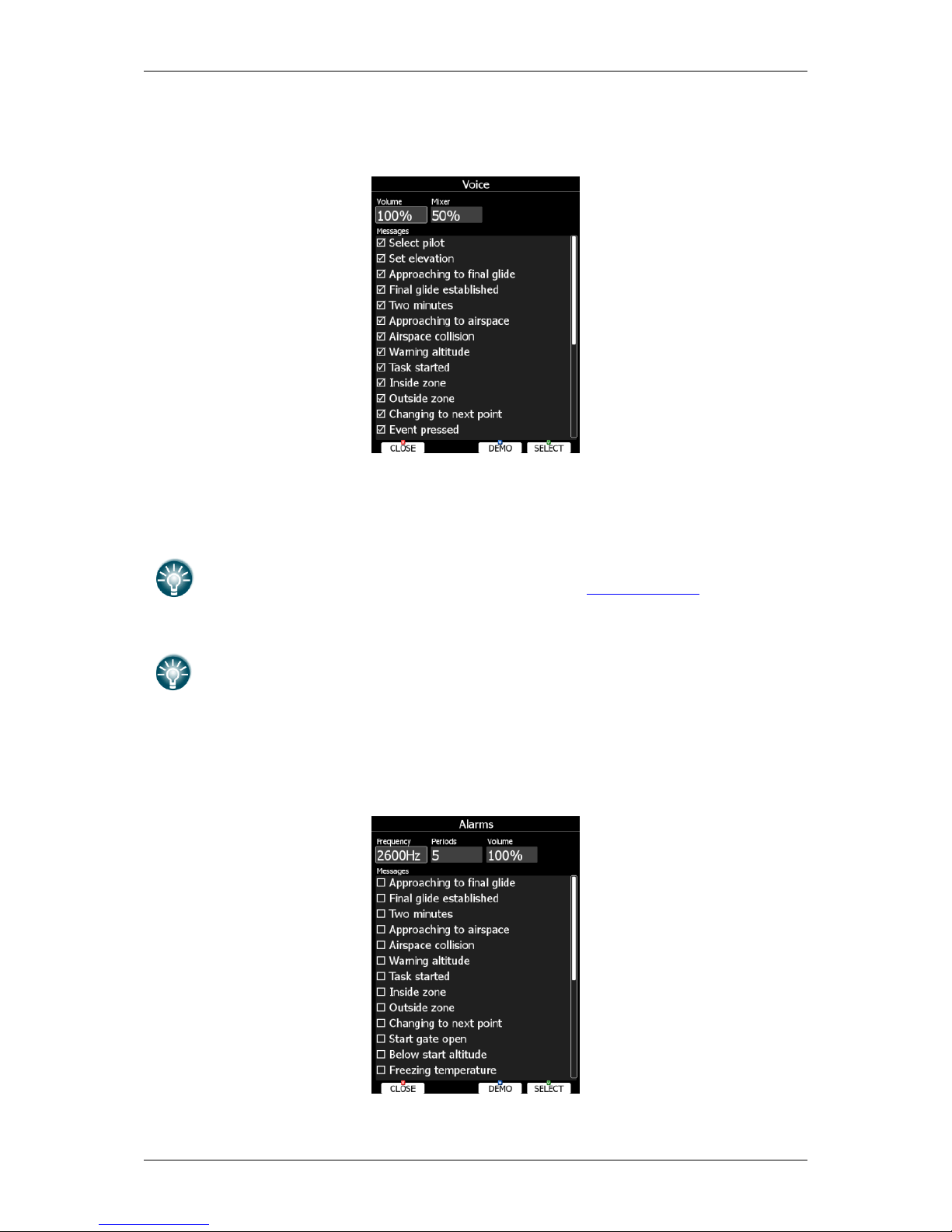

5.1.7.2 Voice*

Voice module is integrated part of V5, V9 or V80 variometer. The voice module is 100% controlled through the main display unit via the settings described in this menu.

In the Voice menu volume level (loudness) of the voice module can be adjusted. In the Messages window each item can be set separately. Only checked items will be played by the voice module.

Mixed item is visible only for variometer before V5 variometer, where it was not possible to separately set volume for voice messages. It is highly recommended to upgrade variometer to newer one. Please contact info@lxnav.com for more details.

Volume level (loudness) can be also set with volume rotary knob, when messages are being played

5.1.7.3 Alarms*

The vario unit produces an audio alarm on reaching certain confirmation points. This screen allows the parameters of the audio to be configured. If a particular message item is checked the main display unit will generate an alarm at the time of event.

LX90xx/LX80xx Version 5.0 June 2015

Page 57 of 166

Frequency and Periods define the length and pitch of alarm. Press DEMO button to play alarm sound. Change volume to define loudness of alarm.

Volume level (loudness) can be also set with volume rotary knob, when alarm is being played

LX90xx/LX80xx Version 5.0 June 2015

Page 58 of 166

5.1.8 Observation Zones

This menu defines the default observation zone geometry. The following items can be chosen: start zone, turn point zone, finish zone and templates.

Each type of observation zone is defined with two angles, two radii and mean bearing (Angle12). These parameters enable the creation of any known zone geometry separately for start, turn point and finish. All stored tasks will match this “global” setting except those where the zone was modified in the task edit menu (see Chapter 5.7.1).

Using parameters in the zone dialogue it is possible to describe all types of observation zones. Angle12 defines the orientation of the observation zone. Available values for Direction are:

 Symmetric: This is the most common selection for turn point.  Fixed: This is mostly used for assigned areas.  Next: will orient the observation zone in direction of the outgoing leg. This is usually

used for start.

 Prev: will orient the zone in direction of the incoming leg and is usually used for the

finish.  Start: orientates the sector always towards the start. If the Line checkbox is checked the sector will become a line type of observation zone. The Radius 1 parameter describes half of width of line length. Use the PAGE selector knob to

LX90xx/LX80xx Version 5.0 June 2015

Page 59 of 166

increase the radius by 0.1 of the selected distance units and the ZOOM selector knob to increase the radius by 5. If Line is not checked the Angle1 parameter will define the basic shape of the observation

zone. A value of 180° means that the zone is a cylinder and 45° is the classical FAI sector. Rotate the PAGE selector knob to increase the angle by 0.5° or use the ZOOM selector knob to choose values 22.5°, 45°, 90° or 180°.

Angle2 and Radius2 are used for more complex observation zone setups. When changing observation zone parameters the screen is automatically updated to display the new zone. Check the AAT checkbox, if you want to make the selected zone an assigned area. The AAT checkbox will be automatically checked when Radius1 is greater than 10 km. By default navigation to task points will be automatically advanced; uncheck Auto next if you do not want to change over to next point when reaching selected point. This option will be automatically unchecked when Radius1 is greater than 10 km. Use Template if you wish to modify start, point and finish zones at same time.

Available templates are:

 500 m cylinders are used for start, points and finish.  FAI sectors, 90° and 3 km long sector is use in start, turn point and finish.  500m and start line. The 500 m cylinder is used for turn points. A 1 km long line is

used for start and finish.

 FAI and start line. 90° and 3 km long sector is used for turn points. A 1 km long line is

used for start and finish.

LX90xx/LX80xx Version 5.0 June 2015

Page 60 of 166

5.1.9 Optimization

During flight the system optimises the flown path according to OLC or FAI rules. Use this dialogue to change the way instrument performs this optimisation.

Number of points defines the type of optimisation. Use five for OLC optimisation. Use the value three for FAI free flight optimisation.

Optimisation will not take into account the 10 km distance between turn points which is required by FAI rules.

The FAI triangle group defines the rules for FAI triangles and these rules can bend a little if you do not want to fly marginal triangles. Check Reset optimization on engine run to reset optimization counter each time engine is started.

5.1.10 Warnings

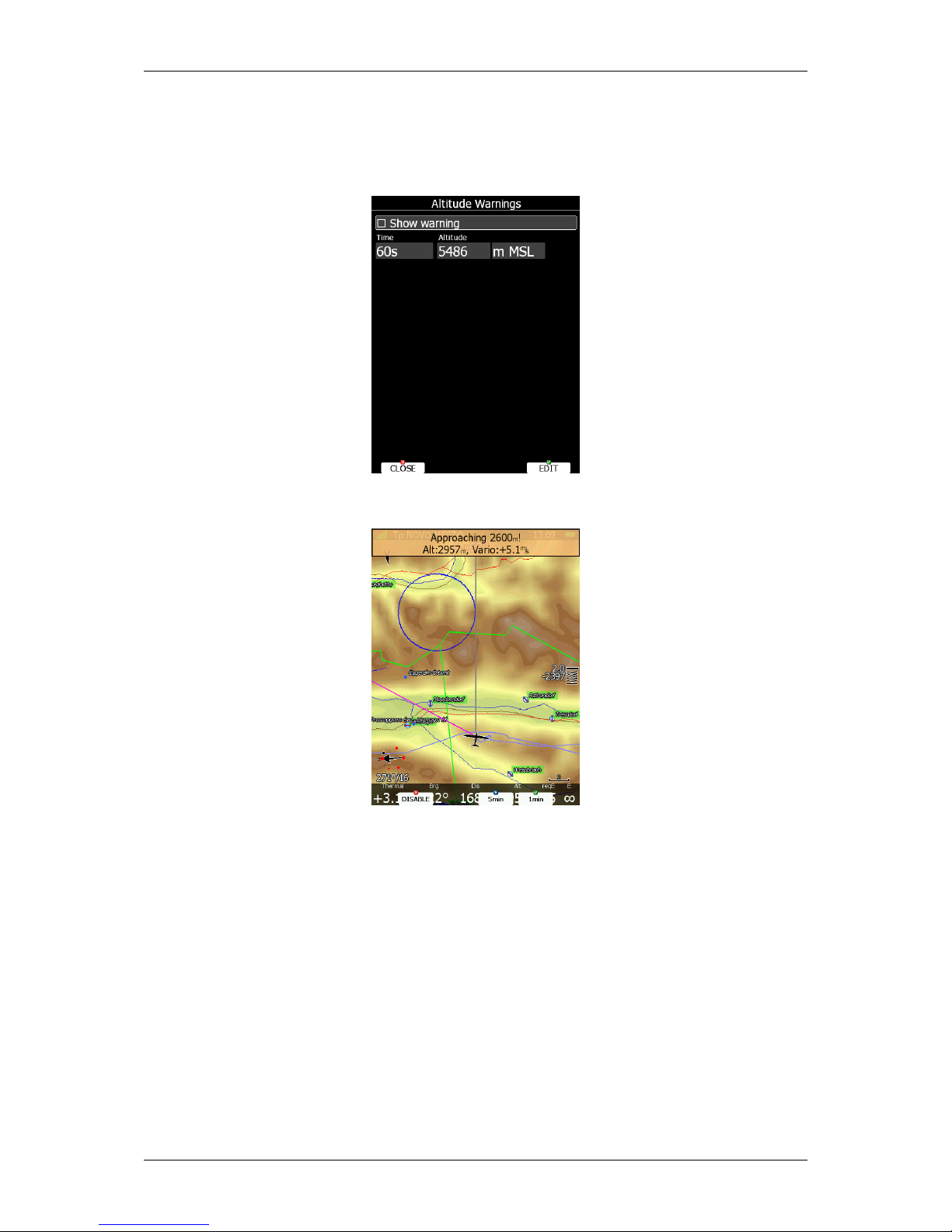

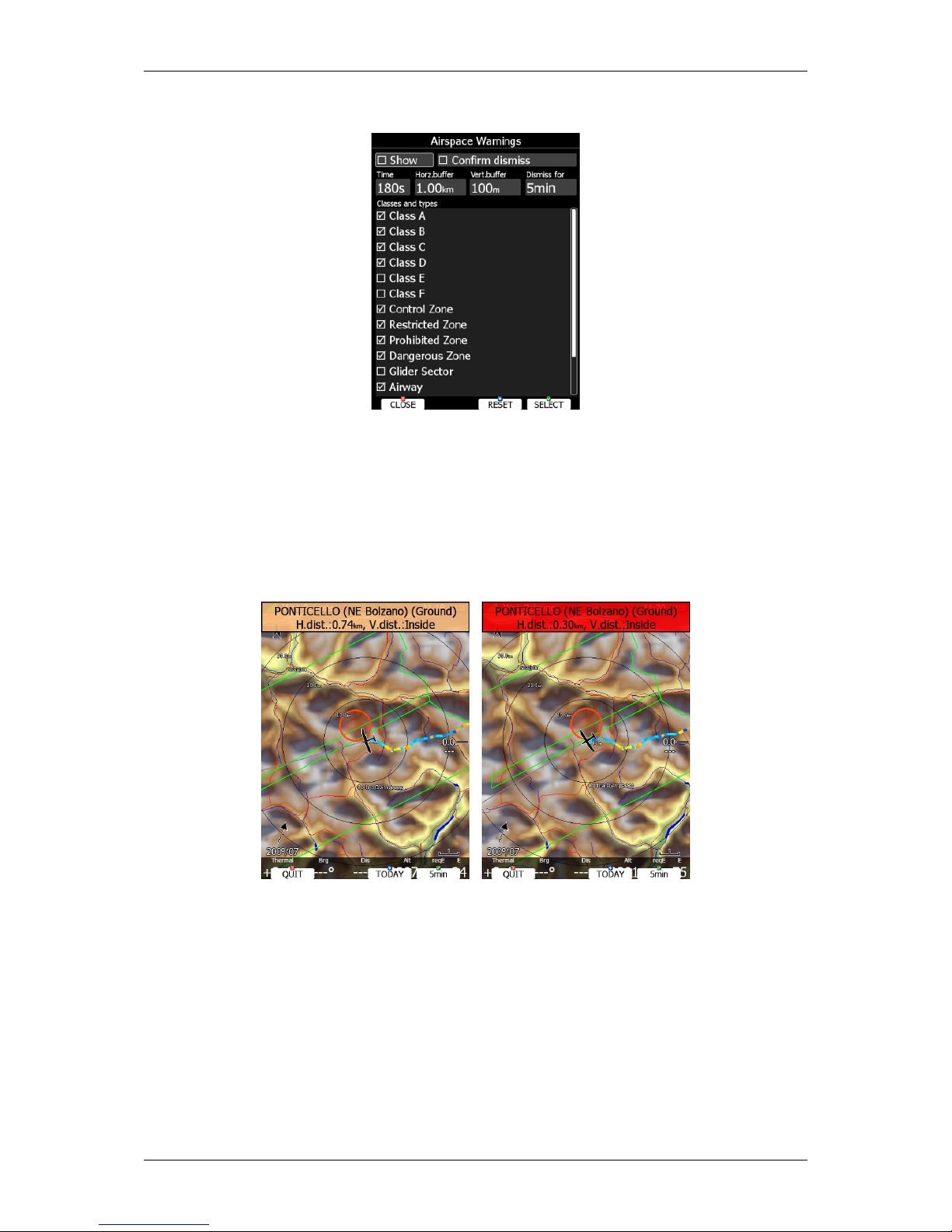

There are four types of warnings available. Airspace warnings are shown when approaching a particular airspace zone. Altitude warnings are shown when approaching to a defined altitude, Flarm warnings are triggered when conflicting traffic is in the vicinity and Time Alarms are raised at defined time interval to remind pilot to do specific task.

Use this dialogue to setup the behaviour of warnings.

LX90xx/LX80xx Version 5.0 June 2015

Page 61 of 166

5.1.10.1 Airspace Warnings

Airspace warnings are the most complex ones. An airspace warning is activated by two triggers; First warning (orange) will be given when a projected position of flight for period, which is defined in the Time item, is computed to cross an airspace zone. Second warning (red) will be raised when a projected position of flight is computed to cross airspace zone and the glider is already in the buffer zone in the vertical or horizontal directions. Buffer zones are defined in the Horz.buffer and Vert.buffer items. Default values are 1 km for horizontal buffer and 100 m for vertical buffer. The first warning (orange) will also be given when you enter an airspace zone buffer but the projected flight is computed to cross it.

An Airspace warning will be raised in all modes and dialogues. A warning for an alarmed zone can be dismissed for a whole day, some minutes or just quit. Quit means that the message will disappear. Use Dismiss for spin to define dismiss time in minutes. This time will be shown in the lower-middle button after which the warning will be raised again. However an alarmed zone will still be filled with transparent red colour and outlined with a thick line and also the distance to the nearest point of the airspace zone will be shown. To prevent dismissing by mistake check the Confirm dismiss checkbox and you will be always prompted to confirm dismiss for a particular airspace zone. The RESET button will reset the status for all airspace zones.

LX90xx/LX80xx Version 5.0 June 2015

Page 62 of 166

5.1.10.2 Altitude Warning

Altitude warnings will be enabled if Show warning is checked. Altitude is given in MSL. Projection is calculated based on the 20 second average vertical speed and time which is defined in the Time item.

If the projected altitude is greater than the set altitude, an altitude warning will be raised. Altitude warnings will be raised in all modes and dialogues just as for airspace warnings.

Altitude warnings can be dismissed for 1 minute, 5 minutes or disabled.

LX90xx/LX80xx Version 5.0 June 2015

Page 63 of 166

5.1.10.3 Flarm Warnings

Flarm warnings will be raised only when system is receiving FLARM data from internal or external FLARM module. Using this dialogue the user can define which warnings will be shown and how they are going to be shown. There are three types of warnings:

 Traffic warnings will be raised once a new aircraft is detected by FLARM.  Obstacles warnings will be displayed when a collision with a ground obstacle is

predicted.

 Low alarms, Medium and High alarms combo box defines alarm level at which

system will display collision warning.

On competition it is recommended to set to Medium or high alarms, otherwise too much warnings will be displayed.

If the voice option is installed it is also possible to hear the horizontal and vertical situation to the current object. Uncheck appropriate items if you want to disable this part of the message. You can also define the way direction to the Flarm object will be presented. There are three options:  Relative bearing: In this option direction will be given relative to the glider’s nose

direction (e.g.

Traffic 3’ o clock

, which means traffic, is on your right side).

 True bearing: Direction is give with absolute direction (e.g.

Traffic from 330°

)

 Relative/True bearing is a combination of both methods. Relative bearings will be

given when flying straight and true bearings will be given when thermaling.  Graphical presentation. When this item is check, also a graphical presentation of

FLARM will be shown, when Flarm warning is displayed.

LX90xx/LX80xx Version 5.0 June 2015

Page 64 of 166

Picture above shows typical Flarm warning with graphical presentation and relative bearing of object. Press CLOSE to dismiss warning, CIRC.OFF to dismiss for time of circling and 1min to dismiss all Flarm warnings for one minute.

5.1.10.4 Time Alarm

Use this dialogue to define three independent time alarms that will be triggered at specified periods.

LX90xx/LX80xx Version 5.0 June 2015

Page 65 of 166

5.1.11 Units

The lower-middle button will toggle all units between imperial and metric units. Glider ballast can be entered as:  overload factor, which is defined as:

weightgliderREFERENCE

ballastWaterweightPilotweightgliderEmpty

overload

.... 



 Load, which is entered in kg/m2 or lb/ft2.  Weight of water ballast. If this option is used the weights of the glider and pilot

must be entered. Refer to Chapters 5.1.13 and 5.1.2 for more details of how to enter glider and pilot weights.

LX90xx/LX80xx Version 5.0 June 2015

Page 66 of 166

5.1.12 Hardware*

Use this menu to define hardware properties such as total energy compensation, vario indicators layout, compass calibration, FLARM module settings, AHRS settings, NMEA output and data which will be exchanged between the rear and front display units. Some items may be greyed out when the selected option is not available.

5.1.12.1 Vario unit settings – TE compensation*

All settings in this menu are related to the glider and thus they do not depend on profile selection. In this manual dialog description is given for firmware version 5.0 or higher with V5, V8, V9, V80 variometer. In case older version or older variometer is being used, please refer to previous version of manual.

Total energy compensation, temperature offset, airspeed offset and digital inputs are setup in this menu.

LX90xx/LX80xx Version 5.0 June 2015

Page 67 of 166

5.1.12.1.1 TE compensation - Digital Total Energy Compensation

There are two ways by which the vertical speed can be corrected for total energy:

 digital TE compensation based on speed changes with time

 Pneumatic compensation with a total energy probe.

If the digital TE option has been used TE compensation should be set to 100%.

It is important to note that the method of TE compensation is set up when the instrument is installed by virtue of the pneumatic connections made to the TE and static ports. Changing the compensation type in the setup screen below WILL NOT change the method of compensation - the pneumatic plumbing has to be changed first.

If the TE tube has been connected TE compensation should be set to 0%. The quality of the TE compensation depends entirely on the location, size and dimension of the TE tube. The installation must be leak-proof.

The digital TE compensation can be fine-tuned during flight using the following procedure. It is essential that this is only done in smooth air; it is not possible to tune the TE accurately in turbulent air. Set TE compensation to 100%. Accelerate up to approximately 160 km/h (75 kts) and keep the speed stable for a few seconds. Gently reduce the speed to 80 km/h (45 kts). Observe the vario indicator during the manoeuvre. At 160 km/h the vario will indicate about –2 m/s (-4 kts). During the speed reduction the vario should move towards zero and should never exceed zero (slightly positive indications are acceptable). If the vario shows a climb the

compensation is too low; increase the TE%; and vice versa. Try another “zoom” to assess

the change and make further adjustments if necessary. Digital TE compensation is only effective when the Pitot tube and static sources are colocated and the pneumatic lines to the instrument are approximately the same length. The best sensor to use is the combined Pitot/static Prandtl tube. If problems are experienced with the digital TE compensation the most likely cause is the glider's static source. The static source can be checked by plumbing the pneumatic tubes for digital TE compensation and then setting the TE: to 0%. In still air accelerate to approximately 160 km/h and slowly reduce the speed. Observe the vario indicator. If the static source is good the vario should immediately start to move to show a climb. If the needle firstly shows increased sink and then moves to a climb, the static source of the glider is unsuitable and there is no way to provide successful digital TE compensation. The use of a dedicated and accurate finmounted Pitot/static source such as a Prandtl tube might help.

5.1.12.1.2 Temperature Offset

The system is supplied with an external outside air temperature (OAT) sensor. With the offset setting it will correct static errors of temperature measurement.

TE (Pst) Vario unit

Digital TE compenstaion

Compensation with TEprobe

LX90xx/LX80xx Version 5.0 June 2015

Page 68 of 166

There is another input called VARIO PRIORITY. When this input is activated by grounding the appropriate wire the unit will change over to Vario immediately. This input wire is set open (not grounded) as a factory default on delivery.

5.1.12.1.3 Airspeed Offset

Some gliders are having quite big difference between calibrated airspeed and indicated because of imperfect static ports (e.g.: Cirrus Standard). As airspeed effects wind calculation. It is possible to define an airspeed offset to improve wind calculation.

Vario indicator will ignore this setting and shows not corrected airspeed.

5.1.12.1.4 Digital inputs

V9 or V5 variometer is having six programmable digital inputs. Two of them a bit special and are labelled VP and SC, others are labelled with IN1, IN2, IN3 and IN4 on V5/V9 cable-set. See Installation manual for more details on vario unit wiring diagram. In current version digital input can represent the state of following actions:

 SC on/off switch is used to change between SC (cruise) and climb mode using

on/off switch on remote stick of magnetic switches on flaps. Use invert check box to invert working of switch.

 SC toggle button is used to change between SC (cruise) and climb mode using

push button on remote stick. Use invert check box to toggle when button is pressed down or released.

 Vario priority is used to instantly change from SC (cruise) to climb mode as long as

push button is pressed.

 Gear down and locked should be connected to gear only.

 Airbrakes locked should be connected to airbrakes only.

 Gear and airbrake is used when you already have an old style of gear warning,

where gear and airbrakes are connected together in one loop.

 Water ballast open is used to automatically calculate amount of dropped water.

See also chapter 5.1.13.

 Canopy locked

 Radio PTT active should be wired parallel to PTT button and it will mute vario

sound, when transmitting over radio.

 Engine failure

 Low fuel

Digital input shall be wired via switch to ground and it shall open or close, when selected action is performed. A green light will light. If necessary, check Invert check box, to reverse the operation of digital input. Once digital inputs are connected the system will warn pilot, if airbrakes are open on takeoff and when gear is not locked prior to landing.

Instead of using magnetic switch on flaps to toggle between SC (cruise) and climb mode you can also use flap sensor for this operation. See chapter

5.1.12.14.

LX90xx/LX80xx Version 5.0 June 2015

Page 69 of 166

5.1.12.2 Vario Indicator Setup*

The vario indicator is always part of the vario unit. However an unlimited number of secondary vario indicators can be connected to the system using the RS485 system bus. There are three different types of vario indicators; I9 vario indicator, which is standard part of V5/V9 variometer, I8 vario indicator or I80 vario indicator, which is built-in part of V8/V80 variometer and old LCD or USB-D vario indicator. LCD vario indicator and USB-D type of indicator are setup through menu LCD Indicator, whereas others, more modern vario indicators, are having its own menu item identified with serial number.

LXNAV is highly recommending upgrading old LCD or USB-D type of vario unit to latest technology vario unit. Please contact local dealer or LXNAV for more details.

5.1.12.3 Indicator I9* I9 indicator is having mechanical needle and colour screen with 320x240 pixels resolution

on which user selectable data are displayed. Each I9 indicator is identified by a serial number, which is also displayed on hardware menu. Therefore literally unlimited number of vario indicators can be connected to RS485 bus and each of them can be setup separately.

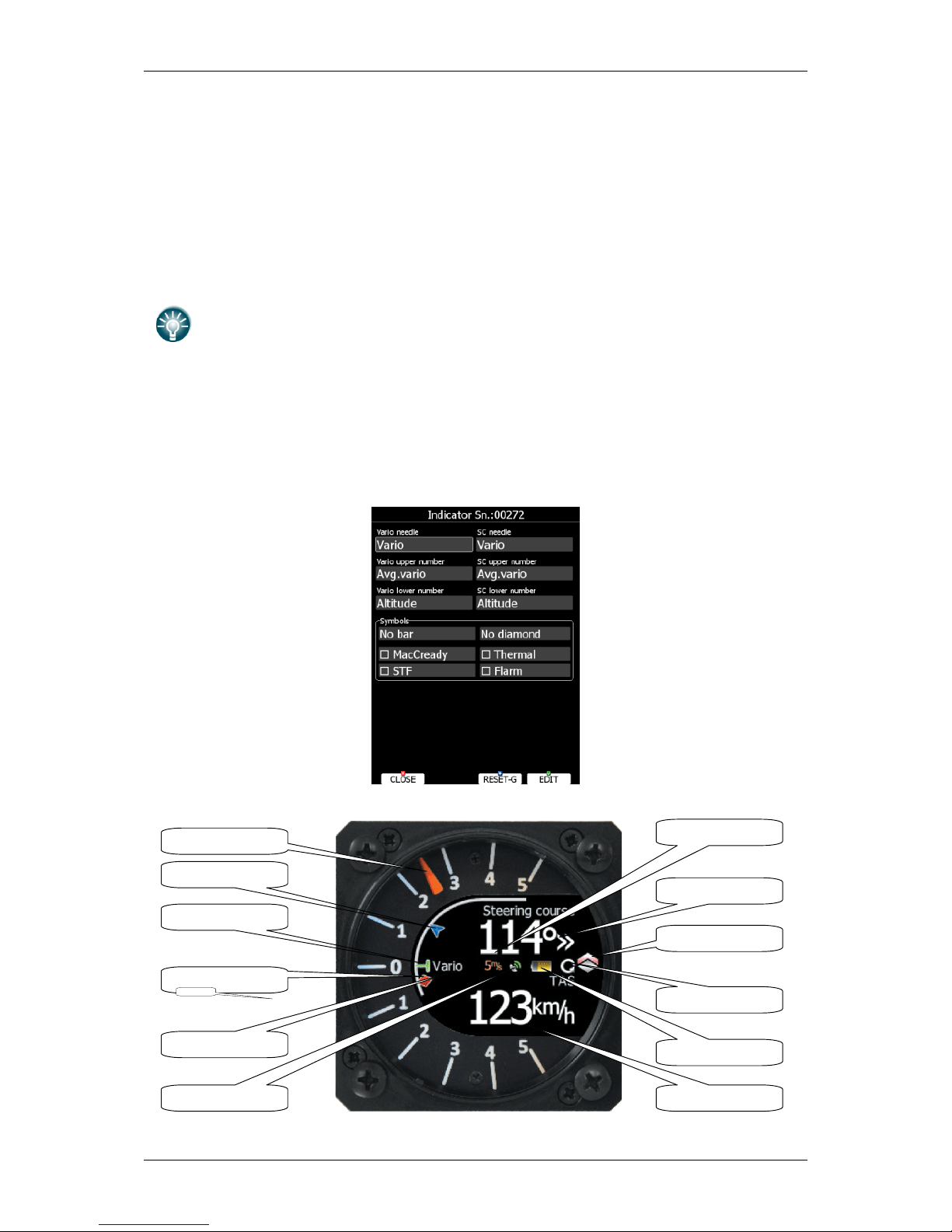

Description of indicator is shown on next picture.

Mechanical needle

Average

Mechanical needle

Thermal average

GPS status

Range

Upper number

Climb/cruise symbol

Battery

Needle type

MacCready symbol

Speed to fly symbol

Lower number

LX90xx/LX80xx Version 5.0 June 2015

Page 70 of 166

Mechanical needle displays vario, netto, relative or speed to fly value. It can be setup separately for climb mode or cruising mode. Printed scale can be chosen in range from -5 to 5 or from -10 to 10. Within software range can be set to 2.5, 5, 10m/s or 5, 10, 20kts or 500, 1000, 2000fpm. Upper number and Lower number can be configured as average vario, time, flight time, task remaining time, netto value, outside temperature, thermal average, indicated airspeed, true airspeed, current altitude, distance to goal, arrival altitude, Last 60 minutes speed, altitude in feet, flight levels, voltage or average netto. It can be setup separately for climb mode or cruising mode. Speed to fly bar symbol is indicating which speed you have to fly according to current MacCready setting, sink rate and speed. One arrow means 10units of speed faster or slower. Up red arrows mean fly slower and down blue arrows mean fly faster.

Red diamond symbol can show average vertical speed or current g-load. Blue arrow symbol shows current MacCready value. Green T symbol represents last thermal average value. White bar displays arc between minimum and maximum vertical speed value in last 20

seconds in white colour or minimum and maximum g-load in red colour, depending on settings. Press RESET-G button to reset g-meter.

Most innovative feature of vario system is an upgrade. Firmware for vario unit can be easily upgraded by customer with SD card. See Chapter 9 for more details.

5.1.12.4 Indicator I8/I80* Indicator I8/I80 is without mechanical needle. I80 features 3.5” colour screen with

320x240 pixels resolution and I8 features 2.5” colour screen with 320x240 pixels resolution. User selectable data are displayed on screen and needle is drawn. Each indicator is identified by a serial number, which is also displayed on hardware menu. Therefore literally unlimited number of indicators can be connected to RS485 bus and each of them can be setup separately, however only one vario unit.

LX90xx/LX80xx Version 5.0 June 2015

Page 71 of 166

Indicator basic screen is split into two parts, white ring with needle and vario scale. Additionally to needle, blue MacCready triangle, green thermal average T and red diamond for 20 seconds average are shown. In the middle four user-customizable numbers are shown. When middle button on indicator is pressed display will toggle between numeric display, Flarm radar display and artificial horizon screen.

Press middle button for long time to enter setup menu. In setup menu it is possible to setup graphic interface for Flarm radar screen and numeric values. Numeric screen can also be setup on main display unit.

I8/I80 are not changing screen when toggling between cruise and climb mode. In setup you can define value for each line separately. They can be configured as average vario, time, flight time, task remaining time, netto value, outside temperature, thermal average, indicated airspeed, true airspeed, current altitude, distance to goal, arrival altitude, Last 60 minutes speed, altitude in feet, flight levels, voltage or average netto. It can be setup separately for climb mode or cruising mode.

LX90xx/LX80xx Version 5.0 June 2015

Page 72 of 166

5.1.12.5 LCD and USB-D Vario indicator*

This is type of the older vario indicator. An LCD vario indicator or USB-D vario indicator consists of:

 Needle  Two numerical displays (upper and lower).  Labels and indicators.

These following functions can be set (see next picture):

 Needle: vario needle (Vario, SC, Netto or Relative).  SC Ring: Displays speed command at all times.  Upper Numeric Display: Integrator, time, flight time, task remaining time. Upper line;

the parameter displayed can be configured in both Vario and SC modes.

 Vario Mode Indicator: Shows current flight mode (vario or speed command).  Lower Numeric Display: Altitude (NN altitude), Distance (distance to the navigation

point), Glide diff. (final glide altitude difference), Speed (TAS), Leg speed (speed on leg), QNH (ft) (NN altitude in ft), Flight levels. Lower line; the parameter displayed can

be configured in both Vario and SC modes. The labels will automatically be displayed depending on the current function. The BAT warning will be displayed when the supply voltage is below 11 volts.

5.1.12.6 Bridge 232*

Bridge 232 is an external device which is sold separately and is used to output NMEA data or to connect radio to the system.

LX90xx/LX80xx Version 5.0 June 2015

Page 73 of 166

See installation manual for details on wiring of Bridge 232.

Once bridge 232 is plugged into 485 bus, Bridge Sn.:SNxxxx will appear in Hardware menu. First functionality must be defined. Based on functionality, dialog will change and display related items for selected functionality. In NMEA output define baud rate at which NMEA sentences will be transmitted. Select desired NMEA sentences. Radio bridge is used to operate radio through main display unit. First type of connected radio must be selected. At the moment only KRT2 from Avionik Dittel is supported. Support for other types is in progress. Please consult LXNAV for more details. Check Auto set target frequency, if you want to automatically select frequency, when new target is selected in navigational mode.

5.1.12.7 Flarm*

On the Flarm setup page, information about built in or external Flarm are visible. Information like serial number, selected frequency, firmware version and database versions are shown.

Press CLEAR button to delete all data on Flarm module. This will remove also obstacle database.

If Flarm module is built in user can select operation mode. There are three different operational modes available:

 Power OFF - Flarm unit is switched off.  Power ON - Flarm unit is switched on.  Privacy ON - Flarm unit works in stealth mode. Other Flarm units will not receive

altitude and vario information concerning your glider. For collision warnings this mode

has no influence. If there is no Flarm module built into the main display unit, then instead of operation mode combo box, Baudrate selection will be displayed

Freq shows selected frequency depending on the continent, where system is located. Port defines serial interface through which Flarm data are being received.

 Internal is default setting and indicates that internal Flarm will be used, if installed this

option.

LX90xx/LX80xx Version 5.0 June 2015

Page 74 of 166

 Ext. (Colibri) (only on LX8000 old model)– Use this mode, when you want to receive

external Flarm data through Colibri port on back side. (For example, if TRX1090 is

connected to LX8000.)  Ext. (PC) – Use this mode, when you want to receive externally connected Flarm on PC

port.  Flarm – port is available on selected devices only and means that Flarm input will be

via port labelled Flarm.  GPS – port is available on simple type of devices only and means that Flarm input will

be via port labelled GPS. See installation manual and Chapter 11.1 for more details.

Device ID shows the Flarm unique ID, which is transmitted to other FLARMs.

Competition mode is intended only for competitions. If this mode is enabled the pilot will

not be able to see any Flarm data on the navigational screens. The competition mode status is recorded in the IGC file and can be checked during scoring.

If you are flying in a competition it is sufficient to turn on Competition mode. However if you do not want other aircraft to see you, you should switch mode to

Privacy ON.

Reduce warnings will significantly reduce Flarm warnings. Use this option if you are flying

in gaggles or areas with high density of other aircraft.

We recommend you sign in at FLARMNET.org. This is free of charge. Registering with FLARMNET allows others to see you not only with Device ID but also with your contest number and name. Refer to Chapter 5.5.6.10.

Send declaration check box is available only when external Flarm is connected. Check this option, if you want that task declaration is automatically transferred to Flarm.

5.1.12.8 Compass*

When a compass is connected to the system use this menu to perform calibration of it. Before calibration, please make sure that compass is installed properly. Refer to compass and installation manual for more info about installation.

It is very important that compass is installed away from power cables, other compasses, speakers and all other magnetic components in the aircraft. Keep maximum possible distance to such components (at least 30cm).

LX90xx/LX80xx Version 5.0 June 2015

Page 75 of 166

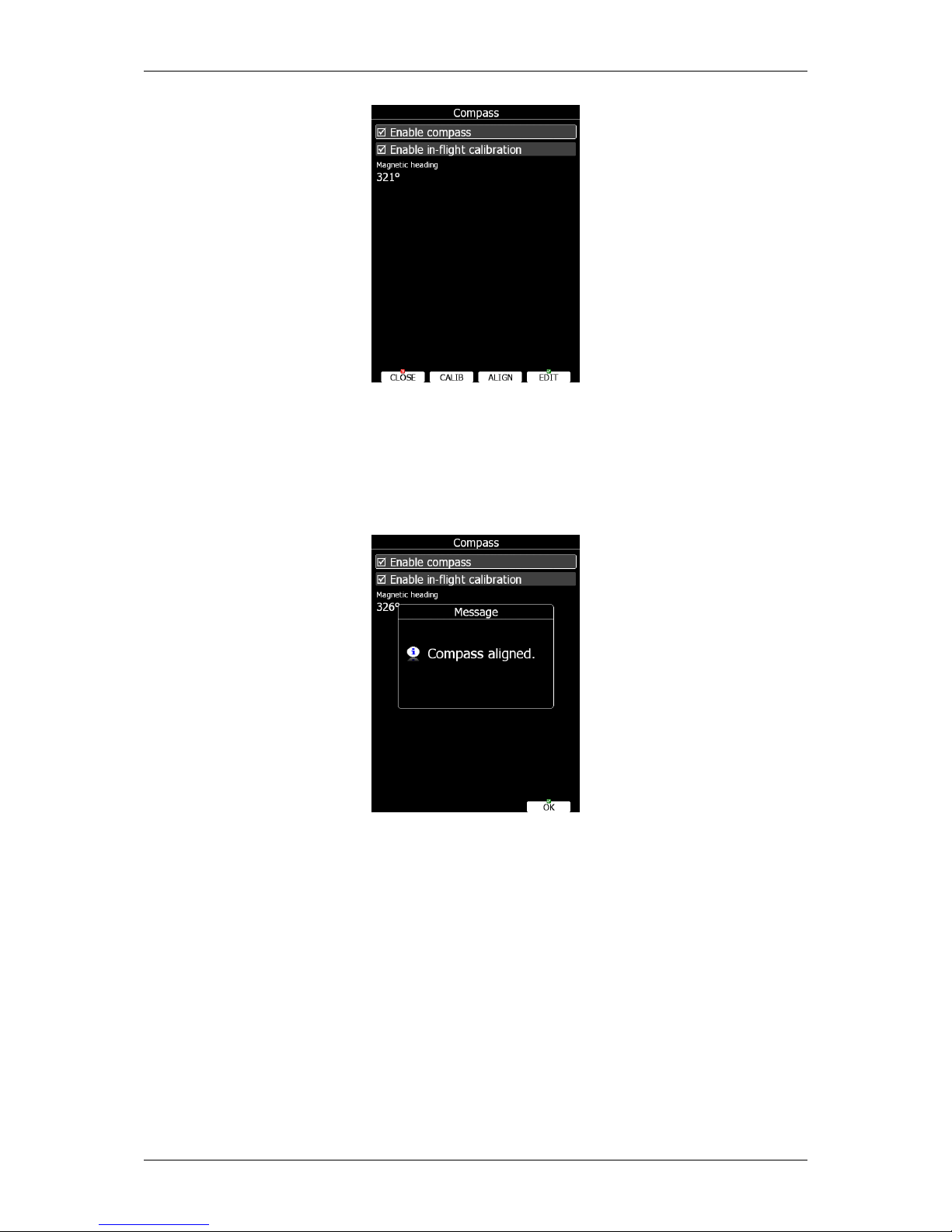

Compass will be enabled if check box Enable compass is ticked. If you would like to perform in-flight calibration, check Enable in-flight calibration. It is not recommended to do in-flight calibration in very turbulent conditions. Press ALIGN button to align compass with AHRS, which is built-in V9 vario. When installing compass, please make sure to align it as much as possible with V9 variometer. Deviation of few degrees is tolerated. When aligning compass with AHRS it is important that cabin is closed and glider is not moving. Message will be displayed on screen, when aligned.

Press CALIB button to start calibration of compass on the ground. Calibration process I very straightforward. Make sure glider fuselage is levelled (use tail dolly), wings are levelled and canopy is closed with pilot inside. Switch on all the avionics, which is normally switched on while flying. Confirm calibration of compass to start calibration process. Assistant on the wing should slowly rotate glider with wings levelled.

LX90xx/LX80xx Version 5.0 June 2015

Page 76 of 166

Keep rotating glider until progress reaches 100%. Calibration will automatically exit and compass calibration is finished. Check compass directions afterwards, they should be within +/-2 degrees. Press PTT on radio to see if there is any deviation in magnetic heading. If more error is observed, install compass in different place and repeat calibration procedure.

5.1.12.9 Rear Seat or Front Seat

In a two-seat configuration with the rear seat device it is possible to transfer selected data between the front and rear seat device. Use this menu to define which data will be automatically received from the other device.

Data are divided into two groups; flight parameters and navigational data. If a specific value is checked this value will be automatically received from the other device. Check MacCready, Ballast or Bugs to receive current MacCready value, current ballast setting or bugs from other device. If the Waypoint checkbox is checked a new waypoint target will be automatically assigned when the user changes the waypoint target on other device. The message

“Waypoint target

received”

will be displayed on the screen and you will be navigating to the same waypoint as other device. Please note that it is not necessary to have this waypoint in your databases as the complete waypoint information is transferred. If the Waypoint checkbox is not checked it is still possible to send a target to the other device using the SEND action in waypoint mode.

LX90xx/LX80xx Version 5.0 June 2015

Page 77 of 166

The same applies to the Airport checkbox. The message

“Airport target received”

is displayed. If the Task checkbox is checked the task will be synchronised with the other device.

When flying an assigned area task it is worth not having the task checkbox

checked. This will allow one pilot to play with “what if” scenarios. Once a proper

direction is found you can send the task to the other device using the SEND action in task mode.

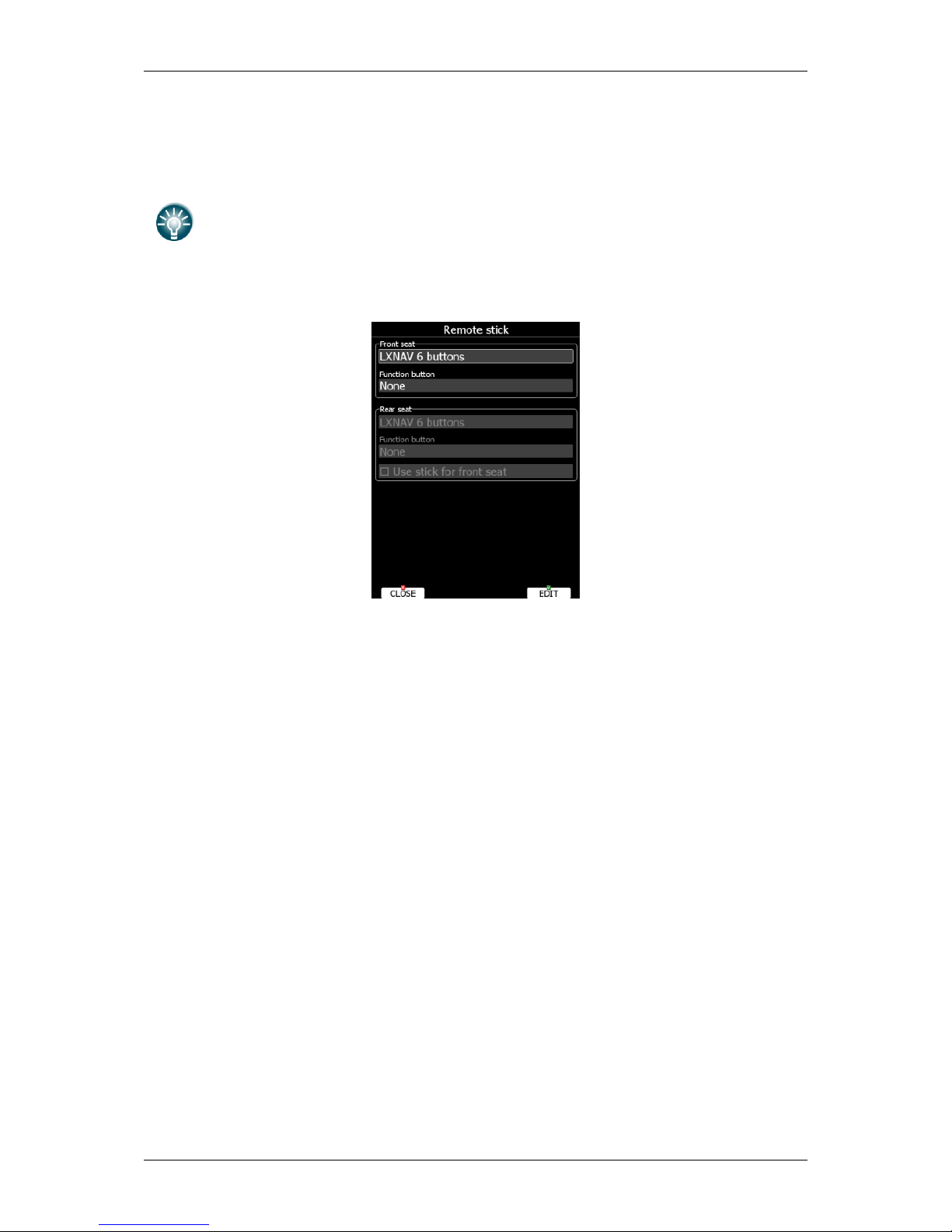

5.1.12.10 Remote stick*

When a remote stick is connected to the system, it is possible to define type of remote stick via this menu. In case LXNAV remote stick with six buttons is connected, user can specify functionality of function button. There are several options available for function button:

 Toggle vario range will toggle between vario range 2.5m/s, 5m/s or 10m/s.  Toggle map settings will toggle between two stored map settings.  SELECT will call airport select menu or waypoint select menu or task edit depending

on current navigational page.

 MC/BAL will open MacCready and ballast dialog.  MAP will open map properties dialog.  WIND will open wind selection dialog.  AIRSPACE will open airspace zones dialog.  MARK will create a waypoint or marker at current position.  FLARM will display a list with all Flarm objects in vicinity.  PAN will set navigational screen into pan mode.  EVENT will mark an event into recorded IGC file  ROT.FAI will rotate FAI triangle area, if shown on navigational screen.  TEAM opens dialog to enter team partner code.

Check Use stick for front seat if there are two remote sticks installed and system without rear seat device (e.g. Pipistrel Taurus)

LX90xx/LX80xx Version 5.0 June 2015

Page 78 of 166

5.1.12.11 AHRS*

When AHRS device is connected to the system or AHRS option on V9 is enabled, this menu is used to calibrate AHRS for installation error.

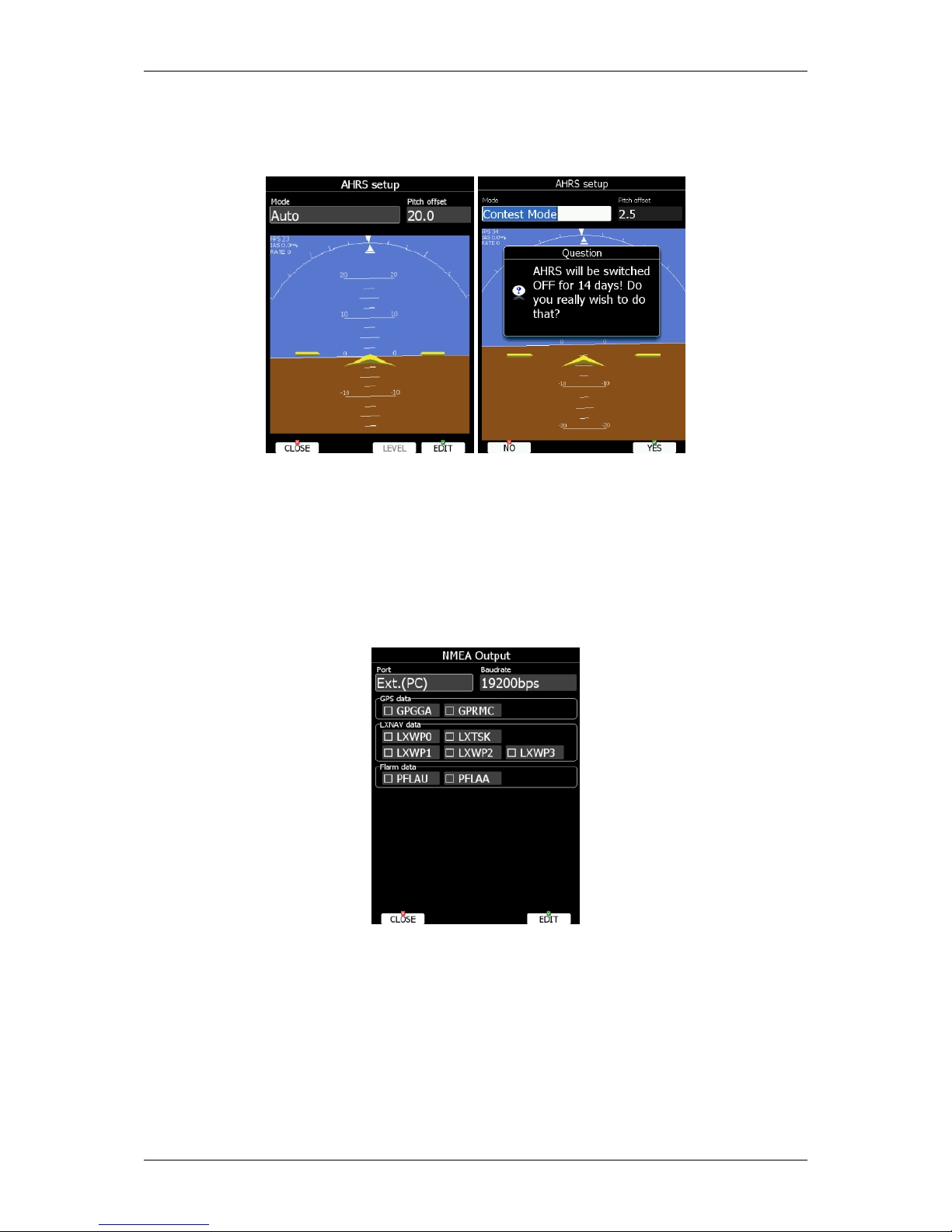

Place you glider in levelled position and press LEVEL button. You can also modify pitch offset, if you rotate PAGE selector knob. More detailed can be pitch set using pitch offset spin control. Mode defines modes of operation of AHRS. AHRS can be switched to Contest Mode, where AHRS will be disabled for period of competition.

5.1.12.12 NMEA Output

The main display unit is capable of transmitting position data sentences in NMEA format for use by other devices.

Port defines on which serial interface data will be transmitted. Baud rate defines transmission speed. Data is divided into three groups:

 GPS data will output all GPS-related data such as time, longitude and altitude.  LXNAV data will output all variometer-related data such as vario, MacCready and

ballast.

 Flarm data will output all Flarm-related data.

LX90xx/LX80xx Version 5.0 June 2015

Page 79 of 166

NMEA data is available also on Flarm display port on main display unit and rear display unit at 19200bps. However only Flarm data and GPS data.

5.1.12.13 Engine *

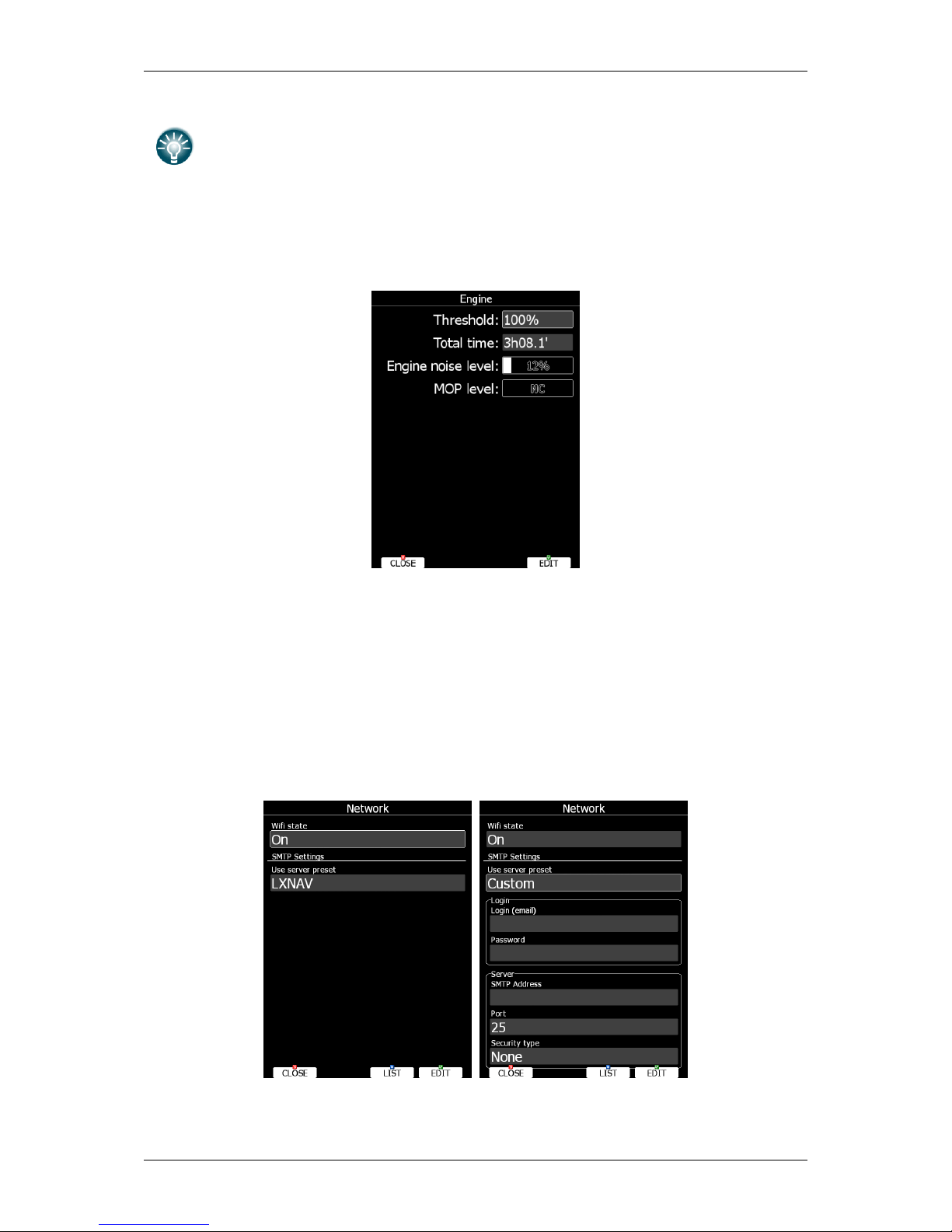

Use this menu, when the system is installed into glider with engine. The current engine noise level is shown as a progress bar. If external MOP sensor is installed also MOP level will be shown.

Set Threshold to define when engine is running. By default threshold is set to 100%, which means no engine run will be detected. Lower this value to approximately 80% to detect engine running. Engine total time will be accumulated and displayed in total time box. If necessary, total time can be adjusted, to match current engine total time.

5.1.12.14 Network*

When Wi-Fi option is available, this menu will setup all the parameters for network. Wi-Fi can be turned ON all the time, on ground only or off completely. Use Wi-Fi state to define state. SMTP Settings are used to configure server for sending email. It is recommend to leave it as LXNAV, however user server can be configured. More options will be displayed in case of other type of server

Press LIST button to view list of all available networks. Use VIEW button to view more details about selected network. When connected to a network, item will get blue color.

LX90xx/LX80xx Version 5.0 June 2015

Page 80 of 166

Press SCAN to scan for new networks. Use EDIT to enter password for selected network and to connect to it.

Use prefered Wi-Fi network option, if you would like to connect to this network only. Press CONNECT to connect to this network and press FORGET to forget this network.

LX90xx/LX80xx Version 5.0 June 2015

Page 81 of 166

5.1.12.15 Flaps*

When flap sensor is installed, use this menu to set flaps position. Use page selector to select desired flap position. Press SET button to set position. Continue with procedure for all flap positions.

When all flap positions are set, a green dot will be displayed with current flap position. If flap labels are not set yet, press EDIT button to name flap label. Flap labels must me entered with increasing speed range. It is recommended that flaps labels are set together with speed range in Polar and Glider setup. See Chapter 5.1.13 for more details. It is also possible to toggle between cruise and climb mode using flap sensor in this case there is no need to define digital input for SC.

5.1.12.16 Battery Types*

This menu defines type of battery being used. Selecting type of battery is important in order to correctly show low battery warnings.

Use Type combo to select appropriate type of battery. In case of voltage drop, because of cable lengths, you can set up voltage offset there.

LX90xx/LX80xx Version 5.0 June 2015

Page 82 of 166

5.1.13 Polar and Glider*

Use this dialogue to enter glider polar and other properties of glider. As default polar a standard class glider is selected.

Polars for most modern gliders are already prepared. Press the LIST button and a dialogue with a list of all available gliders will be shown.

Select the required glider using the PAGE selector knob and press the SELECT button. All glider data will be copied from the chosen polar. You may quickly check the best glider ratio and minimum sink rate to see if the polar data matches the glider performance. You can modify the polar by changing coefficients a, b and c. A polar is defined as a quadratic equation with the parameters a, b, and c. Use the LX-Polar program to calculate coefficients a, b and c for a given glider’s polar. The program requires at least three sink points entered at selected speeds (e.g.: 100 km/h, 130 km/h, and 150 km/h). The program will calculate the values of a, b and c, which should be noted and entered into the system. You can download program free of charge from www.lxnav.com Weights must be entered if user enters ballast in kilograms. There are three weights to enter. Ref.weight corresponds to the Ref.load value and represents the value at which the polar was measured or recalculated. Reference weight or reference wing load value will be automatically recalculated based on Wing area property. Max.weight is the maximum take-off weight allowed for a glider. It is not used in the calculation; it is just a reminder to the pilot of the maximum take-off weight. Empty weight is weight of the glider without pilot and ballast. The overload factor is calculated as:

LX90xx/LX80xx Version 5.0 June 2015

Page 83 of 166

weightgliderREFERENCE

ballastWaterweightPilotweightgliderEmpty

overload

.... 



Pilot weight is set in the Flight recorder menu (see Chapter 5.1.2).

Ballast dump rate is used for calculation of water dump rate. If dump rate is specified and

water dump input is installed, system can measure amount of dumped water and thus automatically adjust ballast. Use this table to specify dump rate for a selected amount of water. At least one point must be entered. If there is only one point, it means dump rate is constant all the time. Press SPEEDS button to enter speeds dialog. In this dialog all speed for glider and flap labels are set. Speeds should be given for a reference weight. Stall speed is used to generate stall warnings which are available only with the LX Voice module. For aircraft with flap, it is also recommended to enter flap position labels and speed range for corresponded flap position. Speed range shall be given for reference wing load or reference weight.

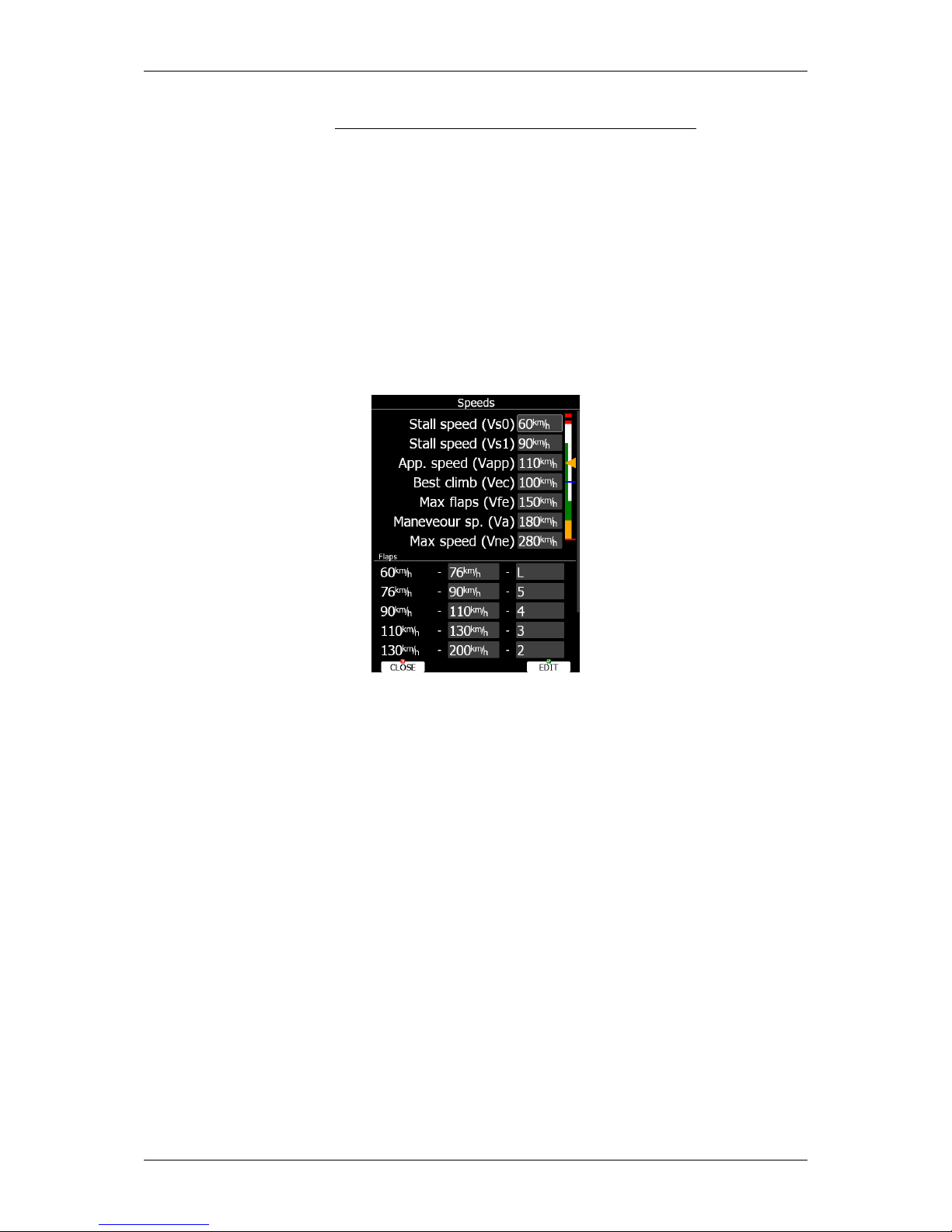

Once speed range is entered, the system will be able to display requested flap position based on current wing loading and g-factor.

5.1.14 Profiles and Pilots

All settings and navigational page layouts are stored in a profile. Profiles can be used in different ways:  For club operation or multiple pilots sharing the same glider. Each pilot can have his

personal profile.

 When the user is flying a glider which can have a different wing spans. In this situation

the pilot has two profiles, one for each configuration.

 When a pilot is flying in several different locations. A separate profile for each location

can be created (examples: France, Spain, Namibia, WGC2014).

Profile consists of two parts:

 Navigational page layout defines which navboxes and symbols are visible on

navigational page. It defines colour of navboxes, font sizes and colours, how many navigational pages are visible and which modes are enabled. Navigation page layout can be setup with LX Styler or on device itself (See chapter 6).

 Device settings includes glider polar, selected databases, selected airspace and

waypoints file, map colours, vario indicator settings and flight computer properties. Device settings can be modified on device itself through setup menu (See chapter 5.1) or with LX Styler.

An active profile is selected when the system is powered on (see Chapter 8.1.2).

LX90xx/LX80xx Version 5.0 June 2015

Page 84 of 166

Use this dialogue to add a new profile, delete a profile, load/save a profile, copy device settings, change name for an existing profile and to activate a profile. The active profile is the profile which is currently being used. Select a profile using PAGE selector knob. Press TO USB or TO SD for the profile will be stored to a USB stick or SD card. A profile is stored to a file with the .lxprofile extension. Press the LOAD button to load a profile from a SD card or USB stick. A profile will be copied to the main display internal storage. Press the EDIT button to edit the profile name.

A profile can also be locked. This option is very useful for club operation where one does not want a global club profile to be changed. When a profile is locked all settings will be read-only. Press LOCK button to lock/unlock profile. When a profile is locked am message (locked) will be written below the profile name. Press ACTIVE to make selected profile as active one.

When a profile file from USB or SD card is selected, it will be available only, if SD card or USB stick is inserted in main display unit.

Selecting profiles on SD card or USB allows you to create portable profiles, which can be transferred from one device to another device.

A profile file can be opened and manipulated with the LXStyler program. LXStyler is a special program designed to customise layout navigational pages. It can be downloaded

LX90xx/LX80xx Version 5.0 June 2015

Page 85 of 166

free of charge from our web pages www.lxnav.com. For more information about LXStyler please refer to the LXStyler manual.

If new profile is created with LX Styler, it will have default device settings. However, it is possible to copy device settings from profile to another profile. Select newly created profile as active profile. Select profile from which you would like to copy settings to active profile. Press COPY button. A confirmation dialog will open.

It is also possible to export profile including all the airspace files and waypoint files. Use EXPORT and IMPORT button to export/import profile with airspace and waypoint data.

LX90xx/LX80xx Version 5.0 June 2015

Page 86 of 166

5.1.15 Language

The system can run in different languages.

Select the desired language. The main display unit will reload and restart in the new language. If your language is not listed and you feel able to become a translator for the system please do not hesitate to contact us.

5.1.16 Passwords

There are several passwords which run specific procedures as listed below:

 00111 displays information about the system and its sensors.  01043 will perform “Auto zero” and set indicated speed to zero.  30000 browse through installed files (use with caution).  41000 first or forced update of Flarm.  42000 update of Flarm through PC port (default).  44441 shows debug information.  55556 will enable Condor simulator input via the PC port.  89891 is used to initiate the firmware update procedure.  99999 will erase all flights stored on the main display unit.

LX90xx/LX80xx Version 5.0 June 2015

Page 87 of 166

5.1.17 Admin mode

Admin mode is very powerful tool to disable particular functionality of the system for normal users. It is designed for club usage, where one person is taking care of all instruments. To enable Administration mode, check Enable admin mode check box. Next step is to enter and re-enter administration password. Once password is entered it si possible to define, which actions normal user can do.

There are several actions, which can be disabled for normal user:

 Change Safety Altitude, user will not be able to set saftey altitude.  Change Report Point, user will not be able to set report point, if is is already set.  Change Wind Methods, user will not be able to change methods for wind

calculation.

 Change Page Style, it is not possible to change page layout  Change Flarm Target, user can not change flarm targets names and other data for

it.

 Use Flight Recorder menu, user can not modify flight recorder properties.  Use Display menu, user can not modify display properties.  Use Files and Transfer menu, it is not possbile to use files and transfer menu

completely.

 Select Airspace file, user can not select and modify airspaces at all.  Modify Airspace, user can select different airspace file, but he can not edit or

delete it.

 Select Airport file, user can not select and modify airports.  Select Waypoints file, user can not select and modify waypoints files.  Modify Waypoints, user can select, but can not delete waypoints file.  Select Raster maps, user can not select and modify scanned maps.  Modify Raster maps, user can select, but not modify scanned maps.  Format SD Card, user can not format SD card.  Update Databases, user can not update databses.  Modify PDFs, user can not delete stored PDF documents.  Delete Flight, user can not delete stored flight.  Use Graphics menu, can not use this menu.  Use Sounds menu, can not use this menu.  Use Observation Zones menu, can not use this menu.  Use Optimization menu, can not use this menu.  Use Warnings menu, can not use this menu.  Use Units menu, can not use this menu.  Use Hardware menu, can not use this menu completely.

LX90xx/LX80xx Version 5.0 June 2015

Page 88 of 166

 Use rear/front seat menu, user can not use this menu.  Use NMEA output menu, user can not use this menu.  Use Polar menu, user can not modify any glider parameters  Use Profiles menu, user can not modify Profiles at all. He can change profile only

by restarting the device.

 Modify Profiles, user can not delete, edit or lock profile.  Use Language menu, user can not use this menu.  Use Passwords menu, user can not use this menu.

Once actions are selected and admin mode is closed, user will un-selected items grayout.

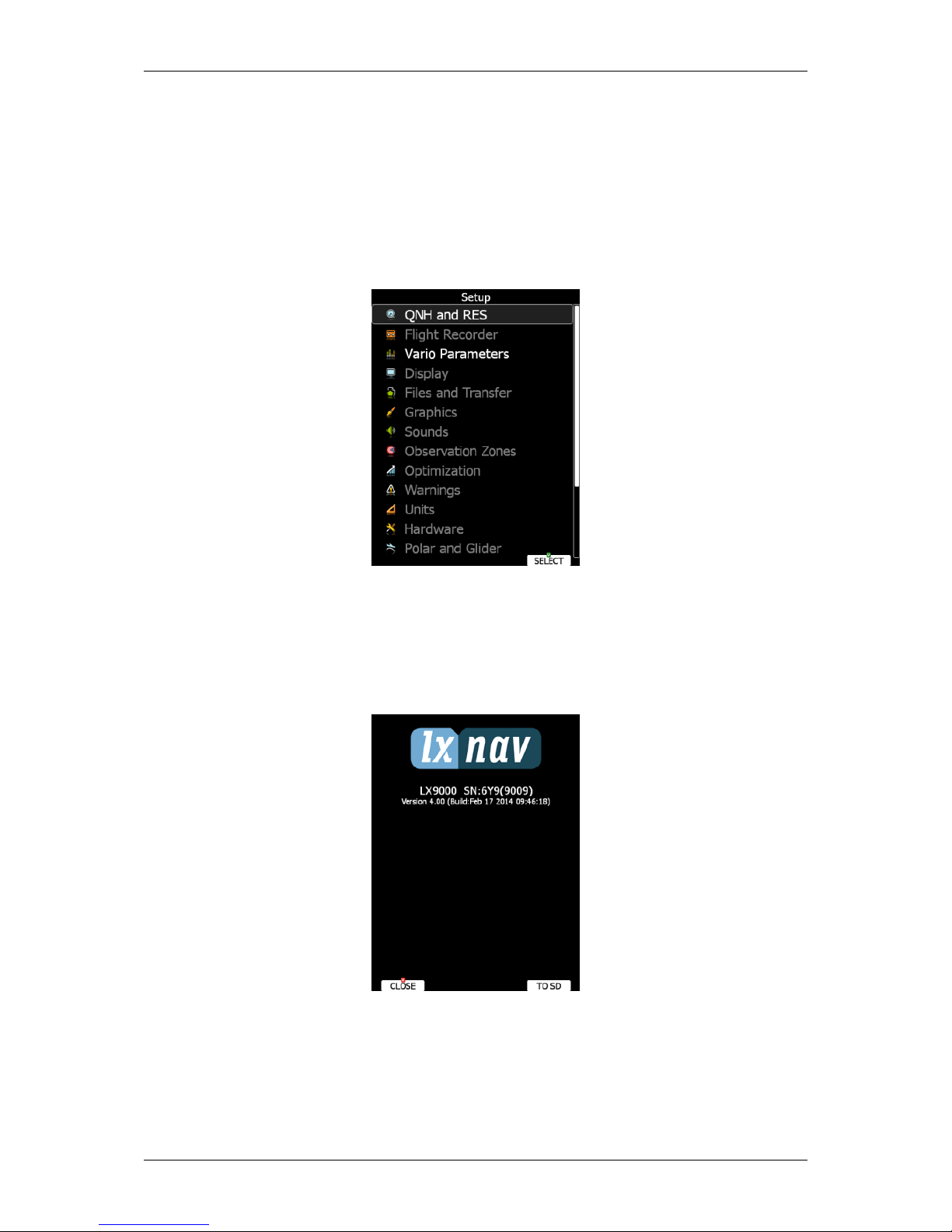

5.1.18 About

About dialogs shown current serial number end version info od the main display unit. Use this menu, whenever you are experienced a problem with the system. If SD card is inserted into the main display unit, button TO SD will be shown. Press TO SD and a report will be

saved to SD card. A report will have a name »debug_20140216_14_21_28.reprot«. Please

email this report to us for further help. In case of network connection,

LX90xx/LX80xx Version 5.0 June 2015

Page 89 of 166

5.2 Information Mode

Information mode consists of four pages; GPS status page, position report page, satellite sky view page and network status page. Use the PAGE selector knob or the up/down arrow to toggle pages.

5.2.1 GPS Status Page

GPS status, altitude, flight level and height are shown on this page. Sunrise and sunset are calculated for the current position. In the upper-right corner the current FLARM status is shown. TX means FLARM is transmitting data to others and the number indicates how many other FLARM devices are within range.

Press START button to start running stopwatch. Press STOP button to stop running stopwatch. If you press the MARK button a new waypoint will be created with the current latitude, longitude and elevation based on the terrain database. The waypoint name is generated from the current date and time separated by the minus character and preceded by an underscore.

Waypoint data can be modified. Refer to Chapter 5.6.1 for more details. Press the OK button to save a marked waypoint or press CANCEL to exit without saving. Press GOTO button to navigate immediately to selected point.

LX90xx/LX80xx Version 5.0 June 2015

Page 90 of 166

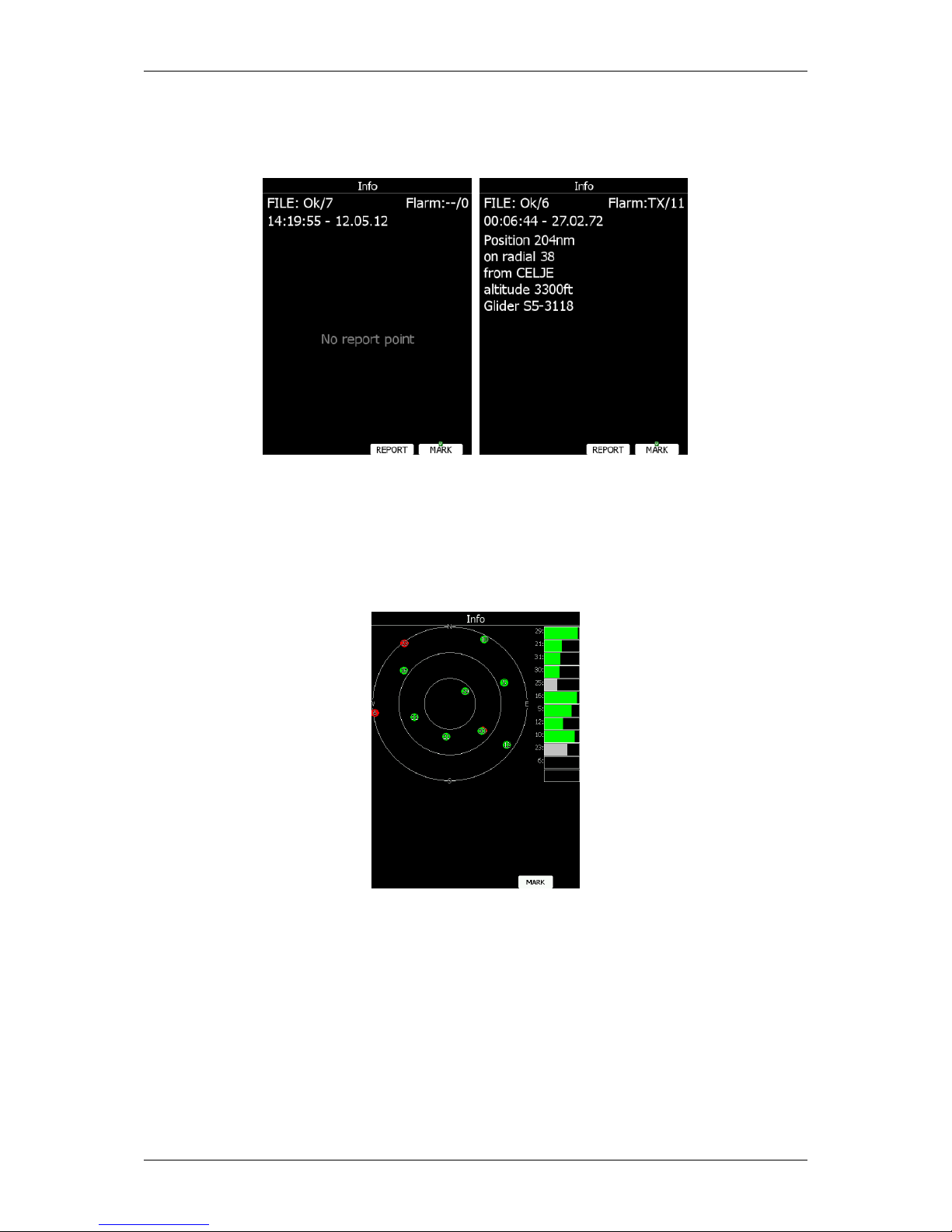

5.2.2 Position Report

This page shows your position report relative to an arbitrary selectable point. Use this page when you are talking to ATC.

Press the REPORT button to select a report point. Radials will always be magnetic and distance will always be in nautical miles. If you press the MARK button a new waypoint will be created.

5.2.3 Satellite Sky View

Information about tracked satellites is given on this page. If no satellite information is available a message

“No satellite info”

is displayed.

Green satellites are satellites currently being used for position determination. Three concentric circles represent satellite elevation (0, 30, 60 degrees above horizon). If a satellite is in the centre of the circles it is directly overhead. When you are experiencing bad satellite reception, check this page. If the satellites are always red in a particular place, you should consider moving the GPS antenna to another position. If you press the MARK button a new waypoint will be created.

LX90xx/LX80xx Version 5.0 June 2015

Page 91 of 166

5.2.4 Network status

Network status information is given on this page. Press LIST button to list available networks. Press SETTINGS button to set up network properties. See also chapter

5.1.12.14.

5.3 Near Mode

A list of all landable waypoints and airports is shown in this mode. The default sorting order of the items is by arrival altitude. Press the SORT button to toggle the sort method. The selected sort method is indicated by the grey background in the header.

Press VIEW button to change how much details are visible for selected item. Select the preferred landable place via the PAGE selector knob and press the GOTO button. It will automatically change to airport mode and navigation will commence to selected point. Duplicates are automatically removed. If a target with nearly the same latitude and longitude is found within both the distributed airports database and user waypoint file then only the target from the user waypoint file will be displayed. Press FREQ button to set standby frequency, if this option is available.

LX90xx/LX80xx Version 5.0 June 2015

Page 92 of 166

Small rectangle in bottom right corner of point icons indicates that selected point is having images. Red cross is drawn over icon, when length or width of the landing point is small than one defined in Setup. See also chapter 5.1.6.3

5.4 Statistics Mode

The Statistics mode operates in two different ways. During flight statistical data for the current flight is shown whilst on the ground the logbook for all stored flights is displayed.

LX90xx/LX80xx Version 5.0 June 2015

Page 93 of 166

5.4.1 Logbook

If a SD card or USB stick is inserted into the main display unit the user can copy a selected flight to it. Select the desired flight using the PAGE selector knob and then press the appropriate button. Press TO MAIL button to send flight via email. New dialogs will pop-up. Press SEND button to send email immediately. Press HISTORY to select different email address, which has been used before.

A flight is automatically copied to the SD card and/or USB stick if it has been inserted into the main display unit when the message

“Calculating security”

displayed. This message appears when landing conditions are met.

You can also delete a flight using the Files and Transfer menu (see Chapter 5.1.5.7).

Press VIEW button to reply the flight. When VIEW button is pressed flight viewer will open.

A map with flown path is shown and barogram. Use ZOOM selector knob to zoom in or zoom out flight. Use PAGE selector knob to move through flight. Press VIEW button again to toggle between map view and different statistical pages.

LX90xx/LX80xx Version 5.0 June 2015

Page 94 of 166

5.4.2 Statistics during flight

Main statistics page is split into two parts. In top part, last four thermals are shown. Thermal average is shown below each thermal column. Thermals are coloured based on MacCready value. Red colour means that thermal average was 0.5 m/s or more above current MacCready setting. Blue colour means that thermal average was 0.5 m/s or less below current MacCready setting. Orange colour is for matching thermal average. On the left side altitude scale is drawn. On right side average of last four thermals is printed. Shape of thermal column corresponds to strength of thermal at particular altitude. Press THERMALS button to disable or enable thermals view.

In bottom part selected statistics is shown. There are three different pages of statistics available:

 General statistics, which is divided further into flight statistics, task statistics and

last 60 minutes statistics.

 Detailed task statistics displays detailed statistics for each task let.  OLC statistic shows statistics for optimized part of the flight according to the rules

defined in Optimization menu.

Use PAGE>> button to toggle between different pages.

5.4.2.1 General statistics

Using the PAGE selector knob the user can change the statistics subpage.

There are three subpages available:

LX90xx/LX80xx Version 5.0 June 2015

Page 95 of 166

 Flight statistics displays data for whole flight. Dis.flown is the optimised distance.

XC speed is average speed corrected for altitude difference. Average vario is used in this calculation.

 Task statistics displays data for the started task. Distance flown is the distance that

has already been flown on the task.

 The last 60 minutes statistics displays data for the last 60 minutes of flight. If the

task was started then Dis.flown is the distance flown on the task for the last hour otherwise it is the optimised distance. If the task distance is used a remark (On Task) is displayed in the header.

5.4.2.2 Detailed task statistics

Using the PAGE selector knob the user can select different task points. Press VIEW button to show more details for selected leg.

5.4.2.3 OLC statistics

Using the PAGE selector knob the user can select different optimized points. Press VIEW button to show more details for selected optimized leg.

LX90xx/LX80xx Version 5.0 June 2015

Page 96 of 166

5.5 Airport Mode

Using the PAGE selector knob you can scroll through the pages. There are several navigational pages available.

Navigational pages can be customised using LXStyler. The description below applies to the default navigational pages.

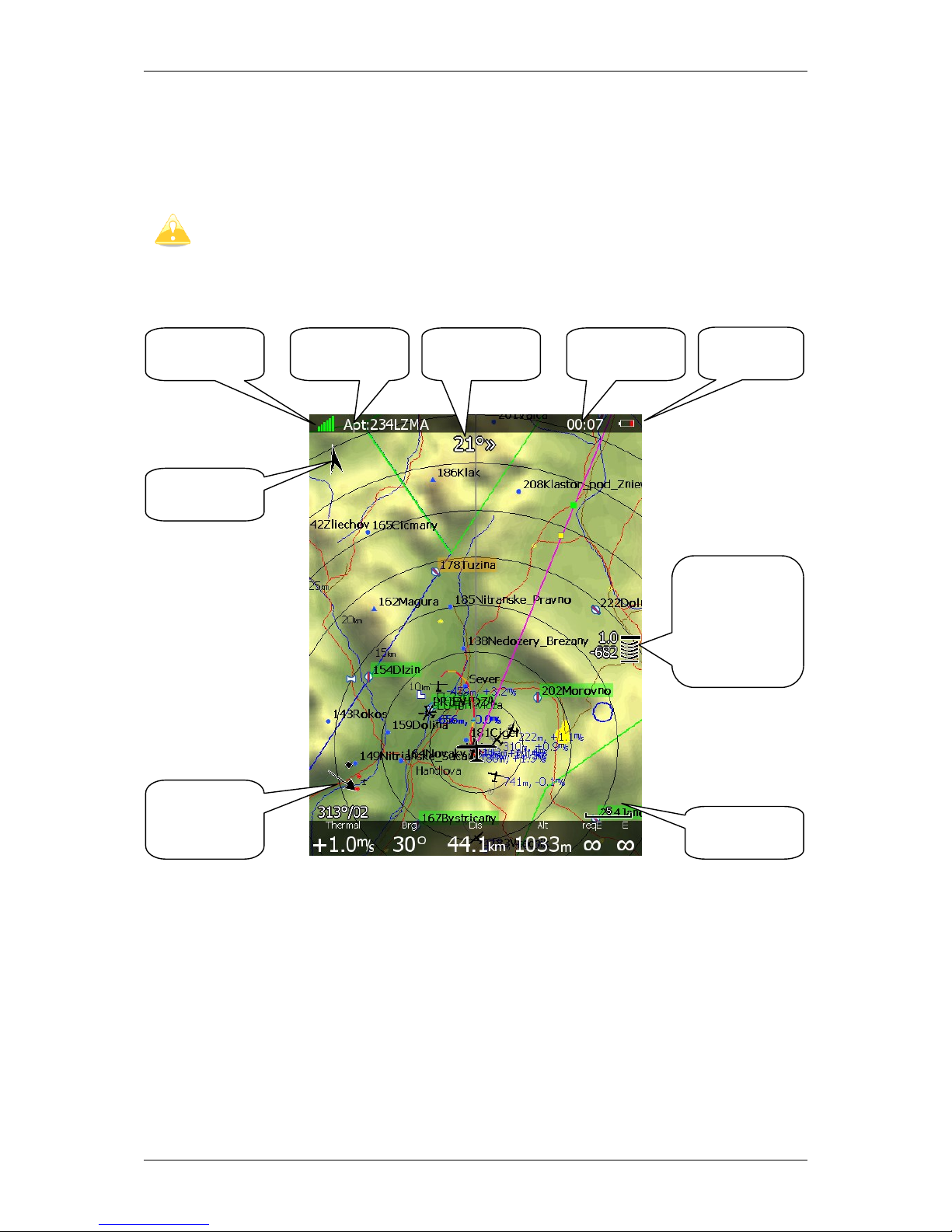

5.5.1 Initial Navigation Page

In the top row the GPS status is shown. Green colour represents GPS 3D, yellow colour means GPS 2D and red colour is GPS bad. The number of coloured bars indicates the number of visible satellites. Each bar represents two satellites. Local time shows the local time. You can set a different time zone in the Units dialogue (see Chapter 5.1.11). The battery symbol indicates status of the battery. When the battery is very low the symbol will turn red and also the Low battery warning will be displayed. North direction is pointing to true north. This is important if map orientation is not north up at the top. The airplane symbol in the middle of the screen is showing current position. The grey line indicates our current ground track and the magenta line is connecting the airplane position with selected goal. When we are below the glide-path to current goal a green and a yellow

GPS status

Mode and target name

Local time

Battery status

Relative bearing

Final glide symbol with arrival altitude and MacCready

North direction

Wind and Thermal assistant

Zoom scale

LX90xx/LX80xx Version 5.0 June 2015

Page 97 of 166

rectangle will be displayed on the magenta line. The green rectangle represents the position from where you will achieve the final glide with current altitude and current MacCready setting. The yellow rectangle represents the position from where you will achieve the final glide with current altitude and MacCready zero. The relative bearing (near the top) gives advice on which direction and how much to turn in order to fly towards the selected target. In the above example we should turn right 21°. In the lower left corner of screen a wind symbol is displayed. The arrow indicates the wind direction relative to the map orientation. Wind direction and wind speed are numerically presented below the arrow. Zoom scale is displayed in bottom right corner of screen. A distance of drawn zoom symbol

is plotted above the scale. If there is a letter “a” written next to distance scale, it means,

scale of map will automatically adapt to goal. In the bottom row several items are displayed. Thermal shows the last thermal average, Brg is the bearing to the selected target, Dis is the distance to the target and Alt is the current MSL altitude. The last two numbers (reqE and E) show the required glide ratio to the target. In the above example the required glide ratio is infinitive and current glide ratio is also infinitive. The current glide ratio is calculated over the last two minutes of flight.

5.5.1.1 Final Glide Symbol

The final glide symbol is a complex symbol. The bottom number (-682 in the above example) shows your predicted arrival altitude. Negative numbers indicate that you are below the glide path and positive numbers indicates you are above the glide path. In the above example the glider is below the glide path. Chevrons show the position relative to the required glide path in percent. One arrow means 5% above or below final glide. In the example more than 25% below glide path is shown. The middle number is the current MacCready setting. In task mode it is prefixed with the letter T, A, B, G, S or AG. See chapter 8.2.1 for detailed explanation of this mode. Sometimes there will be another number above MacCready which is used for arrival over terrain. If we are on final glide to a selected target but between it and the current position there is a terrain, which cannot be crossed without more height, then this number will give you an estimate, how much you have to climb, to pass over the terrain. A red rectangle will also be shown on the magenta line indicating the point of potential collision.

5.5.1.2 Thermal Assistant

During thermaling the wind symbol will also shows the thermal assistant. The thermal assistant continuously analyses the thermal whilst circling. The sizes of the dots indicate the strength of the thermal. Big dots mean stronger lift at that point. On the left or right side of the circle a small airplane symbol is shown. This airplane indicates your position. A black dot indicates the thermal maximum. The pilot should extend the circle when the black dot is

about 60° away from glider. This value varies and depends on turn rate of the glider and

type of thermal. All other dots are coloured based on the MacCready setting. Red colour means values above MacCready, blue values below MacCready and yellow dots represents lift about the same strength as the MacCready setting. This colour scheme gives us hints about a thermal at glance. If most of dots are red we should consider increasing the MacCready value; if most of dots are blue we should consider decreasing the MacCready setting.

LX90xx/LX80xx Version 5.0 June 2015

Page 98 of 166

5.5.2 Second Navigation Page

The second page is similar to the first page with additional data shown in the bottom line.

The additional items are the current net vertical speed, current track, ground speed, height above ground and optimised distance.

5.5.3 Third Navigation Page

The third page is a combination of first navigational page and side view.

Side view is showing lateral view from glider towards selected goal. Terrain below glider is displayed including glider projected track based on glide ratio in grey colour. Yellow and magenta lines are showing requested glide ratio to goal based on zero MacCready setting and current MacCready setting.

LX90xx/LX80xx Version 5.0 June 2015

Page 99 of 166

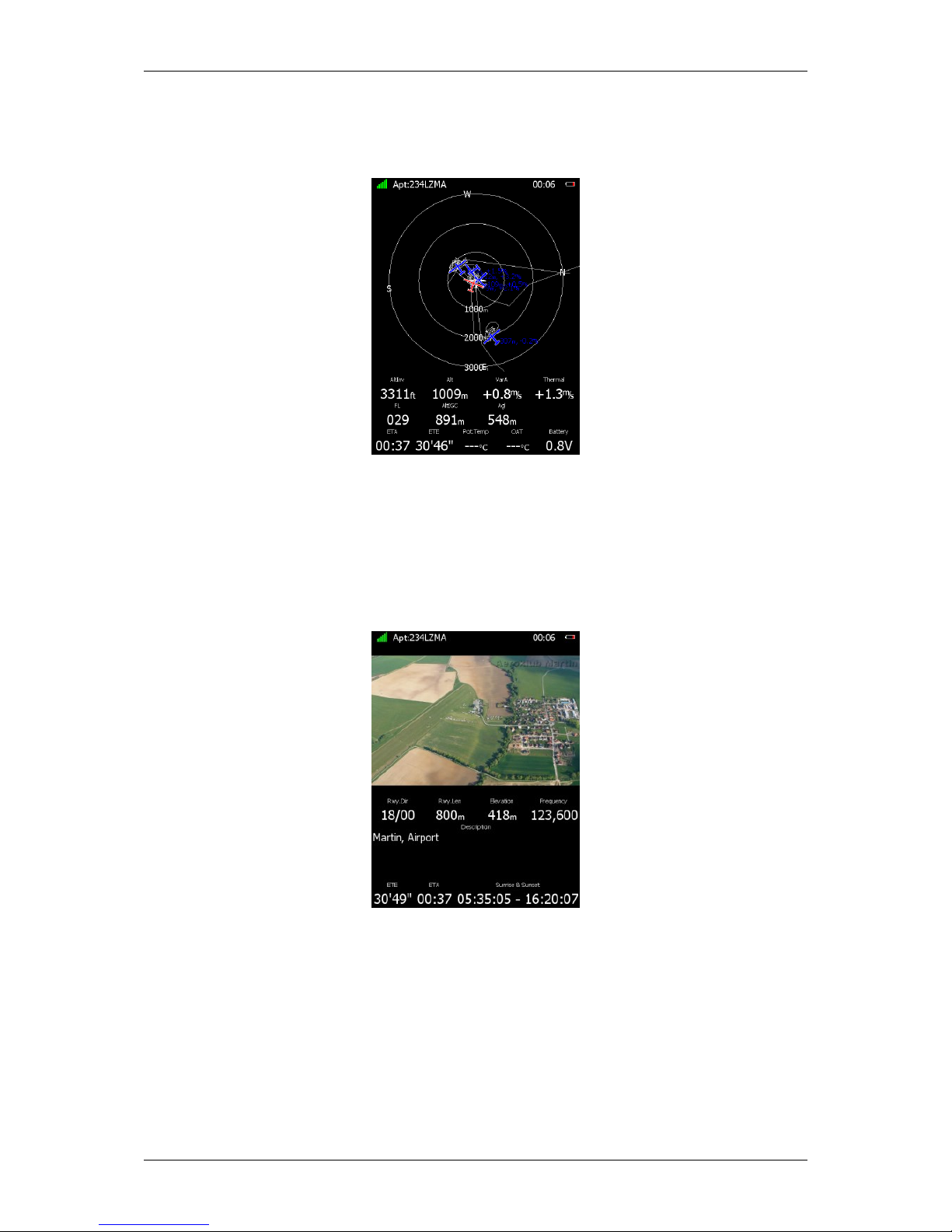

5.5.4 Fourth Navigation Page

The fourth navigational page is combination of FLARM radar screen and some additional altitude data.

The internal pressure sensor altitude is shown as AltIGC. AltInv shows the altitude in opposite units to those defined in the Units setup. OAT is the outside temperature, Pot.Temp is the potential temperature and Battery displays the current voltage The estimated time of arrival and estimated time established are displayed at the bottom part of page.

5.5.5 Fifth Navigation Page

On this page images of seleced airport are shown, if available.

Also information for the selected airport is shown at the bottom part. This information includes airport frequency, runway info and description. The estimated time of arrival, estimated time established and sunrise/sunset times for the selected target are displayed in last row.

LX90xx/LX80xx Version 5.0 June 2015

Page 100 of 166

5.5.6 Button Actions

When any of the eight buttons are pressed, the functions for the buttons are shown. If a selected button is pressed once more the selected action will take place.

Press the MORE>> button to see more options. If the remote stick is available the behaviour is slightly different. When the check button is pressed on the remote stick a menu will appear instead of the button functions.

By using the UP/DOWN key the pilot may select between options.

Button functions or the remote menu will disappear automatically after 10 seconds if no further action is taken.

In airport mode the following selections are available:

 Select option is used to select an airport as the new navigational target.  Mc/Bal will set MacCready, ballast and bugs (see Chapter 5.5.6.2 for more details).  Map item is used to quickly modify map parameters.  Wind will open a dialogue where wind changes with altitude are shown, wind can be

set and methods for wind calculation are shown.

 Airspace shows a list of airspace zones in the vicinity of the current position.  Mark is used to mark the current position and create a waypoint.  Xpdr opens panel to setup transponder, when this 232 Bridge is installed.  Radio opens dialog to setup radio, when this 232 Bridge option is installed.

LXNAV LX90, LX80 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
