Flarm Speaker
Installation Manual
Version 1.00
LXNAV d.o.o. • Kidričeva 24a, 3000 Celje, Slovenia • tel +386 592 33 400 fax +386 599 33 522
info@lxnav.com • www.lxnav.com
Flarm Speaker Version 1.00 November 2017
Page 2 of 9
1. Important Notices ................................................................................... 3
1.1. Limited Warranty ....................................................................................... 4
2. Basic ........................................................................................................ 5
2.1. Packing Lists .............................................................................................. 5
2.2. Electrical characteristics ............................................................................ 5
2.3. Description ................................................................................................ 5
2.4. Device overview ........................................................................................ 6
3. Wiring ...................................................................................................... 7
3.1. 12V Power Supply ...................................................................................... 7
3.2. Connection diagram................................................................................... 7
4. Installation .............................................................................................. 8
4.1. Dimensions ................................................................................................ 8
5. Revision History ...................................................................................... 9
Flarm Speaker Version 1.00 November 2017
Page 3 of 9
1. Important Notices
Information in this document is subject to change without notice. LXNAV reserves the right
to change or improve their products and to make changes in the content of this material
without obligation to notify any person or organisation of such changes or improvements.
A Yellow triangle is shown for parts of the manual which should be read very
carefully and are important for operating the system.
Notes with a red triangle describe procedures which are critical and may result in
loss of data or any other critical situation.
A bulb icon is shown when a useful hint is provided to the reader.
Flarm Speaker Version 1.00 November 2017
Page 4 of 9
1.1. Limited Warranty
This LXNAV product is warranted to be free from defects in materials or workmanship for two
years from the date of purchase. Within this period, LXNAV will, at its sole discretion, repair
or replace any components that fail in normal use. Such repairs or replacement will be made
at no charge to the customer for parts and labour, provided that the customer shall be
responsible for any transportation cost. This warranty does not cover failures due to abuse,
misuse, accident, or unauthorised alterations or repairs.
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES EXPRESSED OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY
ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, WHICH MAY VARY FROM STATE TO STATE.
IN NO EVENT SHALL LXNAV BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY
TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Some states do not allow the
exclusion of incidental or consequential damages, so the above limitations may not apply to
you. LXNAV retains the exclusive right to repair or replace the unit or software, or to offer a
full refund of the purchase price, at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE
AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
To obtain warranty service, contact your local LXNAV dealer or contact LXNAV directly.
November 2017 © 2017 LXNAV. All rights reserved.
Flarm Speaker Version 1.00 November 2017
Page 5 of 9
2. Basic
2.1. Packing Lists
1x Flarm Speaker
1x FV12_PWR cable
1x FlarmView cable
2.2. Electrical characteristics
Power supply: 9-36V DC
Communication: RS232
Baudrate: 19200 (fixed)
2.3. Description
Flarm Speaker is an audio warning device for Flarm traffic messages. This device is designed
to be used with Flarm device connected with RJ12 cable. Flarm Speaker needs external power
supply (9-36V) and communication connection with Flarm device. When alert message from
Flarm is decoded, device will make audible sound. Generated sound depends on message
severity (Alarm type).
Flarm Speaker also features phono output with 3.5mm mono jack located in the top center at
the back. Phono output is always enabled.
Speaker can be turned off only when phono jack is plugged in and slide switch is at AUTO
position. User can also choose to override phono jack detection with slide switch at SPK.ON
position thus force speaker to be permanently enabled.
There are three volume adjustments available with push button on the back of the device.
Communication statuses are also visible with three LEDs on the back.
Flarm Speaker Version 1.00 November 2017
Page 6 of 9
2.4. Device overview
GPS LED - BLUE
VOLUME BUTTON
RX LED - YELLOW
TX LED - GREEN
PHONO JACK(mono)
RJ12 PLUG
SWITCH (SPK.ON)
SWITCH (AUTO)
Flarm Speaker Version 1.00 November 2017
Page 7 of 9
3. Wiring
3.1. 12V Power Supply
As Flarm Speaker consumes around 3W at 12V (when speaker active), there might be
difficulties with power supply especially when using 3.3V power supply.
For that purpose LXNAV has developed an adapter cable (FV12_PWR) which takes external
12V and enables it when there is 3.3V power from source device.

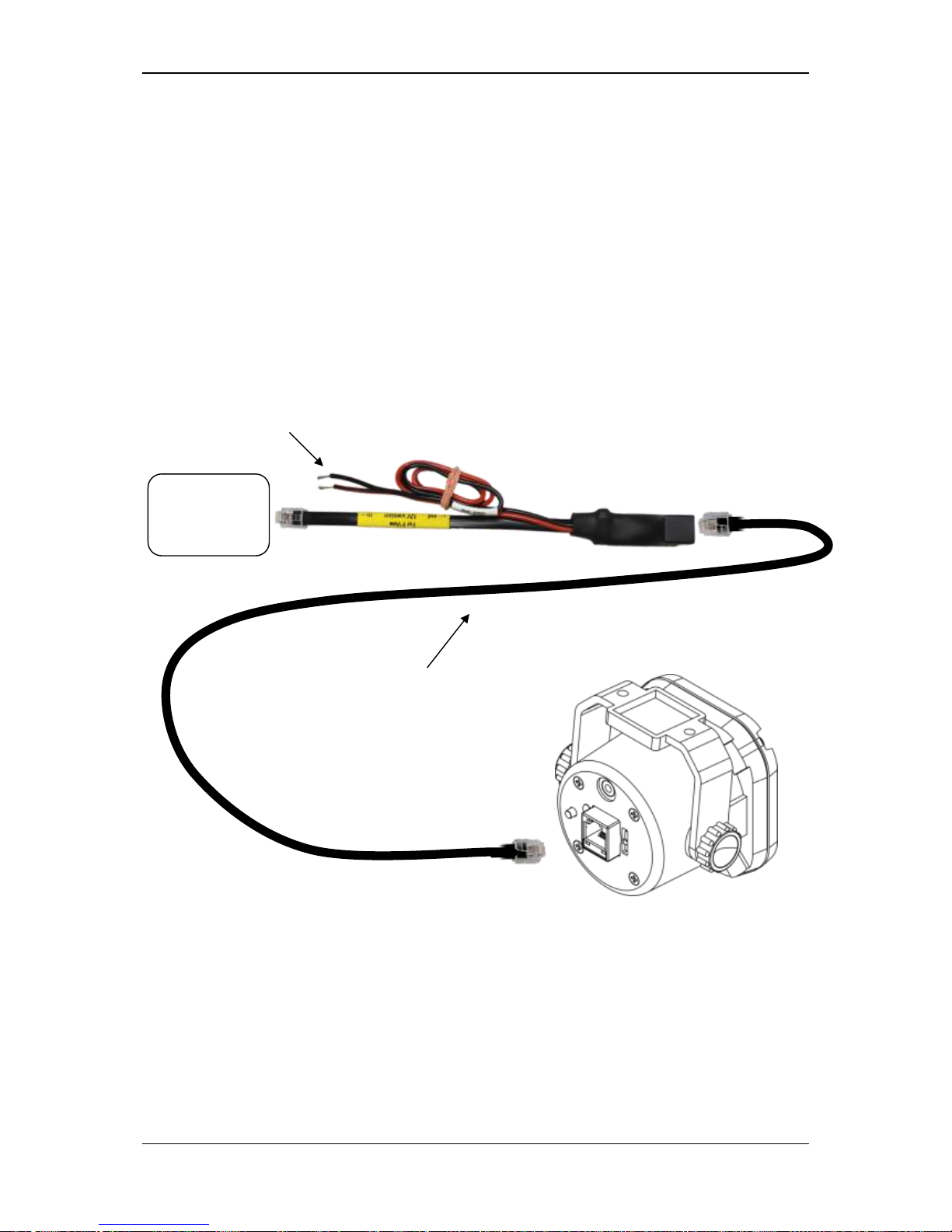

3.2. Connection diagram
The following diagram represents how Flarm Speaker should be connected.
FLARM
DEVICE
12V Power Supply
FlarmView cable
Flarm Speaker
Flarm Speaker Version 1.00 November 2017
Page 8 of 9
4. Installation
Flarm speaker can be mounted as standard communications speaker utilizing its mounting
bracket. Bracket should be fixed either with screw or with self adhesive pad (both enclosed in
the box with speaker).
4.1. Dimensions
Flarm Speaker Version 1.00 November 2017
Page 9 of 9
5. Revision History
Date
Revision
Description
November 2017
#1
Initial release of installation manual
