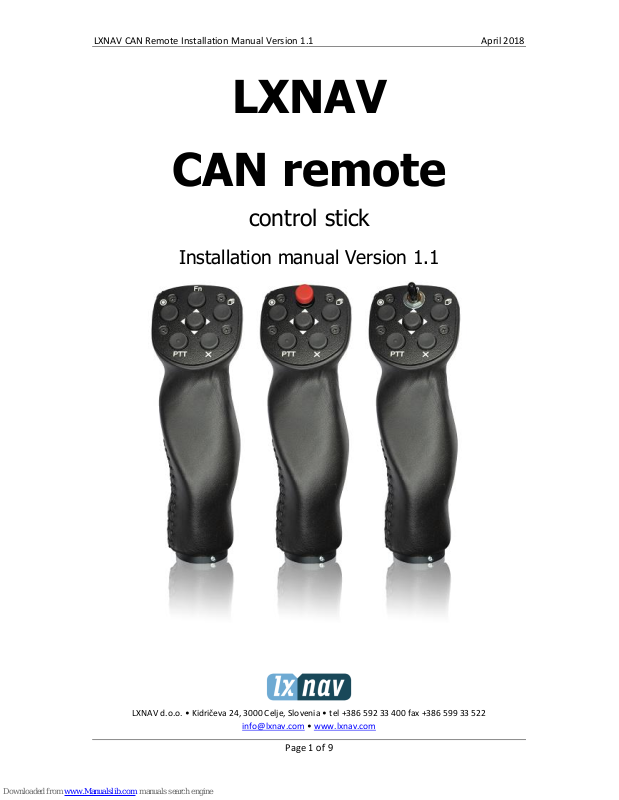

LXNAV CAN Remote Installation Manual Version 1.1 April 2018
Page 1 of 9
LXNAV
CAN remote
control stick
Installation manual Version 1.1
LXNAV d.o.o. • Kidričeva 24, 3000 Celje, Slovenia • tel +386 592 33 400 fax +386 599 33 522
info@lxnav.com • www.lxnav.com
LXNAV CAN Remote Installation Manual Version 1.1 April 2018
Page 2 of 9
1 Important Notices 3
1.1 Limited Warranty 3
2 Technical Data 4
3 Versions 5
3.1 Functionality 5
3.2 Diameter of command handles 5
3.3 Shapes 5
4 Installation 6
5 Functions 7
6 Remote without SC cable 8
7 Revision history 9
LXNAV CAN Remote Installation Manual Version 1.1 April 2018
Page 3 of 9
1 Important Notices
The LXNAV CAN Remote is designed for VFR use only. All information is presented for reference
only. It is ultimately the pilot's responsibility to ensure the aircraft is being flown in accordance
with the manufacturer's aircraft flight manual. The LXNAV CAN Remote must be installed in
accordance with applicable airworthiness standards according to the country of registration of
the aircraft.
Information in this document is subject to change without notice. LXNAV reserves the right
to change or improve their products and to make changes in the content of this material
without obligation to notify any person or organisation of such changes or improvements.
A Yellow triangle is shown for parts of the manual which should be read carefully
and are important for operating the system.
Notes with a red triangle describe procedures that are critical and may result in loss
of data or any other critical situation.
A bulb icon is shown when a useful hint is provided to the reader.
1.1 Limited Warranty
This LXNAV CAN Remote product is warranted to be free from defects in materials or
workmanship for two years from the date of purchase. Within this period, LXNAV will, at its
sole option, repair or replace any components that fail in normal use. Such repairs or
replacement will be made at no charge to the customer for parts and labour, the customer
shall be responsible for any transportation cost. This warranty does not cover failures due to
abuse, misuse, accident, or unauthorised alterations or repairs.
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES EXPRESSED OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY
ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, WHICH MAY VARY FROM STATE TO STATE.
IN NO EVENT SHALL LXNAV BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY
TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Some states do not allow the
exclusion of incidental or consequential damages, so the above limitations may not apply to
you. LXNAV retains the exclusive right to repair or replace the unit or software, or to offer a
full refund of the purchase price, at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE
AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
To obtain warranty service, contact your local LXNAV dealer or contact LXNAV directly.
April 2018 © 2018 LXNAV. All rights reserved.
LXNAV CAN Remote Installation Manual Version 1.1 April 2018
Page 4 of 9
2 Technical Data
• Power input 8-18V DC
• Consumption at 12 V: 60mA
• Weight 300g
LXNAV CAN Remote Installation Manual Version 1.1 April 2018
Page 5 of 9

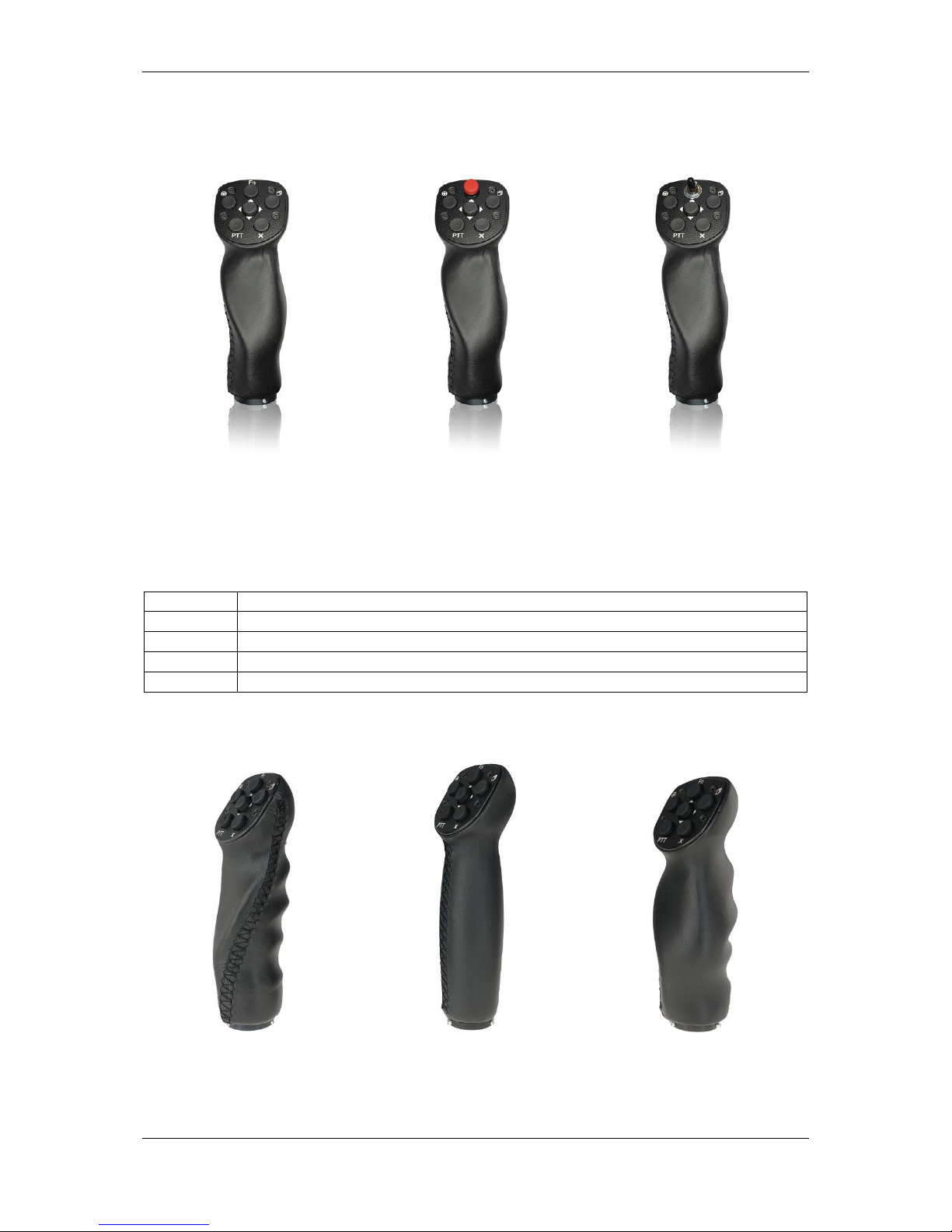

3 Versions
3.1 Functionality
Standard version
Shempp-Hirth version with
red starter button for M
gliders
EB28 version with trim
switch
3.2 Diameter of command handles
Diameter
Gliders
19,3mm
DG, LAK, Shempp-Hirth
20,3mm
LS, Stemme, Apis, EB29
24,0mm
Schleicher, Pipistrel Taurus, Alisport Silent, EB28
25,4mm
JS
3.3 Shapes
Left handed (optionally)
Symmetrical (optionally)
Right handed (standard
order)
LXNAV CAN Remote Installation Manual Version 1.1 April 2018
Page 6 of 9
4 Installation
LXNAV remote stick is connected to CAN bus through Remote-Can adapter.
Be careful, that connect correct colour wire to pin, which is marked with same
colour.
PTT wires are connected to radio, SC is connected to Speed to fly input of vario unit.
Remote stick will not operate, until is registered on device. Remote stick can be
registered under setup-hardware-Remote stick. Registration must be done on each
unit (S80 and S80D)
Can bus is under power supply at all times, consequently remote stick is also under
power. After flight, please disconnect batteries or switch off master, to prevent
discharging batteries.
LXNAV CAN Remote Installation Manual Version 1.1 April 2018
Page 7 of 9
5 Functions
Speed to fly button
LXNAV CAN Remote Installation Manual Version 1.1 April 2018
Page 8 of 9
6 Remote without SC cable
We have been working very hard to simplify the remote stick so that we can have the same
functionality but use fewer cables. The LXNAV new remote stick comes without the standard
SC cable but the functionality is still available.
With the new stick, there is no more need to solder these wires to the vario wiring loom. The
SC function is programmable through S8/80/S10/S100.
To make the SC function work with the new stick, please check the SC setting in the
configuration/setup page. Go to Setup->Hardware->Digital inputs
Please make sure that NONE of input is set to
“SC on/off switch” or
"SC toggle button".
LXNAV CAN Remote Installation Manual Version 1.1 April 2018
Page 9 of 9
7 Revision history
April 2018
Added chapter 1, 3, 6 and 7
