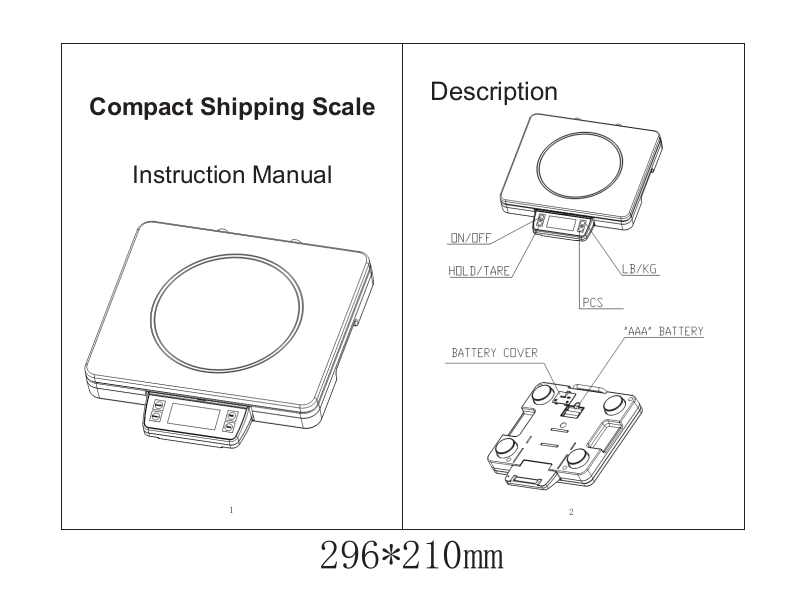

Description
Compact Shipping Scale
Instruction Manual
1
296*210mm
2
Function Specification
1. Weighing
Press and hold
return to “0.00”. Place an object onto the platform, once weighing is stable,
LCD display will show the weight and the stable symbol “◎”.
key to turn on the scale, LCD display shown “5095” and
2. KG/LB/LB:OZ conversion
turn on the Scale, press ”[UNIT]” key to switch KG, LB and LB:OZ.
Press and hold “[UNIT]” key for 20seconds, unit symbol on the display will
be flashing for 3times, current unit locked. Press and hold “[UNIT]” key for
20seconds to release.
6 PCS count function
6.1 Once the scale is on, press and hold ”[PCS]” key for 2seconds to
access into the sampling setting. LCD display will show the number and “Lo”
repeatedly.
6.2 Press
pieces”, “50 pieces”, “75 peices” and “100 pieces” sampling size.
6.3 Place the numbers of object on the platform which LCD display shown.
6.4 If there is appropriate weight on the platform, scale will stop flashing
after 3seconds
6.5 If the weight on the platform is not appropriate the setting size, LCD
display will the number and “LO” for 10second, then automatically return to
“[UNIT]” key to select “5 pieces”, “10 pieces”, “20 pieces”, “25
3. Auto/Non-automatic power-off function
Press and hold “[UNIT]” key, and turn on the Scale, the display will show
“An-OF”, then back to “0.00”, Non-automatic power-off function is active
now.
Auto power-off will be restored once the Scale restarted, and auto turning
off time is 2minutes.
4. Low power detection
If the voltage is lower
remind user to change batteries, and Scale will turn off automatically after 2
seconds.
5 HOLD function
Once reading is stable, press “[HOLD/TARE]” key, current reading has
been locked. Removed the object from the platform, Scale will back to “0.00”
after 5seconds.
Turn on the Scale, press and hold “[HOLD/TARE]” key for 2seconds to
access into the Manual hold mode (Hn-Ao). Press and hold “[HOLD/TARE]” key
for 2seconds again to switch to Auto hold mode (H-Ao).
than 3.7v(Temporary), LCD will show “LobAtt” to
3
normal weighing mode.
6.6 Once the scale is on, press “[PCS]” key to access into the previous
setting.
7 Tare function
Place an object on the platform, once reading is stable, press and hold
“[HOLD/TARE]” key for 2seconds, LCD shows “0.00”, Tare function is on.
Place another obje
Tare. The maximum capacity Is the summary of the weights before and
after Tare. If Scale over loaded, display will show “oooooo” and turn off
automatically after 10seconds.
8 Overload indication
One loading is over, LCD shows “oooooo” and turn off automatically after
10seconds.
9 Backlight selection
9.1 Once the scale is on, press and hold “[HOLD/TARE]” and “[UNIT]” key
for 2second to access into the backlight selection.
ct on the platform, display shows only the weight after
4
9.2 Press “[UNIT]” key to select auto-on(BALIAt), Backlight on(BALIon) and
Backlight off(BALIoF)
9.3 Press “[HOLD/TARE]” key to confirm.
Saftety Precautions
10. One point calibration
10.1 Once the scale is on, press and hold “PCS” and “UNIT” for 2s to access
into the calibration selection.
10.2 LCD display shown “C-kg”.
10.3 Press “[UNIT]” key to select between “C-kg” and “C-lb” and press
“[HOLD/TARE]” to confirm.
10.4 LCD display shown “C-XX” (remind user to place an equivalent weight
on the scale).
10.5 KG: “C-50” and “C-100”, LB: “C-100” and “C-200”.
10.6 Press “[HOLD/TARE]” to confirm and turn off the scale.
10.7 Press “[HOLD/TARE]” and “[UNIT]”, and press ““[ON/OFF]” to turn on
the scale.
10.8 LCD display sh
10.9 Press “[UNIT]” to select the correct capacity of the scale and press
“[HOLD/TARE]” to confirm. (CSS440 refer to “r-200”)
10.10 LCD display shown the internal code (5000-15000) and press
“[HOLD/TARE]” to confirm.
10.11 LCD display shown “C-XX” (according to the setting set on 10.5).
own “CAL” and shown “r-200”.
Avoid installing the scale in direct sunlight, this may cause discoloration or
malfunctions.
Do not mix the type of batteries. Replace all other batteries at the same
time.
If the scale is not to be used for a
from the battery compartment to avoid leakage which may cause damage
to the instrument.
“
Avoid overloading, it could cause damage to the scale.
Do not drop water onto the scale as it’s not a water-resistant unit. If inside of
the scale is wet, it may damaged.
Caution
long period of time, remove all batteries
10.12 Place an equivalent weight as display shown and pressing
“[HOLD/TARE]” to confirm once reading is stable.
10.13 LCD display shown “END” = completed or “Err1” = failed and turn off
the scale automatically.
5
6
Specification
Model number Capacity Division
CSS220 440lb 0.1lb
Standard carton: 53x16.3x35.5(cm3) Package
2 Units in one box:50.8x0.75x33.5 (cm
Operating/Storage
Temperature
5-35 (41℃ -95 ) / 0℉ -60 (32℃ -140 )℉
stigid6 ,DCL hcni 8.0 yalpsid DCL
gk3.9/9.8 thgiew ssorG/teN
3
)x
rotpadA CA ro AAX6 ecruos rewoP
7
