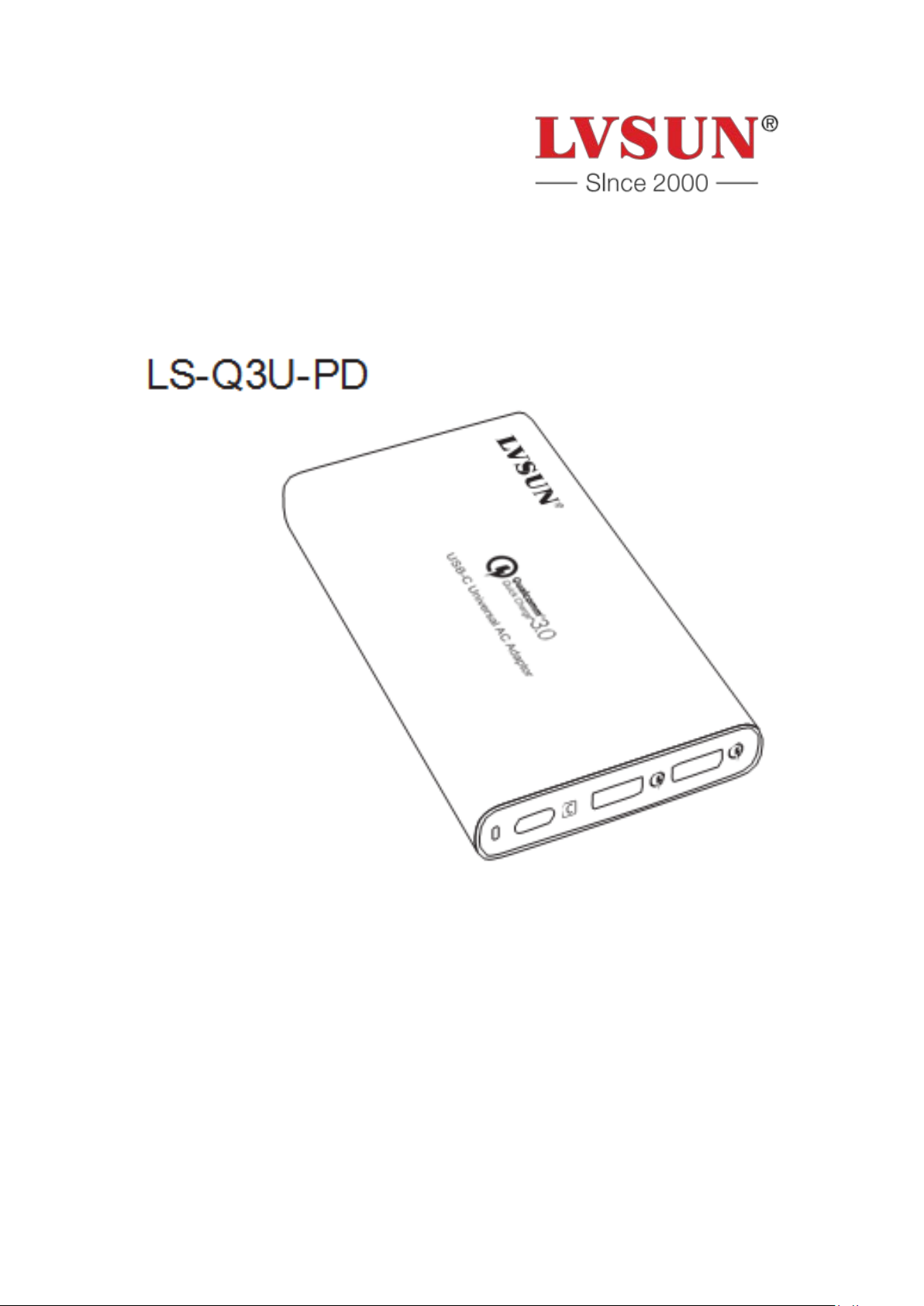

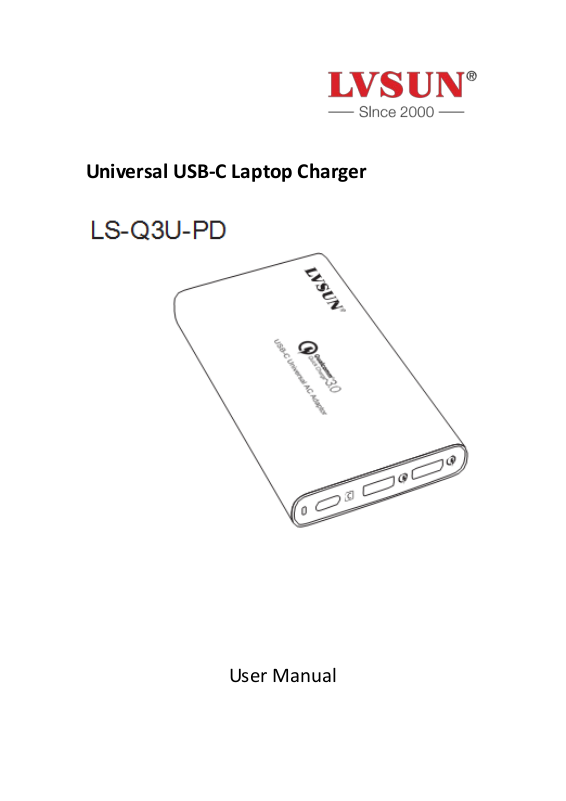

Universal USB-C Laptop Charger
User Manual
Product Features:
1. Adopt USB PD2.0 agreements and Qualcomm® Quick Charge™ 3.0
technology, offers fast and efficient charging technology.
2. Featuring a USB-C port, the power adapter is well compatible with the new USB-C
devices such as the Apple New Macbook 12 Inch (2015), Apple New Macbook 13 Inch
(2015), Google ChromeBook, Dell, HP, Acer, Xiaomi and other devices with USB-C
connector.
3. The USB-A port featured with Qualcomm® Quick Charge™ 3.0 recharge your other
mobile devices quickly and efficiently.
4. Ultra slim and curved housing design, thickness is 16mm, light weight a nd portable.
5. Innovation product, self-designing and produced with own patents.
6. Multiple safety protection: over current protection, over voltage protection, short
circuit protection, over temperature protection.
Product specifications:
Input: AC 100-240V 50/60Hz 1A
Output 1: DC 5-20V 3A (MAX)
Output 2: DC 3.6-6.5V 3A, 9V 2A, 12V 1.5A, 20V 1A
Power: 40W (MAX)
Size: 109*65*16 mm
Weight: 126 g
Package Content:
AC adapter body
AC power cables
USB-C cable
User manual
Rack stand
Product Diagram:
Operation Instruction:
1. When you want to charge or supply power to USB-C laptop and other USB-C
devices, connect the AC plug into the wall socket and insert the USB-C cable to
your laptop, then it works.( as picture A)
A
2. When you want to charge for your USB devices , connect the USB cable to any
of QC3.0 charging ports which offer fast and efficient charging technology for
your smart phones and tablet PCs. (as picture B)
B
Caution: This adapter supports power 40W max. If your used power exceeds 40 W,
the adapter will occur to be over-load protection. When you re-plug the connection,
then it will recover to normal work.
Notes：
Please check that the product’s feature and voltage will be
damage caused by incorrect or reckless operation.
compatible with your laptops and USB devices according to your
device's manual instruction. Please read this manual and its
instructions carefully before use. We are not responsible for any
Important Safety Information:
This safety guideline is to help you operate your power adapter safely, to ensure your
personal safety and reduce the risk of fire, electric shock or injury.
1. Do not apply external force on the cord.
2. Do not unplug by pulling the cord.
3. Do not connect a binded cord to the power supply.
4. Do not place the cord or device near heating elements.
5. Do not bend the blade or pins of the plug.
6. If there is any strange sound, smoke or odor, pull of the cable immediately.
7. Do not disassemble (It may cause fire or electric shock)
8. Do not put any sharp objects into the venting hole of the product
(It may cause fire or electric shock)
9. Ensure to plug the product firmly.
10. Ensure not to use a damaged cable. (It may cause fire or electric shock)
11. Do not place the product on a bed, bag or inside a closet that is not good for
ventilation.
12. Always wipe off the product with soft fabric, not water mop.
(water may cause electric shock)
13. Keep clean the power plug and the outlet (Dirt/dust may cause a short circuit
and fire)
14. Keep the product out of reach of children.
15. Don't unplug the power cord with a wet hand. (It may cause electric shock)
16. Unplug the power cord if you don't use the product for a long time.
(It may cause heat, fire and electric shock)
Hereby
LVSUN
Electr
Technology Co.,
onics
Ltd
dec lares that this de vice is in complianc e with
the requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the
Directive 2011/65/EU for RoHS complianc e. The complete declaration of conf ormity can be
requested by post under the below mentioned manufacturer address.
Warning:
This device is a c lass B product. This eq uipm ent ma y cause som e radio interfer ence in l iving
environment. In this case, the user can be requested to undertake appr opriate measur es to
prevent interference
www.enlvsun.com
LVSUN
E-mail:
Electr
mark
Technology Co.,
onics
et@enlvsu
n.com
Ltd
