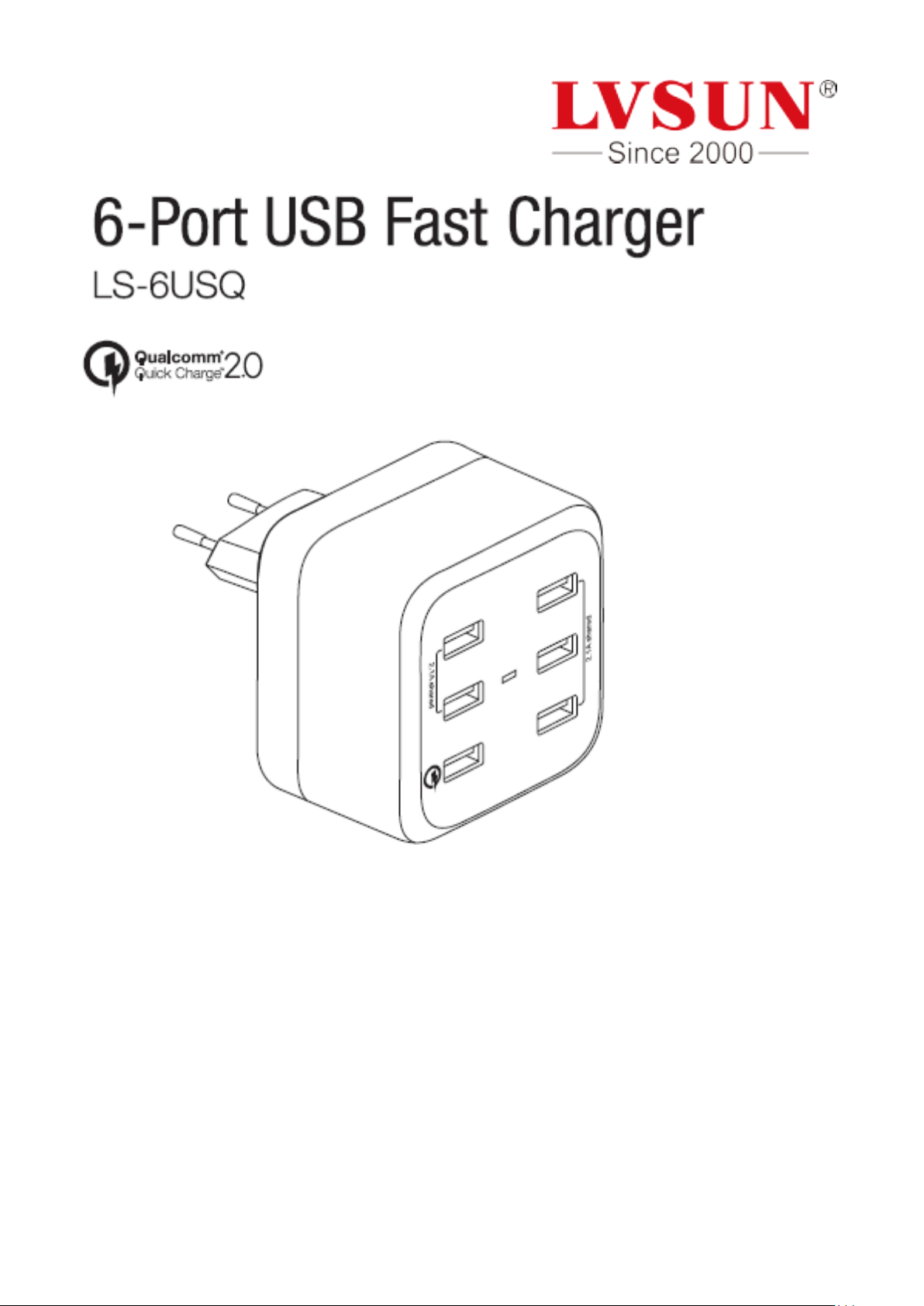

User Manual
Product Features
1
1. 6 dedicated USB ports with built-in 34.5W power.
2. Smart and rapid charging. It takes only 30 minutes to
charge 60% of Samsung Note4 or 75% faster than
conventional USB char ger.
3. Multiple output v oltage ch arging. Suppo rt 5V/9 V/12V.
Intelligent aut o-detecting, choo sing the best sol ution for
your devices.
4. AC input 100-240V, worldwide travel compatible, with optional
USA, Europe, UK AC plugs.
5. Multiple safety protection functions: over current protection,
over voltage protection, short circuit protection, over
temperature protection.
Product Specification
Model: LS-6USQ
Input: AC 100-240V 1A 50/60Hz
Output1: USB 5V 2.4A or 9V1.5A or 12V1.1A
Output 2: DC 5V 2.1*2
Size:67.5*67.5*58mm
Net Weight: 150g
2
Operation Instruction
Optional plugs:
3
Operation Instruction
2.4A shared
1. The green Quic k Cha rge QC2 .0 port c an quic kly ide ntify t he
required voltage and charge the smart phones or tabl ets fast.
Such as Samsu ng Note 4, char ging 50 % onl y 30 min utes,
five times fast er than the no rmal cha rger.
2. Connect the travel charger to the wall socket directly, then
the working indicator shows in green color.
3. Plug your devices into right USB port. If you want to charge
iPad/tablet PCs,you could choose 2.1A to charge. If you want
to charge smart phones, choose 1A to charge.(See below
picture)
Notes:
2.4A shared
1U 3U
2U 4U
1A
5U 6U
1A
Maximum charging loading is 34.5W. Multiple products with total power consumption
exceeds this limit can't be charged all simultaneously.
Notes:
Please check that your devices charging
specification should be in accordance to our manual
instruction. Also read this manual carefully before
use. We're not responsible for any damage caused
Caution
1. Do not bend the blade or Pins of the plug.
2. If there is any strange sound, smoke or odor, pull of the cable
immediately.
3. Do not disassemble (It may cause fire or electric shock)
4. Do not put any sharp objects into the venting hole of the
product. (It may cause fire or electric shock)
5. Ensure to plug the product firmly.
6. Ensure not to use a damaged cable. (It may cause fire or
electric shock)
7. Do not place the product on a bed, bag or inside a closet that
by incorrect or reckless operation.
is not good for ventilation.
8. Always wipe off the product with soft fabric, not water mop.(
water may cause electric shock)
9. Keep clean the power plug and the outlet.(Dirt may cause a
short circuit and fire)
10. Keep the product out of reach of children.
Hereby
LVSUN
Electr
Technology Co.,
onics
Ltd
declares that this device is in compliance
with the requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the
Directive 2011/65/EU for RoHS compliance. The complete declaration of conformity can be
requested by post under the below mentioned manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio interference in
living environment. In this case, the user can be requested to undertake appropriate
measures to prevent interference
www.enlvsun.com
LVSUN
E-mail:
Electr
mark
Technology Co.,
onics
et@enlvsu
n.com
Ltd
