Page 1
6-Port
51W USB AC CHARGER
LS-6U
User Manual
Page 2
Product Features
1.6 Dedicated USB ports with built-in 51W Watts power.
2.No more searching for available USB ports or adapters.
3.2.4amp current charges 3 iPads and 1amp current charges 3
smart phones, di gi tal devi ces simul tane ous ly.
4.Fit neatly into any desktop, classroom, conference room, or home
office.
5.AC inp ut 100-240V, worldwide travel compatible, with optional
USA, Euro , UK, Australia, Korea and China ac cable.
6.Mul ti pl e s a fety pr ot ec ti o n functions, over cur r en t protec ti o n, over
voltage protection, short circuit protection, over temperature
protection.
Product Specification
Model: LS-6U
Input: AC 100-2 40 V 1.2A 50/60Hz
Output: DC 5V 1A*3 & DC 5V 2.4A*3
Measurement: ∮124*30mm
Net Weight: 230g (Unit only)
Page 3
Working
indicator
Product Diagram
3 USB output
5V 2.4A each
AC input
on/off Switc h
3 USB output
5V 1A each
Page 4

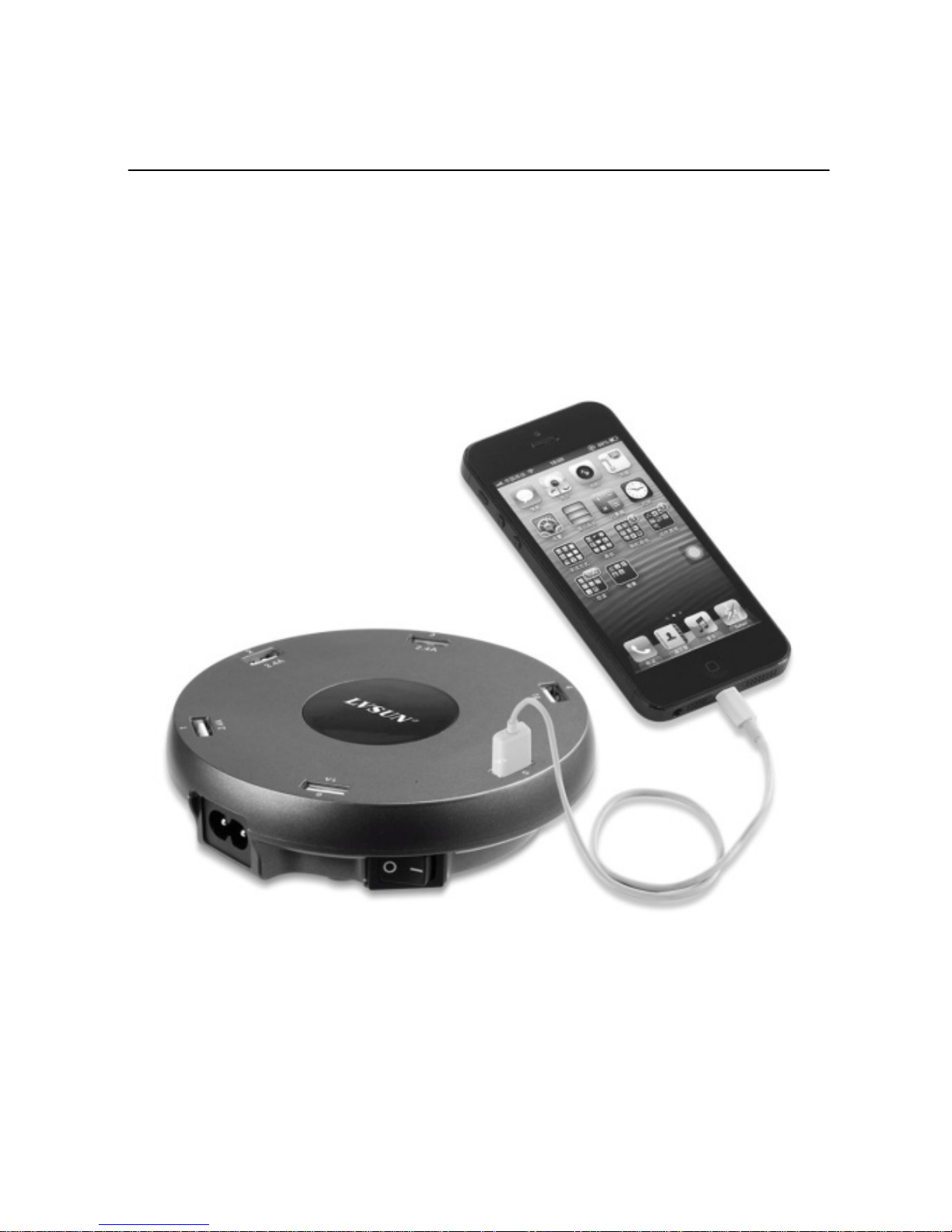

Operation Instruction
1.Connect this charging station to the power outlet using attached
power cor d .
2.Turn on the switch, then the working indicator indicates in green.
3.Plug your dev i c e i nto the desired U SB port, it st arts to charg e your
device.
4.If you want to stop charging, only need to turn off the switch.
Page 5
2.4A:
Input
Voltage
Output
port
Output
Voltage
Output
Current
Output
Current
AC
100-240V
1-3 5V 2.4A
For iPad,
tablet s etc .
1A:
Input
Voltage
Output
port
Output
Voltag
e
Output
Current
Fit for
AC
100-240V
4-6 5V 1A
For
iPad,iPhone,
Samsung,
tablet
and other
smart
pho nes etc
Notes: Maximum charging loading is 51W. Multiple products with
total power consumption exceeding this limit can not be charged all
simultaneously.
Page 6
Notes:
Please check that the product’s feature, Smart phone,
iphone, ipad and or other devices; in accordance to your
devic e's m an ual i ns t r uction. Pl ea s e r e ad t hi s m an ual a n d
its instructions carefully before use. We are not
responsible for any damage caused by incorrect or
reckl ess op er ation.
Caution
1. Do not apply e xt ernal for ce on the cord.
2. Do not unplug by pulling the cord.
3. Do not connect a binded cord to the power supply.
4. Do not place the cord or devic e near heatin g elemen ts .
5. Do not bend the blade or Pins of the plug.
6. If there is any strange sound, s moke or odor, pull of the ca bl e
immediately.
7. Do not disassemble (It may cause fire or electric shock)
8. Do not put any sharp objects into the venting hole of the product
(It may cause fire or electric shock)
9. Ensur e to pl ug th e pr o duct firml y.
10. Ensure not to use a damaged cable. (It may cause fire or
electric shock)
11. Do not place the product on a bed, bag or inside a closet that is
not good for ventilation.
12. Always wipe off the product with soft fabric, not water
mop.( water may cause electric shock)
13. Keep cle an the power pl u g and the outl et (D i r t m ay ca use a
short circuit and fire)
14. Keep the product out of reach of children.
15. Don't unplug the power cord with a wet hand. (It may cause
electric shock)
Page 7
16. Unplug the power cord if you don't use the product for a long
time. (It may cause heat, fire and electric shock)
Hereby
LVSUN
Electr
onics
Technology Co., Ltd declares that this device is
in compliance with the requirements of Directive 2014/30/EU (EMC),
Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS
compliance. The complete declaration of conformity can be requested by
post under the below mentioned manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio
interference in living environment. In this case, the user can be requested
to undertake appropriate measures to prevent interference
www.enlvsun.com
LVSUN
Electr
onics
Technology Co., Ltd
E-mail:
mark
et@enlvsu
n.com
