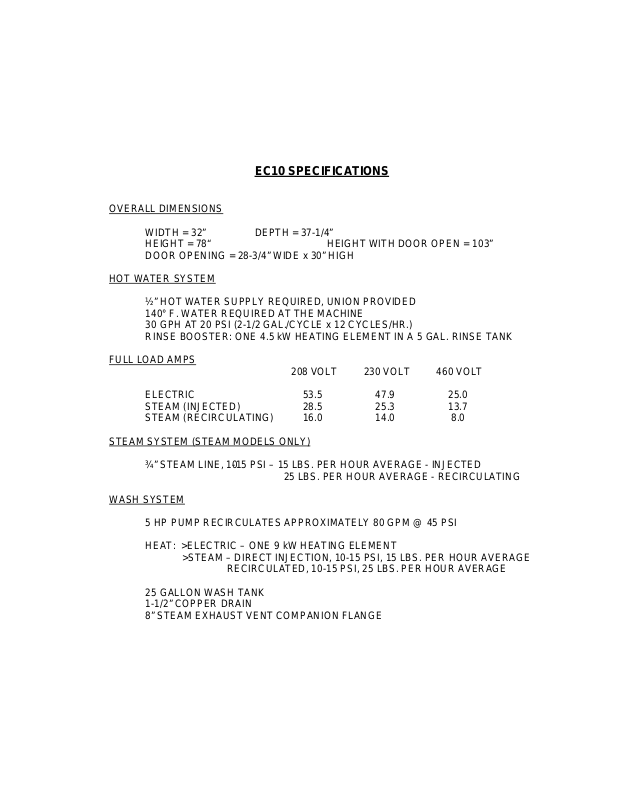

EC10 SPECIFICATIONS
OVERALL DIMENSIONS
WIDTH = 32” DEPTH = 37-1/4”
HEIGHT = 78“ HEIGHT WITH DOOR OPEN = 103”
DOOR OPENING = 28-3/4” WIDE x 30” HIGH
HOT WATER SYSTEM
½” HOT WATER SUPPLY REQUIRED, UNION PROVIDED
140° F. WATER REQUIRED AT THE MACHINE
30 GPH AT 20 PSI (2-1/2 GAL./CYCLE x 12 CYCLES/HR.)
RINSE BOOSTER: ONE 4.5 kW HEATING ELEMENT IN A 5 GAL. RINSE TANK
FULL LOAD AMPS
208 VOLT 230 VOLT 460 VOLT
ELECTRIC 53.5 47.9 25.0
STEAM (INJECTED) 28.5 25.3 13.7
STEAM (RECIRCULATING) 16.0 14.0 8.0
STEAM SYSTEM (STEAM MODELS ONLY)
¾” STEAM LINE, 10-15 PSI – 15 LBS. PER HOUR AVERAGE - INJECTED
25 LBS. PER HOUR AVERAGE - RECIRCULATING
WASH SYSTEM
5 HP PUMP RECIRCULATES APPROXIMATELY 80 GPM @ 45 PSI
HEAT: >ELECTRIC – ONE 9 kW HEATING ELEMENT
>STEAM – DIRECT INJECTION, 10-15 PSI, 15 LBS. PER HOUR AVERAGE
RECIRCULATED, 10-15 PSI, 25 LBS. PER HOUR AVERAGE
25 GALLON WASH TANK
1-1/2” COPPER DRAIN
8” STEAM EXHAUST VENT COMPANION FLANGE
