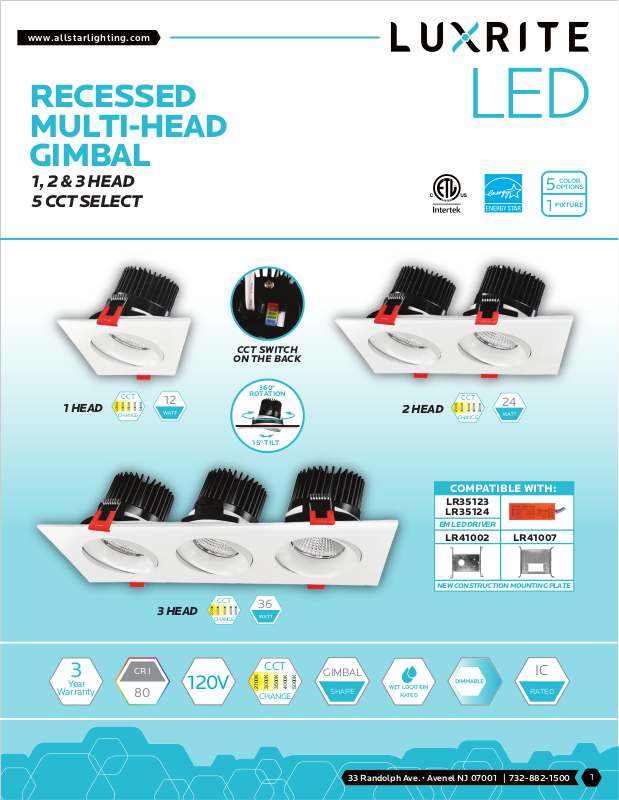

Page 1
www.allstarlighting.com
RECESSED
MULTI-HEAD
GIMBAL
1, 2 & 3 HEAD
5 CCT SELECT
CCT
2700K
3000K
1 HEAD
3500K
CHANGE
4000K
5000K
12
CCT SWITCH
ON THE BACK
360º
ROTATION
15º TILT
2 HEAD
CCT
2700K
3000K
3500K
CHANGE
4000K
5000K
5
24
3
Year
Warranty
CRI
80
3 HEAD
120V
CCT
2700K
3000K
3500K
CHANGE
4000K
5000K
36
CCT
2700K
3000K
3500K
CHANGE
4000K
5000K
COMPATIBLE WITH:
LR35123
LR35124
EM LED DRIVER
LR41002
NEW CONSTRUCTION MOUNTING PLATE
LR41007
GIMBAL
SHAPE
33 Randolph Ave. • Avenel NJ 07001 | 732-882-1500
WET LOCATION
RATED
IC
RATED
1
Page 2
www.allstarlighting.com
DESCRIPTION
LEDMHDL1/5CCT/9/G
LEDMHDL2/5CCT/9/G
LEDMHDL3/5CCT/9/G
1 HEAD
2 HEAD
3 HEAD
MODEL
LR32180
LR32183
LR32185
POWER
12
24
36
S P ECIFIC A TIONS
ELECTRICAL
LUMEN
800
1400
2100
EFFICACY
67
58
58
INPUT VOLTS
12OV
120V
120V
DIMMABLE
YES
YES
YES
FREQUENCY
50/60Hz
50/60Hz
50/60Hz
LIFETIME
50,000
50,000
50,000
BEAM ANGLE
40º
40º
40º
MODEL
LR32180
LR32183
LR32185
COLOR (CCT)
2700K/3000K/3500K/4000K/5000K
2700K/3000K/3500K/4000K/5000K
2700K/3000K/3500K/4000K/5000K
1 HEAD
4 3/8”
2 HEAD
4 3/8”
PHOTOMETRIC
WARM/SOFT/NATURAL/COOL/BRIGHT
WARM/SOFT/NATURAL/COOL/BRIGHT
WARM/SOFT/NATURAL/COOL/BRIGHT
4 3/8”
7 7/8”
3 1/2”
TEMP
DIMENSIONS
3 1/4”
3 1/4”
CRI
80
80
80
FINISH
WHITE
WHITE
WHITE
Cutout:
3.75” (95 mm)
WET
LOCATION
YES
YES
YES
GENERAL
IC RATED
YES
YES
YES
ETL LISTED
YES
YES
YES
ENERGY STAR
YES
YES
YES
11 5/8”
7 1/4”
3 HEAD
4 3/8”
2
33 Randolph Ave. • Avenel NJ 07001 | 732-882-1500
Cutout:
7.25” x 3.75” (185 mm x 95 mm)
3 1/4”
Cutout:
10.82” x 3.75” (275 mm x 95 mm)
