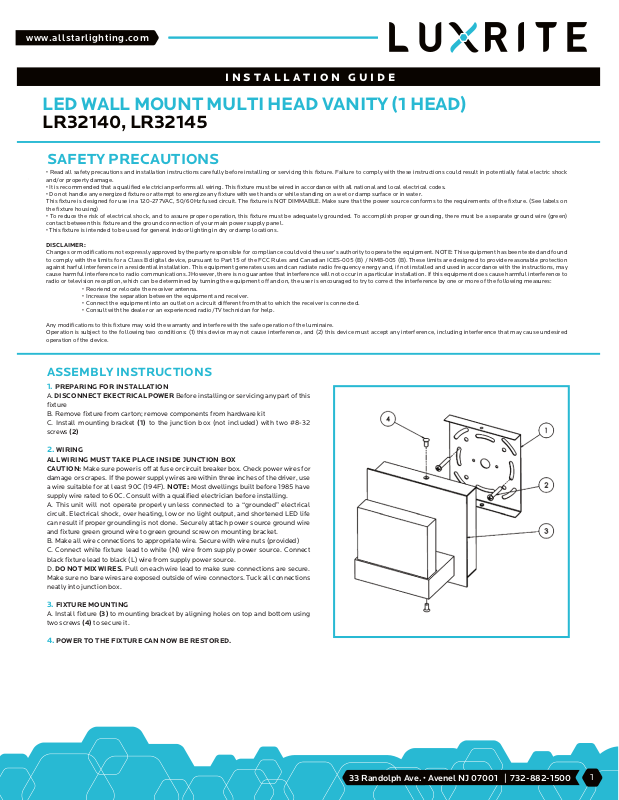

INSTALLATION GUIDE
LED WALL MOUNT MULTI HEAD VANITY (1 HEAD)
LR32140, LR32145
SAFETY PRECAUTIONS
• Read all safety precautions and installation instructions carefully before installing or servicing this fixture. Failure to comply with these instructions could result in potentially fatal electric shock
and/or property damage.
• It is recommended that a qualified electrician performs all wiring. This fixture must be wired in accordance with all national and local electrical codes.
• Do not handle any energized fixture or attempt to energize any fixture with wet hands or while standing on a wet or damp surface or in water.
This fixture is designed for use in a 120-277VAC, 50/60Hz fused circuit. The fixture is NOT DIMMABLE. Make sure that the power source conforms to the requirements of the fixture. (See labels on
the fixture housing)
• To reduce the risk of electrical shock, and to assure proper operation, this fixture must be adequately grounded. To accomplish proper grounding, there must be a separate ground wire (green)
contact between this fixture and the ground connection of your main power supply panel.
• This fixture is intended to be used for general indoor lighting in dry or damp locations.
DISCLAIMER:
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian ICES-005 (B) / NMB-005 (B). These limits are designed to provide reasonable protection
against harful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. JHowever, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reoriend or relocate the receiver antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult with the dealer or an experienced radio/TV technician for help.
Any modifications to this fixture may void the warranty and interfere with the safe operation of the luminaire.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
ASSEMBLY INSTRUCTIONS
1. PREPARING FOR INSTALLATION
A. DISCONNECT EKECTRICAL POWER Before installing or servicing any part of this
fixture
B. Remove fixture from carton; remove components from hardware kit
C. Install mounting bracket (1) to the junction box (not included) with two #8-32
screws (2)
2. WIRING
ALL WIRING MUST TAKE PLACE INSIDE JUNCTION BOX
CAUTION: Make sure power is off at fuse or circuit breaker box. Check power wires for
damage or scrapes. If the power supply wires are within three inches of the driver, use
a wire suitable for at least 90C (194F). NOTE: Most dwellings built before 1985 have
supply wire rated to 60C. Consult with a qualified electrician before installing.
A. This unit will not operate properly unless connected to a “grounded” electrical
circuit. Electrical shock, over heating, low or no light output, and shortened LED life
can result if proper grounding is not done. Securely attach power source ground wire
and fixture green ground wire to green ground screw on mounting bracket.
B. Make all wire connections to appropriate wire. Secure with wire nuts (provided)
C. Connect white fixture lead to white (N) wire from supply power source. Connect
black fixture lead to black (L) wire from supply power source.
D. DO NOT MIX WIRES. Pull on each wire lead to make sure connections are secure.
Make sure no bare wires are exposed outside of wire connectors. Tuck all connections
neatly into junction box.

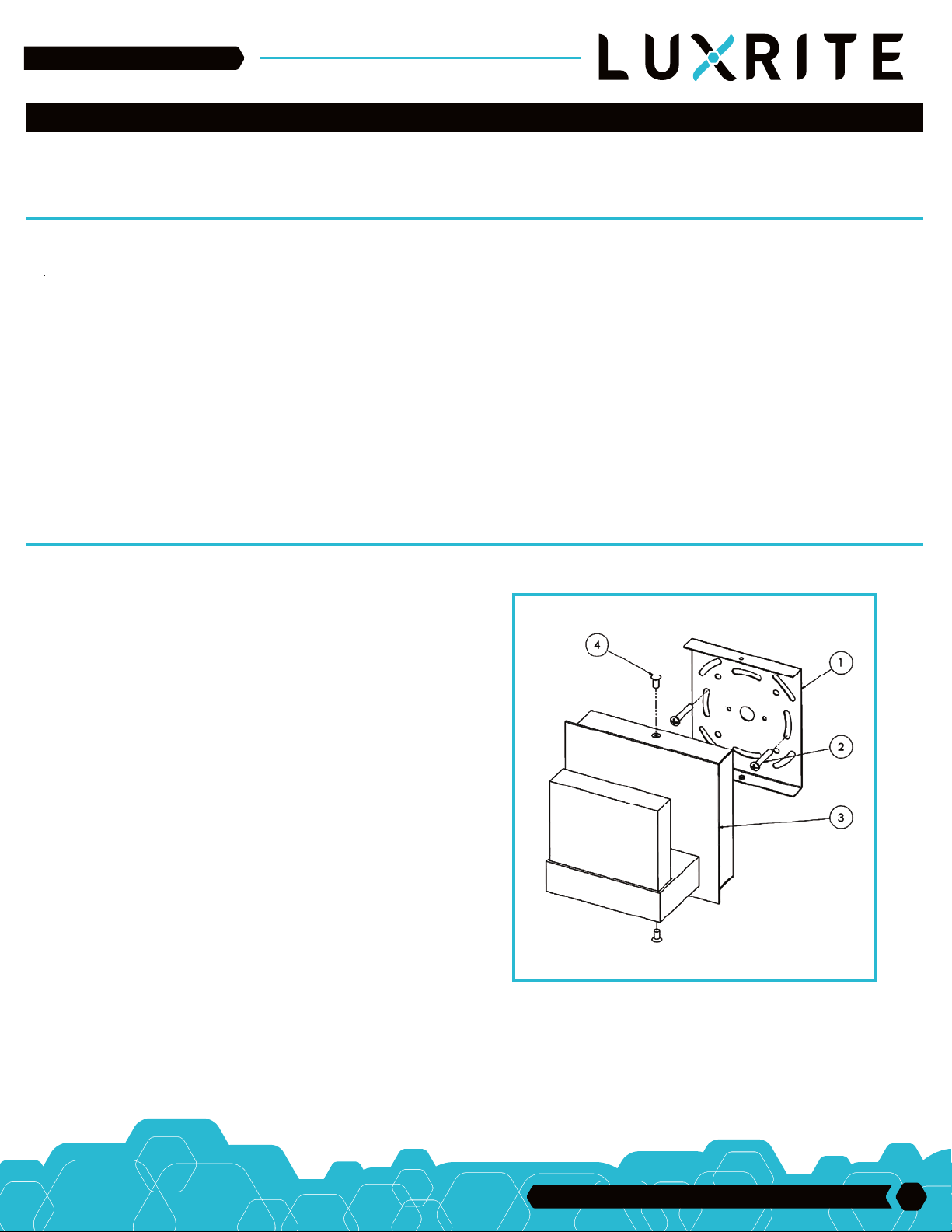

3. FIXTURE MOUNTING
A. Install fixture (3) to mounting bracket by aligning holes on top and bottom using
two screws (4) to secure it.
4. POWER TO THE FIXTURE CAN NOW BE RESTORED.
