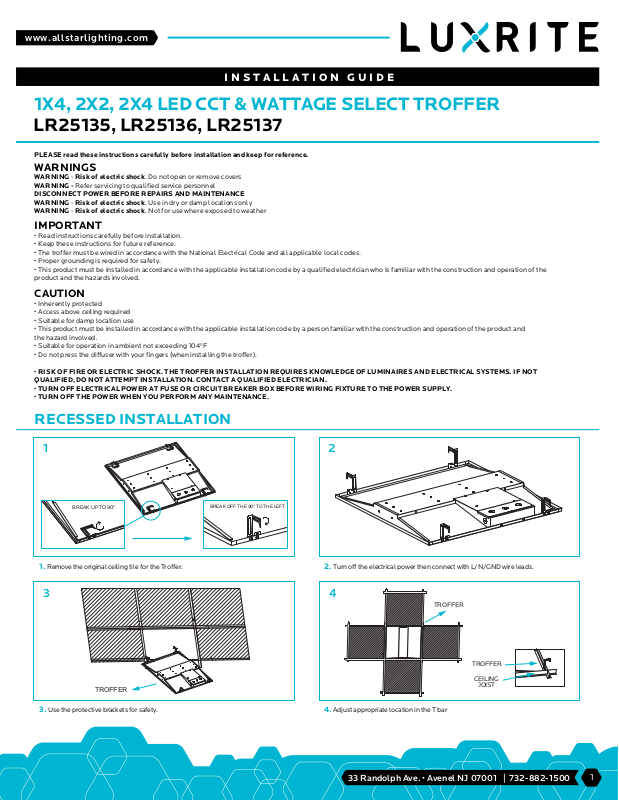

INSTALLATION GUIDE
1X4, 2X2, 2X4 LED CCT & WATTAGE SELECT TROFFER
LR25135, LR25136, LR25137
PLEASE read these instructions carefully before installation and keep for reference.
WARNINGS
WARNING - Risk of electric shock. Do not open or remove covers
WARNING - Refer servicing to qualified service personnel
DISCONNECT POWER BEFORE REPAIRS AND MAINTENANCE
WARNING - Risk of electric shock. Use in dry or damp locations only
WARNING - Risk of electric shock. Not for use where exposed to weather
IMPORTANT
• Read instructions carefully before installation.
• Keep these instructions for future reference.
• The troffer must be wired in accordance with the National Electrical Code and all applicable local codes.
• Proper grounding is required for safety.
• This product must be installed in accordance with the applicable installation code by a qualified electrician who is familiar with the construction and operation of the
product and the hazards involved.
CAUTION
• Inherently protected
• Access above ceiling required
• Suitable for damp location use
• This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and
the hazard involved.
• Suitable for operation in ambient not exceeding 104ºF
• Do not press the diffuser with your fingers (when installing the troffer).
• RISK OF FIRE OR ELECTRIC SHOCK. THE TROFFER INSTALLATION REQUIRES KNOWLEDGE OF LUMINAIRES AND ELECTRICAL SYSTEMS. IF NOT
QUALIFIED, DO NOT ATTEMPT INSTALLATION. CONTACT A QUALIFIED ELECTRICIAN.
• TURN OFF ELECTRICAL POWER AT FUSE OR CIRCUIT BREAKER BOX BEFORE WIRING FIXTURE TO THE POWER SUPPLY.
• TURN OFF THE POWER WHEN YOU PERFORM ANY MAINTENANCE.

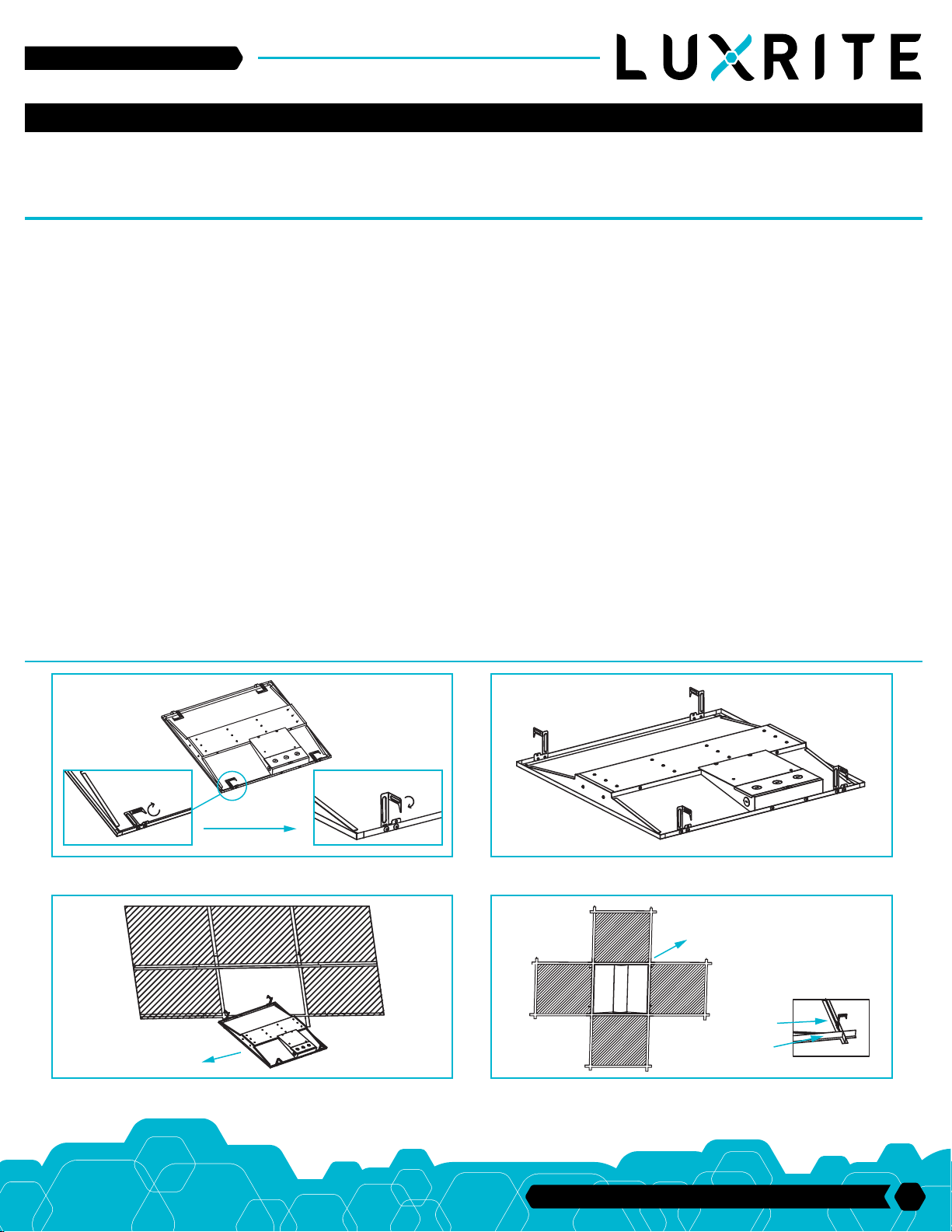

RECESSED INSTALLATION
1
BREAK UP TO 90º
1. Remove the original ceiling tile for the Troffer.
3
TROFFER
3. Use the protective brackets for safety.
BREAK OFF THE 90º TO THE LEFT
2
2. Turn off the electrical power then connect with L/N/GND wire leads.
4
TROFFER
TROFFER
CEILING
JOIST
4. Adjust appropriate location in the T bar
33 Randolph Ave. • Avenel NJ 07001 | 732-882-1500
1
Page 2
www.allstarlighting.com
TROFFER
DRIVER

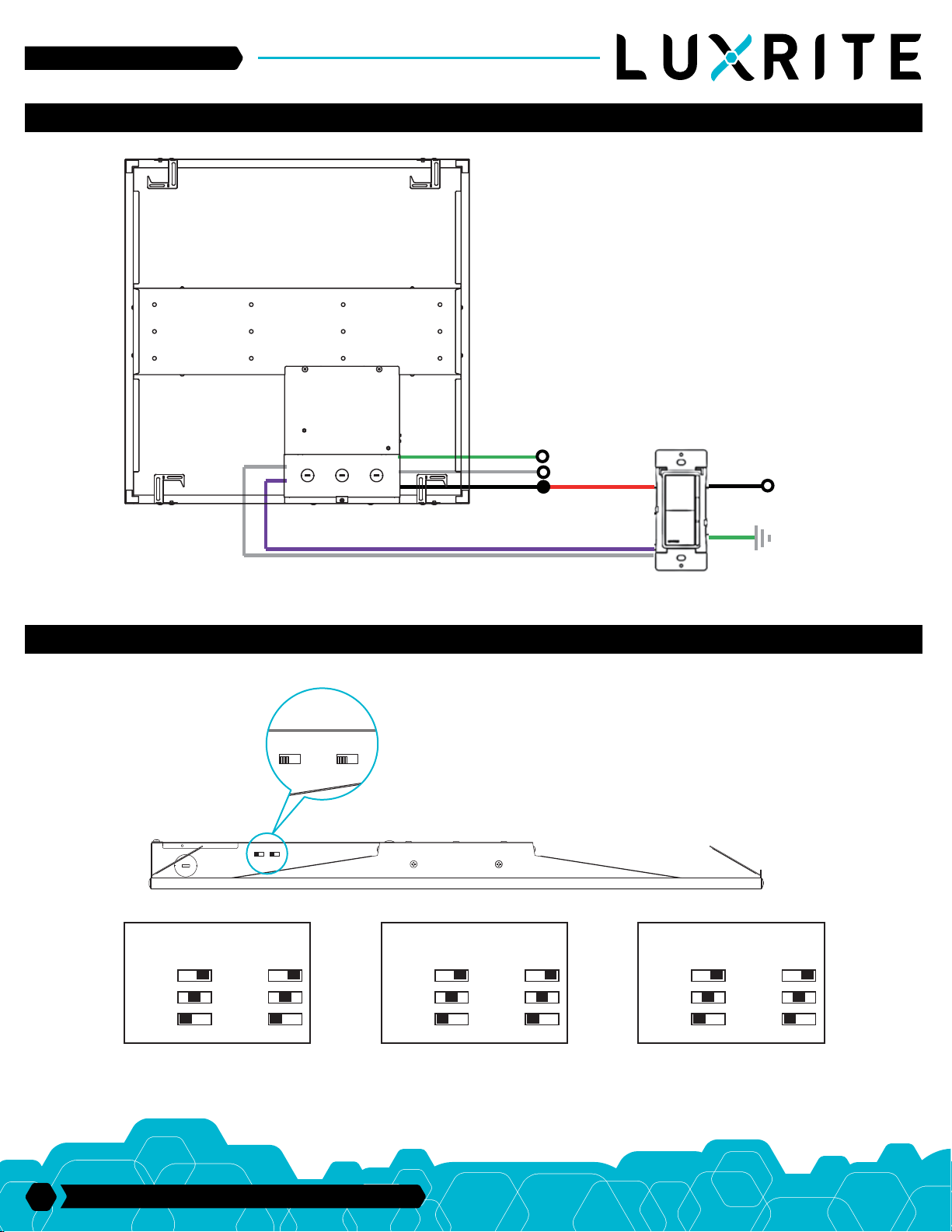

WIRING DIAGRAM
GND
N
L
(BLACK)
DIM +
DIM -
(GREEN)
(WHITE)
(RED)
(PURPLE)
(GRAY)
DIMMER
L
(BLACK)
GND
(GREEN)
1X4 TROFFER
3500K
4000K
5000K
16W
20W
30W
CCT & POWER SWITCH
CCT POWER
2X2 TROFFER
3500K
4000K
5000K
20W
30W
40W
2X4 TROFFER
3500K
4000K
5000K
30W
40W
50W
2
