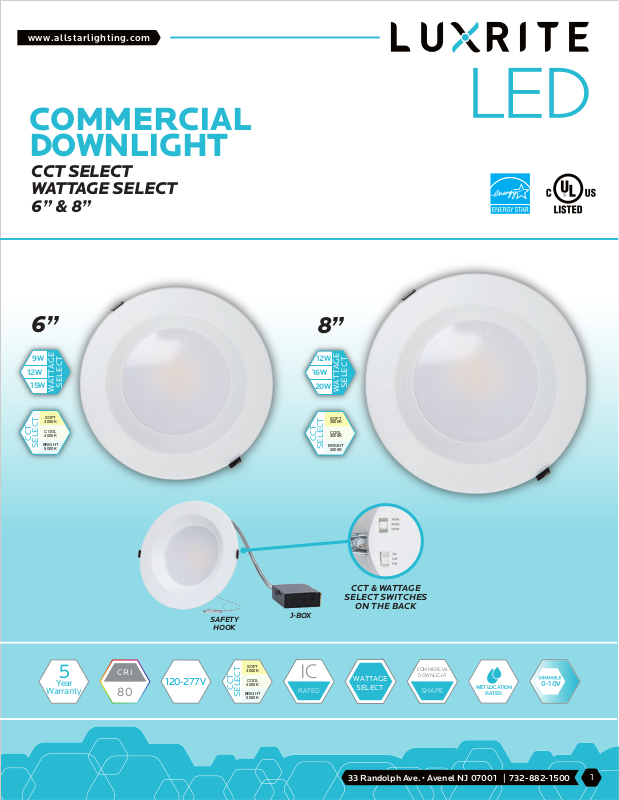

Page 1
www.allstarlighting.com
COMMERCIAL
DOWNLIGHT
CCT SELECT
WATTAGE SELECT
6” & 8”
6”
9W
12W
15W
CCT
SELECT
SELECT
WATTAGE
SOFT
3000K
COOL
4000K
BRIGHT
5000K
SAFETY
HOOK
J-BOX
8”
12W
16W
20W
CCT
SELECT
SELECT
WATTAGE
SOFT
3000K
COOL
4000K
BRIGHT
5000K
CCT & WATTAGE
SELECT SWITCHES
ON THE BACK
5
Year
Warranty
CRI
80
120-277 V
SOFT
3000K
COOL
4000K
CCT
BRIGHT
SELECT
5000K
IC
RATED
COMMERCIAL
WATTAGE
SELECT
33 Randolph Ave. • Avenel NJ 07001 | 732-882-1500
DOWNLIGHT
SHAPE
WET LOCATION
RATED
0-10V
1
Page 2
www.allstarlighting.com
MODEL
LR23950
LR23958
DESCRIPTION
LED/CDL6/3WO/3CCT/B/JB
LED/CDL8/3WO/3CCT/B/JB
POWER
9W
12W
15W
12W
16W
20W
S P ECIFIC A TIONS
ELECTRICAL
LUMEN
750
1125
1500
1000
1500
2000
EFFICACY
83
83
INPUT VOLTS
120-277V
120-277V
DIMMABLE
0-10V
0-10V
FREQUENCY
50/60Hz
50/60Hz
LIFETIME
50,000
50,000
POWER FACTOR
>0.9
>0.9
MODEL
LR23950
LR23958
COLOR (CCT)
3000K/4000K/5000K
3000K/4000K/5000K
4.42”
PHOTOMETRIC
TEMP
SOFT/COOL/BRIGHT
SOFT/COOL/BRIGHT
FLOOD
120º
120º
CRI
DIMENSIONS
4.44”
80
80
IC RATED
YES
YES
GENERAL
WET LOCATION
YES
YES
UL LISTED
YES
YES
ENERGY STAR
YES
YES
Ø7.48”
6” 8”
Cutout: Ø 6.30”
(160 mm)
2
33 Randolph Ave. • Avenel NJ 07001 | 732-882-1500
Ø10.23”
Cutout: Ø 7.87”
(200 mm)
