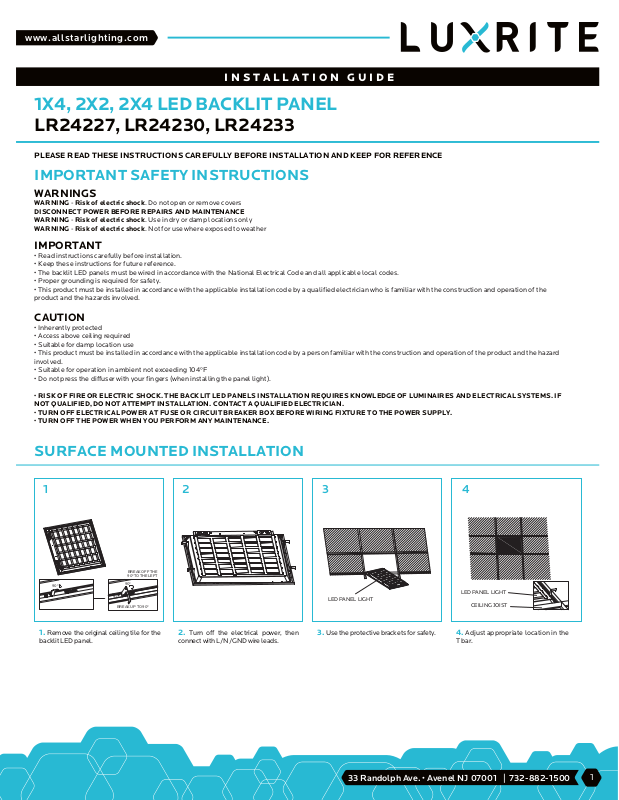

INSTALLATION GUIDE
1X4, 2X2, 2X4 LED BACKLIT PANEL
LR24227, LR24230, LR24233
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND KEEP FOR REFERENCE
IMPORTANT SAFETY INSTRUCTIONS
WARNINGS
WARNING - Risk of electric shock. Do not open or remove covers
DISCONNECT POWER BEFORE REPAIRS AND MAINTENANCE
WARNING - Risk of electric shock. Use in dry or damp locations only
WARNING - Risk of electric shock. Not for use where exposed to weather
IMPORTANT
• Read instructions carefully before installation.
• Keep these instructions for future reference.
• The backlit LED panels must be wired in accordance with the National Electrical Code and all applicable local codes.
• Proper grounding is required for safety.
• This product must be installed in accordance with the applicable installation code by a qualified electrician who is familiar with the construction and operation of the
product and the hazards involved.
CAUTION
• Inherently protected
• Access above ceiling required
• Suitable for damp location use
• This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazard
involved.
• Suitable for operation in ambient not exceeding 104ºF
• Do not press the diffuser with your fingers (when installing the panel light).
• RISK OF FIRE OR ELECTRIC SHOCK. THE BACKLIT LED PANELS INSTALLATION REQUIRES KNOWLEDGE OF LUMINAIRES AND ELECTRICAL SYSTEMS. IF
NOT QUALIFIED, DO NOT ATTEMPT INSTALLATION. CONTACT A QUALIFIED ELECTRICIAN.
• TURN OFF ELECTRICAL POWER AT FUSE OR CIRCUIT BREAKER BOX BEFORE WIRING FIXTURE TO THE POWER SUPPLY.
• TURN OFF THE POWER WHEN YOU PERFORM ANY MAINTENANCE.
SURFACE MOUNTED INSTALLATION
1 2 3 4
BREAK OFF THE
90º TO THE LEFT
90º
Remove the original ceiling tile for the
1.
backlit LED panel.
90º
90º
BREAK UP TO 90º
°
2. Turn off the electrical power, then
connect with L/N/GND wire leads.
LED PANEL LIGHT
3. Use the protective brackets for safety. 4. Adjust appropriate location in the
LED PANEL LIGHT
CEILING JOIST
T bar.
33 Randolph Ave. • Avenel NJ 07001 | 732-882-1500
1
Page 2
www.allstarlighting.com
INSTALLATION GUIDE

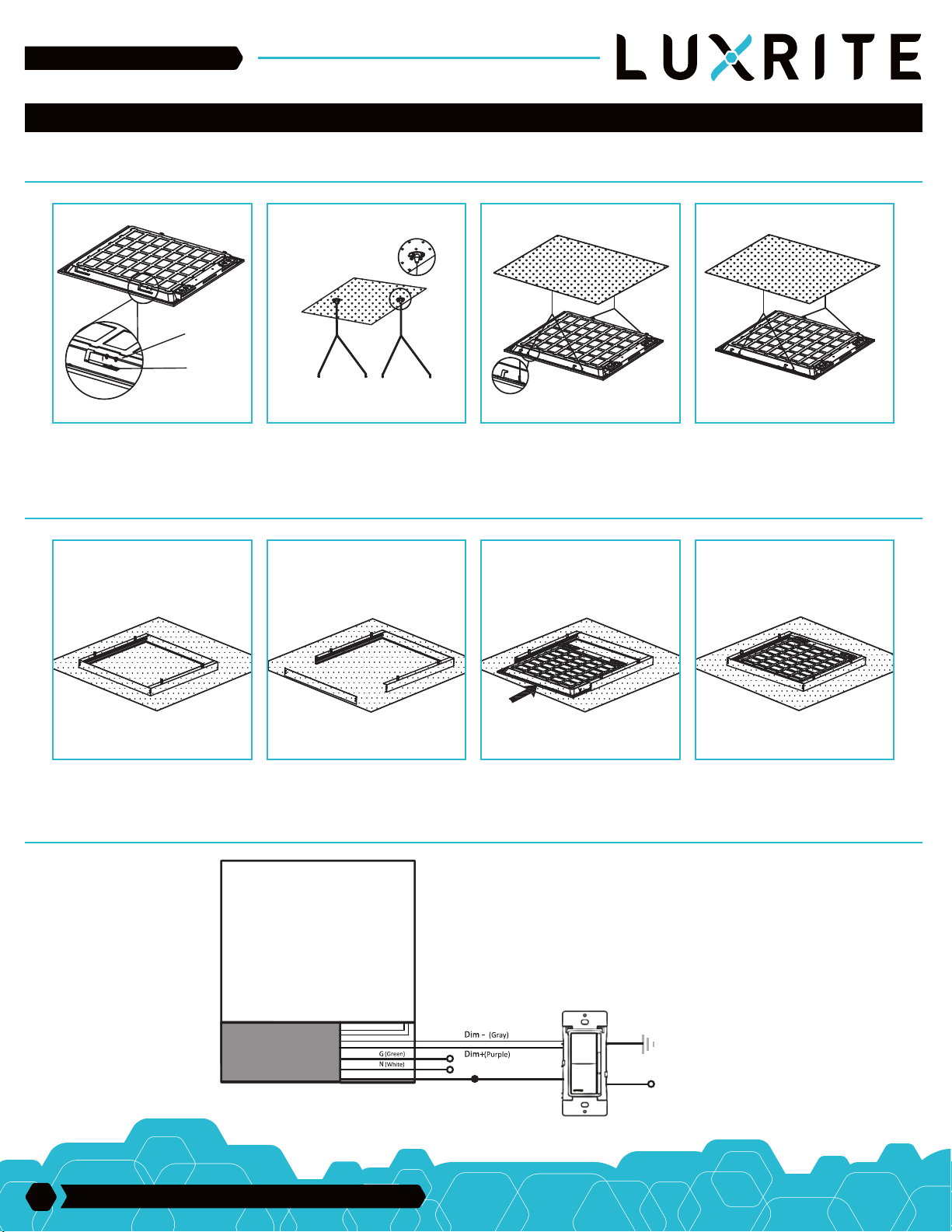

CABLE MOUNTING (CABLE ASSEMBLY MUST BE PURCHASED SEPARATELY)
1 2 3 4
THREAD
HOOKS
1. Turn off the electrical power, then
make sure the backlit cable hooks are
installed.
2. Fix the cable on the ceiling wall. 3. Clip the cable into the hooks of the
backlit panel.
CEILING MOUNTING (MOUNTING KIT SOLD SEPARATELY)
1 2 3 4
1. Turn off the electrical power, then
make sure the bracket set with 4 frames.
2. Fix 3 frames as bracket set on the
ceiling as shown above.
3. Slot the backlit panel into the bracket
set.
WIRE CONNECTION
4. Connect the L/N/GND wire leads.
4. Fix last frame on the bracket set
BACKLIT PANEL
DRIVER
2
33 Randolph Ave. • Avenel NJ 07001 | 732-882-1500
out (Blac k)
L
DIMDIM+
DIMMER
GND (Green)
L in (Black)
