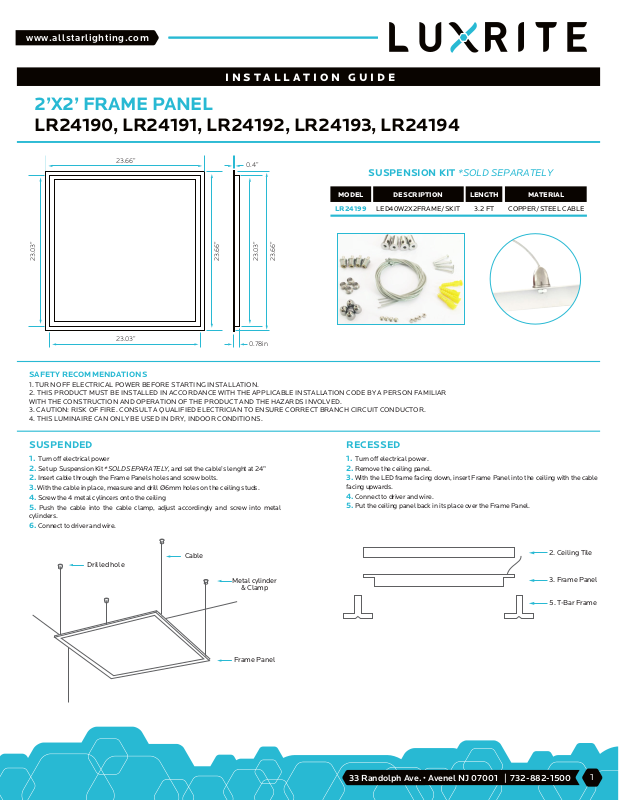

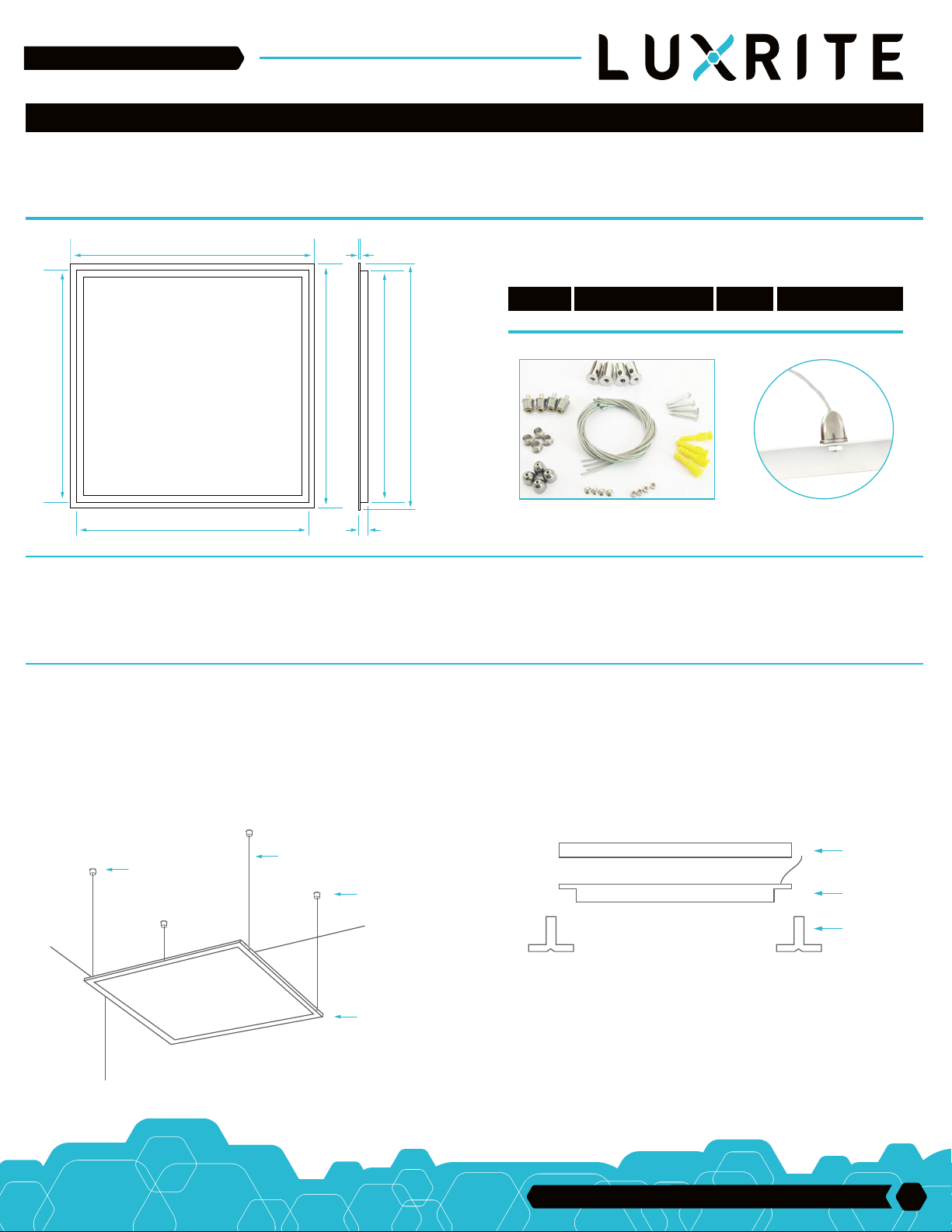

INSTALLATION GUIDE
2’X2’ FRAME PANEL
LR24190, LR24191, LR24192, LR24193, LR24194
23.66”
0.4”
SUSPENSION KIT *SOLD SEPARATELY
MODEL
LR24199
23.03”
23.03”
SAFETY RECOMMENDATIONS
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR
WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
3. CAUTION: RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR.
4. THIS LUMINAIRE CAN ONLY BE USED IN DRY, INDOOR CONDITIONS.
23.66”
SUSPENDED
1. Turn off electrical power
2. Set up Suspension Kit *SOLD SEPARATELY, and set the cable’s lenght at 24”
2. Insert cable through the Frame Panels holes and screw bolts.
3. With the cable in place, measure and drill Ø6mm holes on the ceiling studs.
4. Screw the 4 metal cylincers onto the ceiling
5. Push the cable into the cable clamp, adjust accordingly and screw into metal
cylinders.
6. Connect to driver and wire.
23.03”
0.78in
23.66”
RECESSED
1. Turn off electrical power.
2. Remove the ceiling panel.
3. With the LED frame facing down, insert Frame Panel into the ceiling with the cable
facing upwards.
4. Connect to driver and wire.
5. Put the ceiling panel back in its place over the Frame Panel.
DESCRIPTION
LED40W2X2FRAME/SKIT
LENGTH
3.2 FT
MATERIAL
COPPER/STEEL CABLE
Drilled hole
Cable
Metal cylinder
& Clamp
Frame Panel
2. Ceiling Tile
3. Frame Panel
5. T-Bar Frame
