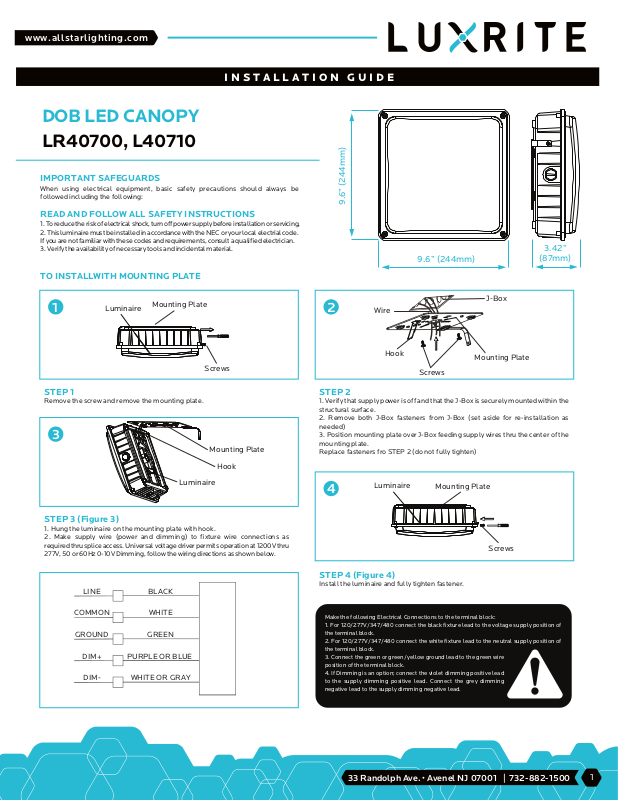

INSTALLATION GUIDE
DOB LED CANOPY
LR40700, L40710
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To reduce the risk of electrical shock, turn off power supply before installation or servicing,
2. This luminaire must be installed in accordance with the NEC or your local electrial code.
If you are not familiar with these codes and requirements, consult a qualified electrician.
3. Verify the availability of necessary tools and incidental material.

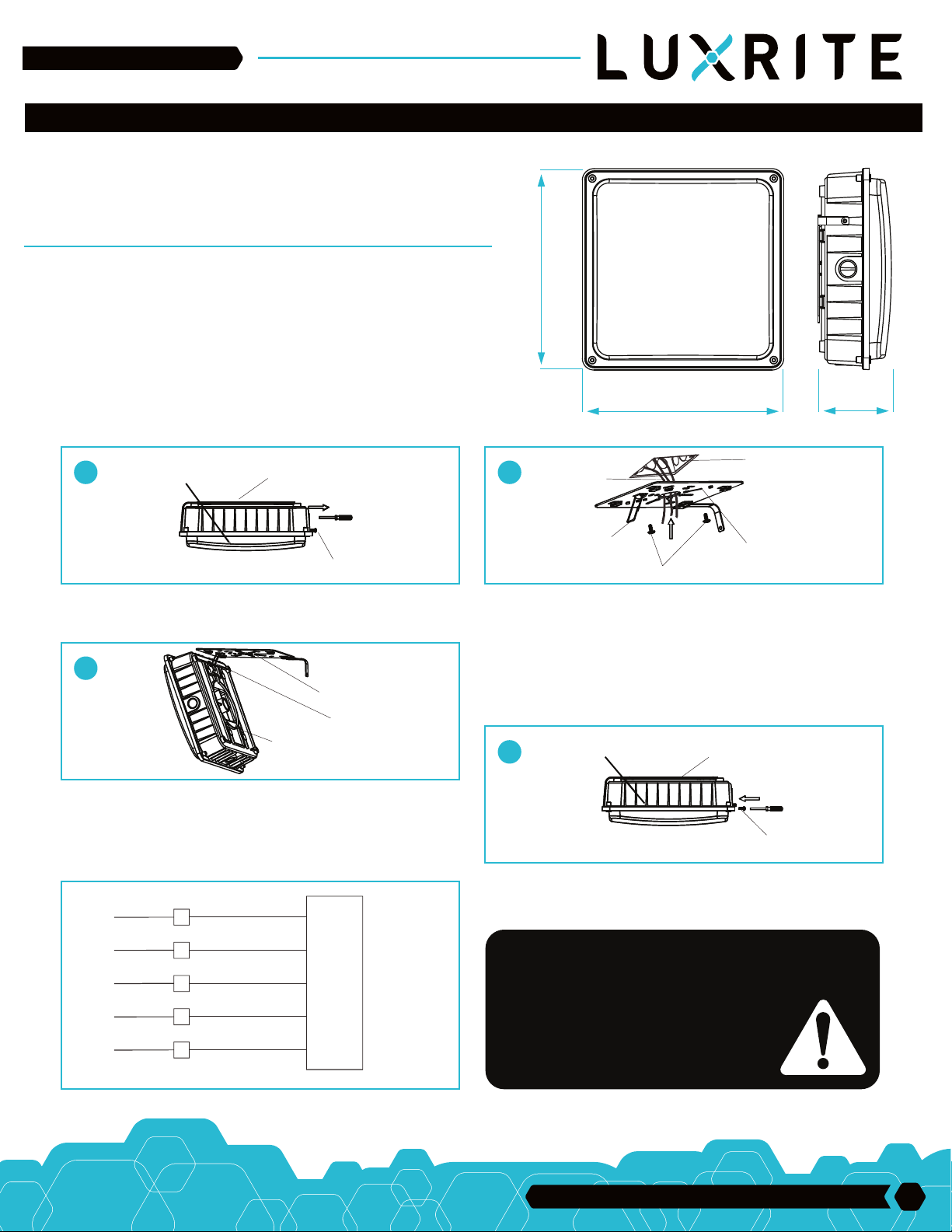

TO INSTALLWITH MOUNTING PLATE
9.6” (244mm)
9.6” (244mm)
3.42”
(87mm)
1
Luminaire
Mounting Plate
Screws
STEP 1
Remove the screw and remove the mounting plate.
3
Mounting Plate
Hook
Luminaire
STEP 3 (Figure 3)
1. Hung the luminaire on the mounting plate with hook.
2. Make supply wire (power and dimming) to fixture wire connections as
required thru splice access. Universal voltage driver permits operation at 1200V thru
277V, 50 or 60Hz 0-10V Dimming, follow the wiring directions as shown below.
LINE
BLACK
J-Box
2
Wire
Hook
Mounting Plate
Screws
STEP 2
1. Verify that supply power is off and that the J-Box is securely mounted within the
structural surface.
2. Remove both J-Box fasteners from J-Box (set aside for re-installation as
needed)
3. Position mounting plate over J-Box feeding supply wires thru the center of the
mounting plate.
Replace fasteners fro STEP 2 (do not fully tighten)
4
Luminaire
Mounting Plate
Screws
STEP 4 (Figure 4)
Install the luminaire and fully tighten fastener.
COMMON
GROUND
DIM+
DIM-
WHITE
GREEN
PURPLE OR BLUE
WHITE OR GRAY
Make the following Electrical Connections to the terminal block:
1. For 120/277V/347/480 connect the black fixture lead to the voltage supply position of
the terminal block.
2. For 120/277V/347/480 connect the white fixture lead to the neutral supply position of
the terminal block.
3. Connect the green or green/yellow ground lead to the green wire
position of the terminal block.
4. If Dimming is an option; connect the violet dimming positive lead
to the supply dimming positive lead. Connect the grey dimming
negative lead to the supply dimming negative lead.
33 Randolph Ave. • Avenel NJ 07001 | 732-882-1500
