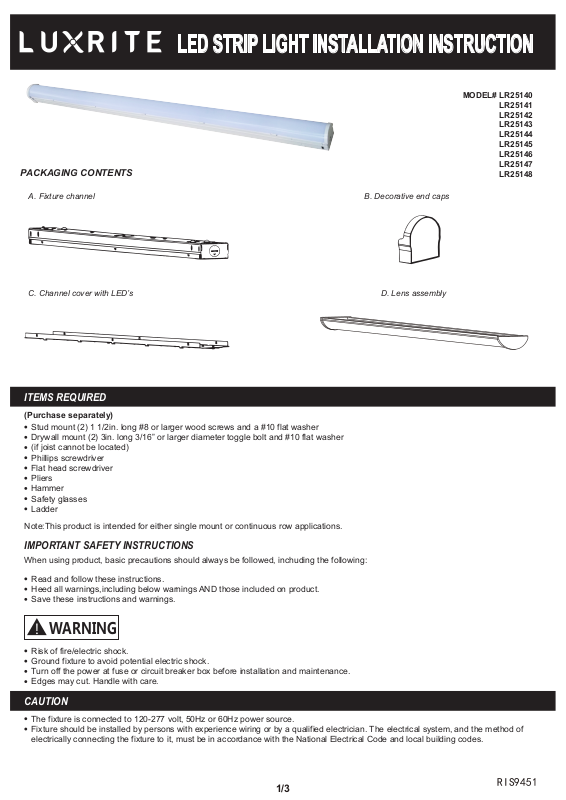

PACKAGING CONTENTS
LED STRIP LIGHT INSTALLATION INSTRUCTION
MODEL# LR25140
LR25141
LR25142
LR25143
LR25144
LR25145
LR25146
LR25147
LR25148
A. Fixture channel
C. Channel cover with LED’s
ITEMS REQUIRED
(Purchase separately)
Stud mount (2) 1 1/2in. long #8 or larger wood screws and a #10 flat washer
Drywall mount (2) 3in. long 3/16” or larger diameter toggle bolt and #10 flat washer
(if joist cannot be located)
Phillips screwdriver
Flat head screwdriver
Pliers
Hammer
Safety glasses
Ladder
B. Decorative end caps
D. Lens assembly
Note:This product is intended for either single mount or continuous row applications.
IMPORTANT SAFETY INSTRUCTIONS
When using product, basic precautions should always be followed, inchuding the following:
Read and follow these instructions.
Heed all warnings,including below warnings AND those included on product.
Save these instructions and warnings.
！
WARNING
Risk of fire/electric shock.
Ground fixture to avoid potential electric shock.
Turn off the power at fuse or circuit breaker box before installation and maintenance.
Edges may cut. Handle with care.
CAUTION
The fixture is connected to 120-277 volt, 50Hz or 60Hz power source.
Fixture should be installed by persons with experience wiring or by a qualified electrician. The electrical system, and the method of
electrically connecting the fixture to it, must be in accordance with the National Electrical Code and local building codes.
1/3
RIS9451
Page 2

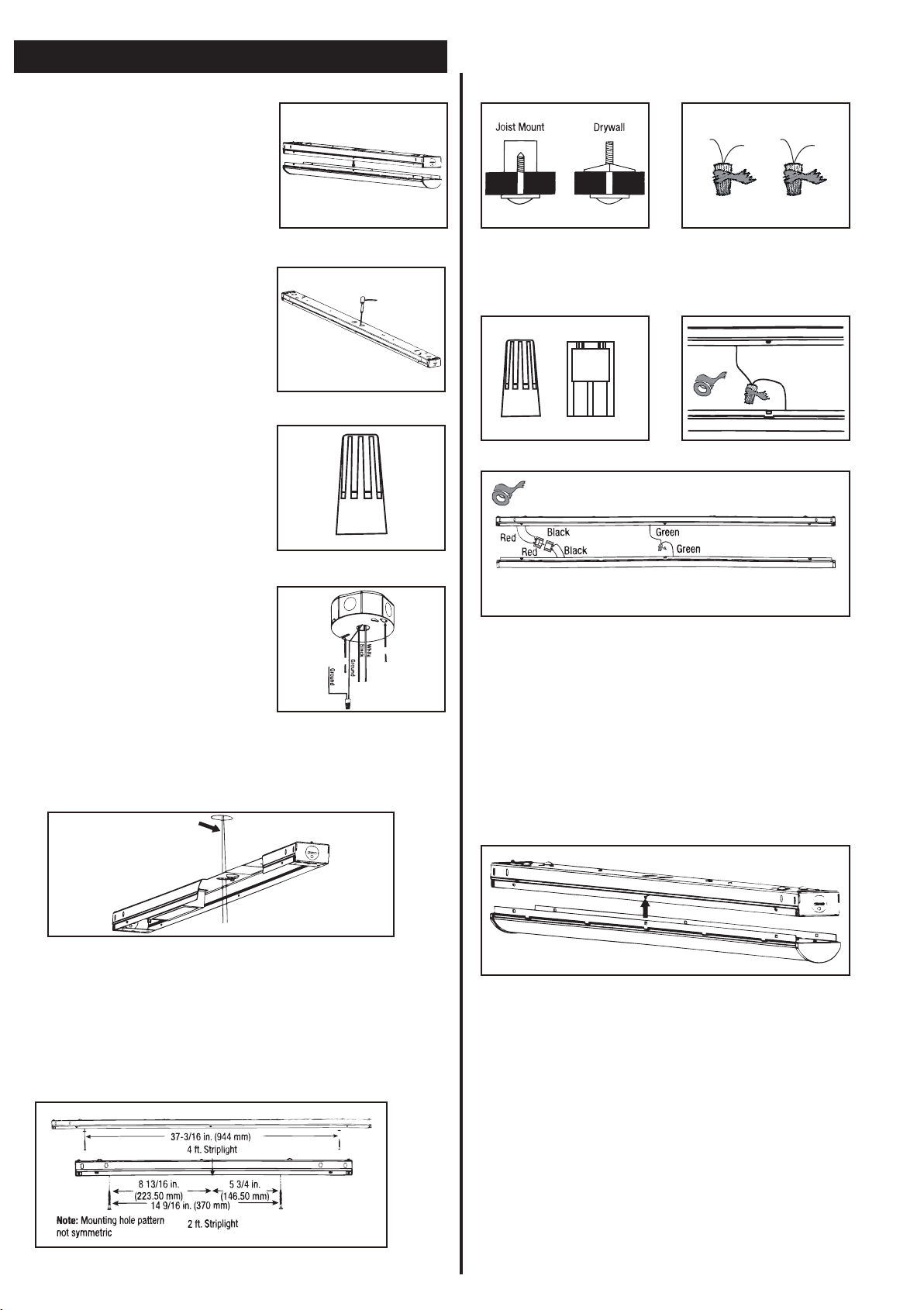

INSTALLATION INSTRUCTIONS
1. Turn off the power at the main
fuse/breaker box.Carefully open carton,
remove fixture and end caps from carton.
2. To remove the channel cover with LED’s
from the main channel body squeeze
beneath the embossed locking tabs on
the main channel body and lift on the
channel cove with LED’s. Do this for all 6
locking tab locations (Fig.1.). The channel
cover with LED’s can be placed in safe
location until fixture is mounte.
3. Remove appropriate knockout(s) for
power supply wiring. To remove, simply
place a flathead screwdriver on the
knockout and strike it sharply with a
hammer (Fig.2.) The slug may then be
removed with pliers.
4. Connect L/N wire using supplied wire
nut(Fig.3.)
5. Prepare the supply wires.
A. Wiring must comply with all applicable
electrical codes.
B. Strip wire to 3/8”(9.5mm).(Fig.3.)
6. Attach junction box cover plate and pull
wire through junction box(Fig.4.)
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 8Fig. 7
L
9. Connect junction box and driver using supplied wire nut.Black to
black and white to white.(Fig.8).
N
L
N
Fig. 9A Fig. 9B
Fig. 9C
Note:See row mounting section if
row mounting before continuing
to step 7.
7. Locate power supply wires from the junction box and pull them through
the knockout that has been removed on the main channel body so that
the wires and disconnect are inside the housing channel(Fig.5).
Fig. 5
8. Attach main housing channel to ceiling or wall using #8 or larger diameter
wood screws plus #10 flat washer for stud mount or 3/16” diameter or
larger toggle bolt plus #10 flat washer for drywall mounting. The spacing
for mounting brackets is 37-3/16” for 4’ fixture or 14 9/16” for
2’ fixture.(Fig.6&7).
Note: 2’ fixture mounting hole pattern is not symmetric.
Fig. 6
10. Locate the channel cover with LEDs and provided lead wires to make
connections to the driver output wires and ground wire. To properly
engage wires, fimly push wire leads into the orange in-line connector
attached to the driver output leads. Connect the black lead on the cover
with the black lead on the driver. Then, connect the red lead on the
cover with the red lead on the driver. Lastly, connect the green lead
on the cover with the green ground lead on the housing channel.
For fixtures with 2 drivers connect the second set of black and
red wires to the Channel cover with LED’s. Black to black and red to red
(Fig. 9A, 9B & 9C).
Note: For dimming see Installing Dimmer Instruction Section.
Fig. 10
11. Tuck all the excess supply wire, orange inline connectors, and the quick
disconnect back into the main channel housing.
12. Mechanically attach the Channel cover with LED’s back to the housing
channel by sliding the Channel cover with LED’s holes onto the locking
tabs on the main housing channel(Fig. 10) ,Remove protective film from
the lens.

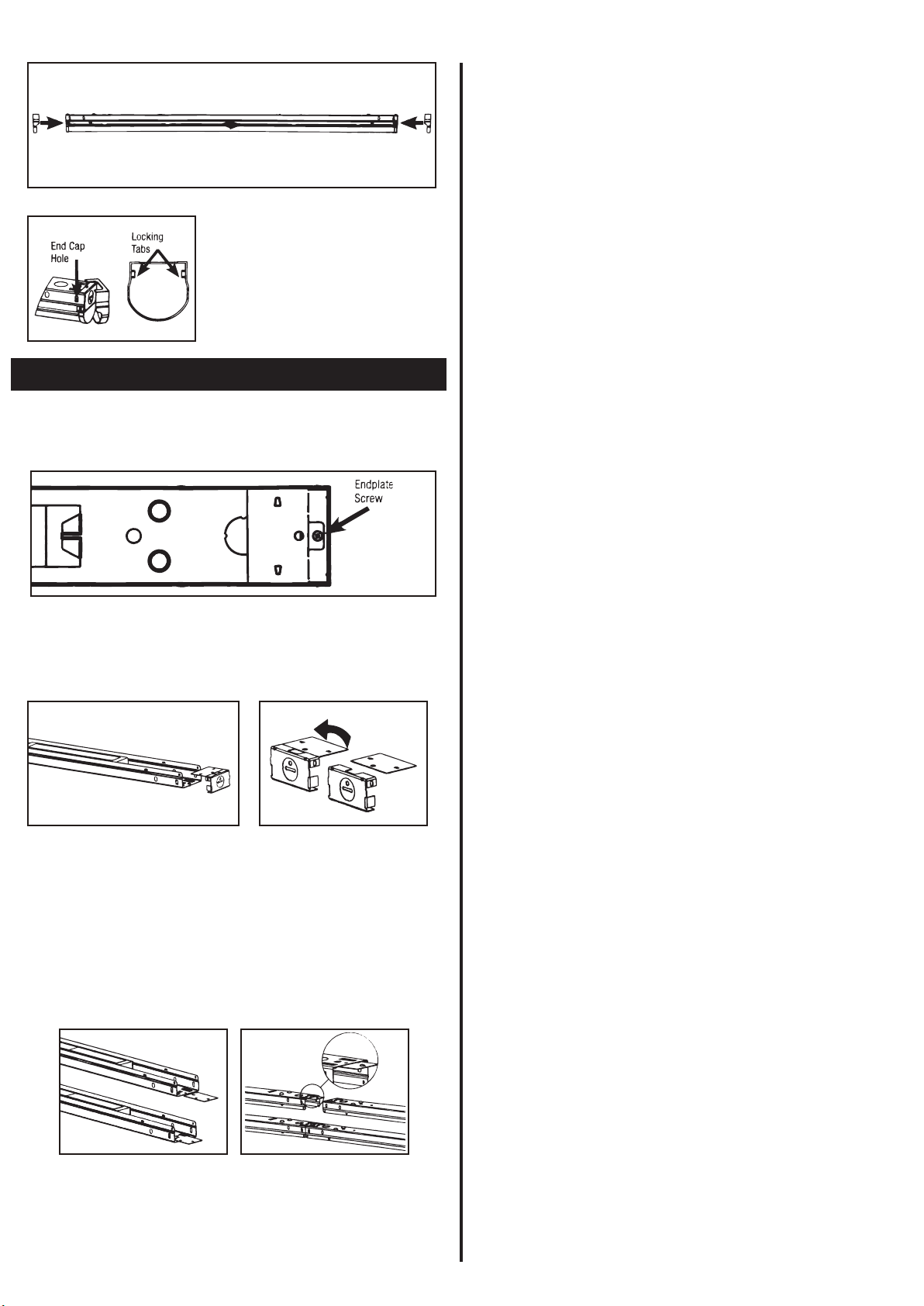

13. Optional: Attach decorative end caps by placing the end cap’s locking
tabs over the ends of the fixture and sliding towards the center of the
fixture until both the locking tabs snap into end cap holes on main
housing (Fig. 11A & 11B).
Note: Decorative end caps cannot be placed between two
fixtures which have been row mounted together.
For row mounting decorative end caps can only be
placed on far ends of fixture.
2/3
RIS9451
Page 3
Fig. 11A
Fig. 11B
ROW MOUNTING
1. For row mounting locate the metal end plate at the end of the fixture of
the main channel body which you plan to remove. Remove the endplate
screw from the metal endplate(Fig.12).Repeat for adjacent fixture.
Fig. 12
This LUXRITE Fixture, when properly installed and under normal
conditions of use, are warranted to be free from defects in materials for
three years from date of sale.
Allstar Lighting Supplies Inc. 33 Randolph Ave. Avenel NJ 07001
Tel: 732-882-1500
2. Squeeze the main channel housing to release the locking tabs on the
metal end plate and remove the metal end plate from main channel
housing(Fig.13). Repeat for adjacent fIxture.
Fig. 13
3. Using one of the metal end plates which you just removed break away
the row mounting tab by bending the end plate. A few maximum bens
may be required to completely break away the tab (Fig. 14A).
4. Using the mounting tab from the metal end plate insert it into the slots
provided at the end of the main channel housing (Fig.14B). Ensure locking
tabs are facing thelocking tab hole provided in the main housing body.
Slide row mounting tab into slot until an audible click is heard (Fig.14C).
Fig. 14A
Fig. 14B Fig. 14C
5. Mount the first fixture with row mounting tab following steps 7-12 above.
6. To install second fixture side fixture over row mounting tab (Fig. 14C) and
follow steps7-12 above.
3/3
RIS9451
