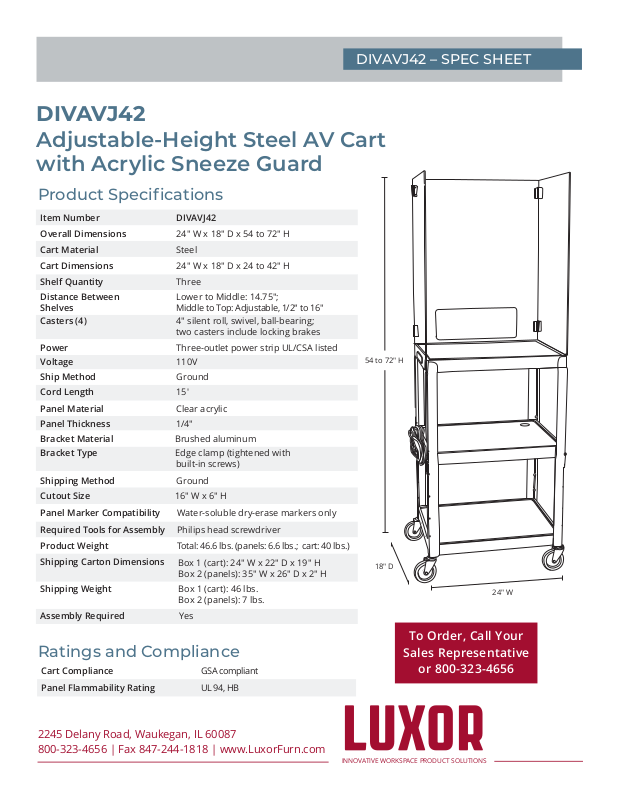

DIVAVJ42 – SPEC SHEET
DIVAVJ42
Adjustable-Height Steel AV Cart
with Acrylic Sneeze Guard
Product Specifications
Item Number DIVAVJ42
Overall Dimensions 24" W x 18" D x 54 to 72" H
Cart Material
Cart Dimensions 24" W x 18" D x 24 to 42" H
Shelf Quantity Three
Distance Between
Shelves
Casters (4) 4" silent roll, swivel, ball-bearing;
Power Three-outlet power strip UL/CSA listed
Voltage 110V
Ship Method Ground
Cord Length 15'
Panel Material
Panel Thickness
Bracket Material
Bracket Type Edge clamp (tightened with
built-in screws)
Shipping Method
Cutout Size
Panel Marker Compatibility
Required Tools for Assembly
Product Weight Total: 46.6 lbs. (panels: 6.6 lbs.; cart: 40 lbs.)
Shipping Carton Dimensions
Shipping Weight
Assembly Required Yes
Steel
Lower to Middle: 14.75";
Middle to Top: Adjustable, 1/2" to 16"
two casters include locking brakes
Clear acrylic
1/4"
Brushed aluminum
Ground
16" W x 6" H
Water-soluble dry-erase markers only
Philips head screwdriver
Box 1 (cart): 24" W x 22" D x 19" H
Box 2 (panels): 35" W x 26" D x 2" H
Box 1 (cart): 46 lbs.
Box 2 (panels): 7 lbs.
54 to 72" H
18" D
24" W
Ratings and Compliance
Cart Compliance GSA compliant
Panel Flammability Rating UL 94, HB
