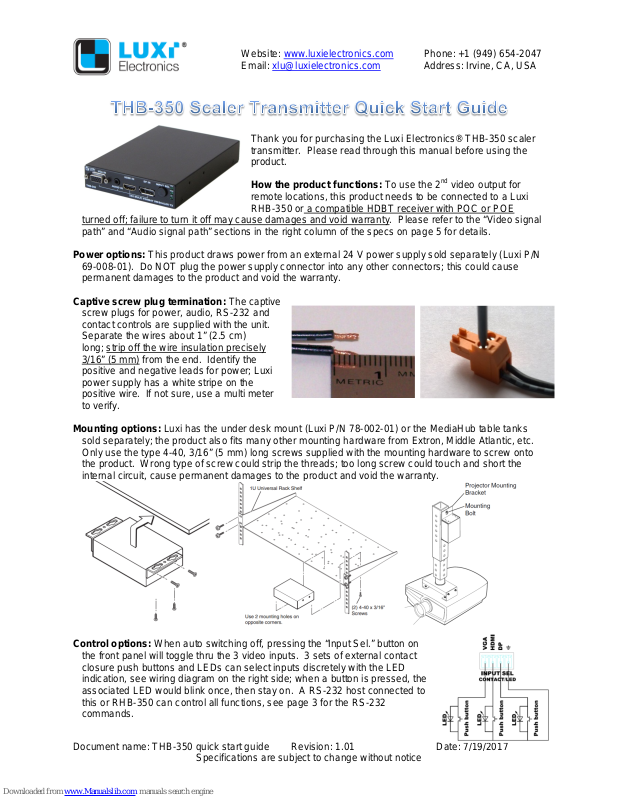

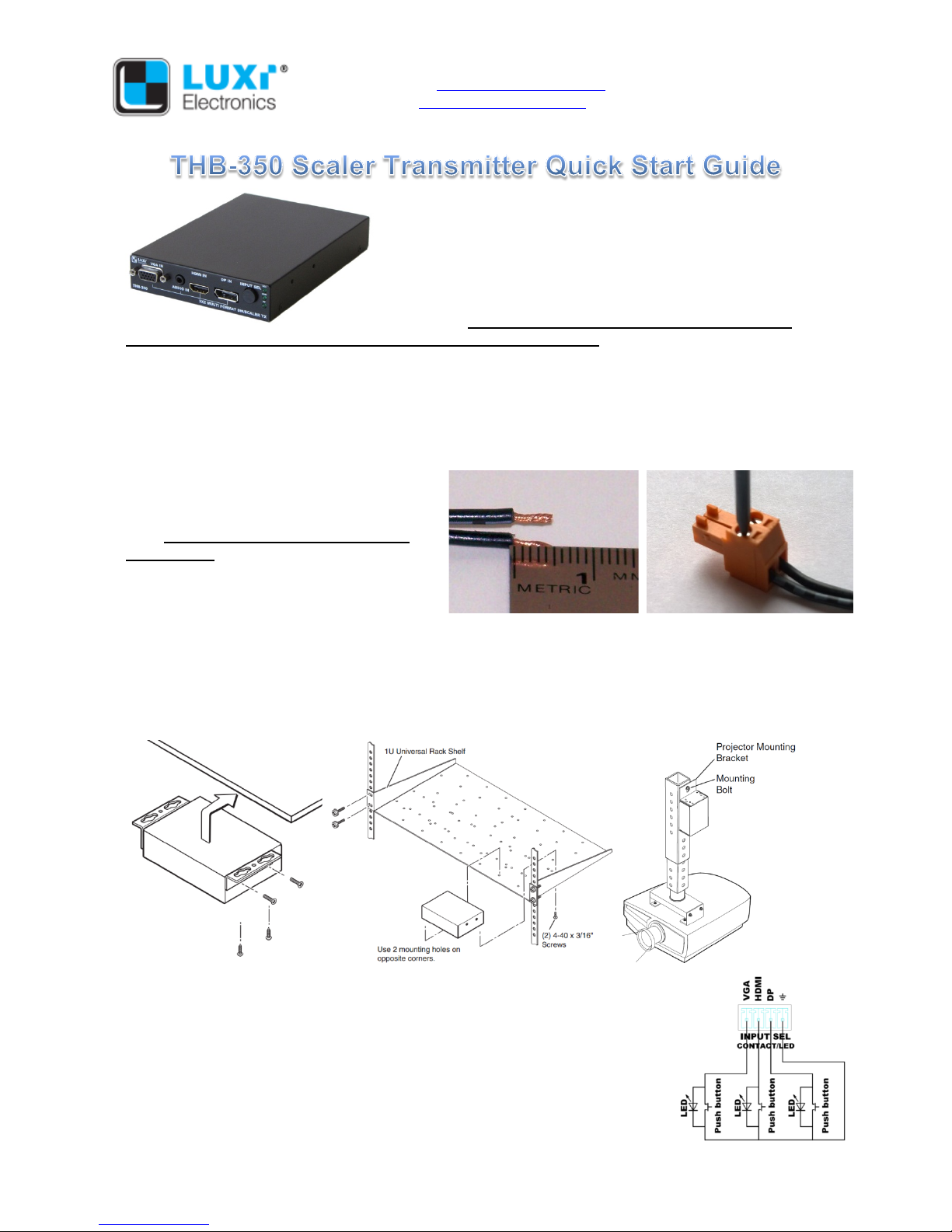

Thank you for purchasing the Luxi Electronics® THB-350 scaler
transmitter. Please read through this manual before using the
product.
How the product functions: To use the 2
remote locations, this product needs to be connected to a Luxi
RHB-350 or
a compatible HDBT receiver with POC or POE
turned off; failure to turn it off may cause damages and void warranty. Please refer to the “Video signal
path” and “Audio signal path” sections in the right column of the specs on page 5 for details.
Power options: This product draws power from an external 24 V power supply sold separately (Luxi P/N
69-008-01). Do NOT plug the power supply connector into any other connectors; this could cause
permanent damages to the product and void the warranty.
Captive screw plug termination: The captive
screw plugs for power, audio, RS-232 and
contact controls are supplied with the unit.
Separate the wires about 1” (2.5 cm)
strip off the wire insulation precisely
long;
3/16” (5 mm) from the end. Identify the
positive and negative leads for power; Luxi
power supply has a white stripe on the
positive wire. If not sure, use a multi meter
to verify.
Mounting options: Luxi has the under desk mount (Luxi P/N 78-002-01) or the MediaHub table tanks
sold separately; the product also fits many other mounting hardware from Extron, Middle Atlantic, etc.
Only use the type 4-40, 3/16” (5 mm) long screws supplied with the mounting hardware to screw onto
the product. Wrong type of screw could strip the threads; too long screw could touch and short the
internal circuit, cause permanent damages to the product and void the warranty.
nd
video output for
Control options: When auto switching off, pressing the “Input Sel.” button on
the front panel will toggle thru the 3 video inputs. 3 sets of external contact
closure push buttons and LEDs can select inputs discretely with the LED
indication, see wiring diagram on the right side; when a button is pressed, the
associated LED would blink once, then stay on. A RS-232 host connected to
this or RHB-350 can control all functions, see page 3 for the RS-232
commands.
Document name: THB-350 quick start guide Revision: 1.01 Date: 7/19/2017
Specifications are subject to change without notice
Page 2
Website: www.luxielectronics.com
Email: [email protected]
Phone: +1 (949) 654-2047
Address: Irvine, CA, USA
Auto input switching: The default is auto switching on, front panel button defeated. When the button
pressed, the 3 LEDs next to it will blink 3 times. To turn off auto switching, press and hold the button
for about 7 seconds until the LEDs blink twice, or use RS-232 command. When auto switching off, use
the button or contact closure buttons or RS-232 to select input. To engage auto switching again, press
and hold the button for more about 7 seconds until the LEDs blink 3 times, or use RS-232 command.

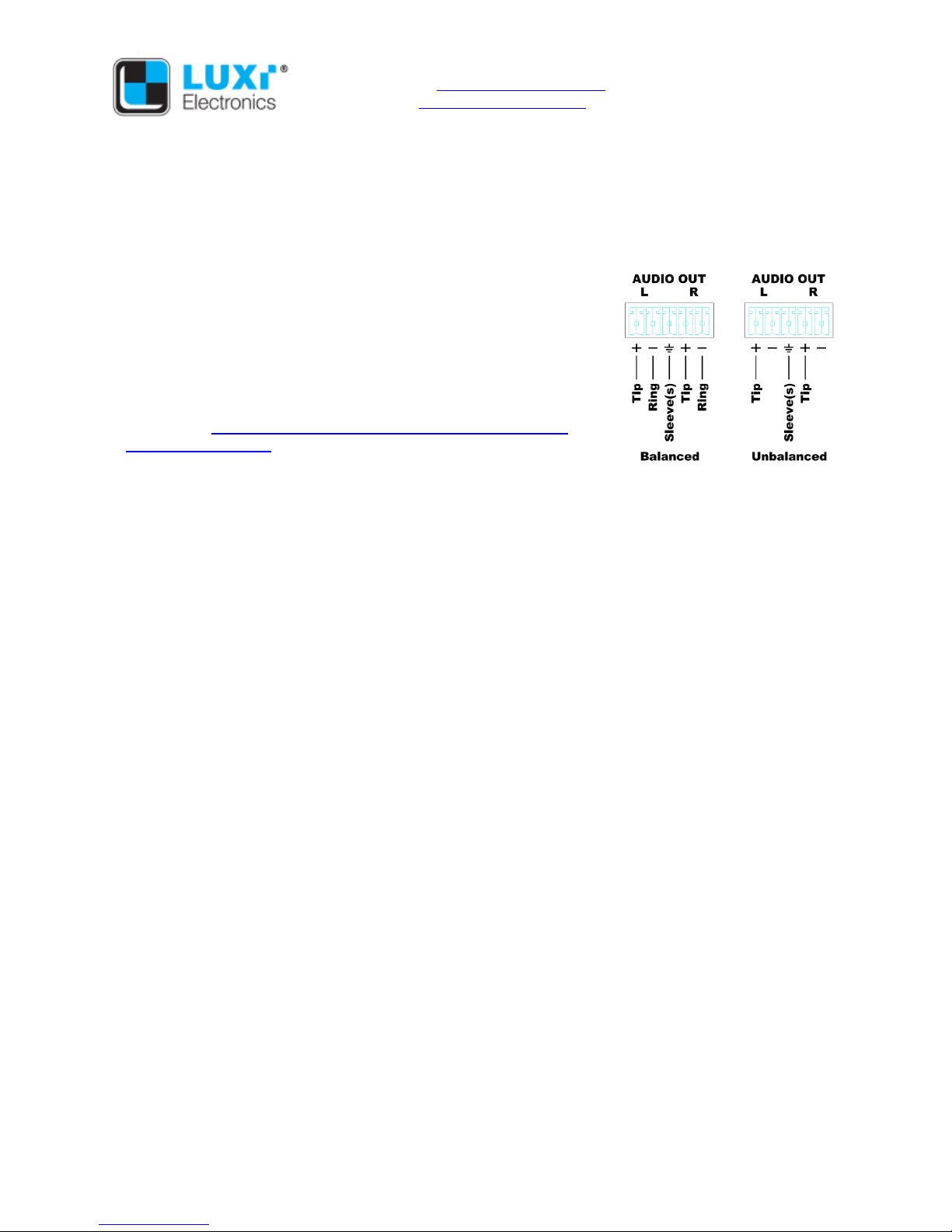

Audio output connector wiring: refer to the diagrams on the right for
the wiring to the 5-pin captive screw connector. Do NOT connect the
sleeve (audio cable shield) to the “-” pin of the audio output; this could
cause permanent damages to the product and void the warranty.
RS-232 controls: Only the input selections can be controlled by front
panel or external buttons; all other functions can only by controlled by
RS-232. See the RS-232 Setup Guide on Luxi websit e for more
information:
232_setup_guide.pdf. Refer to page 3 for RS-232 commands.
Input select commands: Command “s” is to check the current selected input; “0s” is to enable auto
switching; “1s” is to select VGA input, “2s” HDMI input; “3s” DP input. There will be a blank screen for a
brief period of time during input switching. The duration depends on the handshake time of the display
and the source device, and the input and output resolutions, generally around 2 seconds or less.
Front panel and contact closure lockup: Command “A” is to check the current front panel switch status;
“0A” is to turn off auto switching and defeat front panel and contact closure controls; “1A” is to turn off
auto switching and allow front panel and contact closure controls; “2A” (default) is to turn on auto
switching and defeat front panel/contact closure controls.
Auto image settings: Command “a” is to initiate auto image settings.
Scaler output video format settings: Refer to RS-232 “o” series commands on page 3 for more details.
Image size (zoom) adjustments: Many displays made by consumer electronics manufacturers tend to
set the image on the screen in overscan even fed by computer signals, making the menu icons on the
sides cut off or disappear. Use the “z” commands to set (shrink) the proper picture size on screen.
Command “z” is to check the current zoom level; “1z” is to set the zoom level to 1 (default, same size as
the original in a non-overscan display), “2z”, “3z”, … “6z” are to set the zoom levels to 2, 3, … 6,
respectively.
Video output commands: Refer to RS-232 “m” series commands on page 3 for more details. If the
monitors can go to sleep without input signal and can wake up with input signal, use RS-232 command
“1m” to enable this feature. If your projector needs screen saver to prevent burn in, use command “2m”
to turn on OSD (On Screen Display) when no input signal.
Audio commands: Refer to RS-232 “M” series commands on page 3 for more details. Use RS-232
command “0M” to mute all audio outputs; “1M” to set digital audio pass thru for preserving the movie
surround sound; “2M” to mix the 3.5 mm audio to input digital audio; “3M” to pair the 3.5 mm audio with
VGA input only; “4M” to use the 3.5 mm audio all the time (for wireless microphone).
Resetting the product to factory defaul ts: Use the RS-232 command “r” to reset the product to factory
defaults. See page 3 for the default values.
Display power controls: THB-350 has the configurable display power control feature to enable fully
automated system operations without any operator or 3
http://luxielectronics.com/attachments/File/Luxi_RS-
rd
party control devices. THB will send a display
Document name: THB-350 quick start guide Revision: 1.01 Date: 7/19/2017
Specifications are subject to change without notice
Page 3
Website: www.luxielectronics.com
Ex t hos t THB-350 RHB-350 Display
Rx -------------- Tx Tx -------------- Rx
Tx -------------- Rx Via Cat6 Rx NC NC
Ground -------------- Ground Ground -------------- Ground
NC = Not Connect ed
Luxi THB-350 scaler Tx RS-232 commands
Rev 1.01
Function
Command
to THB-350
Response from THB-350 Notes Factory default
Product information commands
Query device part num ber
p 74-040-01¶ Numeric and dash only
MCU firmware version 1P
x.xx¶ Numeric only
Scal er firmware version 2P x.xx¶ Numeric onl y
Split ter firmware version
3P x.xx¶
Numeric onl y
HDBT firmware version 4P x.xx¶ Numeric only
Reset command
Reset t o fac tory default s
r Reset
Input selection commands
Selec t l ocal input x
xs Input x live¶
x has 3 possi bl e values, 1 t hru 3 2s (HDMI input)
Set aut o switch on 0s Aut o sw on¶
Wil l release by new input selecti on
Input
x live¶
Auto sw on (or off)¶
Input
x
signal present¶
Input x si gnal pres ent¶
Front panel sw off¶
Auto sw off¶
Front panel sw on¶
Auto sw off¶
Front panel sw off¶
Auto sw on¶
Front panel sw off (or on)¶
Auto sw on (or off)¶
Scale r comm ands
Initiat e aut o i m age a Auto i m age on¶
Set out put format t o pixel t o pixel
0o Output format pi xel to pi xel¶
Only supports 7 pres et resolutions: 720p,
1080p, 1280x800, 1920x1200, 1024x768,
1280x1024, 1600x1200
Set out put format t o 720p 1o Output format 720p¶
Set out put format t o 1080p
2o Output format 1080p¶ 2o (output 1080p)
Set out put format t o 1280x 800 3o Output format 1280x800¶
Set out put format t o 1920x 1200 4o Output format 1920x1200¶
Set out put format t o 1024x 768 5o Output format 1024x768¶
Set out put format t o 1280x 1024 6o Output format 1280x1024¶
Set out put format t o 1600x 1200 7o Output format 1600x1200¶
Query output format o
(One of the respons es from
cell C30 to C37)
Set zoom level on xz Zoom level
x¶ x has 6 possi bl e values, 1 t hru 6 1z (zoom l evel 1)
Query z oom level z Zoom level x¶
Press and hold
front panel switch
for about 7
seconds will toggle
the auto sw on or
off; L ED fast
blinki ng 3 or 2
times respec tively
Allow aut o switching and defeat
front panel input selec t i on
2A
When front panel switch press ed, the LED
fast bli nking 3 ti m es
2A (auto s w on,
front panel sw off)
Defeat front panel input selection
0A
When front panel switch press ed, the LED
fast bli nking twi c e
Allow front panel i nput selec t i on
1A
Query loc al i nput st atus
s
Send all 3 groups of stat us to " s" c om m and,
only one group of status t o the one jus t
changed
Query front panel switc h stat us
A
Email: [email protected]
Phone: +1 (949) 654-2047
Address: Irvine, CA, USA
power off command via RS-232 ports of both THB-350 and RHB-350 with a set delay time (1 to 60
minutes) after the last input signal disappears; and will send a display power on command as soon as
the first input signal detected, and will automatically select that input. The switcher uses one RS-232
port to connect both external host (optional; only required for setup) and display in parallel with the
display in “listening” mode only (only display’s Rx pin connected). Here’s the wiring diagram:
Use the “2{xxx}R” and “1{yyy}R” commands listed in next page to setup the display power on and off
commands respectively, then use the “1*zR” command to enable the display power control feature
while setting the power off delay time at “z” minutes. Use “0R” command to disable the display power
control feature. Once setup finished, the external host is not needed for daily operations. The system
reset command “r” will not erase the stored display power on and off commands, but will disable the
display power control feature (factory default).
Support: Please contact your reseller directly for local support; or Luxi using the contact info in the
header. See Luxi website for additional and more updated documents.
See Luxi website for more commands
Document name: THB-350 quick start guide Revision: 1.01 Date: 7/19/2017
Specifications are subject to change without notice
Page 4
Website: www.luxielectronics.com

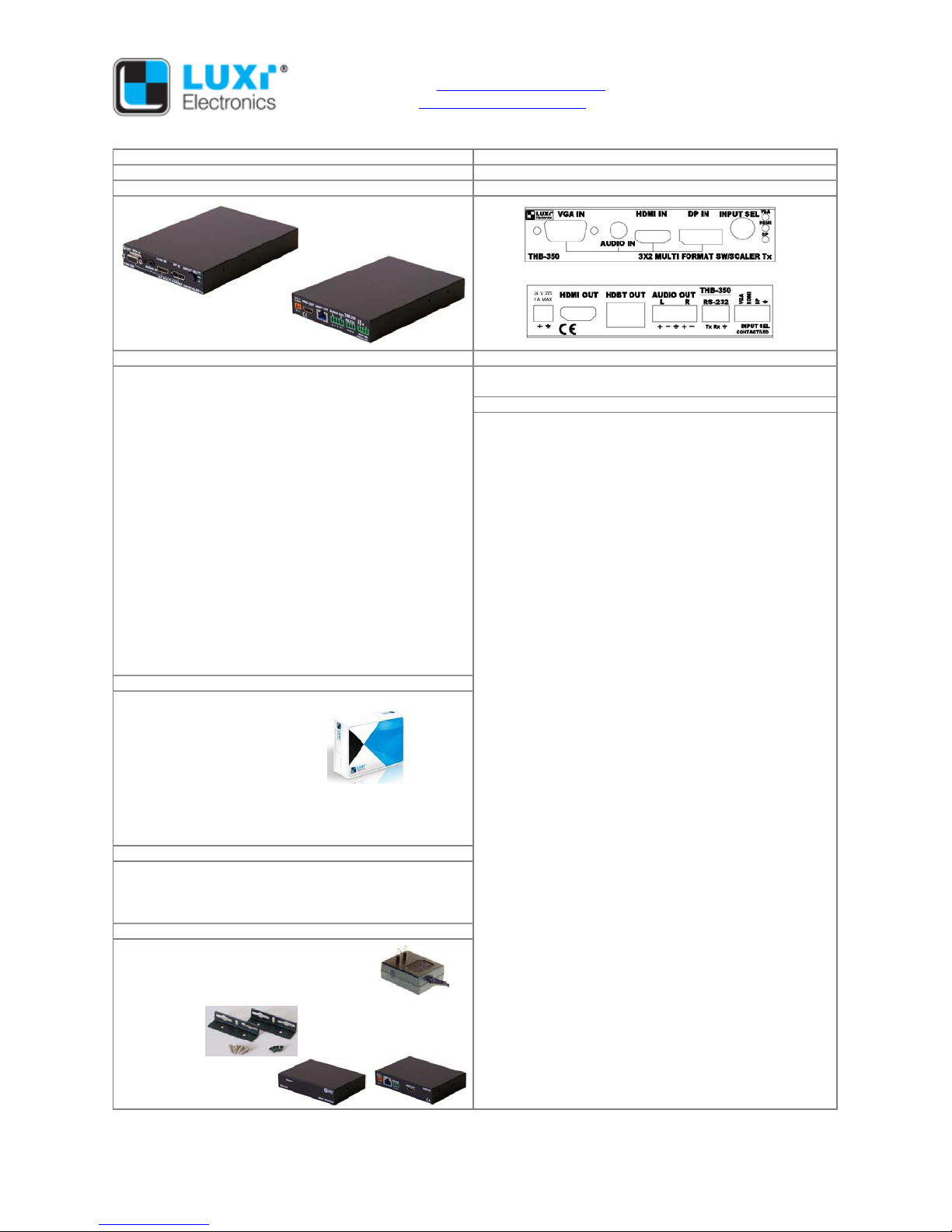

Product Specifications
Part Num ber: 74-040-01
VGA / HDM I/DP /audio 3x 2 swit cher scaler Tx
Model: THB-350 (Tx)
Product Image
Product Drawing
Features and Benefits Mechanical
> Universal int erfac e, com patible wi th all source signal format s Enc l osure mat erial : steel
> World's smal l est hi gh performanc e al l purpose si gnal
Enc l osure si ze: 4.29” x 1.00” x 6.00” (10.9 x 2.5 x 15.2 c m )
converter, s caler, switcher, spli t ter, m i xer, HDCP compl iant
Electrical
> V GA , HDMI, DP i nput , auto swit ch or front panel, RS -232,
Video signal path: There are 3 video input s and 2 video outputs .
cont act control l abl e with dis crete i nput LED indi cat ions The analog RGB video from the V GA input goes to the
> Configurable display power cont rol s via RS-232 enables sc al er's anal og i nput; the Dis playP ort (DP ) input s ignal i s
fully auto operati on systems wi t hout any 3rd part y c ontroller
first converted to HDMI, then swit ched wit h t he HDM I input
> Independent anal og audi o i nput , can be coupled with any signal , the selected signal goes to the digital i nput of t he
video input , m i xed wit h audi o de-em bedded from HDMI or DP
sc al er. The scal er converts all video to LV DS , feeds t o a
output s to bal / unbal anal og output, or embedded t o HDMI
HDMI encoder, then to 1 HDMI and 1 HDBT output
> Dual m i rrored out put s, HDB T for big screen/projector and VGA i nput: 0. 7 Vp-p analog RGB HV , 75 ohm i m pedance
HDMI for local moni tor, with or wit hout OSD or screensaver,
HDMI input: HDMI 2. 0, 4k 30 Hz, max 10.2 Gbps
enable monitor sl eep/wake up (energy saving)
DP input : DP 1. 3, 4k 30 Hz, m ax 10.2 G bps
> Unique RS -232 c ontrolled pi cture zoom (out ) adj ustm ents
Video processing: 36-bi t decoding, sam pl i ng, 225 MHz cloc k
> HDBT output sending signals up to 70 m (235') wit h POC Video input resolut i on range: from 800x600 to 1920x1200
> RS-232 selec table video resolut i ons of com m on 16: 9, 16:10, Scaled video output resolut i on presets: 720p, 1080p, 1280x800
4:3 or pixel t o pi xel modes 1920x1200, 1024x768, 1280x960, 1600x1200, pixel to pix el
> High effic iency fanless design for ult i m ate reliabi l i t y
HDBT output: up to 70 m (235') wit h Cat 6 cable; P O C 24 V
> Rac k mount abl e, under-table mountable, above-project or Audio s i gnal pat h: There are 3 audio inputs and 3 audi o
mountabl e m etal enc l osures output s. The digit al audi o em bedded i n HDMI and DP inputs
Package
are selected by a HDMI swi t cher, then goes to the sc al er.
One piec e i n one c ol or cardboard box; with capt i ve screw The scaler produces both SPDIF digit al audi o and de
plugs and qui ck start gui de -embedded analog audio. The latt er is mi xed wit h t he anal og
no power supply
audio input and goes to the bal/ unbal anal og audi o out puts,
and a analog to di gi t al converter. The HDMI encoder can
select t hi s mi x ed audi o, or the di gi t al audi o from HDMI/ DP
and directly pass i t thru to HDMI and HBDT output s.
Box siz e: 7.4” x 6.1” x 1.1” (18. 9 x 15.4 x 2. 8 c m ) Analog audi o i nput : stereo on 3.5 m m m i ni j ack, nomi nal
Wei ght: package, 1.1 l b (0. 49kg); product, 0.97 l b (0. 44kg) level -10 dBV (316 mV ), max +3.5 dBV (1. 5 V), 22k ohms
20-pc box siz e: 12.4" x 11. 6" x 9.4" (31.5 x 29.5 x 24.0 cm)
Analog audi o out put: stereo on 5-pi n 3. 5 mm c aptive screw
20-pc box wei ght : 23 lb (10. 5 kg)
connec tor, bal anced output nominal -4 dB V (632 mV ), un-
Connections balanced output nom i nal -10 dB V (316 mV ), 60 ohm s
Input connectors: 1 VGA, 1 HDMI, 1 DP, 1 mi ni j ack (audio) Audi o gai n: 0 dB (x1) t o unbal , +6 dB (x2) t o bal output
Output connec t or: 1 HDM I, 1 HDB T, (1) 5-pin CS (audi o)
Controls : Front panel but ton toggl e thru all 3 i nput s
Power connector: 2-pin 3. 5 m m capti ve screw rec eptac le RS-232 on 3-pin 3. 5 m m c aptive screw, 9600/8-N-1
Control c onnectors: (1) 3-pi n RS -232, (1) 4-pin contact Contac t port on 4-pin 3. 5 m m capti ve screw, di sc ret e pi n for
Other Rela te d Products
each input, dual func tion (s witc h t o select, LED for indic at i on)
Power suppl y, 100-240 V in on US pl ug, Power consumpt i on: 24 V DC, up to 1 A
24 V out , P/N 69-008-01 Optional power s uppl y: Not i ncluded. Luxi 69-008-01
Aut o s wi tchi ng 100-240 V AC input on US plug, 24 V DC
Under desk m ount , P/N 78-002-01
1 A max on bare wires , wal l ward type, UL, P SE, CE, F CC
Mounti ng: Not included. Luxi under desk m ount 78-002-01
com pat i bl e with s everal Extron and Middl e Atl ant i c mounts
Regulatory compl i ance
Safety: CE , cUL, UL (power s uppl y only )
HDBT Rx, P /N 74-037-01, EM I/ EMC: CE , FCC Cl ass A
model RHB-350 MTBF: 30, 000 hours
Warrant y: 3 years part s and labor
Email: [email protected]
Phone: +1 (949) 654-2047
Address: Irvine, CA, USA
Document name: THB-350 quick start guide Revision: 1.01 Date: 7/19/2017
Specifications are subject to change without notice
Loading...
