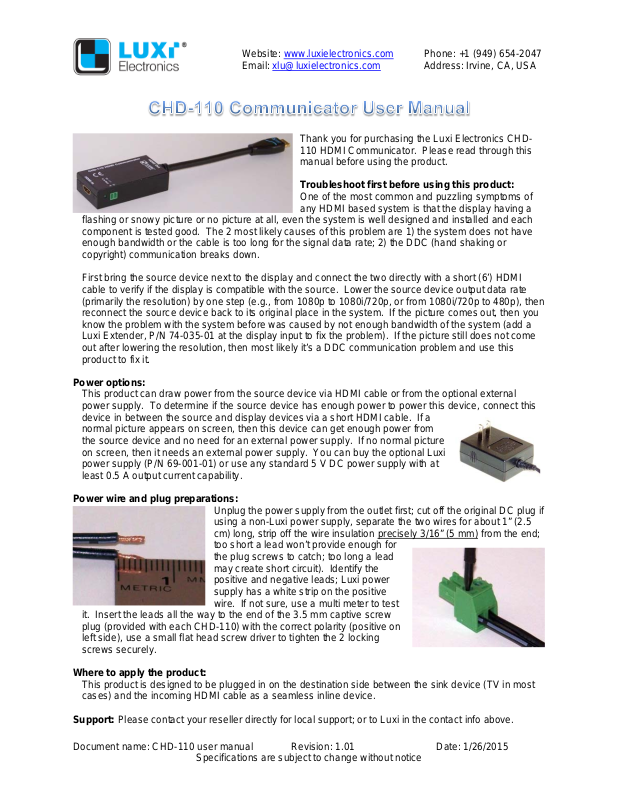

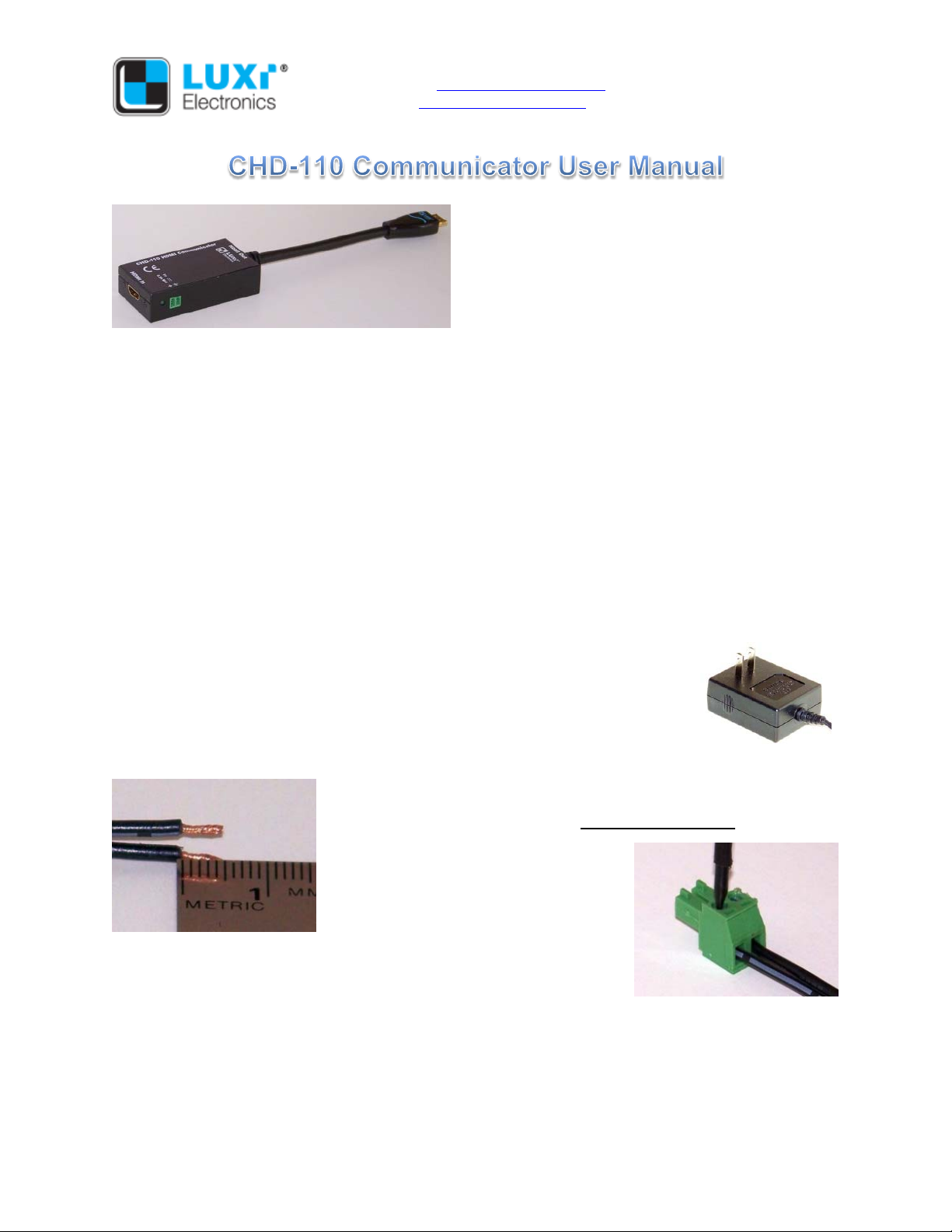

Luxi Electronics CHD-110 User Manual

Website: www.luxielectronics.com
Email: [email protected]

Phone: [phone]
Address: Irvine, CA, USA

Thank you for purchasing the Luxi Electronics CHD­110 HDMI Communicator. Please read through this
manual before using the product.

Troubleshoot first before using this product:

One of the most common and puzzling symptoms of

any HDMI based system is that the display having a
flashing or snowy picture or no picture at all, even the system is well designed and installed and each
component is tested good. The 2 most likely causes of this problem are 1) the system does not have
enough bandwidth or the cable is too long for the signal data rate; 2) the DDC (hand shaking or
copyright) communication breaks down.

First bring the source device next to the display and connect the two directly with a short (6’) HDMI
cable to verify if the display is compatible with the source. Lower the source device output data rate
(primarily the resolution) by one step (e.g., from 1080p to 1080i/720p, or from 1080i/720p to 480p), then
reconnect the source device back to its original place in the system. If the picture comes out, then you
know the problem with the system before was caused by not enough bandwidth of the system (add a
Luxi Extender, P/N 74-035-01 at the display input to fix the problem). If the picture still does not come
out after lowering the resolution, then most likely it’s a DDC communication problem and use this
product to fix it.

Power options:

This product can draw power from the source device via HDMI cable or from the optional external
power supply. To determine if the source device has enough power to power this device, connect this
device in between the source and display devices via a short HDMI cable. If a
normal picture appears on screen, then this device can get enough power from
the source device and no need for an external power supply. If no normal picture
on screen, then it needs an external power supply. You can buy the optional Luxi
power supply (P/N 69-001-01) or use any standard 5 V DC power supply with at
least 0.5 A output current capability.

Power wire and plug preparations:

Unplug the power supply from the outlet first; cut off the original DC plug if
using a non-Luxi power supply, separate the two wires for about 1” (2.5
cm) long, strip off the wire insulation precisely 3/16” (5 mm) from the end;
too short a lead won’t provide enough for
the plug screws to catch; too long a lead
may create short circuit). Identify the
positive and negative leads; Luxi power
supply has a white strip on the positive

wire. If not sure, use a multi meter to test
it. Insert the leads all the way to the end of the 3.5 mm captive screw
plug (provided with each CHD-110) with the correct polarity (positive on
left side), use a small flat head screw driver to tighten the 2 locking
screws securely.

Where to apply the product:

This product is designed to be plugged in on the destination side between the sink device (TV in most
cases) and the incoming HDMI cable as a seamless inline device.

Support: Please contact your reseller directly for local support; or to Luxi in the contact info above.

Document name: CHD-110 user manual Revision: 1.01 Date: 1/26/2015

Specifications are subject to change without notice

Website: www.luxielectronics.com
Email: [email protected]

Phone: [phone]
Address: Irvine, CA, USA

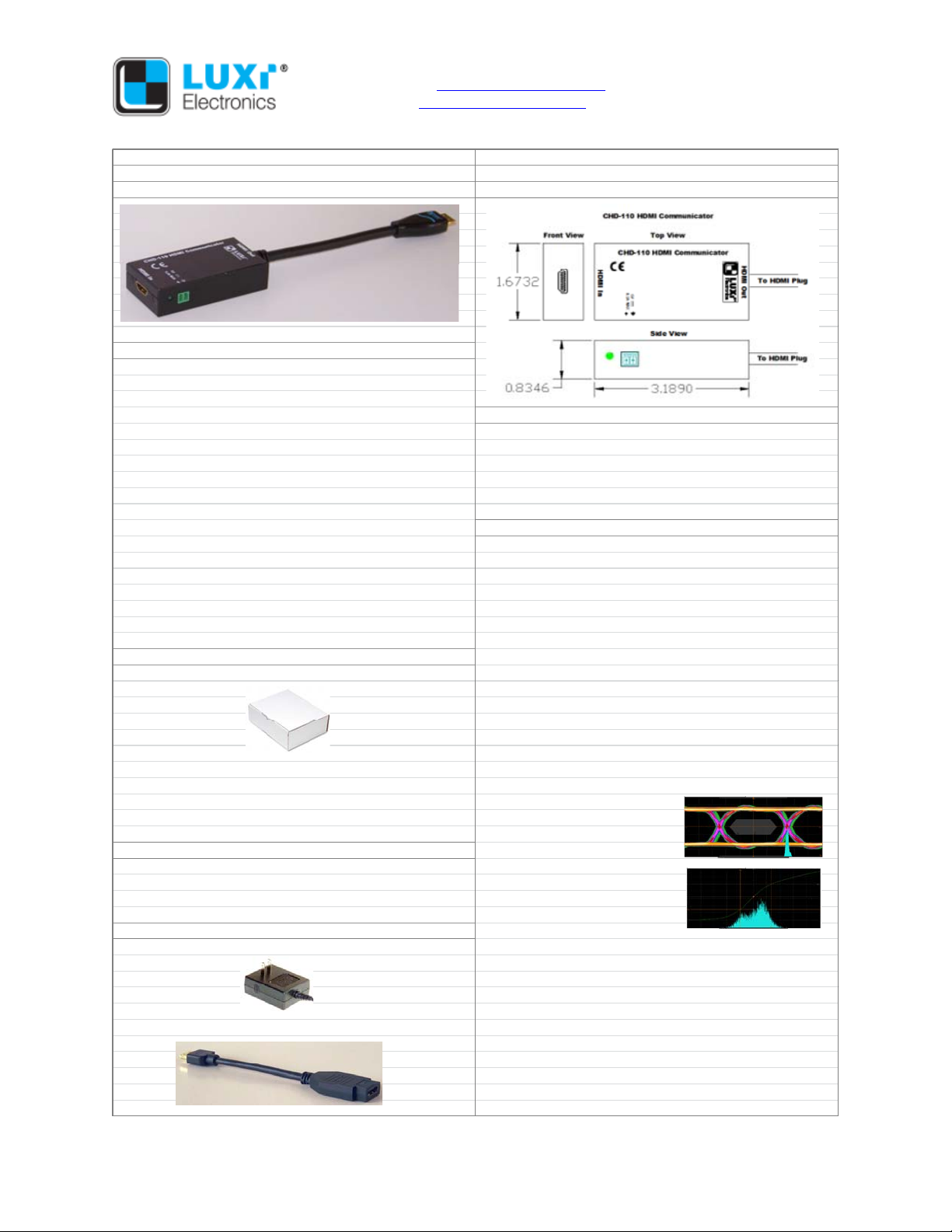

Product Specification Part Nu mber: 74-006- 01

HDMI Communicator , F-M pigtai l Model: CHD-110

Product Image Product Drawing

Featur es and Benefit s

> World’s f irst HDMI EDID and HDCP communicati on

problem solver

> Resolve the communication collisions by alteri ng data

timing and issuing new HDCP key

> No mounting needed; just plug it in-line between the cable Enclosure material: Aluminum

fr om the sourc e devic e and the sink devic e’s input Enclosure size: 3.2" x 1.7" x 0.8" (81 x 42 x 21 mm)

> External power is not always required; it draws power from Pigtail length (nec k to nec k): 4. 6" (118 mm)

sourc e device fi rst. I f not enough, then external power. Pigtail cable diameter: 0.3" (7. 4 mm)

> Luxi patented locking HDMI connector design on Overall plug height (with clamshell): 0.45" (11 mm)

both female input and male output to ensure sec ure Overall plug length (with clamshell): 2. 0" (51 mm)
connector mating

> Installers c an resolve virtually any HDMI sy stem issues by Supported Signal For mats

always carrying Luxi HDMI Extenders and Communicator s Maximum data rate: 6.75 Gbps (2.25 Gbps per color)

in their tool c ases Maximum pixel clock: 225 MHz
> HDMI 2.0 Deep Color, HEAC and 3D c ompatible Resolution range: Up to 1080p 36-bit @ 60 Hz, or 3D,
> HDCP 2.0 compliant or 4k @ 24 Hz
> CE and FCC compliant Video for mats: RGB and YCbCr digital video
> RoHS compliant Audio formats: Dolby TrueHD, DTS-HD Master Audio and

Package

1 piec e in one white cardboar d box; no power supply Standards: HDMI 2.0, D VI 1.0 ( with proper adaptors)

Box size: 8.2" x 5.6" x 2.5" (20.8 x 14.3 x 6.3 cm) TMDS cloc k jitter : 81 mTbit

Weight: pac kage, 0.47 lbs (0.21 kg); product, 0.15 lb ( 66 g) TMDS data jitter: 134, 131, 136 mTbit for D0, D1, D2 resp.

32-pc box: 21.1" x 17.4" x 12.7" (53.7 x 44.1 x 32.3 cm) TMDS cloc k rise ti me: 202 ps

32-pc box weight: 19 lb (8.6 kg) TMDS cloc k fall time: 186 ps

General

Input connector: 1 HDMI Type A female TMDS data fall time:

Output connector: 1 HDMI Type A male 111, 125, 113 ps f or D0, D1, D2

Power connec tor: 2-pin 3.5 mm captive screw receptacle Clock duty: 48.23 min, 48.54 max

Other Related Pro ducts

Power adaptor, 100-240 V in, 5 V out, US, P/N 69-001-01 D1/D2, 2 mTpixel

HDMI Extender, P/N 74-035-01, model EHD-111 Mounting: not needed; pigtail plugged into a display input

Mechanical

Electrical

all other HDMI audio formats

HDCP compliant: yes; rev 2.0, HDCP repeater
CEC compliant: yes
HDMI Ethernet compliant: yes
HDMI r etur n audio compliant: yes

Electrical test results (1080p 24-bi t 60 Hz results below)

TMDS data rise time:

116, 140, 123 ps for D0, D1, D2

Inter-pair skew: D0/ D 1, 1 mTpixel

D0/D2, 0.9 mTpixel

Power: 5 V DC, 0.3 A fr om source device or external power
Optional power supply:

Auto switching 100-240 V AC input on US plug, 5 V DC
2 A max on bare wires, wall ward type, UL, PSE, CE, FC C

Regulatory compliance

Safety: CE, CUL, UL (power supply only )

EMI/EMC: CE, FCC Class B
MTBF: 30,000 hours
Warranty : 3 years parts and labor

Document name: CHD-110 user manual Revision: 1.01 Date: 1/26/2015

Specifications are subject to change without notice
