LuxCam LDA-A720/4 User Manual

2 Mega Pixel

Water-Proof IP Camera

User Manual

Please read this instruction carefully for correct use of the product

Before use this product

 Before operation, we strongly advise users to read this manual and keep it

properly for using later.

 There may be several technically incorrect places or printing errors in this

manual. The updates will be added into the new version of this manual. The
contents of this manual are subject to change without notice.

 When this product is in use, the relevant contents of Microsoft, Apple and

Google will be involved in. The pictures and screenshots in this manual are
only used to explain the usage of our product. The ownerships of trademarks,
logos and other intellectual properties related to Microsoft, Apple and Google
belong to the above-mentioned companies.

IP CAMERA USER MUANUAL

Table of Contents

1 Introduction ......................................................................................................... 1

1.1 Summarization ......................................................................................................................... 1

1.2 Check Package Content ................................................................................................ ............. 1

1.3 Connection .............................................................................................................................. 1

2 Installation .......................................................................................................... 2

2.1 Install IP-CAM to Ethernet Network .................................................................................... 2

2.2 Install CMS ...................................................................................................................... 2

3 IE Remote Access ................................................................................................. 4

3.1 LAN ................................................................................................................................ 4

3.1.1 Access through IP-Tool ....................................................................................... 4

3.1.2 Directly Access through IE ................................................................................... 5

3.2 WAN ............................................................................................................................... 7

4 Remote Preview ................................................................................................... 8

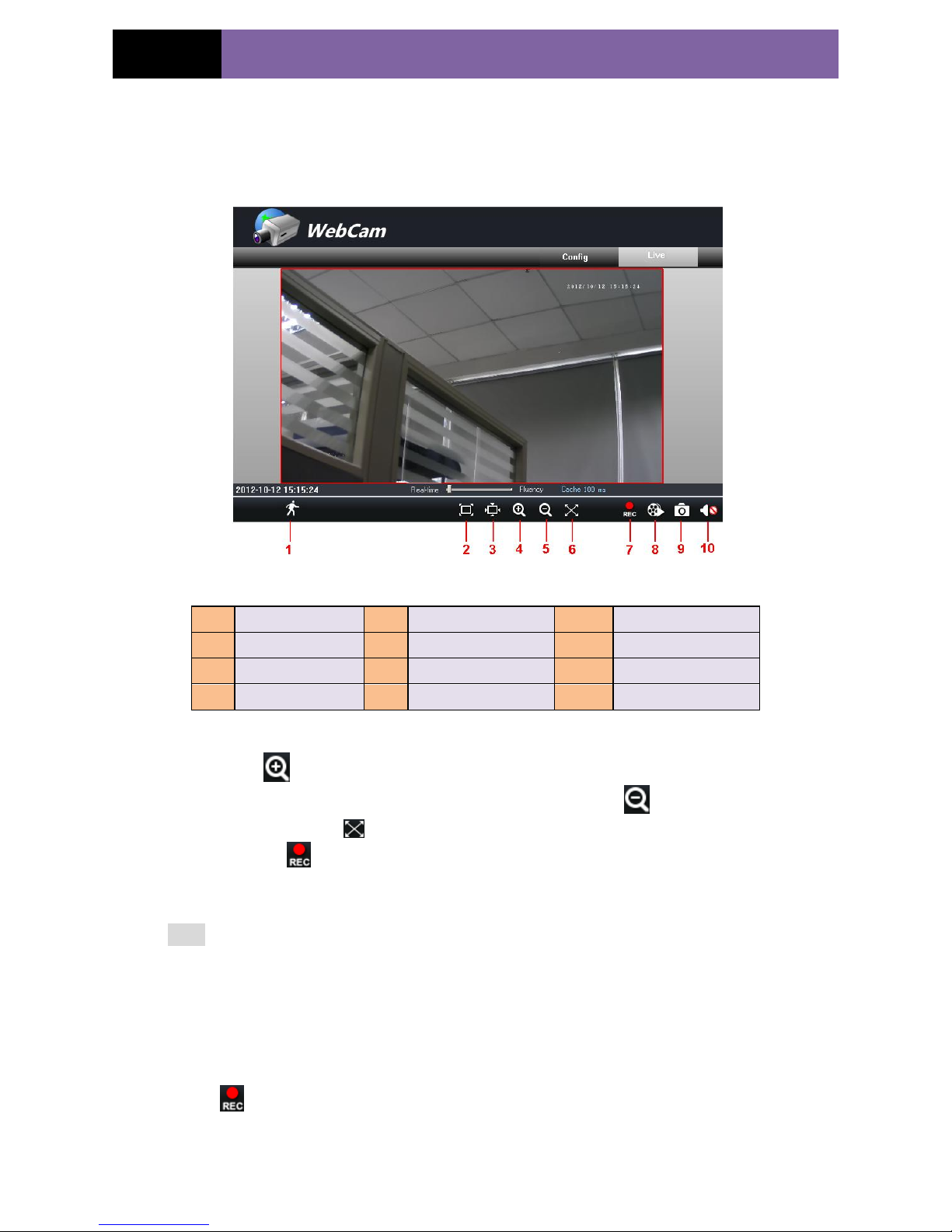

4.1 The Remote Preview Interface ............................................................................................ 8

4.2 Record Playback ............................................................................................................... 8

4.3 Right-click Function .......................................................................................................... 9

4.4 Snap Pictures .................................................................................................................... 9

5 Remote Live Surveillance ................................................................................... 11

5.1 System Configuration ...................................................................................................... 11

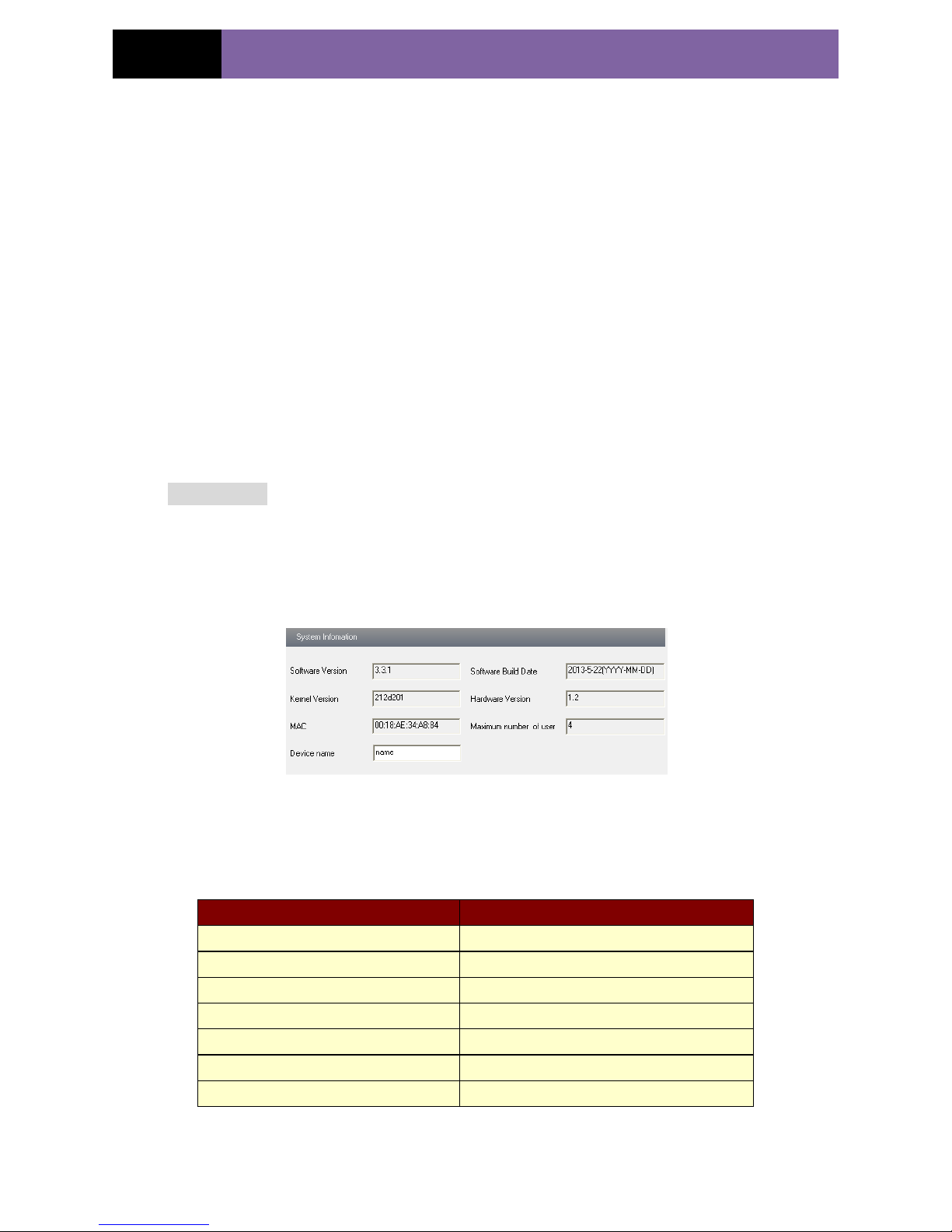

5.1.1 Basic Information ............................................................................................. 11

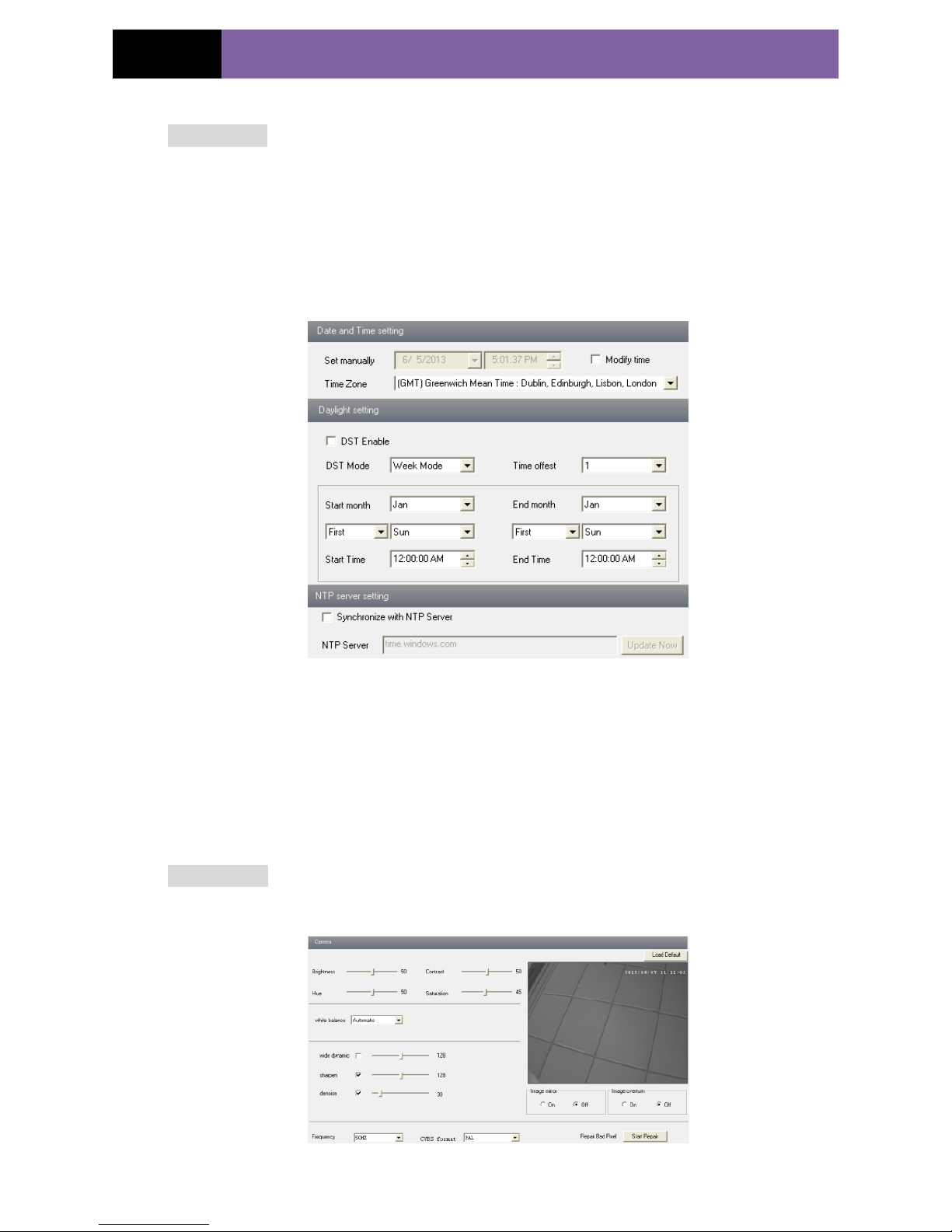

5.1.2 Date & Time Configuration ................................................................................ 12

5.2 Video Configuration ........................................................................................................ 12

5.2.1 Camera Configuration ....................................................................................... 12

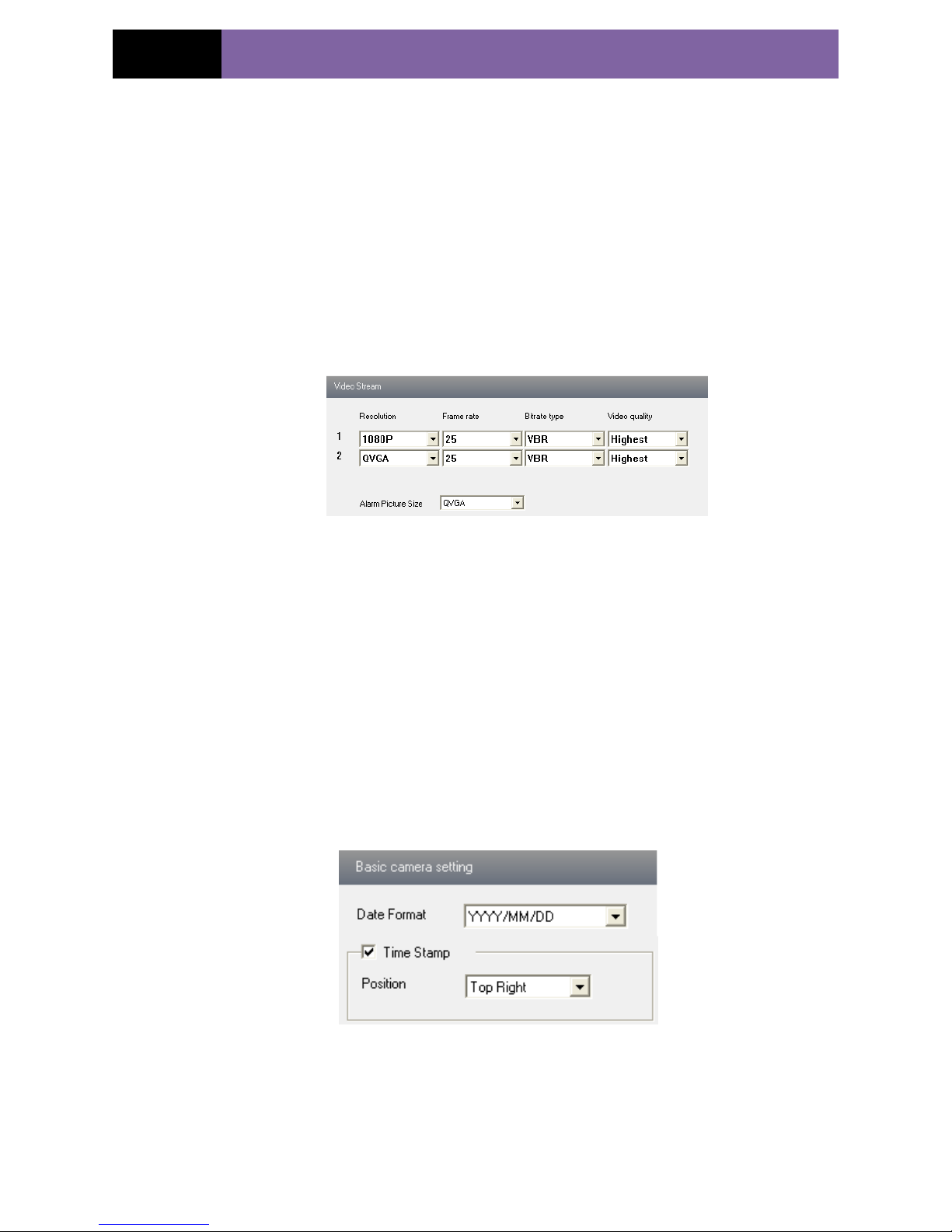

5.2.2 Video Stream ................................................................................................... 13

5.2.3 Time Stamp ..................................................................................................... 13

5.3 Alarm Configuration ................................................................................................ ........ 14

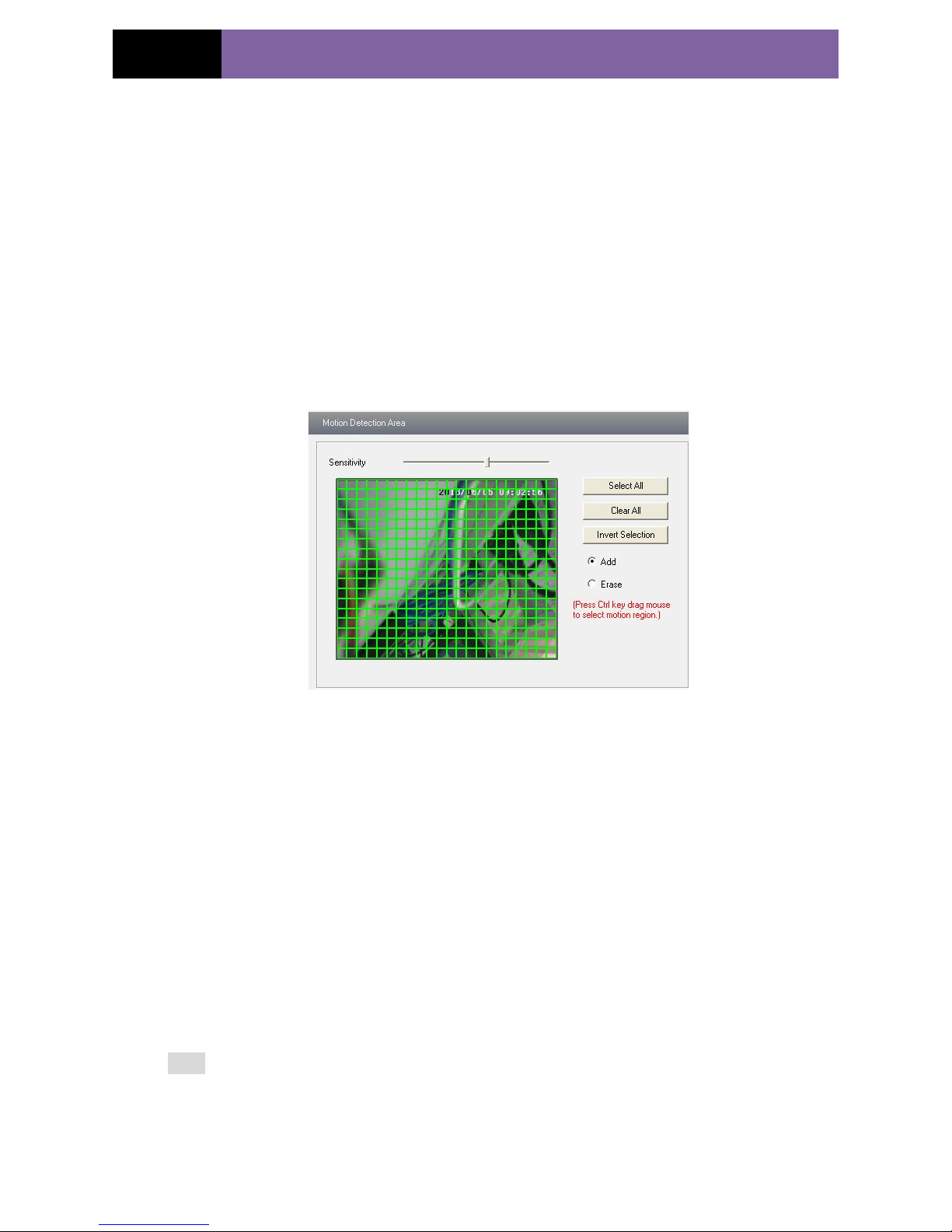

5.3.1 Motion Detection Area ...................................................................................... 14

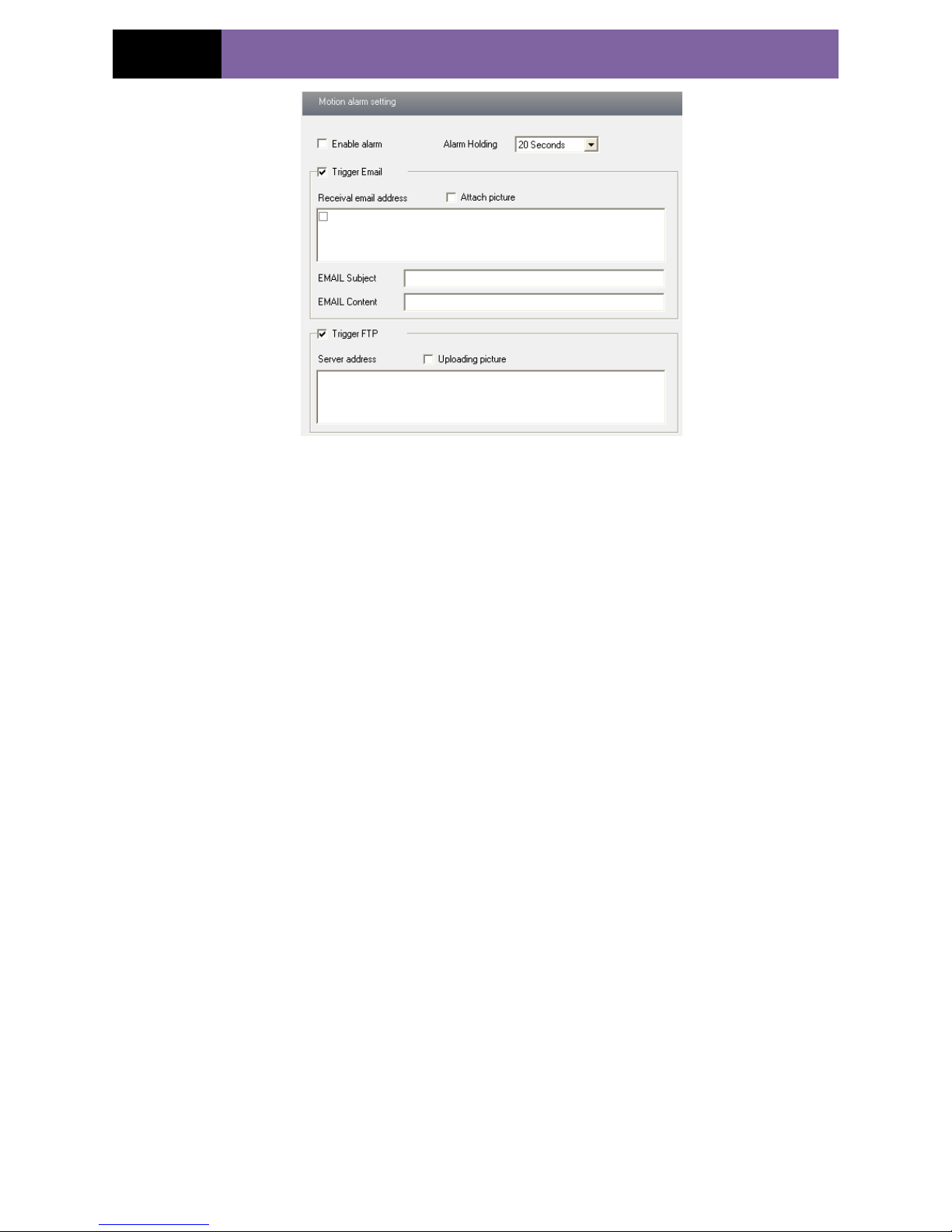

5.3.2 Motion Detection Trigger ................................................................................... 14

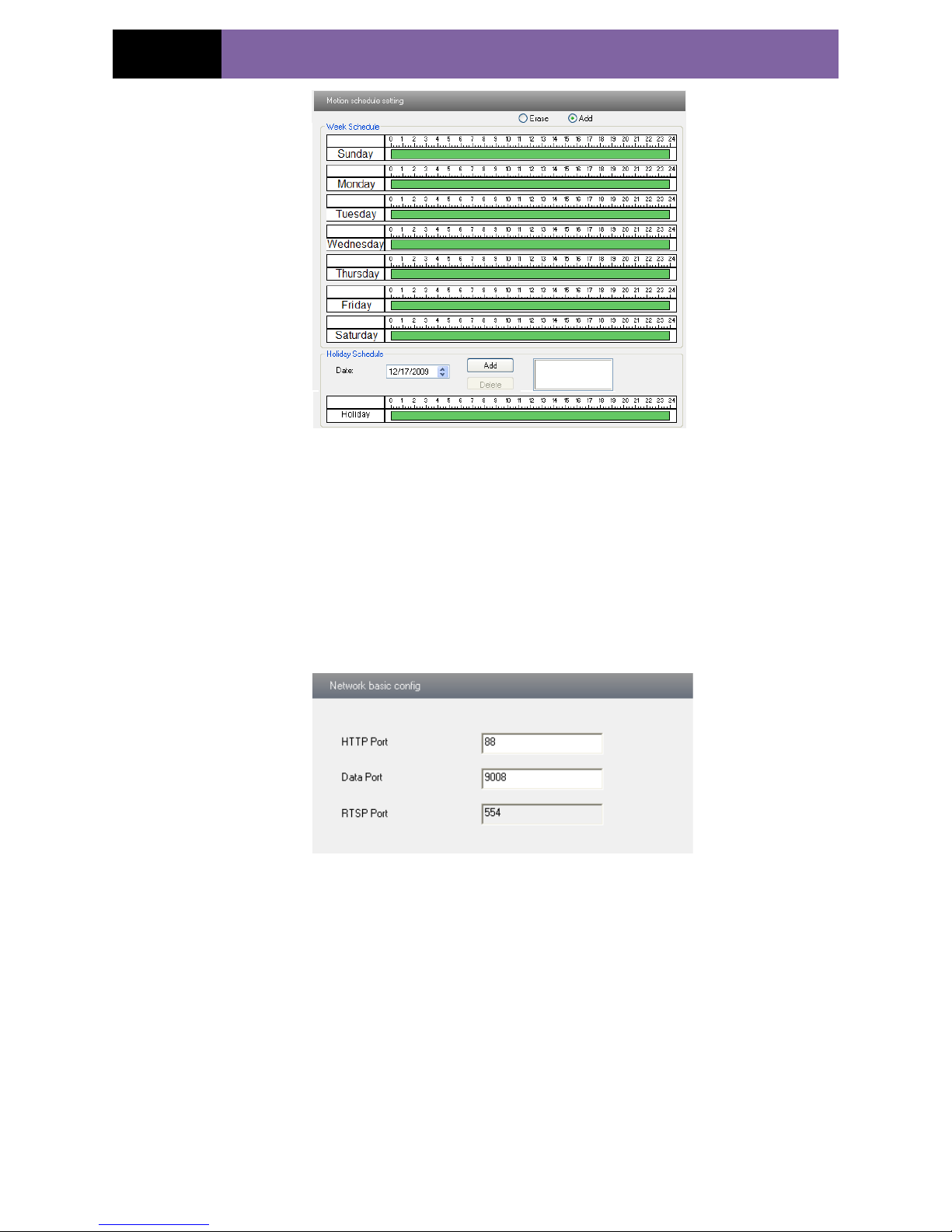

5.3.3 Motion Detection Schedule ................................................................................ 15

5.4 Network Configuration .................................................................................................... 16

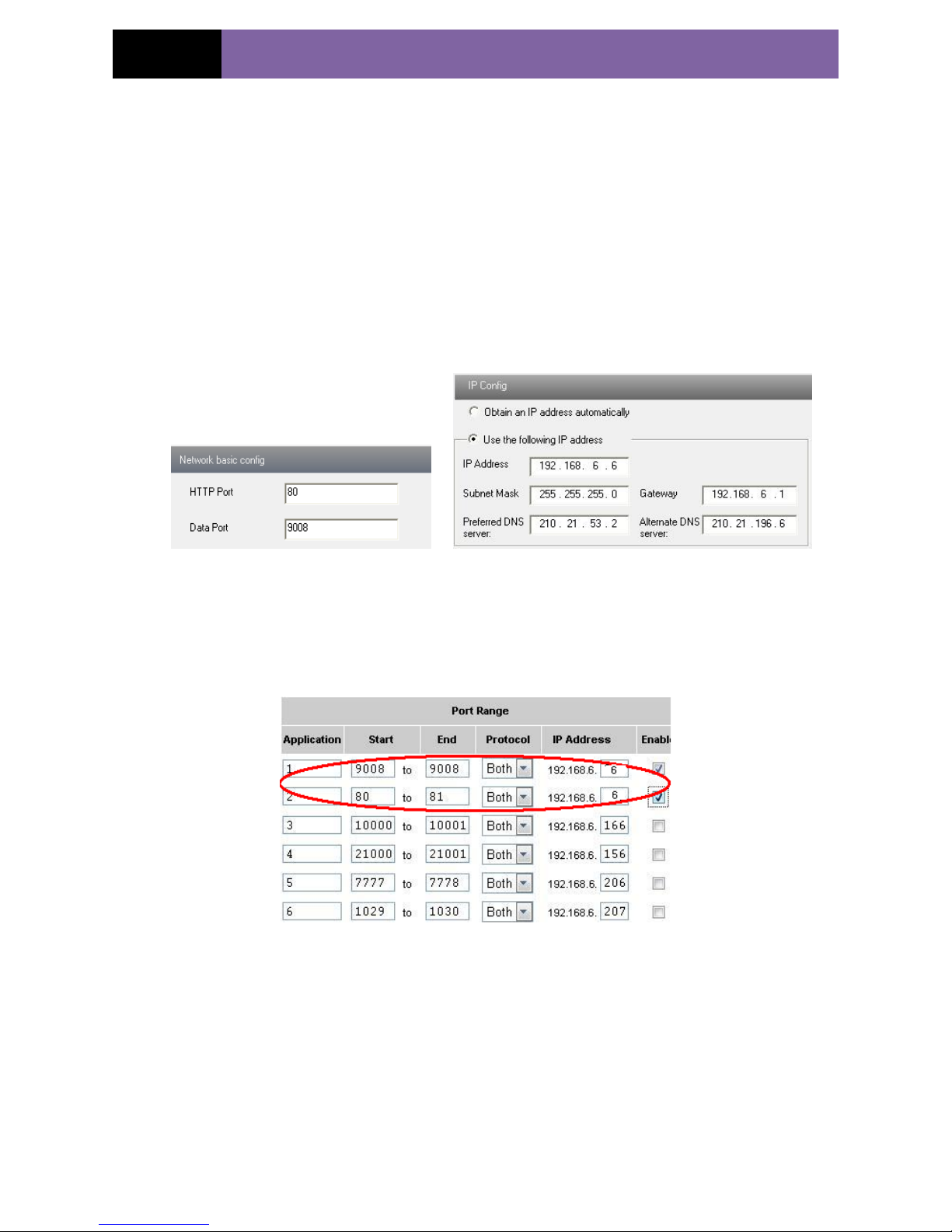

5.4.1 Port ................................................................ ................................................. 16

5.4.2 Wired .............................................................................................................. 16

5.4.3 NET Traversal Configuration.............................................................................. 17

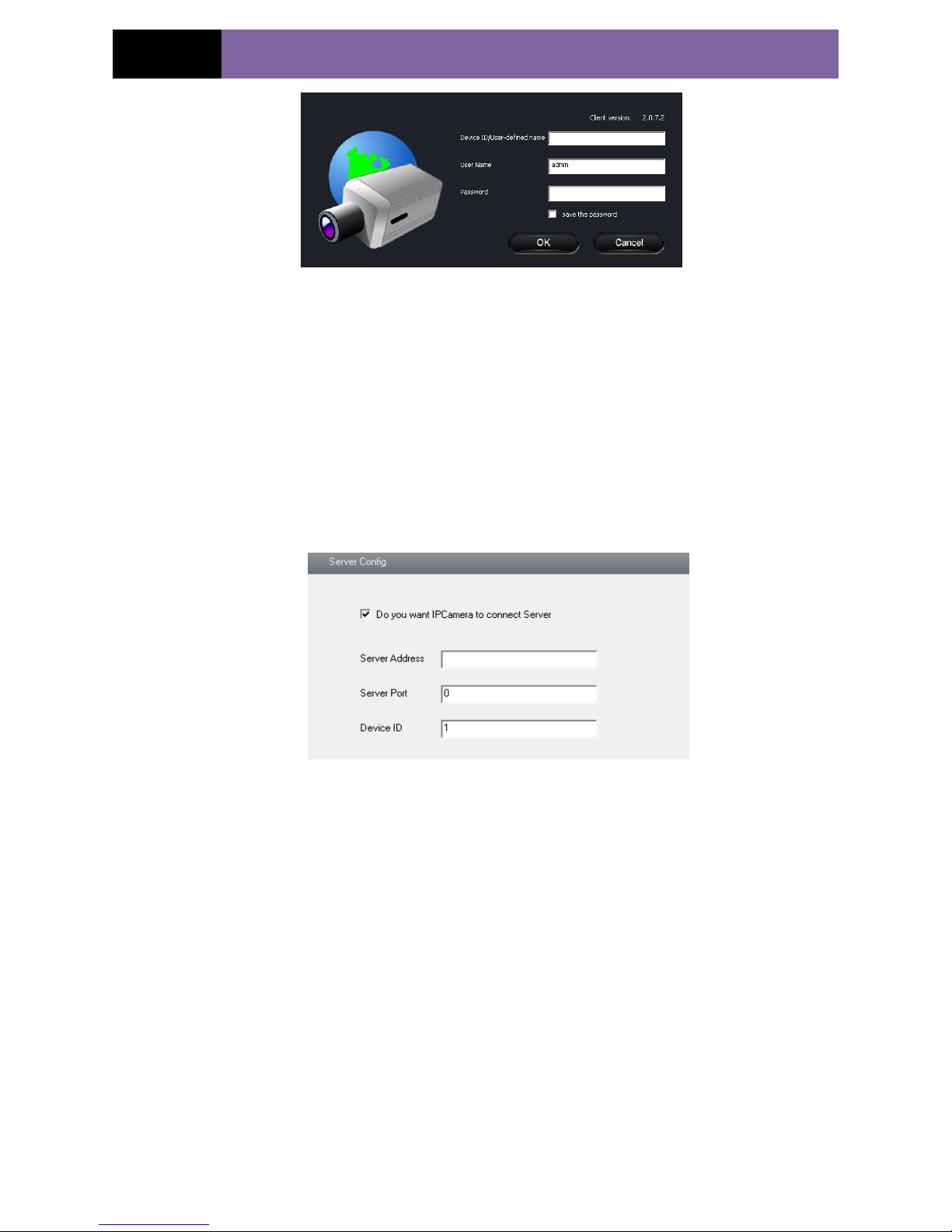

5.4.4 Server Configuration ......................................................................................... 18

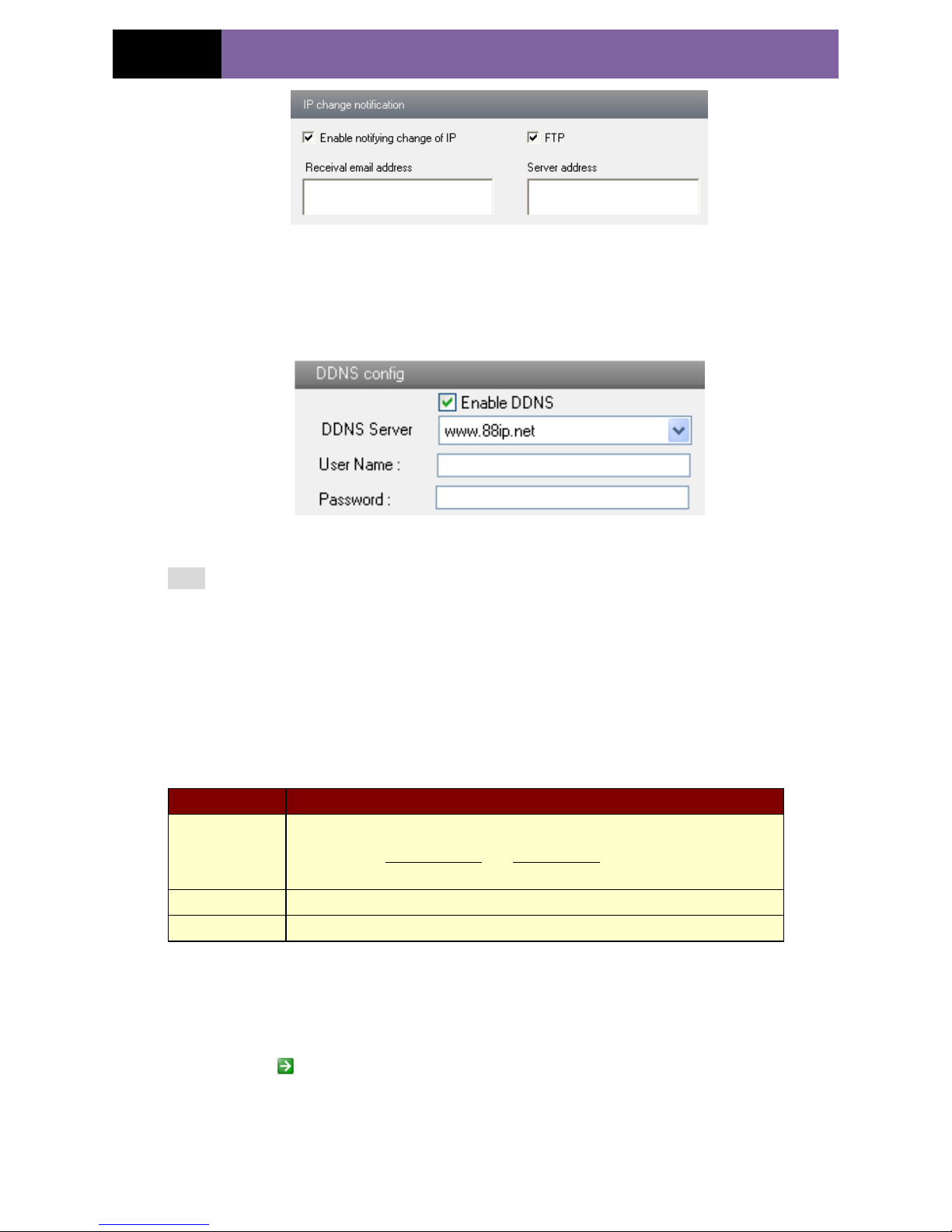

5.4.5 IP Notify ......................................................................................................... 18

5.4.6 DDNS Configuration ......................................................................................... 19

5.4.7 RTSP .............................................................................................................. 21

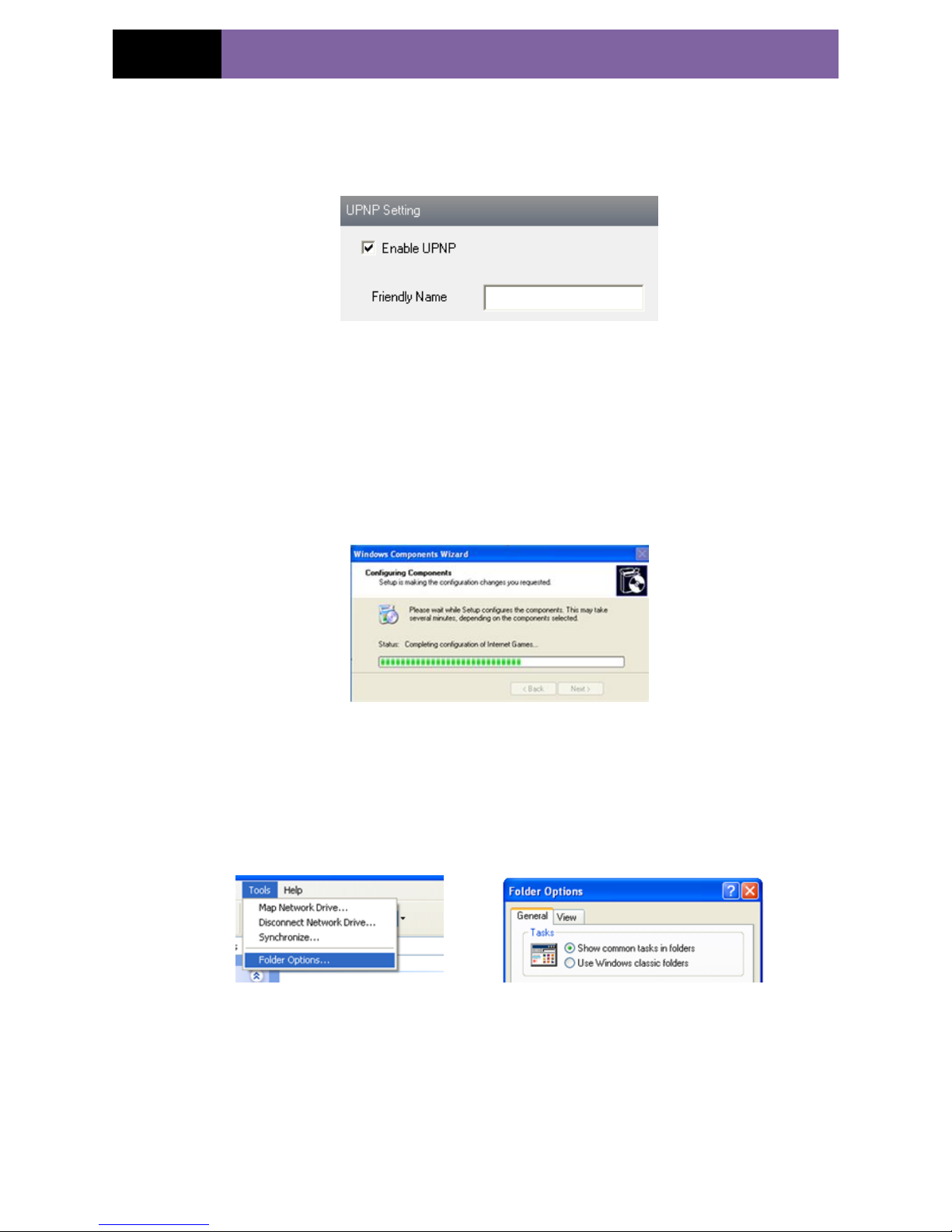

5.4.8 UPNP ............................................................................................................. 22

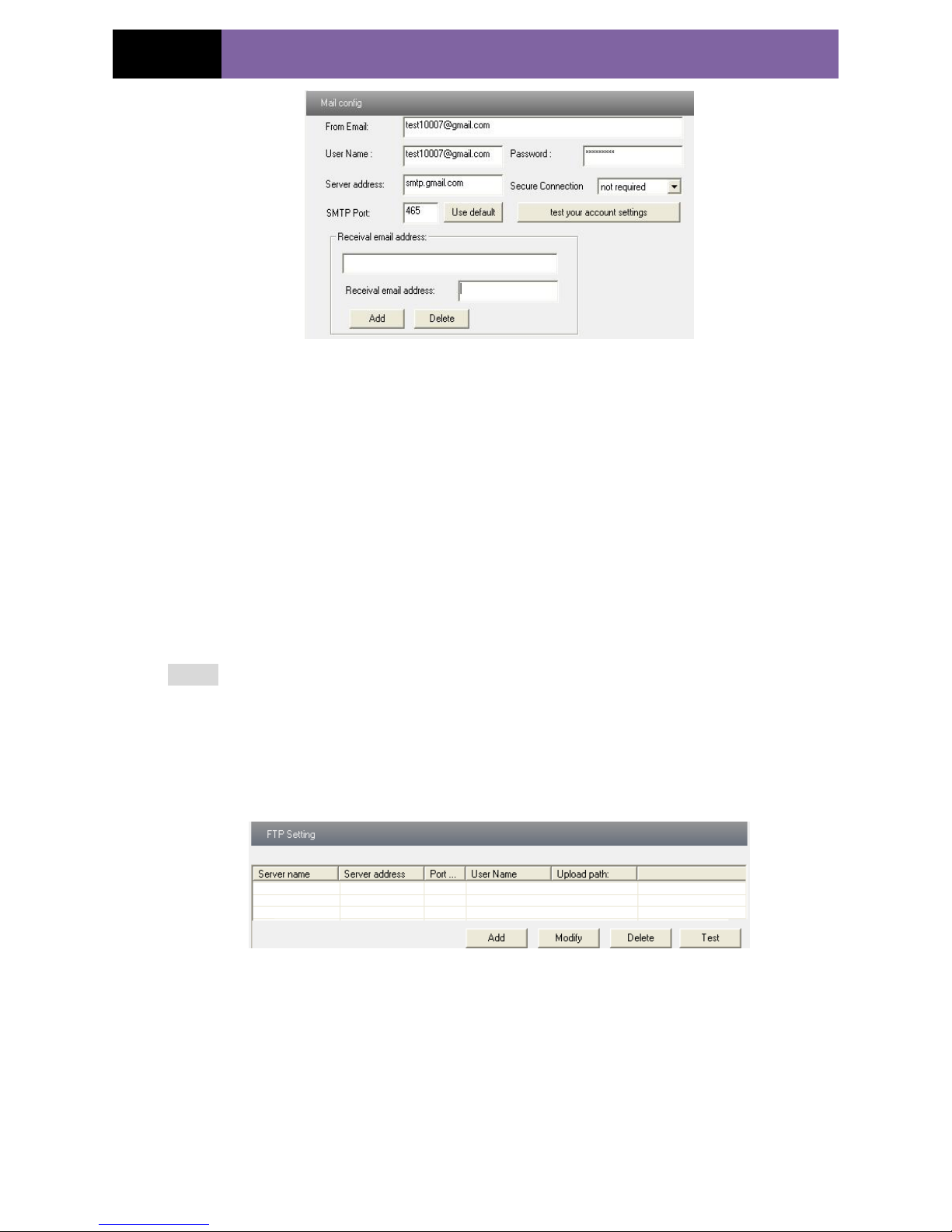

5.4.9 Mail Setting ..................................................................................................... 22

5.4.10 FTP ................................................................................................................ 23

5.5 Advanced Configuration................................................................................................... 24

5.5.1 User Configuration ........................................................................................... 24

IP CAMERA USER MUANUAL

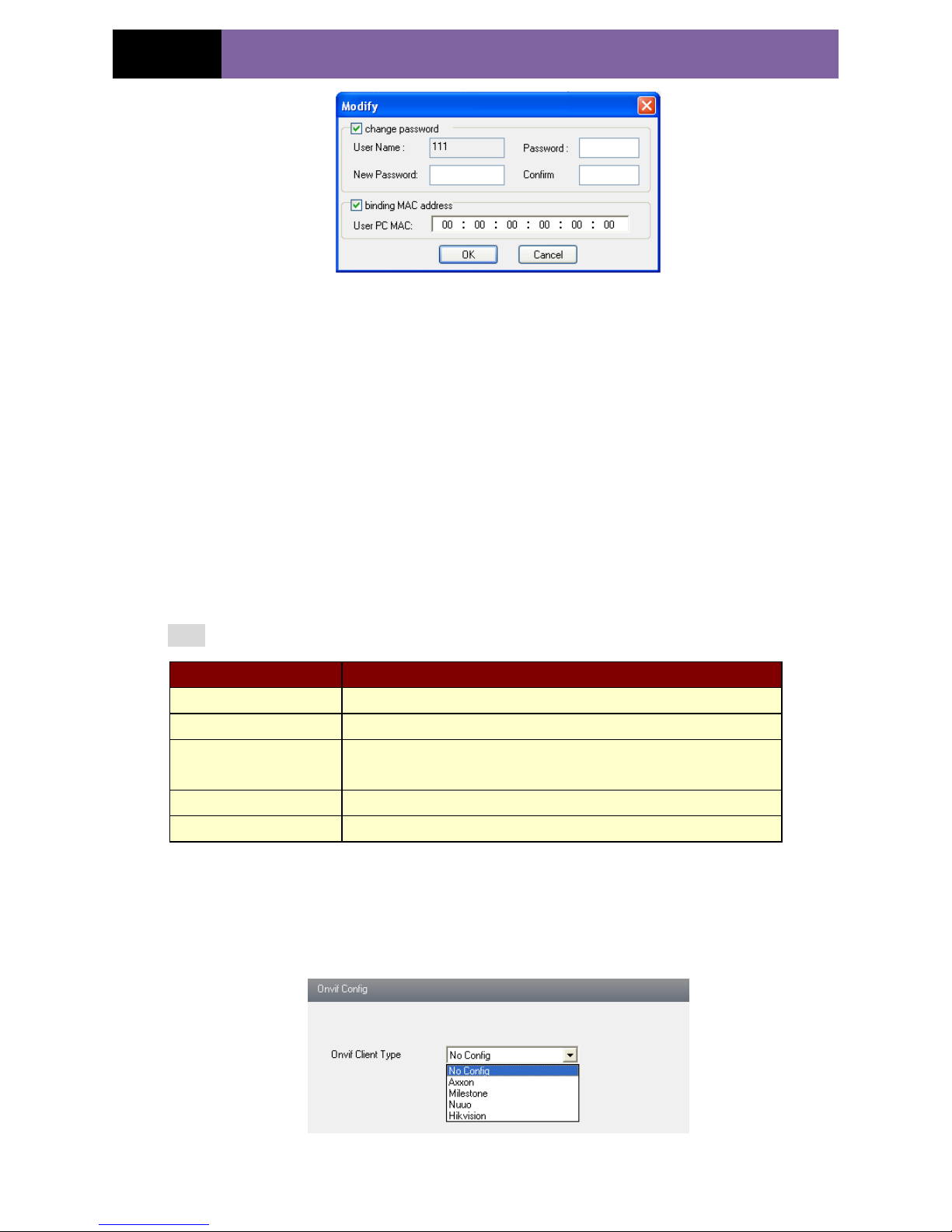

5.5.2 Onvif Configuration .......................................................................................... 25

5.5.3 Security Configuration ...................................................................................... 26

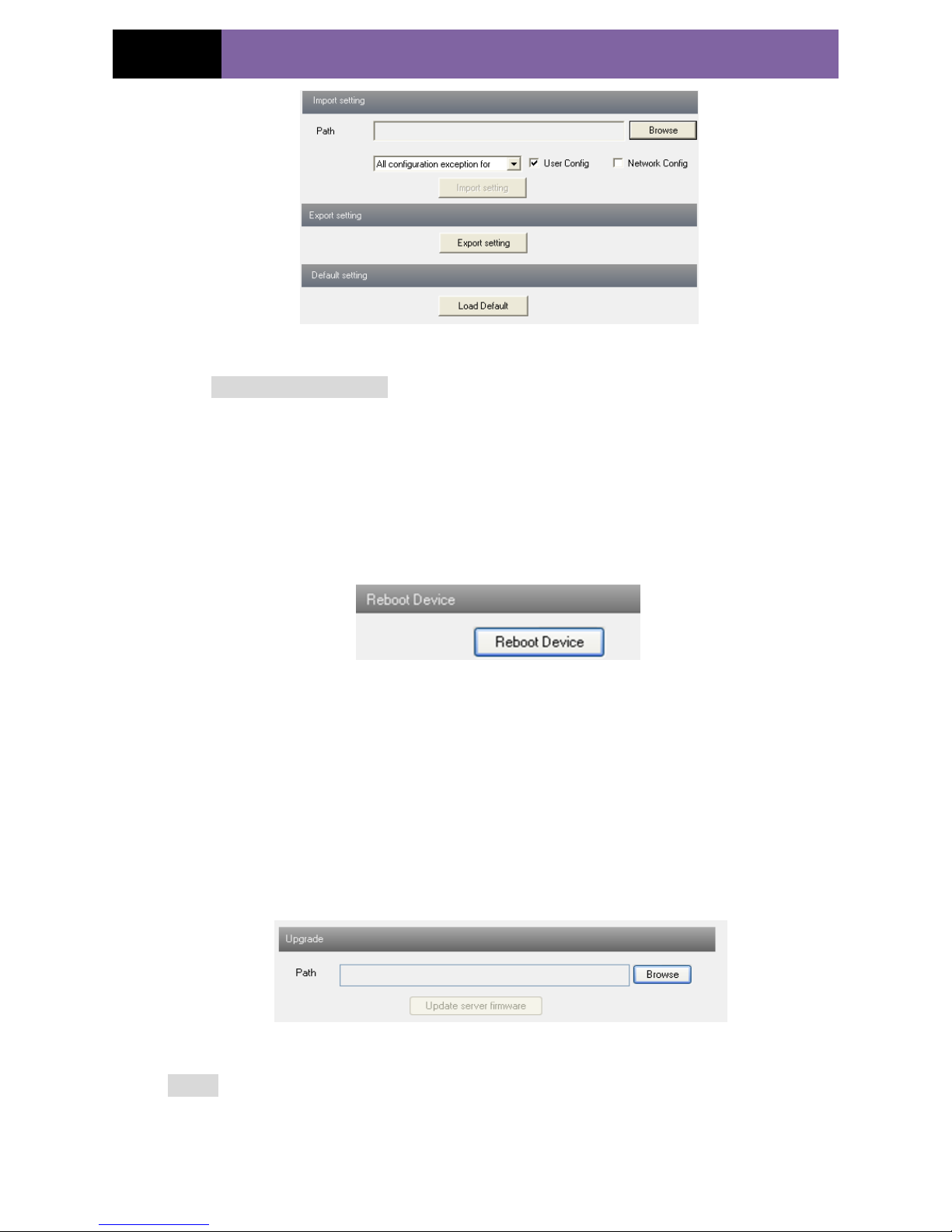

5.5.4 Configure Backup & Restore .............................................................................. 26

5.5.5 Reboot Device .................................................................................................. 27

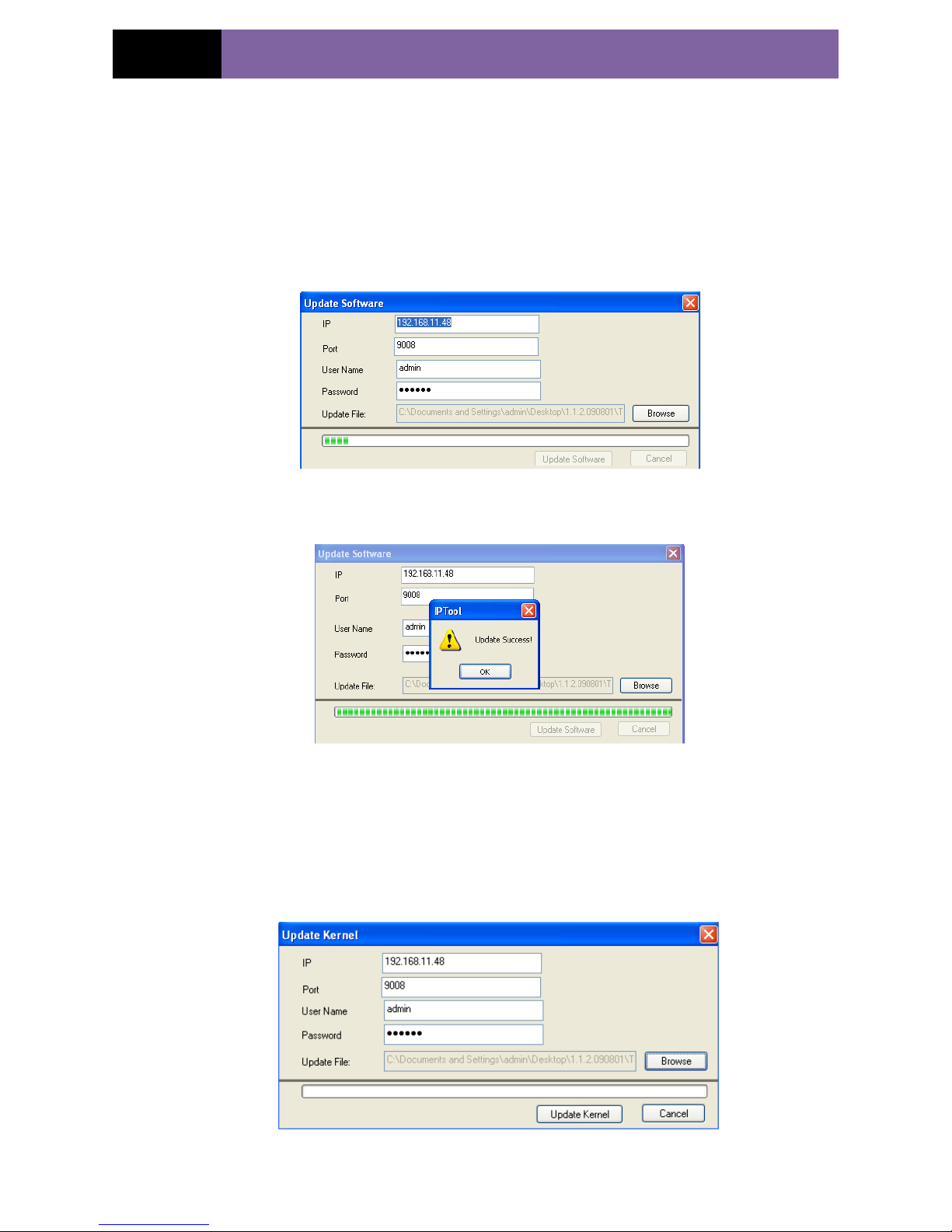

5.5.6 Upgrade .......................................................................................................... 27

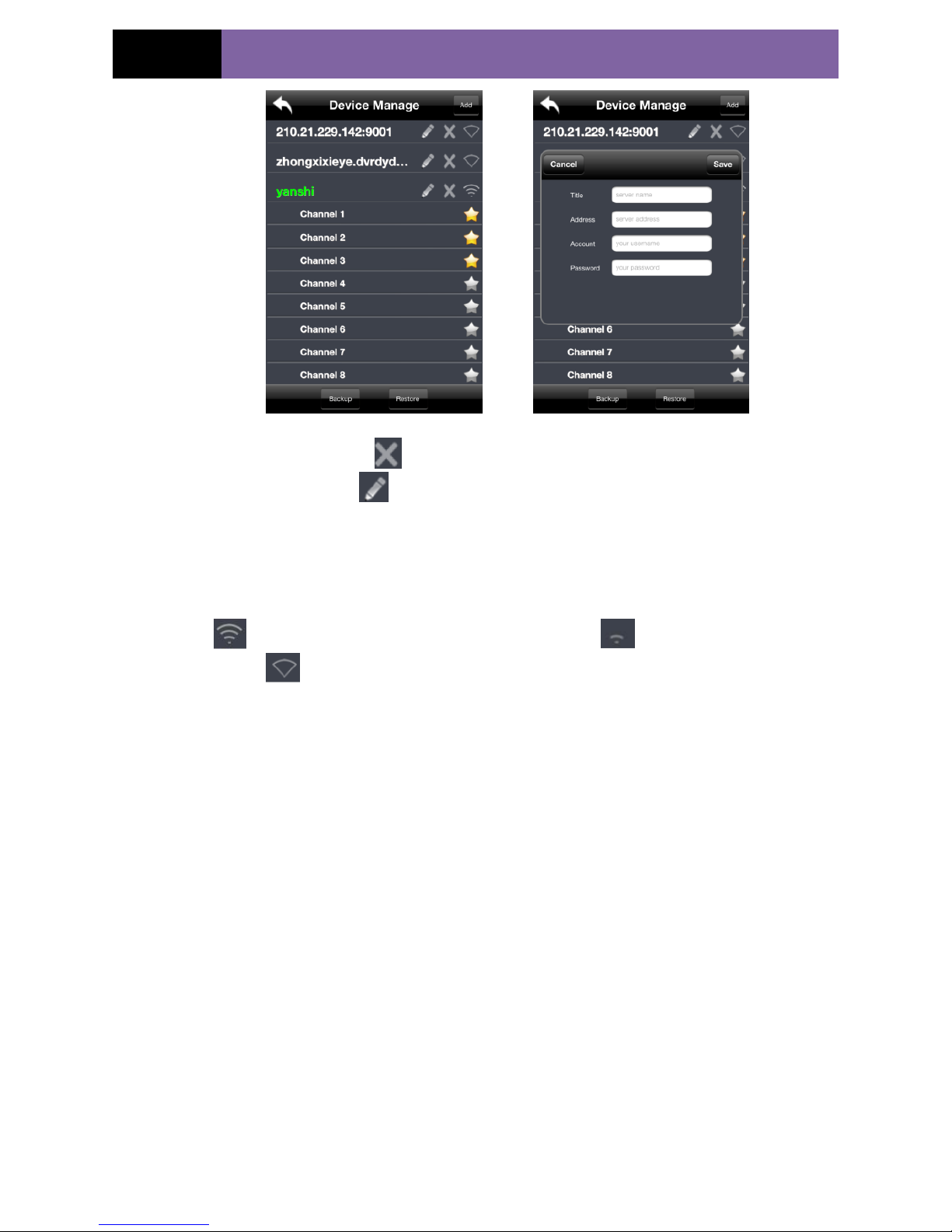

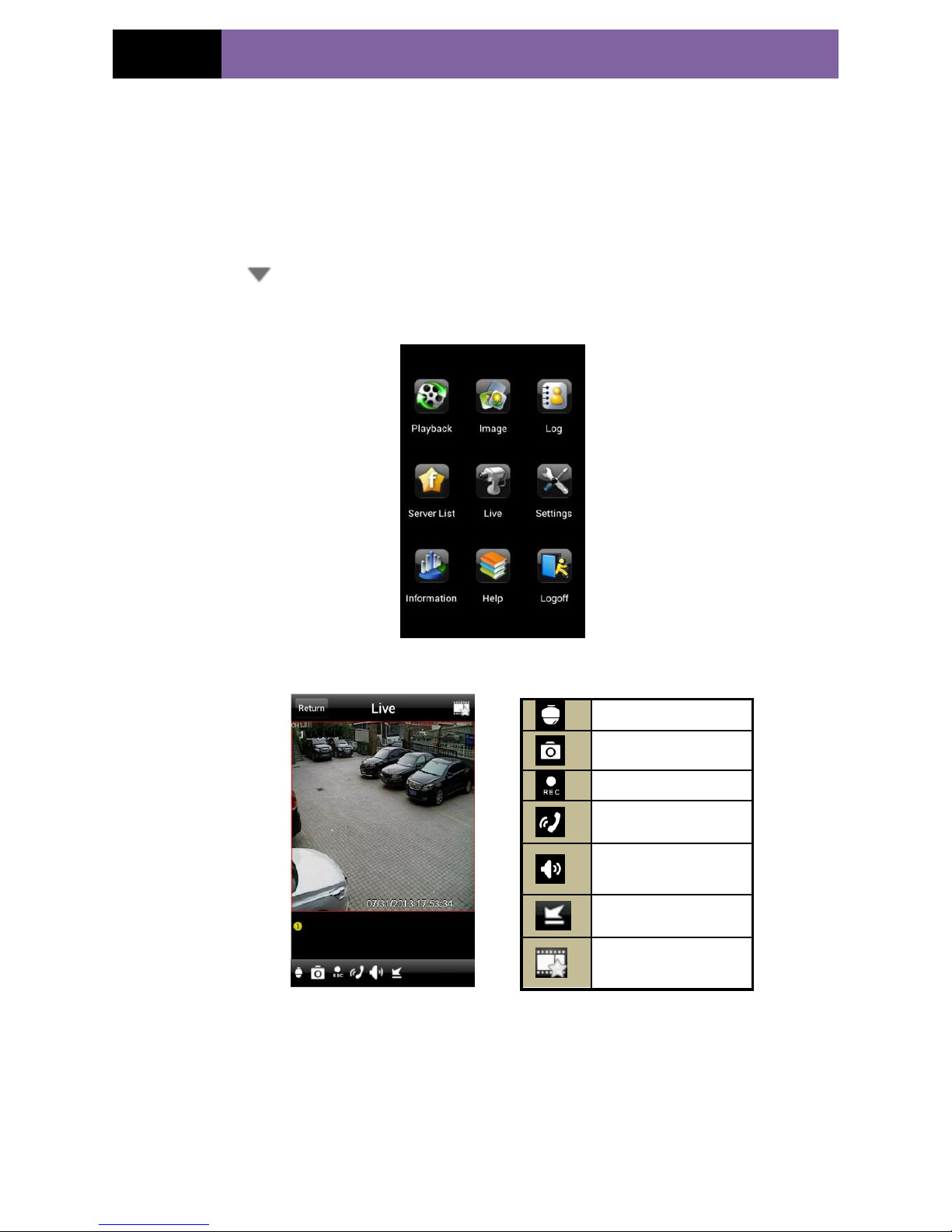

6 Mobile Surveillance ........................................................................................... 28

6.1 Network Configuration .................................................................................................... 28

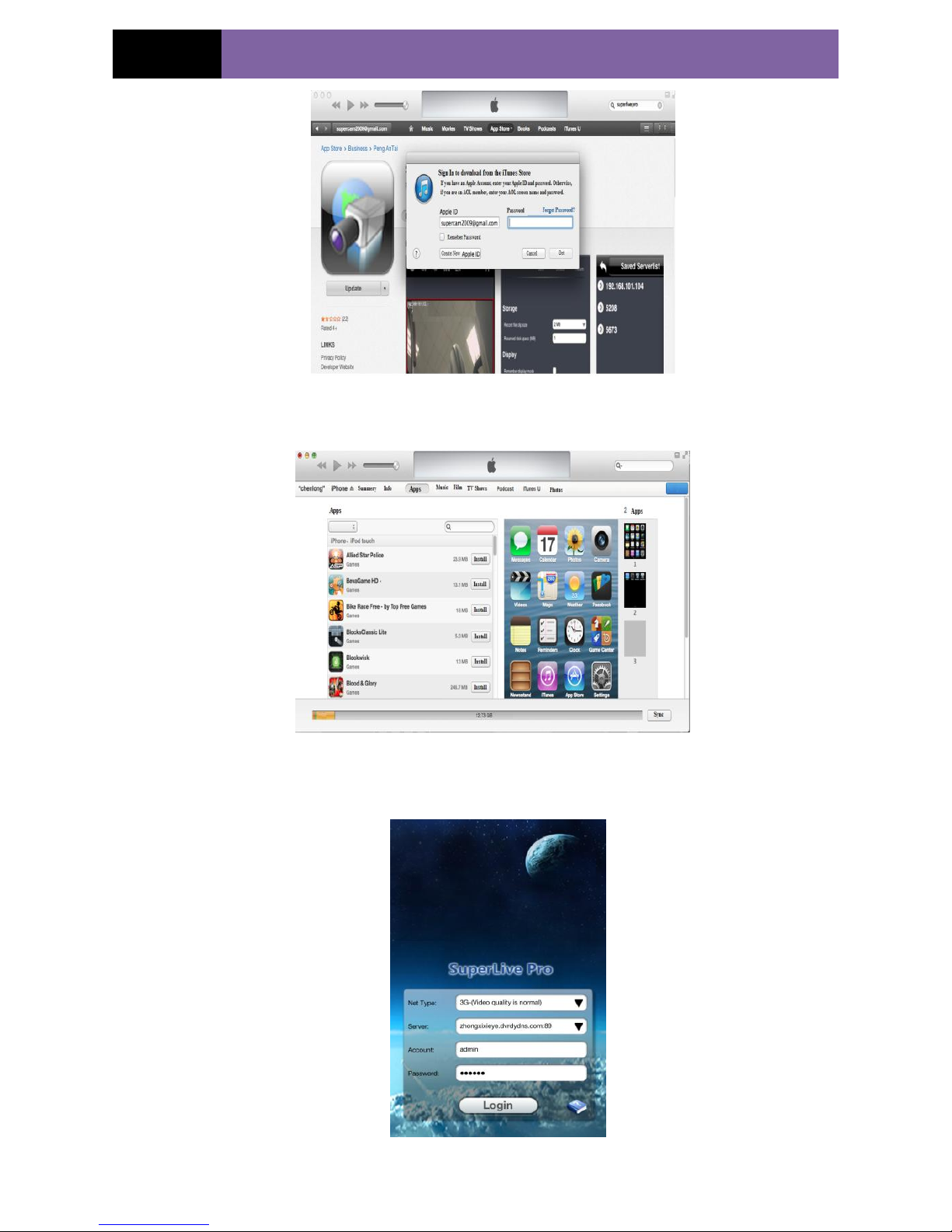

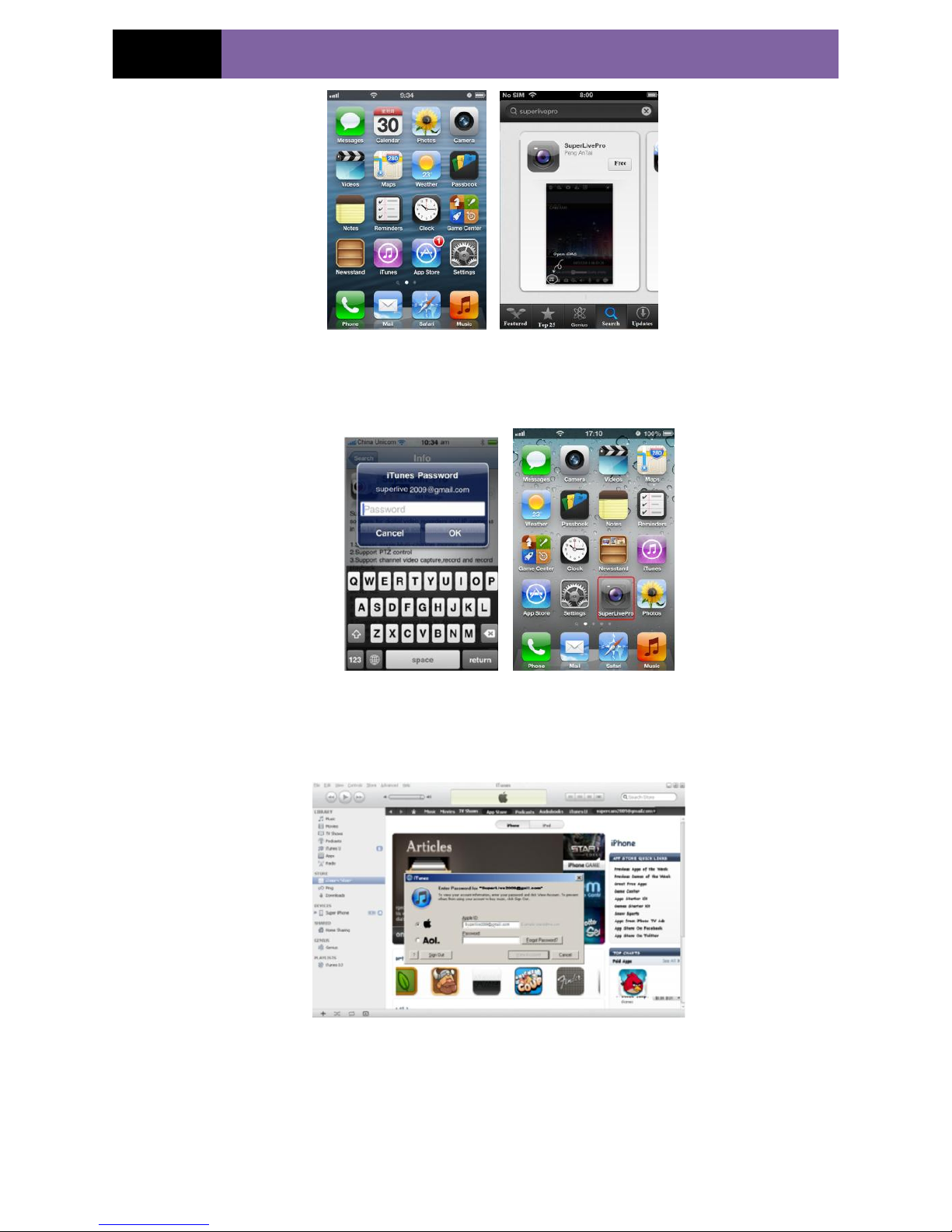

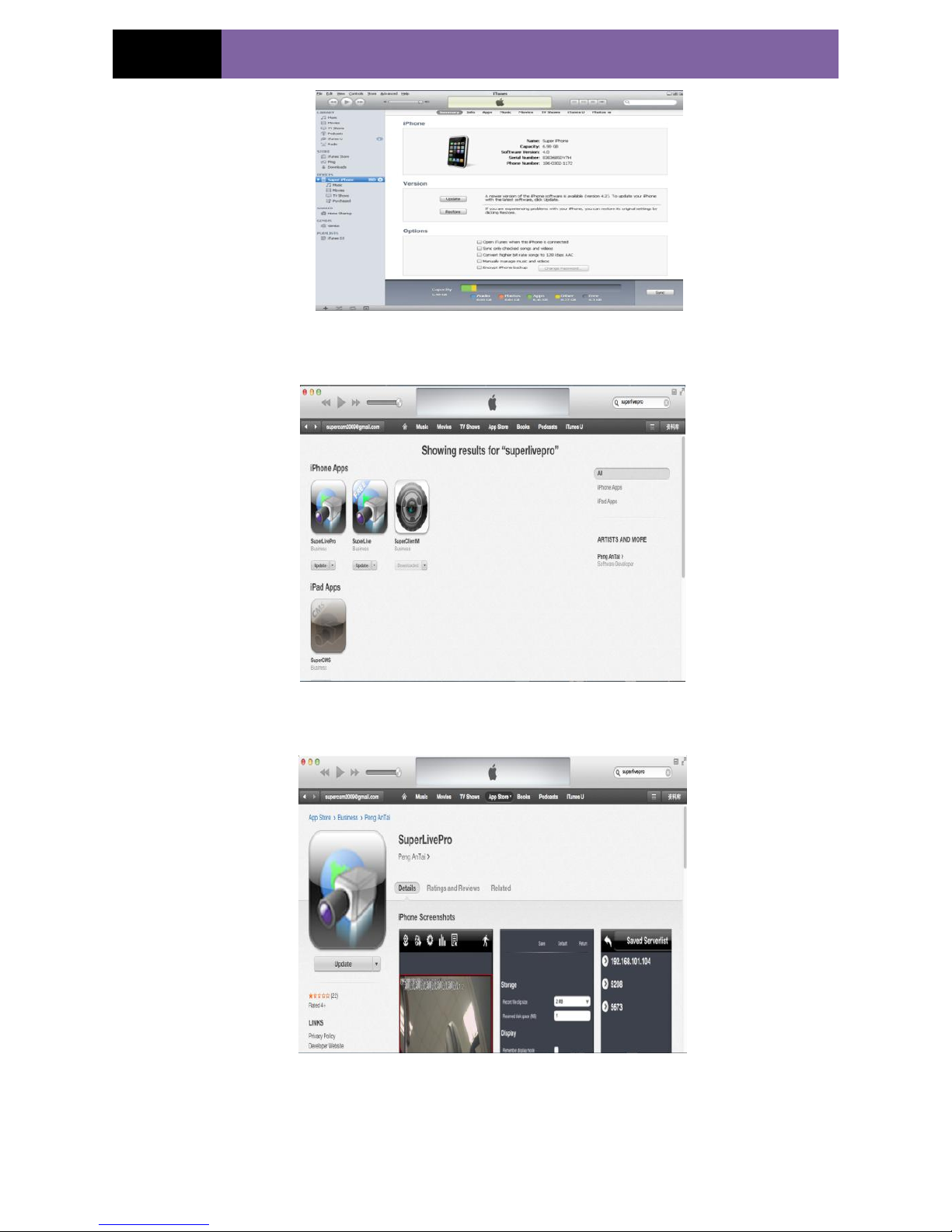

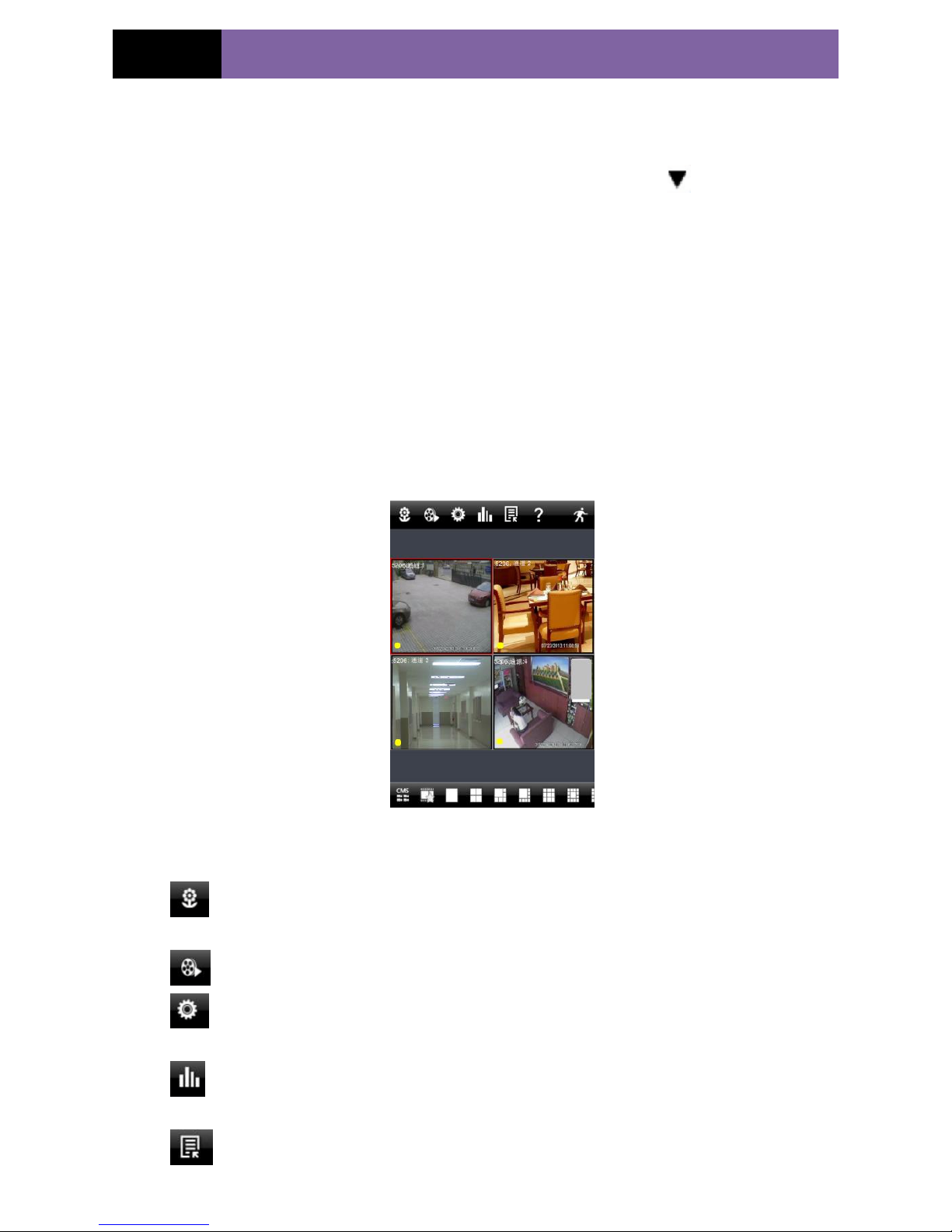

6.2 By Phones with iPhone OS ............................................................................................... 28

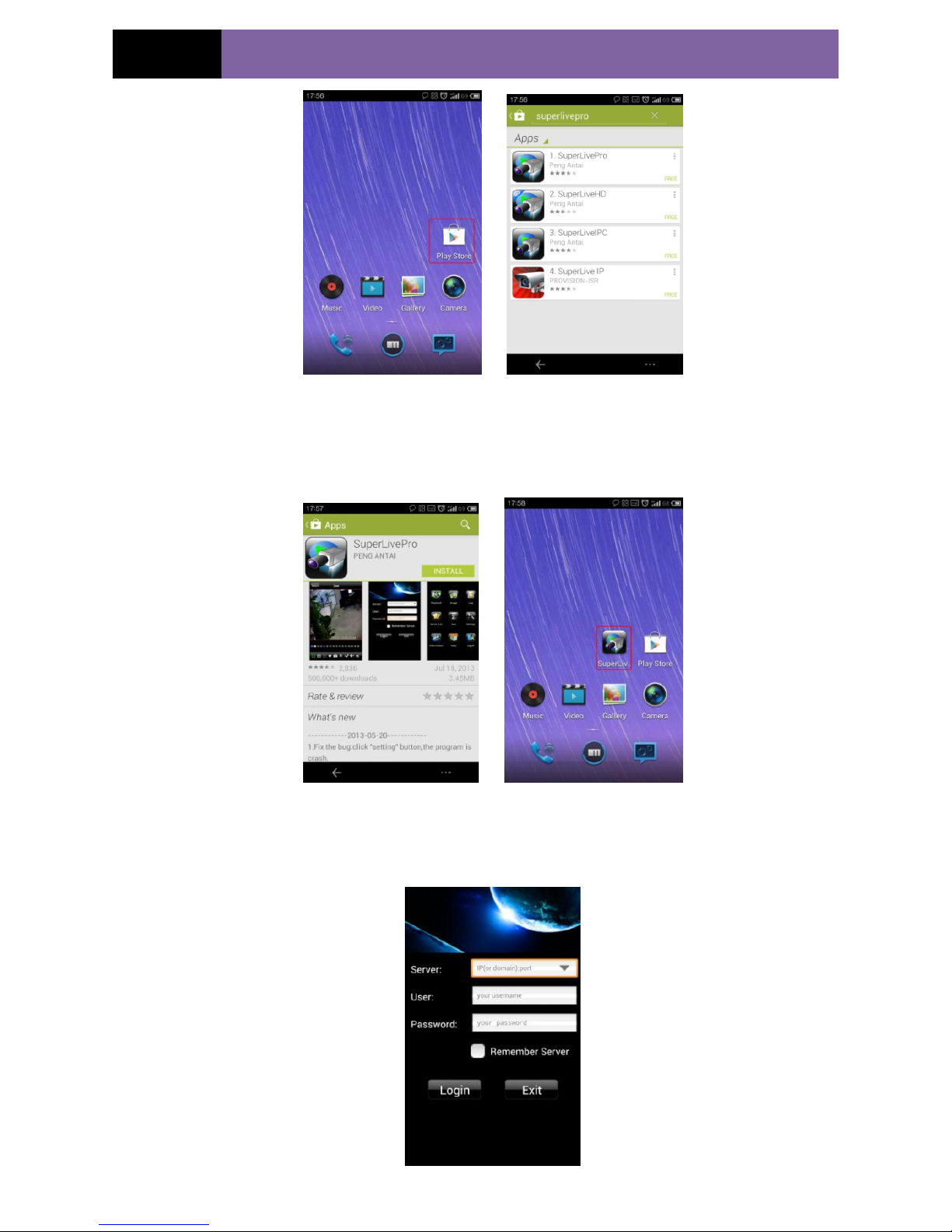

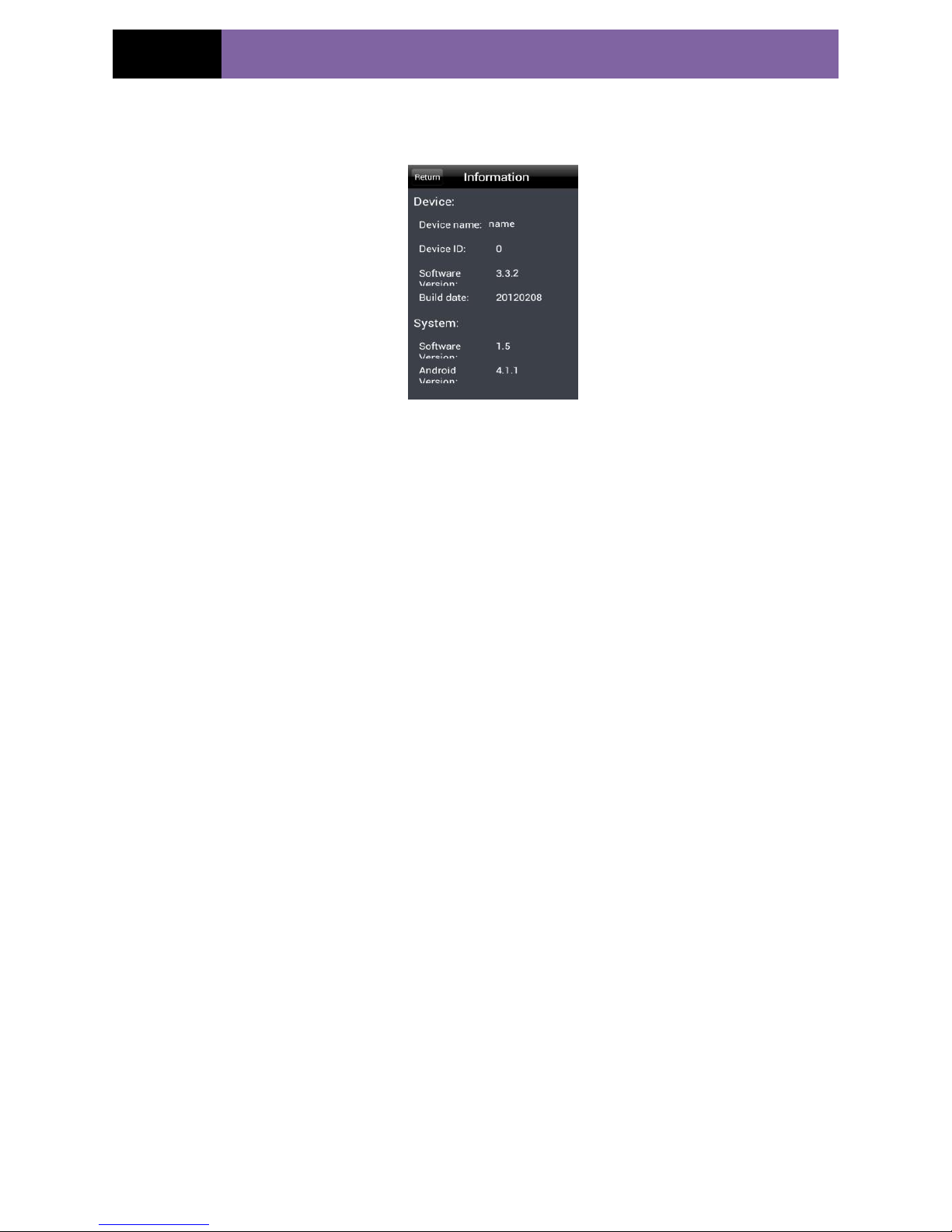

6.3 By Phones with Android OS ............................................................................................. 38

7 Use method for IP-TOOL ................................................................................... 44

8 Q & A ................................................................................................................ 47

9 Specification ...................................................................................................... 49

Page 1

IP CAMERA USER MUANUAL

1 Introduction

1.1 Summarization

This device (short for IP-CAM) is designed for high performance CCTV solutions. It
utilizes most advanced technologies, such as video encoding and decoding technology
and complies with the TCP/IP protocol, SoC., etc to ensure this system more stable and
reliable. This unit consists of two parts: the IP-CAM device and central management
software (short for CMS). The CMS centralizes all devices together via internet or LAN
and establishes a sound surveillance system to realize unified management and remote
operation to all devices in one network.
This product is widely used in banks, telecommunication systems, electricity power
departments, law systems, factories, storehouses, uptowns, etc. In addition, it is also an
ideal choice for surveillance sites with middle or high risks.

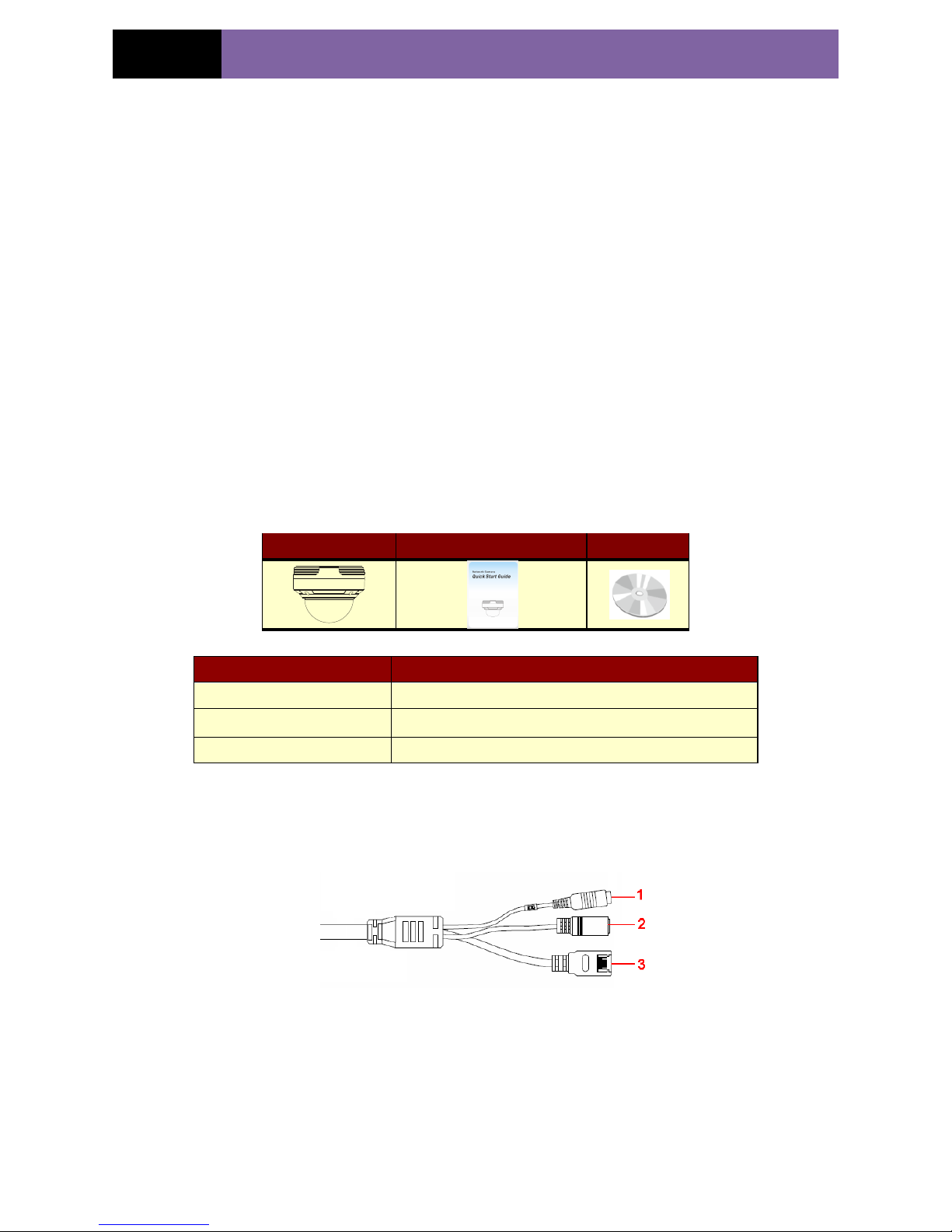

1.2 Check Package Content

The pictures below are only for reference. Please make the object as the standard.

IP-CAMERA

Quick Start Guide

CD

Accessories

Description

IP-CAMERA

The device without Lens

Quick Start Guide

The Brief instructions of the product

CD

CD-ROM with software and manual

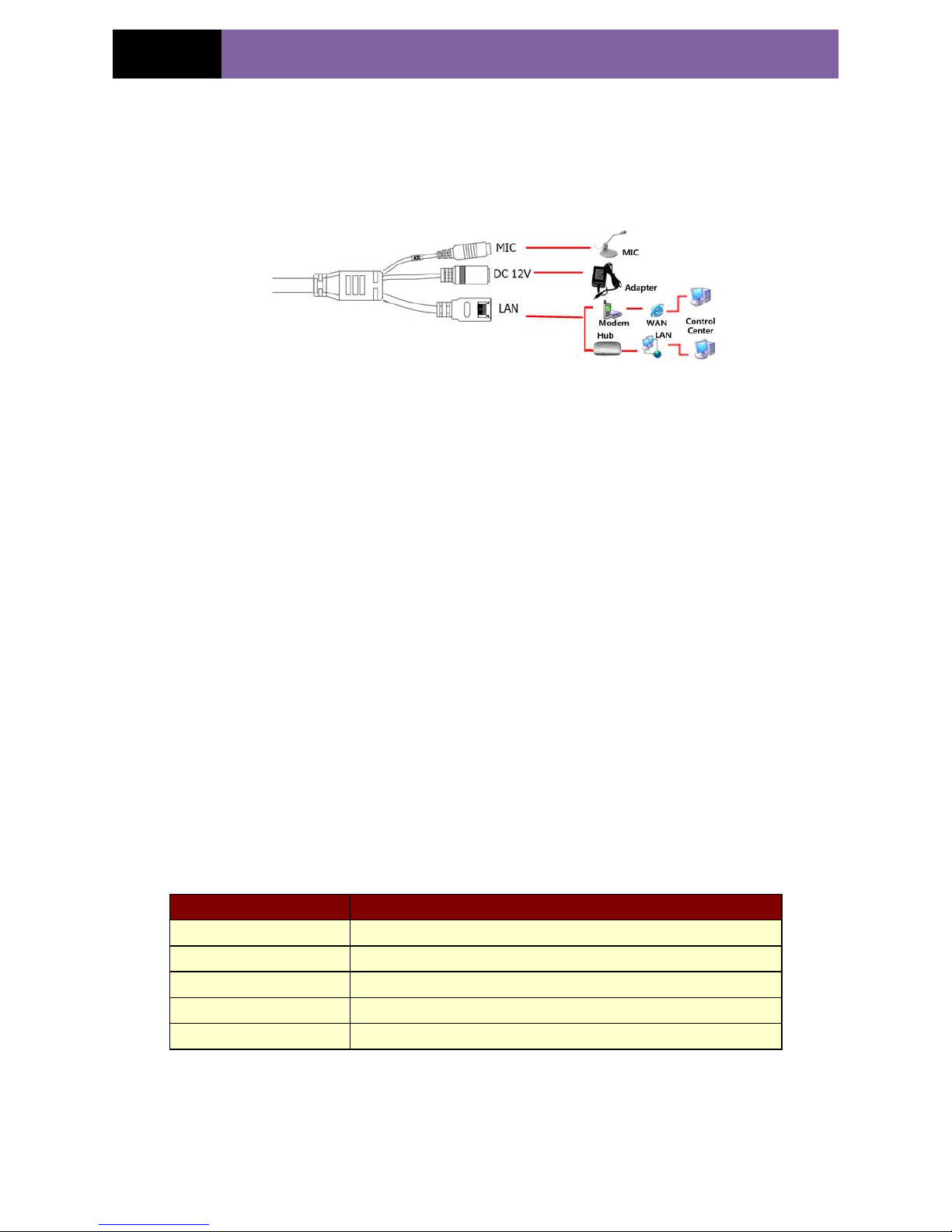

1.3 Connection

Below figures will introduce function of interfaces.

MIC: connect to MIC
DC12V: connect to power supply
LAN: network port; support PoE power supply

Page 2

IP CAMERA USER MUANUAL

2 Installation

2.1 Install IP-CAM to Ethernet Network

The connection of digital video server is show below.

Figure 2-1 Connection

User can connect the PC and IP-CAMERA in accordance with above picture. Before
connecting, please connect external devices, and then connect the power.
The connection steps are as shown below:

Step 1: Connect IP-CAM firstly.
Step 2: Internet line connect to Internet transfer equipment or devices
Step 3: Connect power cable to a power outlet.

2.2 Install CMS

You can remotely monitor and manage the device by using client software or IE browser.
This chapter mainly introduces the installation of CMS. In respect of the operation and
monitor setting details, please refer to CMS user manual in CD.

Note: Prior to installing control center software in user’s computer, please make
sure all anti-virus softwares in the computer are closed so that CMS can install
correctly.

 System requirement
Supported Operating System:

Operating system

Comments

Windows XP

Windows XP SP2 or most updated patch; Direct 9.0c or above

Windows Vista

Windows Vista; Direct 10. c

Window 7

Window 7 Ultimate

Windows 2003

Windows 2003 serve or Directx 9.0c or above

Windows 2000

Windows 2000 SP4 or Directx 9.0c or above

 Computer hardware requirement

Please make sure the software running well and the computer is compatible ：

Recommended PC Specification – 4 channels

Page 3

IP CAMERA USER MUANUAL

Item

Specification

CPU

Intel Pentium 3.0 GHz or AMD 3000+

Memory

1GB

HDD

160GB

Recommended PC Specification -9 channels:

Item

Specification

CPU

Intel Core 2 Duo 1.8 GHz or AMD Dual core 3800+

Memory

1GB

HDD

250GB

Recommended PC Specification -16 channels:

Item

Specification

CPU

Intel Core 2 Duo 2.2 GHz or AMD Dual core 3800+

Memory

2GB

HDD

250GB

Notice:

 The AMD chip hyper-3800+ and X64 series are not tested.
 For real-time view at CIF, max 25 channels can be played concurrently.
 For real-time view at D1, max 6 channels can be played concurrently.

Installation Process

It is recommended to disable the anti-virus software before the installation of CMS.

1. Run the „Setup.exe‟ from software CD. Then install CMS according to the prompts.

2. After you install this software, double click it to run if necessary.

3. Find the user manual of the control center system from programs. You can operate
this software according to the introduction of this user manual.

If you just want to user IP-tool, there is no necessary to install CMS software. You can
open the CD and find the IP-tool software and double click it to install.

Page 4

IP CAMERA USER MUANUAL

3 IE Remote Access

User can connect IP-Cam through LAN or WAN. Here only take IE browser (6.0)

for example. The details are as follows:

3.1 LAN

In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly
access through IE browser.

3.1.1 Access through IP-Tool

Step 1: Make sure the PC and IP-Cam are connected to the LAN and the IP-Tool is

installed in the PC from the CD.

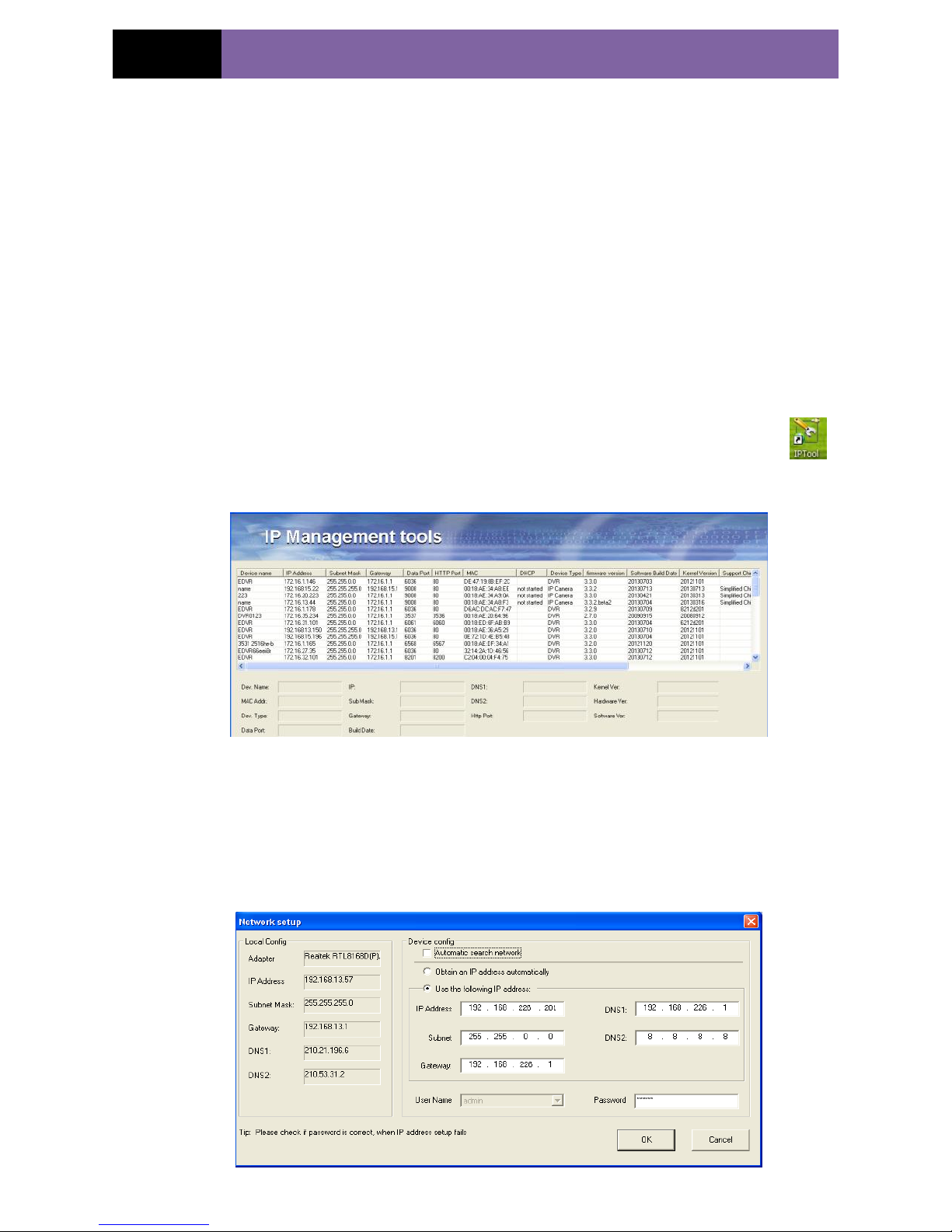

Step 2: Use IP-Tool to modify the network of IP-Cam. Then, double click the
icon on the desktop to run this software as shown below:

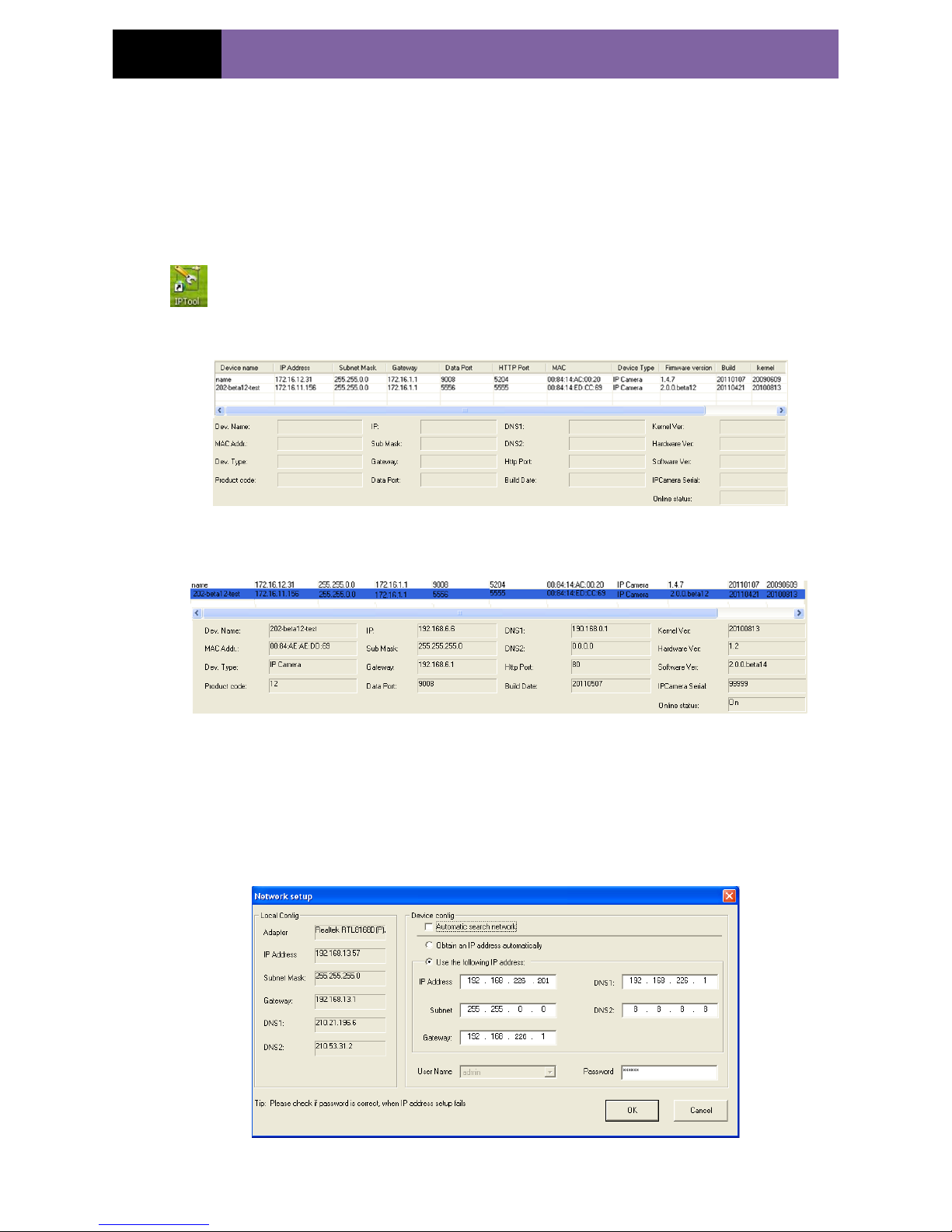

After starting IP-Tool and clicking the IP-Cam in the list, user can check the information
of IP-Cam. If you cannot confirm which one is yours, please shut off the electricity of the
IP-Cam and then power on it. When shutting off the power, the device information will
disappear. When powering on, the device information will emerge. Well, this device is the

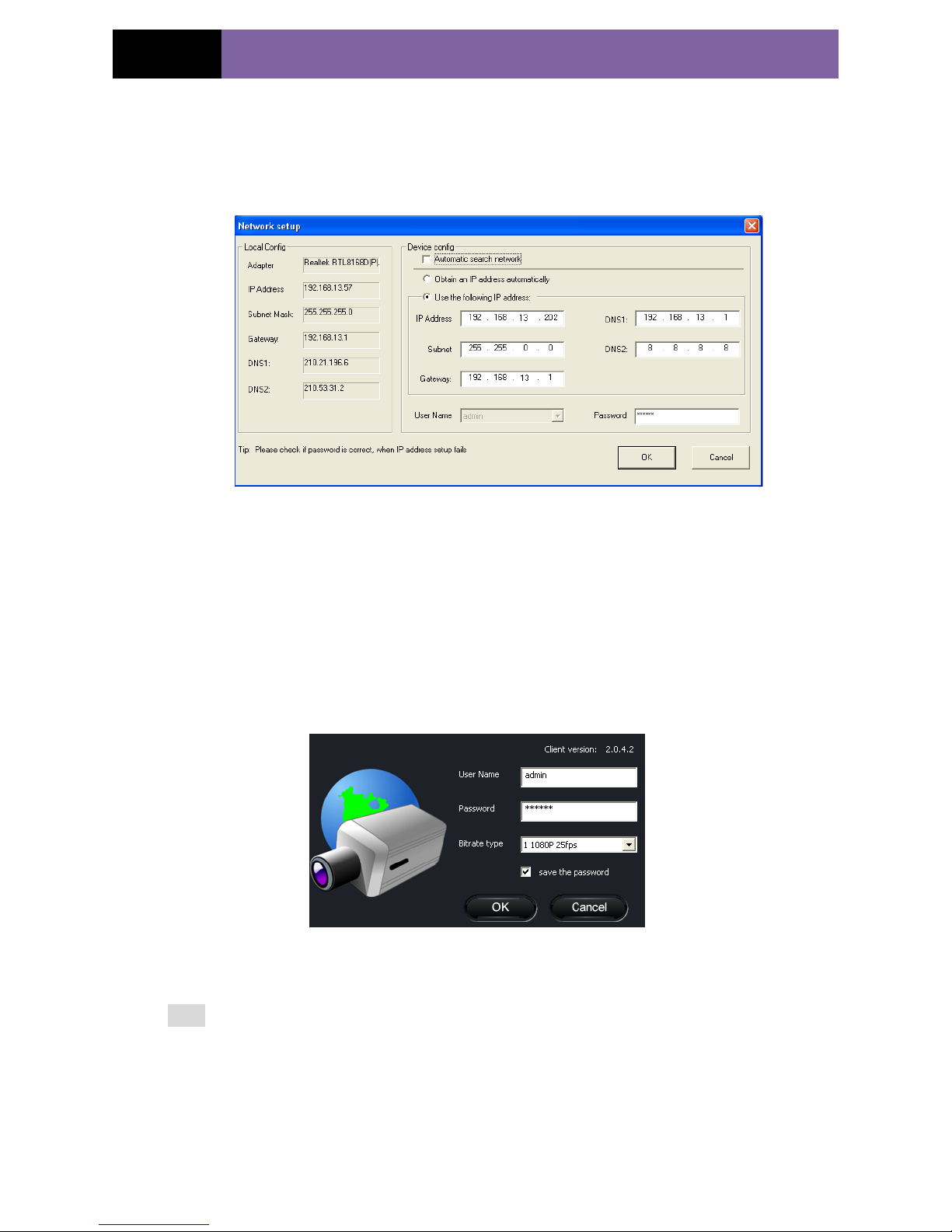

used device. Right click the device information and select “Network setup”.

Page 5

IP CAMERA USER MUANUAL

For example, the network segment of this computer is 192.168.13.x under the local
config table. So, please modify the IP address, Gateway of IP-Cam which must be in the
same network segment with the computer. Modifying the network, you have to input the
password and click “OK” button to save the setting.

Note: The default user name is: admin. The default password is: 123456.

The new IP address of this device will display after modification.

Step 3: Use the IP-Tool to login the IP-Cam.
Right-click the IP address and select “browse with IE” or double click the device
information. This will let the IE browser to connect IP-Cam as shown below. IE browser
will auto download the Active X control. If the IE browser cannot download the Active

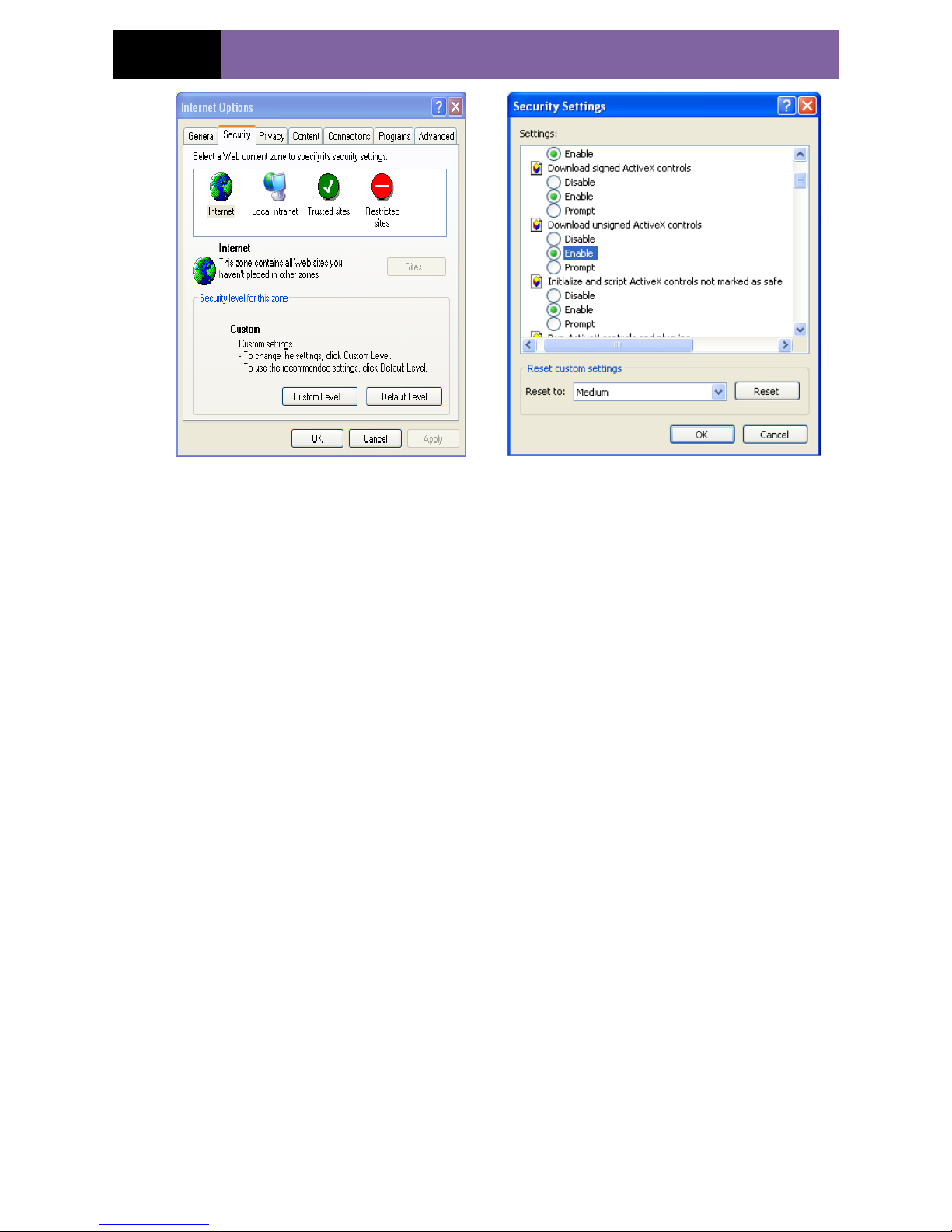

X control, please refer to Q4 of Chapter 8. A login window will pop up after the
installation of the Active X control.

Input user name and password and then click “OK” button to login.

Note: You can also use the modified IP address of the IP-Cam. Input the IP address in
the IE browser bar and then click “Enter” to access IP-Cam. The default user name is
admin. The default password is 123456.

3.1.2 Directly Access through IE

The network service is default as shown below:

Page 6

IP CAMERA USER MUANUAL

IP address: 192.168.226.201
Subnet Mask: 255.255.255.0
Gateway: 192.168.226.1
HTTP: 80
Data port: 9008
When use the IP-CAM for the first time, you should connect the device with the above
default settings.

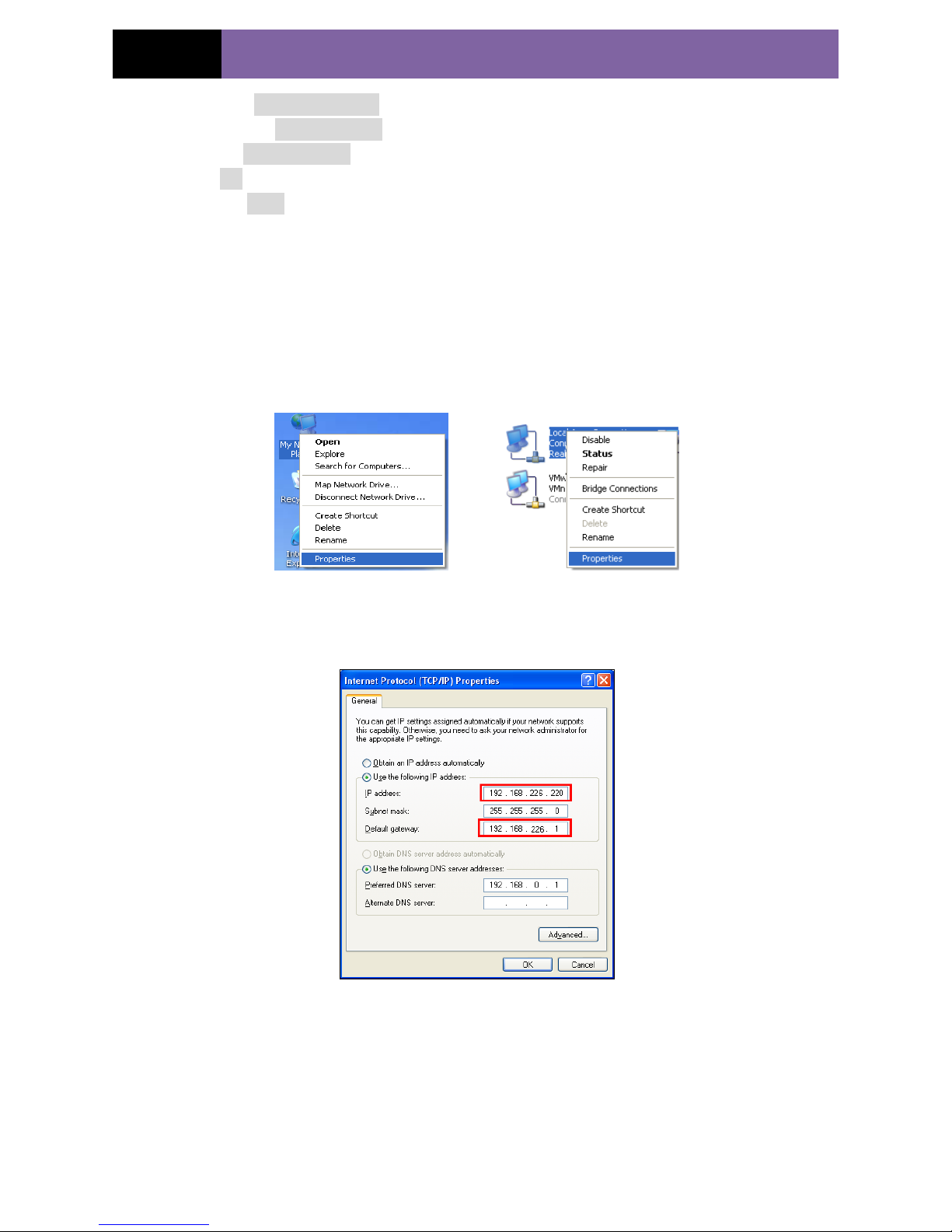

Step 1: Manual setup the IP address of the PC. The network segment should be as same
as the default settings of IP-CAM. Right click “My Network Places” icon on the
desktopselect “properties” as shown in the left figure. Right click “Local Area

Connection” at the popup window, and then select “property” as shown in the right

figure.

Select “Internet Protocol (TCP/IP)” in the “General” tabsclick “properties”manual
input network address information of the PC in the pop up window.

Step 2: Open the IE browser, input the default address of IP-CAM and confirm, the IE

browser will download Active X control automatically. If IE browser can‟t download

Active X control, please refer to Q4 of chapter 8.

Step 3: After downloading Active X control, the login dialog box will pop up.
Step 4: Input user name and password in the login dialog box and click “OK” button to

enter into the live interface where you can manage the IP-CAM.

Page 7

IP CAMERA USER MUANUAL

3.2 WAN

a． Access through router or virtual server
Step1: Connecting according to above steps in LAN; enter into System

ConfigurationNetwork configurationBasic configuration to setup the port number
as shown in Fig 3-1:
Step 2: Enter into System ConfigurationNetwork configurationIP configuration to
change IP address as shown in Fig 3-2:
Notice: The steps above should be saved after the change of the port and IP address.
Log back in the device with the saved setting.

Fig 3-1 Port setup Fig 3-2 IP setup

Step 3: Enter into the router‟s management interface through IE browser and forward

the IP address and port of IP-CAM in the “virtual server” (the name depends on the
router). Please refer to Fig 3-3:

Fig 3-3 Router Setup

Step 4: Open the IE browser and input its WAN IP and http port to access. The

following steps are as same as “Step 2, 3 and 4” of Chapter 3.1.2.

Page 8

IP CAMERA USER MUANUAL

4 Remote Preview

4.1 The Remote Preview Interface

Fig 4-1 Remote Preview

 When motion detection alarm is triggered, the people icon turns red.
 Click icon to zoom in the preview image to suitable size. Drag the cursor on

the enlarged image to view suitable preview area. Click icon to zoom out the
enlarged image. Click icon to full-screen the live image.

 Clicking icon will appear a save path window and the record file can save on

your PC.

Note: On Window 7 and Window Vista, user can not record or snap pictures until UAC
function is disabled. Please refer to following steps: Start—Control panel—User
accounts—Change user account control settings in which user needs to drag the scale to
Always notify end and then click “OK” button to save.

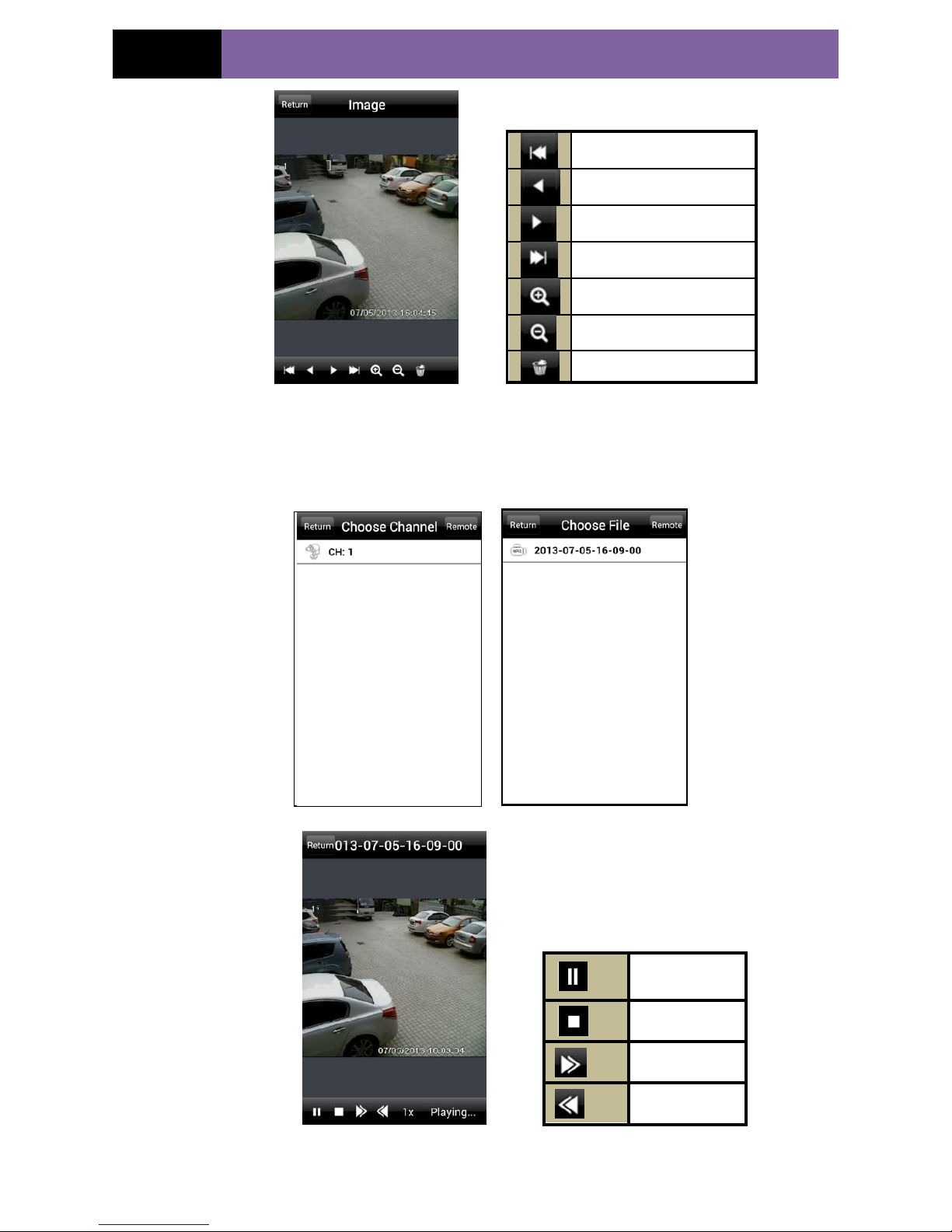

4.2 Record Playback

Click icon and refer to Fig 4-2:

1

People icon

2

Fix size

3

Zoom in

4

Zoom in

5

Zoom out

6

Full screen

7

Start record

8

Playback

9

Snap

10

Enable audio

Page 9

IP CAMERA USER MUANUAL

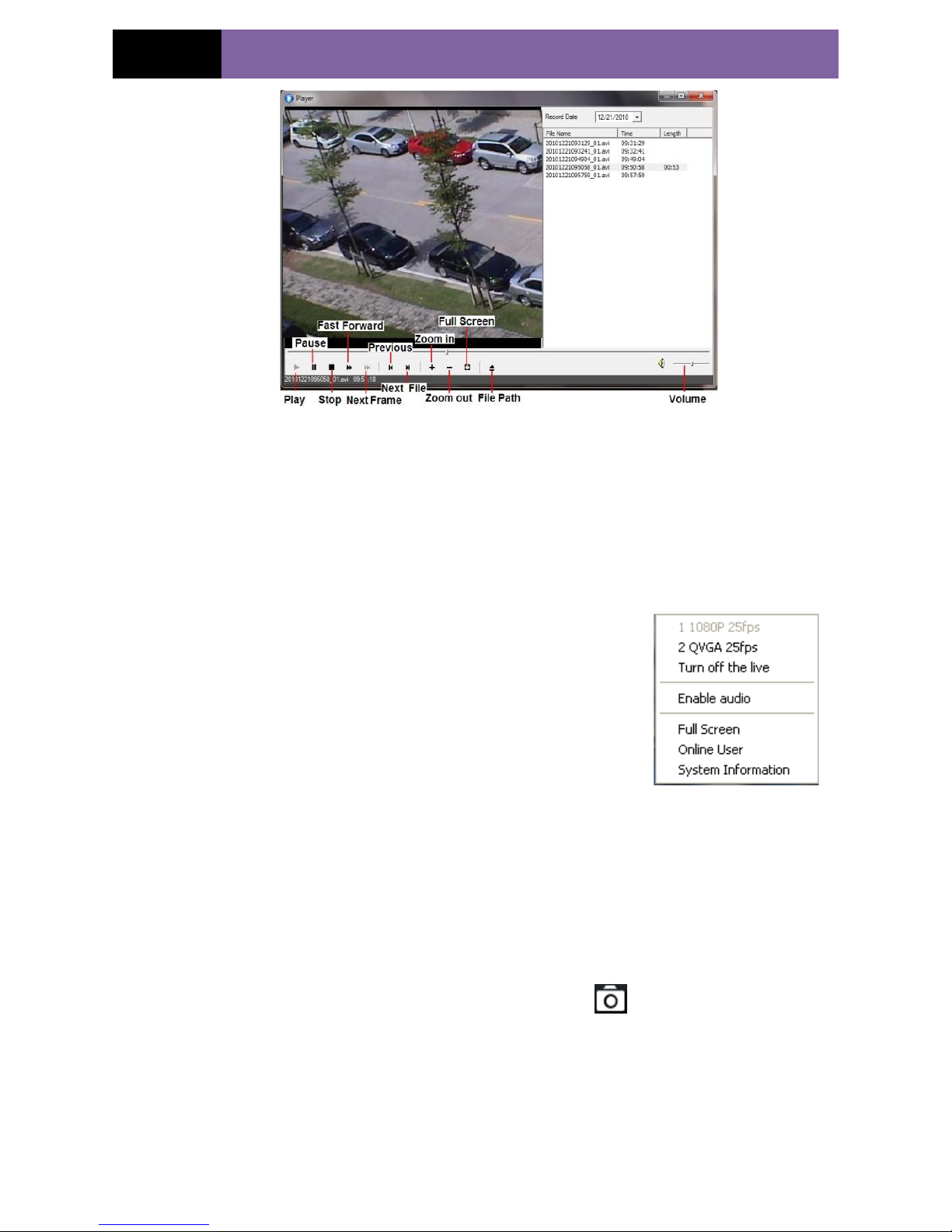

Fig 4-2 record playback interface

After selecting the record date, the record files will be displayed in the record file list
box. You can double click a certain record file to playback or check a certain file. Then
click Play button to do playback.

4.3 Right-click Function

Clicking right mouse will appear a pull-down list as below:

Stream: There are two options.
Turn off the live: Click this item will close present live
preview.
Enable audio: Enable remote audio transmission. Users can

hear the audio from the IP-CAM.
Full screen: The live preview picture will full-screen display.
Double click or click right mouse to return to the previous
interface. Fig 4-3 Right key sub-menu

Online user: Display the users that access to the device.

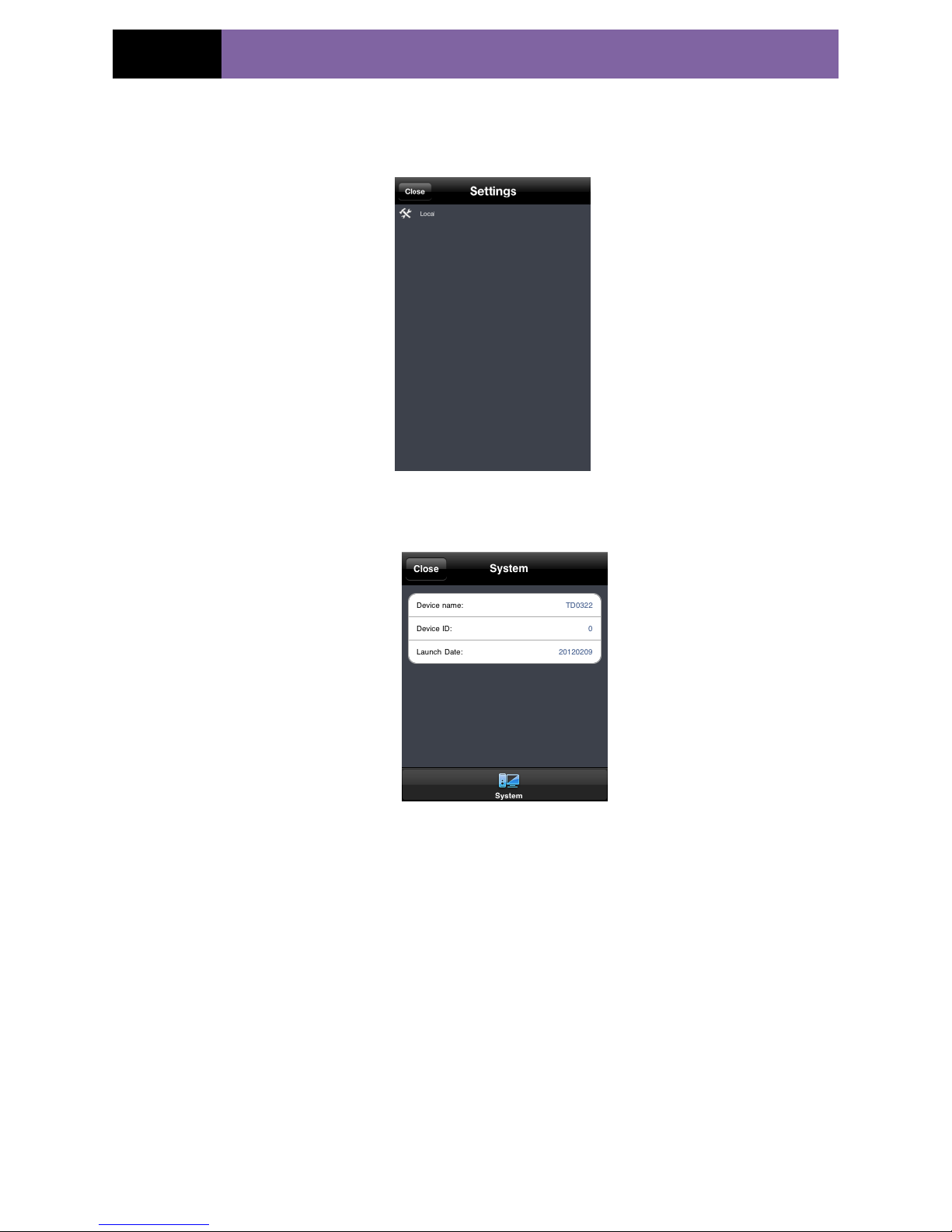

System information: Display the device information: device name, firmware version,

software build date, kernel version and hardware version.

4.4 Snap Pictures

1. Select the picture number and then click “Snap” icon as shown in the Fig
4-4:

2. You can snap multiple pictures. Select the picture number from Frame pull down
list box, such as 2, and check “Title” and “Time” to show capture title and time on the
snap pictures simultaneously. Refer to Fig 4-5:

3. Click “Browse” to set saving path. Click “Save” to save pictures to HDD on the
computer. Click “Printer setup” to set the printer and print the snap pictures. Drag the

Page 10

IP CAMERA USER MUANUAL

scroll bar to view all captured pictures.

Fig 4-4 Single Snap

Fig 4-5 Multi-picture Snap

Page 11

IP CAMERA USER MUANUAL

5 Remote Live Surveillance

Functions of remote configurations include: System Configuration, Video Configuration,
Alarm Configuration, Network Configuration and Advanced Configuration. User should
firstly select the menu on the left, and then setup the relative parameters. When a user
setup parameters of a certain device, other users can not setup this device.

5.1 System Configuration

The “System configuration” includes two submenus: Basic Information and Date &
Time.

5.1.1 Basic Information

In the “Basic Information interface, user can setup the device name and can also check
the relative information of the server
Setting steps:

1. Clicking the "Config" icon will appear the menu list.

2. Clicking the “Basic Information "will pop up a window as shown in Fig 5-1:

3. Input the name of the device in the "Device name" text box.

4. Press the "Save" button to save the settings.

Fig 5-1 Basic Information Config

Please refer to the following table for parameters and instructions of server basic
configuration.

Parameter

Meaning

Software version

The software of the device

Software build date

The software build date of the device

Kernel version

The kernel version of the device

Hardware version

The hardware version of the device

Mac Address

MAC address of device

Maximum number of user

Support max 4 users to access

Device name

Name of the device.

Page 12

IP CAMERA USER MUANUAL

5.1.2 Date & Time Configuration

Setting steps:

1. Enter into "System Configuration" “Date & Time”. Refer to Fig 5-2:

2. Select “Modify Time ", user can self-define time. Choose "Time Zone" according to
your location.

3. Enable DST to set DST mode and time.

4. Setup time by select the “Synchronize with NTP Server”.

5. Press the "Save" button to save the settings.

Fig 5-2 Date &Time Config

5.2 Video Configuration

Camera Configuration includes three submenus: Camera Configuration, Video Stream
and Time Stamp.

5.2.1 Camera Configuration

Setting steps:

1. Enter into "Video Configuration " "Camera" interface as shown in Fig 5-3:

Fig 5-3 Basic Configuration

Page 13

IP CAMERA USER MUANUAL

2. User can adjust Brightness, Contrast, Hue and saturation of the picture.

3. Select white balance mode.

4. .WDR, Sharpen, denoise, frequency and CVBS format are adjustable.

5. User can also enable the image mirror and image overturn function.

6. Click “Start Repair” button to repair bad point in the image.

7. Press the "Save" button to save the settings.

5.2.2 Video Stream

1. Enter into "Video configuration" "Video Stream" to see a interface as shown Fig

5-4:

Fig 5-4 Video Stream

2. Select the resolution of the single frame image at the "Resolution" pull down list.

3. Select the quantity of video per second at the "Frame rate" pull down list.

4. Select the data stream type at the "Bit rate type" pull down list.

5. Set the video quality at the "Video quality" pull down list.

6. Select alarm picture size.

7. Press the "Save" button to save the settings.

5.2.3 Time Stamp

Enter into "Video configuration""Time Stamp" to display the interface as shown
in Fig 5-5:

Fig 5-5 Time Stamp

1. Select Date Format to show in the live image.
Time stamp: time displayed in the live preview pictures. Four items can choose from:
top left, top right, bottom left and bottom right.

2. Press the "Save" button to save the settings.

Page 14

IP CAMERA USER MUANUAL

5.3 Alarm Configuration

Alarm configuration includes three submenus: Motion Detection Area, Motion
Detection Trigger and Motion Detection Schedule.

5.3.1 Motion Detection Area

1. Enter into “Alarm configuration""Motion Detection Area" to see an interface as
shown Fig 5-6:

2. Move the "Sensitivity" scroll bar to setup the motion trace sensitivity.

3. Check the "Add”, press the "Ctrl" button and move mouse to select the motion
detection area; Select “Erase” and move the mouse to clear all motion detection area.

4. Press the "Save" button to save the settings.

Fig 5-6 Motion Detection Area

5.3.2 Motion Detection Trigger

1. Enter into “Alarm Configuration" "Motion Detection Trigger" to display an
interface as shown in Fig 5-7:

2. Check "Enable alarm" check box. Then all functions under this interface will be
activated.

4. Trigger Email: Check “Attach picture” and select email addresses in the “Receival
email address” text box(Email address shall be set first in the Mail config
interface).Then the triggered snap pictures will be sent into those address. User also can
define the subject and content of the email.

5. Trigger FTP: Check “Uploading picture”. Then the triggered snap pictures will be
sent into FTP server address.

Note: Please refer to FTP configuration chapter for more details.

6. Press the "Save" button to save the settings.

Page 15

IP CAMERA USER MUANUAL

Fig 5-7 Motion Alarm Trigger

5.3.3 Motion Detection Schedule

Enter into “Alarm configuration" "Motion Detection schedule" interface as shown in
Fig 5-8:

Week schedule

User could set the alarm time from Monday to Sunday for alarm everyday in one week.
Note: The lengthwise means one day of a week; the rank means 24 hours of a day.
Mouse clicks on the pane to set the alarm hours. Green means selected area. Blank
means unselected area.

2."Add": add the schedule for a special day.

3."Erase": delete holiday schedule

Day schedule

User could set alarm time for alarm in some time of special day, such as holiday.

1. Select a date at the "Date" pull down list, press "Add" button to add that date to the
list box on the right side and then move the scroll bar to set the schedule of that day.

2. Select a date in the list box on the right side, and press "Erase" to remove the
schedule on that day.
Press the "Save" button to save the settings.

Note: Holiday schedule is prior to Week schedule.

Page 16

IP CAMERA USER MUANUAL

Fig 5-8 Motion Detection Schedule

5.4 Network Configuration

Network configuration includes ten submenus: Port, Wired, NET traversal Config,

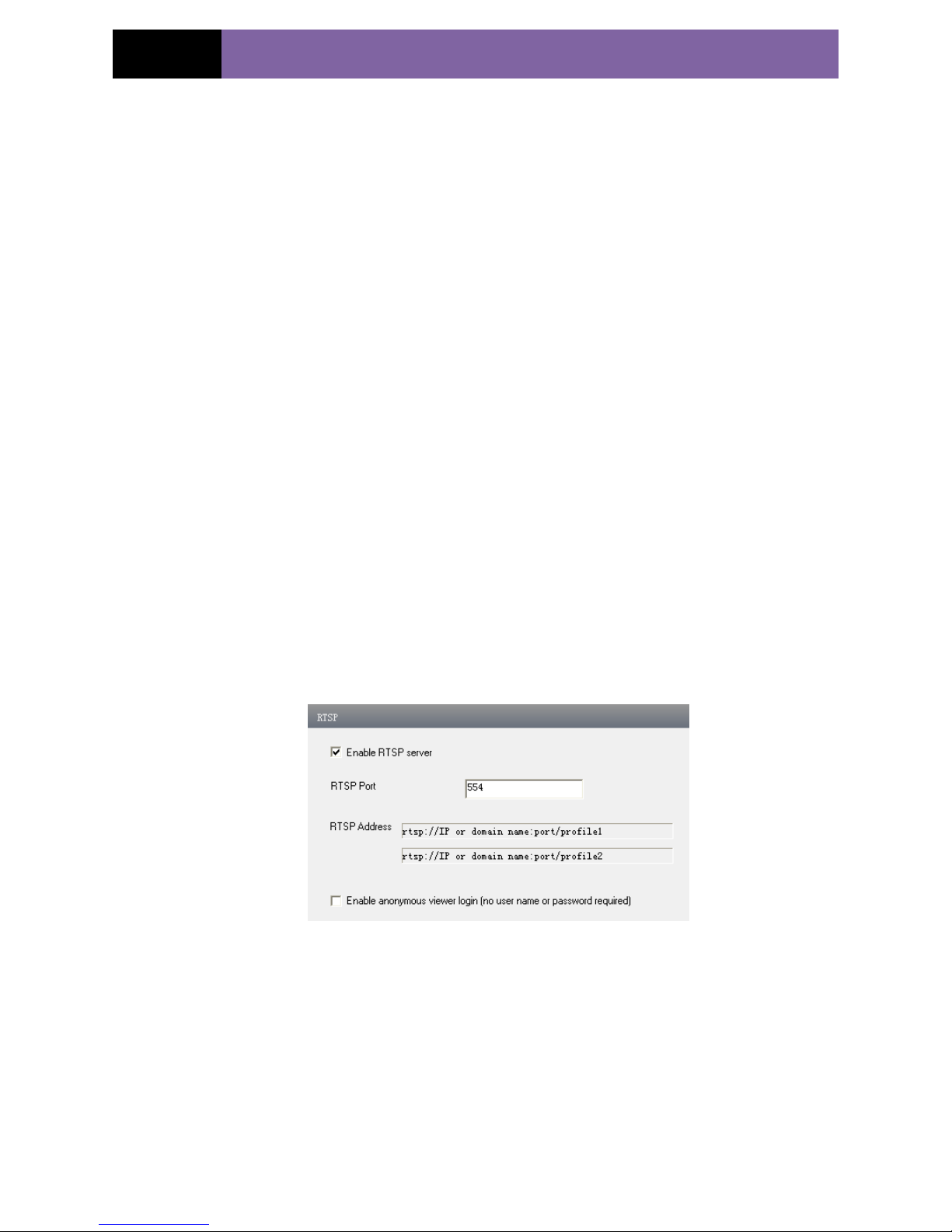

Server Configuration, IP Notify, DDNS Config, RTSP, UPNP, Mail Setting and FTP.

5.4.1 Port

1. Enter into "Network config""Port" to see the interface as shown in Fig 5-9:

Fig 5-9 Port Config

2. Input port number for IE access in the "HTTP Port" textbox.

1. Input the port number for audio & video transmission in the "Data Port" textbox.

5.4.2 Wired

1. Enter into "Network Configuration""Wired" to see a tab as shown Figure 5-10:

Page 17

IP CAMERA USER MUANUAL

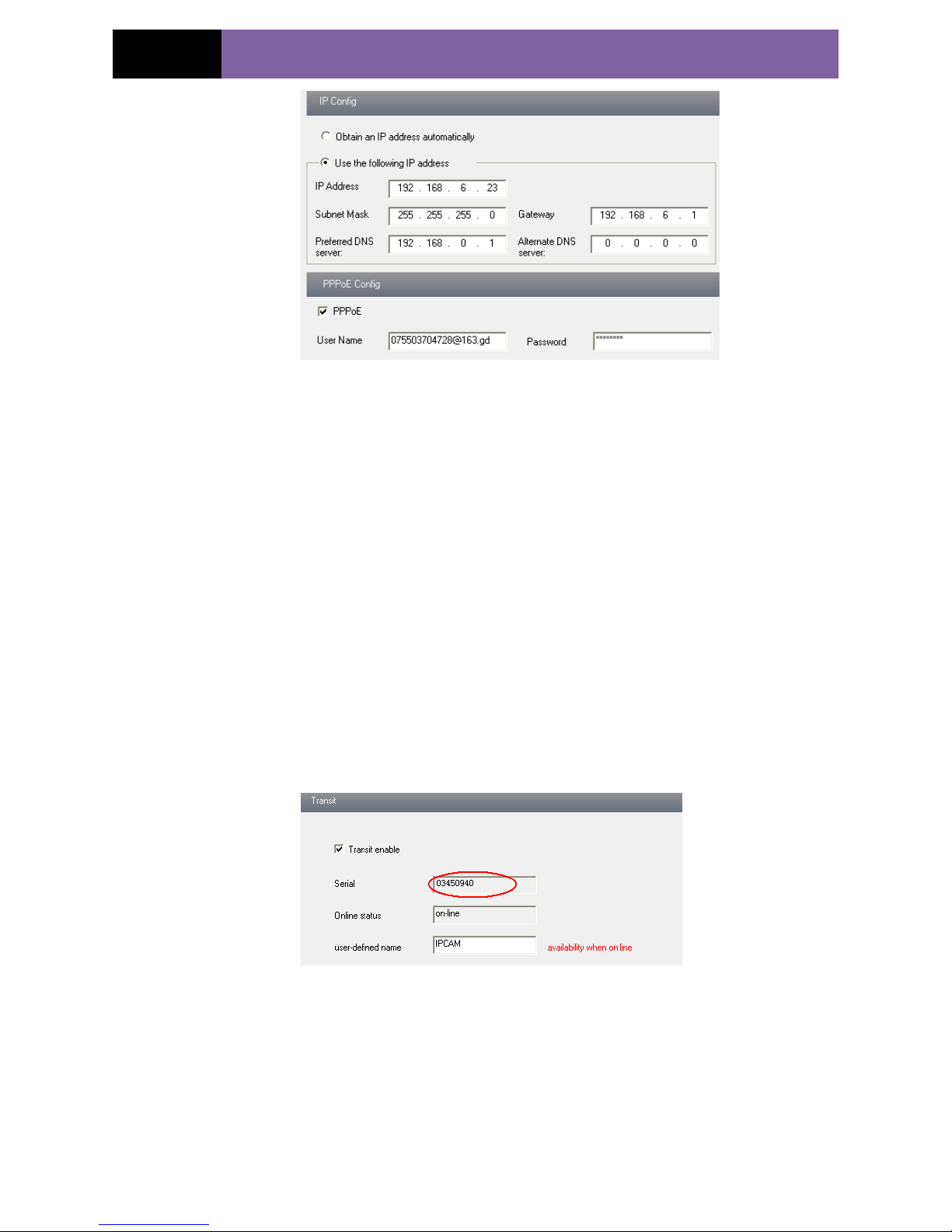

Fig 5-10 Wired Config

2. There are two Options for setup IP: obtain an IP address auto by DHCP protocol and
use the following IP address, user can choose one of options for requirements.

3. Use the following IP address: display the IP address, subnet mask, gateway and DNS
of the device.

4. PPPOE: User needs to manual input the user name and password for dial-up internet.
Firstly, user needs to login IE clients, then enter into user name and password of PPPoE,
save the setting and exit. Secondly, setup IP address change notice. Thirdly, connect
with Modem, then the device will dial-up internet automatically.

6. Press the "Save" button to save the settings.

5.4.3 NET Traversal Configuration

In this interface, user can access to network without dynamic domain name and port
forwarding by enabling NET transit.

1.Enter into “Network Configuration” “NET traversal Config”. Refer to Fig 5-11:

Fig 5-11 Transit

2. Check “transit enable”. Then save the setting.

3. Input www.upnpicp.com in IE address; download and install Active X. Then a window
shows up as Fig 5-12:

Page 18

IP CAMERA USER MUANUAL

Fig 5-12 Login

4. Input the only device ID of the IP-CAM or user-defined name. And then input user
name and password.

Note: The default user name and password are “admin” and “123456”

respectively.

5.4.4 Server Configuration

Enter into “Network Configuration” “Server Config”. Please refer to Fig 5-13:

Fig 5-13 Server Configuration

1. Check “Do you want IP Camera to connect Server.

2. Check the IP address and port of the transfer media server in the ECMS/NVMS. Then
enable the auto report in the ECMS/NVMS when adding a new device. Then input the
remaining information of the device in the ECMS/NVMS. After that, the system will
auto allot a device ID. Please check it in the ECMS/NVMS.

3. Input the above-mentioned server IP, server port and device ID in the responding
boxes. Click “save” button to save the settings.

5.4.5 IP Notify

1. Enter into “Network Configuration””IP Notify” to see a tab as shown in Fig 5-14.

2. If the “Enable notifying change of IP” is selected, when the IP address of the device
is changed, a new IP address will be sent to the appointed mailbox automatically. If
“FTP” is selected, when the IP address of the device was changed, a new IP address will
be sent to FTP server.

Page 19

IP CAMERA USER MUANUAL

Fig 5-14 IP Notify Config

5.4.6 DDNS Configuration

1. Enter into "Network Configuration""DDNS Configuration" tab as shown in Fig
5-15:

Fig 5-15 DDNS Config

Note: The steps to band a domain name for video surveillance server are as follows.

Firstly, register a user name and a password to log on the website of service supplier,
and then apply for a domain name online for the server. After that, users can visit the
server through inputting the domain name at IE terminal.

2. Press the "Save" button to save the settings.
Please refer to the following table for parameters and instructions of DDNS
configuration.

Parameter

Meaning

DDNS server

Address of the website which provided by domain name supplier. The
optional: www.dns2p.net ， www.88ip.net ，www.meibu.com ，
www.dyndns.com，www.no-ip.com，www.3322.org and mintdns type.

User name

Log in the website of domain name supplier

Password

Log in the website of domain name supplier

1. Apply the Domain Name (Take dns2p for example)
(1) Register in the Web

Step 1: Fill in the blank of IE address with „www.dns2p.com‟.
Step 2: Click to enter the website.

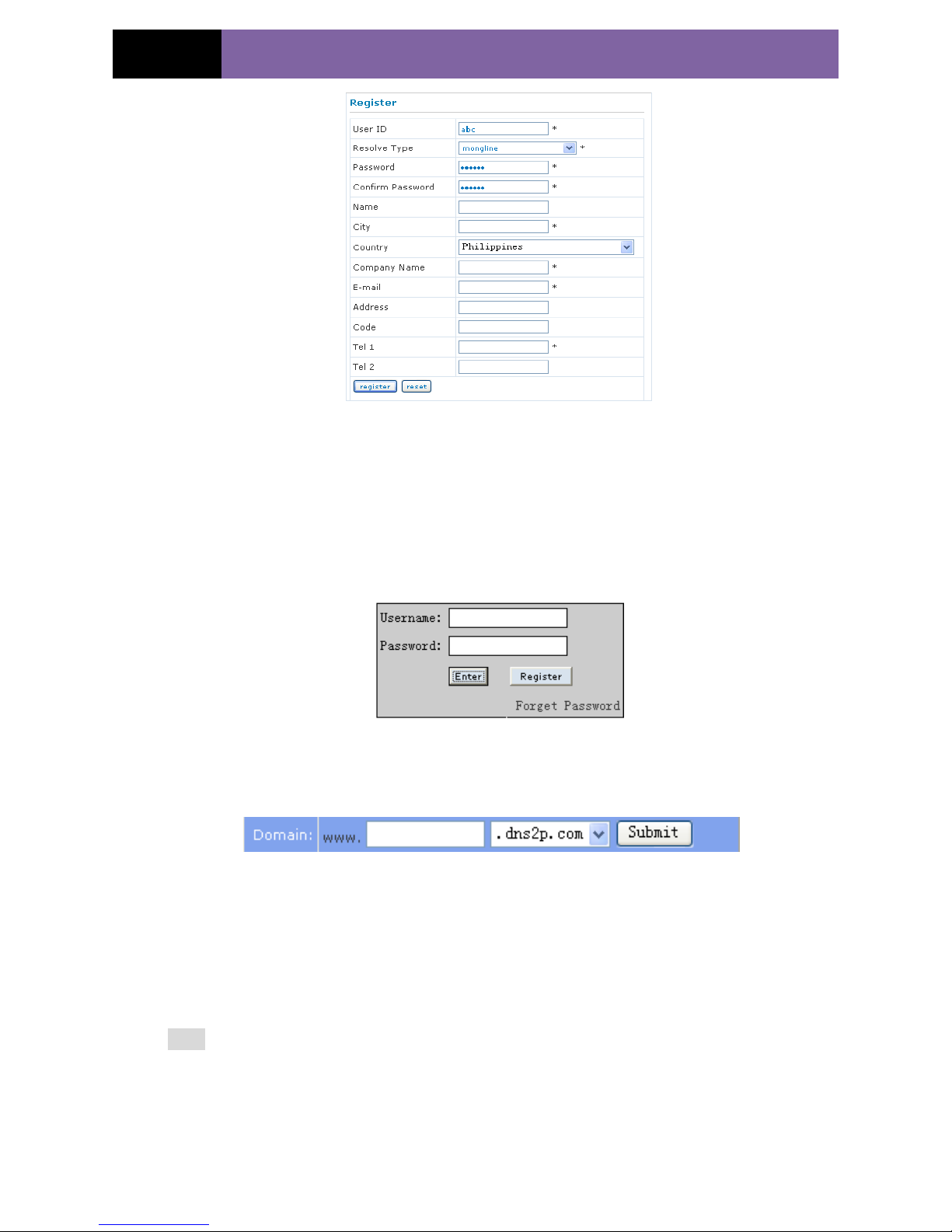

Step 3: Click "New User" in the right of homepage to register. For example: User ID is
„abc‟, and password is „123456‟. The register dialog display as below:

Page 20

IP CAMERA USER MUANUAL

Register dialog box

(2) Login

Step 1: Return to homepage after registering successfully.
Step 2: Click "Account Manager" on the right of homepage to login.
Step 3: Input the username and password with the information that you have registered.
Step 4: Click "Enter" key after filling in the textbox.

Log in

(3) Domain Setup

Step 1: Click "Domain Management" on the left to set the domain.

Domain setup

Step 2: Input the domain in the textbox. For example, you set „IP-CAMERA‟ as the
domain.
Step 3: Click "Submit" button, the system will pop up a dialog box to show that the
domain is added successfully.

Note: Time of probationary period is one month. If user wants to use it continuatively
after one month, please Step 4: click "Buy Now" in the right of homepage to pay for it.

2. Setup in the IP-CAMERA

⑴ DOMAIN

Page 21

IP CAMERA USER MUANUAL

Domain is set in „1. Apply the Domain Name‟. According to the example above, the
domain is „WWW. IP-CAMERA.dns2p.com‟.

⑵ USER ID

Username of registered which is set in „(1) Register in the Web‟. According to the
example above, user ID is „abc‟.

⑶ PASSWORD

Password is set in „(1) Register in the Web‟. According to the example above, password
is „123456‟.

Note: If the connection fails, press the "INFO" button. Now the system will display:
„DDNS NONE‟. Then you need to check network and information above and try again.

3. Application

Connect IP-CAMERA to the Network Client.

Step 1: After popping up the login interface, fill in "Server" textbox with „*.dns2p.com‟

to visit the Network Client of the IP-CAMERA. The domain set in „(3) Domain Setup‟.
According to the example above, fill in "Server" textbox with
„IP-CAMERA.dns2p.com‟.
Step 2: Click "save" button to save the above setting.

5.4.7 RTSP

Enter into “Network Configuration” “RTSP” interface as shown in Fig 5-16:

Fig 5-16 RTSP

1. Select “Enable RTSP server.

2. RTSP Port: Access Port of the streaming media. The default number is 554.

3.RTSP Address: An example of the RTSP address inputted in the media player.

4. You can also choose to enable anonymous viewer login.

Note: This device support VLC player. You can download the VLC player from the
related website. Then run this player and input RTSP address by selecting “File” and
clicking “Open URL”. After that, you can monitor the live image through VLC player.

Page 22

IP CAMERA USER MUANUAL

5.4.8 UPNP

Enter into “Network Configuration” “UPNP” interface as shown in Fig 5-17.
Select “Enable UPNP” and then input friendly name.

Fig 5-17 UPNP

Enable UPNP

Double-click the “My Network Places” icon on the desktop in PC and select “Show
icons for networked UPnP devices” in the “Network Tasks” list box. Then an
information window will pop up. Click “YES” button to see a “Windows Components
Wizard” dialog box pop up as shown below. Then press “Next” to continue. After
finished the installation of configuring components, the UPnP icons will display. Users
can double-click certain icon to connect the remote surveillance login interface through
IE.

If “Show icons for networked UPnP devices” can‟t display in the “Network Tasks” list

box, please follow the below operation:

 Click “Tools”-- “Folder options”
 Check the “Show common tasks in folders” in the “Tasks” check box, UPnP icon

will display.

5.4.9 Mail Setting

Enter into “Network Configuration”  “Mail Setting” interface. Please refer to Fig
5-18.

Page 23

IP CAMERA USER MUANUAL

Fig 5-18 Mail Setting

1. From Email: sender‟s e-mail address

2. User name and password: sender‟s user name and password

3. Server address: SMTP name of sender

4.Select the secure connection type at the Secure Connection pull down list according to
user‟ actual needs

5. Receival email address list: add email address into the list

6. Receival email address: receiver‟s e-mail address

7. After all parameters setup, user can click “Test your account settings”. If email sent
successful, a “Test Successful” window will pop up, if not, users can try other email
addresses or check the setting.

Notice: If user change the static IP into PPPoE and select mailbox, there will be an
e-mail sent to users‟ mail box for notify a new IP address.

5.4.10 FTP

Enter into Network ConfigurationFTP interface; please refer to Fig 5-19:

Fig 5-19 FTP Setting

1. Add: Click Add button to input FTP server‟s server name, address, port number, user

name, password, and upload path, click OK to confirm the setting. Refer to Fig 5-20:

2. Modify：User can click this button to change some information of the FTP server

3. Delete：Select certain FTP account; Click this button to delete this account

4. Test ：Select certain FTP account; Click this button to test its valid or not.
Please refer to the following table for parameters and instructions of FTP configuration.

Page 24

IP CAMERA USER MUANUAL

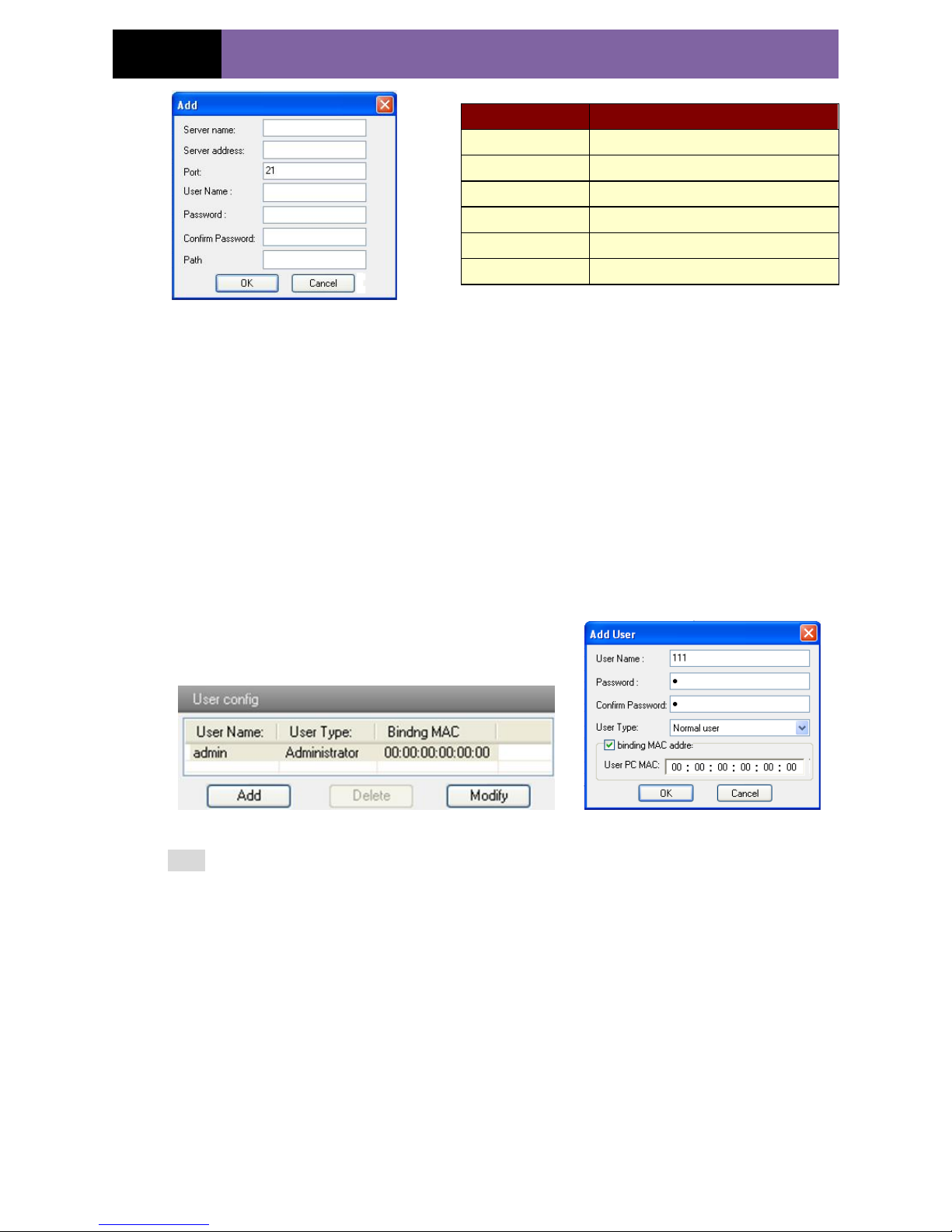

Fig 5-20 Add

5.5 Advanced Configuration

Advanced configuration includes five submenus: User Configuration, Onvif
Configuration, Security Configuration, Configure Backup & Restore, Reboot and
Upgrade.

5.5.1 User Configuration

Enter into "User Configuration" interface. Refer to Fig 5-21:

Add user:

1. Clicking "Add" button pops up "Add user" dialog box. Please refer to Fig 5-22:

Fig 5-21 User Configuration Fig 5-22 Add User

Note: After bind physical address to the IP-CAM, user can access the device on this PC

in network only. If the MAC address was ““00:00:00:00:00:00” which means it can be

connected to any computers.

2. Input user name in "User Name" textbox (only letters).

3. Input characters in "Password" and "Confirm Password" textbox (letters or numbers).

4. Input the MAC address of the PC in "Binding MAC address" textbox.

5. Click “OK” button and then the new added user will display in the user list.

Modify user:

1. Select the user which needs to modify password and physical address in the user
configuration list box.

2. Clicking “Modify” button will pop up “Modify user” dialog box as shown below.

Parameter

Meaning

Server name

The name of the FTP server

Server address

The address of the FTP server

Port

The port number of the FTP server

User name

The user name of the FTP server

Password

The password of the FTP server

Path

The save path for FTP files

Page 25

IP CAMERA USER MUANUAL

Fig 5-23 Modify User

3. Input original password of this user in the “password” text box.

4. Input new password in the “New password” and “Confirmation” text box.

5. Input computer‟s physical address which is used to access the server in the “User PC
MAC” text box.

6. Click “OK” button to modify user‟s password and binding MAC address

successfully.

Delete user:

1. Select the user which needs to delete in the user configuration list box.

2. Clicking “Delete” button will pop up a confirm dialog box. Then click “OK” to delete
the user.

Note: The default super administrator cannot be deleted.

5.5.2 Onvif Configuration

This function is mainly used for connecting our device through other companies‟
monitoring platform software, such as, Hikvision, Axxon, Milestone., etc.

Fig 5-24 Onvif Config

Parameter

Meaning

User Name

User name to operate the logon client end

User Type

Type of users, normal user, advanced user and super administrator

Binding MAC address

The MAC addresses of user access the server which should setup
according to actual MAC address of server.

Password

Password to log in the client terminal

Confirm Password

Password to log in the client terminal

Page 26

IP CAMERA USER MUANUAL

5.5.3 Security Configuration

Enter into Advanced ConfigurationSecurity Configuration to see a tab shown in Fig
5-25:
Check “Enable IP address” check box, select “Deny the following IP address”, input IP

address in the IP address list box and click “Add” button. Then this IP address will
display in the list box; the operation step of “Allow the following IP address” is the

same with “Deny the following IP address”
Select the IP address which needs to be deleted from the IP address list box and click
“delete” button to delete that IP address.
Check “Enable MAC address” check box, select “Deny the following IP address”, input
MAC address in the MAC address list box and click “Add” button. Then this MAC

address will display in the list box; the operation step of “Allow the following MAC

address” is the same with “Deny the following IP address”.

4. Select the MAC address which needs to be deleted from the MAC address list box
and click “delete” button to delete that MAC address.

5. Click "save" button to save the above setting.

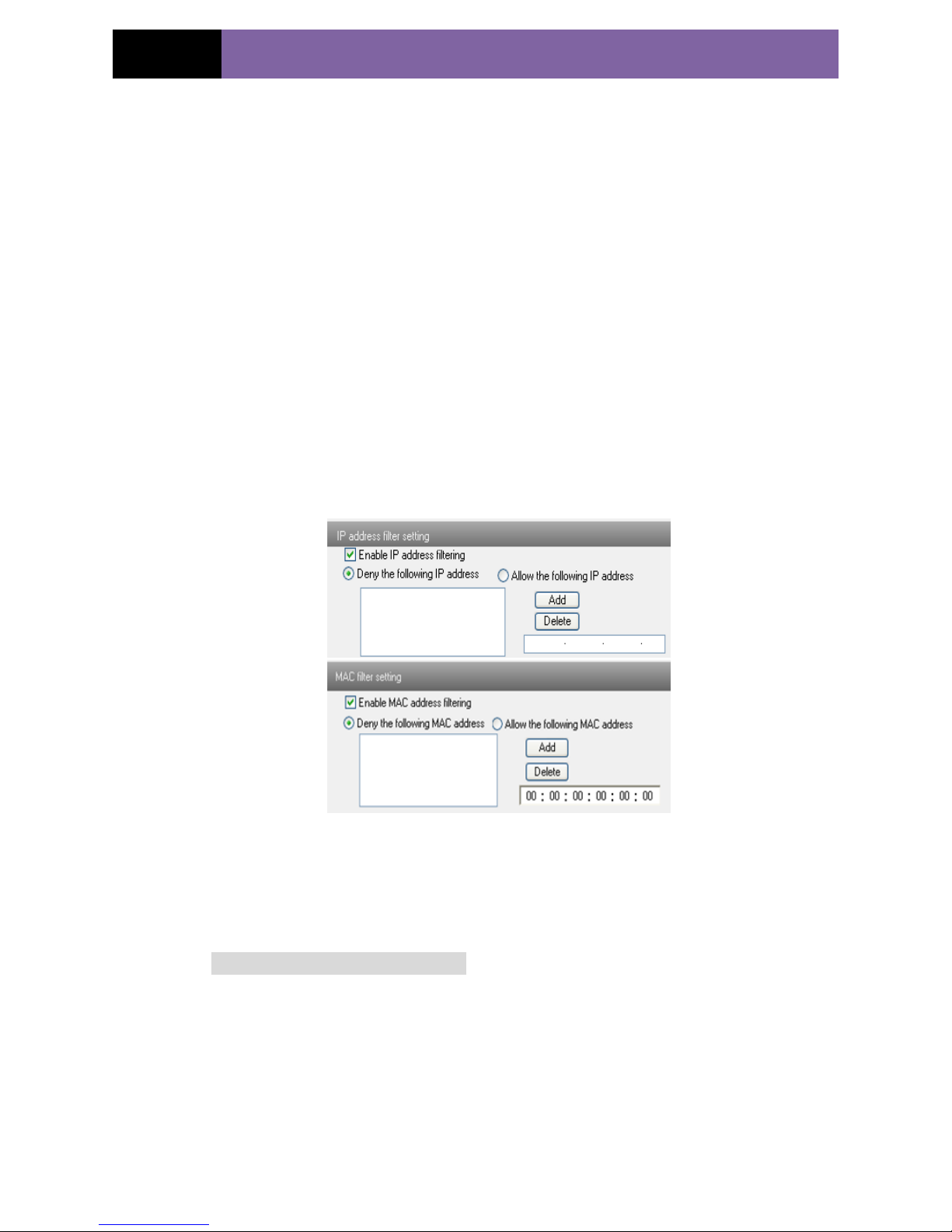

Fig 5-25 Security Configuration

5.5.4 Configure Backup & Restore

Enter into Advanced configurationConfigure Backup & Restore Interface. Refer to
Fig 5-26.
 Import & Export Configuration:
User can import or export the setting information from PC or to device.

1. Click “Browse” to select save path for import or export information on PC.

2. User can import or export all setting information to PC, but those two settings “user

configuration” and “network configuration” are exceptional.

Page 27

IP CAMERA USER MUANUAL

Fig 5-26 Backup and Restore Configuration

 Default Configuration

Click “Load default” button to restore all system settings to default status.

5.5.5 Reboot Device

Enter into Advanced configuration—Reboot device to see the interface as shown in Fig
5-27:
Click “Reboot device” button to reboot the device.

Fig 5-27 Reboot device interface

5.5.6 Upgrade

Enter into Advanced Configuration—Upgrade interface as shown in Fig 5-28:

1. Click “Browse” button to select the save path of the upgrade file

2. Click “Upgrade server firmware” button to start upgrading the application program

3. The device will restart automatically

4. After you successfully update the software, click “OK” button to close IE and then
re-open IE to connect IP-Cam.

Fig 5-28 Upgrade

Notice: User can‟t disconnect to PC or close the IP-CAM during upgrade.

Page 28

IP CAMERA USER MUANUAL

6 Mobile Surveillance

This IP-CAM supports mobile surveillance by phones with Windows mobile, iPhone,
Android and Blackberry OS. Please check the operation system version of mobile
before use; and connect the IP-CAM to Internet.

6.1 Network Configuration

 Access device via LAN

Step 1: Connect device via wireless router. Then checkmark DHCP both in router and

device to automatically acquire IP address or enter the IP address manually.

Step 2: Use WIFI function in your mobile phone to connect the wireless router.

Note: Make sure your phone network and device network are in the same network
segment on LAN.

Step 3: Add the IP address and port in the mobile phone surveillance client.

 Access device via 3G network

Step 1: Set the device network. Please enter Main MenuSetupNetwork tab.

If you use PPPoE to connect device, please enable PPPoE and input username and

password received from you ISP in network tab. Then click “Apply”. You can enter

Main MenuInformationNetwork tab to see the IP address. If you want to utilize
dynamic domain name, please apply for a domain name in a DNS server supported by
the device.

If you have a static WAN IP address, please enter Main MenuSetupNetwork

tab to input your IP address, gateway and port.

If you use LAN IP address, please enter Main MenuSetupNetwork tab to

input your IP address, gateway and port and then forward IP address and port number in
virtual server setup of the router or virtual server(If you has enabled the UPnP function
in both the device and router, you can skip this step). Port forwarding setting may be

different in different routers and servers. Please refer to the router‟s manual for details.

After you forward your LAN IP address and port, please check the WAN IP address in
the router or server.

Step 2: Add the WAN IP address or domain name in mobile phone surveillance client.

6.2 By Phones with iPhone OS

1. Install through Iphone.

Step 1: Open App Store software as shown in the figure on the left.
Step2: Search “SuperLive Pro” and click “Free” button as shown in the figure on the
right.

Page 29

IP CAMERA USER MUANUAL

Step 3: Click “Install App” button as shown in the figure on the left.

Step 4: Input iTunes Store password and then click “OK”. The software will be installed

automatically.

 Install Software through PC

Step 1: Install iTunes store in PC and then login.

Step 2: Connect iPhone and PC.

Page 30

IP CAMERA USER MUANUAL

Step 3: Search “SuperLivePro” and select it.

Step 4: Click “Download” button.

Step 5: Input username and password.

Page 31

IP CAMERA USER MUANUAL

Step 6: Synchronously apply SuperLivePro software to iPhone/iPad.

 SuperLivePro Instruction

1. Login

Page 32

IP CAMERA USER MUANUAL

Step 1: Choose network type. There are two network connection ways:
3G/3G +WIFI, well video quality. This network supports main stream and sub stream.
The real-time image will be displayed by using sub stream.

3G-, poor video quality contrast to the above mentioned network.

Step 2: Input server, account and password.

Server: WAN IP address (or domain name) plus HTTP port of the device. For example:

210.21.183:89 or 123.dvrdydns.com:89.

Note: The default http port of the device is 80. If this port is modified, please use
the modified port.

Account and Password: The login account and password of the device. The default

account is admin and the default password is 123456.

Step 3: Click【Login】button to access the device.

2. Main Interface

There are many buttons in the main interface, such as, screen mode, favorite channel,
snap, record, open/close audio, talk, PTZ., etc.

：Image view button. The pictures snapped in the live will be checked by clicking

this button.

：Playback button. Click this button to enter into playback interface.

：Settings button. Click this button to set local configuration (Some can also

support remote configuration).

：Information button. Click this button to check lots of information including local

information, device information, network information, etc.

：Server list button. Click this button to add server list.

Page 33

IP CAMERA USER MUANUAL

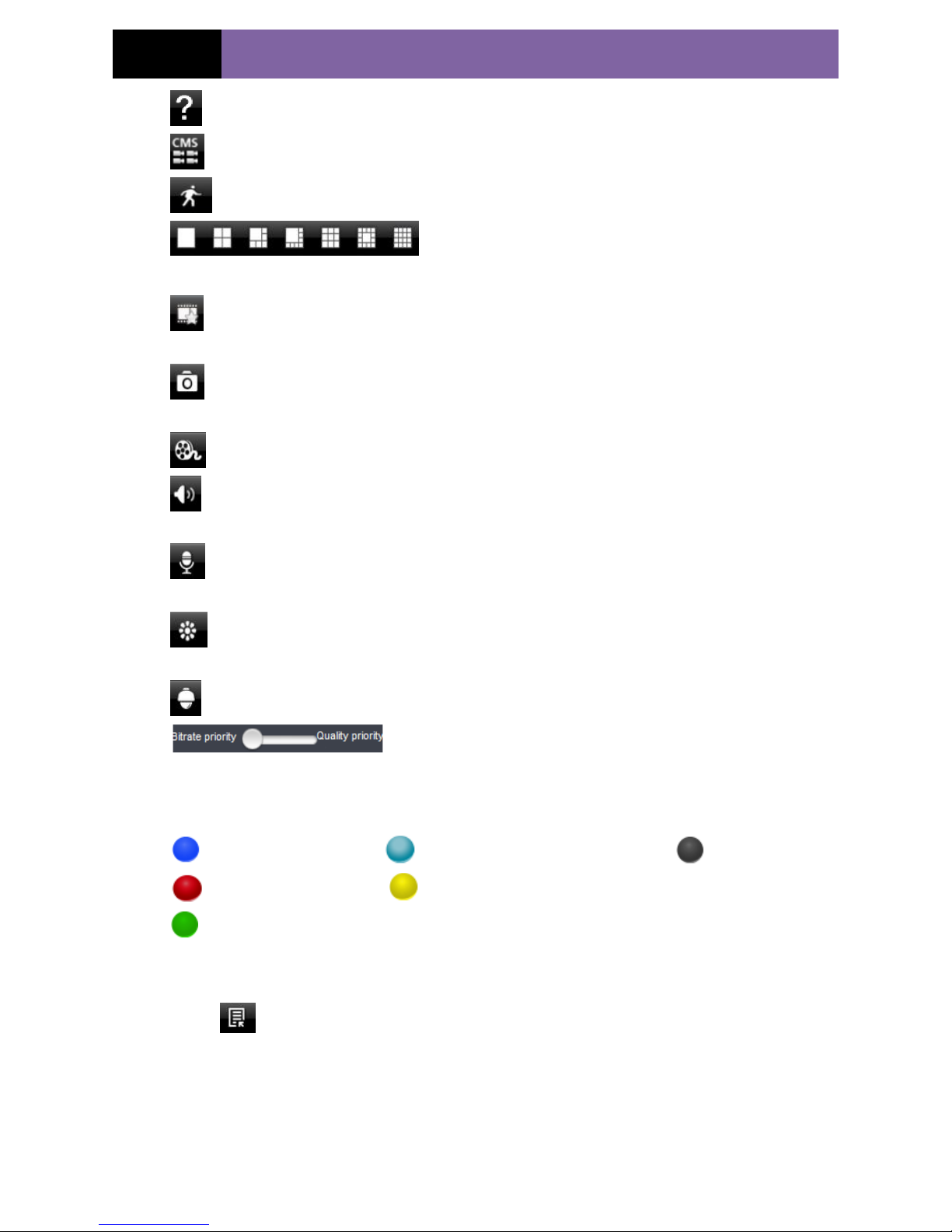

：Help button. Help you know about the use of this software quickly.

：CMS button. Make you preview the live image of multi-devices.

：Log off button. Click this button to return to the login interface.

：Screen mode button. You can choose 1，4，6，8，

9，13 or 16 screen display mode.

：Favorite channel display button. If you save your favorite channel in the favorite

server list, clicking this button will directly play all favorite channels you have saved.

：Snap button. Choose the channel and click this button to capture the channel

image.

：Local record button. Choose the channel and click this button to start recording.

： Open/Close audio. Choose the channel and click this button to open/close the

audio of this channel.

：Open/Close talk. Click this button to pop up the servers which support talk

function. Select the device to start talking.

：Set video parameter button. Select the channel and click this button to set the

video parameters including brightness, hue, saturation and contrast.

：PTZ button. Click this button to pop up PTZ control panel.

：Choose bitrate priority or quality priority according to

your network condition.

Channel indicator instruction:

：Video loss ： Schedule recording ：Others

：Sensor alarm ：Motion alarm

：Motion /sensor alarm based recording or manual recording

3. Server list

Click button to pop up the following picture.
 Add device: Click【Add】button in the top right corner to pop up a dialog box as

shown in the following left picture. Input the relative information of the device and click
【Save】button.

Page 34

IP CAMERA USER MUANUAL

 Delete device: Click button behind the device name to delete this device.
 Edit device: Click button behind the device name to edit the information of

this device.
 Backup & restore: It is recommended to click【Backup】button to reserve the

information of all devices. Then you can click 【Restore】button to restore all device
information after you re-install the client or delete the device uncarefully.

 indicates the device has been connected; indicates the device is
connecting; indicates the device is not connected.

4. Live Preview

Once you access the device, the system will automatically display the screen mode in
accordance with the channel number of the device

Note: The maximum number of channels which can be connected are nine after
login.

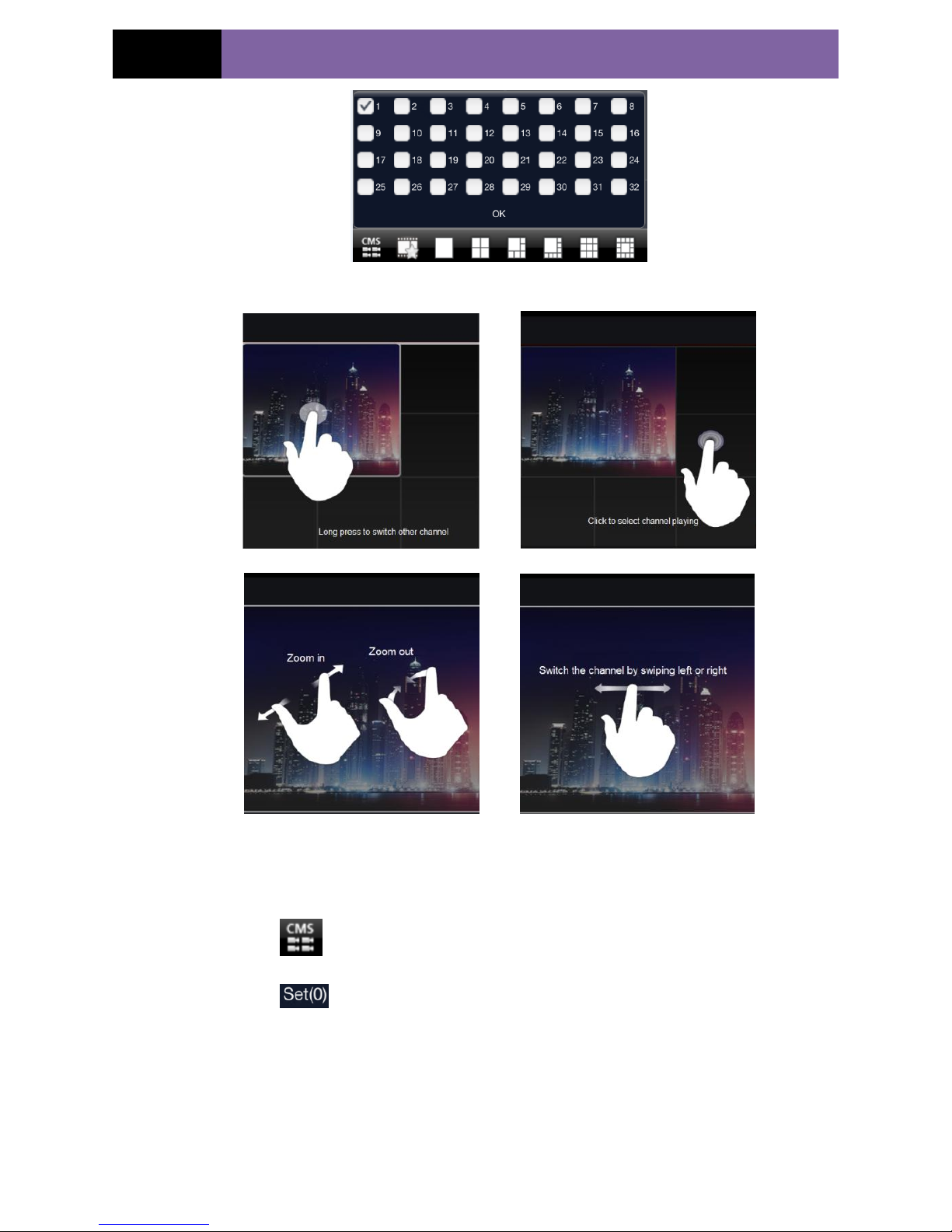

 Click “Screen mode” button to select channel as shown in Fig 1.
 When there is video playing in a screen, you can switch the channel by long

pressing the screen as shown in Fig 2.
 When no video is playing in a screen, click this screen to choose channel as shown
in Fig 3.
 When the single channel is playing, you can zoom in/out the image by swiping
you finger up and down as shown in Fig 4.
 When the single channel is playing, the channel can be switched by swiping your
finger left or right as shown in Fig 5.
 When multi channels are playing, drag one channel screen to the other channel
screen. This will make these two channels change the position of each other.

Page 35

IP CAMERA USER MUANUAL

Fig 1

Fig 2 Fig 3

Fig 4 Fig 5

5. CMS Function

This function makes multi-device managements and preview come true.

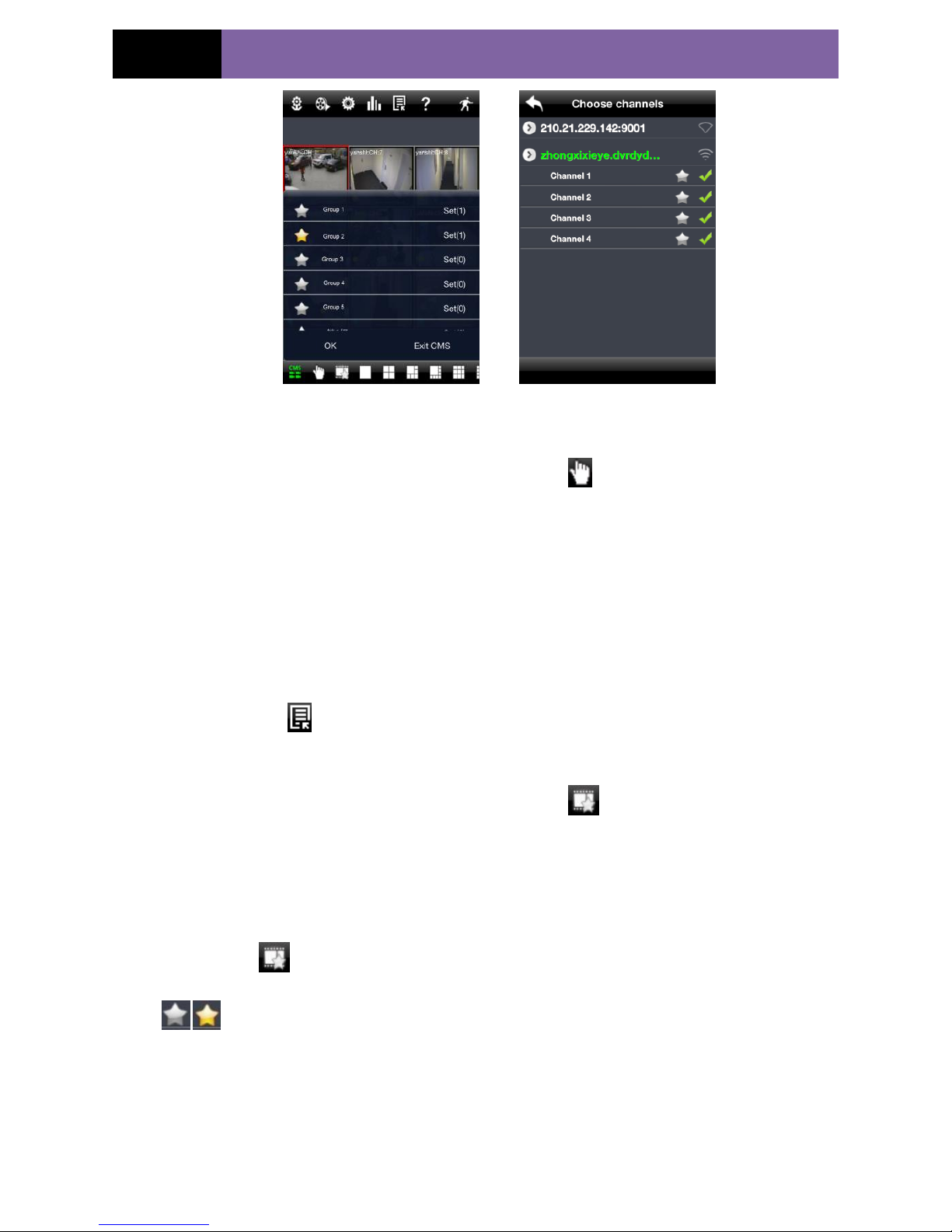

Step 1: Click to enable CMS function. When this icon turns green, it means this

function is enabled.
Step 2: Click to choose channel as shown in the right picture. After you choose
the channel, click【ok】, the system will display the related image automatically.

Page 36

IP CAMERA USER MUANUAL

 If channels have been added into the group, you can see the images by clicking the
group name.

 On viewing the group channel images, click button and select channels to
check other channel images.

 Click【Exit CMS】to exit CMS mode and return to the main interface of the device.

6. Favorite Channel/Group

There are two kinds of favorite channels: favorite channels of the device and favorite
group of CMS.

 Favorite channels of the device

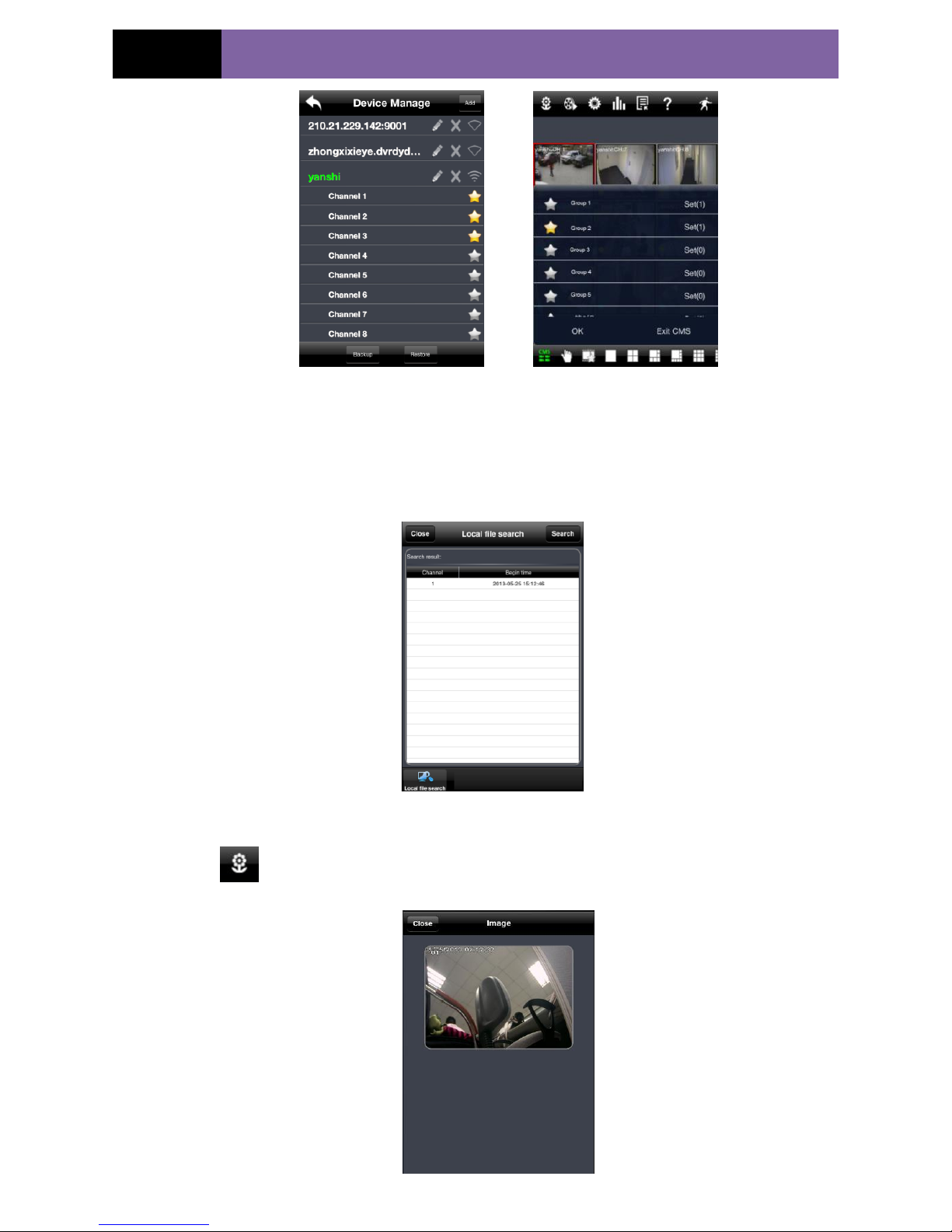

Step 1: Click to enter into device management list. Click the device name to

extend channel. Enlighten the channels to save favorite channels as shown in the
following picture on the left.

Step 2: Return to the main interface and click button to play the favorite
channels.

 Favorite groups of CMS
Enable CMS function and enlighten the group to save the favorite groups as shown in
the following picture on the right.

Then click button to play. Only one favorite group can be collected.

：Color means the channel or group has been collected. Grey means the channel

or group isn‟t collected.

Page 37

IP CAMERA USER MUANUAL

7. Playback Interface

Click “Playback” button to enter the playback interface. Then click “Search” button to
search the file. To play the record by click this file name.

8. Image View

Click button to view the captured pictures.

Page 38

IP CAMERA USER MUANUAL

9. Settings Interface

In this interface, you can configure the local settings.

10. Information Interface

In this interface, you can view system information.

6.3 By Phones with Android OS

Software Installation
Step 1: Run “Play Store” (or Google market) program.
Step 2: Search “SuperLivePro”.

Page 39

IP CAMERA USER MUANUAL

Step 3: Press “Install” button.
Step 4: Install the software subject to the notes. Once the downloading is done, the

software will install automatically.

Login
Step 1: Configure the network of your device and mobile phone.

Page 40

IP CAMERA USER MUANUAL

Step 2: Input the WAN IP address/domain name and port of your device in the sever
column. The port should be HTTP port of your device. The default http port of the
device is 80. If you have changed your http port, please enter the new port here. For
example: 210.21.228.183:89 or 123.dvrdydns.com:89.
Step 3: Input the account and password of your device. The default account name is
admin and the default password is 123456.
Step 4: Check “Remember Server” to save the setting. When you login next time, you
can click button to select this server for quick access.

Main Menu

Live View

Image View

PTZ

Snap

Record

Talk

Enable/disable
audio

Hide

Playing favorite
channel

Page 41

IP CAMERA USER MUANUAL

Record Playback

Click “Playback” in the main menu interface to enter playback interface. Then choose
the channel you want to playback. This will take you to see the record file. Click this
file to play.

Server List

The first picture

The previous picture

Next picture

The last picture

Zoom in

Zoom out

Delete

Pause/Play

Stop

Forward

Backward

Page 42

IP CAMERA USER MUANUAL

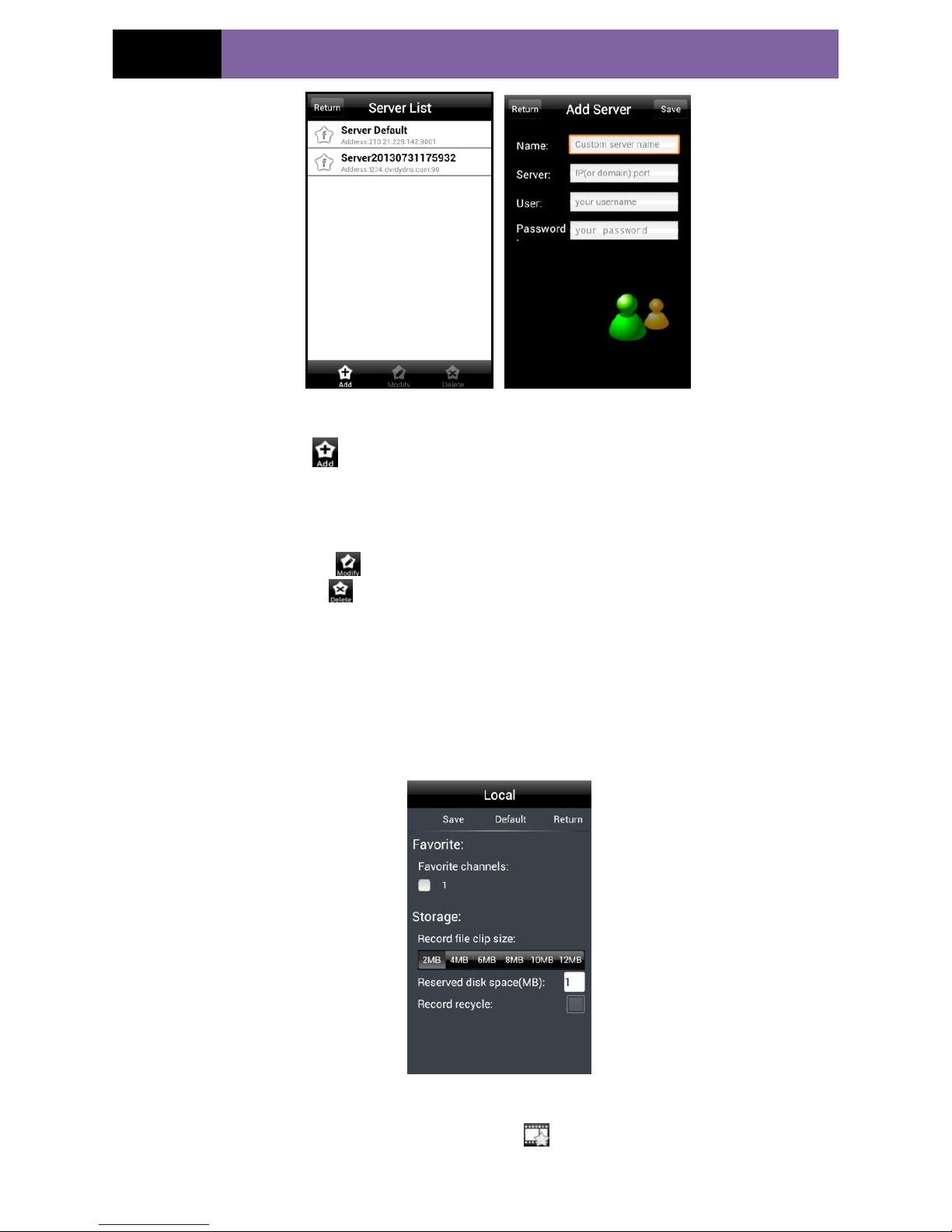

In the main menu interface, click “Server list” to see the above picture on the left hand.
Add Server: Click button to pop up a window as shown in the above picture on the

right hand. Enter the name, server, user and password of the device you want to add.
Then click【Save】button to save the server. When you log in next time, you can choose

and quickly access this server by clicking the little triangle button in the server column.
Modify Server: Click button to modify the server information.
Delete Server: Click button to delete the server information...

Settings

In the main menu interface, click “Settings” to enter the settings interface where you
can configure local settings.
Click “Local” to enter local settings interface. In this interface, you can set favorite
channel and storage .

Favorite Channel: Check the favorite channels and click【Save】button to save these
channels. Then go into live interface and click button to play these favorite

channels.

Page 43

IP CAMERA USER MUANUAL

Storage: Setup the relevant parameters of mobile video.

Information View

Page 44

IP CAMERA USER MUANUAL

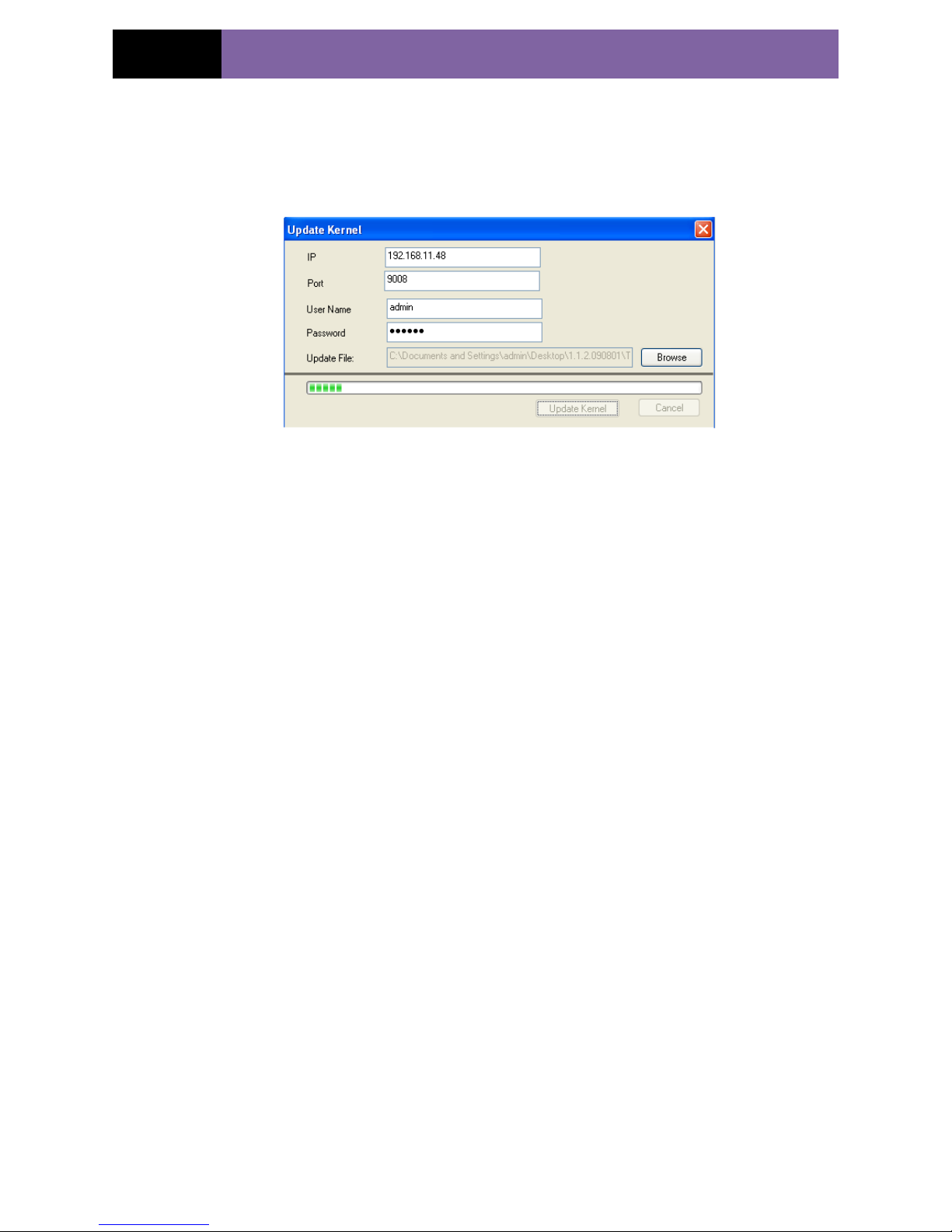

7 Use method for IP-TOOL

Updating through IP-Tool

Note: Do not cut off power supply and internet when updating; If the device is
unable to start because of the failure of upgrade, it needs to retrofit.

First， acquire the IP-Tool from the supplier and then double click the IP-Tool icon

to run this software. Then the device can be searched; if the device can‟t be

searched, please check whether the PC and the device connect to the network or not.

Click the device to check its detail information as shown below:

 Network Setup

When upgrading the software and kernel, the IP address of PC and device should be at
the same network segment. If the network segment is different, user should change the
IP address by right clicking the device and then select “network setup”.
Modify IP address dialog box will appear as follows:

c

Page 45

IP CAMERA USER MUANUAL

Modify IP address and click OK button to exit the dialog box, IP-Tool will display the
new IP address.

 Upgrading Software

Select the device and right click to choose “Update software” menu. Input the username
and password. Then click “browse” button to choose the upgrade software. Finally, click
“Update software” to start upgrading. When upgrading, please do not disconnect PC and
the device and make sure the power is on.

After finishing upgrading, a message box will pop up as below:

Click OK button to exit the update dialog box and then the device will restart
automatically.

 Upgrading Kernel

Select the device and right click it to select “Update kernel” .

Page 46

IP CAMERA USER MUANUAL

Enter into Kernel upgrade dialog box, input user name and password, click “Browse” to
select the Update file (mboot8180-8180) and click “Update” button to start updating.
When upgrading, please do not disconnect PC to device and make sure the power is on.
The update progress bar will display as below:

After finishing upgrading, a message box will pop up. After a while, the device will
restart automatically.

 Modifying Device Name

Right click the device you want to modify and select “Modify Device Name” from the
drop-down list. This will bring up a window for changing device name. Input new
device name and click “OK” button to save the setting.

Page 47

IP CAMERA USER MUANUAL

8 Q & A

1. Q: Forget password

A：Joint the default line and GND line to reset.
Note: Default IP: 192.168.226.201

User name: admin
Password: 123456

2. Q：Why can’t the devices connect through IE browser?

A: Network doesn‟t connect well. Please check the connection and make sure it
connected well.
B: IP is not available. Reset the valid IP.
C: Web port number has been revised: contact administrator to get the correct port
number.
D: Exclude the above reasons. Recover default setting by jointing the default line and
GND line.
Note: default IP: 192.168.226.201，mask number: 255.255.255.0

3. Q：IP tool cannot search devices.

A：It may be caused by the anti-virus software in your computer. Please exit it and try to
search device again.

4. Q：IE cannot download ActiveX control.
a. IE browser blocks ActiveX. Please do setup following below.

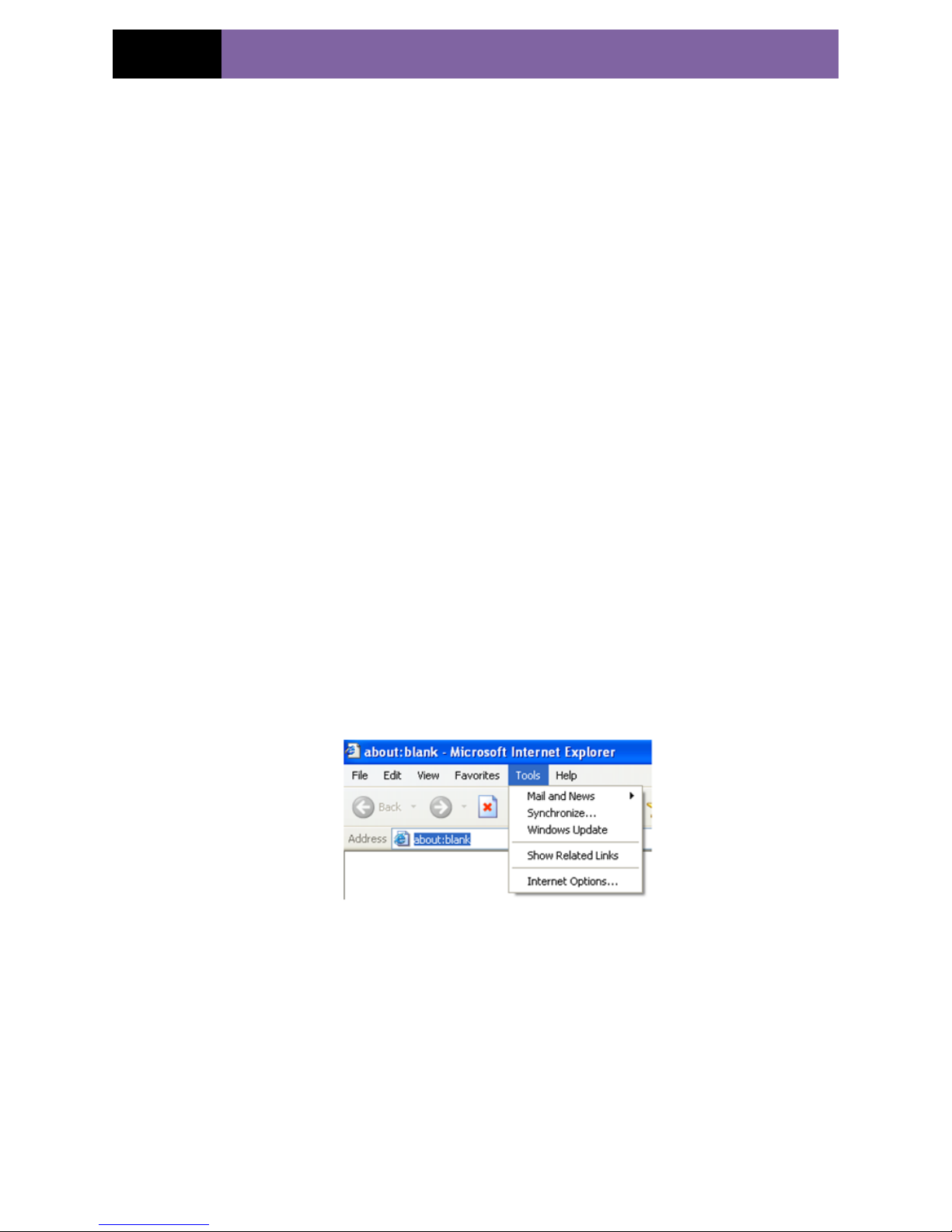

① Open IE browser. Click Tools-----Internet Options….

② select Security------Custom Level….Refer to Fig 4-1
③ Enable all the sub options under “ActiveX controls and plug-ins”. Refer to Fig 4-2

Page 48

IP CAMERA USER MUANUAL

Fig 4-1 Fig 4-2

④ then click ok to finish setup.
b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them.

5. Q：No sound can be heard.

A：Without connect audio input device. Please connect and try again.
B: Without enable audio function at the corresponding channel. Please check AUDIO
item to enable this function.

6. Q：Why can’t the device connect to wireless?

A: Check the statues of wireless router. Please make sure the router is open
B: Check the router and the device port. Please make the router setup is matched with
device port.

Page 49

IP CAMERA USER MUANUAL

9 Specification

Model

2Mega Pixel Water-Proof IP Camera

Image Sensor

1/3”CMOS

Video Compression

H.264

Audio Compression

G711A

Image resolution

1080P, 720P, VGA, QVGA

Shutter

1/25s~1/100000s

Low illumination

0 Lux (IR ON)

Lens

4mm, 6mm/8mm (optional)

Resolution

1920x1080(1080P)；1280x720(720P), 640x780(VGA), 320x240
(QVGA)

Stream

1080P: 512bps～8192kbps (1~30fps)

720P: 256bps～4096kbps (1~30fps)

VGA: 128bps～2048kbps (1~30fps)

QVGA: 64kbps～1024kbps(1~30fps)

Audio

MIC IN*1

Network Protocol

TCP/IP, DHCP, PPPoE, DDNS, SMTP, UPnP，RTSP,NTP

IR Range

10~20m

No

Protection Grade

IP66

Network Port

RJ45

Remote Surveillance

IE Browse、CMS remote control

Client Number

Max 4

Power Supply

DC12V/PoE(optional)

Working
Environment

-10°C ~50°C, 10%~90% humidity
