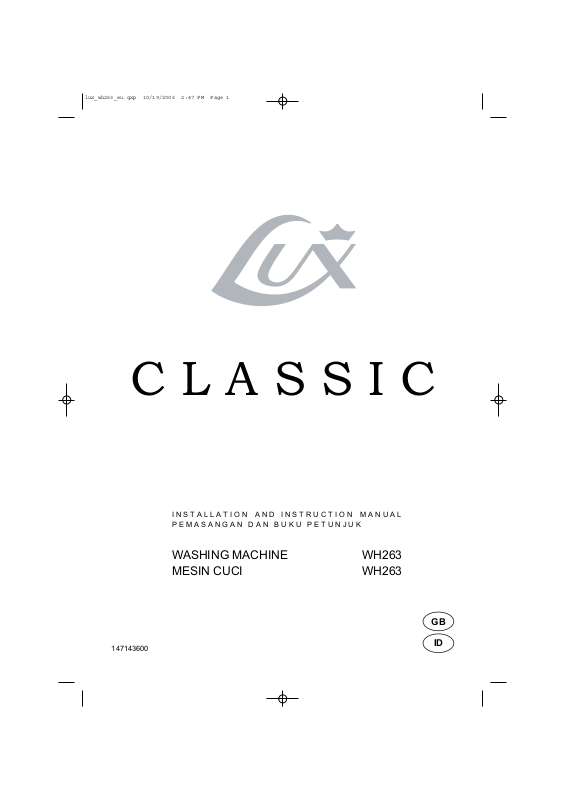

Lux WH263 User Manual

C L A S S I C

I N S T A L L A T I O N A N D I N S T R U C T I O N M A N U A L
P E M A S A N G A N D A N B U K U P E T U N J U K

WASHING MACHINE WH263
MESIN CUCI WH263

147143600

GB

ID

Dear customer,

Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.

Contents

Transport damages

When unpacking the appliance, check that it is not
damaged. If in doubt, do not use it and contact the
Service Centre.

Warnings 3

Disposal 4

Tips for environmental protection 4

Technical specifications 4

Installation 5

Unpacking 5

Positioning and levelling 5

Water inlet 5-6

Water drainage 6

Electrical connection 6

Your new washing machine 7

Description of the appliance 7

Detergent dispenser drawer 7

Use 8-9

Washing hints 10

Sorting the laundry 10

Temperatures 10

Before loading the laundry 10

Maximum loads 10

Laundry weights 10

Removing stains 10-11

Detergents and additives 11

International wash code symbols 12

Operating sequence 13-14

Programme tables 15-16

Maintenance 17

Bodywork 17

Door seal 17

Detergent dispenser drawer 17

Drain pump 17-18

Water inlet filter 18

Emergency emptying out 18

Frost precautions 18

Control panel 8

Controls 8-9

The symbols you will see on some paragraphs of this booklet have the following meaning:

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly
important for your safety or correct functioning of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.

Tips and information about economical and ecological use of the machine are marked with this symbol.

Our contribution to the protection of the

environment: we use recycled paper.

Something not working? 19-20

2

Warnings

The following warnings are provided in the interests of overall safety. You must read them carefully before
installing or using the appliance.

Installation

ENGLISH

• All internal packing must be removed before using
the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not
completely removed. Refer to the relevant
paragraph in the instruction book.

• Any electrical work required to install this appliance
must be carried out by a qualified electrician.

• Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.

• After having installed the machine, check that it is
not standing on its electrical supply cable.

• If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between the
feet and the floor.

Use

• This appliance is designed for domestic use. It
must not be used for purposes other than those for
which it was designed.

• Only wash fabrics which are designed to be
machine washed. Follow the instructions on each
garment label.

• Do not overload the appliance. Follow the
instructions in the instruction book.

• Make sure that all pockets are empty. Objects such
as coins, safety pins, pins and screws can cause
extensive damage.

• Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene, etc.
If such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing
garments in the appliance.

• Place small items such as socks, belts, etc. in a
cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.

• Use only the recommended quantities of fabric
softener. An excessive amount could damage the
laundry.

• Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the door
seal and prevents the formation of musty smells.

• Always check that water has emptied out before
opening the door. If not, drain the water following
the instructions in the instruction book.

• Always unplug the appliance and shut the water
tap after use.

General safety

• Repairs to the machine must be carried out only by
qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.

• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.

• During high temperature wash programmes the
door glass may get hot. Do not touch it!

Child safety

• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s
reach.

• Make sure that children or pets do not climb into
the drum.

• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.

3

Disposal

Packaging materials

The materials marked with the symbol are
recyclable.

>PE<=polyethylene

>PS<=polystyrene

>PP<=polypropylene

Tips for environmental protection

To save water, energy and to help protect the
environment, we recommend that you follow these
tips:

• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).

• The machine works more economically if it is fully
loaded. Do not overload!

This means that they can be recycled by disposing of
them properly in appropriate collection containers.

Machine

Use authorised disposal sites for your old appliance.
Help to keep your country tidy!

• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.

• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.

Technical specifications

DIMENSIONS Height 85 cm

Width 60 cm
Depth 63 cm

WASH LOAD Cotton 5.0 .kg

Synthetics 2.0. kg

Delicates 3.0. kg

Woollens and Hand wash 2.0 kg

SPIN SPEED 650 rpm max.

POWER SUPPLY VOLTAGE/FREQUENCY 220-240 V/50 Hz
TOTAL POWER ABSORBED 2200 W
MINIMUM FUSE PROTECTION 10 A

WATER PRESSURE Minimum 500 kPa

Maximum 800 kPa

This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility.

4

P0021

P1088

P1051

Installation

Unpacking

All transit bolts and packing must be

removed before using the appliance.

You are advised to keep all transit devices so that they
can be refitted if the machine ever has to be transported
again.

1. Using a spanner, unscrew and remove the two
rear bottom screws. Slide out the two plastic pins.
Lay the machine on its back, taking care not to
squash the hoses. This can be avoided by placing
one of the corner packing pieces between the
machine and the floor

P1129

2. Remove the polystyrene block(s) from the bottom
of the machine and release the two plastic bags.

3. Very carefully slide out the left polythene bag,
removing it towards the right and then
downwards.

P0001

5. Set the machine upright and remove the
remaining rear screw. Slide out the relevant pin.

6. Plug all the holes with the plugs which you will

find in the envelope containing the instruction
manual.

P1128

P0002

Positioning

Install the machine on a flat hard floor.
Make sure that air circulation around the machine
is not impeded by carpets, rugs etc. Check that
the machine does not touch the wall or cupboard
units. Carefully level by screwing the adjustable
feet in or out. Never place cardboard, wood or
similar materials under the machine to
compensate for any unevenness in the floor.

1

2

3

P1123

P1126

4. Very carefully slide out the right polythene bag,
removing it towards the left and then upwards.
Remove the bottom cover placed into the drum of
your appliance, lay it’s hook as the arrow ’A’
indicates and push the top of the cover to seal it
closed

Important: You can find more detailed instructions
regarding the bottom cover assembling in it’s relative
bag.

Water inlet

Connect the water inlet hose to a tap with 3/4” BSP
thread.
Use the hose supplied with the washing machine.
DO NOT USE OLD HOSES.
The other end of the inlet hose which connects to the
machine can be turned in any direction. Simply
loosen the fitting, rotate the hose and retighten the
fitting, making sure there are no water leaks.

P1127

5

The inlet hose must not be lengthened. If it is too

P1118

P0022

short and you do not wish to move the tap, you will
have to purchase a new, longer hose specially
designed for this type of use.

Important!

Before connecting up the machine to new pipework
or to pipework that has not been used for some time,
run off a reasonable amount of water to flush out any
debris that may have collected in the pipes.

Water drainage

The end of the drain hose can be positioned in three
ways:

Hooked over the edge of a sink using the plastic
hose guide supplied with the machine. In this

case, make sure the end cannot come unhooked
when the machine is emptying.
This could be done by tying it to the tap with a piece
of string or attaching it to the wall.

Electrical connection

This machine is designed to operate on a 220-240 V,
single-phase, 50 Hz supply.

Check that your domestic electrical installation can
take the maximum load required (2.2 kW), also
taking into account any other appliances in use.

Connect the machine to an earthen socket.

The manufacturer declines any responsibility
for damage or injury through failure to comply
with the above safety precaution.
Should the appliance power supply cable
need to be replaced, this should be carried
out by our Service Centre.

Please ensure that when the appliance is
installed the power supply cable is easily
accessible.

In a sink drain pipe branch. This branch must be

above the trap so that the bend is at least 60 cm
above the ground.

Directly into a drain pipe at a height of not less
than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain pipe
must be larger than the outside diameter of the drain
hose.

The drain hose must not be kinked.

For a correct functioning of the machine the
drain hose must remain hooked on the proper
support piece situated on the top part of the back
side of the appliance.

6

Your new washing machine

This new machine meets all modern requirements for effective treatment of laundry with low water, energy and
detergent consumption.

• The programme selector dial combines the function of programme and temperature selection, making it
easier to set the programme.

• The programme progress display shows the spin speed selected and the washing phase which is running.

• The special wool programme with its new delicate wash system treats your woollens with extreme care.

• The automatic cooling of the washing water from 90° to 60°C before draining will prevent old drain pipes
from being deformed and will reduce thermal shock to fabrics, helping to prevent creasing.

• The unbalance detection device prevents vibration during spinning.

• The ECO valve allows total use of detergent and reduces water consumption so saving energy.

Description of the appliance

ENGLISH

1 Detergent dispenser drawer

2 Control panel

3 Door handle

4 Drain pump

5 Adjustable feet

6 Door lock indicator

1 2

Prewash

650

Classic

Rinse hold

Quick

Extra

Start/

Spin

Wash

Rinse

Pause

Reduction

WH263

5

Off

Spin

90

Drain

450

No Spin

Wash

End

Door

60E

Rinse

Cottons

40

Cold

30

Wool

Cold

30

Cold

Delicates

304030

Cold

Synthetics

6

3

4

Detergent dispenser drawer

Prewash

Main wash

Fabric softener, starch

7
