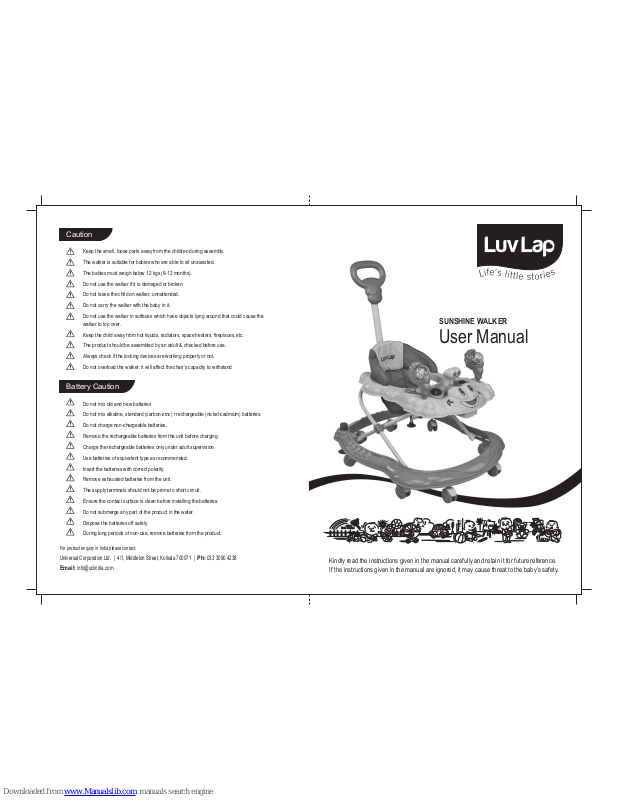

LuvLap SUNSHINE User Manual
Life‛s
little stories
L
i
f
e
‛
s
l
i
t
t
l
e
s
t
o
r
i
e
s
Life‛s
little stories
Kindly read the instructions given in the manual carefully and retain it for future reference.
If the instructions given in the manual are ignored, it may cause threat to the baby’s safety.
Keep the small, loose parts away from the children during assembly.
The walker is suitable for babies who are able to sit unassisted.
The babies must weigh below 12 kgs (6-12 months).
Do not use the walker if it is damaged or broken.
Do not leave the child on walker, unnattended.
Do not carry the walker with the baby in it.
Do not use the walker in surfaces which have objects lying around that could cause the
walker to top over.
Keep the child away from hot liquids, radiators, space heaters, fireplaces, etc.
The product should be assembled by an adult & checked before use.
Always check if the locking devices are working properly or not.
Do not overload the walker; it will affect the chair’s capacity to withstand
Caution
Do not mix old and new batteries
Do not mix alkaline, standard (carbon-zinc) r rechargeable (nickel-cadmium) batteries.
Do not charge non-chargeable batteries.
Remove the rechargeable batteries from the unit before charging.
Charge the rechargeable batteries only under adult supervision.
Use batteries of equivalent type as recommended.
Insert the batteries with correct polarity.
Remove exhausted batteries from the unit.
The supply terminals should not be prone to short circuit.
Ensure the contact surface is clean before installing the batteries.
Do not submerge any part of the product in the water.
Dispose the batteries off safely.
During long periods of non-use, remove batteries from the product.
For product enquiry in India please contact:
Universal Corporation Ltd. | 4/1, Middleton Street, Kolkata 700071 | Ph: 033 3090 4238
Email: info@uclindia.com
User Manual
SUNSHINE WALKER
Battery Caution
4 Apply pressure on the walker
frame and the up tray to flatten
the walker.
walker frame
wheels
stopper
push bar
footmat
toy
screws
seat pad
toy bar
toy tray
toy
Note: If any part is missing, please inform your distributor/retailer.
Use and Care:
Usage of Belt: The belt tightness can be adjusted as required.
Warning: The belt must be fastened when in use.
3 Remove the toys.
2 Detach the wheels and
the stoppers.
Folding Guidelines
Functional Guidelines
Loose parts inside the box
Installation Guidelines
i. To clean the metal and plastic parts, simply wipe with damp clothes and leave it to dry.
ii. Keep the product away from direct sunlight.
3 Attach the push bar to the
socket provided at the back of the
seat and retain with screws.
6 Insert battery in the toy bar and
attach it to the toy tray. Insert the
toys in the sockets (see fig.).
4 Insert the stopper device at the
sockets provided on the base.
Secure with screws.
5 Attach the wheels into the
sockets provided for them at the
bottom of the walker frame.
1 Unfold walker frame by
keeping the base of the walker
on a flat surface, twist the knob
of the safety device below the
up-tray to “-“and pull the tray to
upwards direction.Make sure
the safety device is in locked
state and twist knob to “+”.
2 Insert the high back of seat pad
to the walker and fasten with
screws under top frame and retain
it by inserting the clips of the seat
to the upper tray.
1 Switch on the music by pressing
the buttons on the toy bar.
2 The walker can be adjusted in
3 different heights by pulling the
lever provided below the up tray.
Adjust height according to the
baby’s requirement.
3 Push the stopper when the walker is not in use.
1 Detach the footmat.
