Page 1

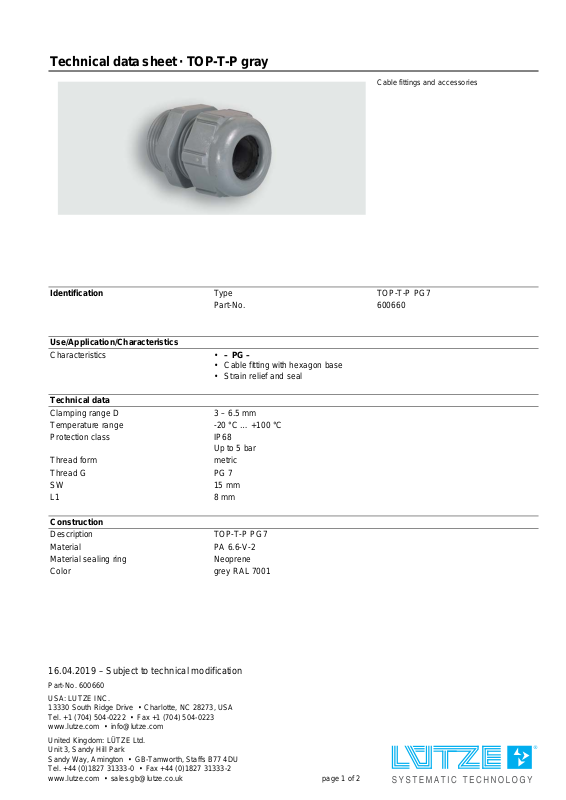

Technical data sheet · TOP-T-P gray
Cable fittings and accessories
Subject to technical mo dification 600660
Identification Type TOP-T-P PG7
Part-No. 600660
Use/Application/Characteristics
Characteristics • – PG –
• Cable fitting with hexagon base
• Strain relief and seal
Technical data
Clamping range D 3 – 6.5 mm
Temperature range -20 °C … +100 °C
Protection class IP68
Up to 5 bar
Thread form metric
Thread G PG 7
SW 15 mm
L1 8 mm
Construction
Description TOP-T-P PG7
Material PA 6.6-V-2
Material sealing ring Neoprene
Color grey RAL 7001
16.04.2019 – Subject to technical modification
Part-No. 600660
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 1 of 2
Page 2
Technical data sheet · TOP-T-P gray
General
PU 100 piece
Dimensions
16.04.2019 – Subject to technical modification
Part-No. 600660
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 2 of 2
