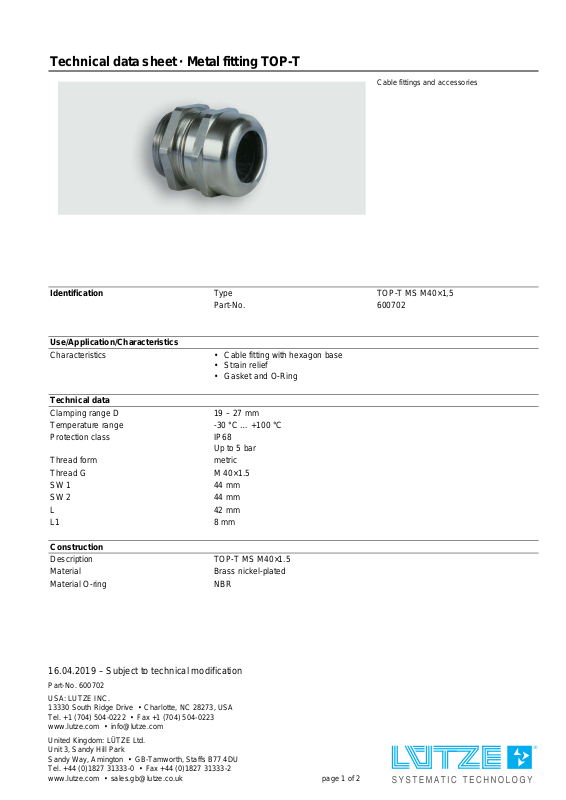

Technical data sheet · Metal fitting TOP-T
Cable fittings and accessories
Subject to technical mo dification 600702
Identification Type TOP-T MS M40×1,5
Part-No. 600702
Use/Application/Characteristics
Characteristics • Cable fitting with hexagon base
• Strain relief
• Gasket and O-Ring
Technical data
Clamping range D 19 – 27 mm
Temperature range -30 °C … +100 °C
Protection class IP68
Up to 5 bar
Thread form metric
Thread G M 40×1.5
SW 1 44 mm
SW 2 44 mm
L42 mm
L1 8 mm
Construction
Description TOP-T MS M40×1.5
Material Brass nickel-plated
Material O-ring NBR
16.04.2019 – Subject to technical modification
Part-No. 600702
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 1 of 2
Page 2
Technical data sheet · Metal fitting TOP-T
Material sealing ring CR
General
PU 10 piece
Dimensions
16.04.2019 – Subject to technical modification
Part-No. 600702
