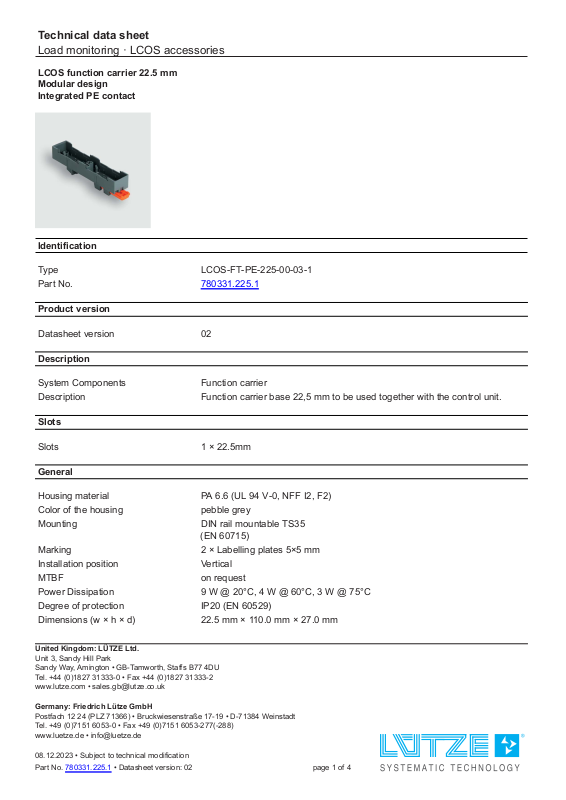

Technical data sheet
Load monitori n g · LCOS accessories
LCOS function carrier 22.5 mm
Modular design
Integrated PE contact
Identification
Type LCOS-FT-PE-225-00-03-1
Part No.
Product version
780331.225.1
Datasheet version 02
Description
System Components Function carrier
Description Function carrier base 22,5 mm to be used together with the control unit.
Slots
Slots 1 × 22.5mm
General
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Color of the housing pebble grey
Mounting DIN rail mountable TS35
(EN 60715)
Marking 2 × Labelling plates 5×5 mm
Installation position Vertical
MTBF on request
Power Dissipation 9 W @ 20°C, 4 W @ 60°C, 3 W @ 75°C
Degree of protection IP20 (EN 60529)
Dimensions (w × h × d) 22.5 mm × 110.0 mm × 27.0 mm
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
08.12.2023 • Subject to technical modification
Part No.
780331.225.1 • Datasheet version: 02 page 1 of 4
Page 2
Technical data sheet
Load monitori n g · LCOS accessories
Weight/unit 0.04 kg
PU (units) 1
General ambient conditions
Operation temperature range -40 °C . .. +85 °C
Storage temperature range -40 °C . .. +85 °C
Relative air humidity 5 – 95 %, no defrosting
Vibration resistance 4 g acc. to EN 60068-2-8
Shock resistance 15 g 11 ms acc. to IEC 60068-2-27
Certifications/Standards
Conformity CE
UKCA
Certifications cULus (E170585)
DNV (TAA00002SY)
Standards UL 61010-1
UL 61010-2-201
DNV-CG-0339

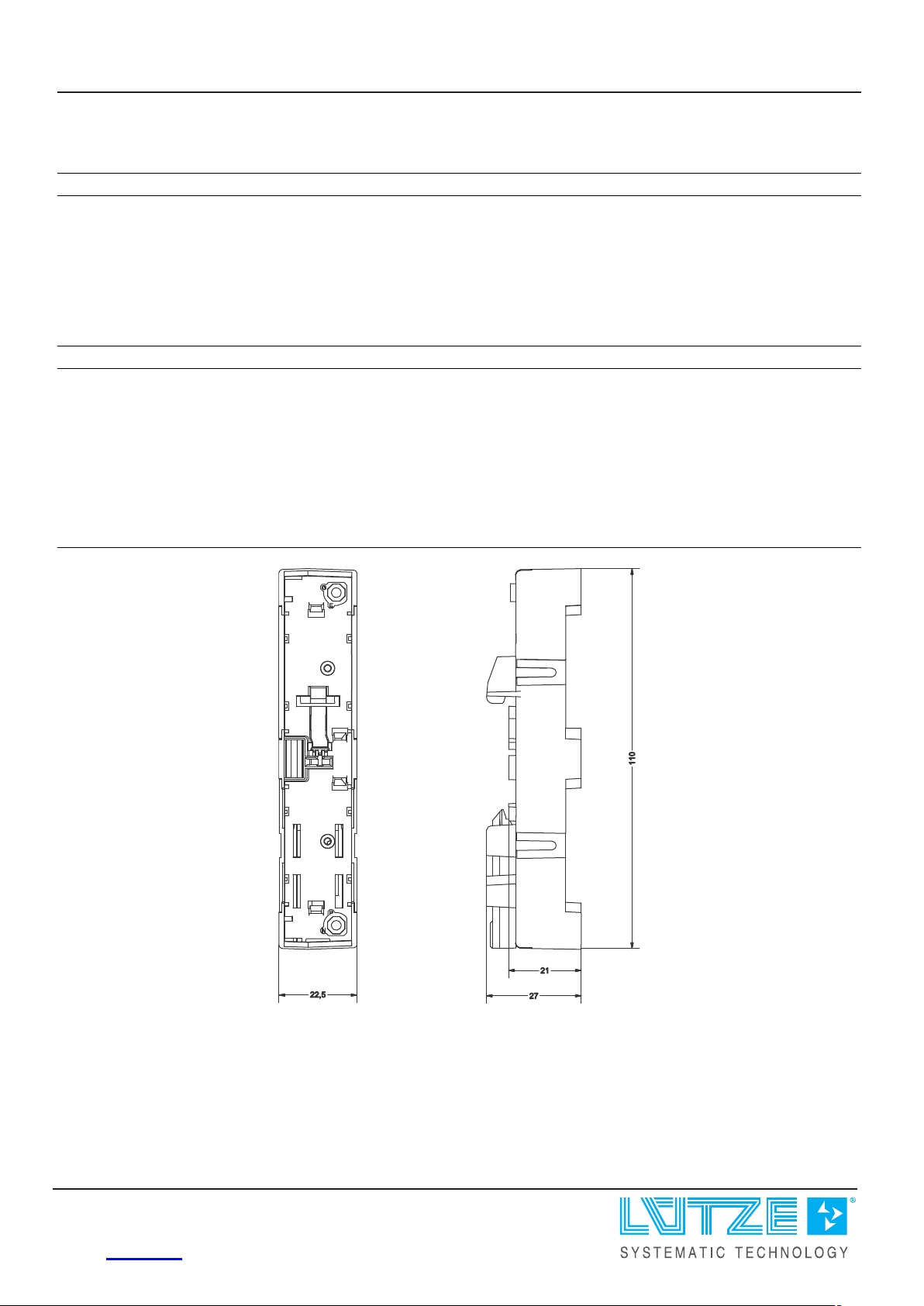

Dimensions
08.12.2023 – Subject to technical modification
Part No. 780331.225.1 • Datasheet version: 02 page 2 of 4
Page 3
Technical data sheet
Load monitori n g · LCOS accessories

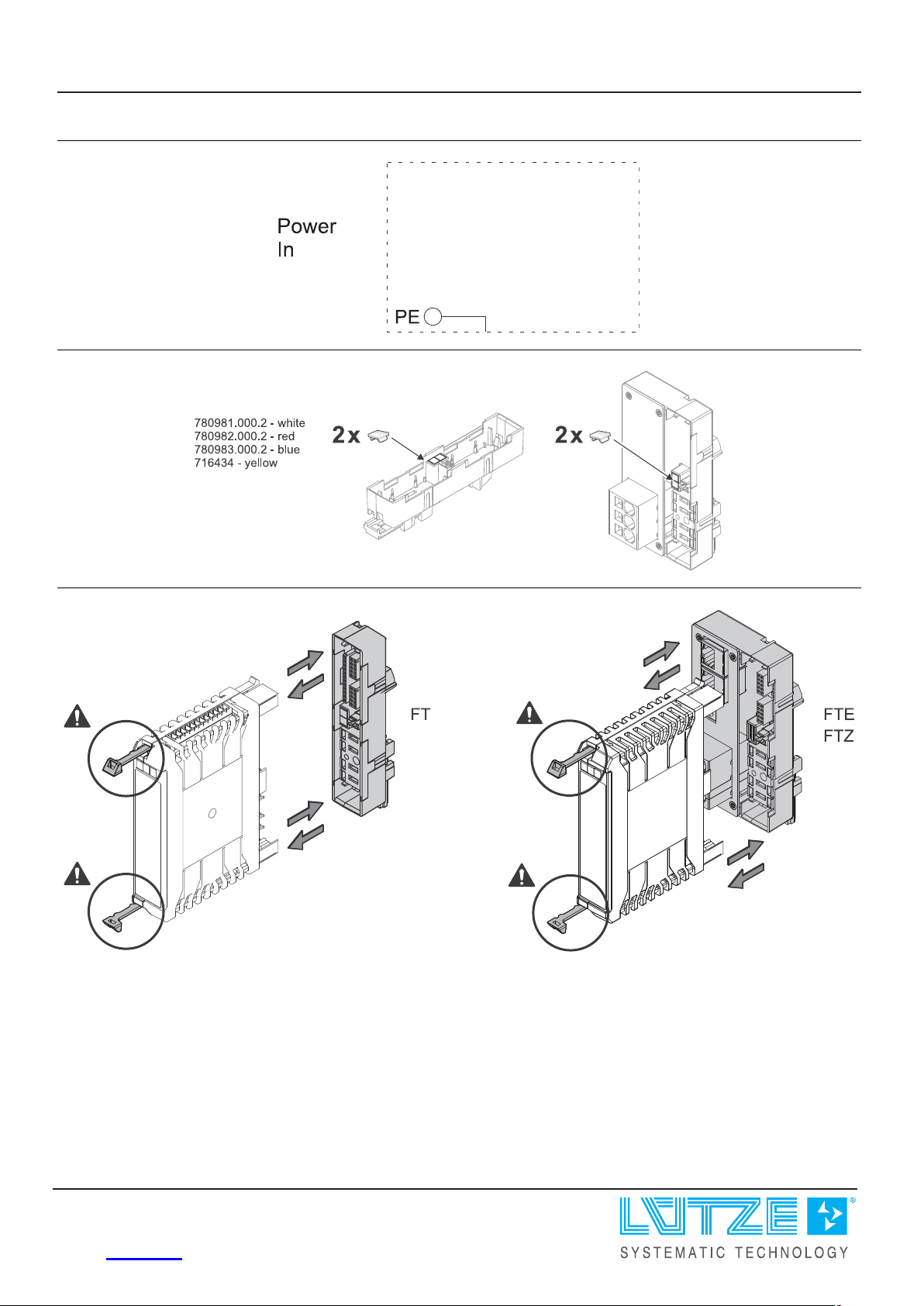

PIN assignment
Use
Use
08.12.2023 – Subject to technical modification
Part No. 780331.225.1 • Datasheet version: 02 page 3 of 4
Page 4
Technical data sheet
Load monitori n g · LCOS accessories

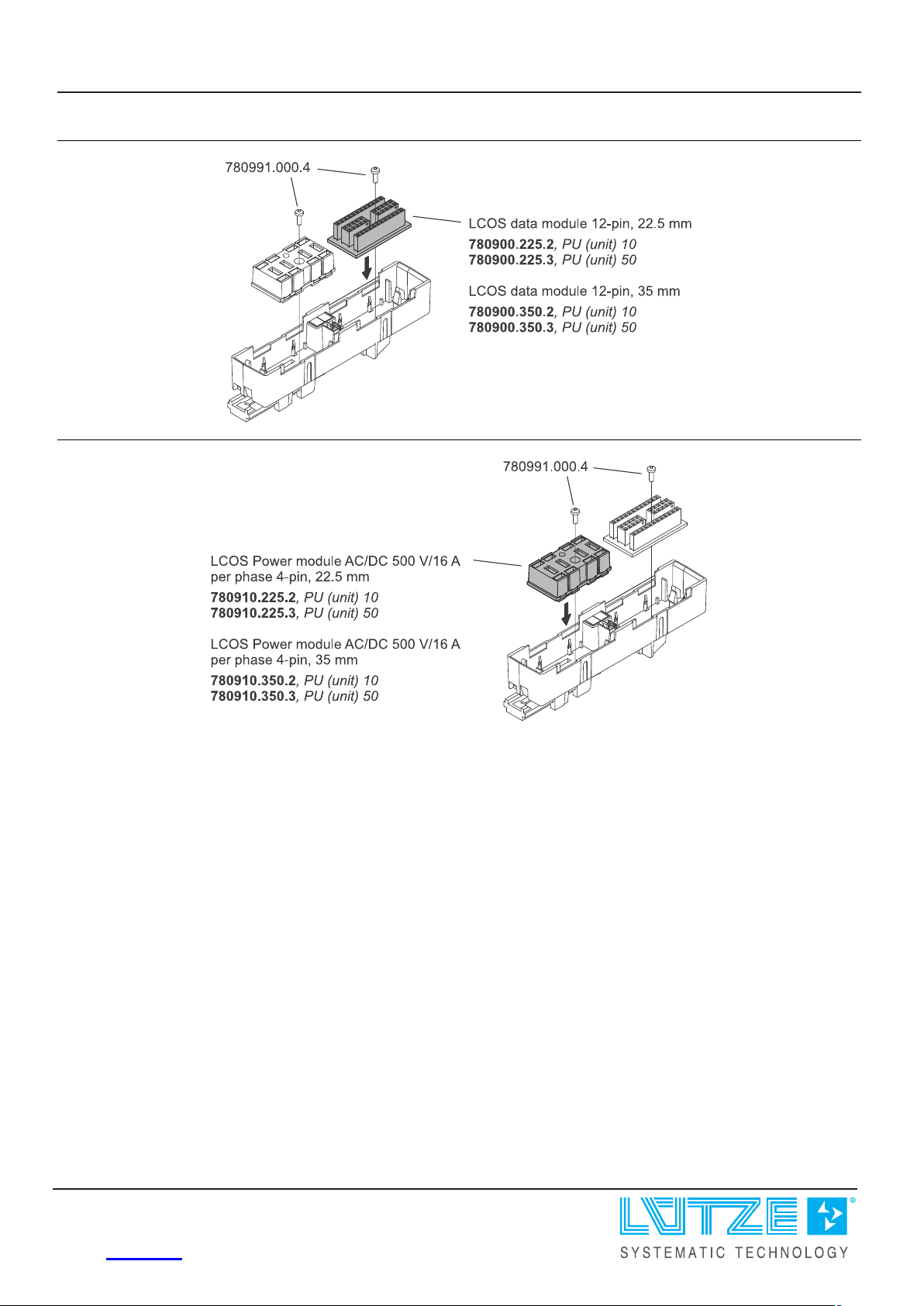

Use
Use
08.12.2023 – Subject to technical modification
Part No.
780331.225.1 • Datasheet version: 02 page 4 of 4
