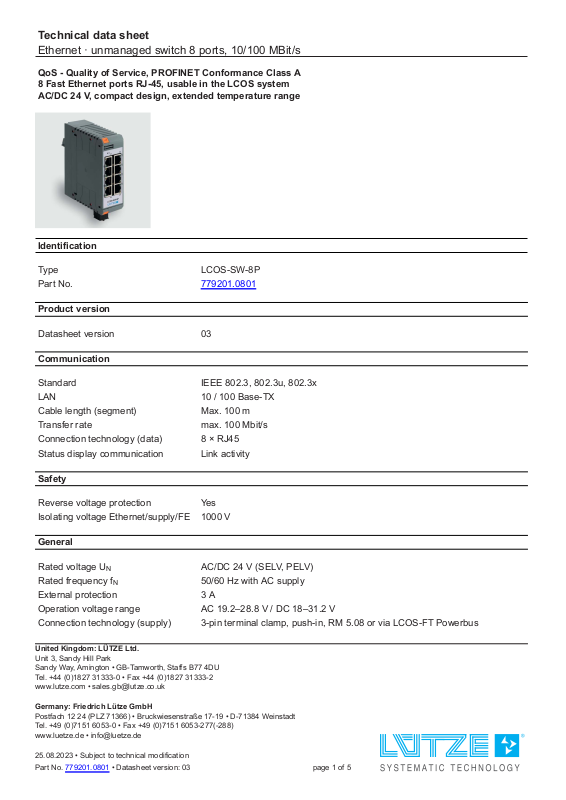

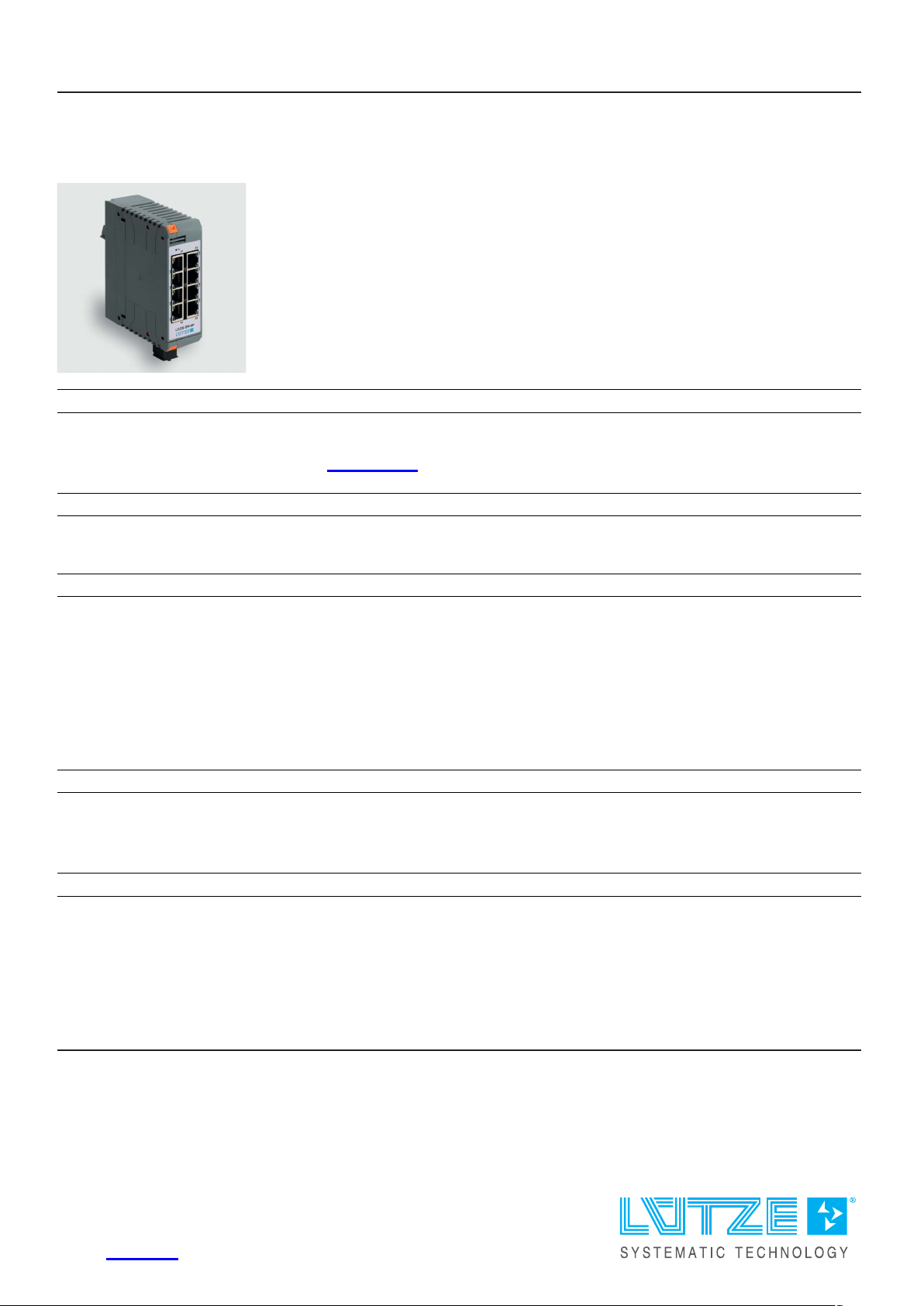

Technical data sheet
Ethernet · unmanaged switch 8 ports, 10/100 MBit/s
QoS - Quality of Service, PROFINET Conformance Class A
8 Fast Ethernet ports RJ-45, usable in the LCOS system
AC/DC 24 V, compact design, extended temperature range
Identification
Type LCOS-SW-8P
Part No.
Product version
779201.0801
Datasheet version 03
Communication
Standard IEEE 802.3, 802.3u, 802.3x
LAN 10 / 100 Base-TX
Cable length (segment) Max. 100 m
Transfer rate max. 100 Mbit/s
Connection technology (data) 8 × RJ45
Status display communication Link activity
Safety
Reverse voltage protection Yes
Isolating voltage Ethernet/supply/FE 1000 V
General
Rated voltage U
Rated frequency f
N
N
AC/DC 24 V (SELV, PELV)
50/60 Hz with AC supply
External protection 3 A
Operation voltage range AC 19.2–28.8 V / DC 18–31.2 V
Connection technology (supply) 3-pin terminal clamp, push-in, RM 5.08 or via LCOS-FT Powerbus
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • sale s.g b @ l u tze .co .u k
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • in fo @ l u e tze .d e
25.08.2023 • Subject to technical modification
Part No.
779201.0801 • Datasheet version: 03 page 1 of 5
Page 2
Technical data sheet
Ethernet · unmanaged switch 8 ports, 10/100 MBit/s
Power consumption 1,6 W
Degree of protection IP20 (EN 60529)
Max. altitude operation 2000 m
Relative humidity (operation) 5 % – 95 % (non-condensing)
Relative humidity (storage) 0 % – 95 % (non-condensing)
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Mounting connected to LCOS function car r i e r, hat rail mounting EN 60715
Installation position Vertical
MTBF >3000000 h: EN/IEC 61709 (SN 29500) @ 45 °C / 8760 h per year
Dimensions (w × h × d) 35.0 mm × 110.0 mm × 102.0 mm
Weight/unit 0.17 kg
PU (units) 1
General ambient conditions
Operation temperature range -25 °C . .. +70 °C
Storage temperature range -40 °C . .. +85 °C
Over voltage category II
Degree of pollution 2
Relative air humidity 10 % – 95 %, wi th o u t co n d e n sa ti o n
Vibration resistance 4 g acc. to EN 60068-2-6
Shock resistance 5 g acc. EN 60068-2-27
Certifications/Standards
Conformity CE
UKCA
Certifications cULus (E170585)
Standards EN 61131-2
EN 61000-6-2
EN 61000-6-4
UL 61010-1
UL 61010-2-201
Equipment/Spare parts
Accessories
Notes and Comments
Function carrier 35 mm, cannot be expanded with modules: Part.-No.
780201.350.1 | LCOS-FT-PE-350-00-00-1 | PU: 1 unit
Function carrier 35 mm, can be expanded with modules: Part.-No.
780402.350.1 | LCOS-FT-PE-350-0P-02-1 | PU: 1 unit
Side cover plate for function carrier: Part.-No. 780600.000.4 | LCOS-ZBAD-00-1 | PU: 100 units
Power bridge 1-pin insulated: Part.-No. 780961.001.2 | LCOS-ZB-PB01-00 | PU: 10 units
Included in the delivery Function carrier 35 mm, cannot be exp a n d e d with module s
Plug-in terminal black, RM 5.08, 3-pin, 2.5 mm²
Not included in the delivery other accessories, see „accessories“
25.08.2023 – Subject to technical modification
Part No. 779201.0801 • Datasheet version: 03 page 2 of 5
Page 3
Technical data sheet
Ethernet · unmanaged switch 8 ports, 10/100 MBit/s
Note

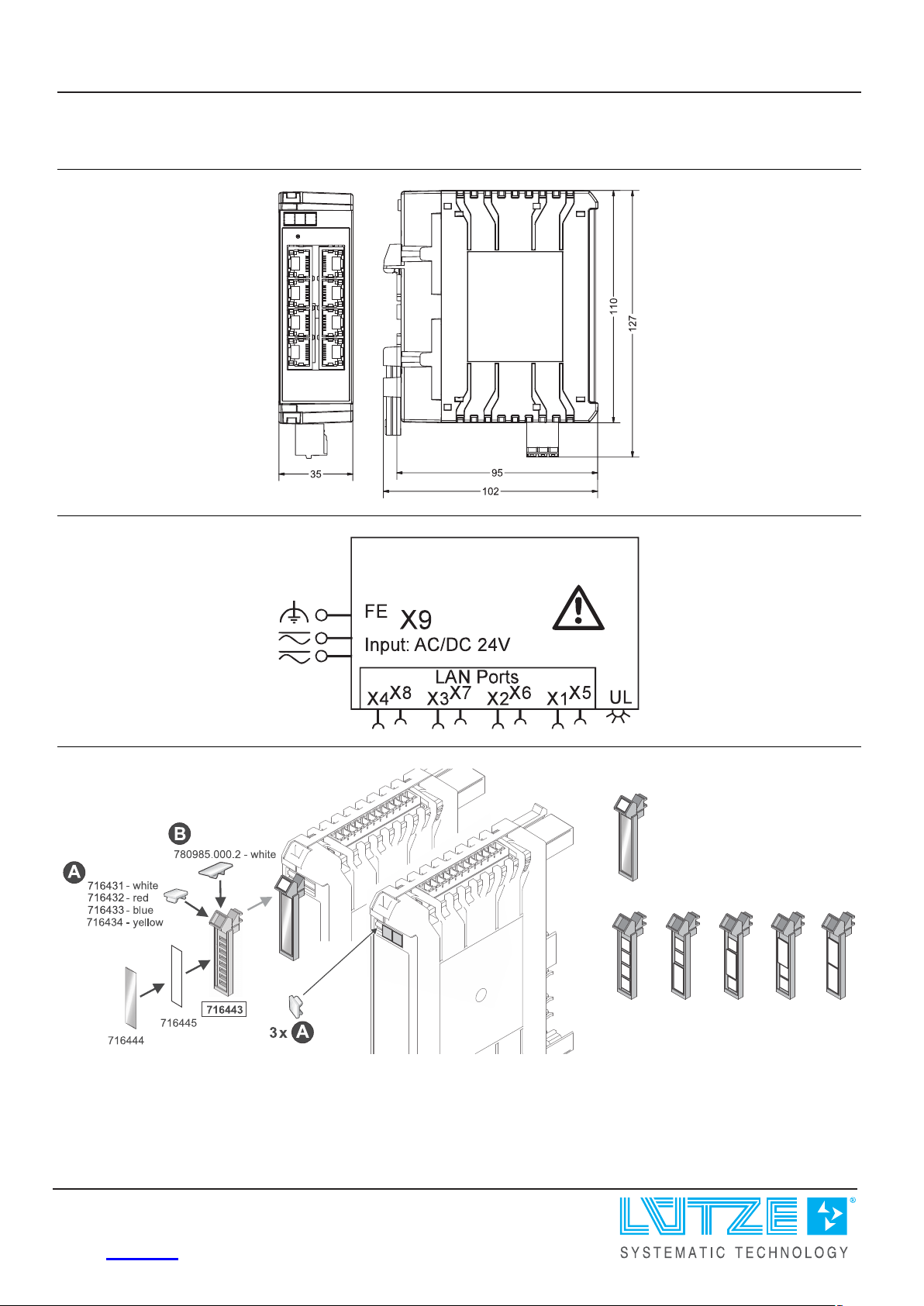

Dimensions
PIN assignment
For AC supply, there must be external over-voltage protection that limits the
voltage between the supply and the FE to below 1000 V.
Use
25.08.2023 – Subject to technical modification
Part No.
779201.0801 • Datasheet version: 03 page 3 of 5
Page 4
Technical data sheet
Ethernet · unmanaged switch 8 ports, 10/100 MBit/s

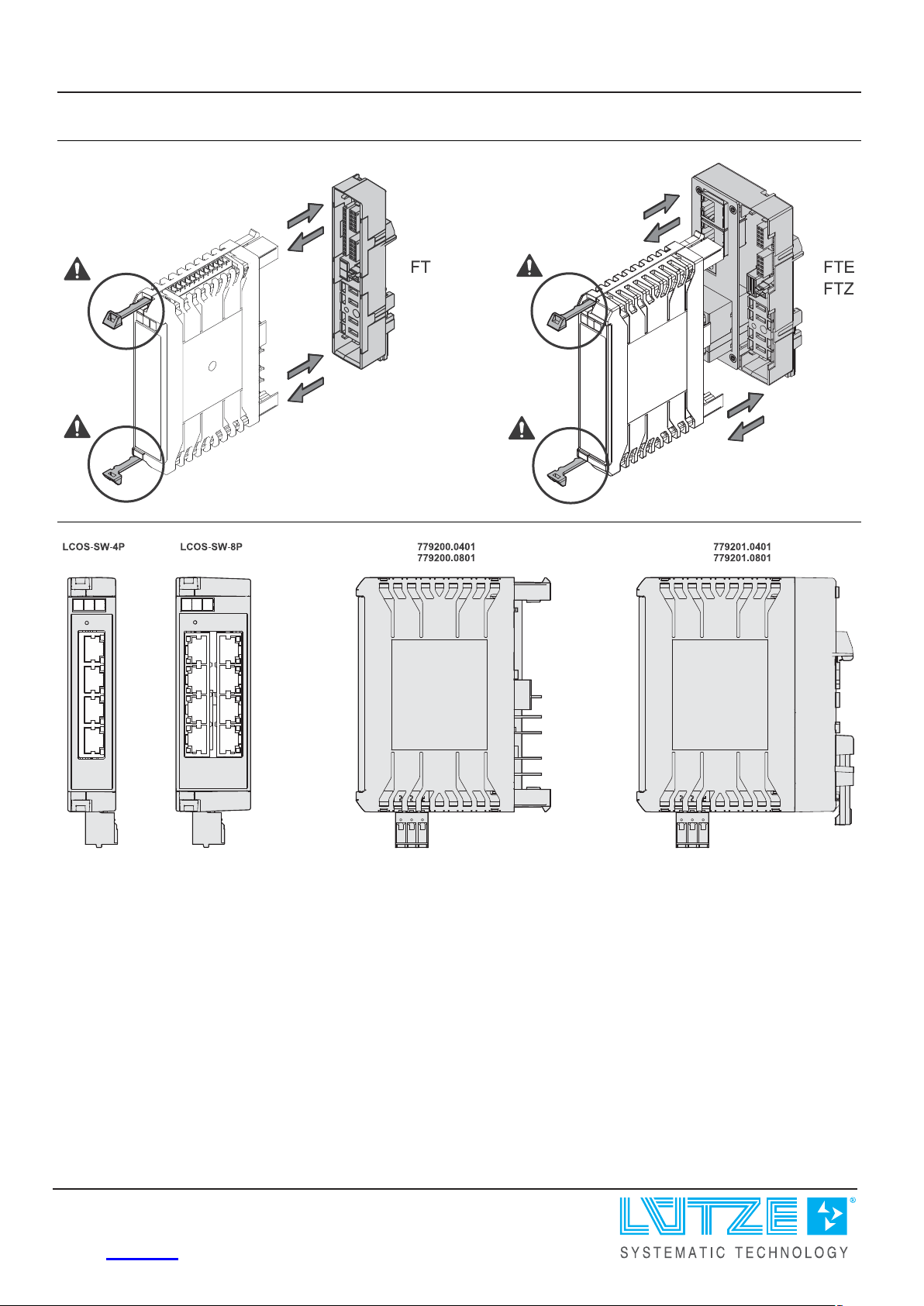

Use
Use
25.08.2023 – Subject to technical modification
Part No. 779201.0801 • Datasheet version: 03 page 4 of 5
Page 5
Technical data sheet
Ethernet · unmanaged switch 8 ports, 10/100 MBit/s

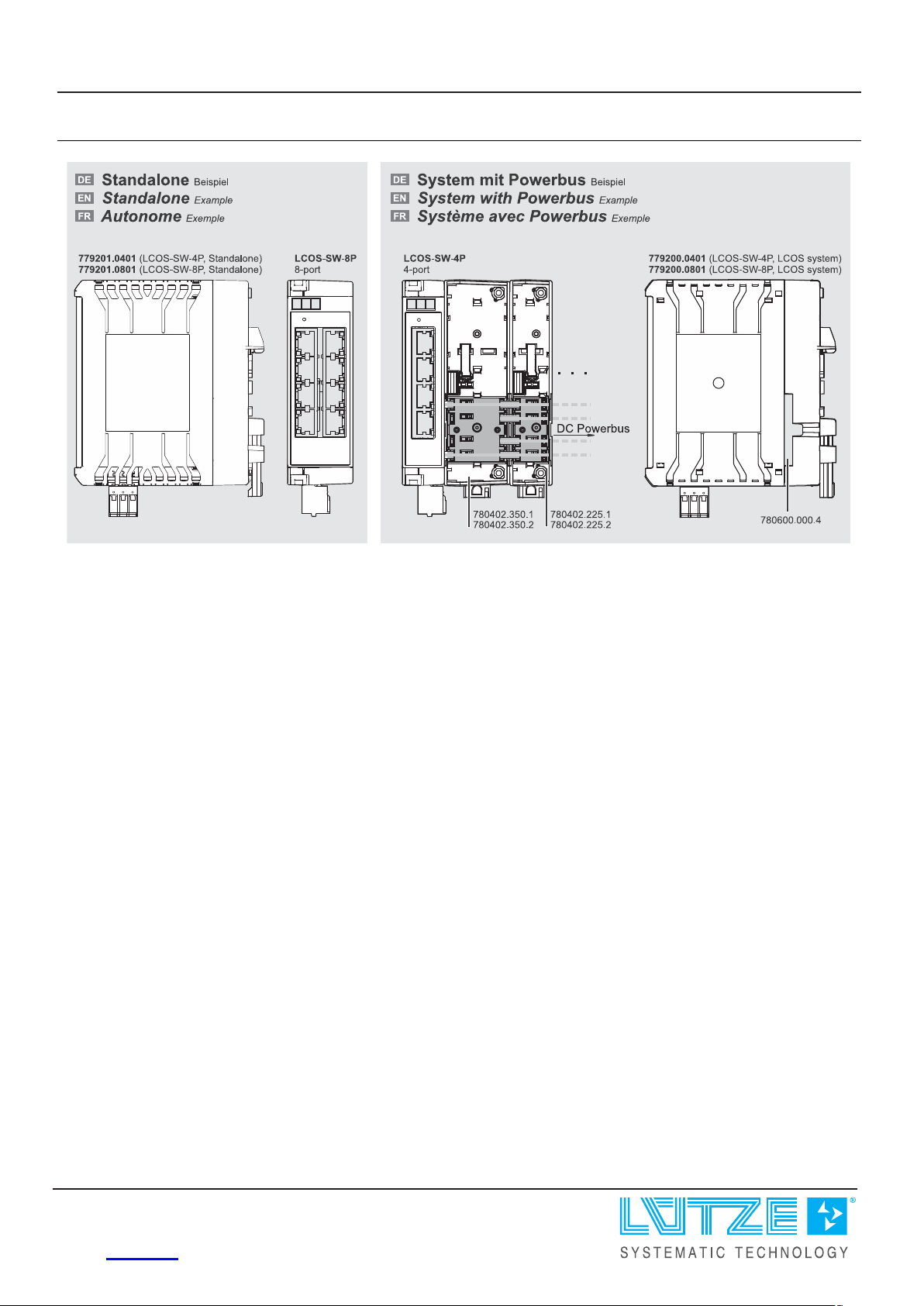

Use
25.08.2023 – Subject to technical modification
Part No.
779201.0801 • Datasheet version: 03 page 5 of 5
