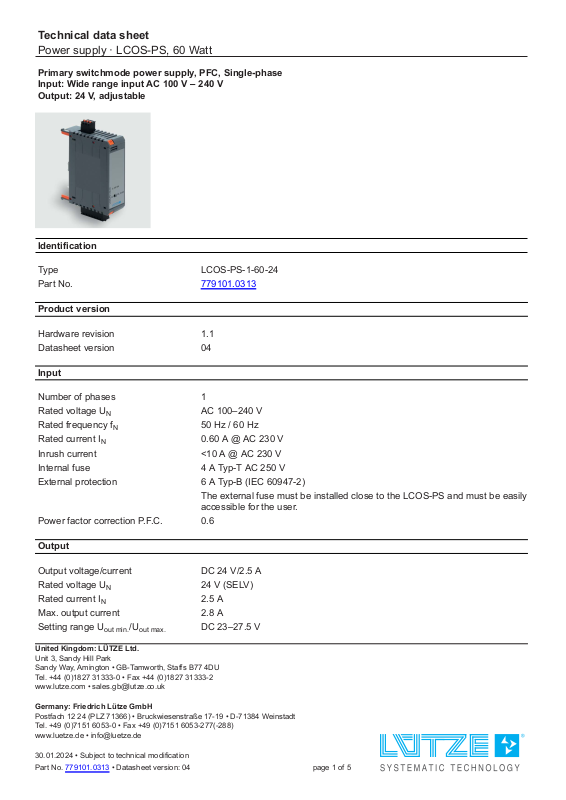

Technical data sheet
Power supply · LCOS-PS, 60 Watt
Primary switchmode power supply, PFC, Single-phase
Input: Wide range input AC 100 V – 240 V
Output: 24 V, adjustable
Identification
Type LCOS-PS-1-60-24
Part No.
Product version
779101.0313
Hardware revision 1.1
Datasheet version 04
Input
Number of phases 1
Rated voltage U
Rated frequency f
Rated current I
N
N
N
AC 100–240 V
50 Hz / 60 Hz
0.60 A @ AC 230 V
Inrush current <10 A @ AC 230 V
Internal fuse 4 A Typ-T AC 250 V
External protection 6 A Typ-B (IEC 609 4 7 - 2 )
The extern a l fuse must be installed close to the LCOS-PS and must be easily
accessible for the user.
Power fa cto r correcti o n P.F.C. 0.6
Output
Output vol ta g e /cu r r e n t DC 24 V/2.5 A
Rated vo l ta g e U
Rated cu r r e n t I
N
N
24 V (SELV)
2.5 A
Max. outp u t current 2.8 A
Setting r a n g e U
out min.
/U
out max.
DC 23– 2 7 .5 V
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17 - 1 9 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277 ( - 2 8 8 )
www.luetze.de • [email protected]
30.01.2024 • Subject to technical modification
Part No.
779101.0313 • Datasheet version: 04 page 1 of 5
Page 2
Technical data sheet
Power supply · LCOS-PS, 60 Watt
Load r e g u l a ti o n <0.5 %
Line r e g u l a ti o n <0.5 %
Ripple and n o i se ≤100 mV pp
Hold u p time >20 ms
Parallel / red u n d a n t mode Max. 2 devices
Efficiency 90 %
Protection device Over volta g e protecti o n
Over volta g e protecti o n <32 V
Short cir cu i t Hiccup
Status indic a t ion
Status disp l a y output DC ON, green ≥21.6 V
Monitoring
Monitoring DC ON, open collector
Switching voltage DC 30 V
Switching current Max. 0.1 0 0 A
General
Insulation voltage input / outpu t AC 2.5 kV
Insulation voltage input / grou n d AC 1.5 kV
Insulation voltage output / grou n d DC 0.5 kV
eff
eff
eff
Derating >50 °C: -2 W/°C
Cooling Air conve cti o n
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Color of the housing pebble grey
Mounting DIN rai l mounta b l e TS35
(EN 607 1 5 )
Max. alti tu d e opera ti o n 2000 m max.
Installation position Vertical
MTBF >500000 h: SN29 5 0 0 / >150000 h: MIL-HDBK-217F
Degree of pro te cti o n IP20 (EN 60529)
Weight/unit 0.25 kg
Connection type Push-In
0.08 mm ² – 2.5 mm²
AWG 28 – AWG 12
input: 3 - p i n
output: 8 - p o l e
Dimensions (w × h × d) 35.0 mm × 100.0 mm × 110.0 mm
PU (uni ts) 1
General a m bie nt conditions
Operation temperature range -25 °C . . . +70 °C
Storage temperature range -25 °C . . . +85 °C
Over volta g e categor y II (IEC 664-1)
30.01.2024 – Su b j e ct to technical modification
Part No.
779101.0313 • Datasheet version: 04 page 2 of 5
Page 3
Technical data sheet
Power supply · LCOS-PS, 60 Watt
Degree of pol l u ti o n 2
Relative air h u m i d i ty 10 % – 95 %, without condensation
Certifications/Standards
Conformity CE
UKCA
Standards EN 6120 4 - 3
EN 6095 0 - 1
Notes a nd Comments
Included in the delive r y Plug-in terminals : CS 5.08 and CS 3.50
Not incl u d e d in the delivery Function carrier and other accessories
Dimensions
PIN assignm e nt
30.01.2024 – Su b j e ct to technical modification
Part No. 779101.0313 • Datasheet version: 04 page 3 of 5
Page 4
Technical data sheet
Power supply · LCOS-PS, 60 Watt
Use
Use
30.01.2024 – Su b j e ct to technical modification
Part No. 779101.0313 • Datasheet version: 04 page 4 of 5
Page 5
Technical data sheet
Standalone
Standalone
Autonome
DE
EN
FR
System with Powerbus
System mit Powerbus
Système avec Powerbus
EN
DE
FR
AC IN
DC OUT
(
(
DC Powerbus
DC OUT
DC OUT
LCOS-PS-1-120-24
OVERLOAD
DC OK
23...27,5V
Systemaufbau
System Structure
DE EN
Structure du système
FR
AC IN
60 W: 779101.0313
120 W: 779101.0413
30 W: 779101.0213
LCOS-PS-1-30-24
DC OK
23...27,5V
780922.000.2
780922.002.2
780961.001.2
780600.000.4
780201.225.1
780201.225.2
780961.001.2
780402.225.1
780402.225.2
1
4
3
1 2
2
LCOS-PS-1-120-24
OVERLOAD
DC OK
23...27,5V
AC IN
780922.000.2
780922.002.2
3
4
780201.350.1
780201.350.2
780402.350.1
780402.350.2
Power supply · LCOS-PS, 60 Watt
Use
30.01.2024 – Su b j e ct to technical modification
Part No.
779101.0313 • Datasheet version: 04 page 5 of 5
