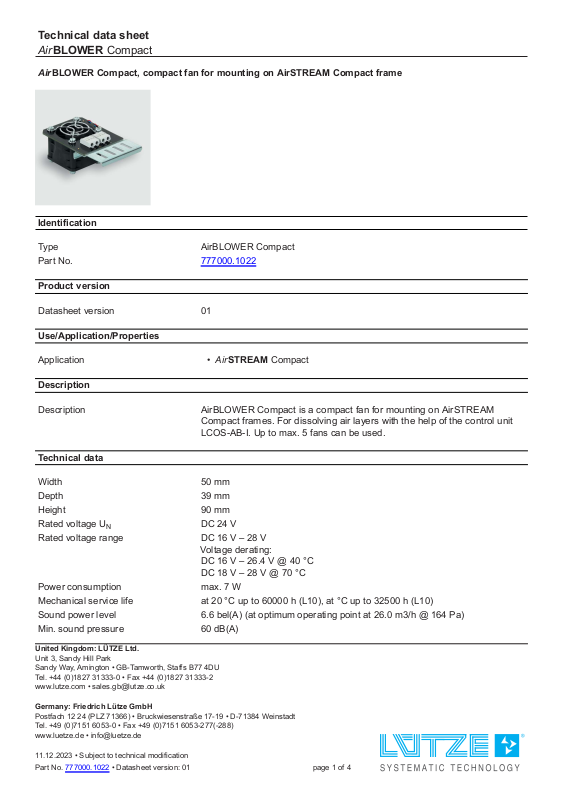

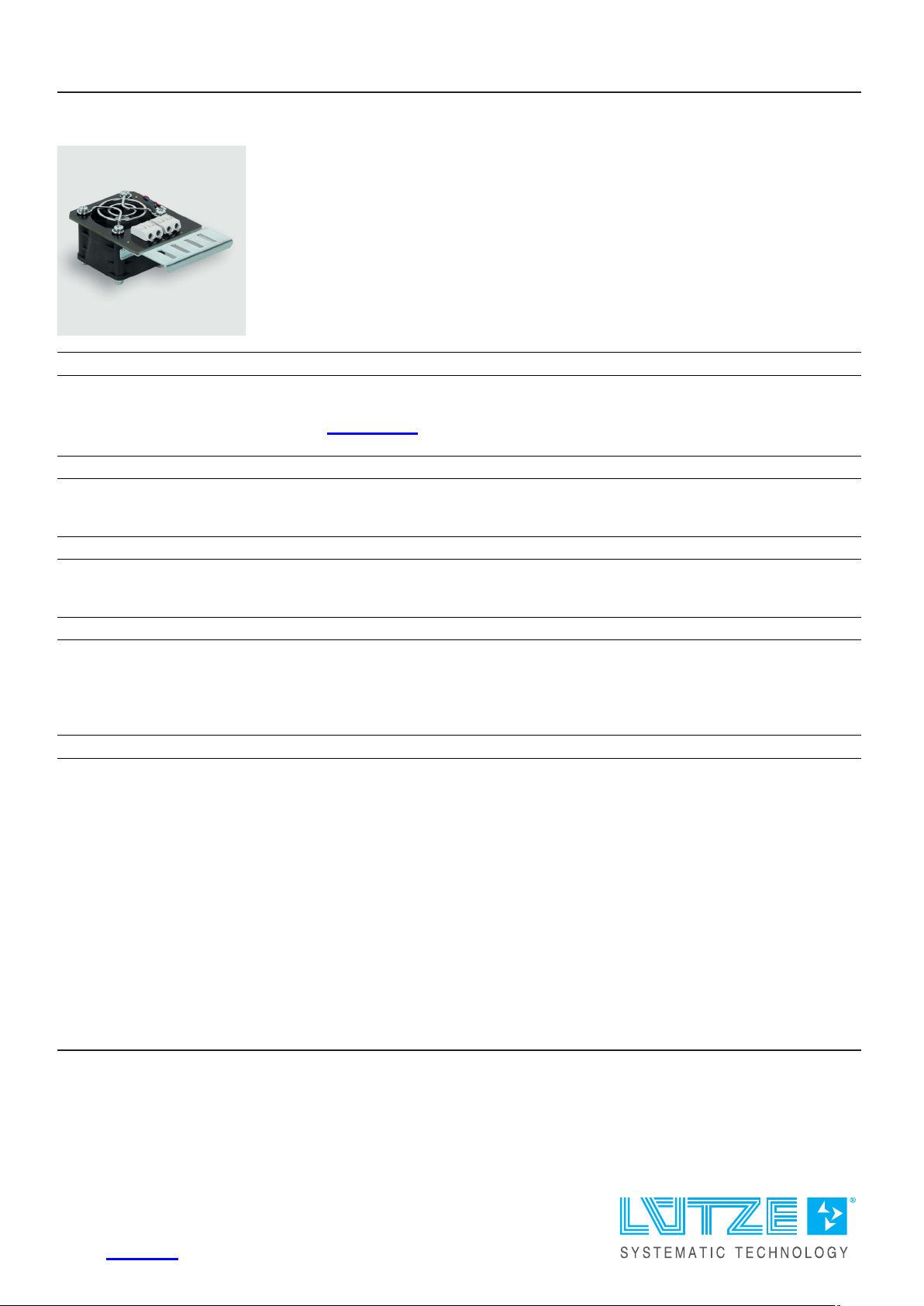

Technical data sheet
AirBLOWER Compact
AirBLOWER Compact, compact fan for mounting on AirSTREAM Compact frame
Identification
Type AirBLOWER Compact
Part No.
Product version
Datasheet version 01
777000.1022
Use/Application/Properties
Application • AirSTREAM Compact
Description
Description
AirBLOWER Compact is a compact fan for mounting on AirSTREAM
Compact frames. For dissolving air layers with the help of the control unit
LCOS-AB-I. Up to max. 5 fans can be used.
Technical data
Width 50 mm
Depth 39 mm
Height 90 mm
Rated voltage U
N
DC 24 V
Rated voltage range DC 16 V – 28 V
Voltage derating:
DC 16 V – 26.4 V @ 40 °C
DC 18 V – 28 V @ 70 °C
Power consumption max. 7 W
Mechanical service life at 20 °C up to 60000 h (L10), at °C up to 32500 h (L10)
Sound power level 6.6 bel(A) (at optimum operating point at 26.0 m3/h @ 164 Pa)
Min. sound pressure 60 dB(A)
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
11.12.2023 • Subject to technical modification
Part No.
777000.1022 • Datasheet version: 01 page 1 of 4
Page 2
Technical data sheet
AirBLOWER Compact
Sound pressure level 54 dB(A) (sound pressure measured in rubber ropes, free blowing)
Rotation frequency 17250/min
General
Dimensions (w × h × d) 50.0 mm × 90.0 mm × 39.0 mm
Operation temperature range -20 °C . . . +70 °C
Storage temperature range -40 °C . . . +80 °C
Connection type Push-In
0.5 mm² – 1.5 mm²
AWG 20 – AWG 16
Weight/unit 0.084 kg
PU (units) 1
Certifications/Standards
Standards EN 61131-2:2007, EMV, Zone B
EMV according to EN 61131-2 only in combination with 777100.0011 (Control
unit for AirBLOWER)

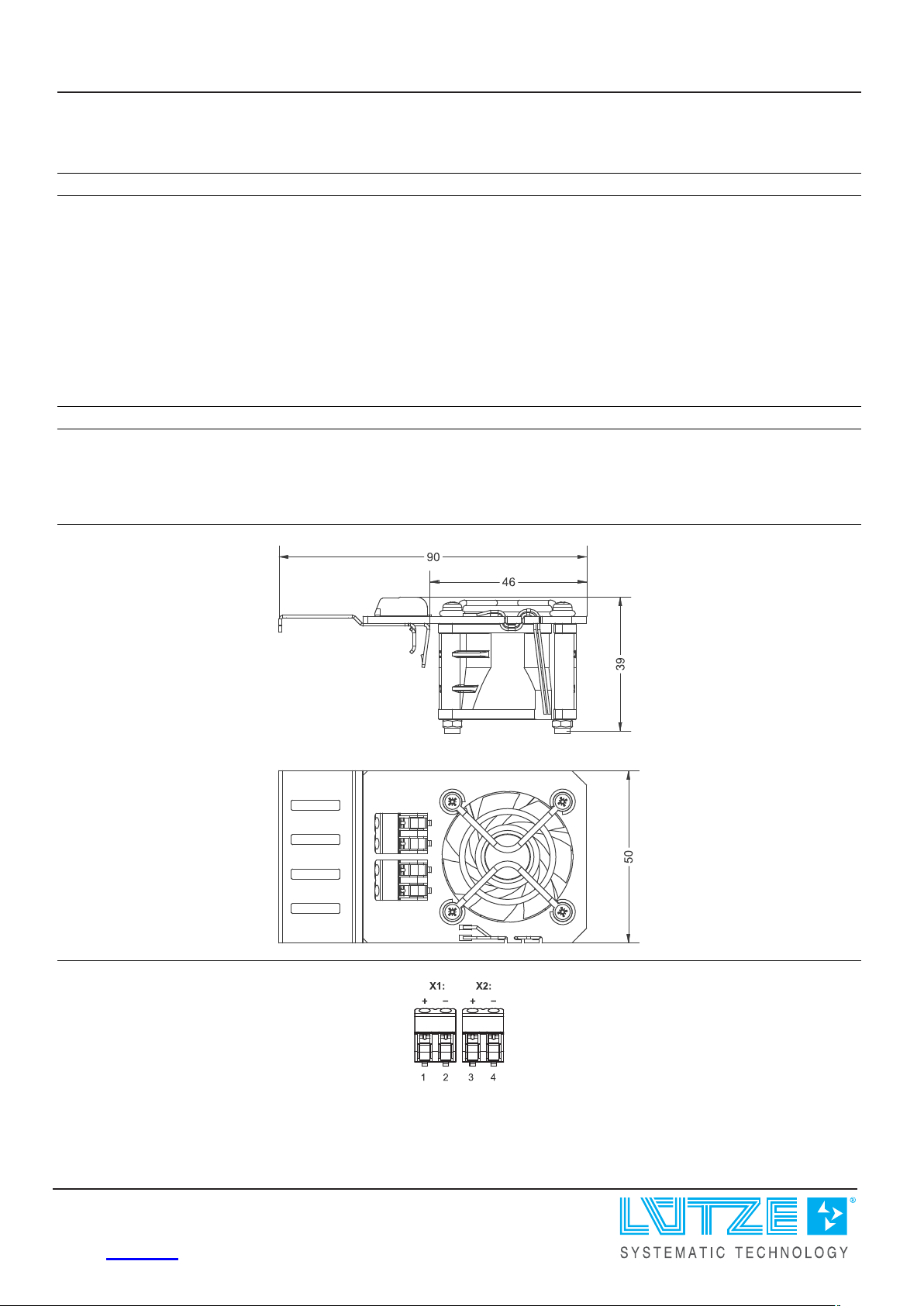

Dimensions
PIN assignment
11.12.2023 – Subject to technical modification
Part No. 777000.1022 • Datasheet version: 01 page 2 of 4
Page 3
Technical data sheet
AirBLOWER Compact

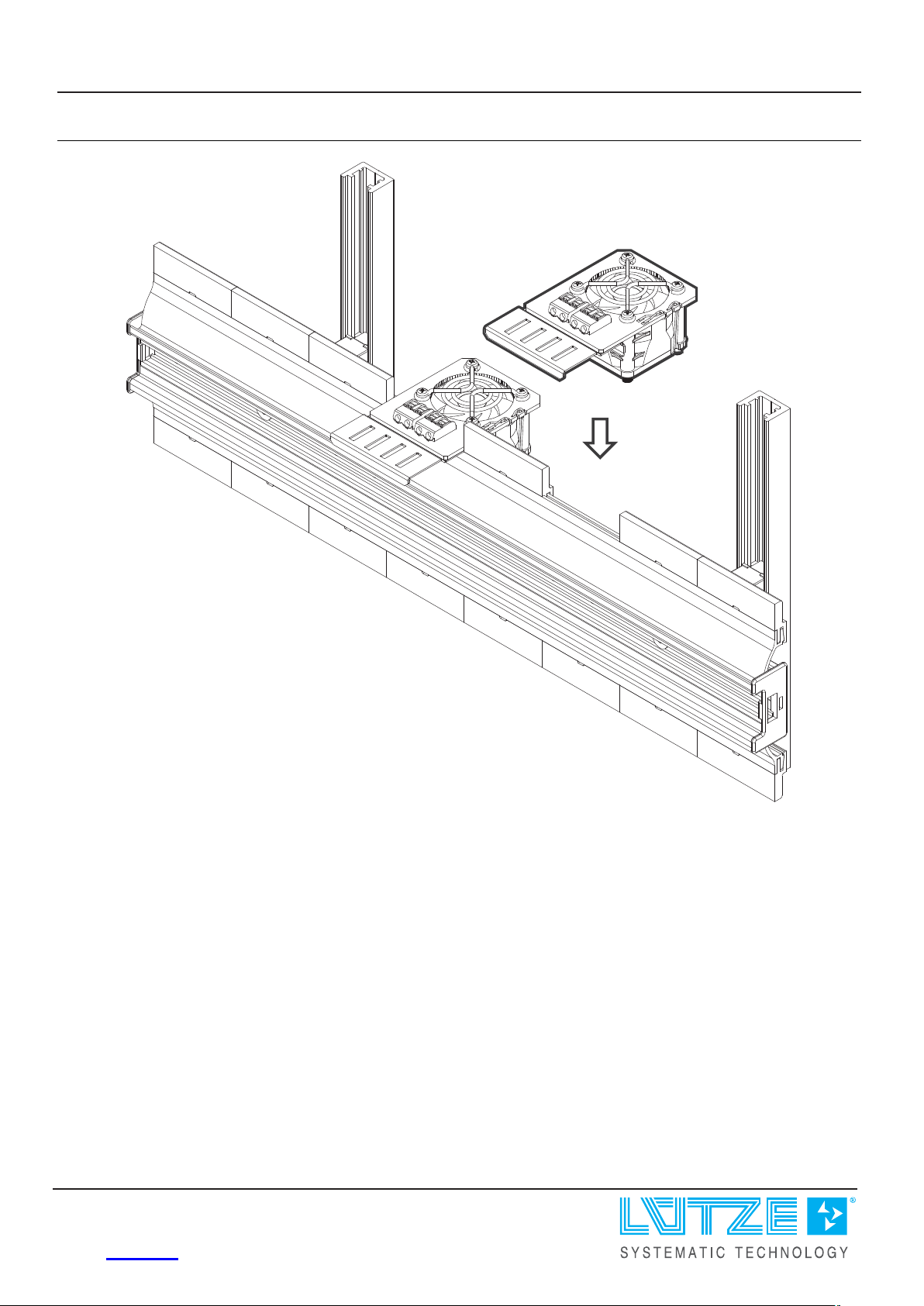

Use
11.12.2023 – Subject to technical modification
Part No.
777000.1022 • Datasheet version: 01 page 3 of 4
Page 4
Technical data sheet
AirBLOWER Compact

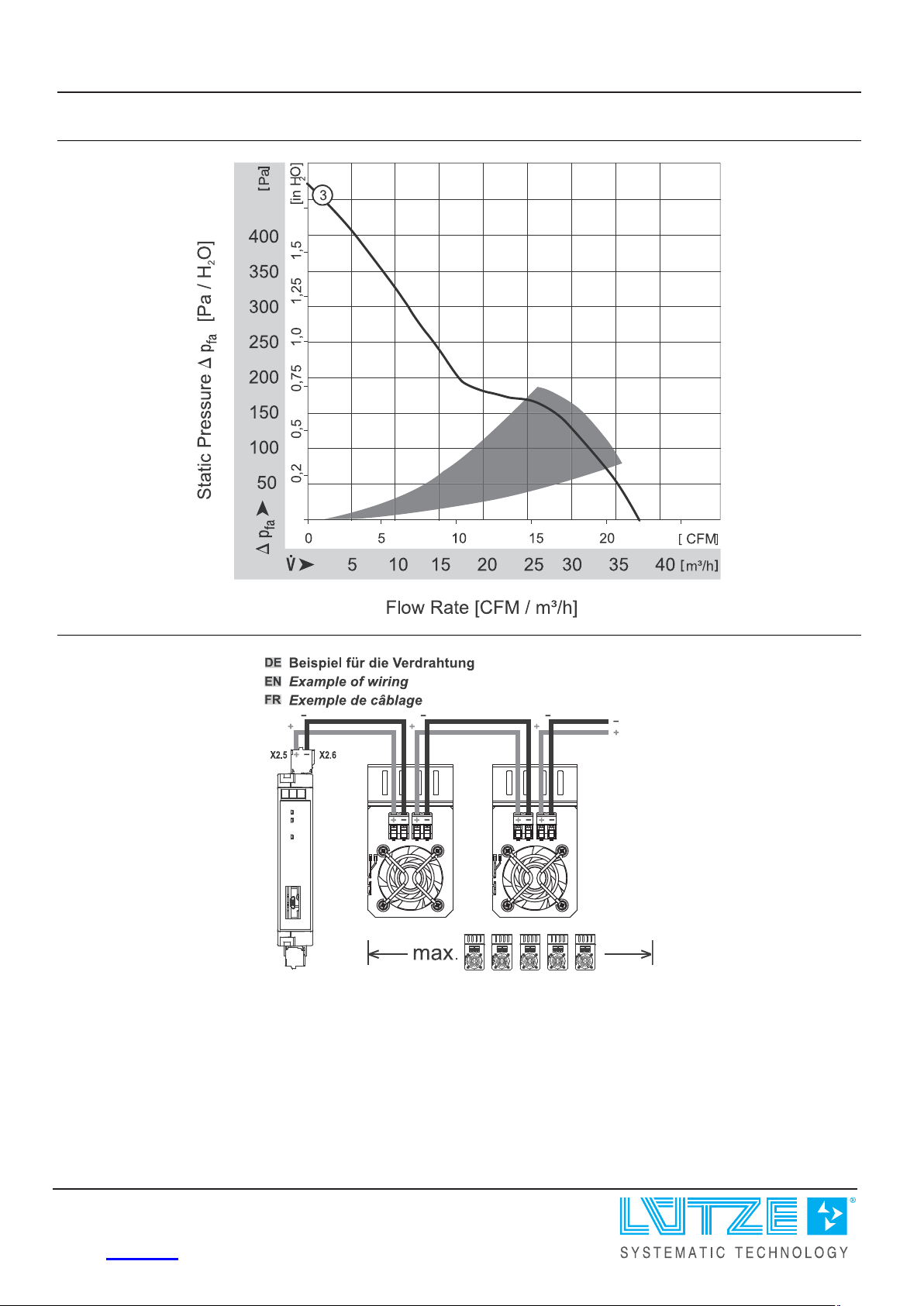

Load limit curve
Circuit diagram
11.12.2023 – Subject to technical modification
Part No.
777000.1022 • Datasheet version: 01 page 4 of 4
