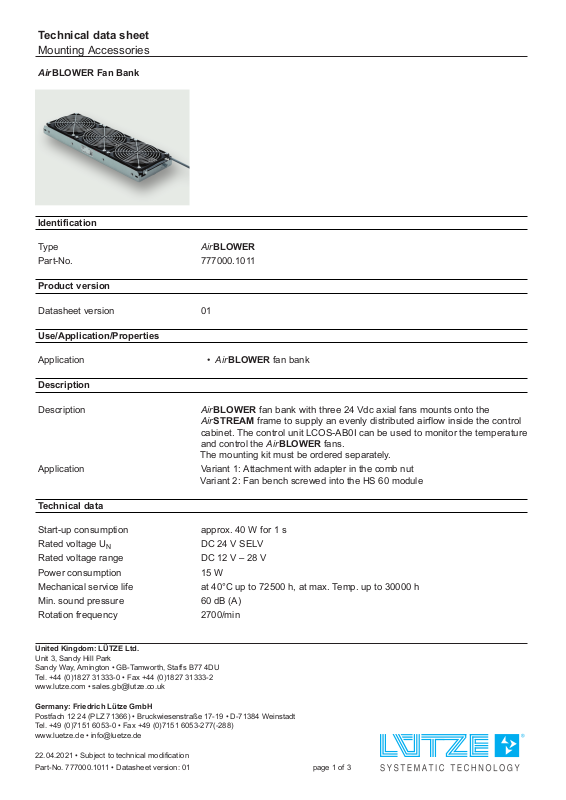

Page 1
Technical data sheet
Mounting Accessories
AirBLOWER Fan Bank
Identification
Type AirBLOWER
Part-No. 777000.1011
Product version
Datasheet version 01
Use/Application/Properties
Application • AirBLOWER fan bank
Description
Description
AirBLOWER fan bank with three 24 Vdc axial fans mounts onto the
AirSTREAM frame to supply an evenly distributed airflow inside the control
cabinet. The control unit LCOS-AB0I can be used to monitor the temperature
and control the AirBLOWER fans.
The mounting kit must be ordered separately.
Application Variant 1: Attachment with adapter in the comb nut
Variant 2: Fan bench screwed into the HS 60 module
Technical data
Start-up consumption approx. 40 W for 1 s
Rated voltage U
N
DC 24 V SELV
Rated voltage range DC 12 V – 28 V
Power consumption 15 W
Mechanical service life at 40°C up to 72500 h, at max. Temp. up to 30000 h
Min. sound pressure 60 dB (A)
Rotation frequency 2700/min
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
22.04.2021 • Subject to technical modification
Part-No. 777000.1011 • Datasheet version: 01 page 1 of 3
Page 2
Technical data sheet
Mounting Accessories
Connecting lead
Jacket color grey RAL 7001
Connections 1(+), 2(-)
General
Dimensions (w × h × d) 370.0 mm × 130.0 mm × 45.0 mm
Operation temperature range -20 °C . . . +75 °C
Weight/unit 1.37 kg
(without connection cable)
PU (units) 1
Certifications/Standards
Standards EN 61131-2:2007, EMV, Zone B
EMV according to EN 61131-2 only in combination with 777100.0011 (Control
unit for AirBLOWER)
Accessories
Accessories
Dimensions
AirBLOWER Adapter Set (complete set for mounting variant 1) | Part-No.
780994.0000 | PU: 1 unit
22.04.2021 – Subject to technical modification
Part-No. 777000.1011 • Datasheet version: 01 page 2 of 3
Page 3
Technical data sheet
Mounting Accessories
Use
22.04.2021 – Subject to technical modification
Part-No. 777000.1011 • Datasheet version: 01 page 3 of 3
