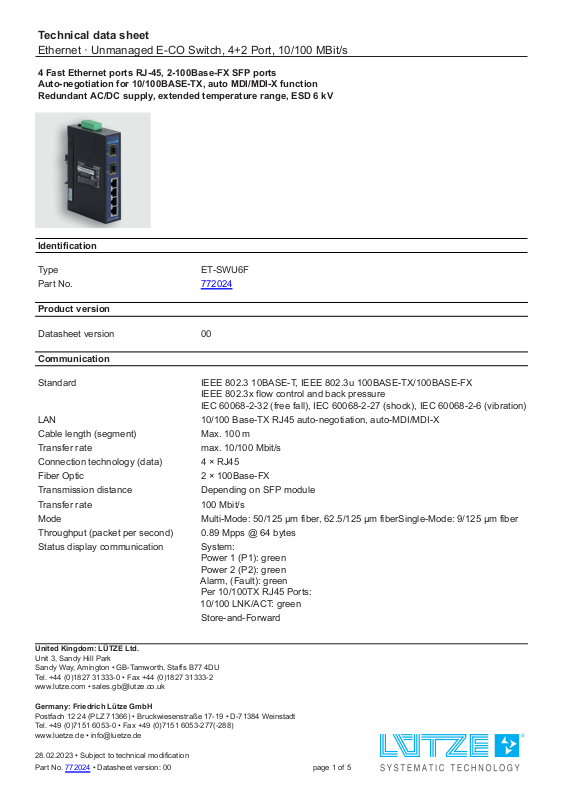

Page 1

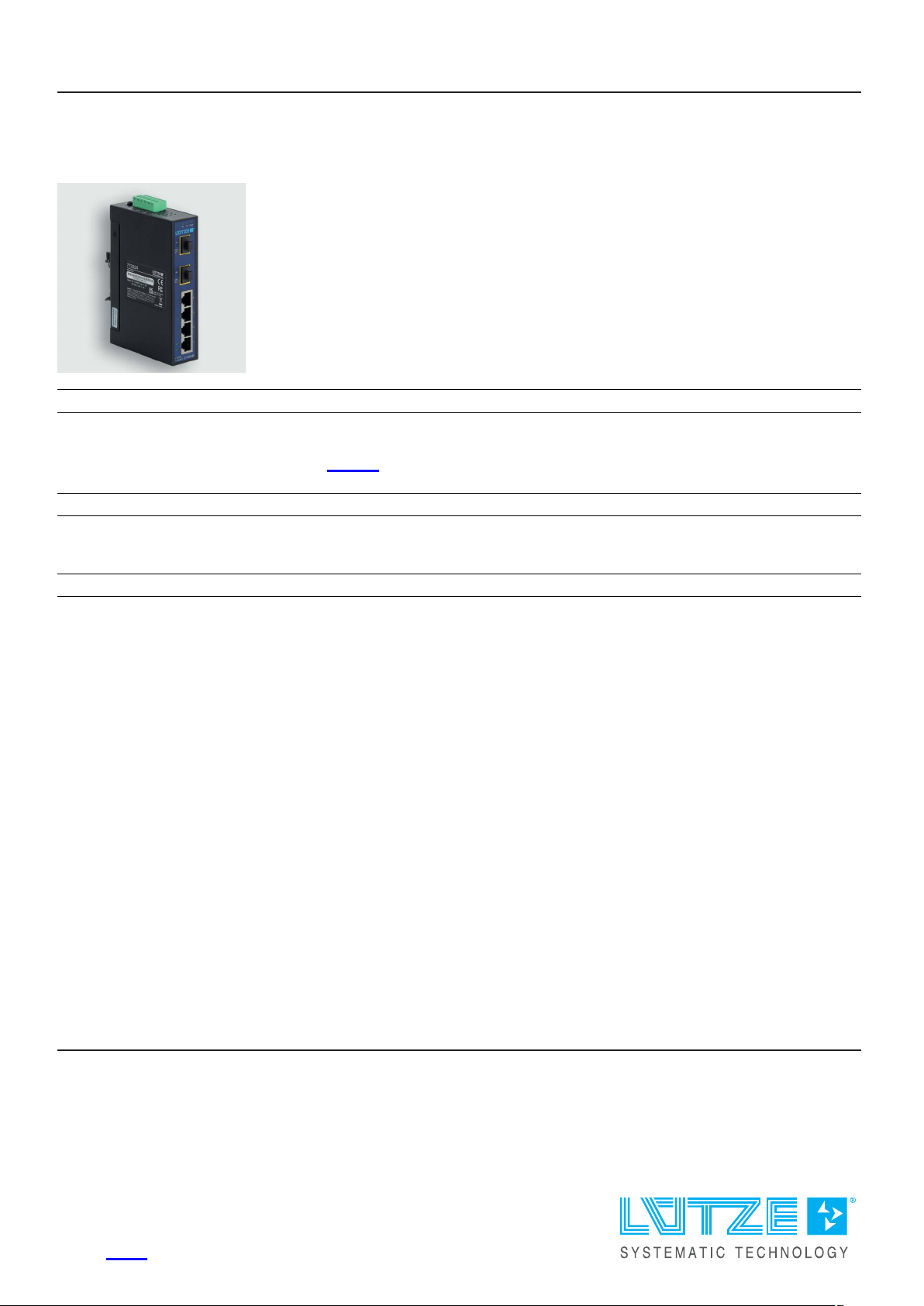

Technical data sheet
Ethernet · Unmanaged E-CO Switch, 4+2 Port, 10/100 MBit/s
4 Fast Ethernet ports RJ-45, 2-100Base-FX SFP ports
Auto-negotiation for 10/100BASE-TX, auto MDI/MDI-X function
Redundant AC/DC supply, extended temperature range, ESD 6 kV
Identification
Type ET-SWU6F
Part No.
Product version
772024
Datasheet version 00
Communication
Standard IEEE 8 0 2 .3 1 0 BASE- T, IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 8 0 2 .3 x flo w co n tr o l a n d b a ck pr e ssu r e
IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)
LAN 10/100 Base-TX RJ45 auto-negotiation, auto-MDI/MDI-X
Cable length (segment) Max. 100 m
Transfer rate max. 10/100 Mbit/s
Connection technology (data) 4 × RJ4 5
Fiber Optic 2 × 10 0 Ba se - FX
Transmission distance Depending on SFP module
Transfer rate 100 Mbit/s
Mode Multi-Mode: 50/125 µm fiber, 62.5/125 µm fiberSingle-Mode: 9/125 µm fiber
Throughput (packet per second) 0.89 Mpps @ 64 bytes
Status display communication System:
Power 1 (P1): green
Power 2 (P2): green
Alarm, (Fault): green
Per 10/100TX RJ45 Ports:
10/100 LNK/ACT: g r e e n
Store-and-Forward
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
28.02.2023 • Subject to technical modification
Part No.
772024 • Datasheet version: 00 page 1 of 5
Page 2
Technical data sheet
Ethernet · Unmanaged E-CO Switch, 4+2 Port, 10/100 MBit/s
1 Mbit/s
Source Address Table 2K inputs, automatic source address learning and aging
FLOW Source EEE 8 0 2 .3 x pa u se fr a m e fo r fu l l - d u p l e x
Back pressure for half-duplex
Switch Fabric 1,2 Gbps (non-blocking)
Safety
ESD (Ethernet) DC 6 kV
Surge (EFT for power) DC 6 kV
Reverse voltage protection Yes
Monitoring
Error output Relay, 1 NO contact - 1 A @ DC 24 V
Switching current 1 A @ D C 2 4 V
Switching voltage AC 120 V / DC 28 V
Isolation voltage DC 500 V
General
Rated voltage U
N
DC 12 – 48 V redundant, AC 24 V
Nominal voltage range 9 V – 52 V
Rated current DC: max. 1.2 A, AC: max. 1.1 A
Degree of protection IP30
Relative humidity (operation) 5 % – 90 % (non-condensing)
Relative humidity (storage) 0 % – 90 % (non-condensing)
Housing material Metal
Mounting DIN rail mountable TS35
(EN 60715)
Wall mounting
Installation position Any
Connection type 6-pole pluggable screw terminal for power supply and fault diagnosis
single wire/fine wire
0.25 mm² – 2.5 mm²
AWG 20 – AWG 14
fine stranded wire with ferrule
0.25 mm² – 1.5 mm²
AWG 20 – AWG 16
MTBF >100000 h
Dimensions (w × h × d) 32.0 mm × 135.0 mm × 87.8 mm
Weight/unit 0.442 kg
PU (units) 1
General ambient conditions
Operation temperature range -40 °C . . . +75 °C
Storage temperature range -40 °C . . . +85 °C
28.02.2023 – Subject to technical modification
Part No.
772024 • Datasheet version: 00 page 2 of 5
Page 3
Technical data sheet
Ethernet · Unmanaged E-CO Switch, 4+2 Port, 10/100 MBit/s
Certifications/Standards
Certifications CE
FCC Part 15 Class A
UKCA
Standards EN 55032
EN 55035
IEC 61000-4-2/3/4/5/6/8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

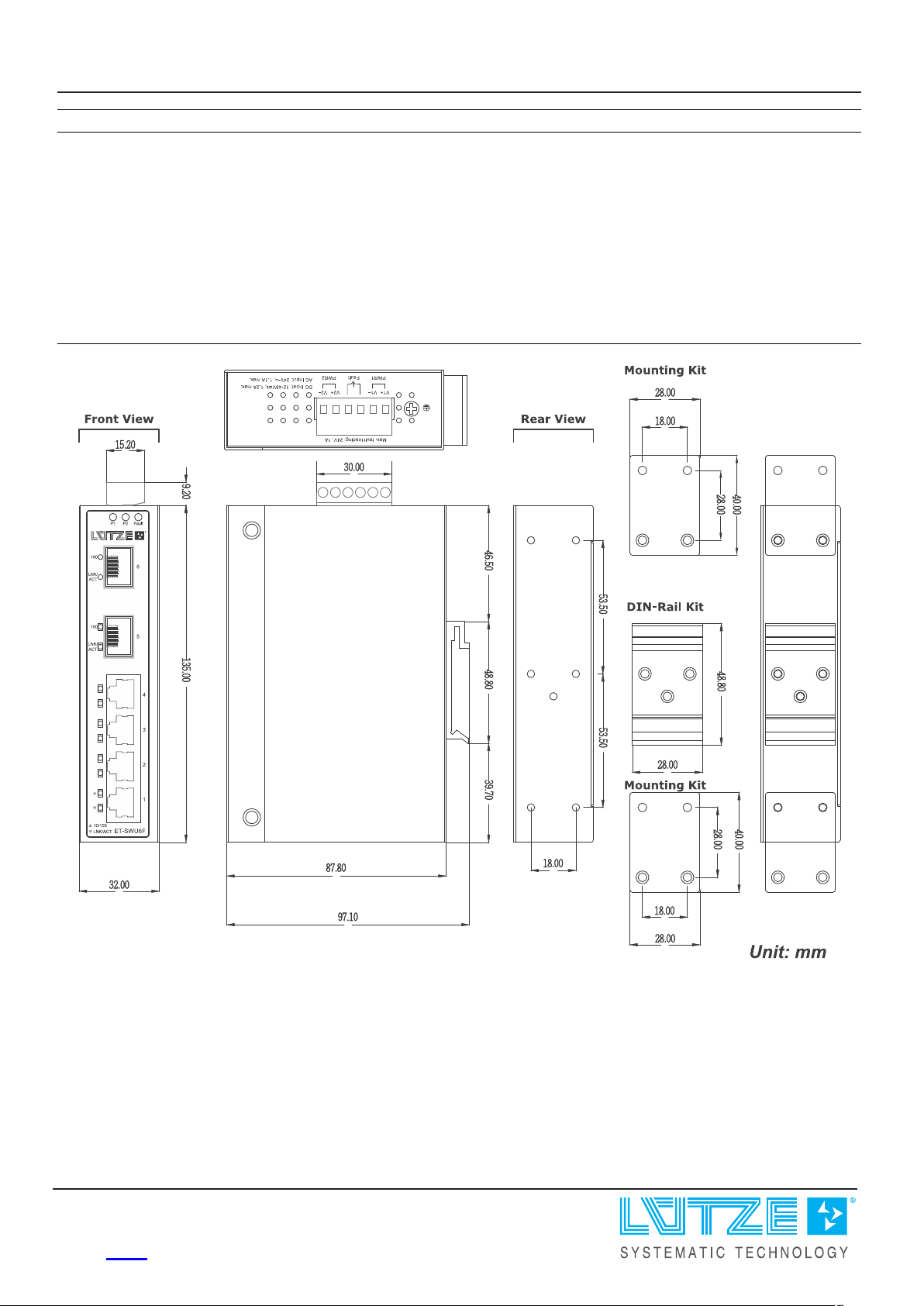

Dimensions
28.02.2023 – Subject to technical modification
Part No.
772024 • Datasheet version: 00 page 3 of 5
Page 4
LED Color Function
P1 Green
Lit: indicates power 1 has power.
P2
Green
Lit: indicates power 2 has power.
Fault
Green
Lit: indicates either power 1 or power 2 has no power.
100 Green
Fiber
Optic
Lit: indicates the fiber port is successfully
connecting to the network at 100Mbps.
LNK/
ACT
Green
Fiber
Optic
Lit: indicates the link through that port is
successfully established.
Blinking: indicates that the Switch is
actively sending or receiving data over that
port.
Copper
10/100 Green
Copper
Lit: indicates the Switch is successfully
connecting to the network at 100Mbps.
Off: indicates that the Switch is
successfully connecting to the network at
10Mbps.
2
3
4
5
6
1
2
3
6
1
5
4
5
4
5
Technical data sheet
Ethernet · Unmanaged E-CO Switch, 4+2 Port, 10/100 MBit/s

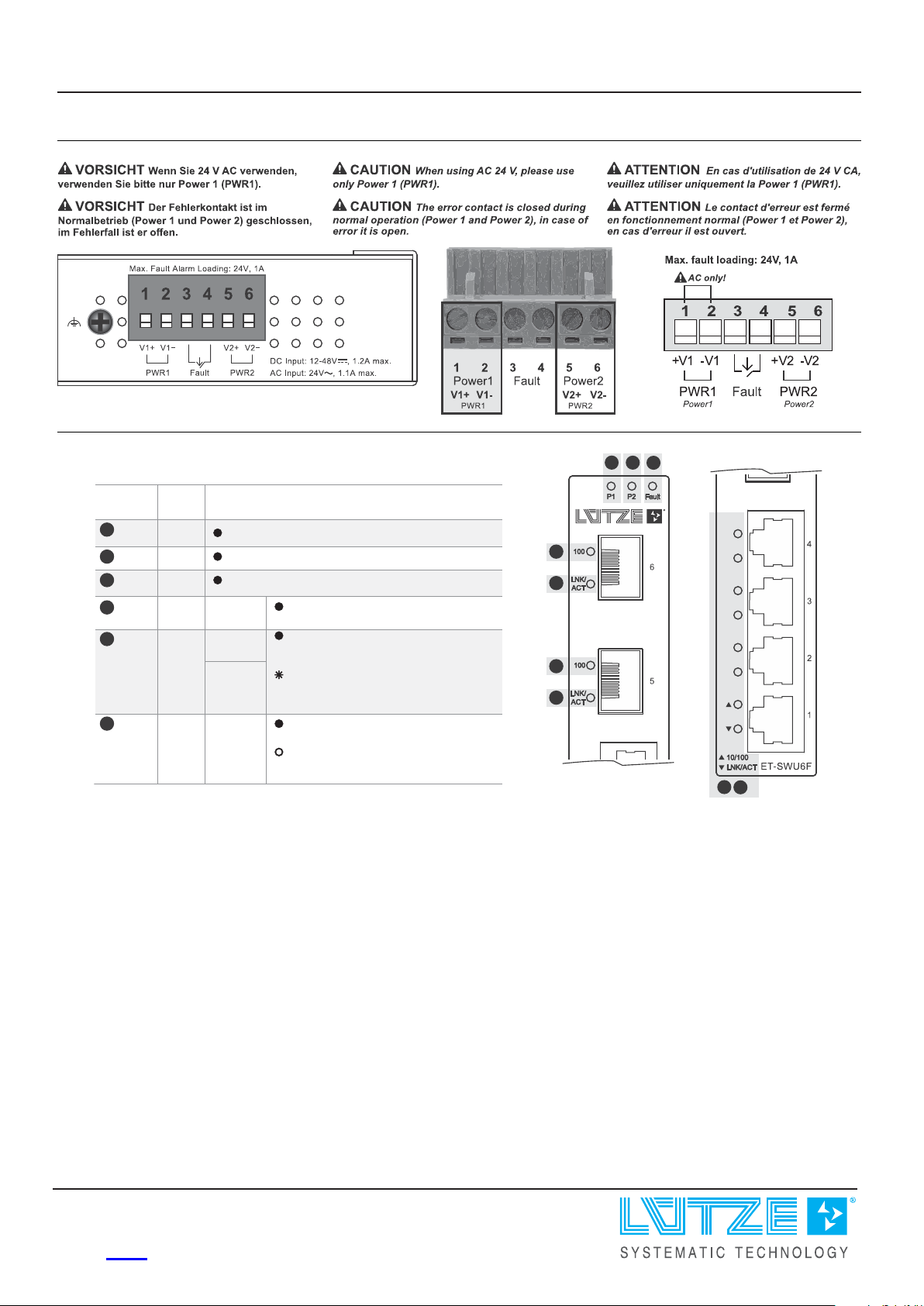

PIN assignment
LED status
28.02.2023 – Subject to technical modification
Part No.
772024 • Datasheet version: 00 page 4 of 5
Page 5
Technical data sheet
Ethernet · Unmanaged E-CO Switch, 4+2 Port, 10/100 MBit/s

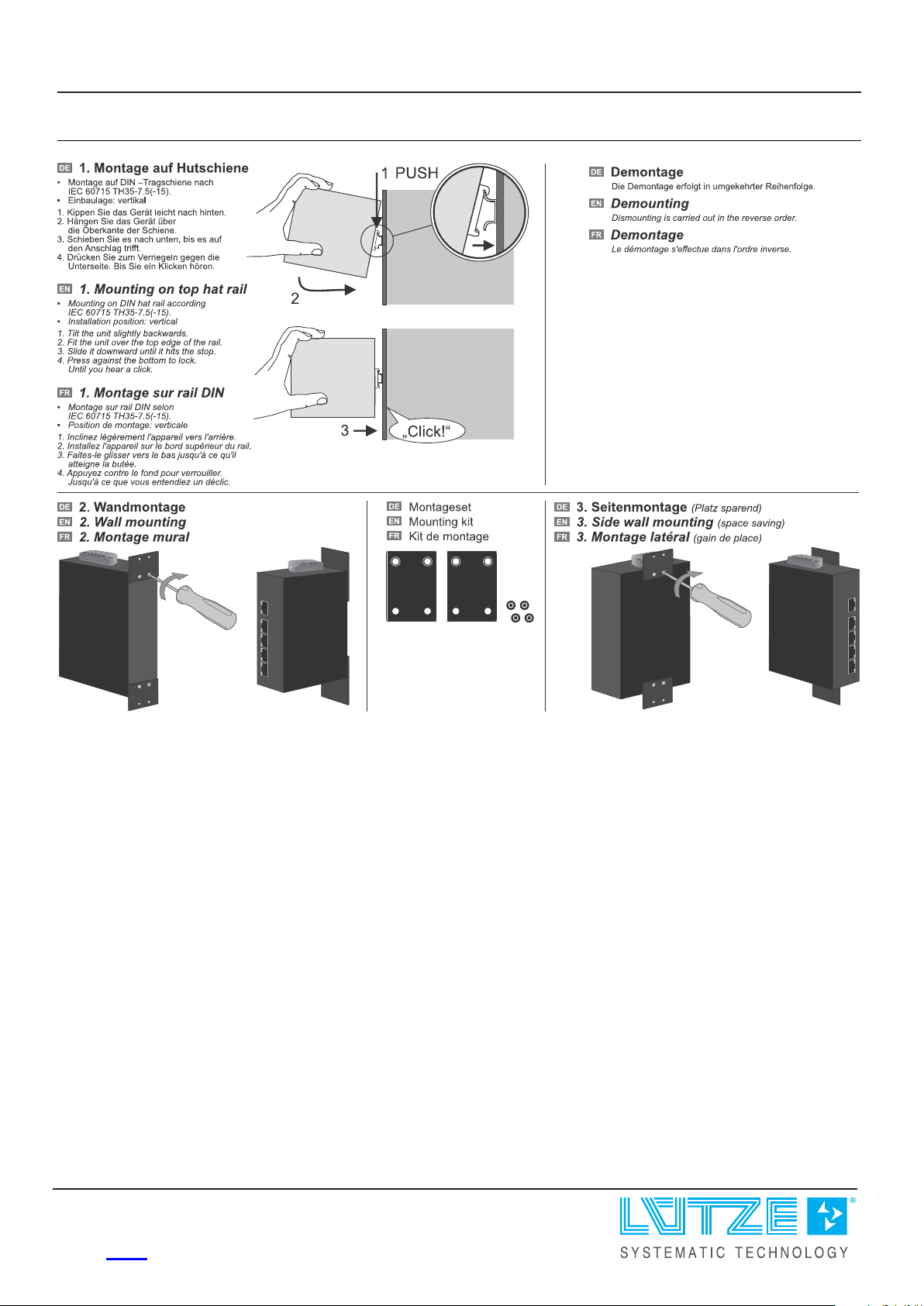

Mounting diagram
28.02.2023 – Subject to technical modification
Part No.
772024 • Datasheet version: 00 page 5 of 5
