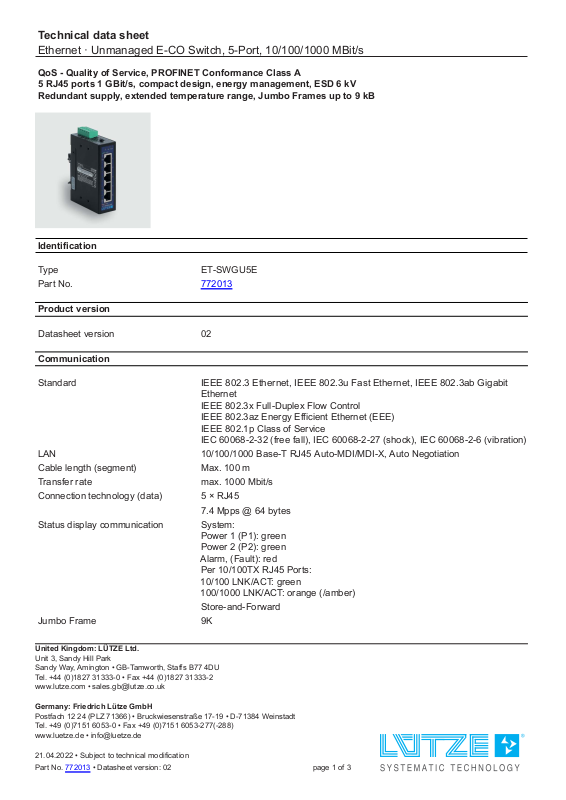

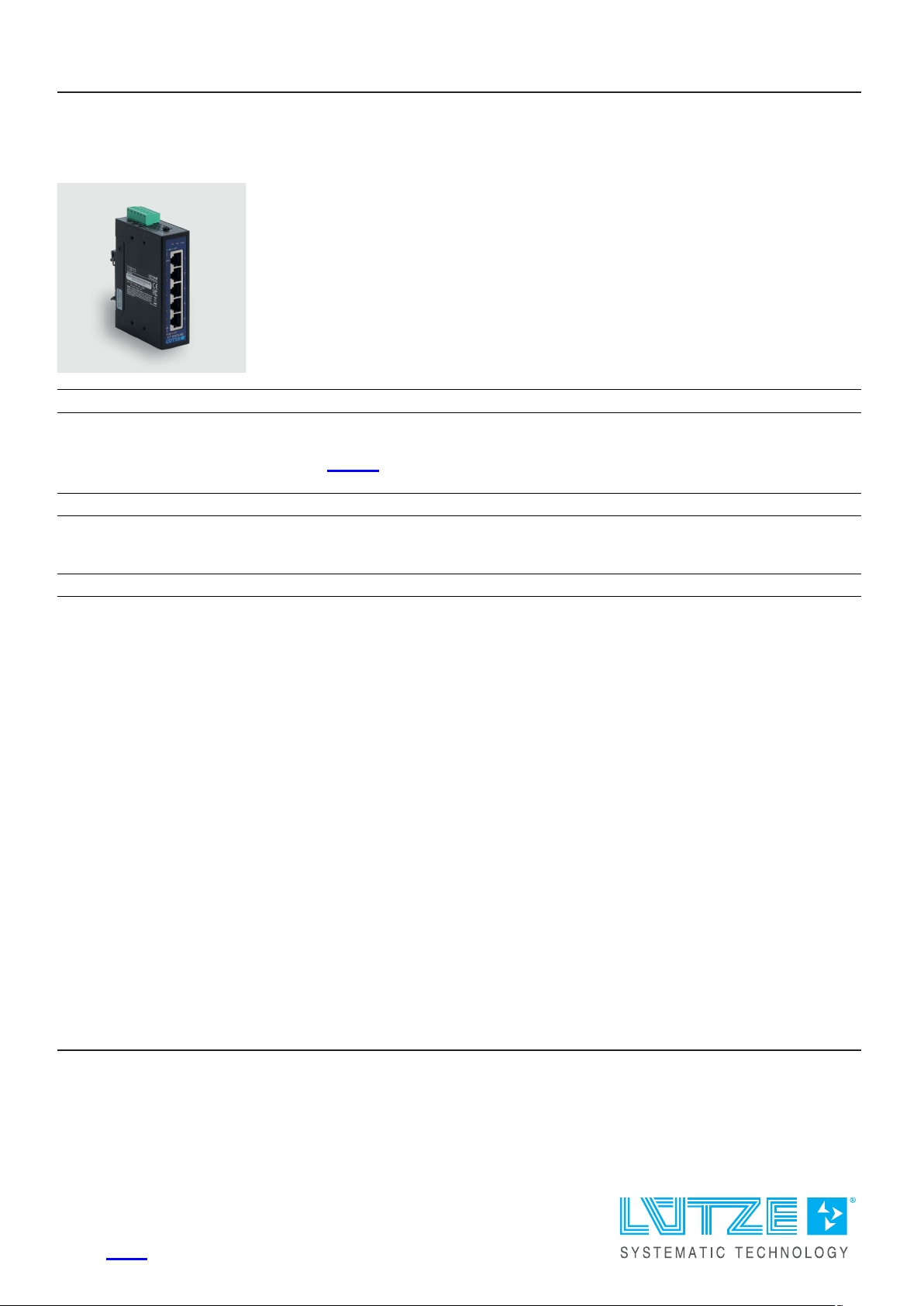

Page 1
Technical data sheet
Ethernet · Unmanaged E-CO Switch, 5-Port, 1 0 /1 0 0 /1 0 0 0 MBit/s
QoS - Quality of Service, PROFINET Conformance Class A
5 RJ45 ports 1 GBit/s, compact design, energy management, ESD 6 kV
Redundant supply, extended temperature range, Jumbo Frames up to 9 kB
Identification
Type ET-SWGU5E
Part No.
Product version
772013
Datasheet version 02
Communication
Standard
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit
Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.1p Class of Service
IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)
LAN 10/100/1000 Base-T RJ45 Auto-MDI/MDI-X, Auto Negotiation
Cable length (segment) Max. 100 m
Transfer rate max. 1000 Mbit/s
Connection technology (data) 5 × RJ45
7.4 Mpps @ 64 bytes
Status display communication System:
Power 1 (P1): green
Power 2 (P2): green
Alarm, (Fault): red
Per 10/100TX RJ45 Ports:
10/100 LNK/ACT: green
100/1000 LNK/ACT: orange (/amber)
Store-and-Forward
Jumbo Frame 9K
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • sale s.g b @ l u tze .co .u k
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • in fo @ l u e tze .d e
21.04.2022 • Subject to technical modification
Part No.
772013 • Datasheet version: 02 page 1 of 3
Page 2
Technical data sheet
Ethernet · Unmanaged E-CO Switch, 5-Port, 1 0 /1 0 0 /1 0 0 0 MBit/s
1 Mbit/s
Source Address Table 2K inputs, automatic source address learning and aging
FLOW Source EEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Switch Fabric 10 Gbps (non-blocking)
Safety
ESD (Ethernet) DC 6 kV
Surge (EFT for power) DC 4 kV
Reverse voltage protection Yes
Monitoring
Error output Relay, 1 NO contact - 1 A @ DC 24 V
Switching current 1 A @ DC 24 V
Switching voltage AC 120 V / DC 28 V
Isolation voltage DC 500 V
General
Rated voltage U
N
DC 9 – 48 V redundant, AC 24 V
Nominal voltage range 7 V – 52 V
Rated current 3.6 W, DC: max. 0.17 A, AC: max. 0.15 A
Degree of protection IP30
Relative humidity (operation) 5 % – 90 % (non-condensing)
Relative humidity (storage) 0 % – 90 % (non-condensing)
Housing material Metal
Mounting DIN rail mountable TS35
(EN 60715)
Wall mounting
Installation position Any
Connection type 6-pole pluggable screw terminal for power supply and fault diagnosis
single wire/fine wire
0.25 mm² – 2.5 mm²
AWG 20 – AWG 14
fine stranded wire with ferrule
0.25 mm² – 1.5 mm²
AWG 20 – AWG 16
MTBF >100000 h
Dimensions (w × h × d) 30.0 mm × 104.0 mm × 70.0 mm
Weight/unit 0.252 kg
PU (units) 1
General ambient conditions
Operation temperature range -40 °C . .. +75 °C
Storage temperature range -40 °C . .. +75 °C
21.04.2022 – Subject to technical modification
Part No.
772013 • Datasheet version: 02 page 2 of 3
Page 3
Technical data sheet
Ethernet · Unmanaged E-CO Switch, 5-Port, 1 0 /1 0 0 /1 0 0 0 MBit/s
Certifications/Standards
Certifications CE
FCC Part 15 Class A
UKCA
cULus (E332878)
Standards EN 55032
EN 55035
IEC 61000-4-2/3/4/5/6/8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

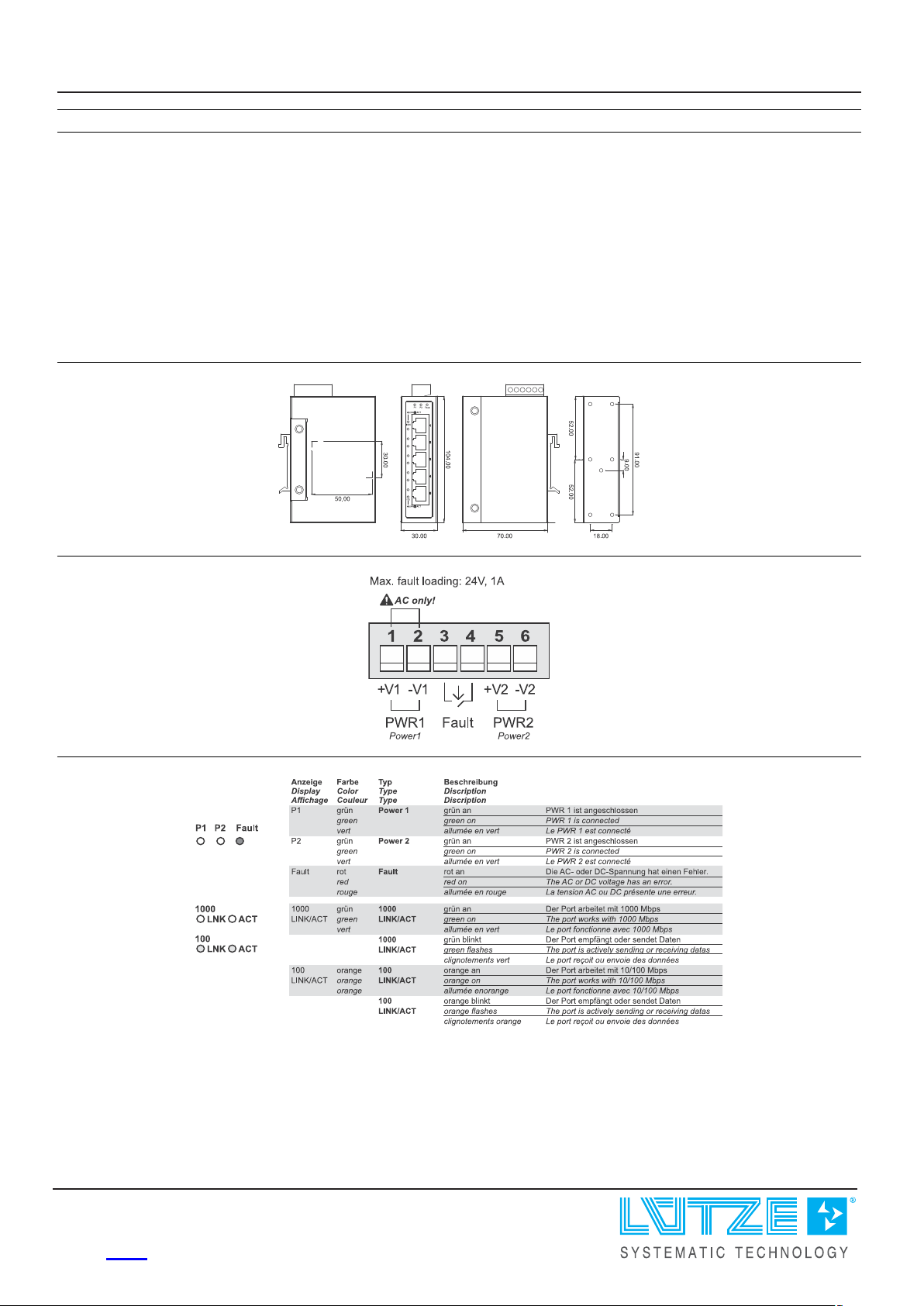

Dimensions
PIN assignment
LED status
21.04.2022 – Subject to technical modification
Part No.
772013 • Datasheet version: 02 page 3 of 3
