LUTZE 772006 Specification

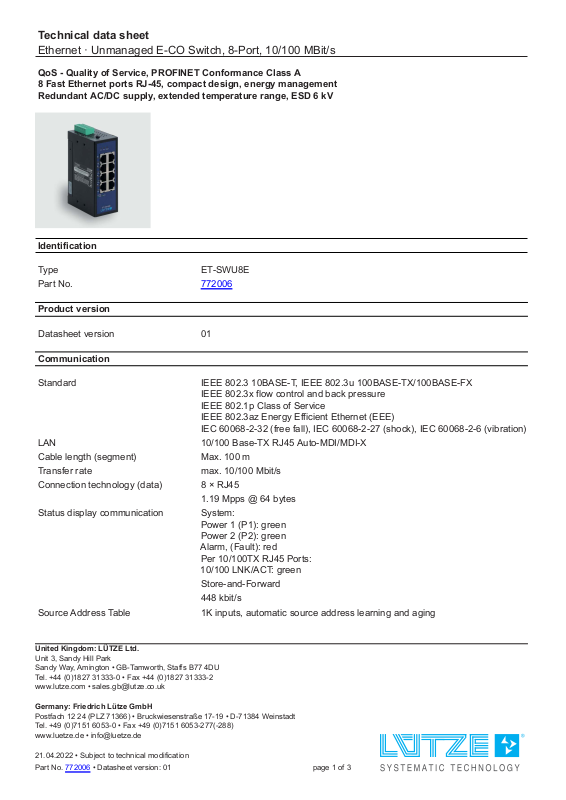

Technical data sheet

Ethernet · Unmanaged E-CO Switch, 8-Port, 10/1 0 0 MBit/s

QoS - Quality of Service, PROFINET Conformance Class A
8 Fast Ethernet ports RJ-45, compact design, energy management
Redundant AC/DC supply, extended temperature range, ESD 6 kV

Identification

Type ET-SWU8E

Part No.

Product version

772006

Datasheet version 01

Communication

Standard IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)

LAN 10/100 Base-TX RJ45 Auto-MDI/MDI-X

Cable length (segment) Max. 100 m

Transfer rate max. 10/100 Mbit/s

Connection technology (data) 8 × RJ45

1.19 Mpps @ 64 bytes

Status display communication System:

Power 1 (P1): green
Power 2 (P2): green
Alarm, (Fault): red
Per 10/100TX RJ45 Ports:
10/100 LNK/ACT: green

Store-and-Forward

448 kbit/s

Source Address Table 1K inputs, automatic source address learning and aging

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • sale s.g b @ l u tze .co .u k

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • in fo @ l u e tze .d e

21.04.2022 • Subject to technical modification

Part No.

772006 • Datasheet version: 01 page 1 of 3

Technical data sheet

Ethernet · Unmanaged E-CO Switch, 8-Port, 10/1 0 0 MBit/s

FLOW Source EEE 802.3x pause frame for full-duplex

Back pressure for half-duplex

Switch Fabric 1.6 Gbps (non-blocking)

Safety

ESD (Ethernet) DC 6 kV

Surge (EFT for power) DC 4 kV

Reverse voltage protection Yes

Monitoring

Error output Relay, 1 NO contact - 1 A @ DC 24 V

Switching current 1 A @ DC 24 V

Switching voltage AC 120 V / DC 28 V

Isolation voltage DC 500 V

General

Rated voltage U

N

DC 12 – 48 V redundant, AC 24 V

Nominal voltage range 9 V – 52 V

Rated current 2.5 W, DC: max. 0.17 A, AC: max. 0.15 A

Degree of protection IP30

Relative humidity (operation) 5 % – 90 % (non-condensing)

Relative humidity (storage) 0 % – 90 % (non-condensing)

Housing material Metal

Mounting DIN rail mountable TS35

(EN 60715)
Wall mounting

Installation position Any

Connection type 6-pole pluggable screw terminal for power supply and fault diagnosis

single wire/fine wire

0.25 mm² – 2.5 mm²
AWG 20 – AWG 14
fine stranded wire with ferrule

0.25 mm² – 1.5 mm²
AWG 20 – AWG 16

MTBF >100000 h

Dimensions (w × h × d) 41.0 mm × 115.0 mm × 70.0 mm

Weight/unit 0.3 kg

PU (units) 1

General ambient conditions

Operation temperature range -40 °C . .. +75 °C

Storage temperature range -40 °C . .. +75 °C

21.04.2022 – Subject to technical modification

Part No. 772006 • Datasheet version: 01 page 2 of 3

Technical data sheet

Ethernet · Unmanaged E-CO Switch, 8-Port, 10/1 0 0 MBit/s

Certifications/Standards

Certifications CE

FCC Part 15 Class A
UKCA
cULus (E332878)

Standards EN 55032

EN 55035
IEC 61000-4-2/3/4/5/6/8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

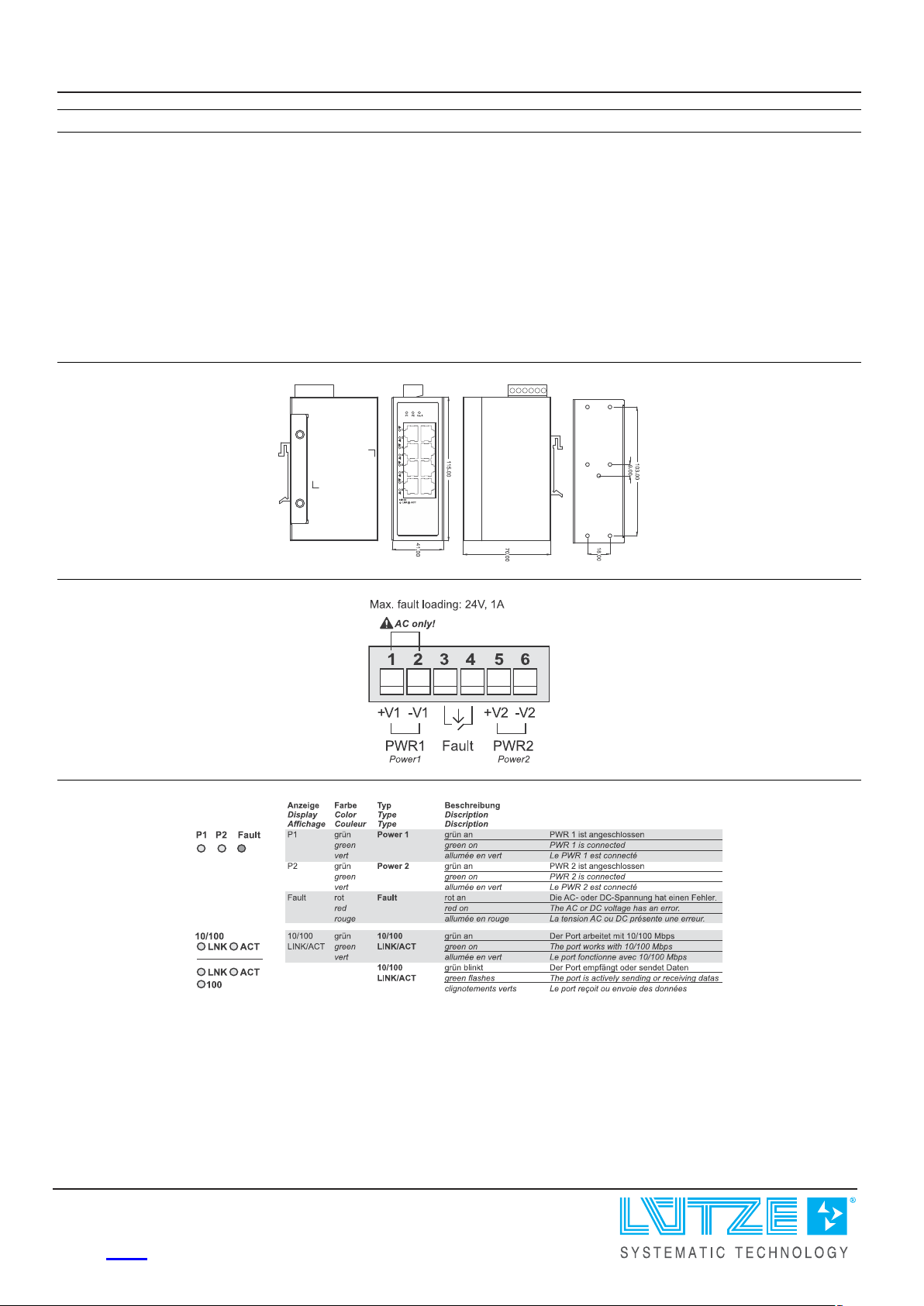

Dimensions

PIN assignment

LED status
