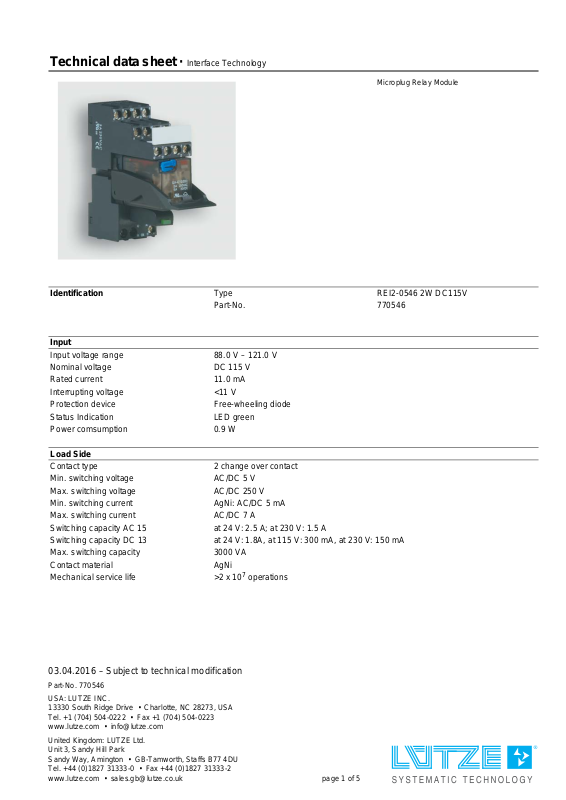

LUTZE 770546 Specification

Technical data sheet · Interface Technology

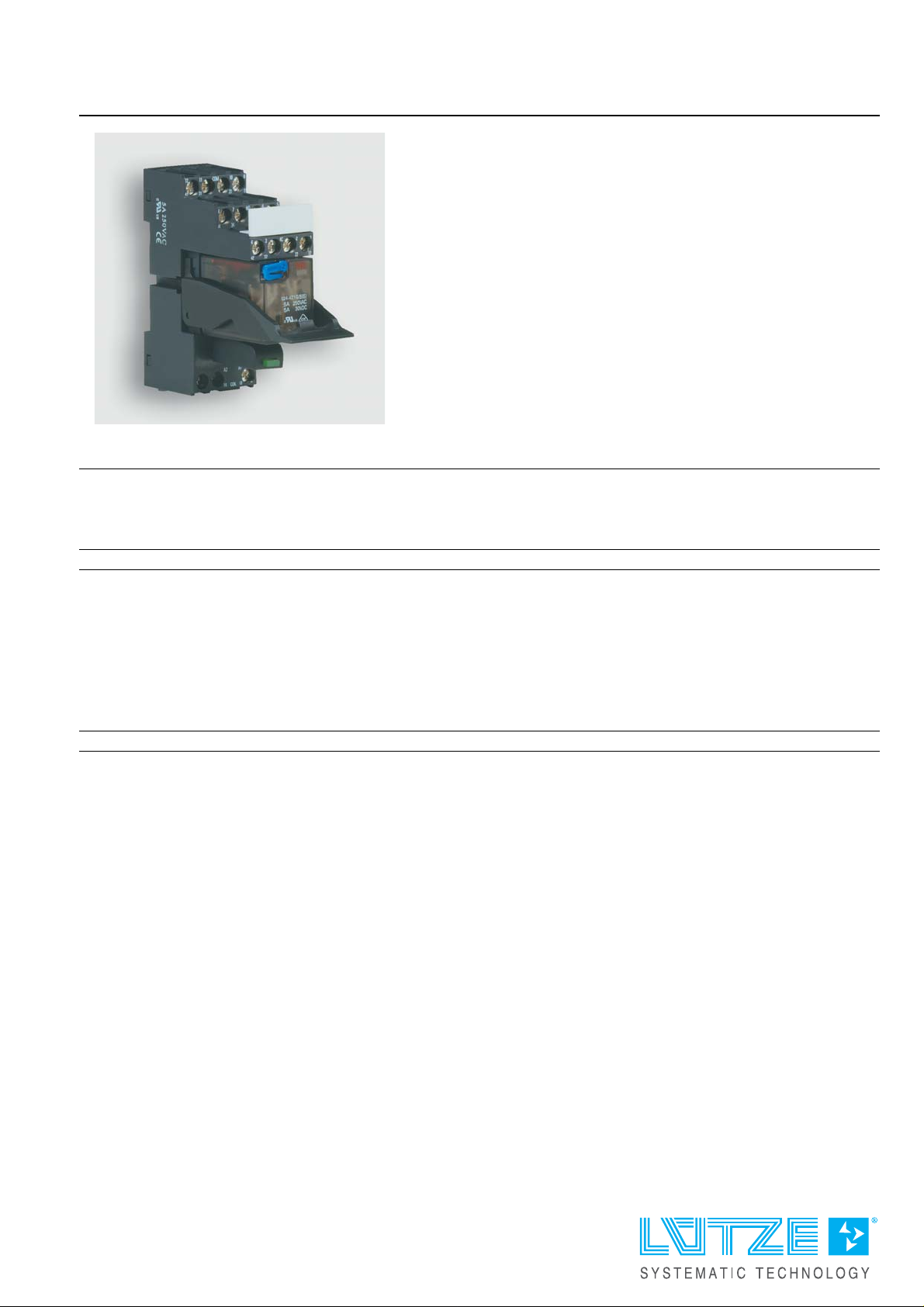

Microplug Relay Module

Subject to technical mo dification 770546

Identification Type REI2-0546 2W DC115V

Part-No. 770546

Input

Input voltage range 88.0 V – 121.0 V
Nominal voltage DC 115 V
Rated current 11.0 mA
Interrupting voltage <11 V
Protection device Free-wheeling diode
Status Indication LED green
Power comsumption 0.9 W

Load Side

Contact type 2 change over contact
Min. switching voltage AC/DC 5 V
Max. switching voltage AC/DC 250 V
Min. switching current AgNi: AC/DC 5 mA
Max. switching current AC/DC 7 A
Switching capacity AC 15 at 24 V: 2.5 A; at 230 V: 1.5 A
Switching capacity DC 13 at 24 V: 1.8A, at 115 V: 300 mA, at 230 V: 150 mA
Max. switching capacity 3000 VA
Contact material AgNi

7

Mechanical service life >2 x 10

operations

03.04.2016 – Subject to technical modification

Part-No. 770546
USA: LUTZE INC.

13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

United Kingdom: LUTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

page 1 of 5

Technical data sheet · Interface Technology

Switch-on delay 25 ms
Switch-off delay 25 ms
Clearance/creep. dist.

(control/load side)

General

Housing material PA 66+GF V0 (UL)
Protection class IP 20
Field installation rail TS 35 (EN 50022)
Insulation voltage input/output 1.5 kV
Safe isolation yes
Operation temperature range -40 °C – 70 °C
Storage temperature range -40 °C – 85 °C
Dimensions (w × h × d) 27.2 × 75.0 × 82.0 mm
Weight (kg/piece) 0.097
Approvals cULus
Termination Screw terminal: 0.2–4.0 mm

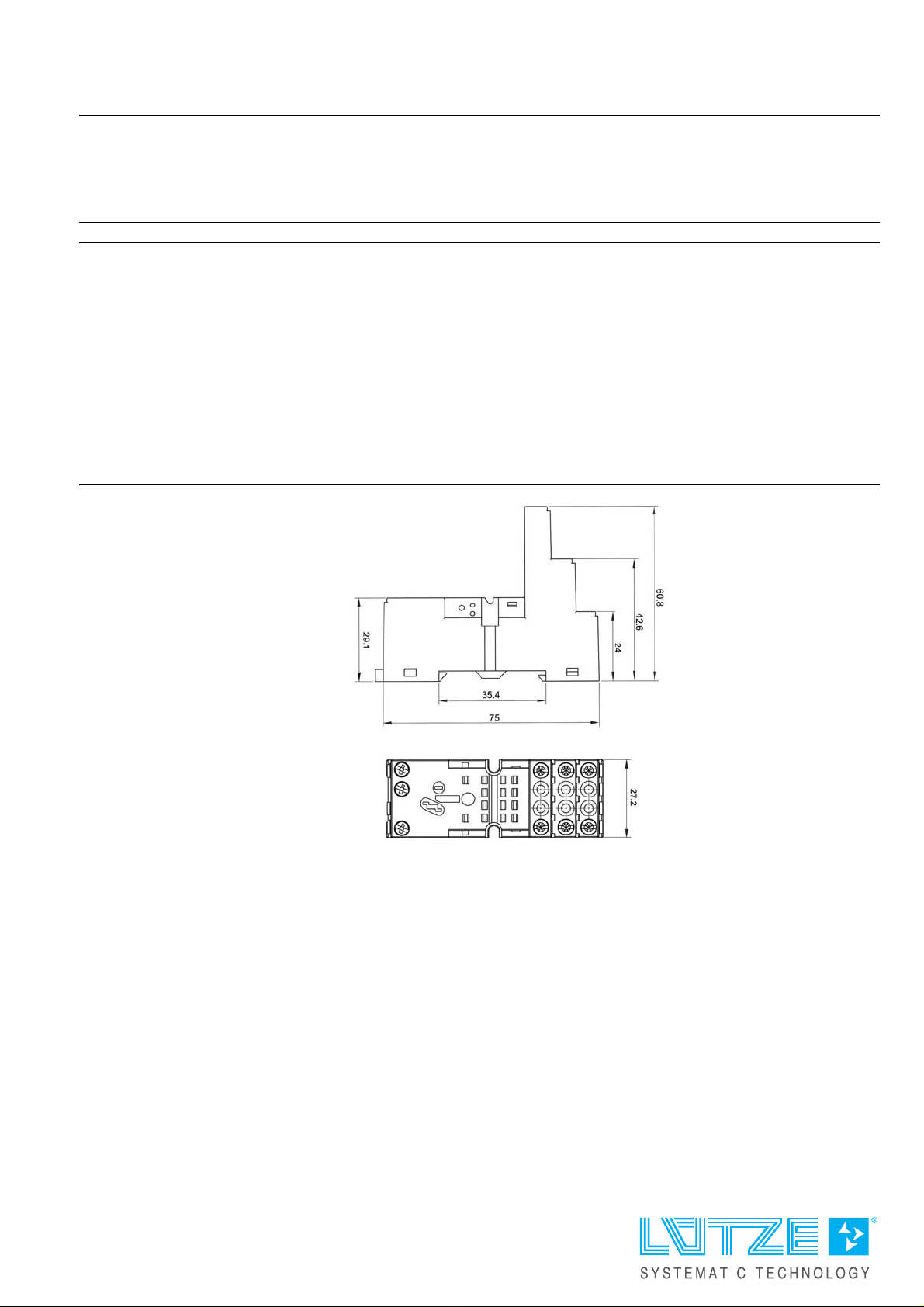

Dimensions

Clearance distance: > 2 mm; creepage distance: > 3mm

eff

2

03.04.2016 – Subject to technical modification

Part-No. 770546
USA: LUTZE INC.

13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

United Kingdom: LUTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

page 2 of 5

Technical data sheet · Interface Technology

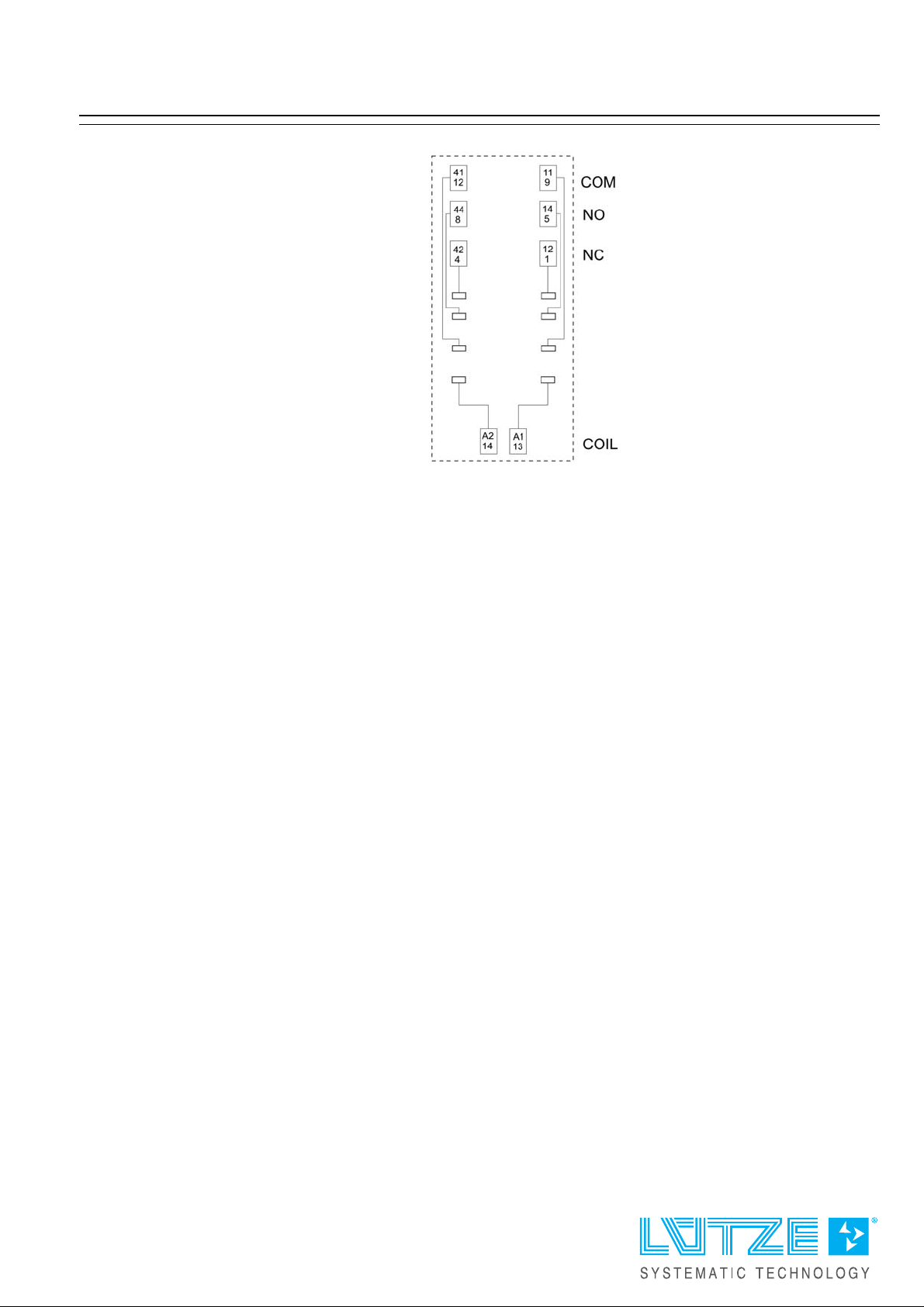

PIN assignment

03.04.2016 – Subject to technical modification

Part-No. 770546
USA: LUTZE INC.

13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

United Kingdom: LUTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

page 3 of 5

Technical data sheet · Interface Technology

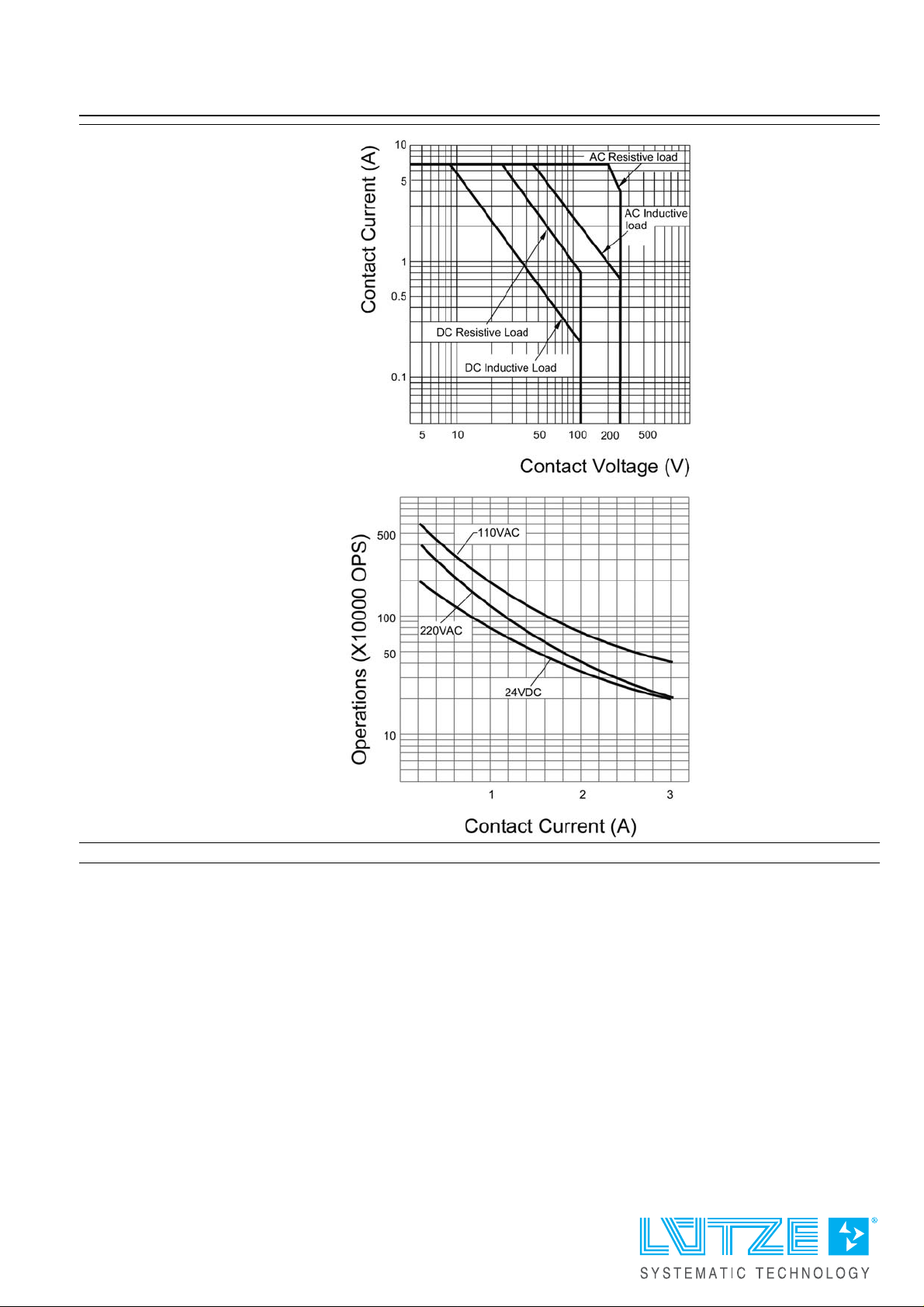

Limit curve

Accessories

03.04.2016 – Subject to technical modification

Part-No. 770546
USA: LUTZE INC.

13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

United Kingdom: LUTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

page 4 of 5

Technical data sheet · Interface Technology

Accessories Color Article number Type PU

Relay socket 770903 RES2W-0903 10
Backup relay DC 12V 770500 RE2W-0500 DC12 10
Backup relay DC 12V HV 770520 RE2WHV-0520

DC12

10

Backup relay DC 24V 770501 RE2W-0501 DC24 10
Backup relay DC 24V HV 770521 RE2WHV-0521

DC24

10

Backup relay DC 110V 770506 RE2W-0506 DC120 10
Backup relay DC 110V HV 770526 RE2WHV-0526

DC120

10

Protecting module AC 6-24V 770911 PM41G-0911 10
Protecting module DC 110V 770916 PM43G-0916 10
Plate 770907 REM WT-0907 10
Jumper comb 10A black 770909 REI-0909 10
