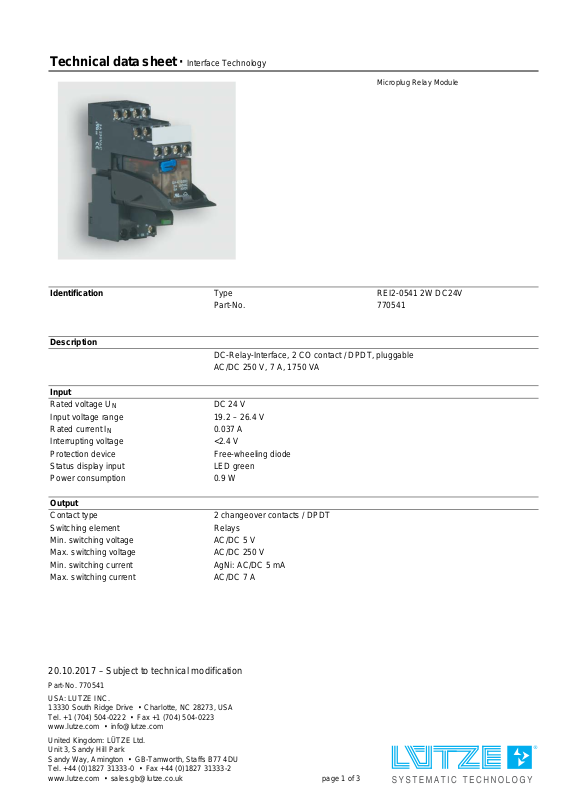

Page 1
Technical data sheet · Interface Technology

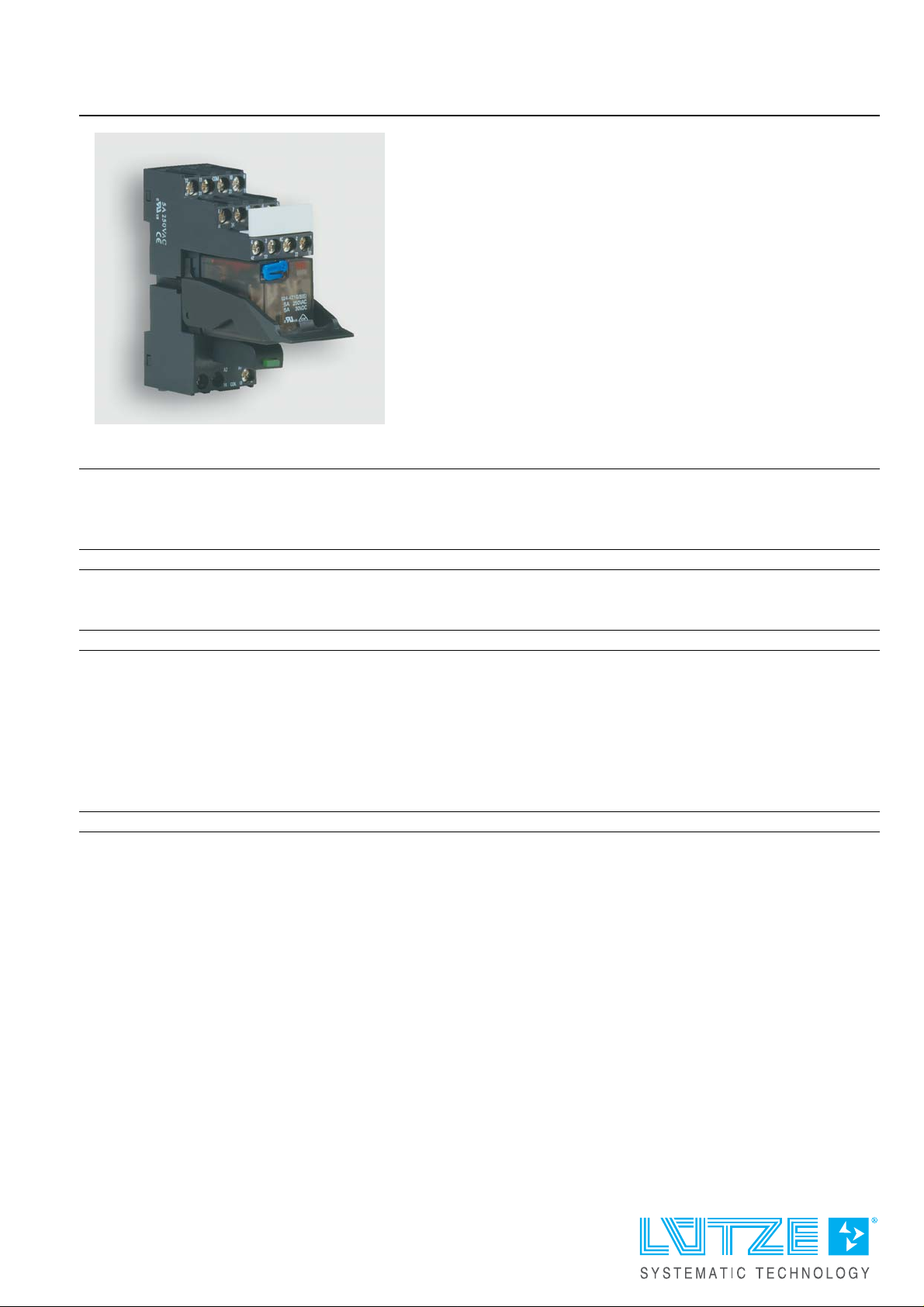

Microplug Relay Module
Subject to technical mo dification 770541
Identification Type REI2-0541 2W DC24V
Part-No. 770541
Description
DC-Relay-Interface, 2 CO contact / DPDT, pluggable
AC/DC 250 V, 7 A, 1750 VA
Input
Rated voltage U
N
DC 24 V
Input voltage range 19.2 – 26.4 V
Rated current I
N
0.037 A
Interrupting voltage <2.4 V
Protection device Free-wheeling diode
Status display input LED green
Power consumption 0.9 W
Output
Contact type 2 changeover contacts / DPDT
Switching element Relays
Min. switching voltage AC/DC 5 V
Max. switching voltage AC/DC 250 V
Min. switching current AgNi: AC/DC 5 mA
Max. switching current AC/DC 7 A
20.10.2017 – Subject to technical modification
Part-No. 770541
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 1 of 3
Page 2
Technical data sheet · Interface Technology
Switching capacity DC 13 1,8 A @ 24 V, 300 mA @ 115 V, 150 mA @ 230 V
Switching capacity AC 15 2.5 A @ 24 V, 1.5 A @ 230 V
Max. switching capacity 3000 VA
Contact material AgNi
Mechanical service life > 2 x 10
Switch-on delay 25 ms
Shutdown delay 25 ms
Clearance/creepage dist.
Air clearance: >2 mm, creepage clearance: >3 mm
(control/load side)
Protection device none
Rated insulation voltage (EN 50178) AC 250 V (category C 250)
General
Housing material PA 6.6 + GF V0 (UL)
Color of the housing black
Protection class IP20
Mounting DIN rail mountable TS35
Insulation voltage input / output 1.5 kV
Safe isolation yes
Operation temperature range -40 °C … +70 °C
Storage temperature range -40 °C … +85 °C
Dimensions (w × h × d) 27.2 × 75.0 × 82.0 mm
(including mounting bracket)
Weight 0.097 kg/piece
Connection device Screw terminal
0.20 mm
Standards EN 60947-4-1
Approvals cULus
7
operations
eff
2
– 4.0 mm
2
20.10.2017 – Subject to technical modification
Part-No. 770541
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 2 of 3
Page 3
Technical data sheet · Interface Technology

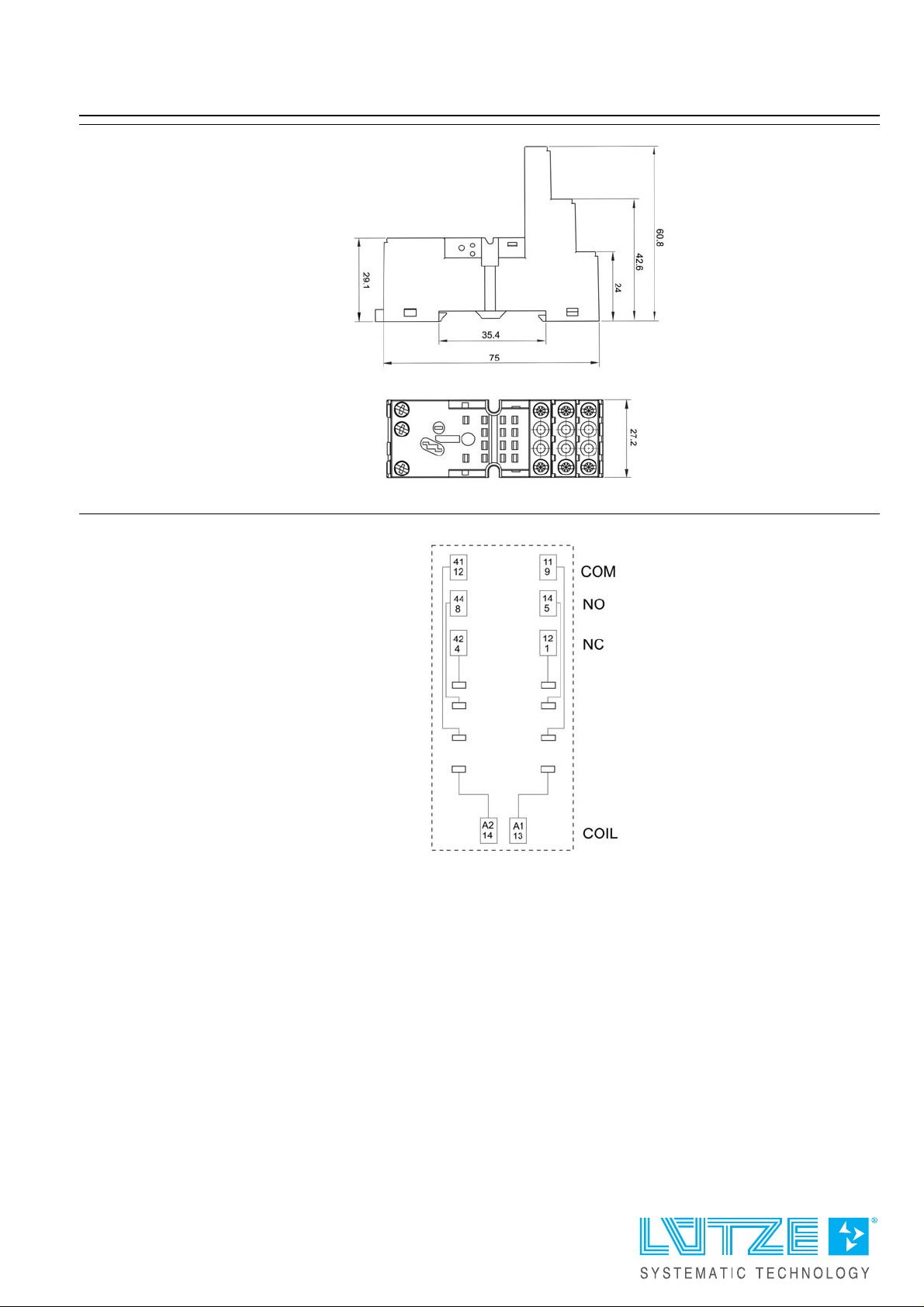

Dimensions
PIN assignment
