Technical data sheet · Interface Technology

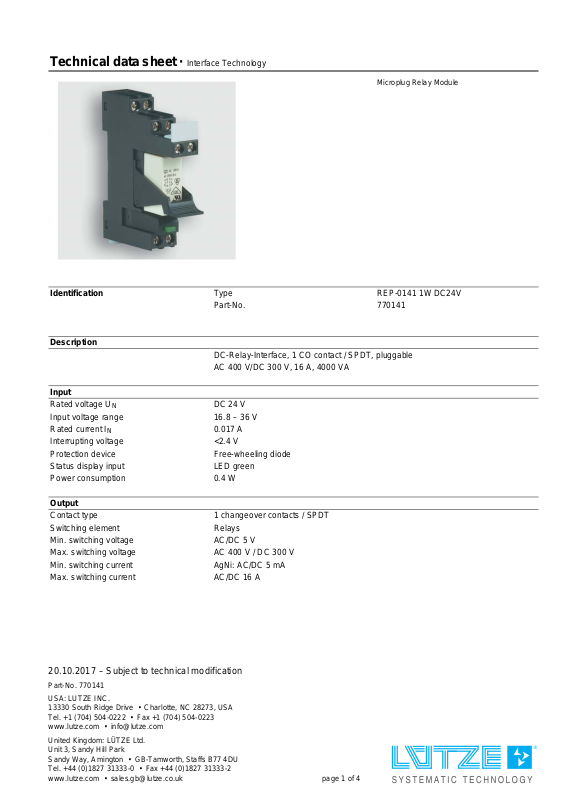

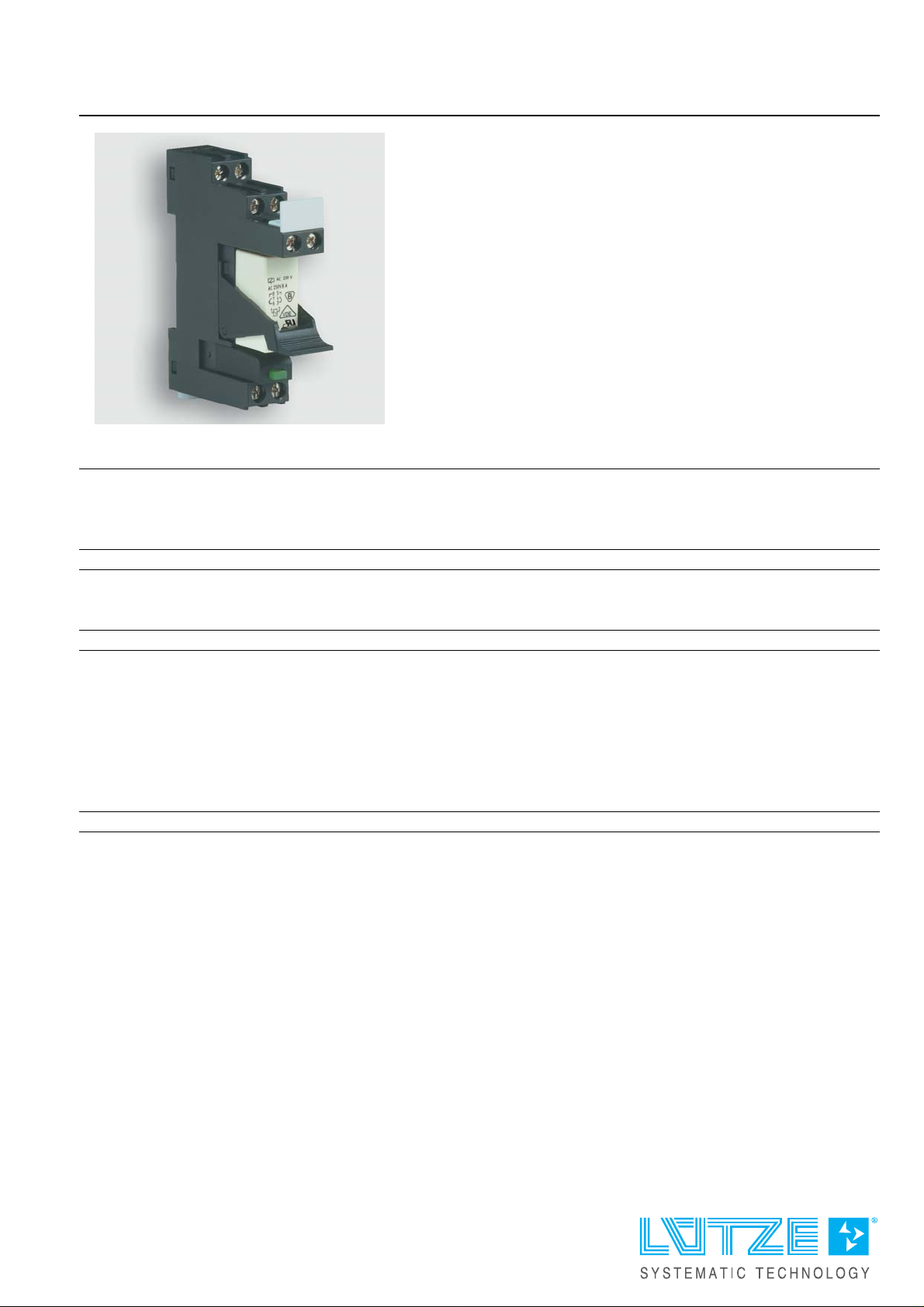

Microplug Relay Module
Subject to technical mo dification 770141
Identification Type REP-0141 1W DC24V
Part-No. 770141
Description
DC-Relay-Interface, 1 CO contact / SPDT, pluggable
AC 400 V/DC 300 V, 16 A, 4000 VA
Input
Rated voltage U
N
DC 24 V
Input voltage range 16.8 – 36 V
Rated current I
N
0.017 A
Interrupting voltage <2.4 V
Protection device Free-wheeling diode
Status display input LED green
Power consumption 0.4 W
Output
Contact type 1 changeover contacts / SPDT
Switching element Relays
Min. switching voltage AC/DC 5 V
Max. switching voltage AC 400 V / DC 300 V
Min. switching current AgNi: AC/DC 5 mA
Max. switching current AC/DC 16 A
20.10.2017 – Subject to technical modification
Part-No. 770141
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 1 of 4
Page 2
Technical data sheet · Interface Technology
Switching capacity DC 13 2 A @ 24 V, 300 mA @ 115 V, 150 mA @ 230 V
Switching capacity AC 15 3.3 A
Max. switching capacity 4000 VA
Contact material AgNi
Mechanical service life >10
Switch-on delay 15 ms
Shutdown delay 8 ms
Clearance/creepage dist.
(control/load side)
Protection device none
Rated insulation voltage (EN 50178) AC 400 V (category C 250)
General
Housing material PA 6.6 + GF V0 (UL)
Color of the housing black
Protection class IP20
Mounting DIN rail mountable TS35
Insulation voltage input / output 5.0 kV
Safe isolation yes
Operation temperature range -40 °C … +85 °C
Storage temperature range -40 °C … +85 °C
Dimensions (w × h × d) 15.6 × 75.0 × 67.0 mm
Weight 0.062 kg/piece
Connection device Screw terminal
Standards EN 60947-4-1
Approvals cULus
7
operations
Clearance distance: > 10 mm; creepage distance: > 10 mm
(EN 60715)
eff
(including mounting bracket)
0.20 mm
2
– 4.0 mm
2
20.10.2017 – Subject to technical modification
Part-No. 770141
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 2 of 4
Page 3
Technical data sheet · Interface Technology

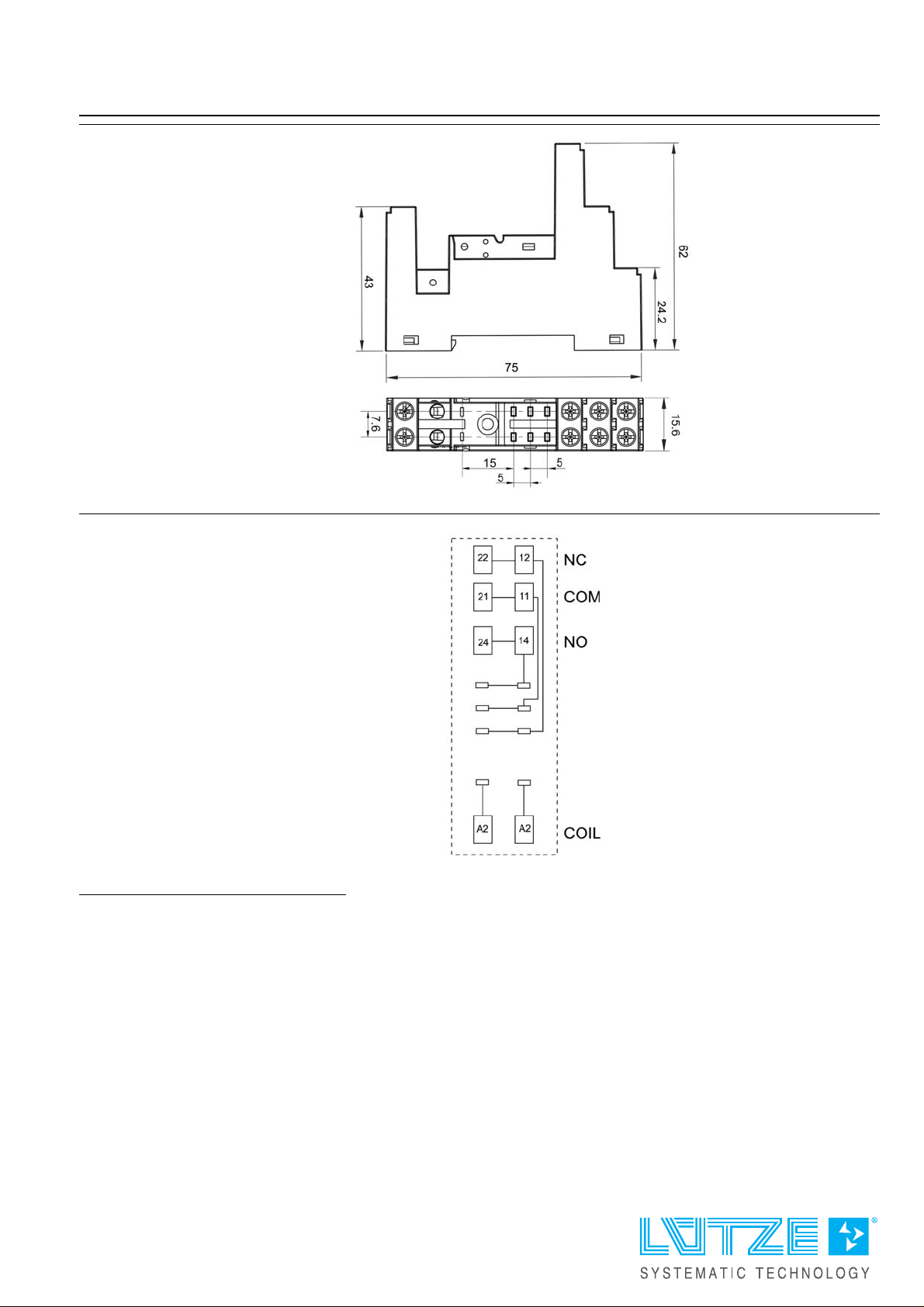

Dimensions
PIN assignment
Accessories
20.10.2017 – Subject to technical modification
Part-No. 770141
USA: LUTZE INC.
13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. +1 (704) 504-0222 • Fax +1 (704) 504-0223
www.lutze.com • [email protected]
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
page 3 of 4
Page 4
Technical data sheet · Interface Technology
Accessories Color Part-No. Type PU
Jumper comb 8-pin, Axilliary relay black 770908 REP-0908 10
Tag holder auxiliary relay 770902 REM-0902 10
Mounting bracket auxiliary relay 770901 REE-0901 10
