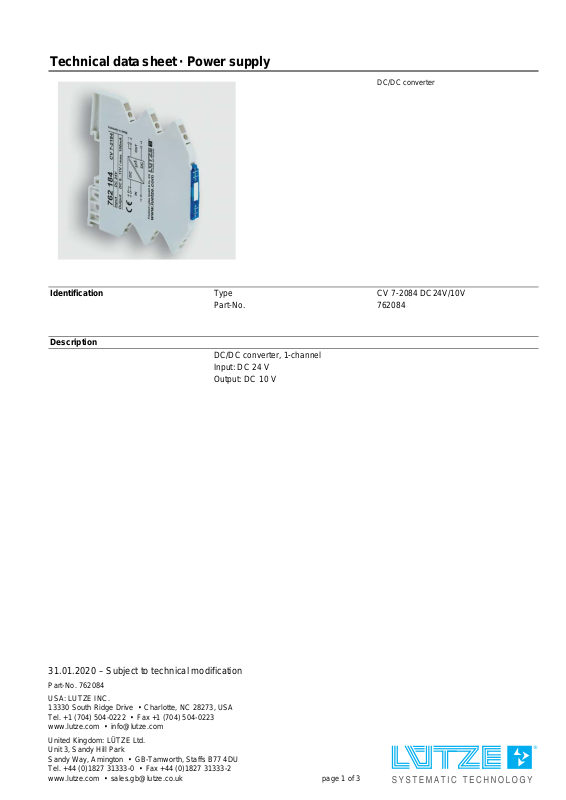

LUTZE 762084 Specification

Technical data sheet · Power supply

DC/DC converter

Subject to technical mo dification 762084

Identification Type CV 7-2084 DC24V/10V

Part-No. 762084

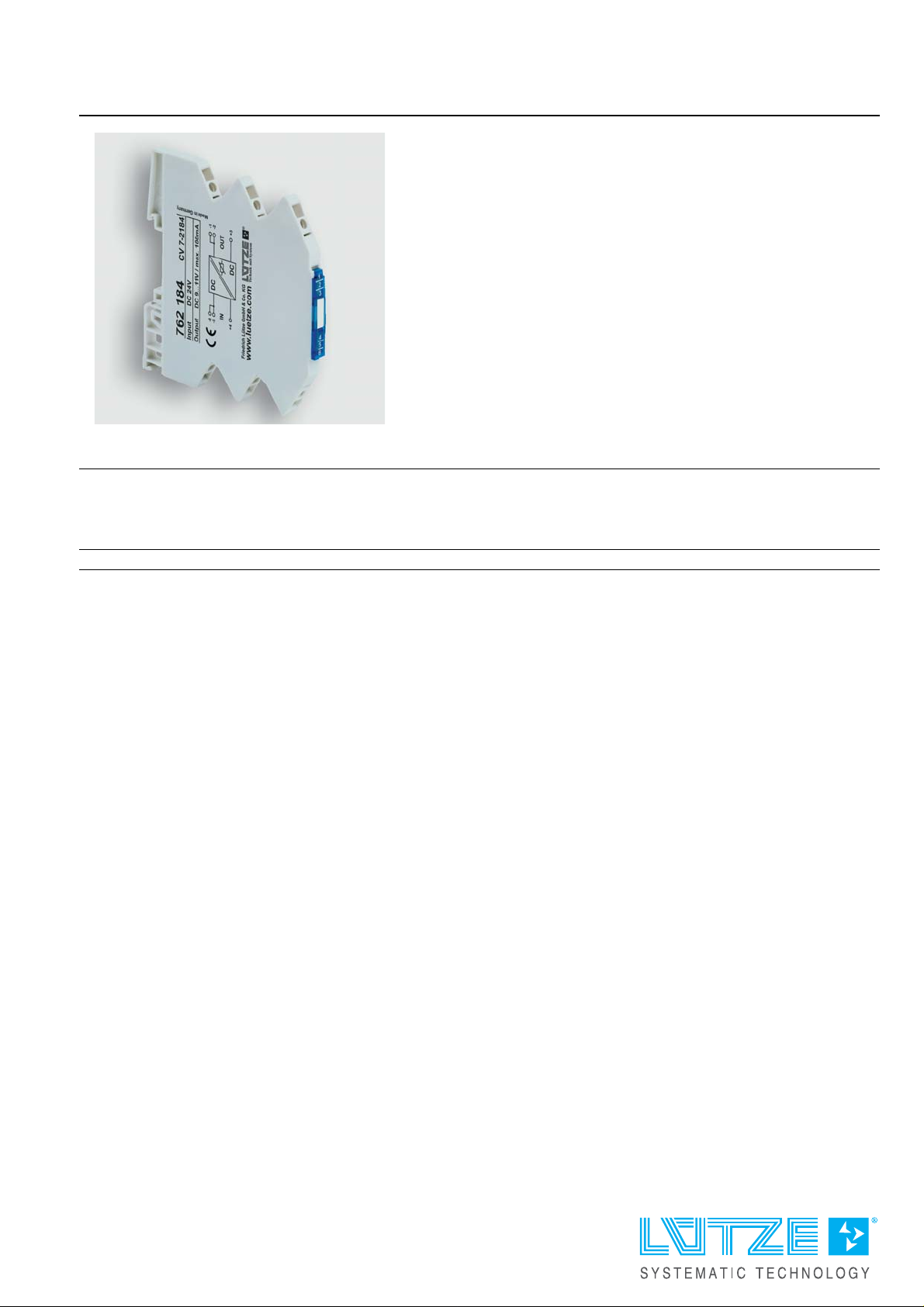

Description

DC/DC converter, 1-channel
Input: DC 24 V
Output: DC 10 V

31.01.2020 – Subject to technical modification

Part-No. 762084
USA: LUTZE INC.

13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

page 1 of 3

Technical data sheet · Power supply

Input

Rated voltage U

N

Operation voltage range DC 16.8–30 V
Rated current I

N

Output

Rated voltage U
Rated current I

N

N

Short-circuit current <900 mA
Setting range U

out min./Uout max.

Load regulation <1 %
Rise time <10 ms
Ripple and Noise <10 mVeff
Parallel / redundant mode No
Short circuit Current limit

General

Insulation voltage input / output 0.5 kV
Rated insulation voltage (EN 50178) 50 V
Operation temperature range -25 °C … +60 °C
Storage temperature range -40 °C … +85 °C
Cooling Air convection
Housing material PA
Mounting DIN rail mountable TS35

Installation position any
Protection class IP20 (IEC 529 / EN 60529)
Over voltage category I
Degree of polution 2
Weight 0.040 kg/piece
Connection type Spring terminal

Dimensions (w × h × d) 6.2 × 90.0 × 92.5 mm
PU 1 piece

DC 24 V

14 mA

DC 10 V

0.1 A

± 1.0 V via potentiometer

eff

eff

(EN 60715)

0.14 mm

2

– 1.5 mm

2

31.01.2020 – Subject to technical modification

Part-No. 762084
USA: LUTZE INC.

13330 South Ridge Drive • Charlotte, NC 28273, USA
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

page 2 of 3

Technical data sheet · Power supply

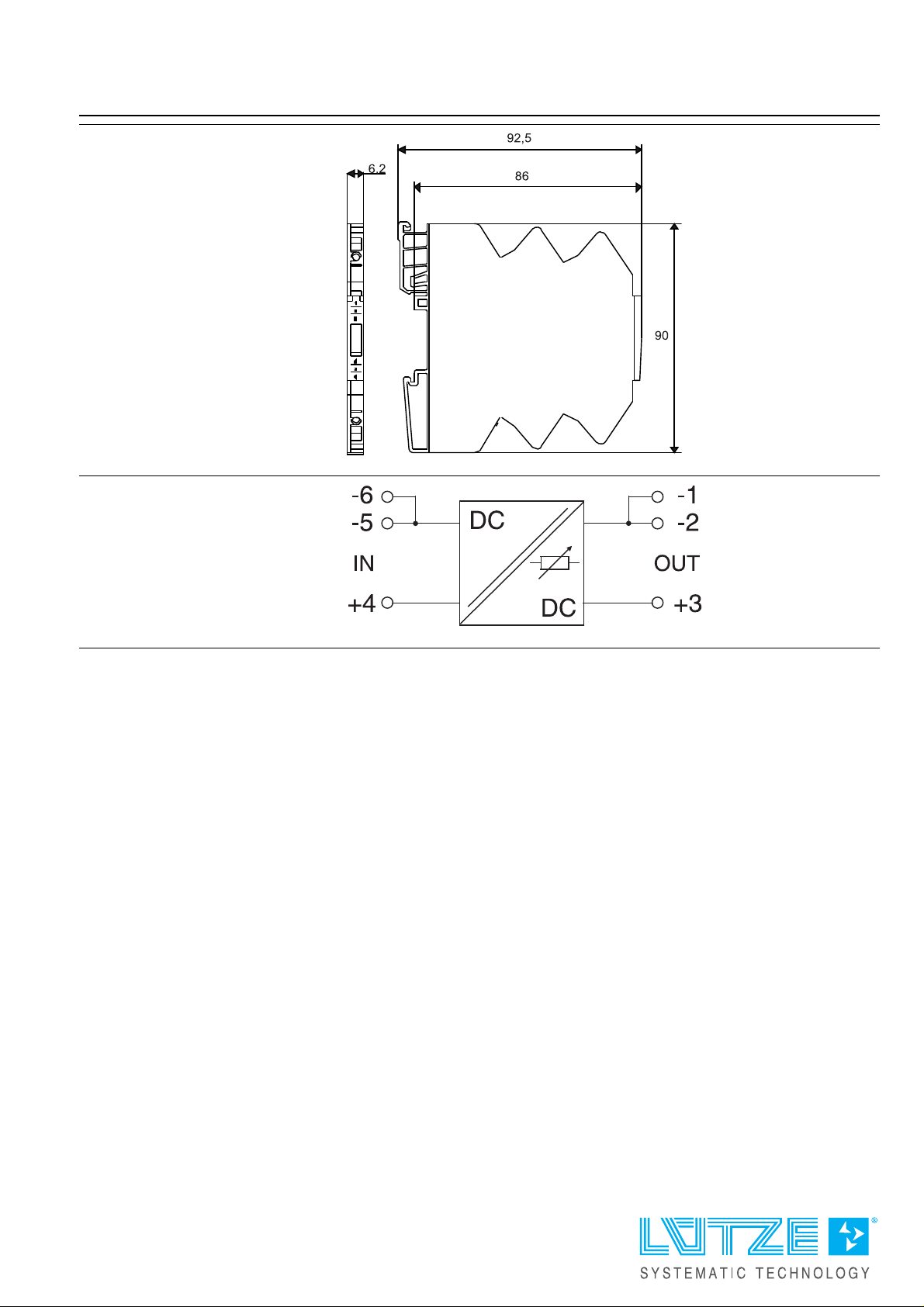

Dimensions

PIN assignment

Accessories Jumper comb 6 A, red:2-pin: Part-No. 762802 | 3-pin: Part-No. 762805 | 4-pin: Part-

No. 762812 | 8-pin: Part-No. 762822 | 16-pin: Part-No. 762832 | PU: 10 units
Jumper comb 6 A, white:2-pin: Part-No. 762803 | 3-pin: Part-No. 762806 | 4-pin: Part­No. 762813 | 8-pin: Part-No. 762823 | 16-pin: Part-No. 762833 | PU: 10 units
Jumper comb 6 A, blue:2-pin: Part-No. 762804 | 3-pin: Part-No. 762807 | 4-pin: Part­No. 762814 | 8-pin: Part-No. 762824 | 16-pin: Part-No. 762834 | PU: 10 units

Labelling sign 4×11 mm, white: Part-No. 681313 | BZT-0411 | PU: 100 units
Insulation plate, black RAL 9005:Part-No. 760809 | TP 7-0809 MIC/SNR | PU: 10

units
Laser label A4 not punched, black RAL 9005:Part-No. 681031 | LEB A4 PW | PU:
10 units
