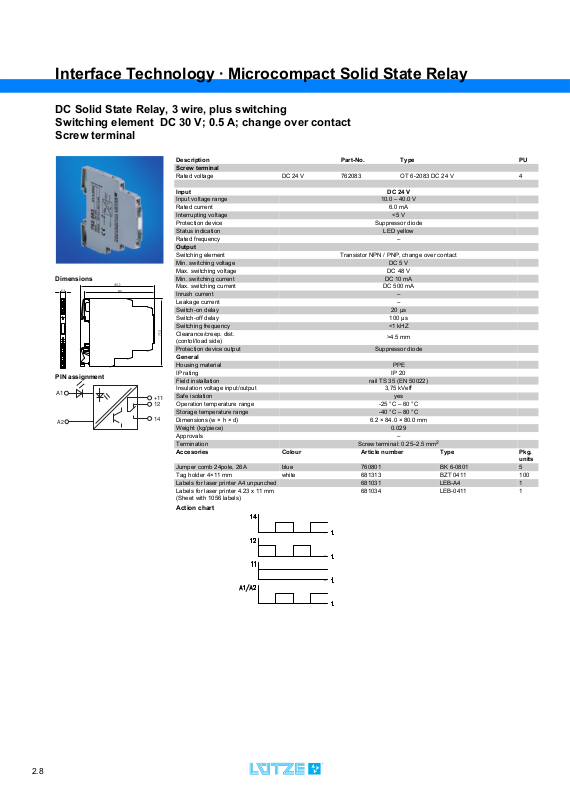

Interface Technology · Microcompact Solid State Relay
DC Solid State Relay, 3 wire, plus switching
Switching element DC 30 V; 0.5 A; change over contact
Screw terminal
Description Part-No. Type PU
Screw terminal
Rated voltage DC 24 V 762083 OT 6-2083 DC 24 V 4
Input DC 24 V
Dimensions
PIN assignment
A1
A2
Input voltage range
Rated current 6.0 mA
Interrupting voltage
Protection device Suppressor diode
Status indication
Rated frequency –
Output
Switching element Transistor NPN / PNP, change over contact
Min. switching voltage
Max. switching voltage DC 48 V
Min. switching current
Max. switching current DC 500 mA
Inrush current
Leakage current –
Switch-on delay
Switch-off delay 100 µs
Switching frequency
Clearance/creep. dist.
(contol/load side)
Protection device output
General
Housing material
IP rating IP 20
Field installation
Insulation voltage input/output 3,75 kVeff
Safe isolation
+11
Operation temperature range -25 °C – 60 °C
12
Storage temperature range
14
Dimensions (w × h × d) 6.2 × 84.0 × 80.0 mm
Weight (kg/piece)
Approvals –
Termination
Accesories Colour Article number Type Pkg.
Jumper comb 24pole, 26A
Tag holder 4×11 mm white 681313 BZT 0411 100
Labels for laser printer A4 unpunched
Labels for laser printer 4.23 x 11 mm
(Sheet with 1056 labels)
blue
Action chart
10.0 – 40.0 V
<5 V
LED yellow
DC 5 V
DC 10 mA
–
20 µs
<1 kHZ
>4.5 mm
Suppressor diode
PPE
rail TS 35 (EN 50022)
yes
-40 °C – 80 °C
0.029
Screw terminal: 0.25–2.5 mm
760801
681031
681034 LEB-0411 1
2
BK 6-0801
LEB-A4
units
5
1
2.8
