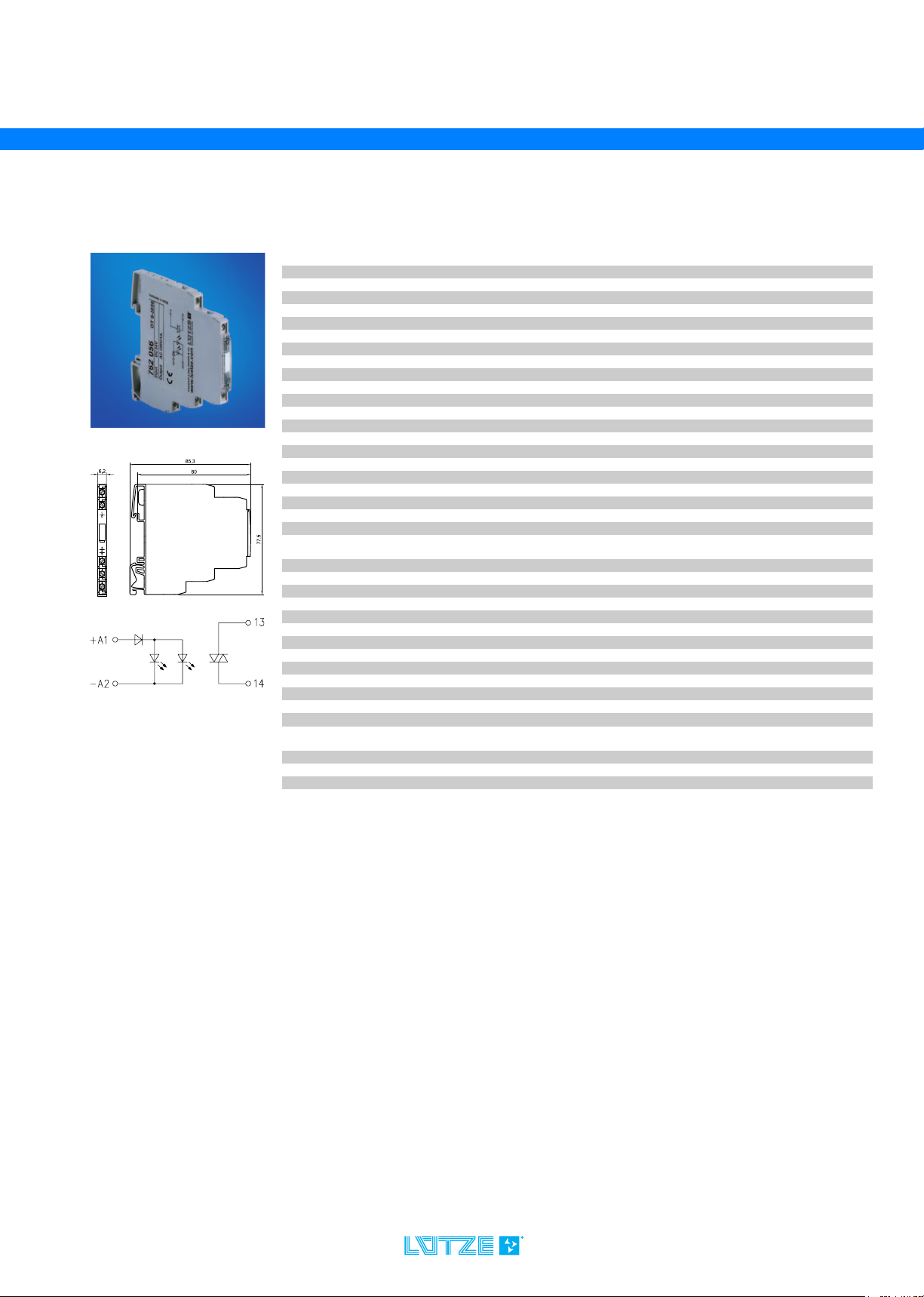

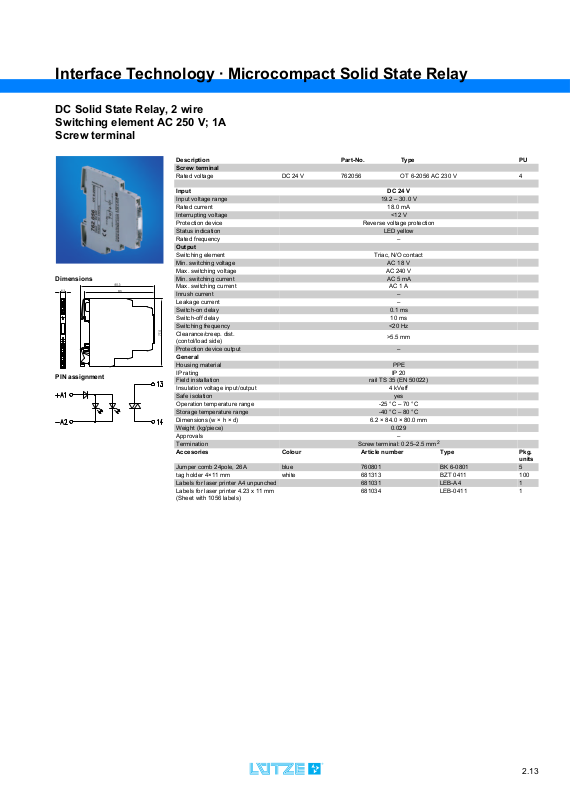

Interface Technology · Microcompact Solid State Relay
DC Solid State Relay, 2 wire
Switching element AC 250 V; 1A
Screw terminal
Description Part-No. Type PU
Screw terminal
Rated voltage DC 24 V 762056 OT 6-2056 AC 230 V 4
Input DC 24 V
Input voltage range 19.2 – 30.0 V
Rated current 18.0 mA
Interrupting voltage <12 V
Protection device Reverse voltage protection
Status indication LED yellow
Rated frequency –
Output
Switching element Triac, N/O contact
Min. switching voltage AC 18 V
Max. switching voltage AC 240 V
Dimensions
PIN assignment
Min. switching current AC 5 mA
Max. switching current AC 1 A
Inrush current –
Leakage current –
Switch-on delay 0.1 ms
Switch-off delay 10 ms
Switching frequency <20 Hz
Clearance/creep. dist.
(contol/load side)
Protection device output –
General
Housing material PPE
IP rating IP 20
Field installation rail TS 35 (EN 50022)
Insulation voltage input/output 4 kVeff
Safe isolation yes
Operation temperature range -25 °C – 70 °C
Storage temperature range -40 °C – 80 °C
Dimensions (w × h × d) 6.2 × 84.0 × 80.0 mm
Weight (kg/piece) 0.029
Approvals –
Termination
Accesories Colour Article number Type Pkg.
Jumper comb 24pole, 26A blue 760801 BK 6-0801 5
tag holder 4×11 mm white 681313 BZT 0411 100
Labels for laser printer A4 unpunched 681031 LEB-A4 1
Labels for laser printer 4.23 x 11 mm
(Sheet with 1056 labels)
Screw terminal: 0.25–2.5 mm
>5.5 mm
2
681034 LEB-0411 1
units
2.13
