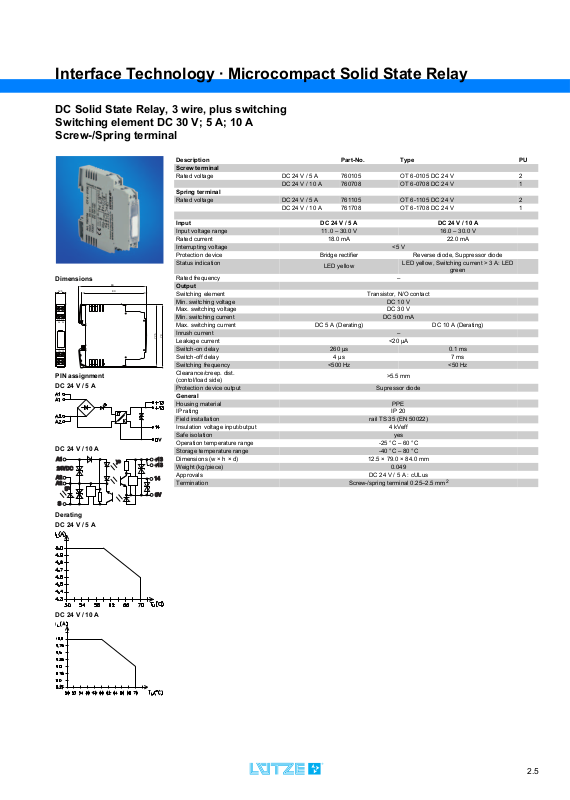

Interface Technology · Microcompact Solid State Relay
DC Solid State Relay, 3 wire, plus switching
Switching element DC 30 V; 5 A; 10 A
Screw-/Spring terminal
Description Part-No. Type PU
Screw terminal
Dimensions
12.5
A2A1A2
A1
14 0V
+13+13
PIN assignment
DC 24 V / 5 A
DC 24 V / 10 A
A1
24VDC
A2
A2
gn
S
Derating
DC 24 V / 5 A
Rated voltage DC 24 V / 5 A 760105 OT 6-0105 DC 24 V 2
Spring terminal
Rated voltage
Input DC 24 V / 5 A DC 24 V / 10 A
Input voltage range
Rated current 18.0 mA 22.0 mA
Interrupting voltage
Protection device Bridge rectifier Reverse diode, Suppressor diode
Status indication
84
80
Rated frequency –
Output
Switching element Transistor, N/O contact
Min. switching voltage
Max. switching voltage DC 30 V
Min. switching current
Max. switching current DC 5 A (Derating) DC 10 A (Derating)
Inrush current
79
77.5
Leakage current <20 µA
Switch-on delay
Switch-off delay 4 µs 7 ms
Switching frequency
Clearance/creep. dist.
(contol/load side)
Protection device output
General
Housing material
IP rating IP 20
Field installation
Insulation voltage input/output 4 kVeff
Safe isolation
Operation temperature range -25 °C – 60 °C
Storage temperature range
Dimensions (w × h × d) 12.5 × 79.0 × 84.0 mm
ye
+13
+13
Weight (kg/piece)
Approvals DC 24 V / 5 A : cULus
14
Termination
0V
DC 24 V / 10 A
DC 24 V / 5 A
760708
761105
OT 6-0708 DC 24 V
OT 6-1105 DC 24 V
DC 24 V / 10 A 761708 OT 6-1708 DC 24 V 1
11.0 – 30.0 V
16.0 – 30.0 V
<5 V
LED yellow
LED yellow, Switching current > 3 A: LED
green
DC 10 V
DC 500 mA
–
260 µs
<500 Hz
0.1 ms
<50 Hz
>5.5 mm
Supressor diode
PPE
rail TS 35 (EN 50022)
yes
-40 °C – 80 °C
0.049
Screw-/spring terminal 0.25–2.5 mm
2
1
2
DC 24 V / 10 A
2.5
