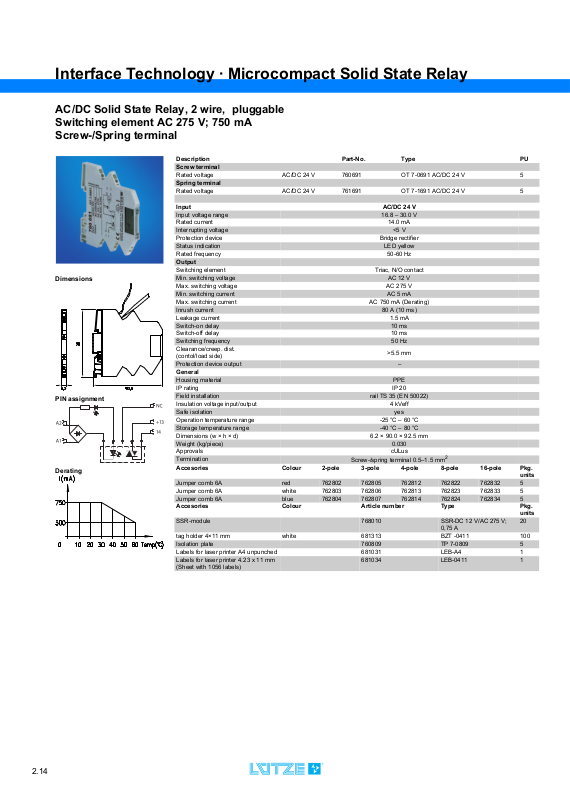

Interface Technology · Microcompact Solid State Relay
AC/DC Solid State Relay, 2 wire, pluggable
Switching element AC 275 V; 750 mA
Screw-/Spring terminal
Description Part-No. Type PU
Screw terminal
Rated voltage AC/DC 24 V 760691 OT 7-0691 AC/DC 24 V 5
Spring terminal
Rated voltage AC/DC 24 V 761691 OT 7-1691 AC/DC 24 V 5
Input AC/DC 24 V
Dimensions
PIN assignment
Derating
Input voltage range
Rated current 14.0 mA
Interrupting voltage
Protection device Bridge rectifier
Status indication
Rated frequency 50-60 Hz
Output
Switching element Triac, N/O contact
Min. switching voltage
Max. switching voltage AC 275 V
Min. switching current
Max. switching current AC 750 mA (Derating)
Inrush current
Leakage current 1.5 mA
Switch-on delay
Switch-off delay 10 ms
Switching frequency
Clearance/creep. dist.
(contol/load side)
Protection device output
General
Housing material
IP rating IP 20
Field installation
Insulation voltage input/output 4 kVeff
Safe isolation
Operation temperature range -25 °C – 60 °C
Storage temperature range
Dimensions (w × h × d) 6.2 × 90.0 × 92.5 mm
Weight (kg/piece)
Approvals cULus
Termination
Accesories Colour 2-pole 3-pole 4-pole 8-pole 16-pole Pkg.
Jumper comb 6A
Jumper comb 6A white 762803 762806 762813 762823 762833 5
Jumper comb 6A
Accesories Colour Article number Type Pkg.
SSR-module
tag holder 4×11 mm white 681313 BZT -0411 100
Isolation plate
Labels for laser printer A4 unpunched 681031 LEB-A4 1
Labels for laser printer 4.23 x 11 mm
(Sheet with 1056 labels)
red
blue
762802
762804
Screw-/spring terminal 0.5–1.5 mm
16.8 – 30.0 V
<5 V
LED yellow
AC 12 V
AC 5 mA
80 A (10 ms)
10 ms
50 Hz
>5.5 mm
–
PPE
rail TS 35 (EN 50022)
yes
-40 °C – 80 °C
0.030
762805
762807
768010
760809
681034
762812
762814
2
762822
762824
SSR-DC 12 V/AC 275 V;
0,75 A
TP 7-0809
LEB-0411
762832
762834
units
5
5
units
20
5
1
2.14
