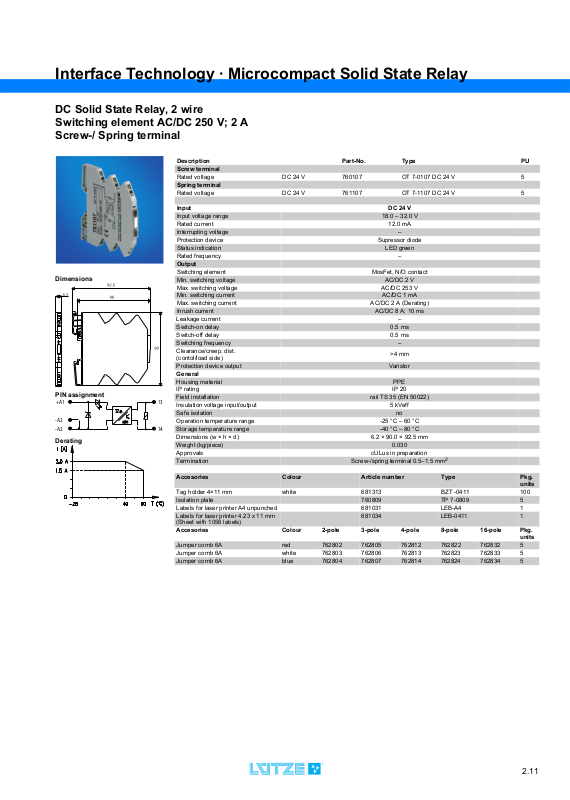

Interface Technology · Microcompact Solid State Relay
AC/DC
DC Solid State Relay, 2 wire
Switching element AC/DC 250 V; 2 A
Screw-/ Spring terminal
Description Part-No. Type PU
Screw terminal
Rated voltage DC 24 V 760107 OT 7-0107 DC 24 V 5
Spring terminal
Rated voltage DC 24 V 761107 OT 7-1107 DC 24 V 5
Input DC 24 V
Dimensions
PIN assignment
+A1
-A2
-A2
Derating
Input voltage range
Rated current 12.0 mA
Interrupting voltage
Protection device Supressor diode
Status indication
Rated frequency –
Output
Switching element MosFet, N/O contact
Min. switching voltage
Max. switching voltage AC/DC 253 V
Min. switching current
Max. switching current AC/DC 2 A (Derating)
Inrush current
Leakage current –
Switch-on delay
Switch-off delay 0.5 ms
Switching frequency
Clearance/creep. dist.
(contol/load side)
Protection device output
General
Housing material
IP rating IP 20
Field installation
13
Insulation voltage input/output 5 kVeff
AC/DC
Safe isolation
Operation temperature range -25 °C – 60 °C
14
Storage temperature range
Dimensions (w × h × d) 6.2 × 90.0 × 92.5 mm
Weight (kg/piece)
Approvals cULus in preparation
Termination
Screw-/spring terminal 0.5–1.5 mm
18.0 – 32.0 V
–
LED green
AC/DC 2 V
AC/DC 1 mA
AC/DC 8 A; 10 ms
0.5 ms
–
>4 mm
Varistor
PPE
rail TS 35 (EN 50022)
no
-40 °C – 80 °C
0.030
2
Accesories
Tag holder 4×11 mm white 681313 BZT -0411 100
Isolation plate
Labels for laser printer A4 unpunched 681031 LEB-A4 1
Labels for laser printer 4.23 x 11 mm
(Sheet with 1056 labels)
Accesories Colour 2-pole 3-pole 4-pole 8-pole 16-pole Pkg.
Jumper comb 6A
Jumper comb 6A white 762803 762806 762813 762823 762833 5
Jumper comb 6A
Colour
red
blue
762802
762804
Article number
760809
681034
762805
762807
762812
762814
Type
TP 7-0809
LEB-0411
762822
762824
762832
762834
Pkg.
units
5
1
units
5
5
2.11
