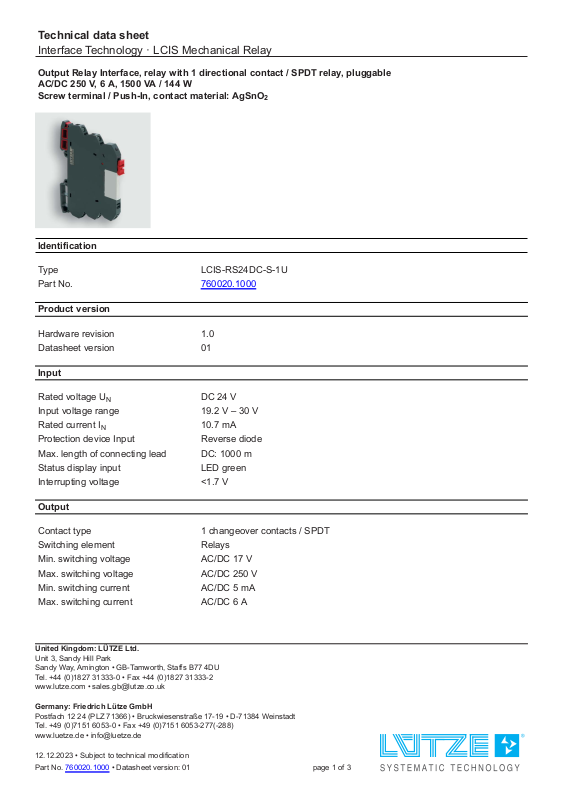

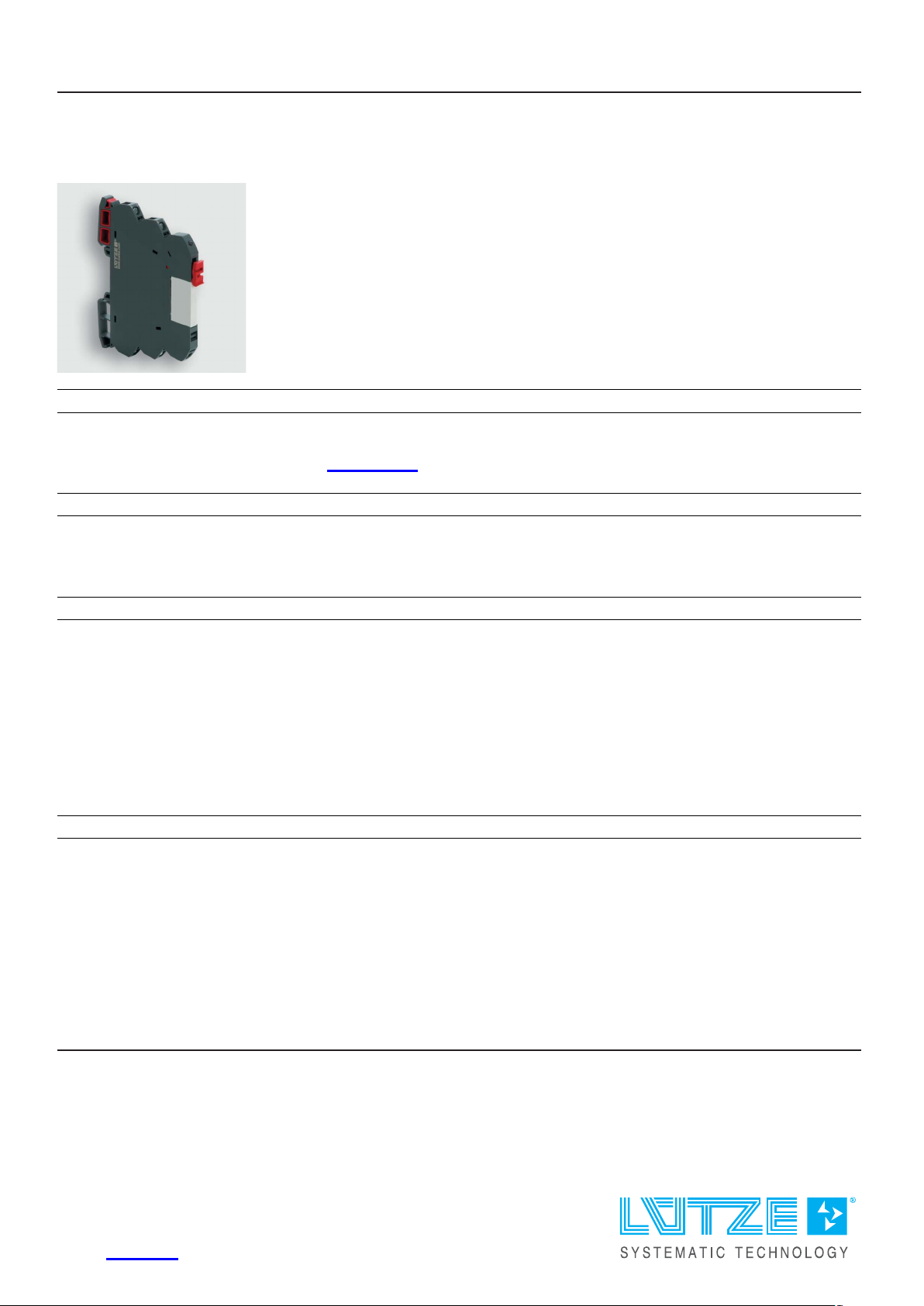

Page 1
Technical data sheet
Interface Technology · LCIS Mechanical Relay
Output Relay Interface, relay with 1 directional contact / SPDT relay, pluggable
AC/DC 250 V, 6 A, 1500 VA / 144 W
Screw terminal / Push-In, contact material: AgSnO
Identification
Type LCIS-RS24DC-S-1U
Part No.
760020.1000
Product version
2
Hardware revision 1.0
Datasheet version 01
Input
Rated voltage U
N
DC 24 V
Input voltage range 19.2 V – 30 V
Rated current I
N
10.7 mA
Protection device Input Reverse diode
Max. length of connecting lead DC: 1000 m
Status display input LED green
Interrupting voltage <1.7 V
Output
Contact type 1 changeover contacts / SPDT
Switching element Relays
Min. switching voltage AC/DC 17 V
Max. switching voltage AC/DC 250 V
Min. switching current AC/DC 5 mA
Max. switching current AC/DC 6 A
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • [email protected]
12.12.2023 • Subject to technical modification
Part No.
760020.1000 • Datasheet version: 01 page 1 of 3
Page 2
Technical data sheet
Interface Technology · LCIS Mechanical Relay
Switching capacity DC 13 1 A @ 24 V
200 mA @ 125 V
100 mA @ 250 V
Switching capacity AC 15 3 A
Max. switching capacity 1500 VA / 144 W
Contact material AgSnO
Mechanical service life
> 10 x 106operations
Switch-on delay 6 ms
Shutdown delay 13 ms
Protection device None
Max. length of connecting lead DC: 1000 m
Degree of protection IP20
General
Housing material PA 6.6 (UL 94 V-0)
Color of the housing RAL 7012
basalt grey
Degree of protection IP20
Mounting DIN rail mountable TS35
(EN 60715)
Installation position Any
Insulation voltage input / output 4.0 kV
Safe isolation yes
Clearance/creepage dist. (control/
>5.5 mm
load side)
Connection type Screw terminal
single wire
0.25 mm² – 2.5 mm² / AWG 24–14
fine stranded wire with ferrule
0.25 mm² – 1.5 mm² / AWG 24–16
Strip length 6 mm
Dimensions (w × h × d) 6.2 mm × 90.0 mm × 76.0 mm
Weight/unit 0.035 kg
PU (units) 5
2
eff
General ambient conditions
Operation temperature range -25 °C . .. +60 °C
Storage temperature range -40 °C . .. +80 °C
Relative air humidity 20 – 90 % RH, not condensing
Vibration resistance 0.7 g acc. to EN 60068-2-6
Certifications/Standards
Conformity CE
UKCA
Certifications cULus (E135145)
DNV (TAA000024Y)
12.12.2023 – Subject to technical modification
Part No.
760020.1000 • Datasheet version: 01 page 2 of 3
Page 3
Technical data sheet
Interface Technology · LCIS Mechanical Relay
Standards EN 60947-1
EN 60947-5-1
UL 508
DNVGL-CG-0339

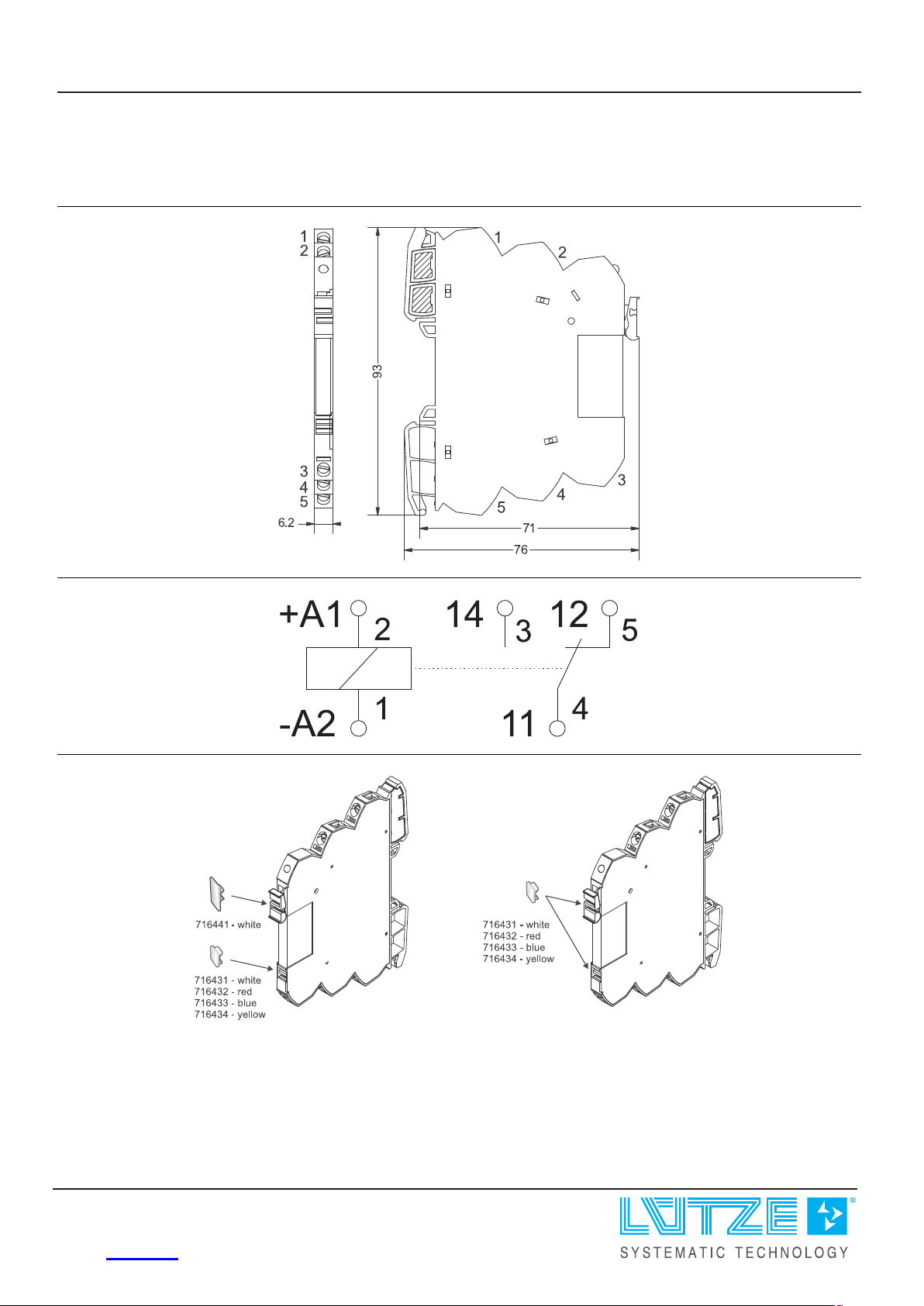

Dimensions
PIN assignment
Use
12.12.2023 – Subject to technical modification
Part No.
760020.1000 • Datasheet version: 01 page 3 of 3
