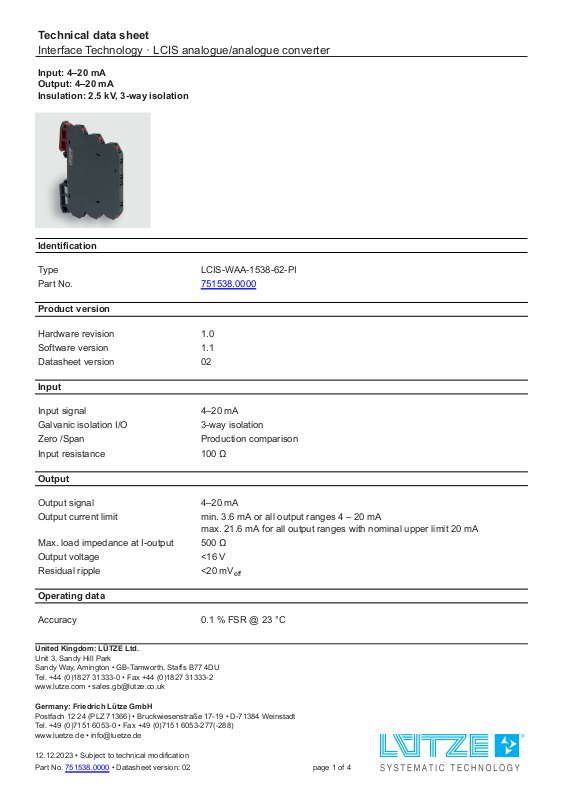

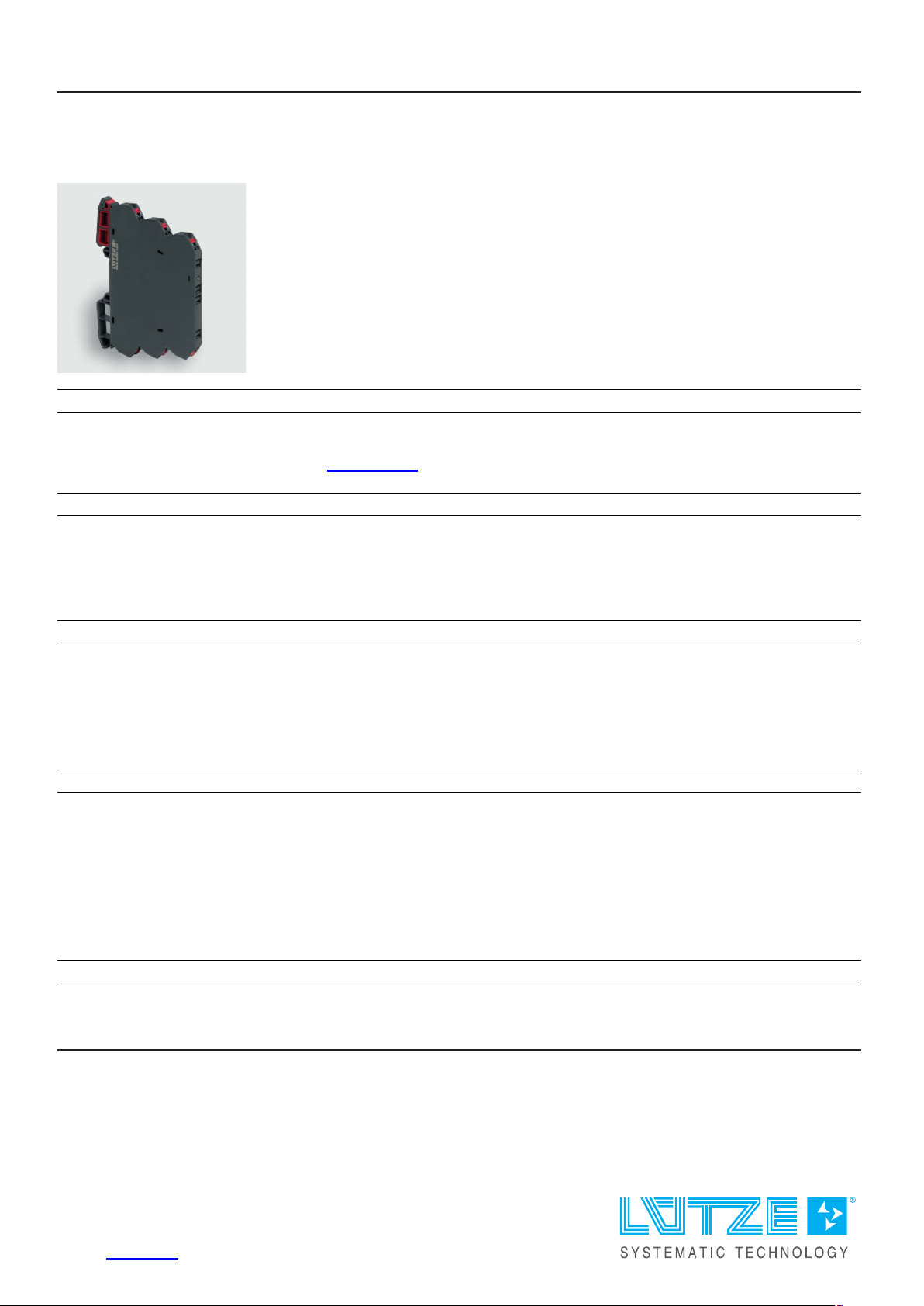

LUTZE 751538.0000 Specification

Technical data sheet

Interface Technology · LCIS analogue/analogue converter

Input: 4–20 mA
Output: 4–20 mA
Insulation: 2.5 kV, 3-way isolation

Identification

Type LCIS-WAA-1538-62-PI

Part No.

Product version

751538.0000

Hardware revision 1.0

Software version 1.1

Datasheet version 02

Input

Input signal 4–20 mA

Galvanic isolation I/O 3-way isolation

Zero /Span Production comparison

Input resistance 100 Ω

Output

Output signal 4–20 mA

Output current limit min. 3.6 mA or all output ranges 4 – 20 mA

max. 21.6 mA for all output ranges with nominal upper limit 20 mA

Max. load impedance at I-output 500 Ω

Output voltage <16 V

Residual ripple <20 mV

eff

Operating data

Accuracy 0.1 % FSR @ 23 °C

United Kingdom: LÜTZE Ltd.

Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. [phone] • Fax [phone]
www.lutze.com • [email protected]

Germany: Friedrich Lütze GmbH

Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. [phone] • Fax [phone](-288)
www.luetze.de • [email protected]

12.12.2023 • Subject to technical modification

Part No.

751538.0000 • Datasheet version: 02 page 1 of 4

Technical data sheet

Interface Technology · LCIS analogue/analogue converter

Linearity error 0.05 % FSR

Rise time (10-90%) 6 ms

Build-up time (Accuracy 1%) 17 ms

Temperature coefficient <150 ppm / K FSR

Critical frequency 30 Hz @ 3 dB

General

Rated voltage U

N

AC/DC 24 V

Current Consumption 22 mA

Status indication LED green

Input/output protection Overvoltage, current input with PTC fuse, short circuit-proof output

Insulation voltage input / output 2.5 kV

eff

Housing material PA 6.6 (UL 94 V-0, NFF I2, F2 )

Color of the housing RAL 7012

basalt grey

Mounting DIN rail mountable TS35

(EN 60715)

Degree of protection IP20

Installation position Any

Connection type Push-In

single wire

0.25 mm² – 2.5 mm² / AWG 24–14
fine stranded wire with ferrule

0.25 mm² – 1.5 mm² / AWG 24–16

Strip length 8 mm

Dimensions (w × h × d) 6.2 mm × 93.0 mm × 73.0 mm

Weight/unit 0.029 kg

PU (units) 1

General ambient conditions

Operation temperature range -25 °C . .. +60 °C

Storage temperature range -40 °C . .. +80 °C

Relative air humidity 20 – 90 % RH, not condensing

Vibration resistance 0.7 g acc. to EN 60068-2-6

Failure Rate Prediction (MTBF)

Standards

Electronic components – Reliability – Reference conditions for failure rates
and stress models for conversion: EN/IEC 61709
Failure Rates of Components – Expected values: SN 29500

Failure rate at +45 °C 504 fit

Failure rate at +45 °C 1983891 h

1 fit equals one failure per 109component hours

The indicated temperature is the mean component ambient temperature.

Comments The results are valid under following conditions:

Automotive environment or industrial areas without extreme dust levels and
harmful substances
Continuous operation 8760 h per year

12.12.2023 – Subject to technical modification

Part No.

751538.0000 • Datasheet version: 02 page 2 of 4

Technical data sheet

Interface Technology · LCIS analogue/analogue converter

Certifications/Standards

Conformity CE

UKCA

Certifications cULus (E135145)

DNV (TAA000024Y)

Standards EN 60947-1

EN 60947-5-1
EN 61000-6-2
EN 61000-6-4
UL 508
DNV-CG-0339

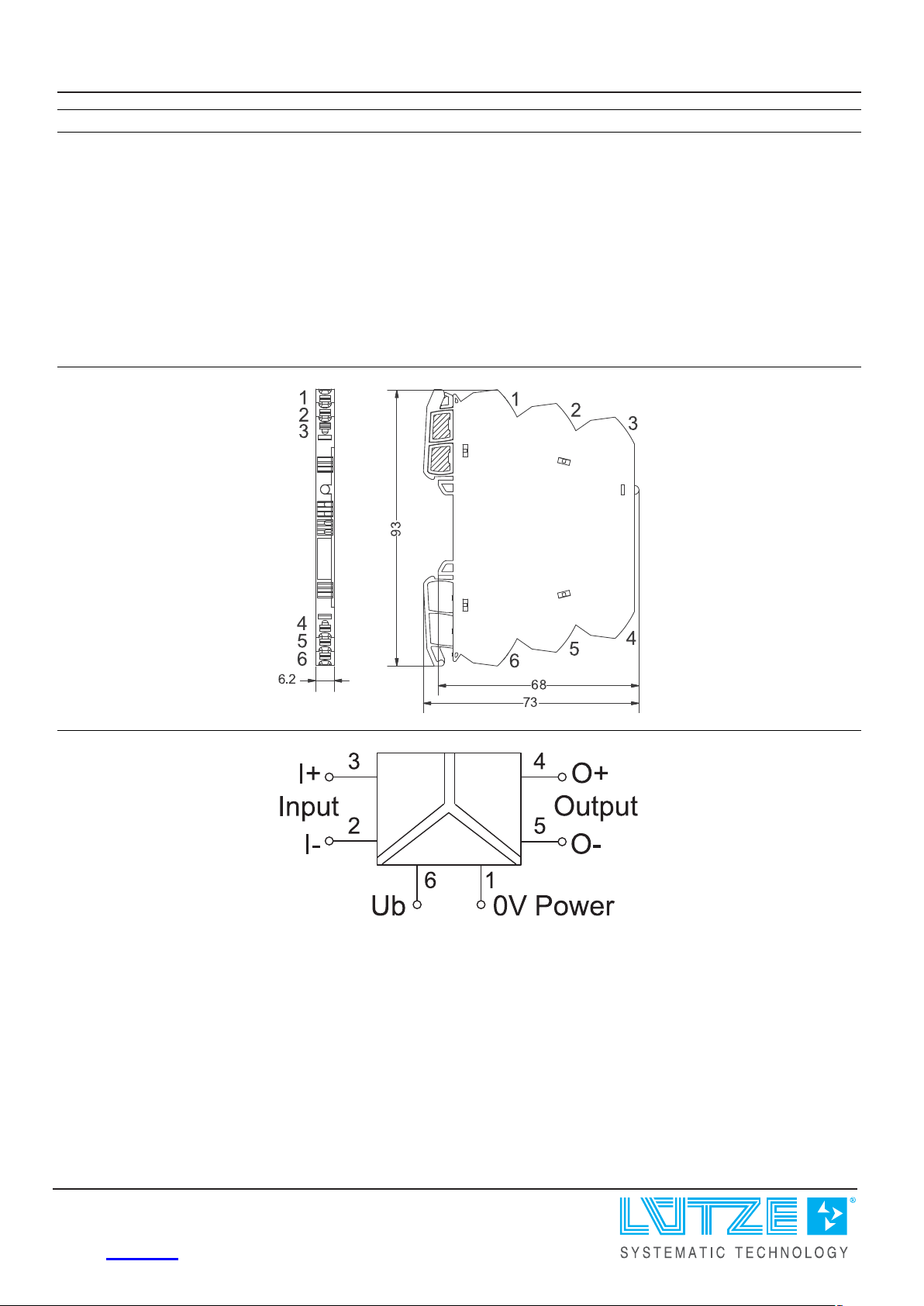

Dimensions

PIN assignment

12.12.2023 – Subject to technical modification

Part No. 751538.0000 • Datasheet version: 02 page 3 of 4

Technical data sheet

Interface Technology · LCIS analogue/analogue converter

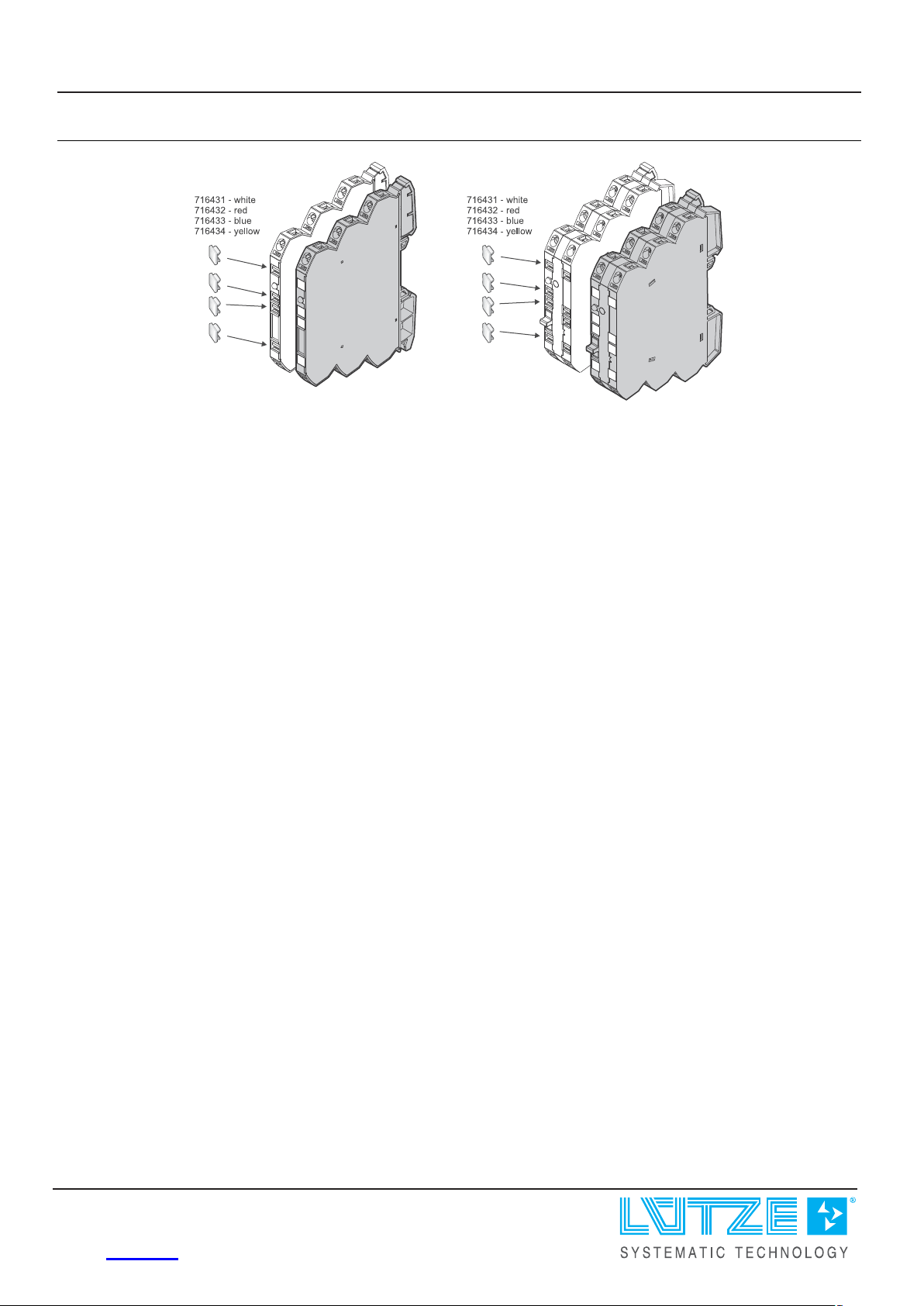

Use

12.12.2023 – Subject to technical modification

Part No.

751538.0000 • Datasheet version: 02 page 4 of 4
