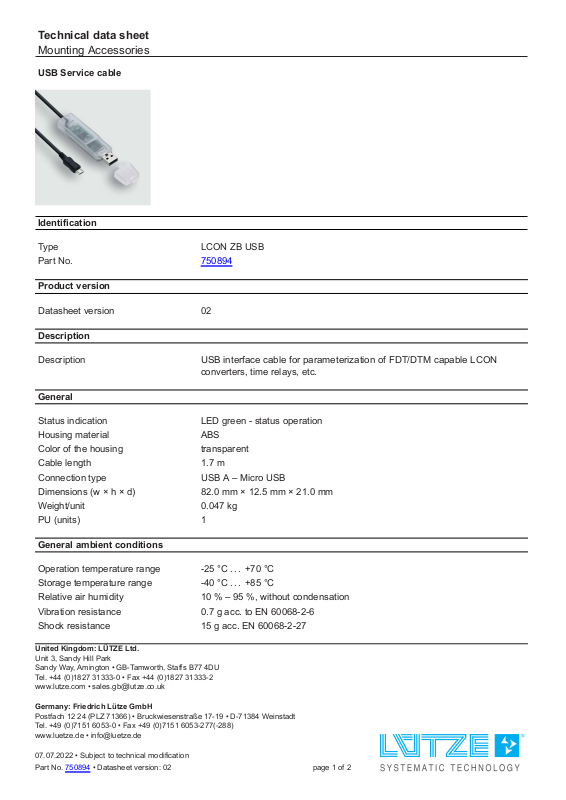

Page 1
Technical data sheet
Mounting Accessori e s
USB Service cable
Identification
Type LCON ZB USB
Part No.
Product version
Datasheet version 02
750894
Description
Description
USB interface cable for parameterization of FDT/DTM capable LCON
converters, time relays, etc.
General
Status indication LED green - status operation
Housing material ABS
Color of the housing transparent
Cable length 1.7 m
Connection type USB A – Micro USB
Dimensions (w × h × d) 82.0 mm × 12.5 mm × 21.0 mm
Weight/unit 0.047 kg
PU (units) 1
General ambient conditions
Operation temperature range -25 °C . . . +70 °C
Storage temperature range -40 °C . . . +85 °C
Relative air humidity 10 % – 95 %, without condensation
Vibration resistance 0.7 g acc. to EN 60068-2-6
Shock resistance 15 g acc. EN 60068-2-27
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington • GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0 • Fax +44 (0)1827 31333-2
www.lutze.com • sales.gb @ l u tze .co .u k
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366) • Bruckwiesenstraße 17-19 • D-71384 Weinstadt
Tel. +49 (0)7151 6053-0 • Fax +49 (0)7151 6053-277(-288)
www.luetze.de • info@ l u e tze .d e
07.07.2022 • Subject to technical modification
Part No.
750894 • Datasheet version: 02 page 1 of 2
Page 2
Technical data sheet
Mounting Accessori e s
Certifications/Standards
Conformity CE
UKCA
Standards EN 60947-1
EN 60947-5-1
Equipment/Spare parts
Accessories Driver software "LCON ZB USB Driver"
Notes and Comments
Note The LCON USB service cable contains a galvanically isolated USB interface.
To program parameterizable devices, you need the software "LCON ZB USB
Driver", which is available free of charge in the download area.
The software co n si sts of the frame application Pactware, the DTM drivers,
the driver for the service cable and a manual.
Please also observe the operating instructions enclosed with the product.
Dimensions
Use
07.07.2022 – Subject to technical modification
Part No.
750894 • Datasheet version: 02 page 2 of 2
