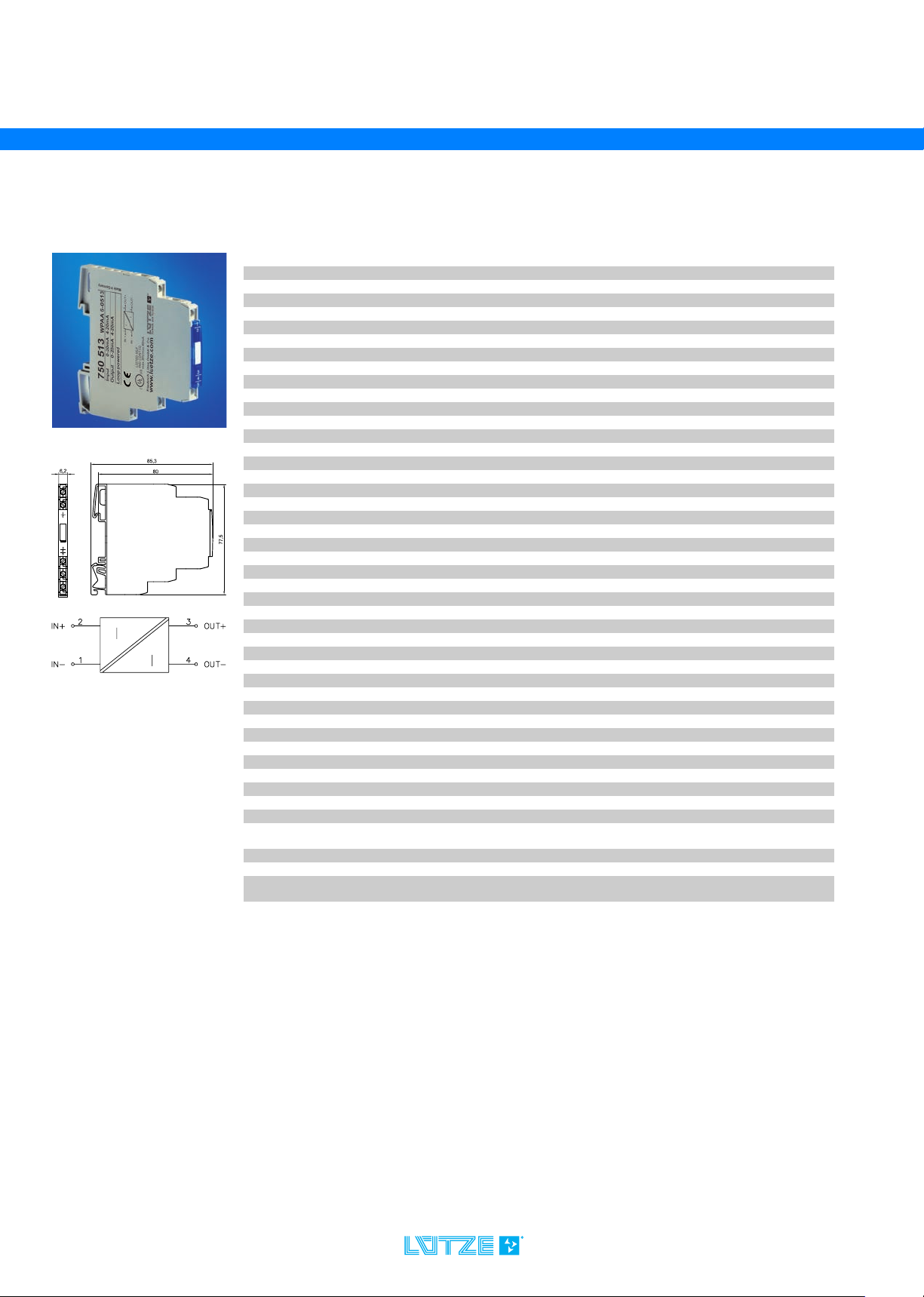

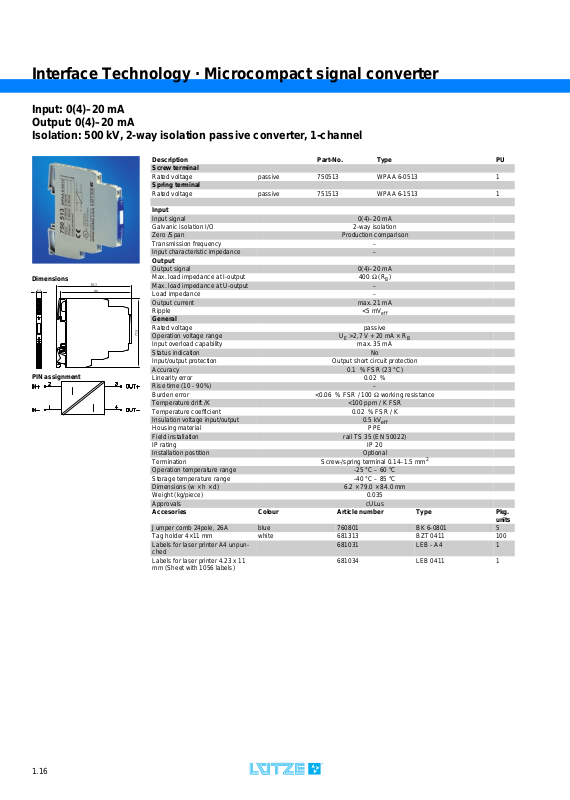

Interface Technology · Microcompact signal converter
Input: 0(4)–20 mA
Output: 0(4)–20 mA
Isolation: 500 kV, 2-way isolation passive converter, 1-channel
Description Part-No. Type PU
Screw terminal
Rated voltage passive 750513 WPAA 6-0513 1
Spring terminal
Rated voltage passive 751513 WPAA 6-1513 1
Input
Input signal 0(4)–20 mA
Galvanic isolation I/O 2-way isolation
Zero /Span Production comparison
Transmission frequency –
Input characteristic impedance –
Output
Output signal 0(4)–20 mA
Dimensions
PIN assignment
Max. load impedance at I-output 400 Ω (RB)
Max. load impedance at U-output –
Load impedance –
Output current max. 21 mA
Ripple <5 mV
General
Rated voltage passive
Operation voltage range UE >2,7 V + 20 mA × R
Input overload capability max. 35 mA
Status indication No
Input/output protection Output short circuit protection
Accuracy 0.1 % FSR (23 °C)
Linearity error 0.02 %
Rise time (10 - 90%) –
Burden error <0.06 % FSR / 100 Ω working resistance
Temperature drift /K <100 ppm / K FSR
Temperature coefficient 0.02 % FSR / K
Insulation voltage input/output 0.5 kV
Housing material PPE
Field installation rail TS 35 (EN 50022)
IP rating IP 20
Installation postition Optional
Termination Screw-/spring terminal 0.14–1.5 mm
Operation temperature range -25 °C – 60 °C
Storage temperature range -40°C–85°C
Dimensions (w × h × d) 6.2 × 79.0 × 84.0 mm
Weight (kg/piece) 0.035
Approvals cULus
Accesories Colour Article number Type Pkg.
Jumper comb 24pole, 26A blue 760801 BK 6-0801 5
Tag holder 4×11 mm white 681313 BZT 0411 100
Labels for laser printer A4 unpunched
Labels for laser printer 4.23 x 11
mm (Sheet with 1056 labels)
681031 LEB - A4 1
681034 LEB 0411 1
eff
B
eff
2
units
1.16
