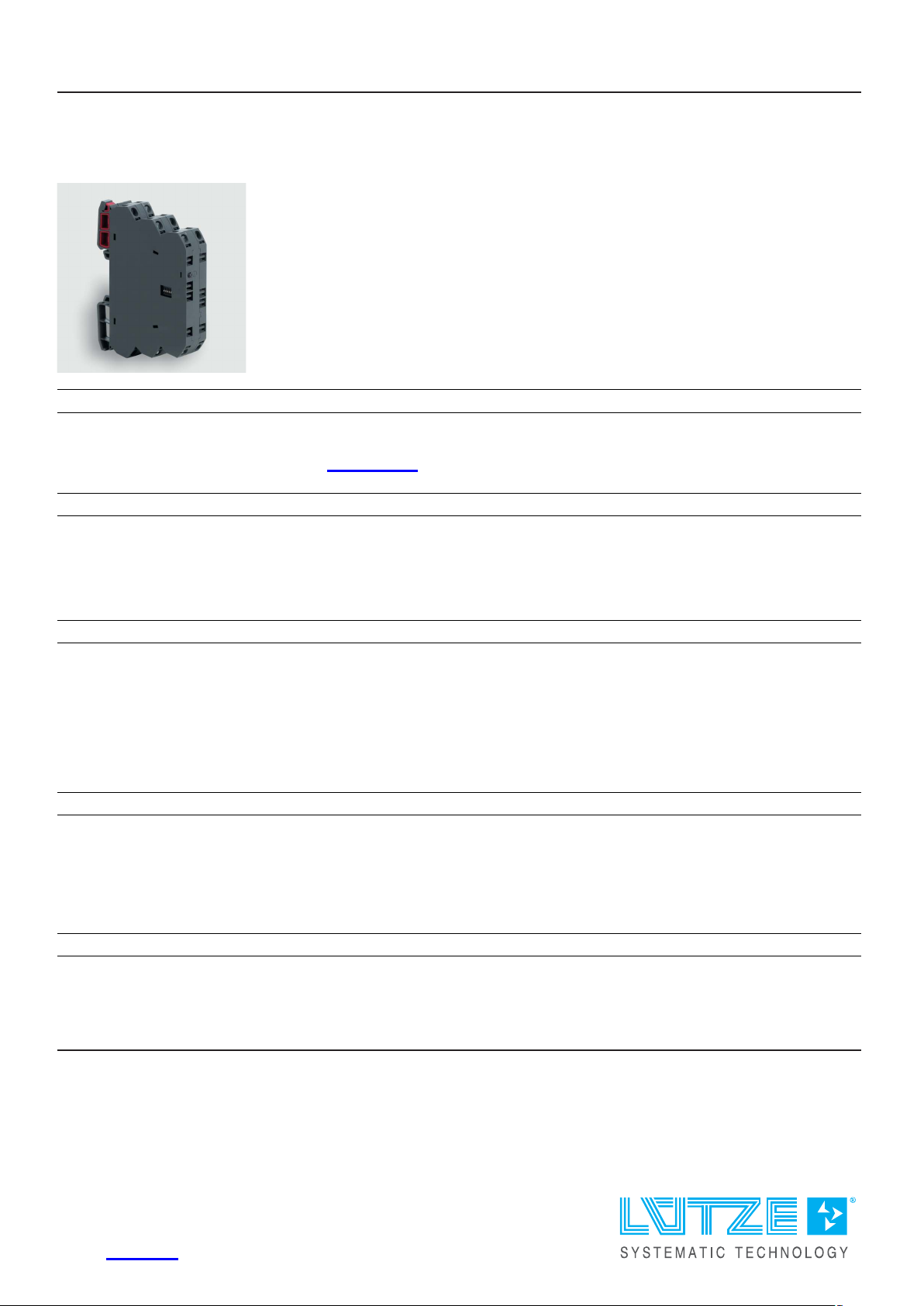

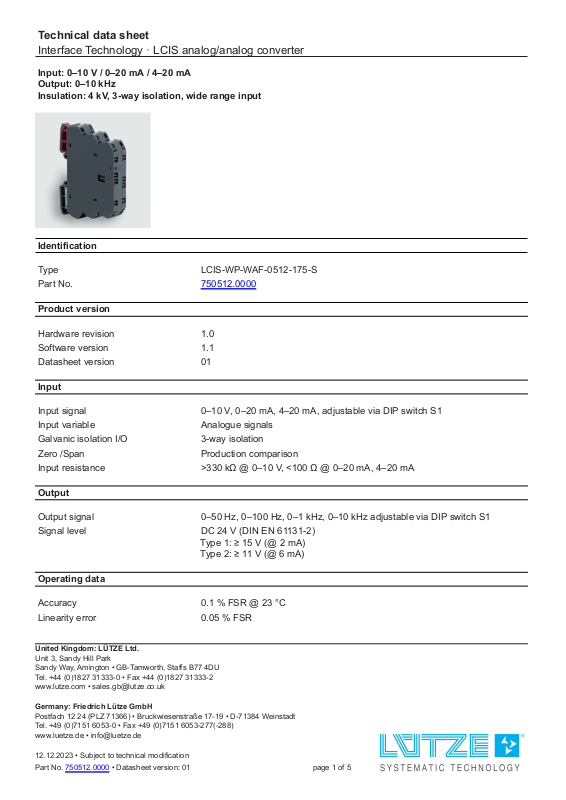

Technical data sheet
Interface Technology · LCIS analog/analog converter
Input: 0–10 V / 0–20 mA / 4–20 mA
Output: 0–10 kHz
Insulation: 4 kV, 3-way isolation, wide range input
Identification
Type LCIS-WP-WAF-0512-175-S
Part No.
Product version
750512.0000
Hardware revision 1.0
Software version 1.1
Datasheet version 01
Input
Input signal 0–10 V, 0–20 mA, 4–20 mA, adjustable via DIP switch S1
Input variable Analogue signals
Galvanic isolation I/O 3-way isolation
Zero /Span Production comparison
Input resistance >330 kΩ @ 0–10 V, <100 Ω @ 0–20 mA, 4–20 mA
Output
Output signal 0–50 Hz, 0–100 Hz, 0–1 kHz, 0–10 kHz adjustable via DIP switch S1
Signal level DC 24 V (DIN EN 61131-2)
Type 1: ≥ 15 V (@ 2 mA)
Type 2: ≥ 11 V (@ 6 mA)
Operating data
Accuracy 0.1 % FSR @ 23 °C
Linearity error 0.05 % FSR
United Kingdom: LÜTZE Ltd.
Unit 3, Sandy Hill Park
Sandy Way, Amington
• GB-Tamworth, Staffs B77 4DU
Tel. +44 (0)1827 31333-0
• Fax +44 (0)1827 31333-2
www.lutze.com
• [email protected]
Germany: Friedrich Lütze GmbH
Postfach 12 24 (PLZ 71366)
• Bruckwiesenstraße 17-19
• D-71384 Weinstadt
Tel. +49 (0)7151 6053-0
• Fax +49 (0)7151 6053-277(-288)
www.luetze.de
• [email protected]
12.12.2023 • Subject to technical modification
Part No.
750512.0000 • Datasheet version: 01 page 1 of 5

Technical data sheet
Interface Technology · LCIS analog/analog converter
Rise time (10-90%) frequency-dependent
Build-up time (Accuracy 1%) frequency-dependent
Temperature coefficient <150 ppm / K FSR
Critical frequency 30 Hz @ 3 dB
Transmission frequency frequency-dependent
General
Rated voltage U
N
AC/DC 24–240 V
Current Consumption 22 mA
Status indication LED green
Input/output protection Overvoltage, current input with PTC fuse, short circuit-proof output
Insulation voltage input / output 4.0 kV
eff
Housing material PA 6.6 (UL 94 V-0, NFF I2, F2)
Color of the housing RAL 7012
basalt grey
Mounting DIN rail mountable TS35
(EN 60715)
Degree of protection IP20
Installation position Any
Connection type Screwed terminal
single wire
0.25 mm² – 2.5 mm² / AWG 24–14
fine stranded wire with ferrule
0.25 mm² – 1.5 mm² / AWG 24–16
Strip length 6 mm
Dimensions (w × h × d) 6.2 mm × 93.0 mm × 73.0 mm
Weight/unit 0.058 kg
PU (units) 1
General ambient conditions
Operation temperature range -25 °C . .. +60 °C
Storage temperature range -40 °C . .. +80 °C
Relative air humidity 20 – 90 % RH, not condensing
Vibration resistance 0.7 g acc. to EN 60068-2-6
Failure Rate Prediction (MTBF)
Standards
Electronic components – Reliability – Reference conditions for failure rates
and stress models for conversion: EN/IEC 61709
Failure Rates of Components – Expected values: SN 29500
Failure rate at +45 °C 724 fit
Failure rate at +45 °C 1381278 h
1 fit equals one failure per 109component hours
The indicated temperature is the mean component ambient temperature.
Comments The results are valid under following conditions:
Automotive environment or industrial areas without extreme dust levels and
harmful substances
Continuous operation 8760 h per year
12.12.2023 – Subject to technical modification
Part No.
750512.0000 • Datasheet version: 01 page 2 of 5

Technical data sheet
Interface Technology · LCIS analog/analog converter
Certifications/Standards
Conformity CE
UKCA
Certifications cULus (E135145)
DNV (TAA000024Y)
Standards EN 60947-1
EN 60947-5-1
EN 61000-6-2
EN 61000-6-4
UL 508
DNV-CG-0339

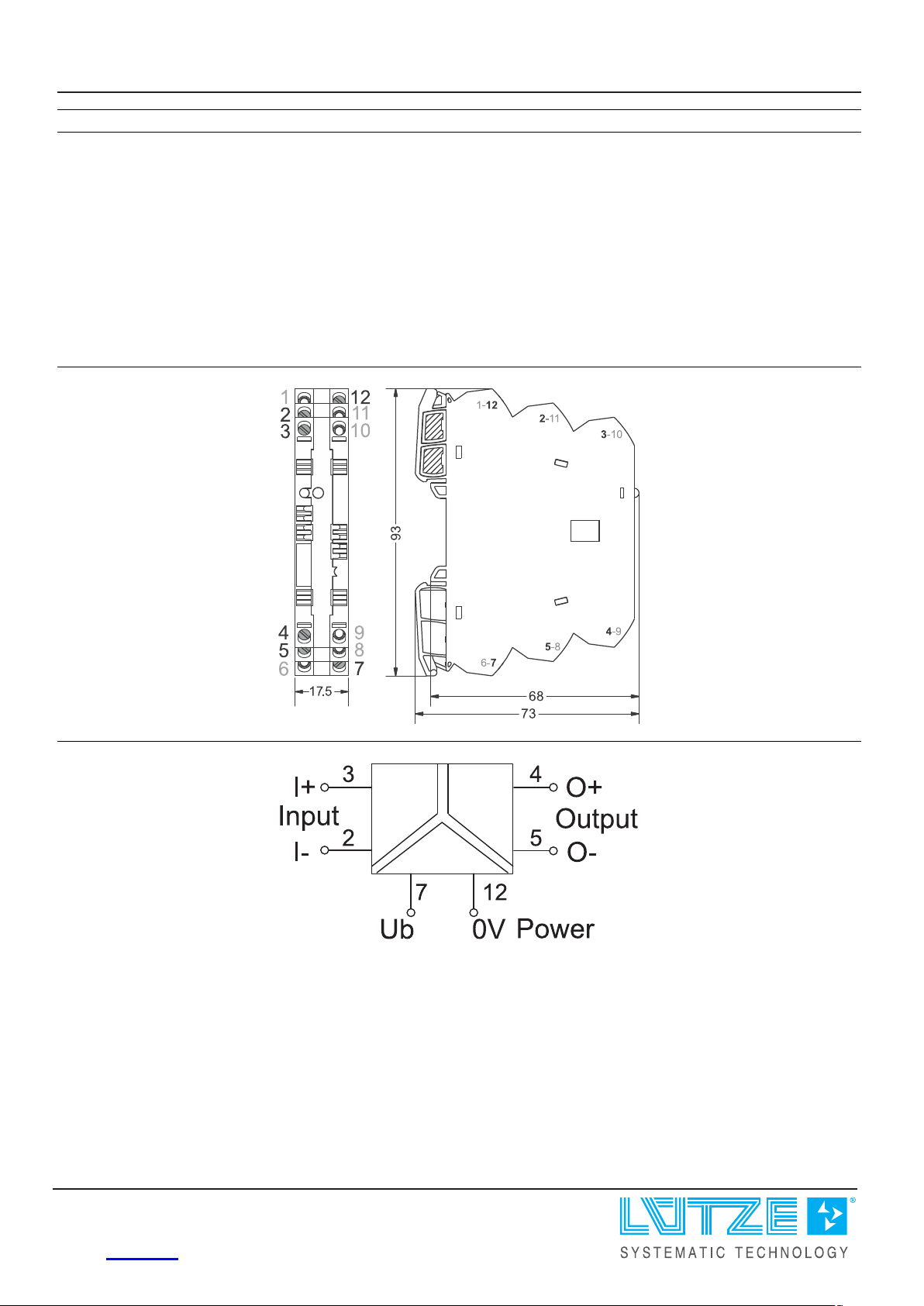

Dimensions
PIN assignment
12.12.2023 – Subject to technical modification
Part No. 750512.0000 • Datasheet version: 01 page 3 of 5

Technical data sheet
Interface Technology · LCIS analog/analog converter

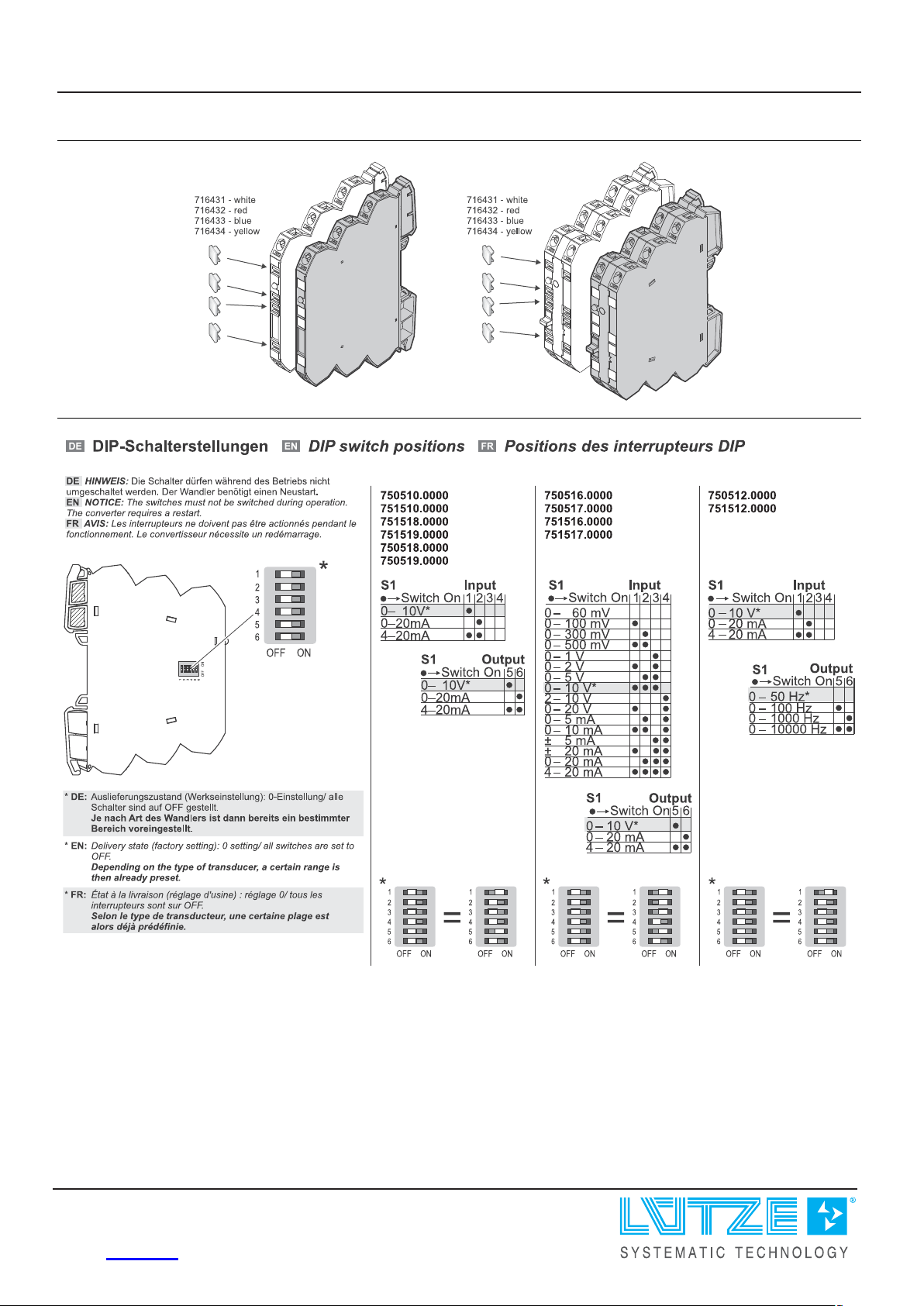

Use
Use
12.12.2023 – Subject to technical modification
Part No.
750512.0000 • Datasheet version: 01 page 4 of 5

Technical data sheet
Interface Technology · LCIS analog/analog converter

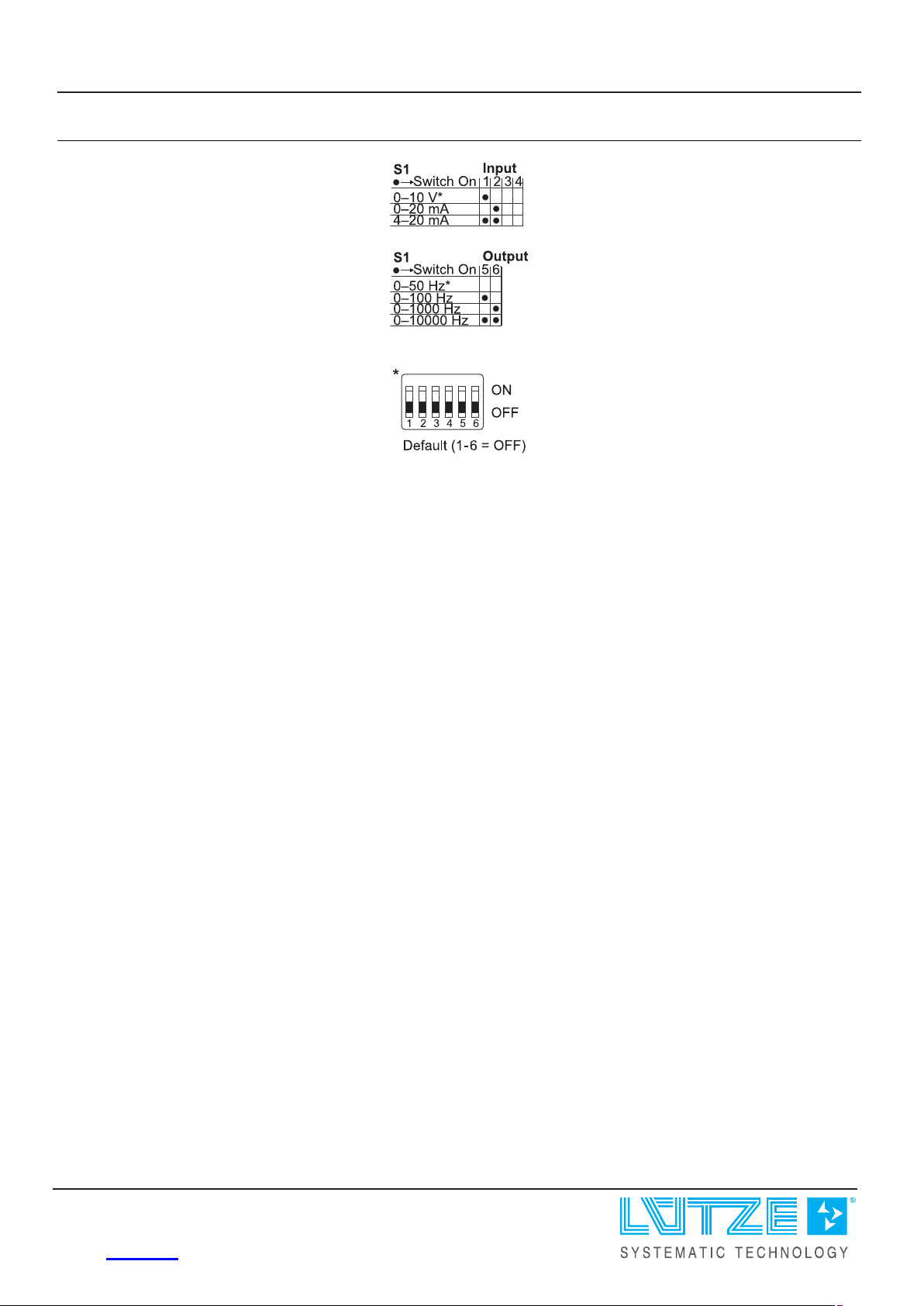

Range adjustment
12.12.2023 – Subject to technical modification
