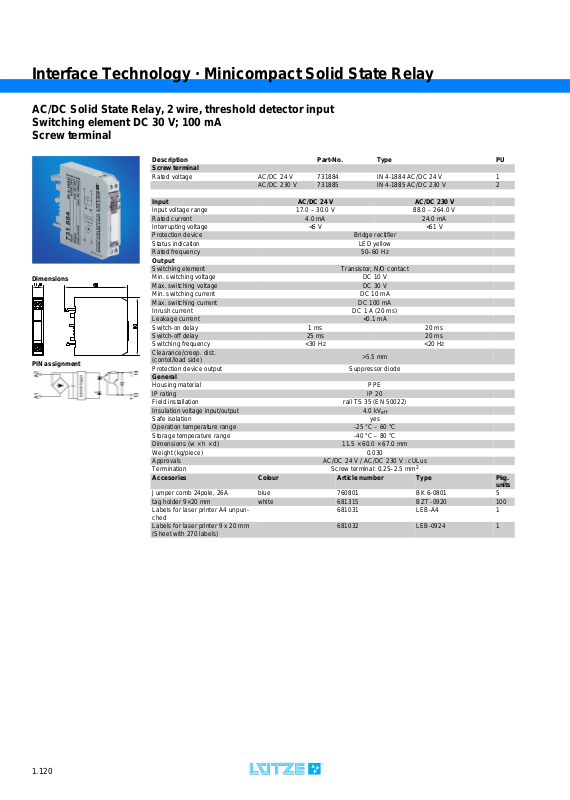

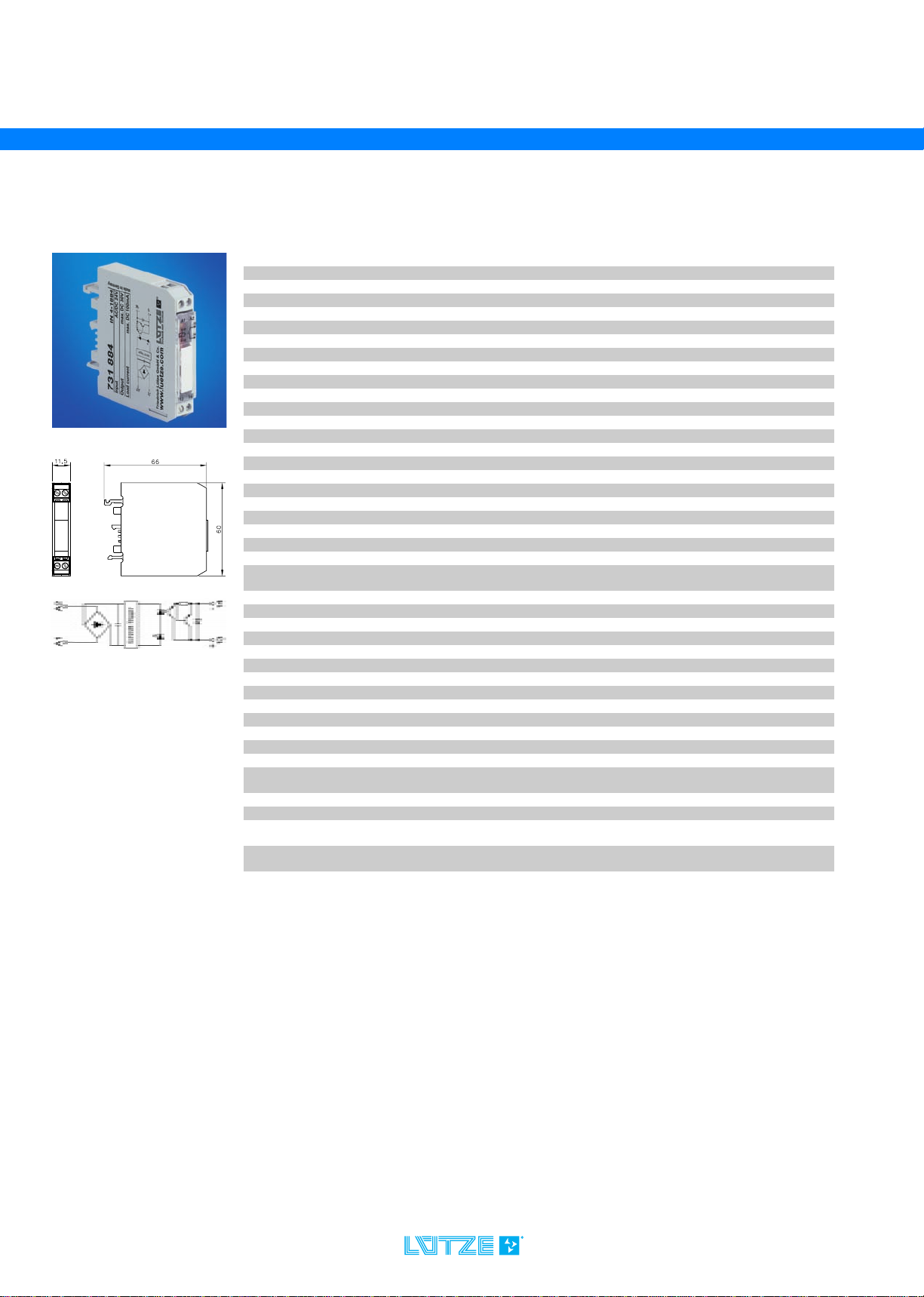

Interface Technology · Minicompact Solid State Relay
AC/DC Solid State Relay, 2 wire, threshold detector input
Switching element DC 30 V; 100 mA
Screw terminal
Description Part-No. Type PU
Screw terminal
Dimensions
PIN assignment
Rated voltage AC/DC 24 V 731884 IN 4-1884 AC/DC 24 V 1
Input AC/DC 24 V AC/DC 230 V
Input voltage range 17.0 – 30.0 V 88.0 – 264.0 V
Rated current 4.0 mA 24.0 mA
Interrupting voltage <6 V <61 V
Protection device Bridge rectifier
Status indication LED yellow
Rated frequency 50–60 Hz
Output
Switching element Transistor, N/O contact
Min. switching voltage DC 10 V
Max. switching voltage DC 30 V
Min. switching current DC 10 mA
Max. switching current DC 100 mA
Inrush current DC 1 A (20 ms)
Leakage current <0.1 mA
Switch-on delay 1 ms 20 ms
Switch-off delay 25 ms 20 ms
Switching frequency <30 Hz <20 Hz
Clearance/creep. dist.
(contol/load side)
Protection device output Suppressor diode
General
Housing material PPE
IP rating IP 20
Field installation rail TS 35 (EN 50022)
Insulation voltage input/output 4.0 kV
Safe isolation yes
Operation temperature range -25 °C – 60 °C
Storage temperature range -40°C–80°C
Dimensions (w × h × d) 11.5 × 60.0 × 67.0 mm
Weight (kg/piece) 0.030
Approvals AC/DC 24 V / AC/DC 230 V : cULus
Termination Screw terminal: 0.25–2.5 mm
Accesories Colour Article number Type Pkg.
Jumper comb 24pole, 26A blue 760801 BK 6-0801 5
tag holder 9×20 mm white 681315 BZT -0920 100
Labels for laser printer A4 unpun-
ched
Labels for laser printer 9 x 20 mm
(Sheet with 270 labels)
AC/DC 230 V 731885 IN 4-1885 AC/DC 230 V 2
>5.5 mm
eff
2
681031 LEB-A4 1
681032 LEB-0924 1
units
1.120
