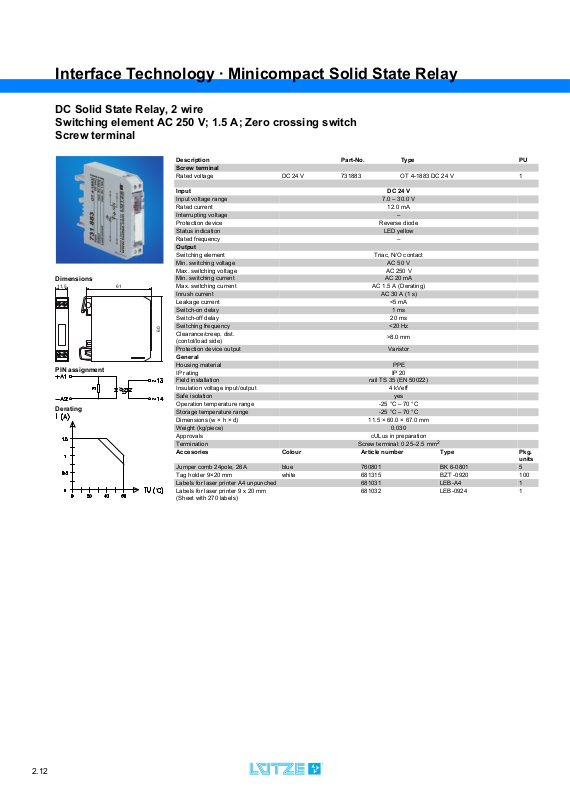

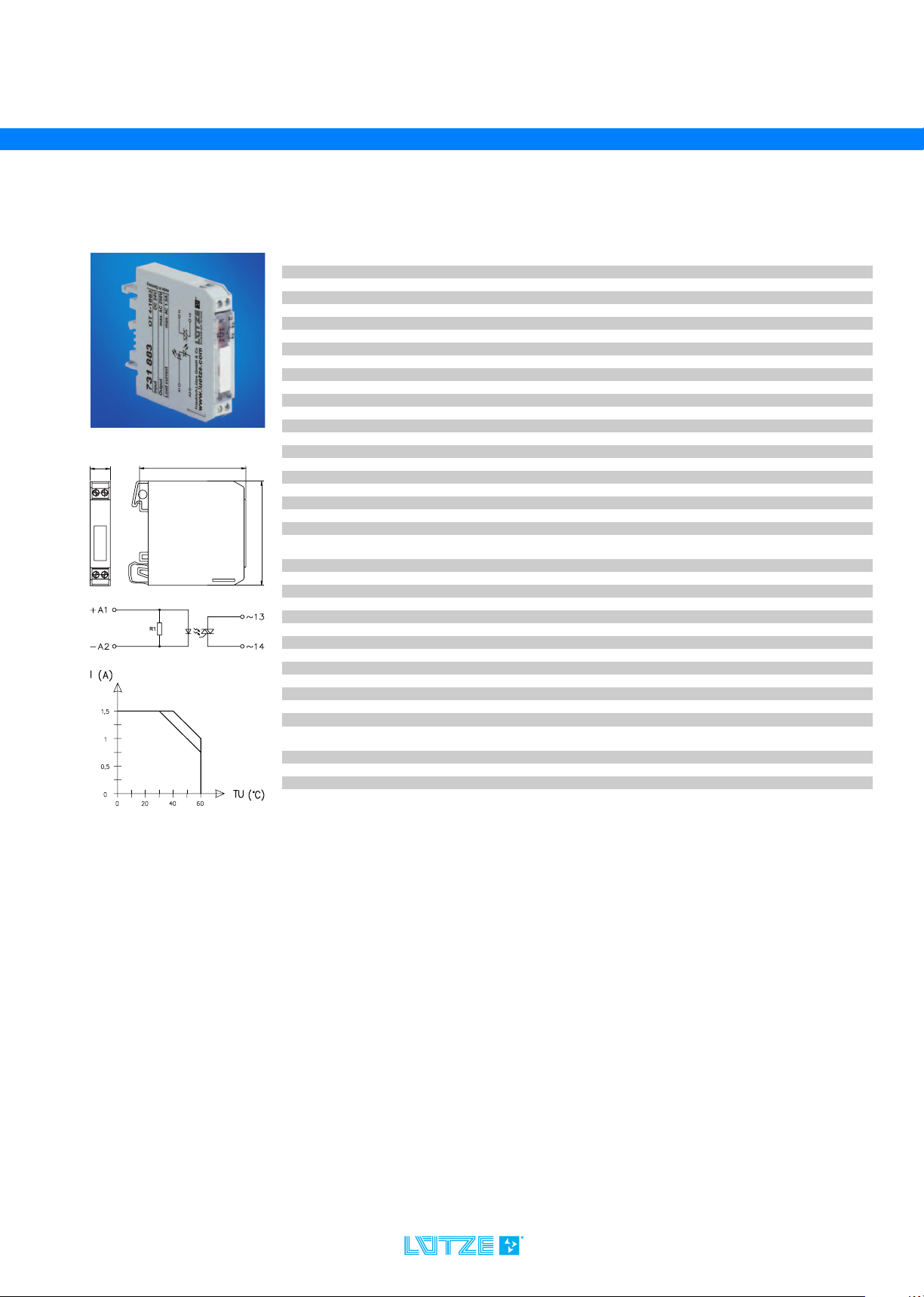

Interface Technology · Minicompact Solid State Relay
DC Solid State Relay, 2 wire
Switching element AC 250 V; 1.5 A; Zero crossing switch
Screw terminal
Description Part-No. Type PU
Screw terminal
Rated voltage DC 24 V 731883 OT 4-1883 DC 24 V 1
Input DC 24 V
Input voltage range 7.0–30.0V
Rated current 12.0 mA
Interrupting voltage –
Protection device Reverse diode
Status indication LED yellow
Rated frequency –
Output
Switching element Triac, N/O contact
Min. switching voltage AC 50 V
Max. switching voltage AC 250 V
Dimensions
11,5
PIN assignment
Derating
61
Min. switching current AC 20 mA
Max. switching current AC 1.5 A (Derating)
Inrush current AC 30 A (1 s)
Leakage current <5 mA
Switch-on delay 1 ms
Switch-off delay 20 ms
Switching frequency <20 Hz
60
Clearance/creep. dist.
(contol/load side)
Protection device output Varistor
General
Housing material PPE
IP rating IP 20
Field installation rail TS 35 (EN 50022)
Insulation voltage input/output 4 kVeff
Safe isolation yes
Operation temperature range -25 °C – 70 °C
Storage temperature range -25 °C – 70 °C
Dimensions (w × h × d) 11.5 × 60.0 × 67.0 mm
Weight (kg/piece) 0.030
Approvals cULus in preparation
Termination
Accesories Colour Article number Type Pkg.
Jumper comb 24pole, 26A blue 760801 BK 6-0801 5
Tag holder 9×20 mm white 681315 BZT -0920 100
Labels for laser printer A4 unpunched 681031 LEB-A4 1
Labels for laser printer 9 x 20 mm
(Sheet with 270 labels)
Screw terminal: 0.25–2.5 mm
>8.0 mm
2
681032 LEB-0924 1
units
2.12
